Summary
17" computer monitor. Very high spec for its size, with a 95 kHz horizontal scan rate. Advertised as displaying 1600x1200 at 75 Hz.
Manuals
Notes

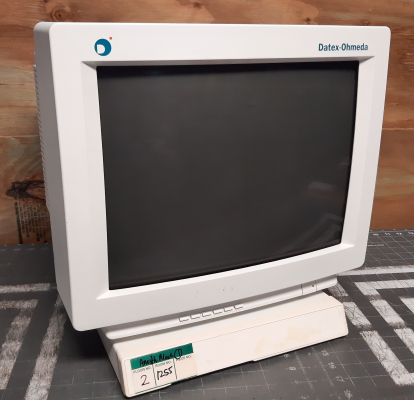

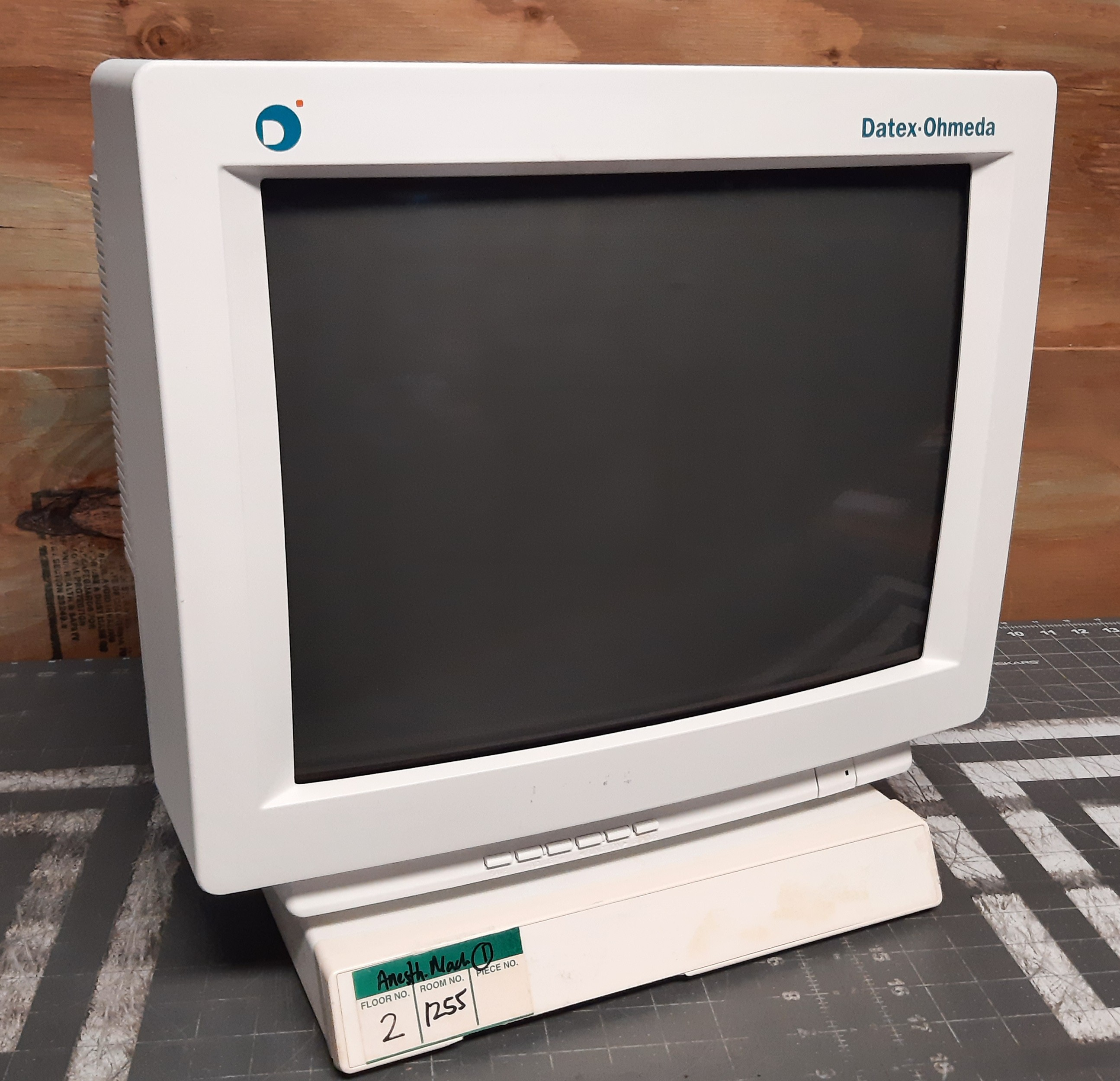

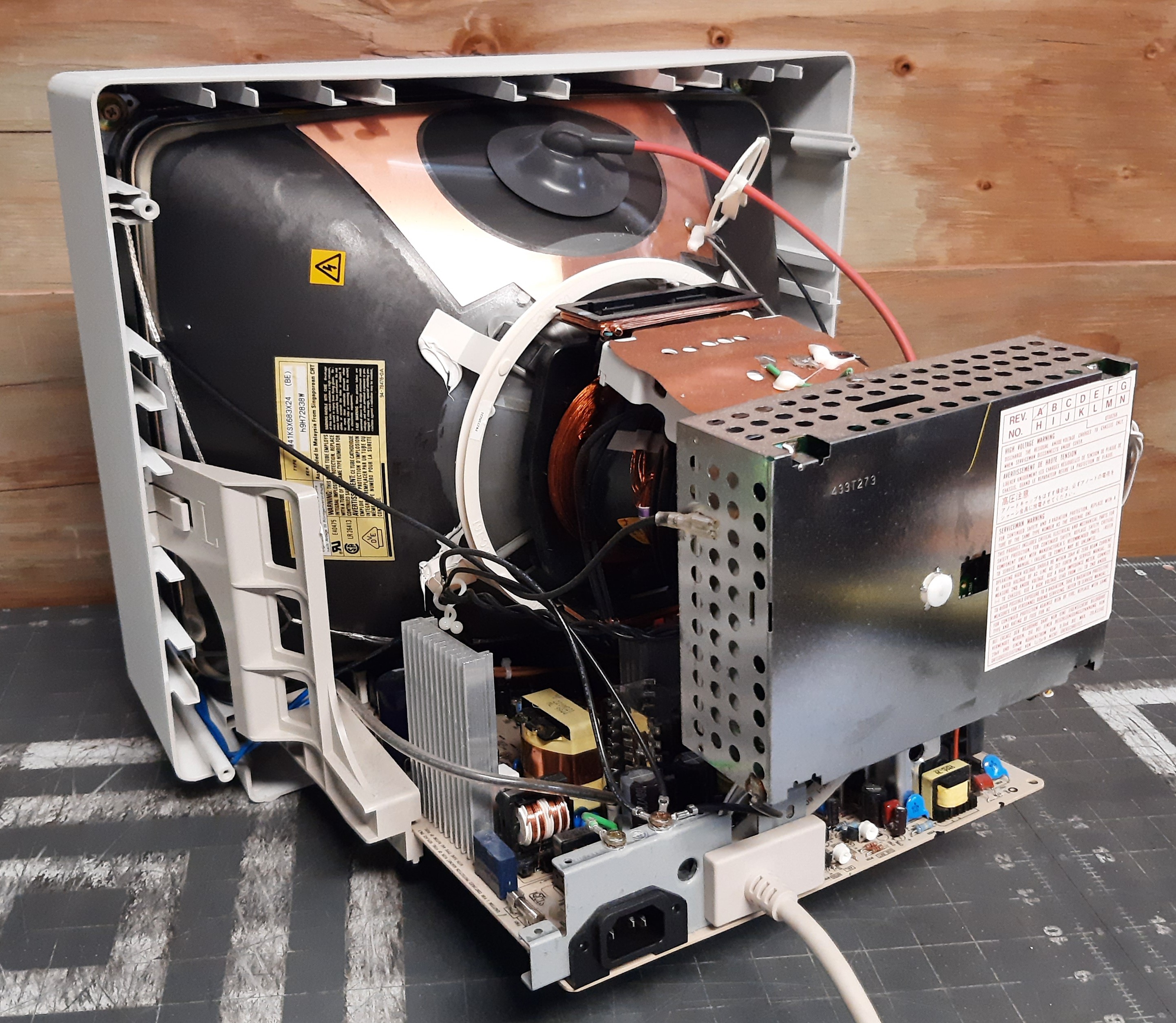

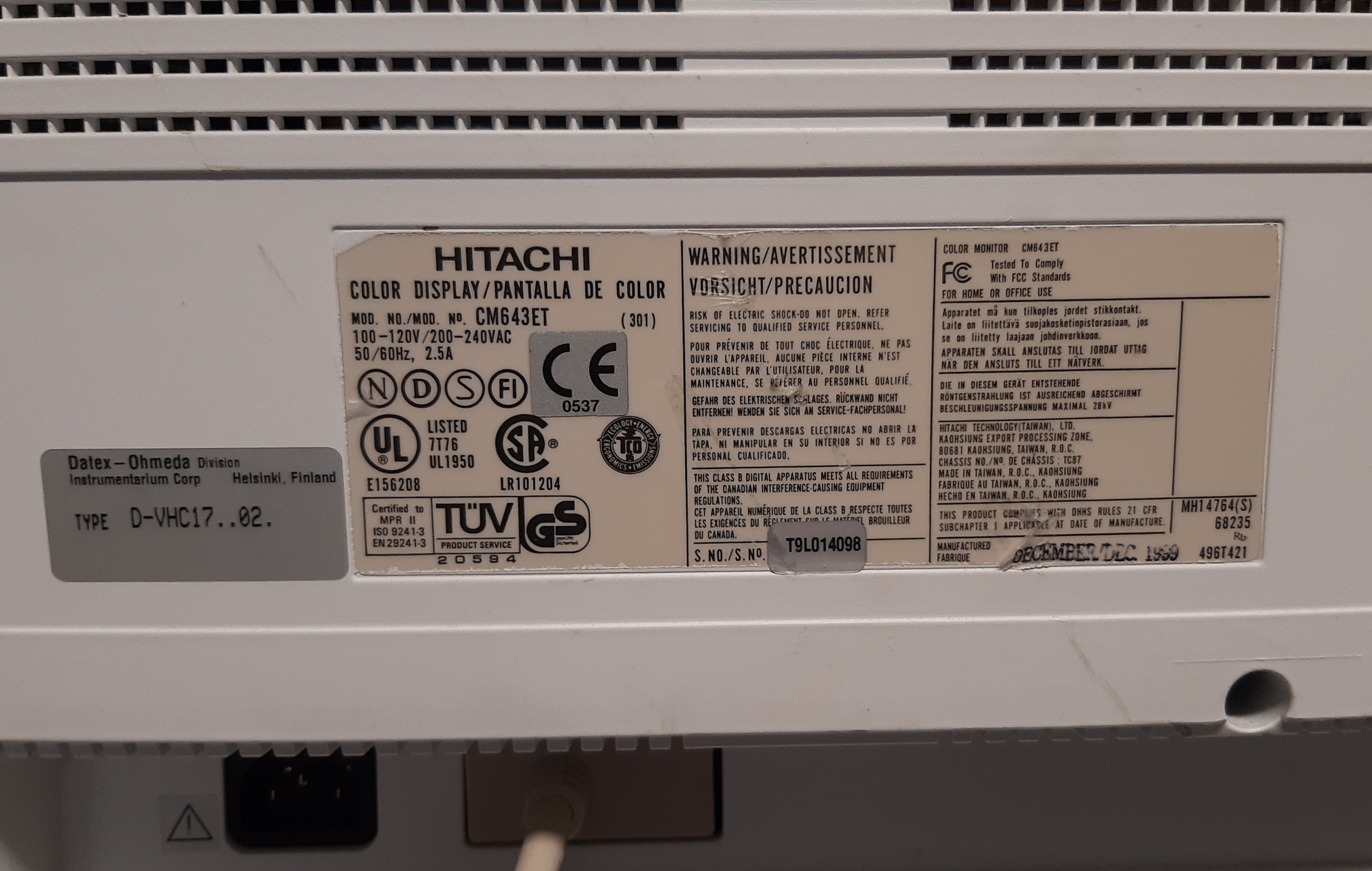

The monitor in these photos is a medical variant, sold by Finnish company Datex-Ohmeda for use with anesthesia devices. It differs from the stock monitor by having a white case, a heavy metal base, and additional internal grounding.

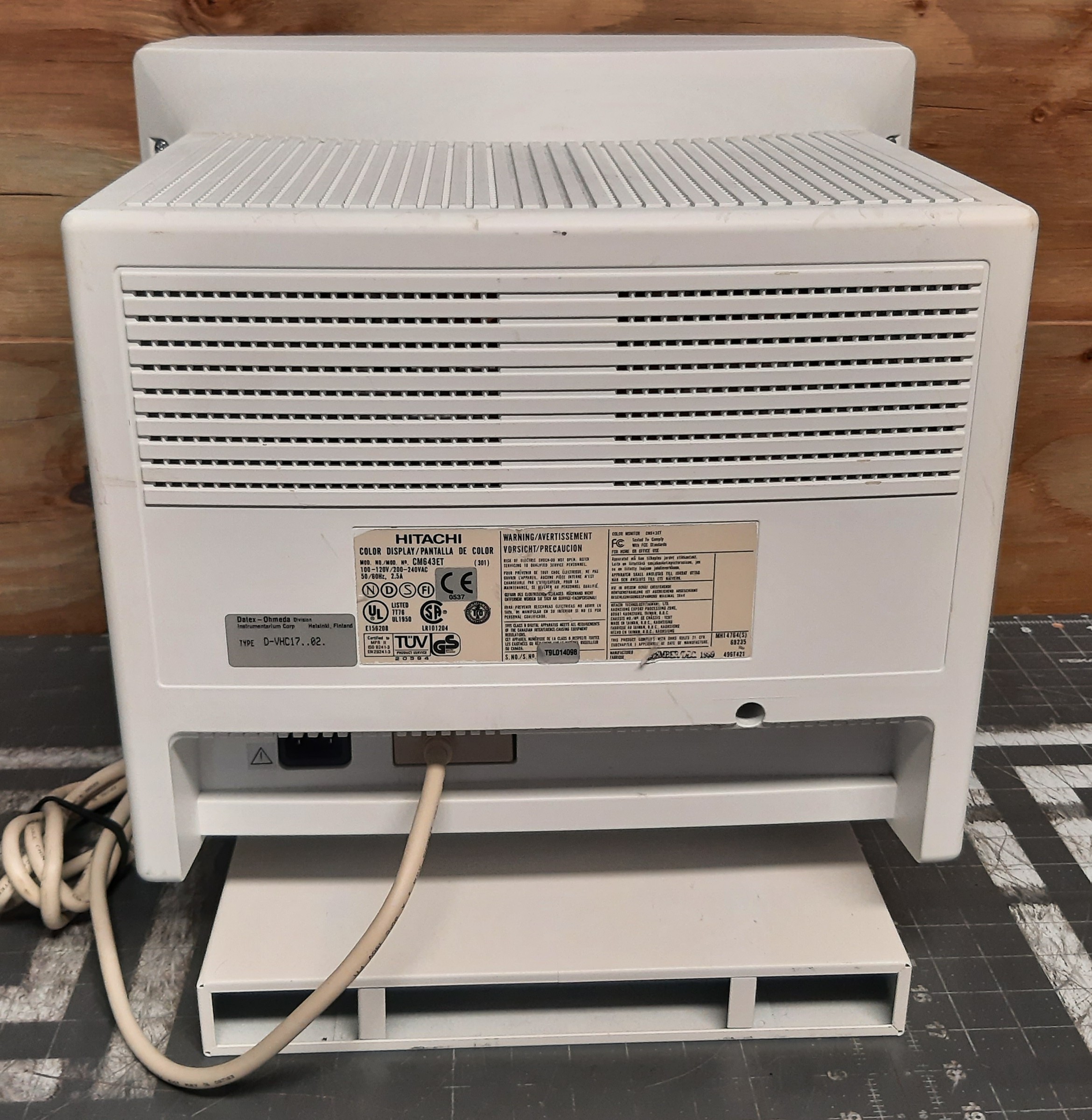

Gallery
| Specifications | |
|---|---|
| Brand: | Hitachi |
| Manufacturer: | Hitachi |
| Model: | CM643ET |
| Series: | SuperScan |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal Scan Range: | 31 kHz, 95 kHz |
| Vertical Scan Range: | 50 Hz, 130 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Vertical Output IC: | TDA8172 |
| Flyback: | Y265385 |
| Tube: | Hitachi , M41KSX683X24 , M41KSX683X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.26 mm, .26 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 89212716 |
| Yoke Horz. Inductance: | 0.10875 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 4.818 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.335 ohm |
| Yoke Vert. Resistance: | 7.66 ohm |
| Speakers: | None |
| Weight: | 37 lbs (16.8 kg) |
| Dimensions (W/H/D): |
412 x 402 x 413 mm
(16.2 x 15.8 x 16.2") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Taiwan |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Service Manual, Needs Pictures |
