JVC BM-H1300SU
Andy King
March 1, 2024, 2:42 am
March 1, 2024, 2:42 am
Summary

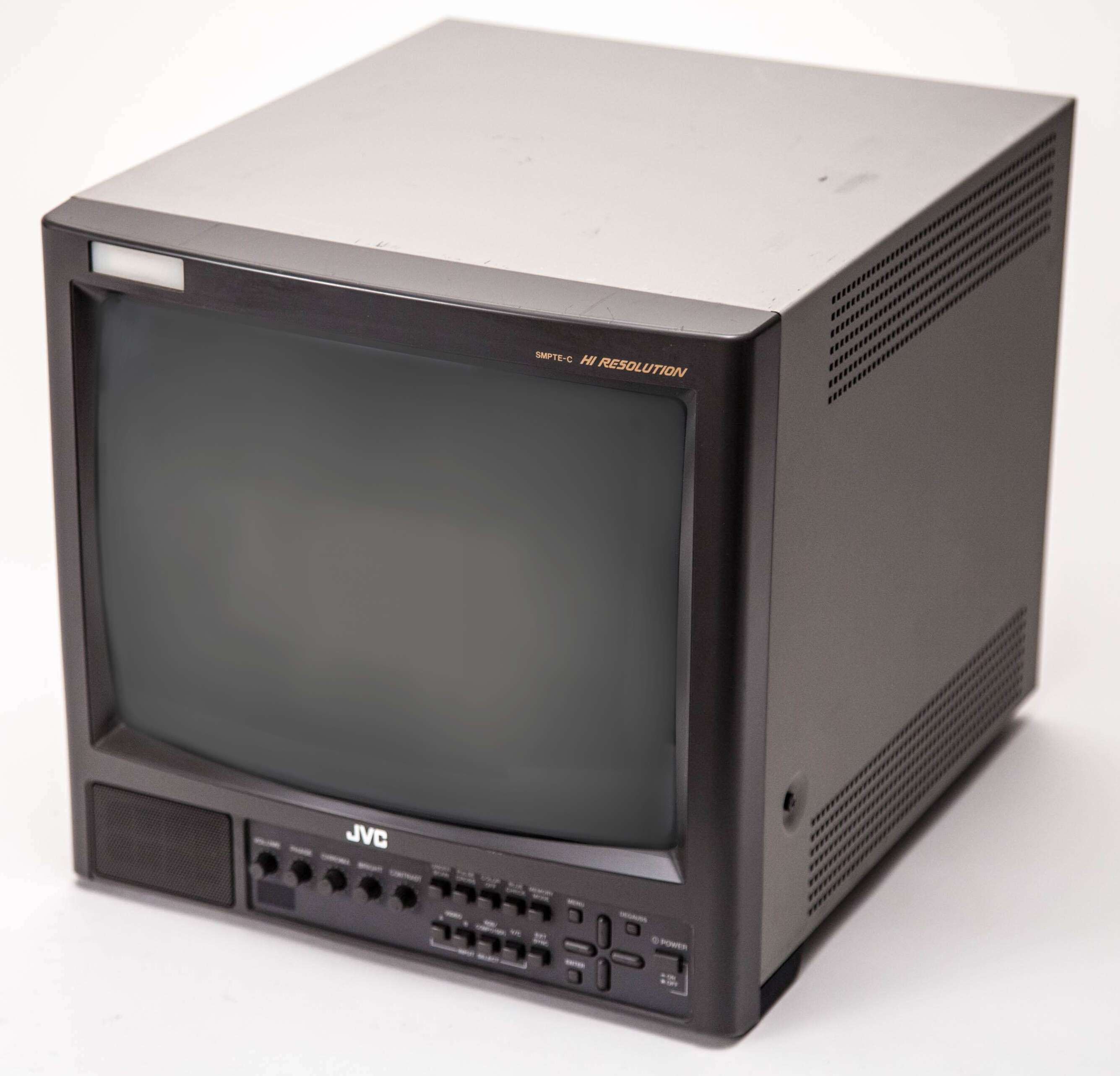

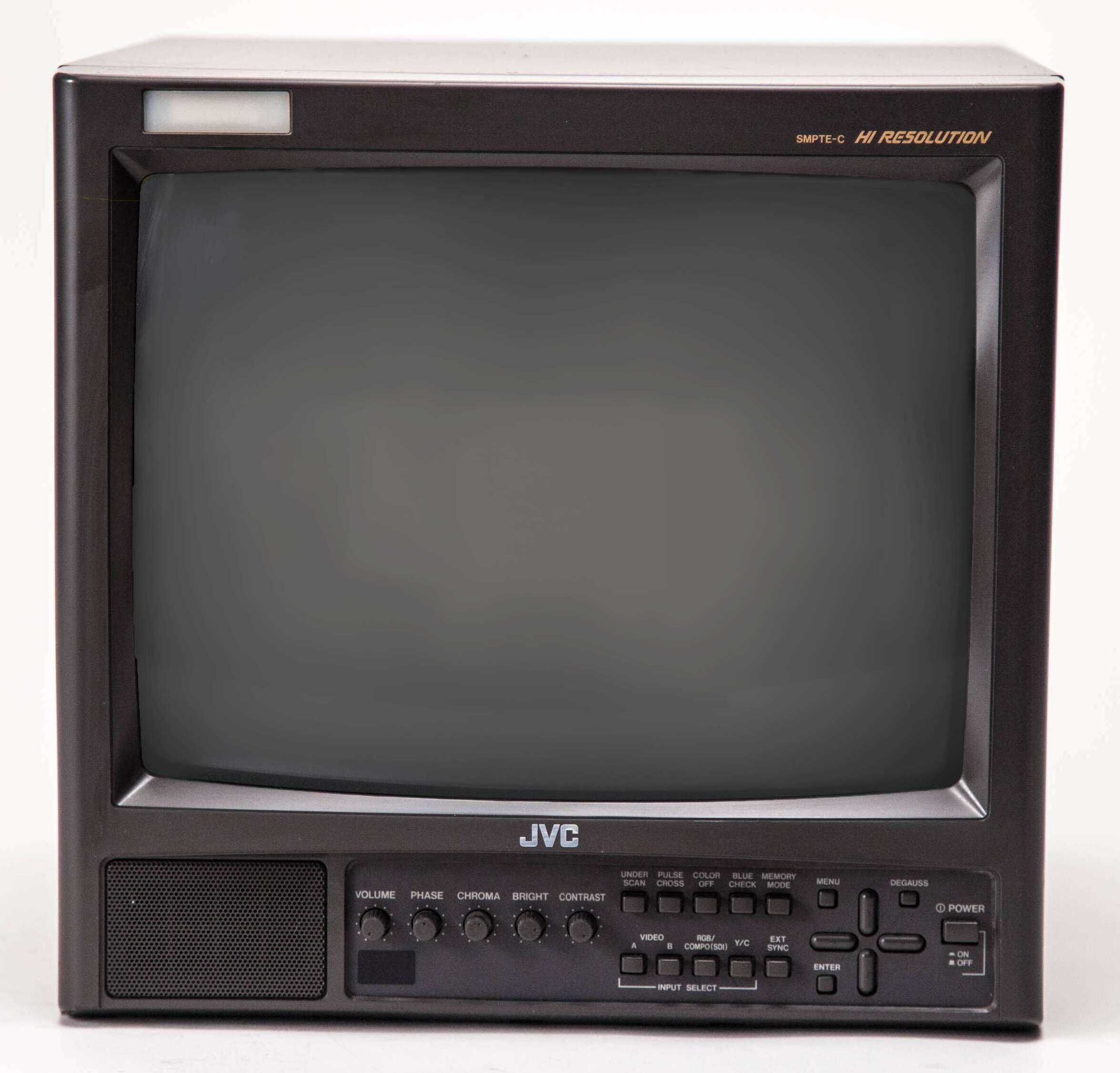

Excellent quality 13" broadcast monitor. There is a Panasonic rebrand of this monitor called the BT-H1390Y.
This monitor has beam current monitoring and supports all important types (RGB, Component, S-Video, Composite, and even SDI) as well as both NTSC and PAL.
The Panasonic tube inside is a stunning 750 TVL shadowmask (I have seen it referred to as 800 TVL elsewhere) which was later reproduced by Chunghwa for the BM-H1310SU. The main difference between the 1300 and 1310 (other than the tube) is the addition of SDI input.
Literature
Notes
The service menu can be accessed by pressing Menu and Enter at the same time. The service menu has adjustments for H/V size and H/V position, as well as white balance adjustment.

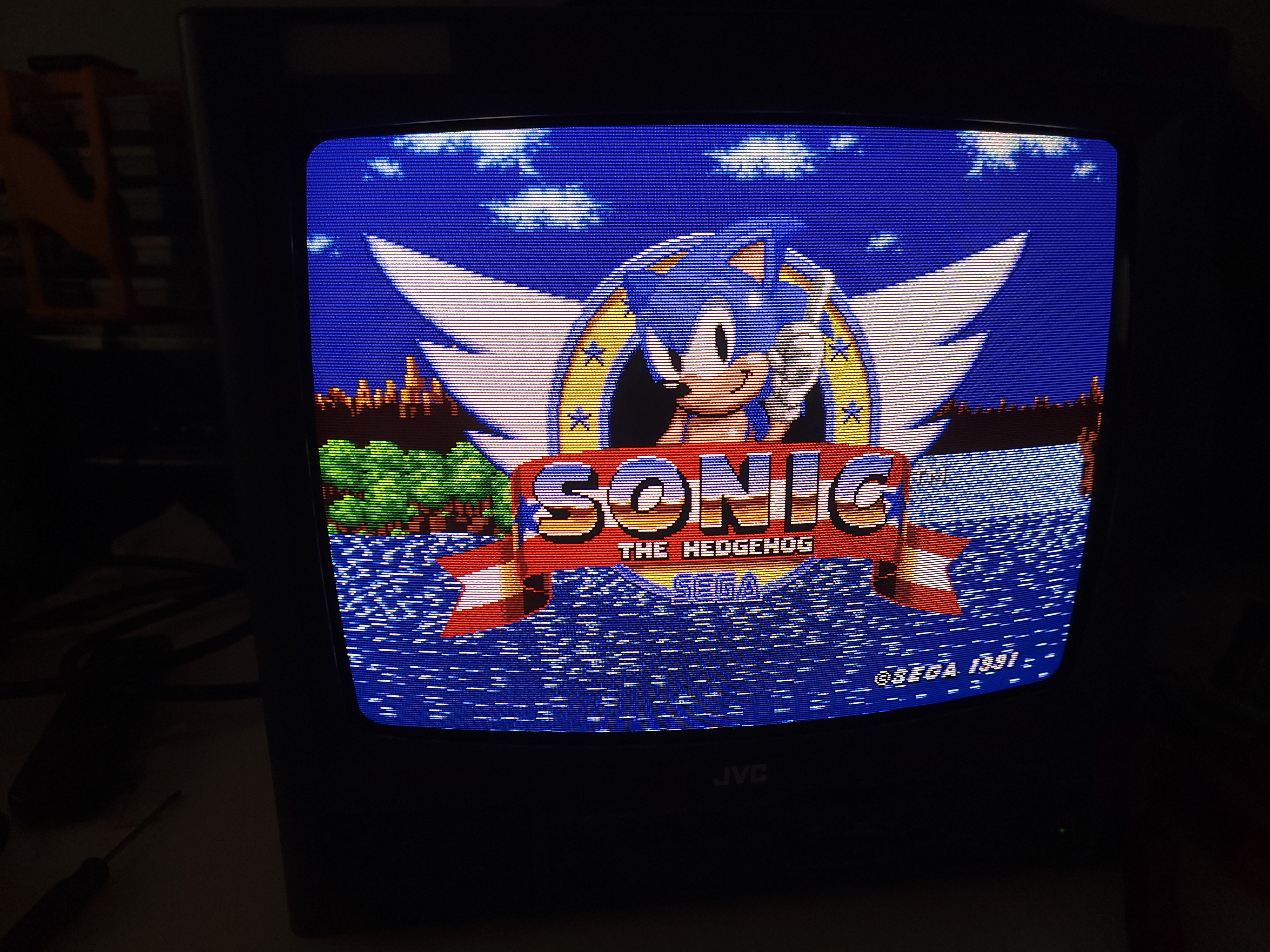

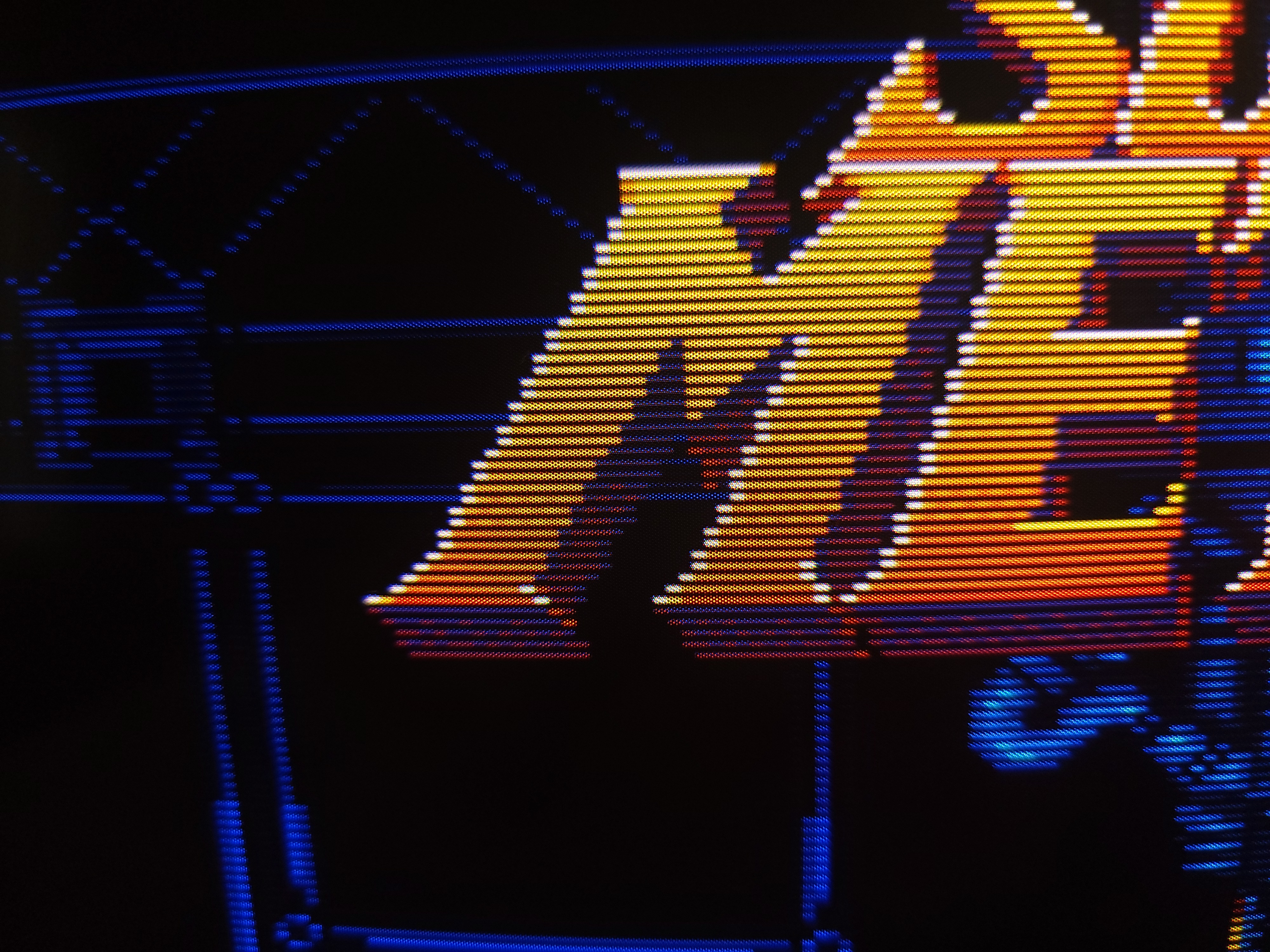

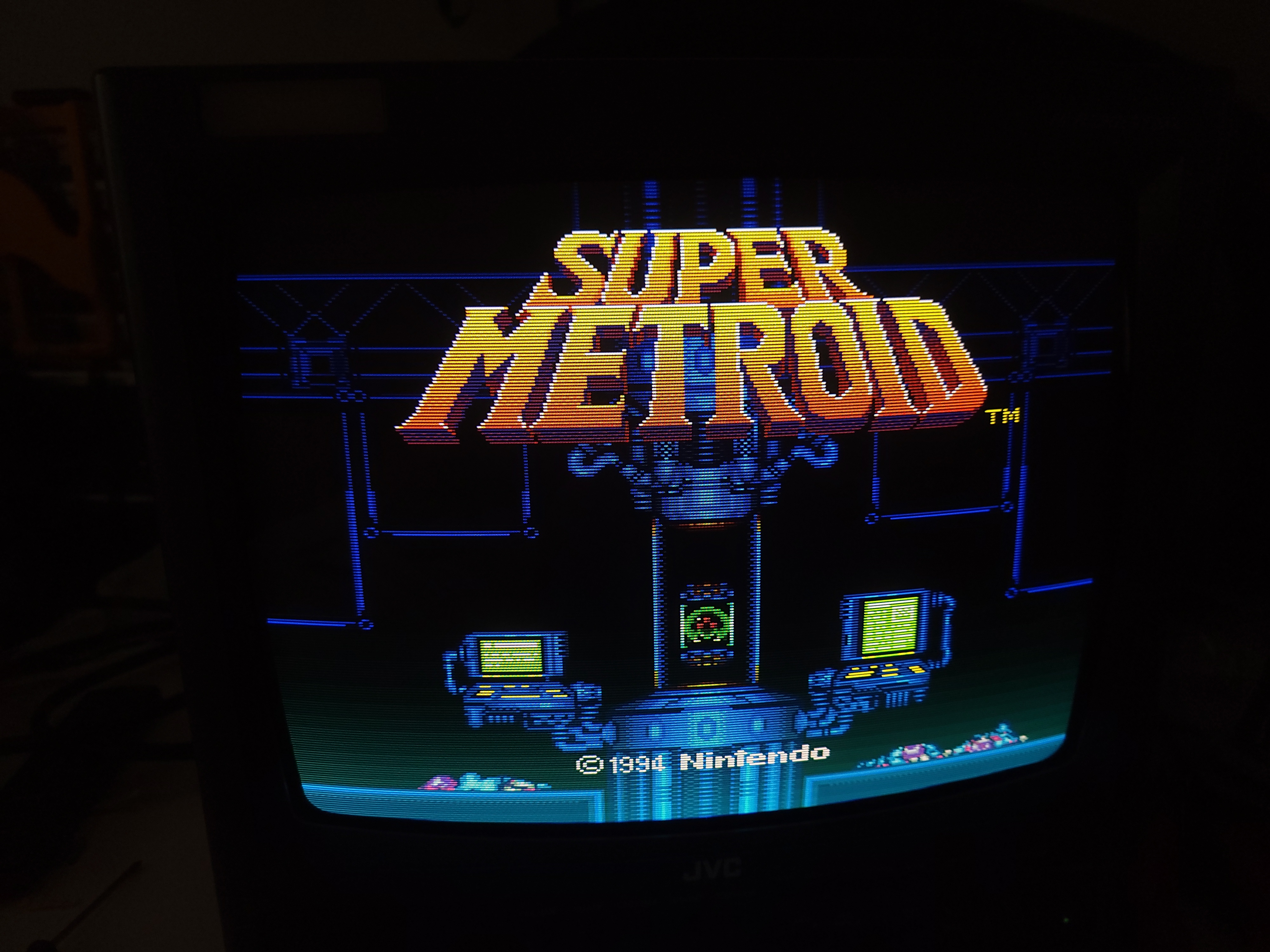

Gallery
Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | H1310SU |
Series: | BM |
Viewable Size: | 13" |

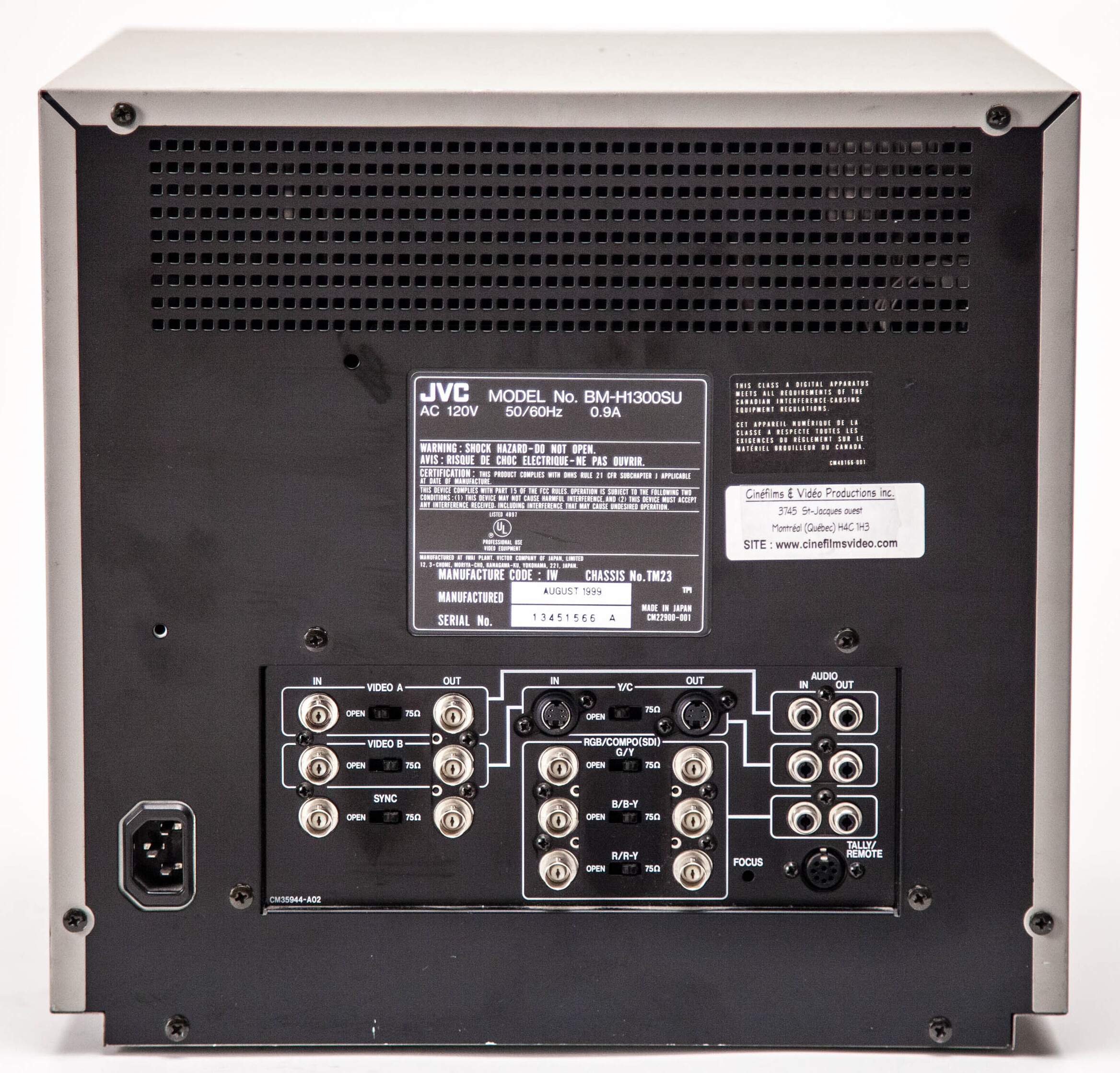

Inputs: | Composite, S-Video, Component YPbPr, RGB |
Sync: | CSYNC, Sync over Composite, Sync on Luma |
Resolutions: | 240p, 480i |
Linecount: | 750 TVL |
Horizontal Max: | 15 kHz |
Formats: | NTSC, PAL |
Aspect: | 4:3, 16:9 |
Expansions: | Input Cards |
Adjustments: | Internal Potentiometers, OSD Customer Controls, OSD Service Menu |
Tube: | Panasonic , M34KNZ092X/C |
Deflection: | 90 deg. |
Mask: | Shadow |
Pitch: | .28mm |
Speakers: | Mono |
Weight: | 35 lbs (16 kg) |
Application: | Professional |
Launched: | 1996 |
Country of Manufacture: | Japan |
Mounting: | Rackable |
Degaussing: | Automatic on Power-on, Manual |
