Summary

27" flat CRT TV from Sharp. Features a full set of inputs including RF, composite, s-video, and component.

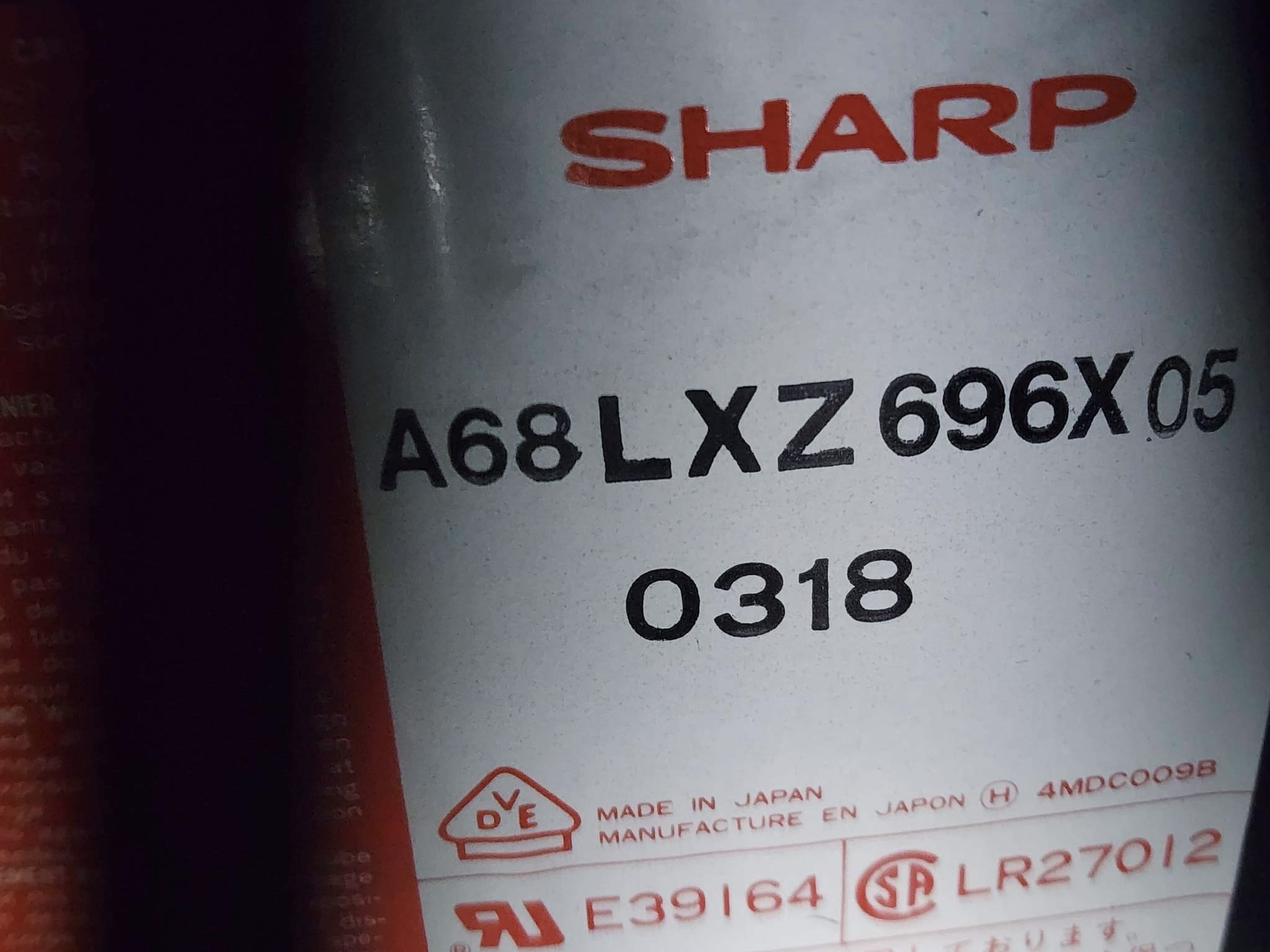

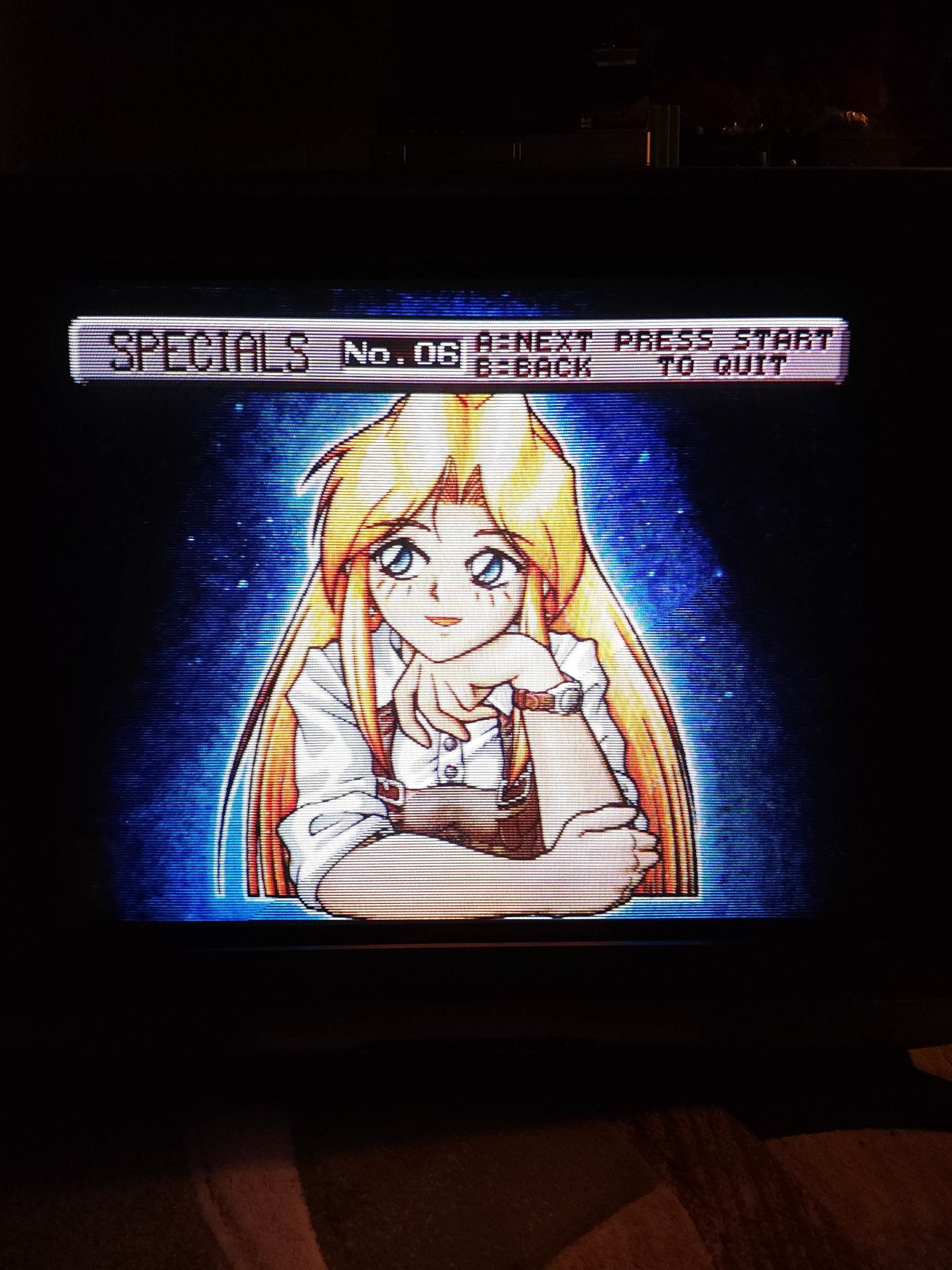

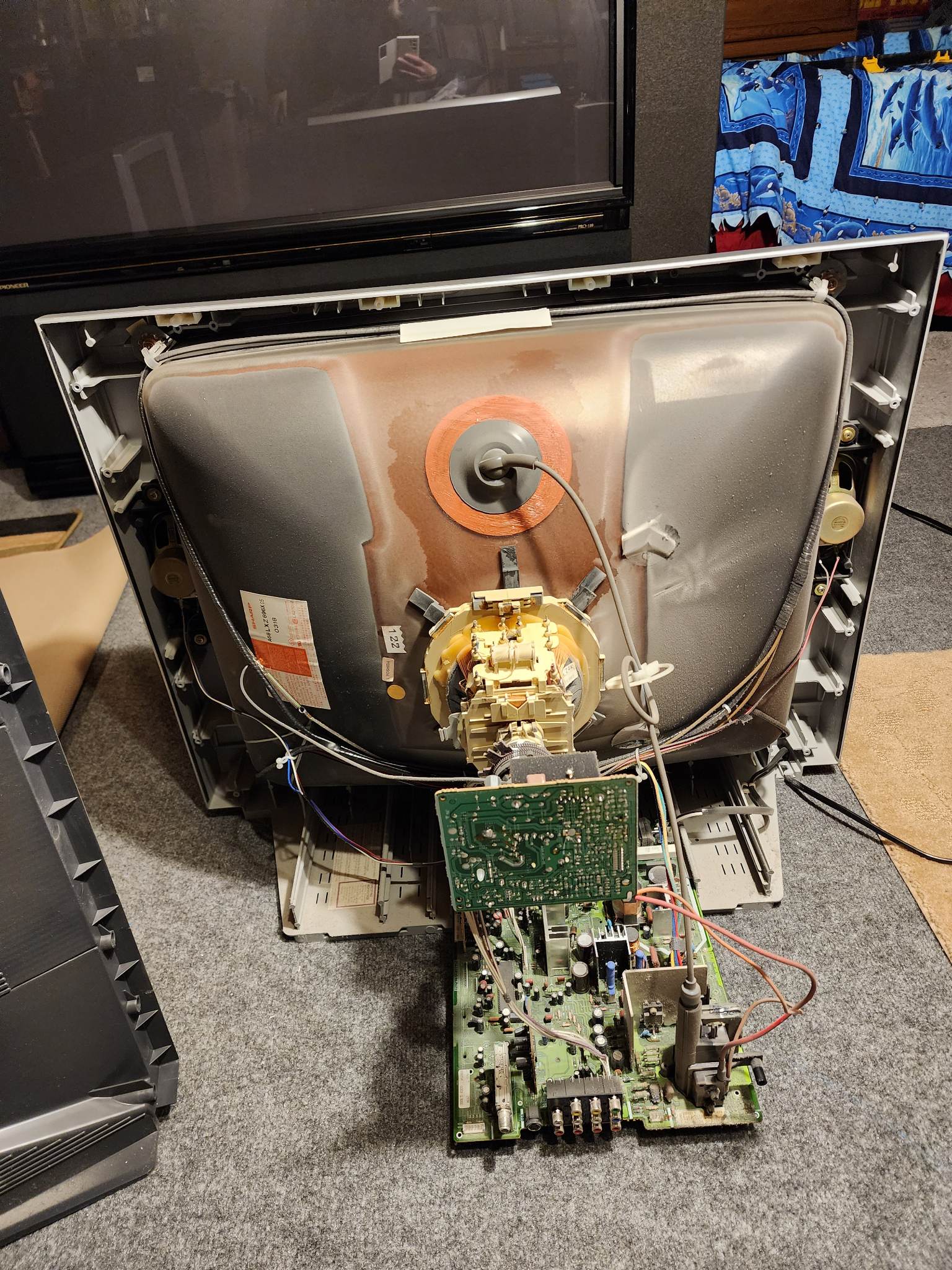

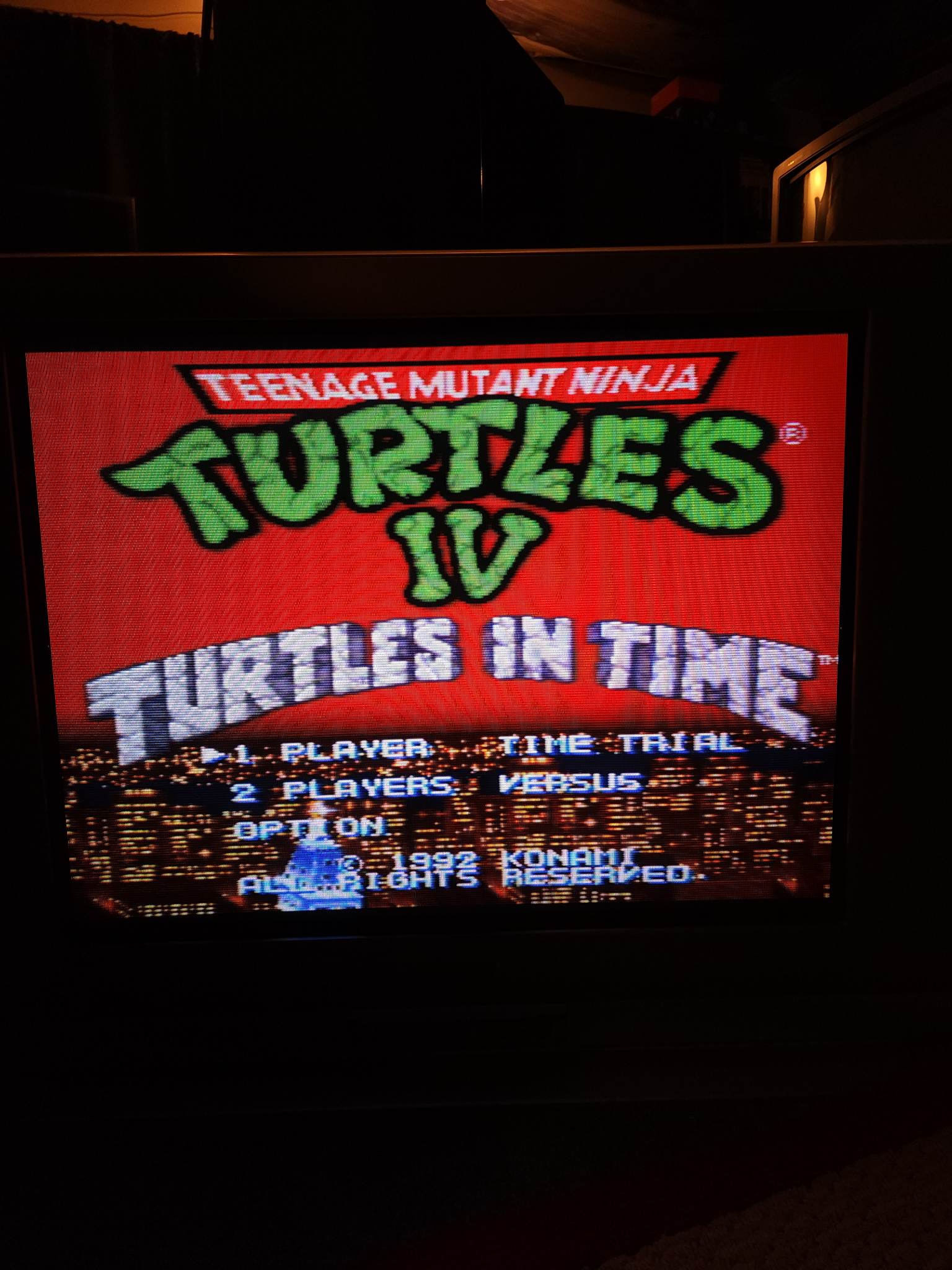

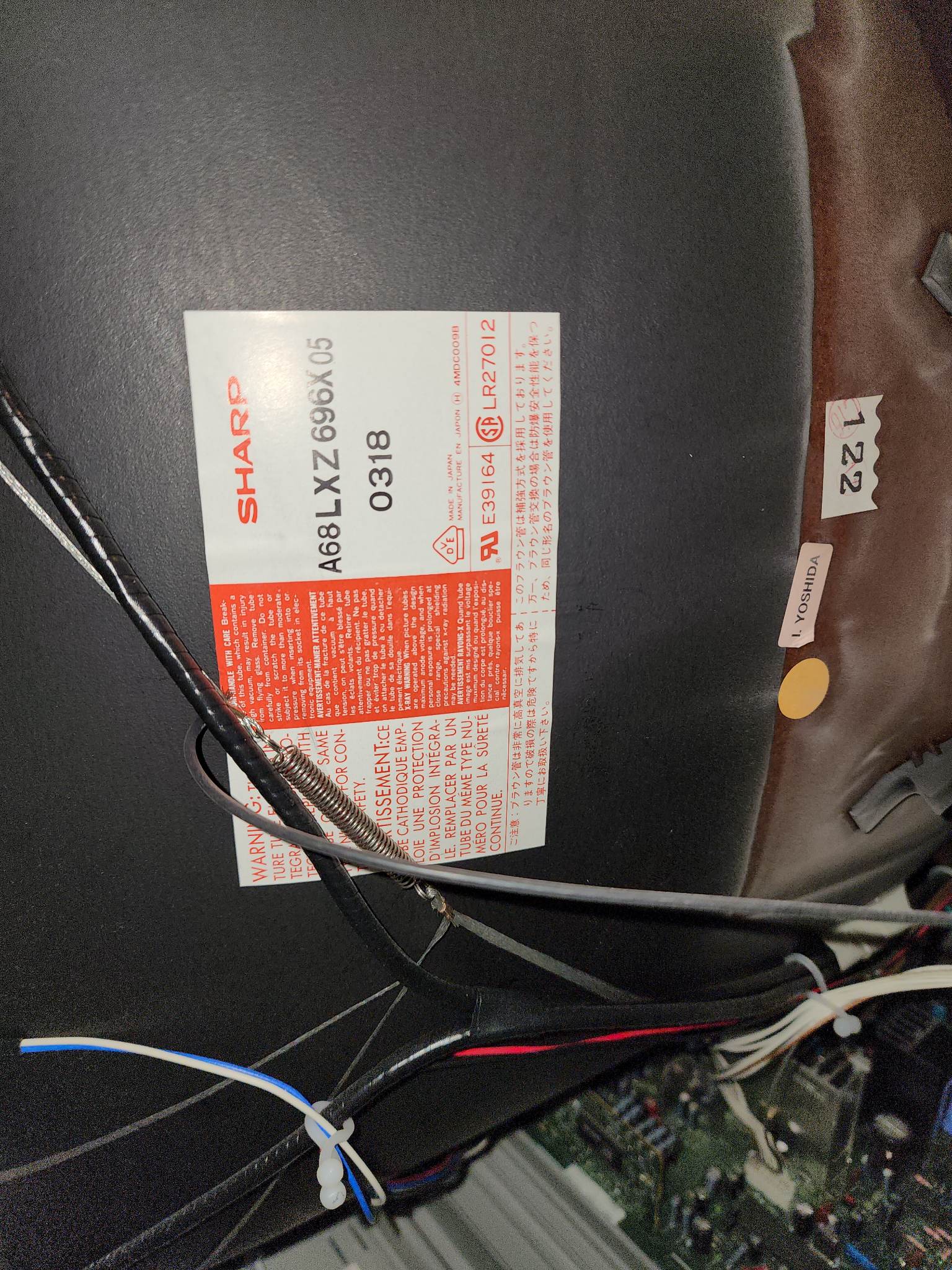

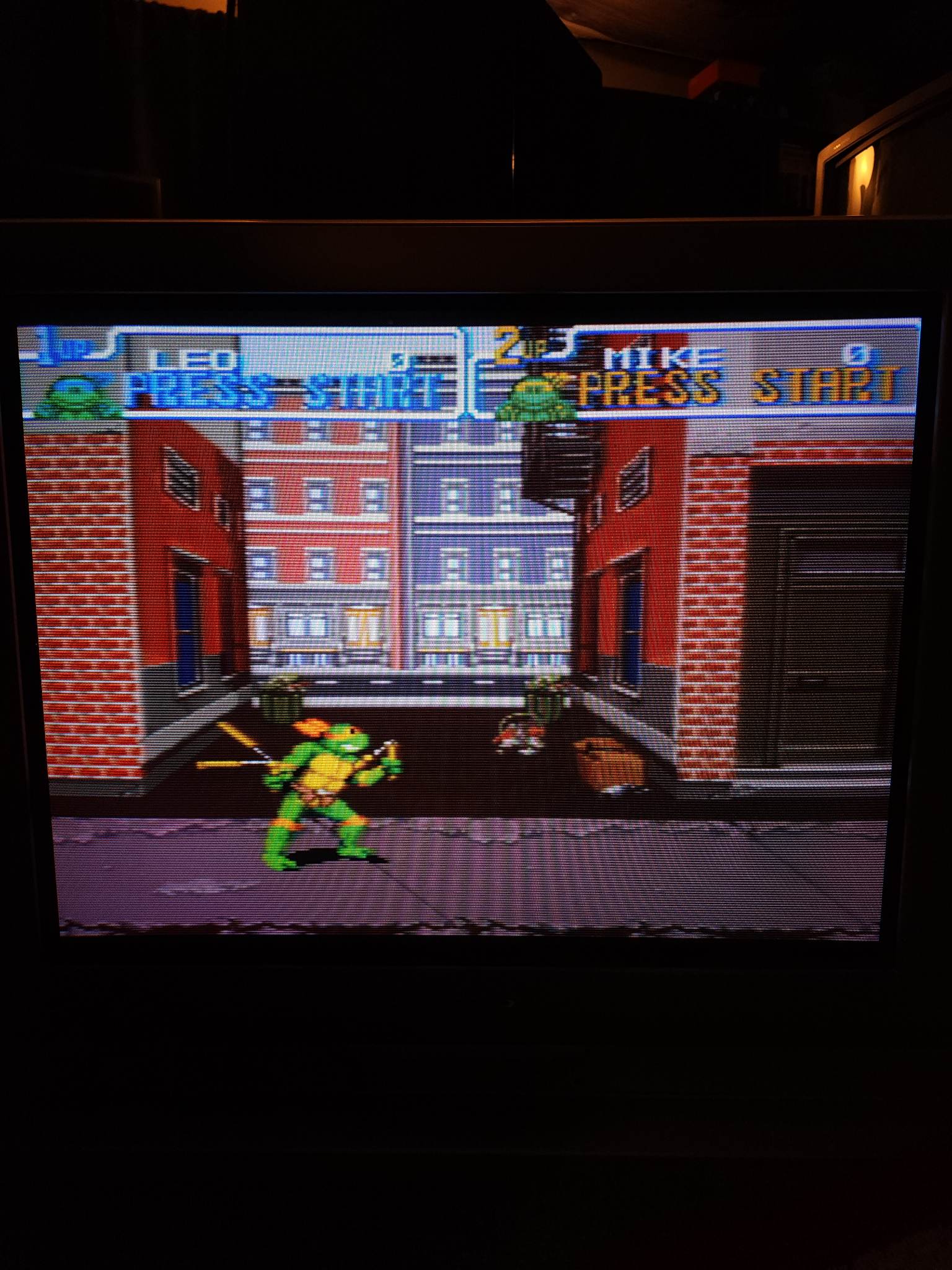

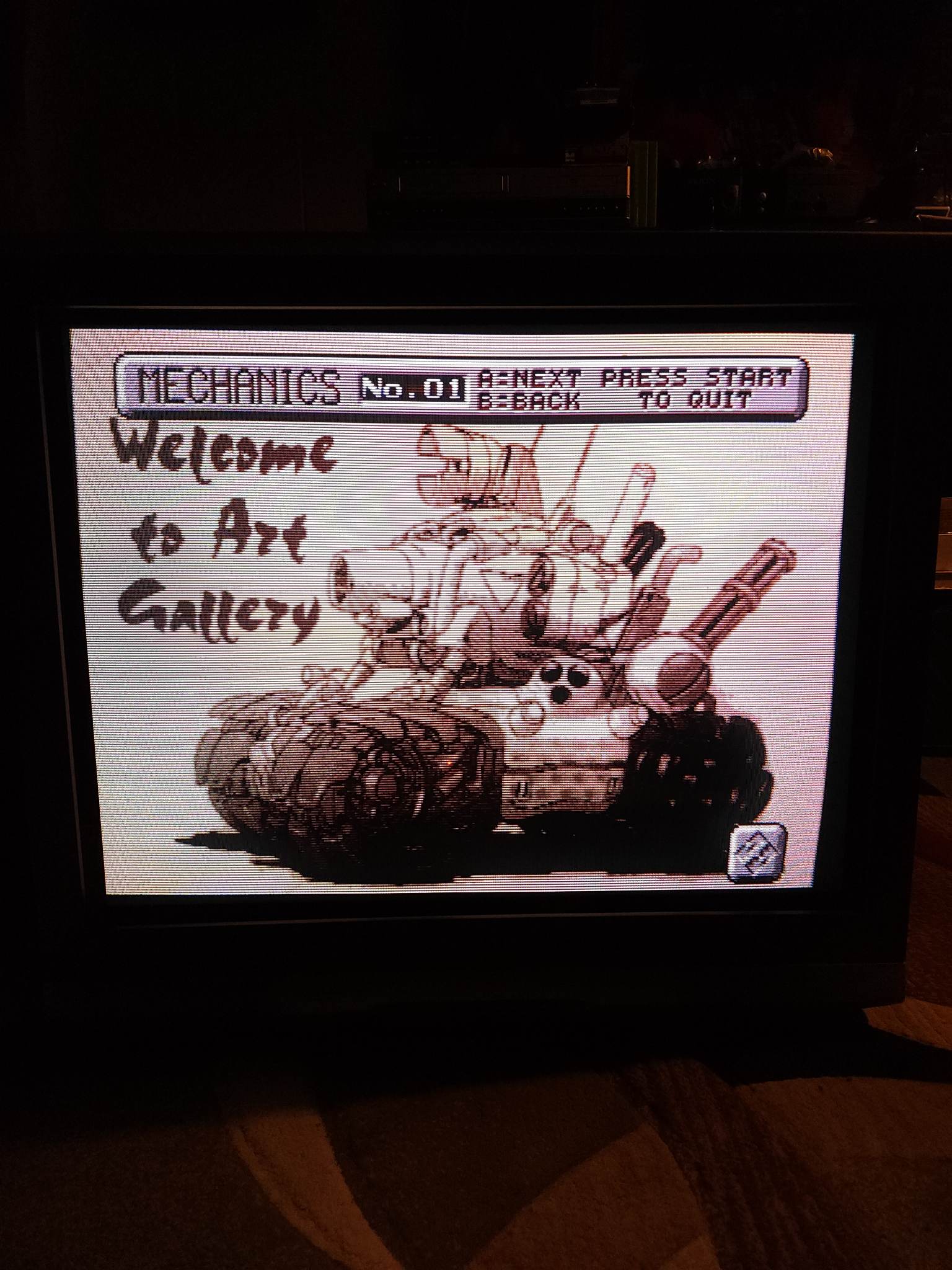

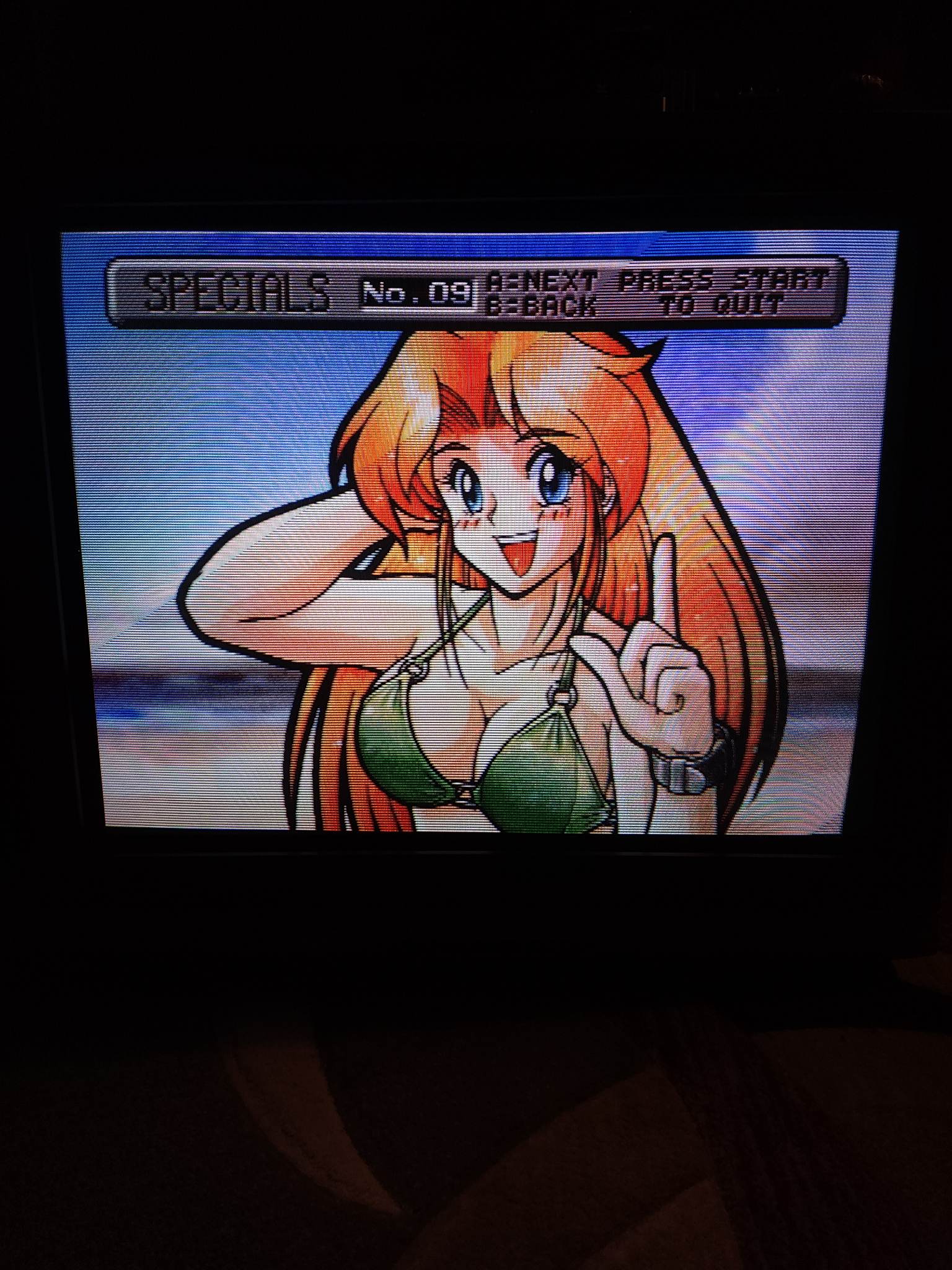

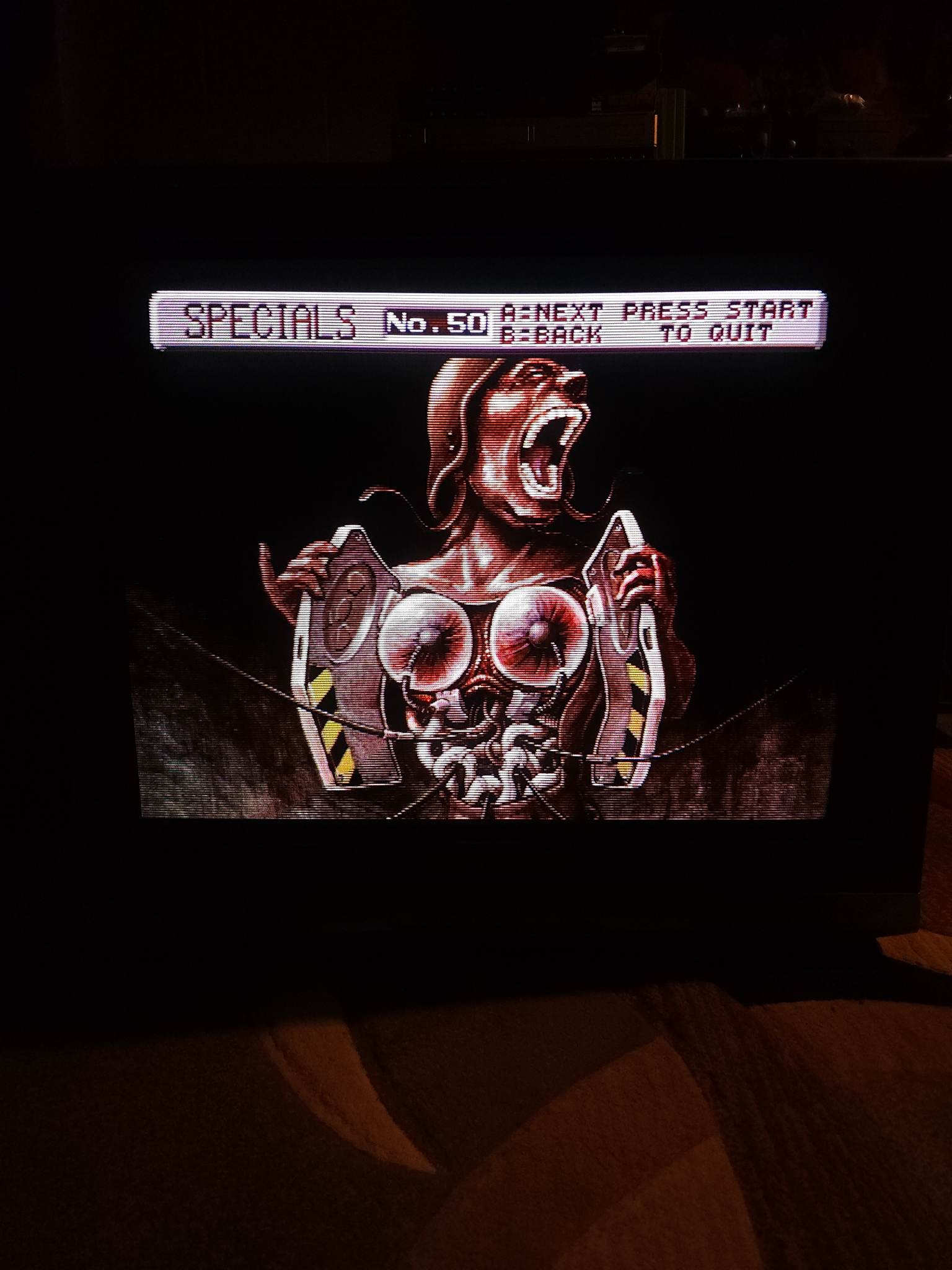

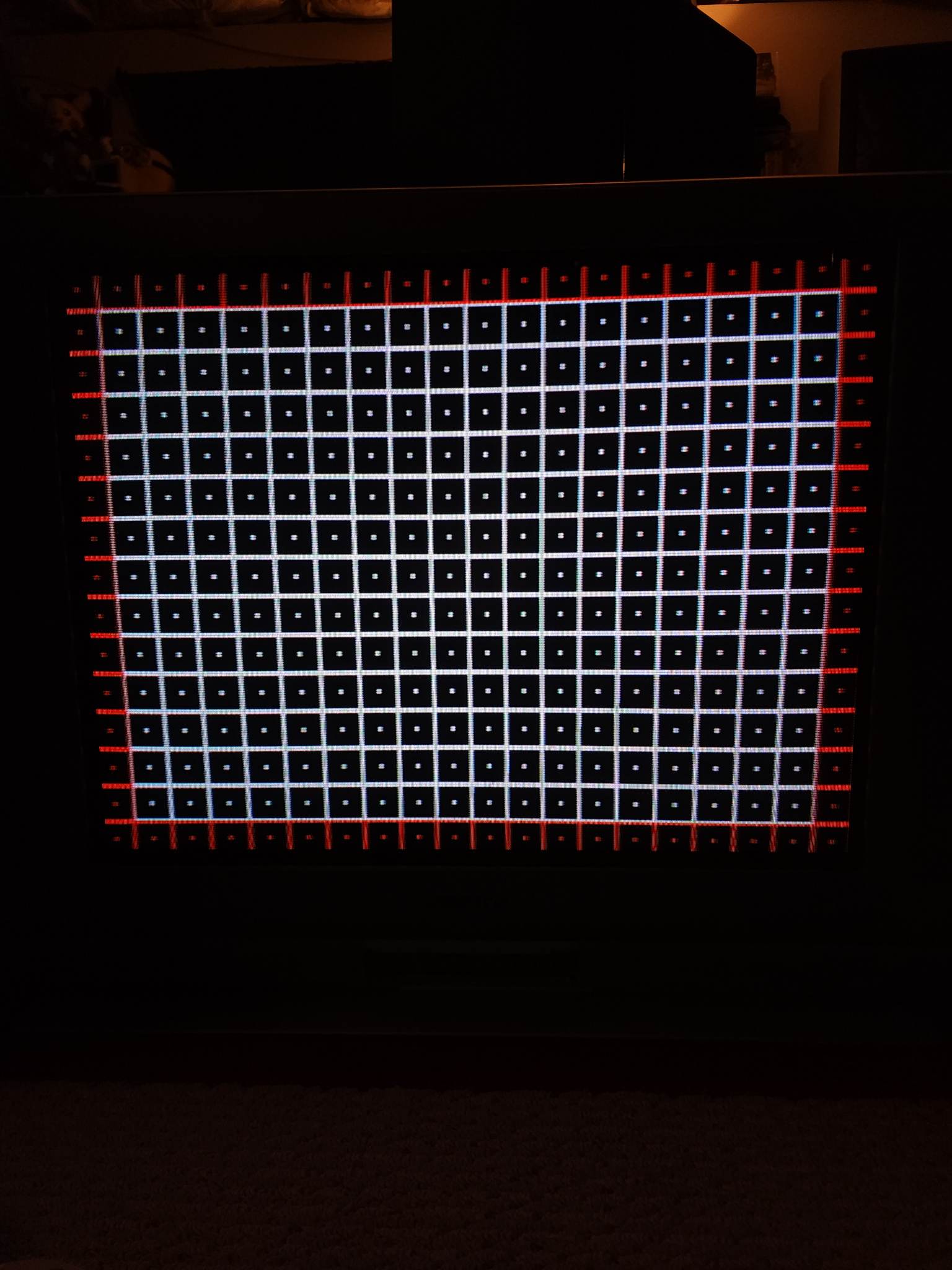

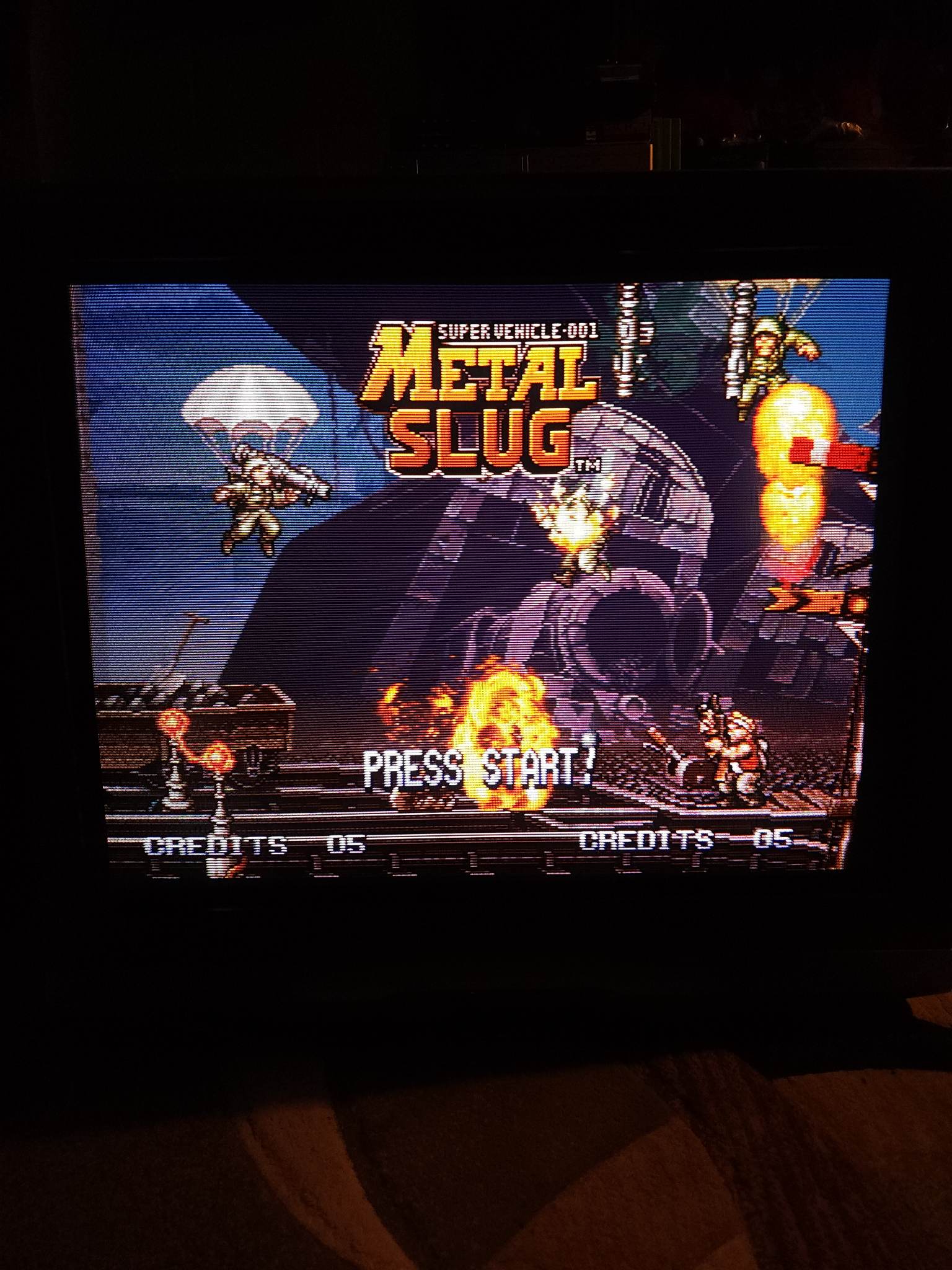

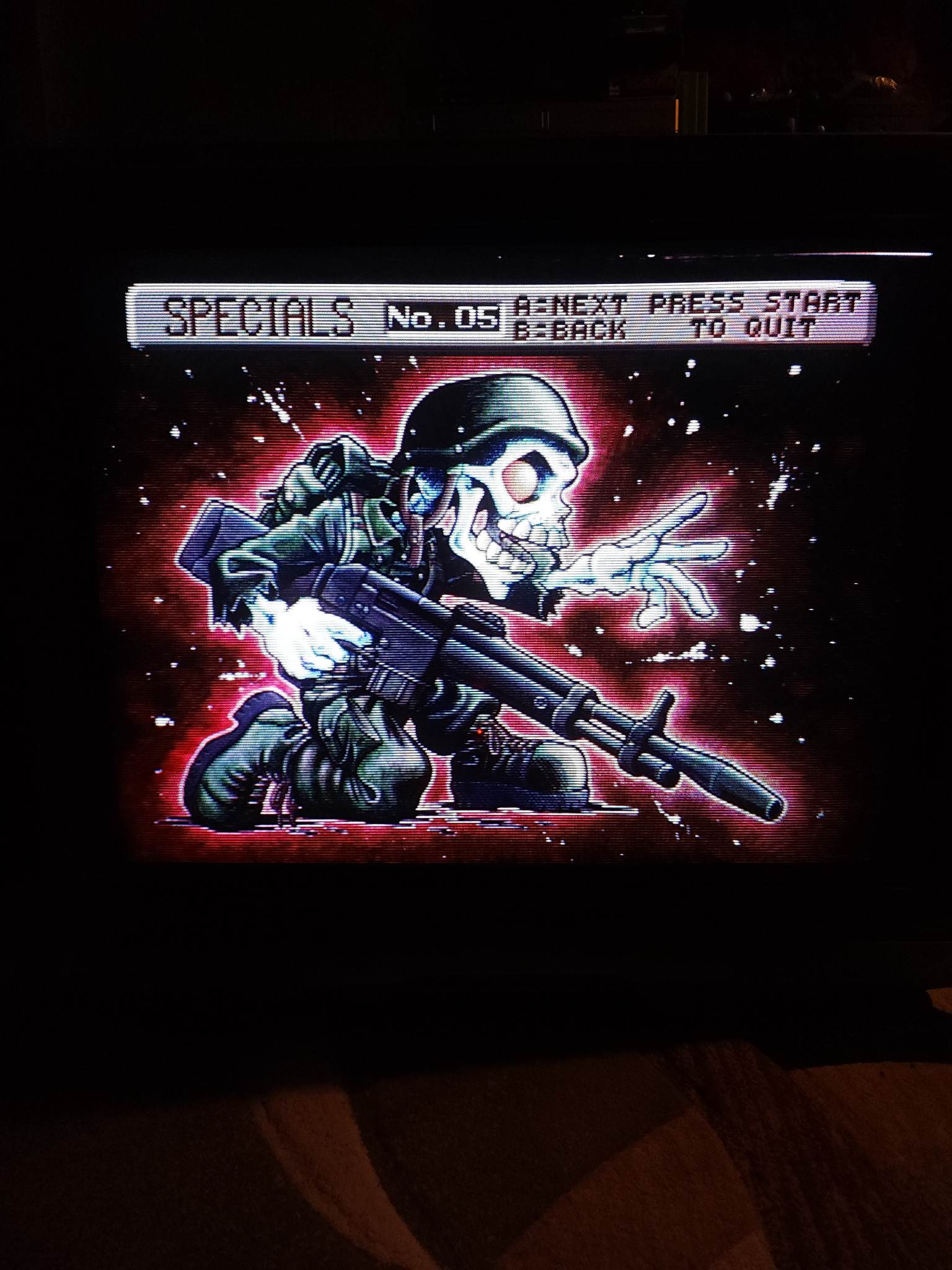

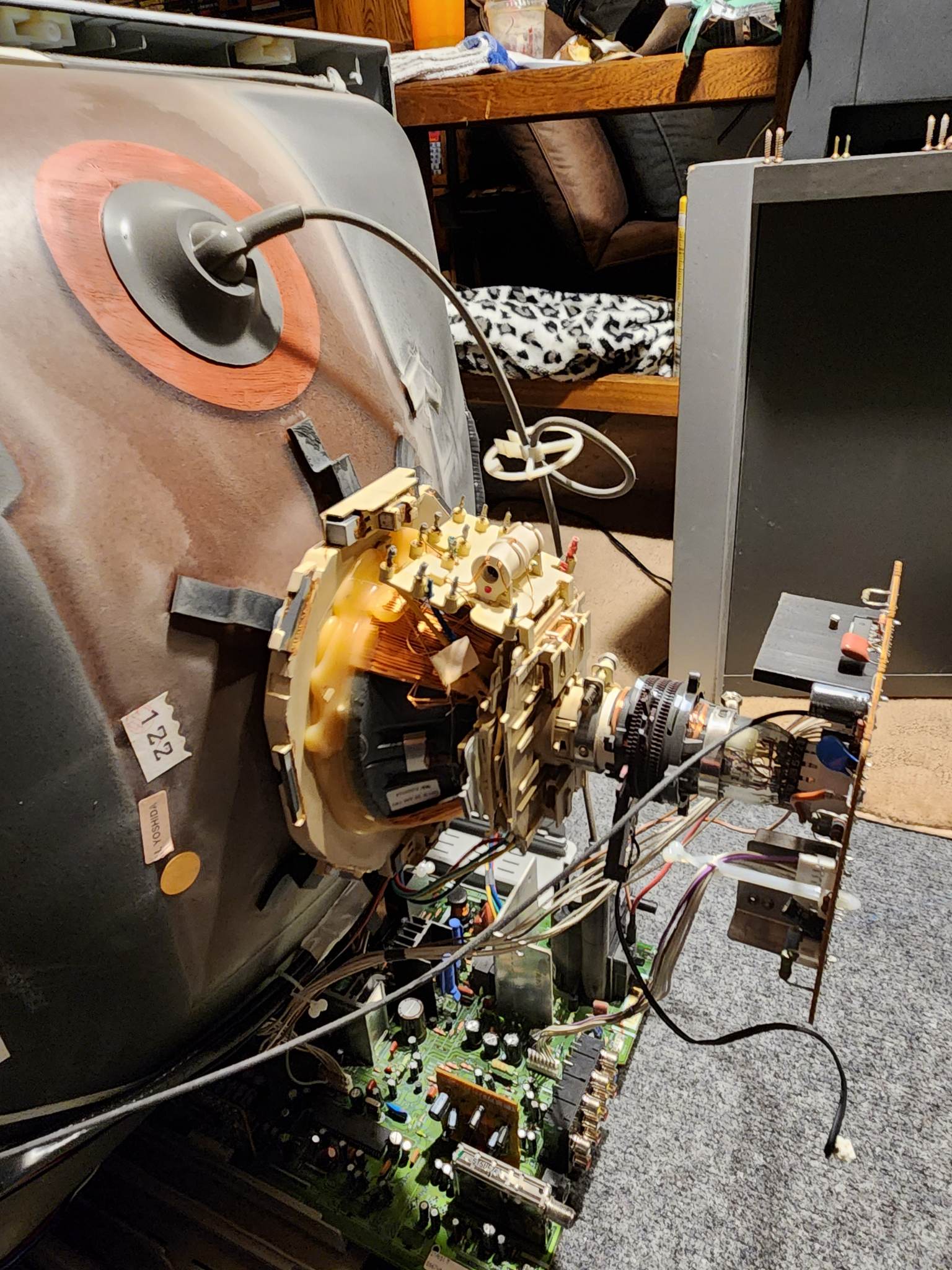

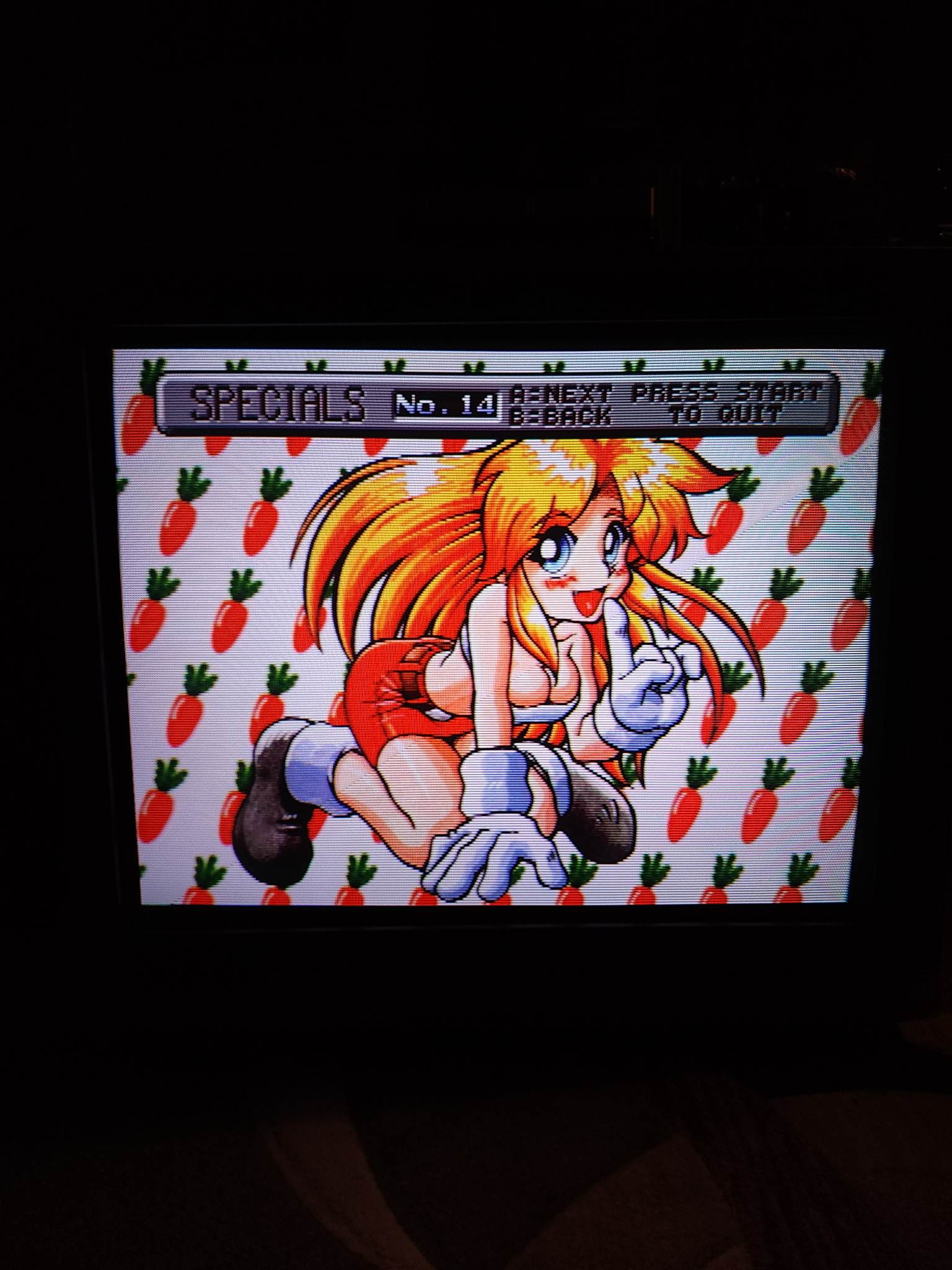

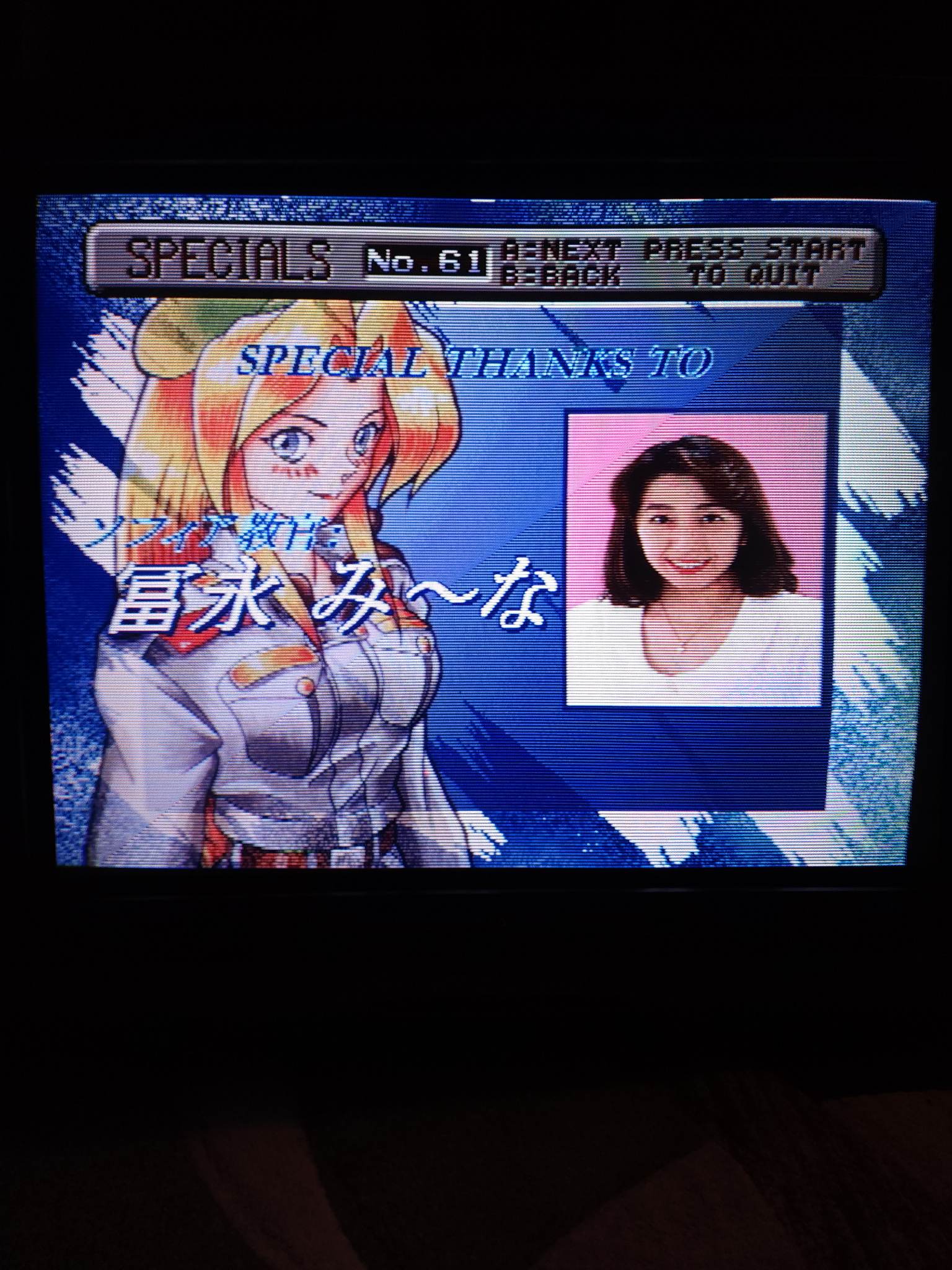

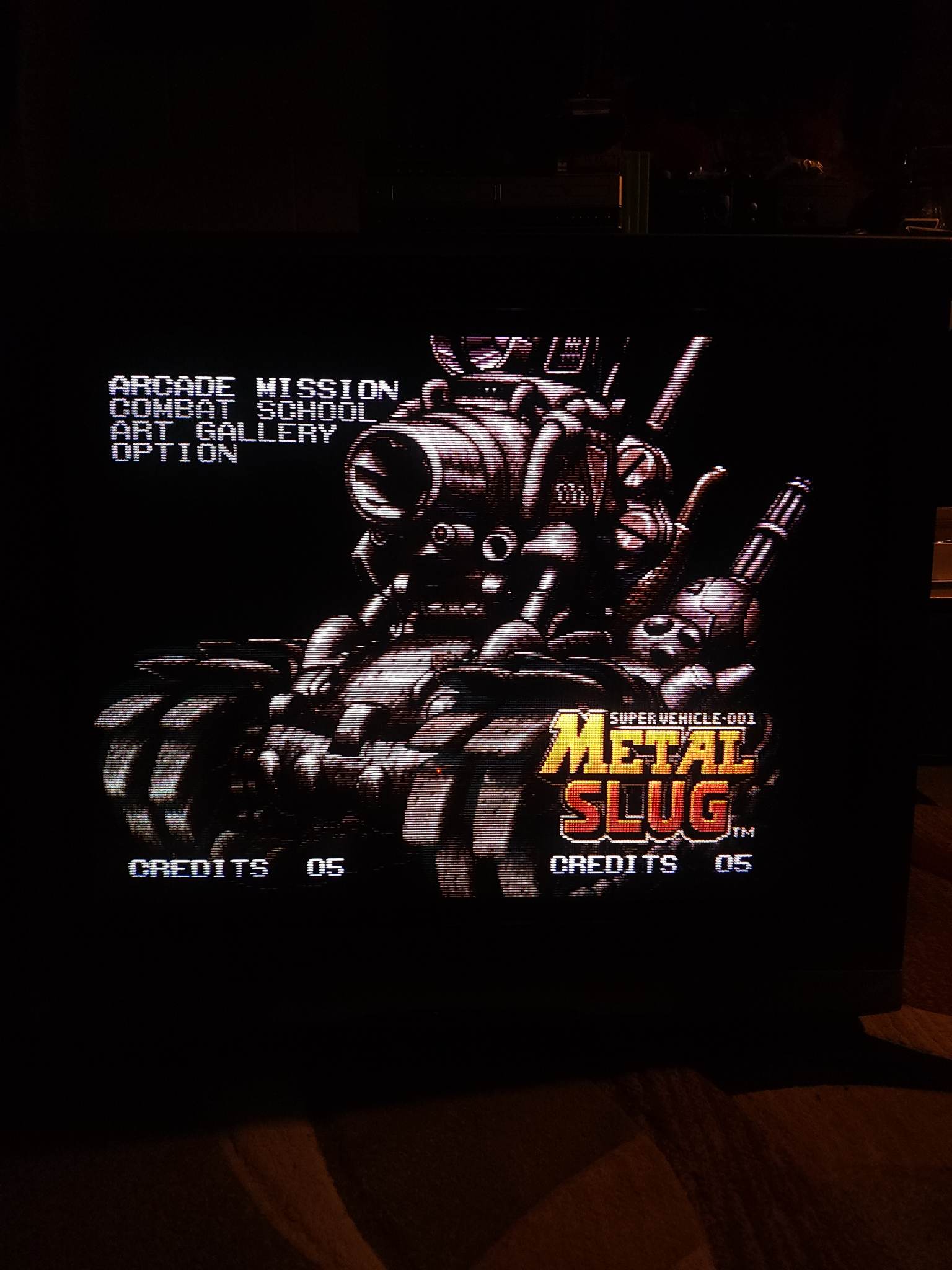

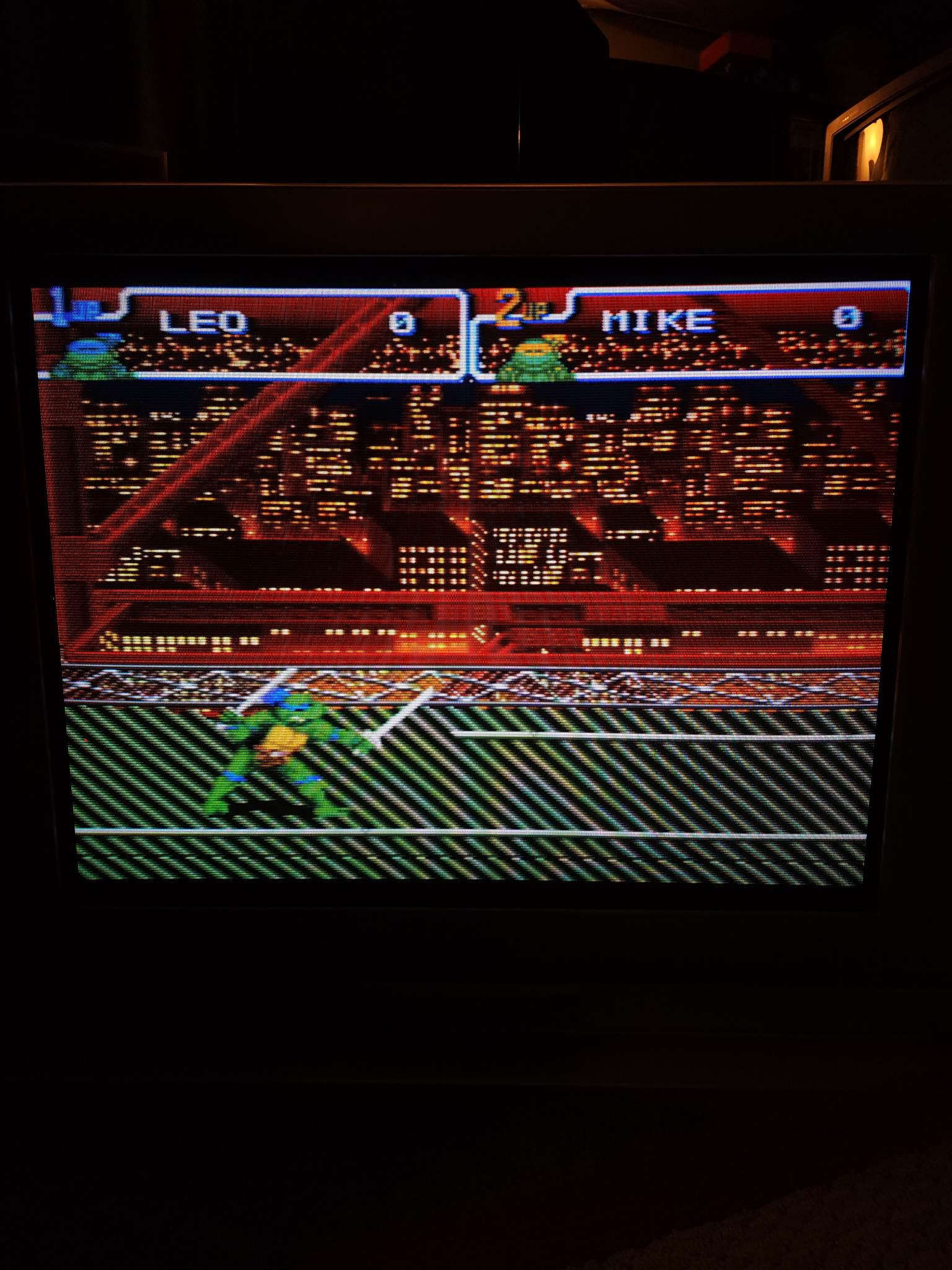

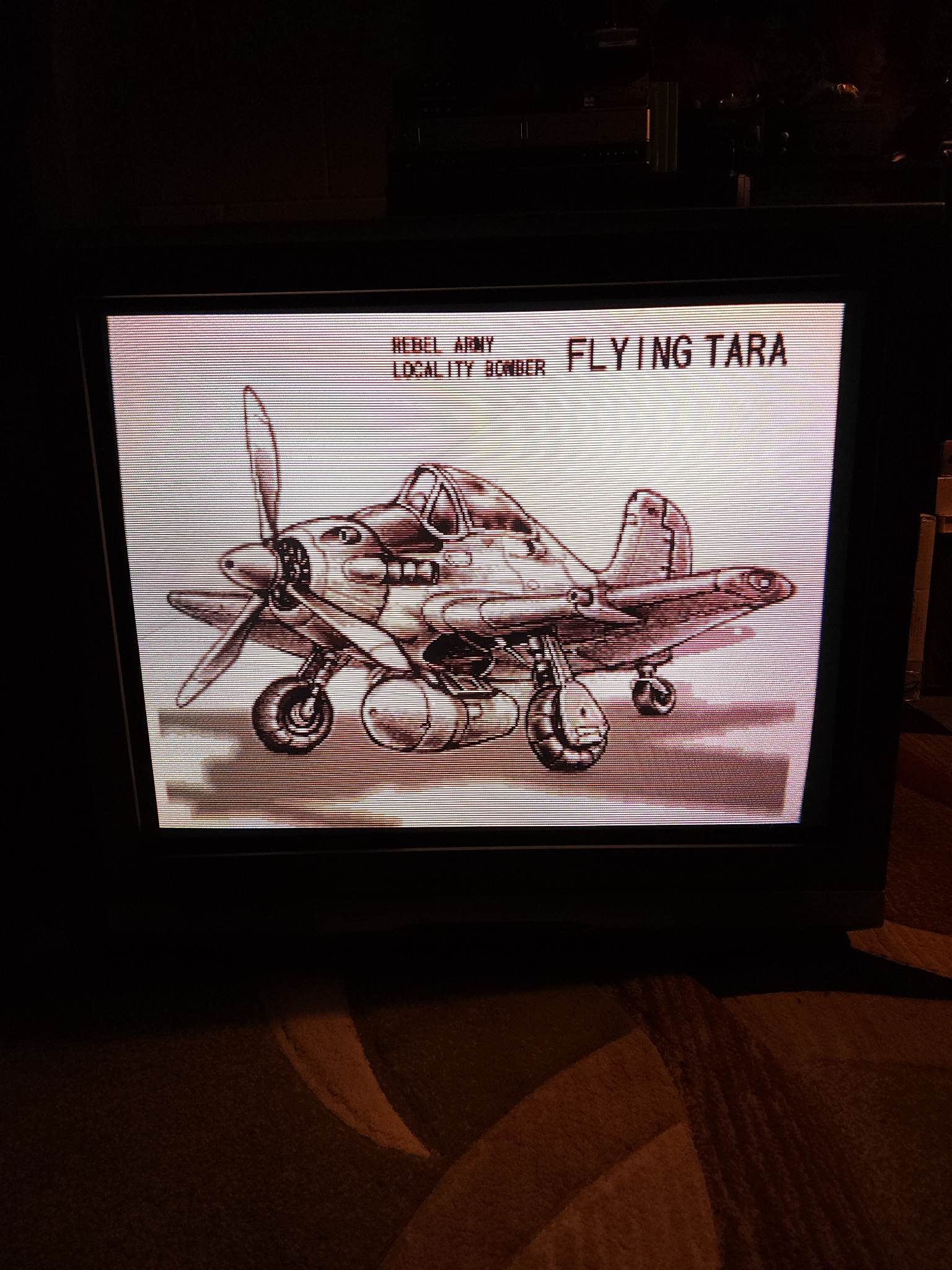

(Special thanks to Shane Torvik for the internal and gameplay pics!)

Literature

• Service Manual

Notes

This TV does not have a discrete input select button on the chassis. However, the video inputs can be cycled through using the channel up/down buttons. Unlike most TVs, the service menu can be accessed and navigated without the use of a remote.

Appears to be very similar to the later 27F640 model.

This set has VM that can be disabled in two ways:

• Setting VSM GAIN to 0 in the service menu or

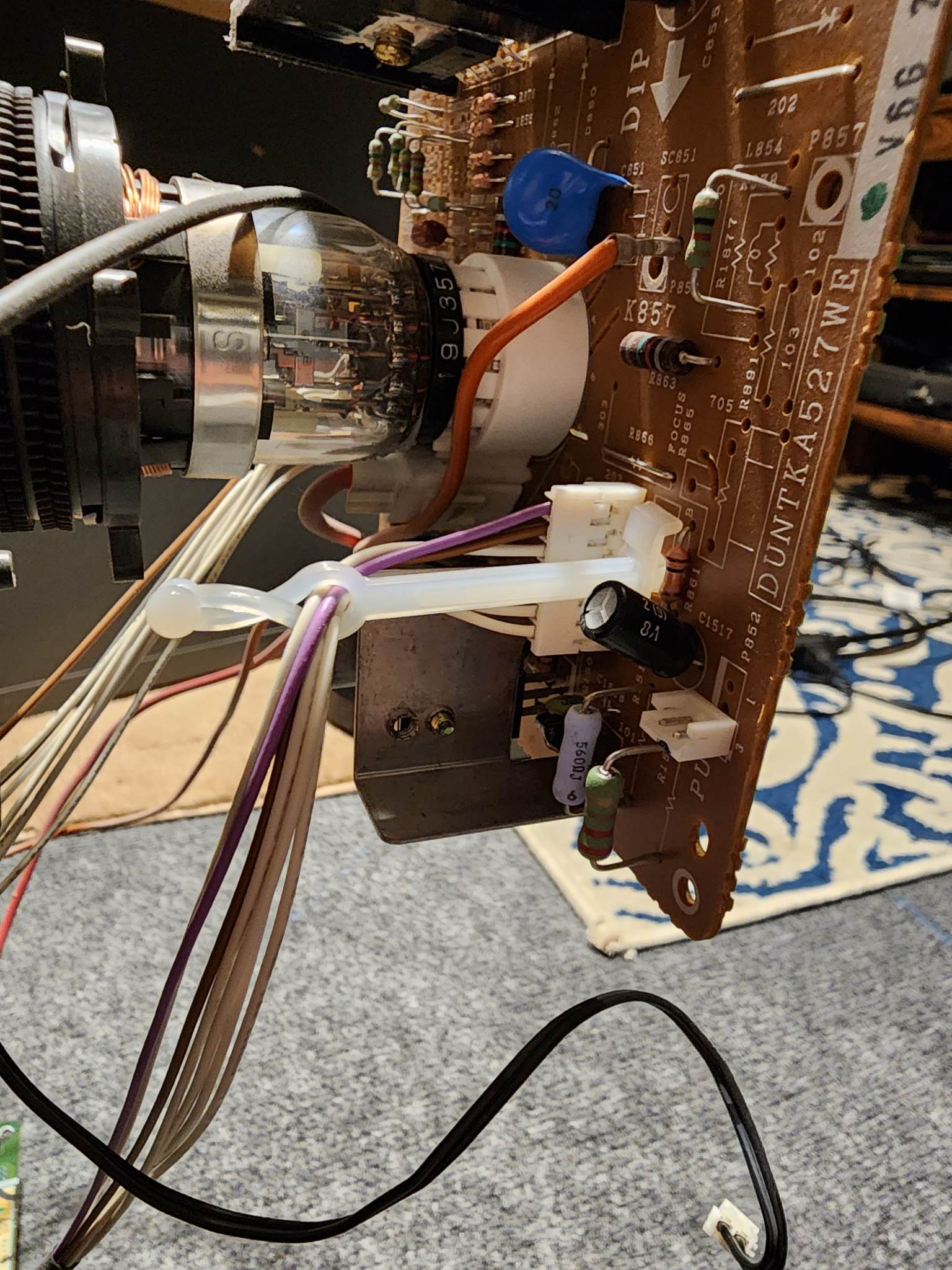

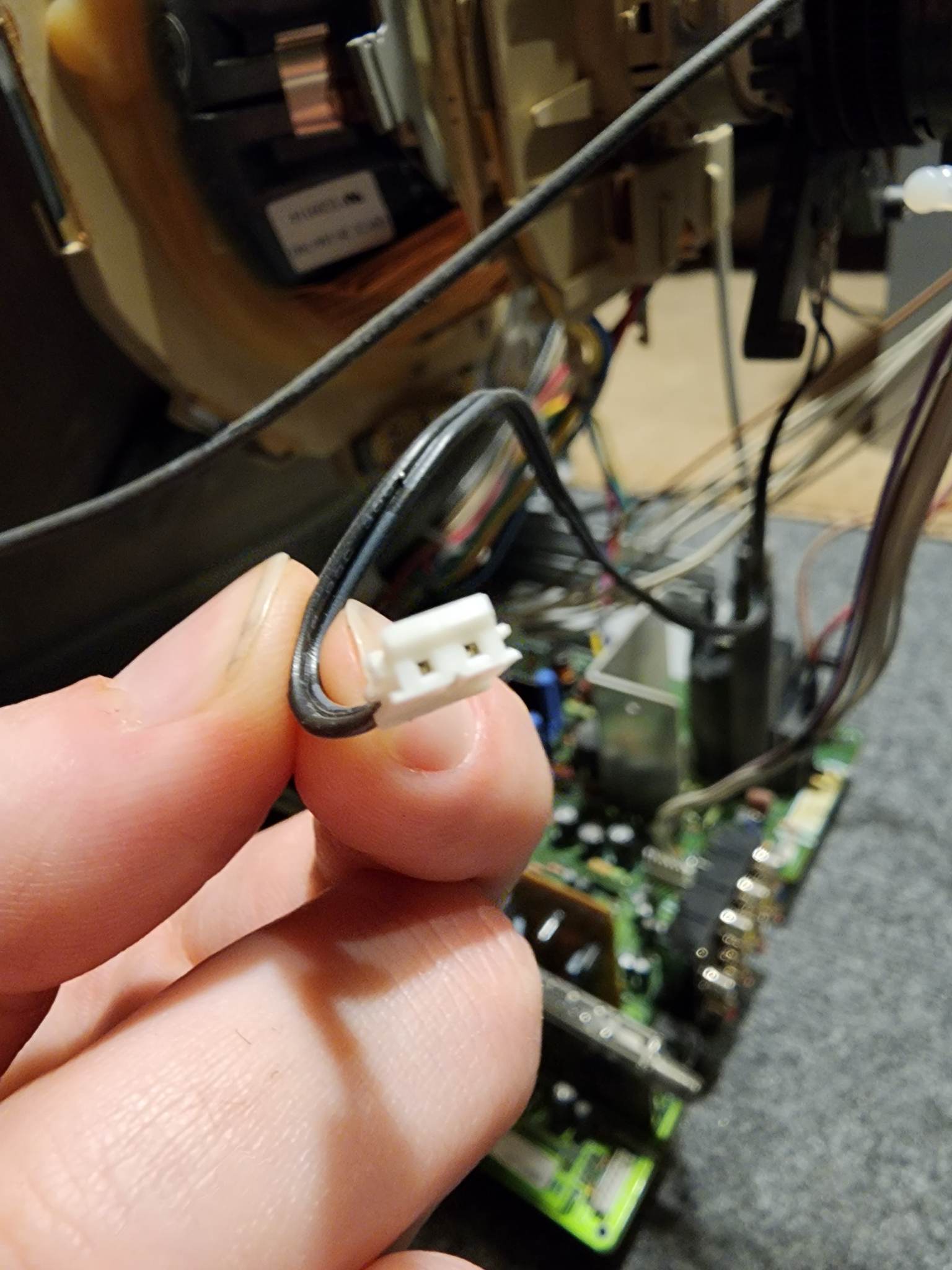

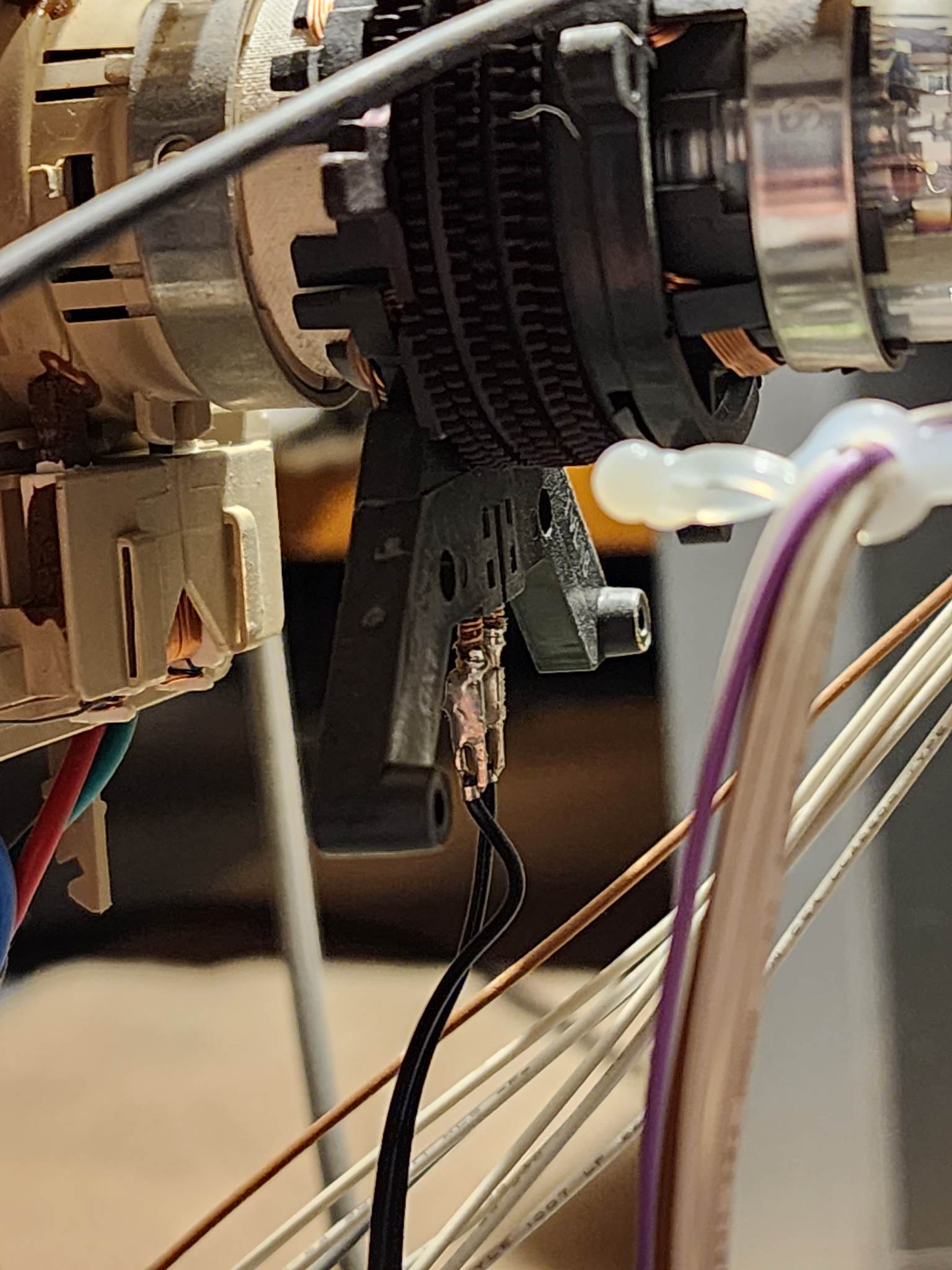

• Unplugging the jumper connecting the yoke to the neckboard.
