Summary

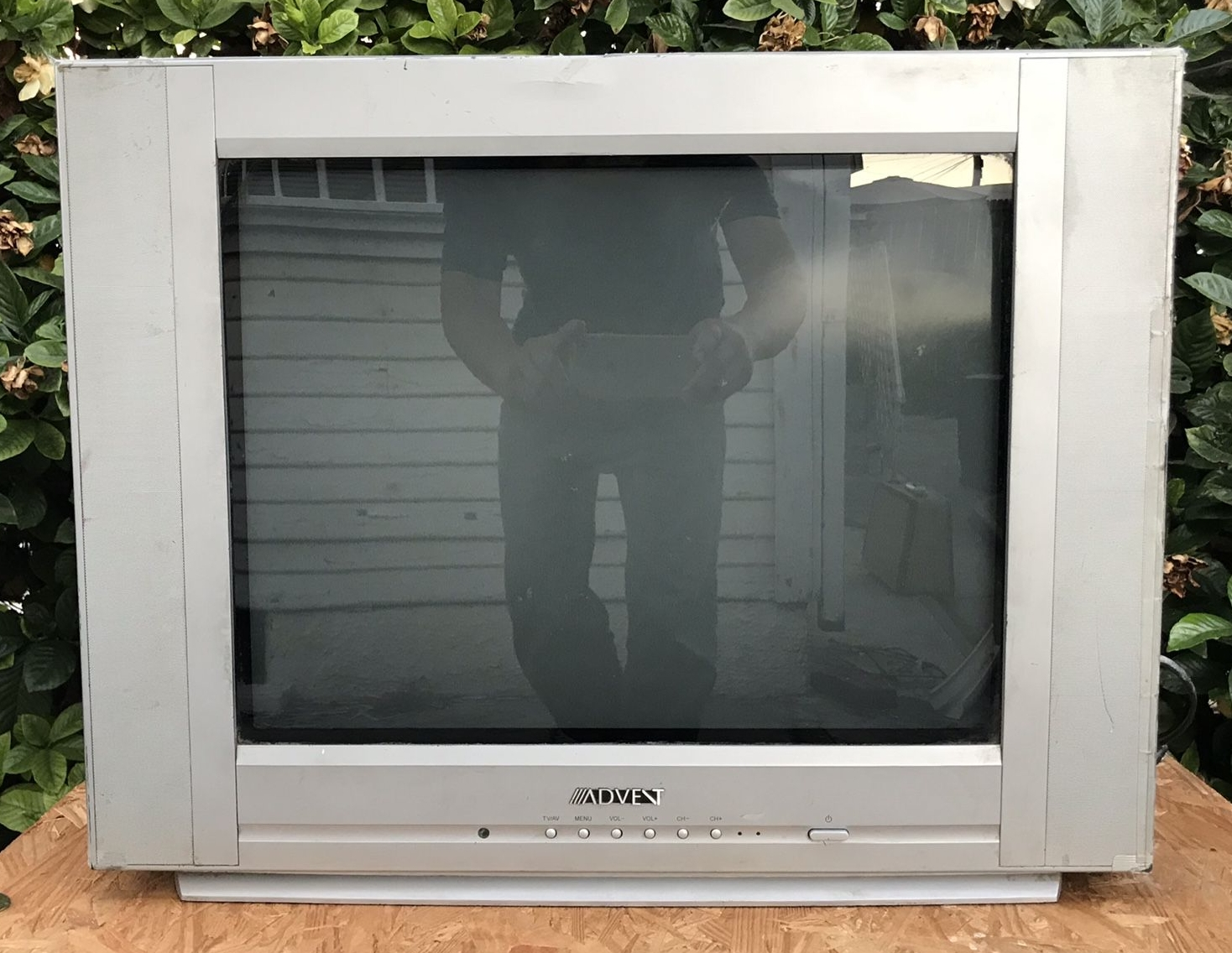

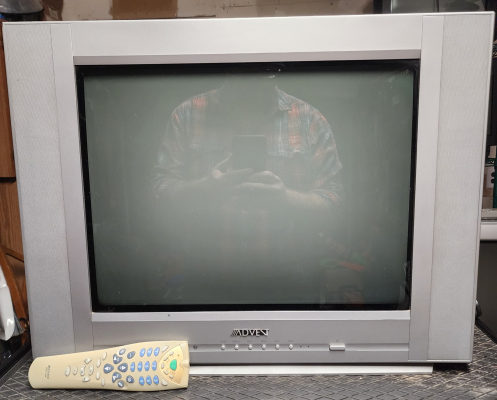

20" Advent-branded CRT with a full set of inputs from 2004. A great little gem originally manufactured by Prima in China.
(Special thanks to Azusa and Todd Mahoney for some of the pics!)
Manuals
Notes

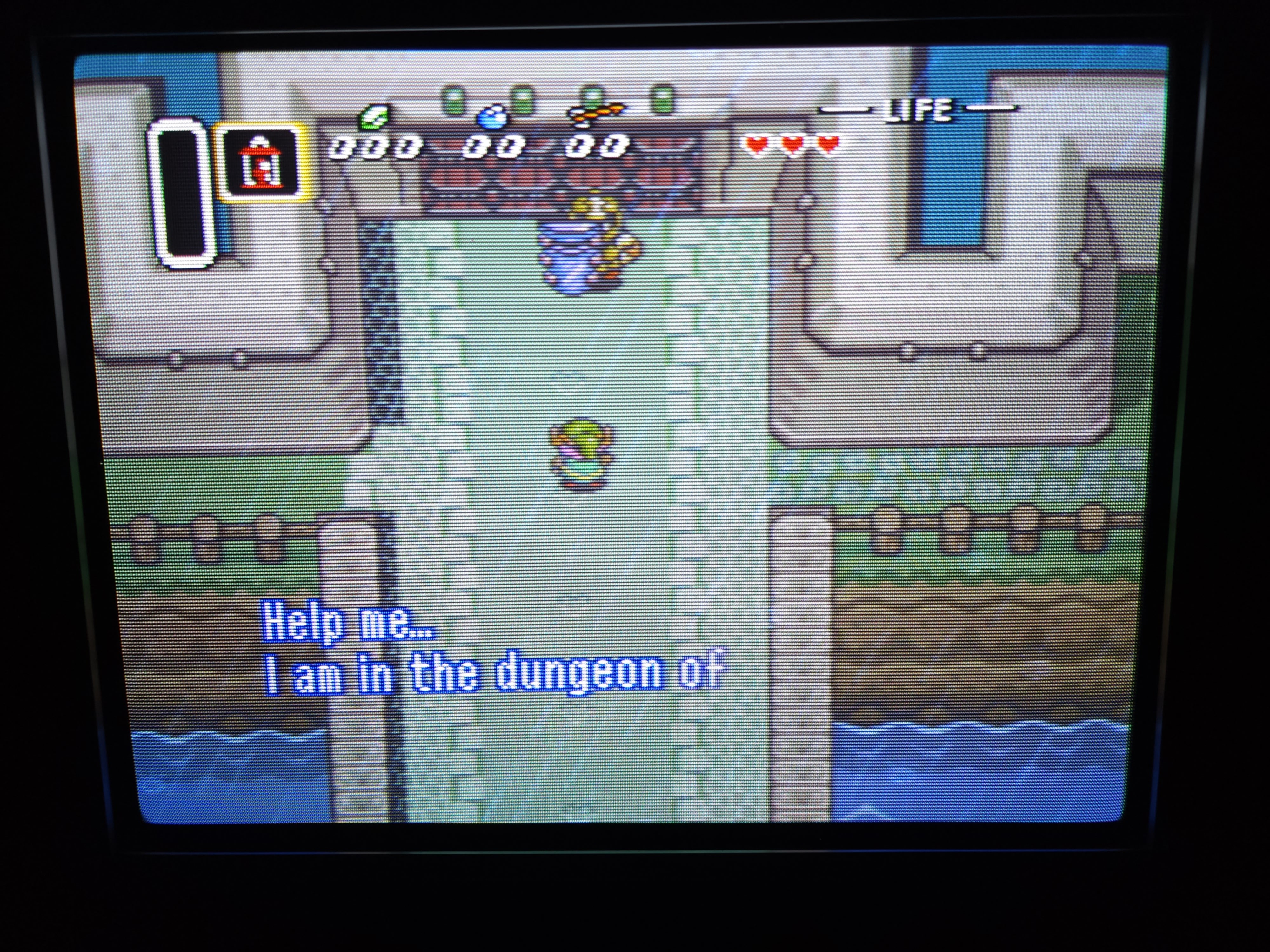

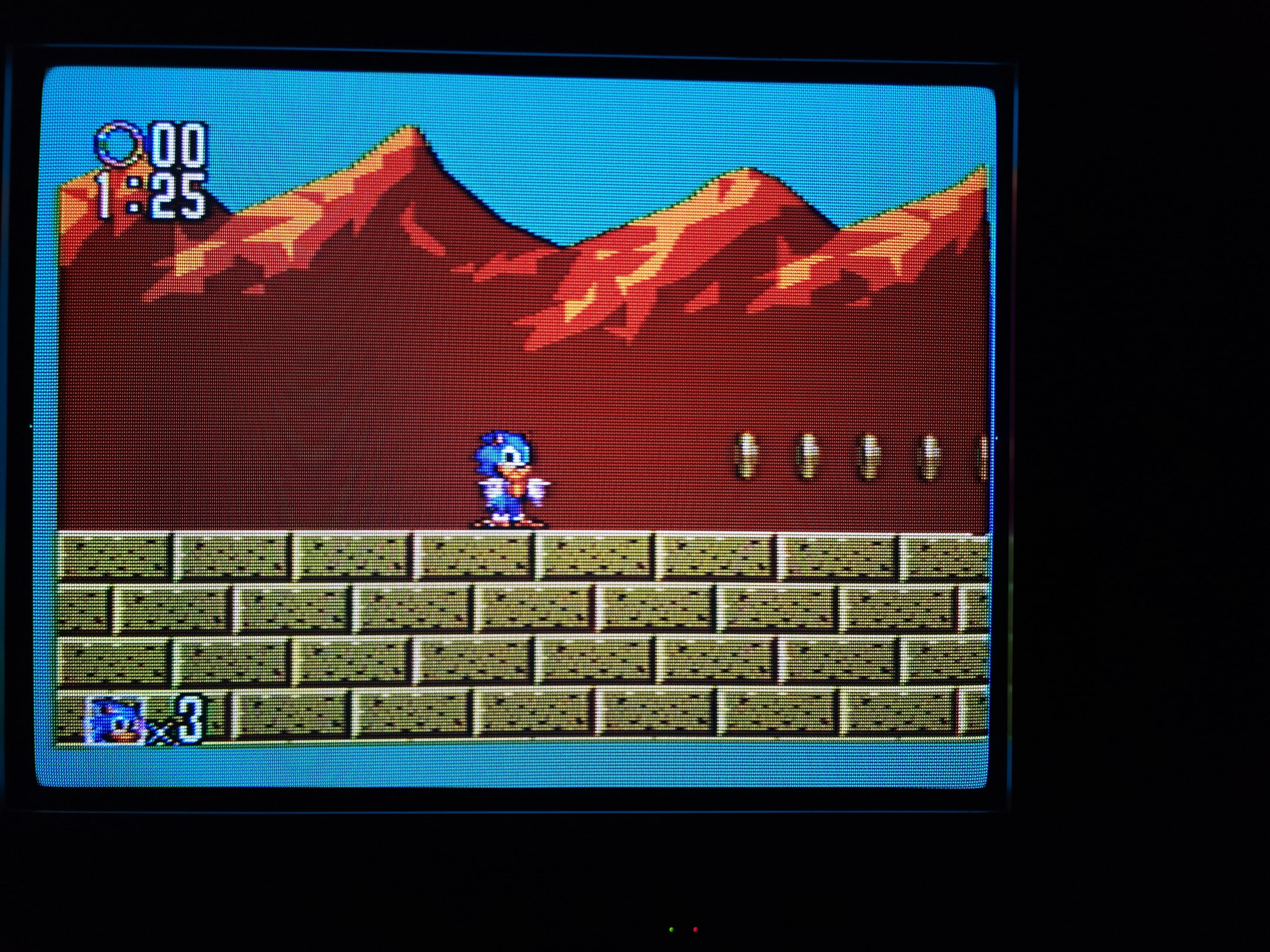

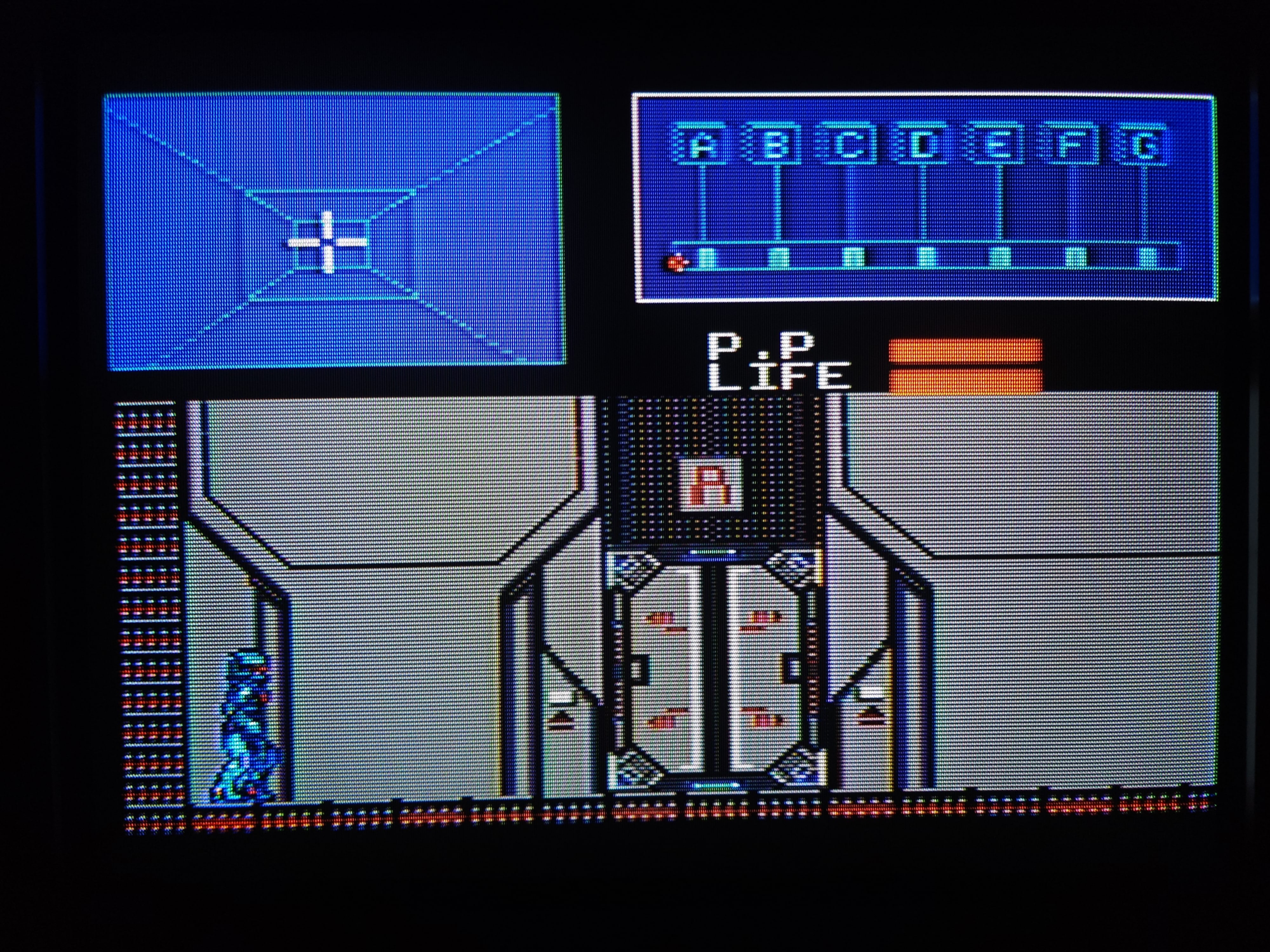

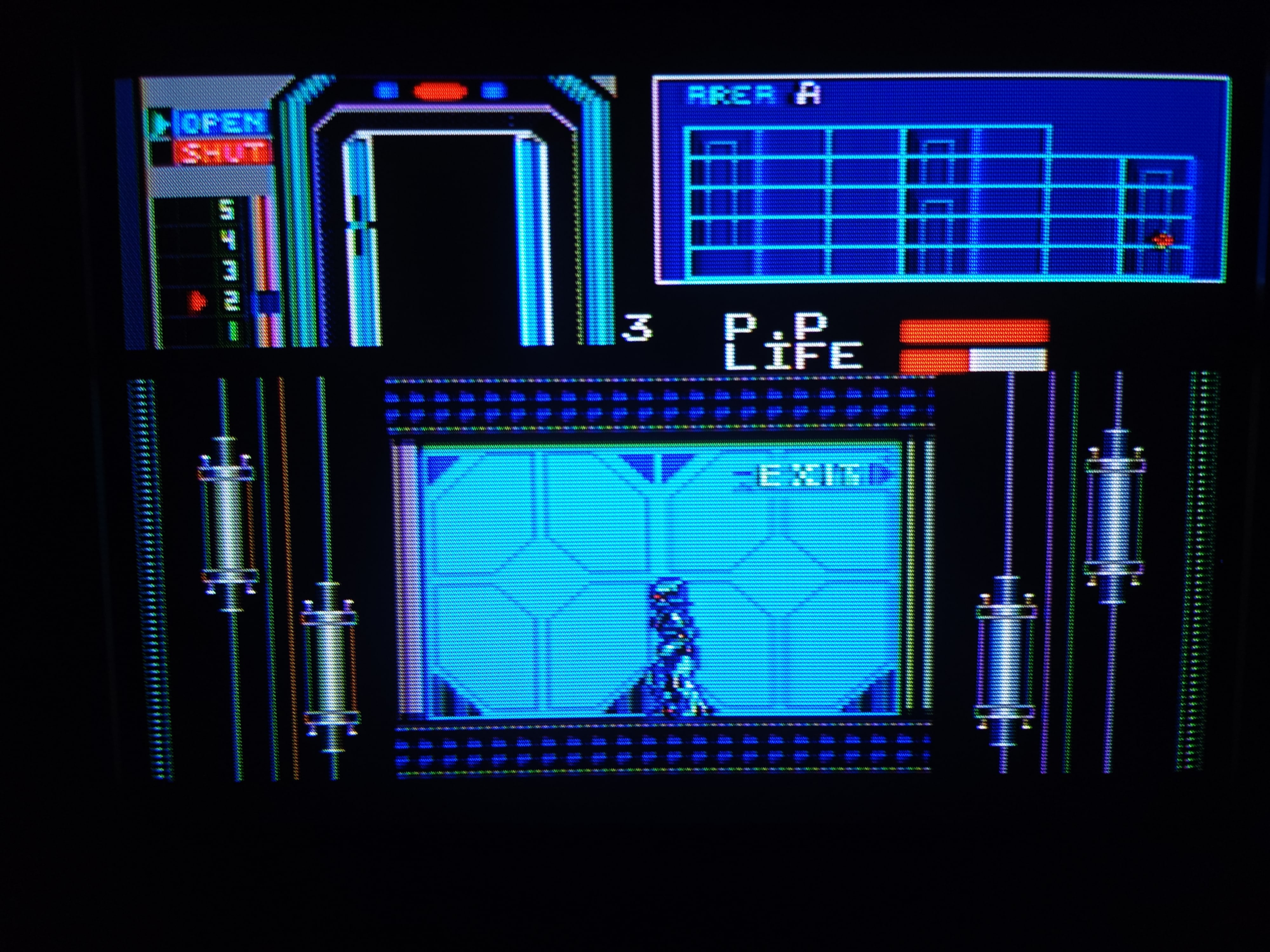

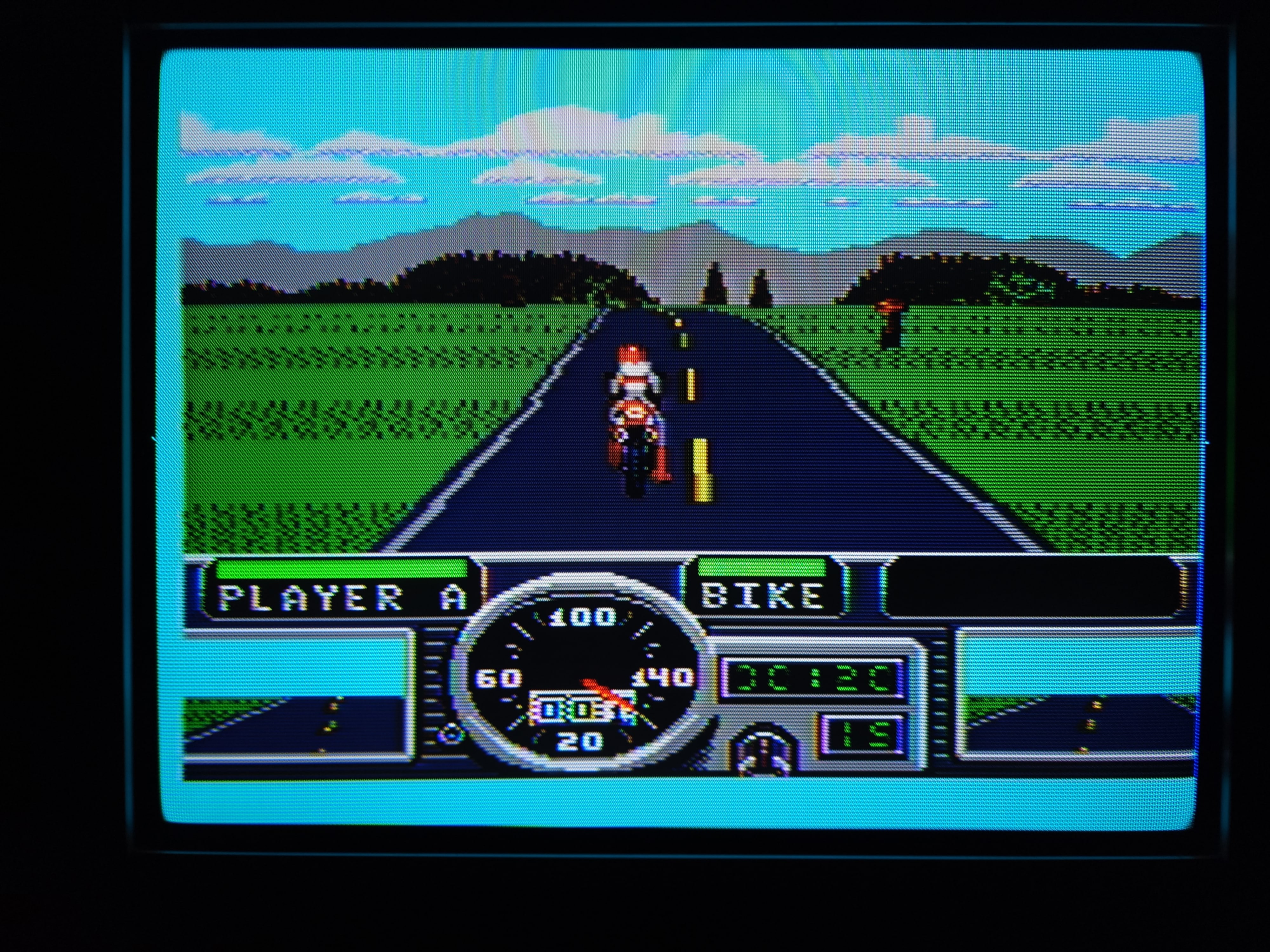

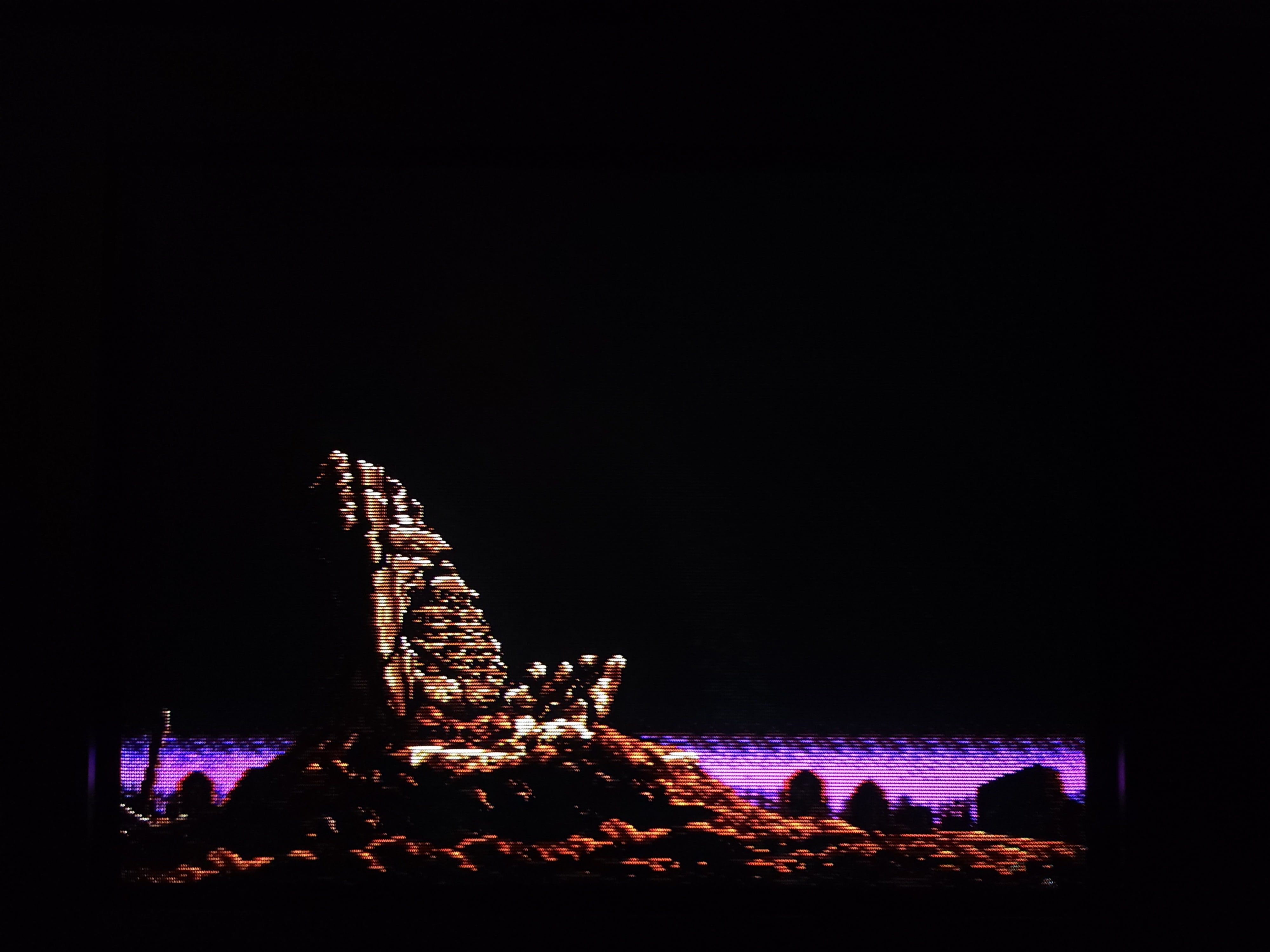

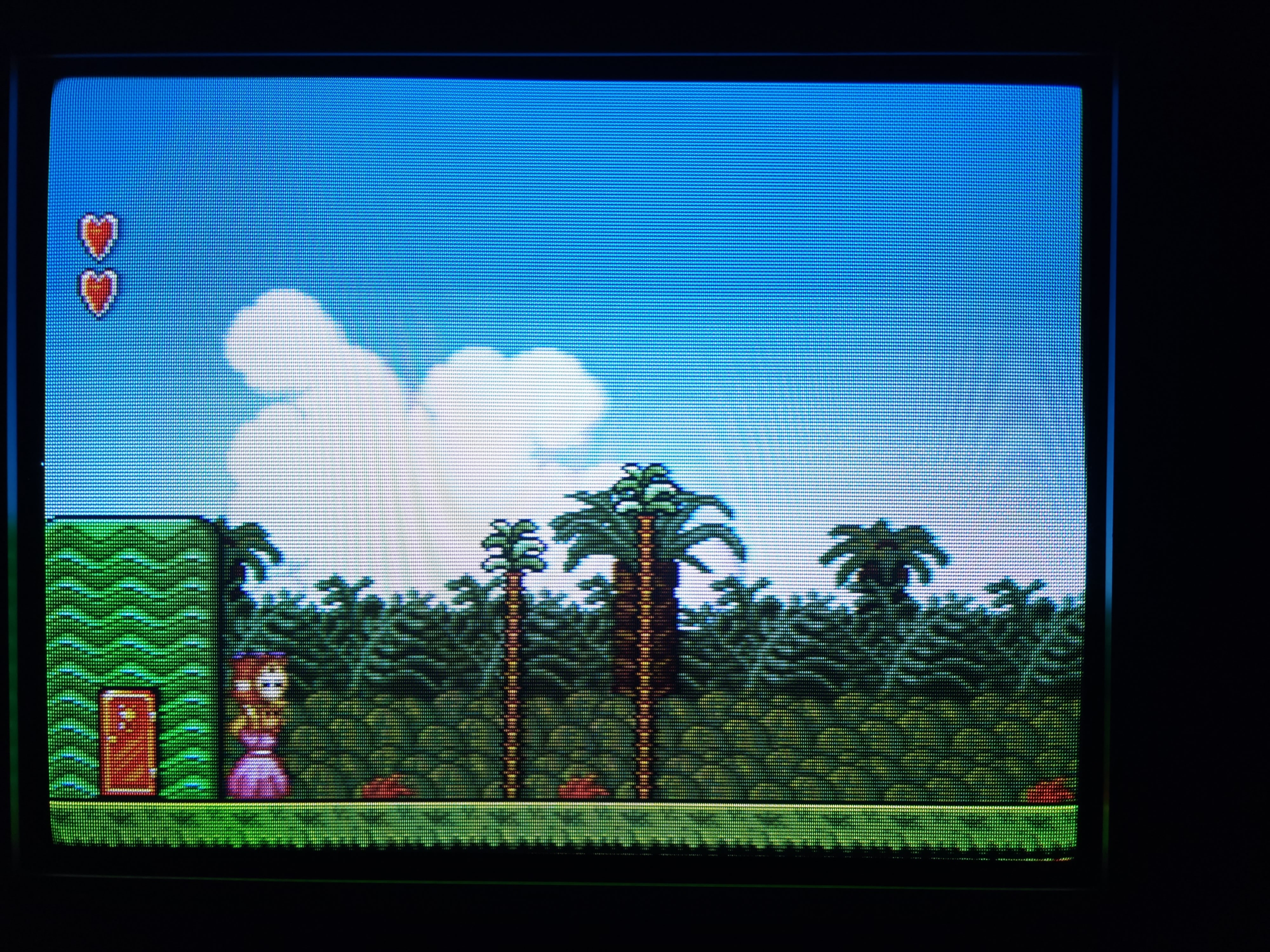

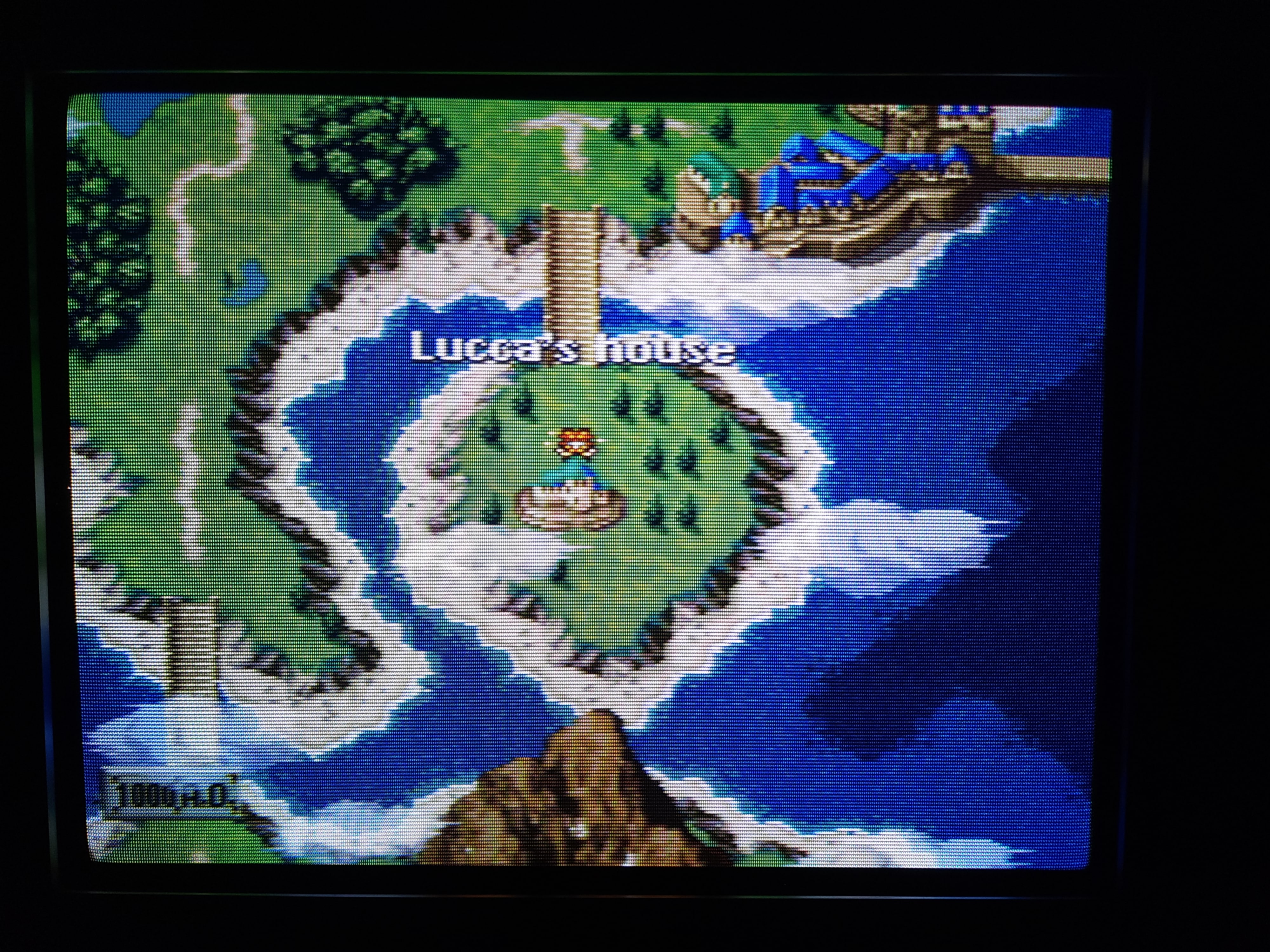

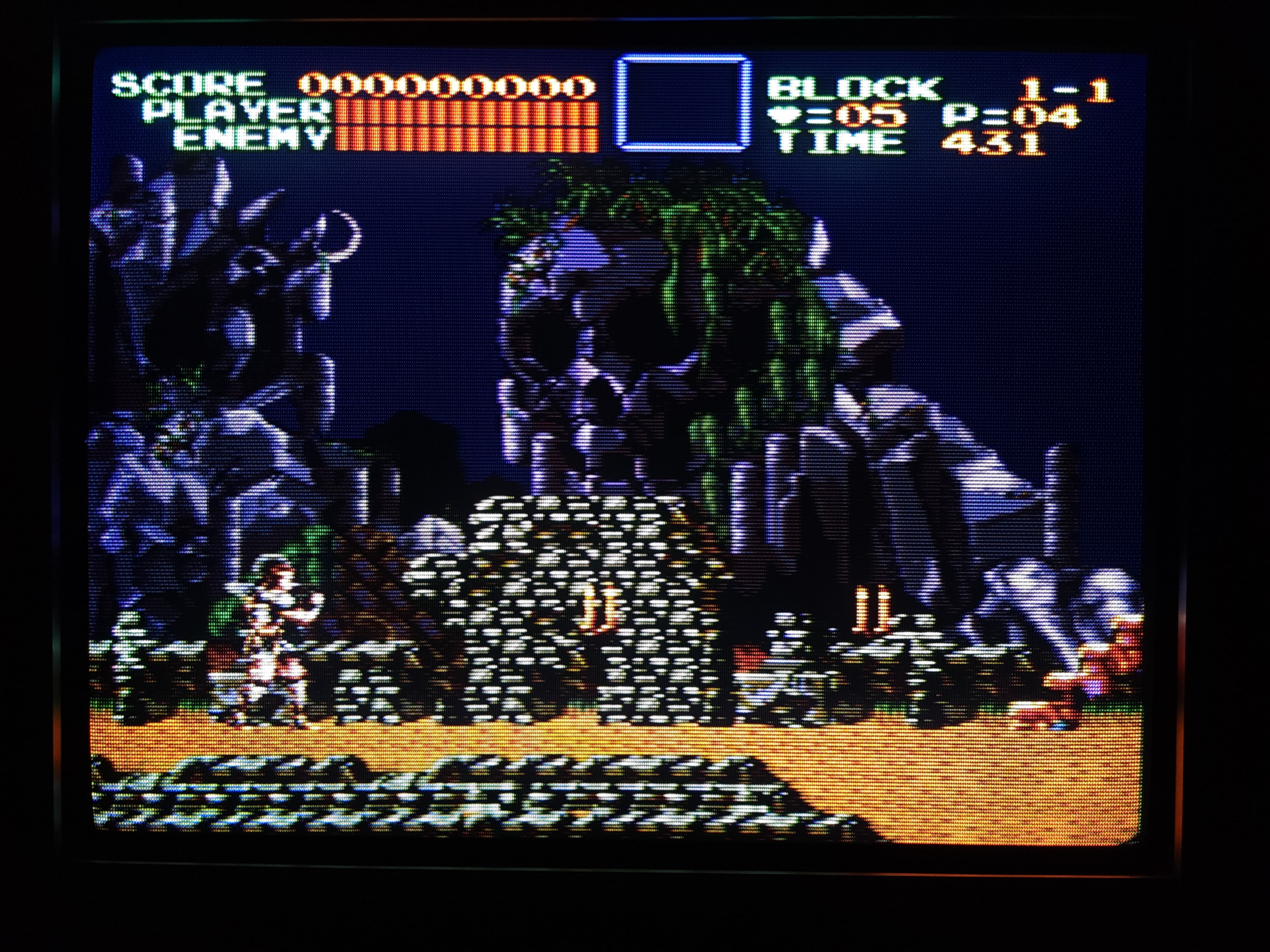

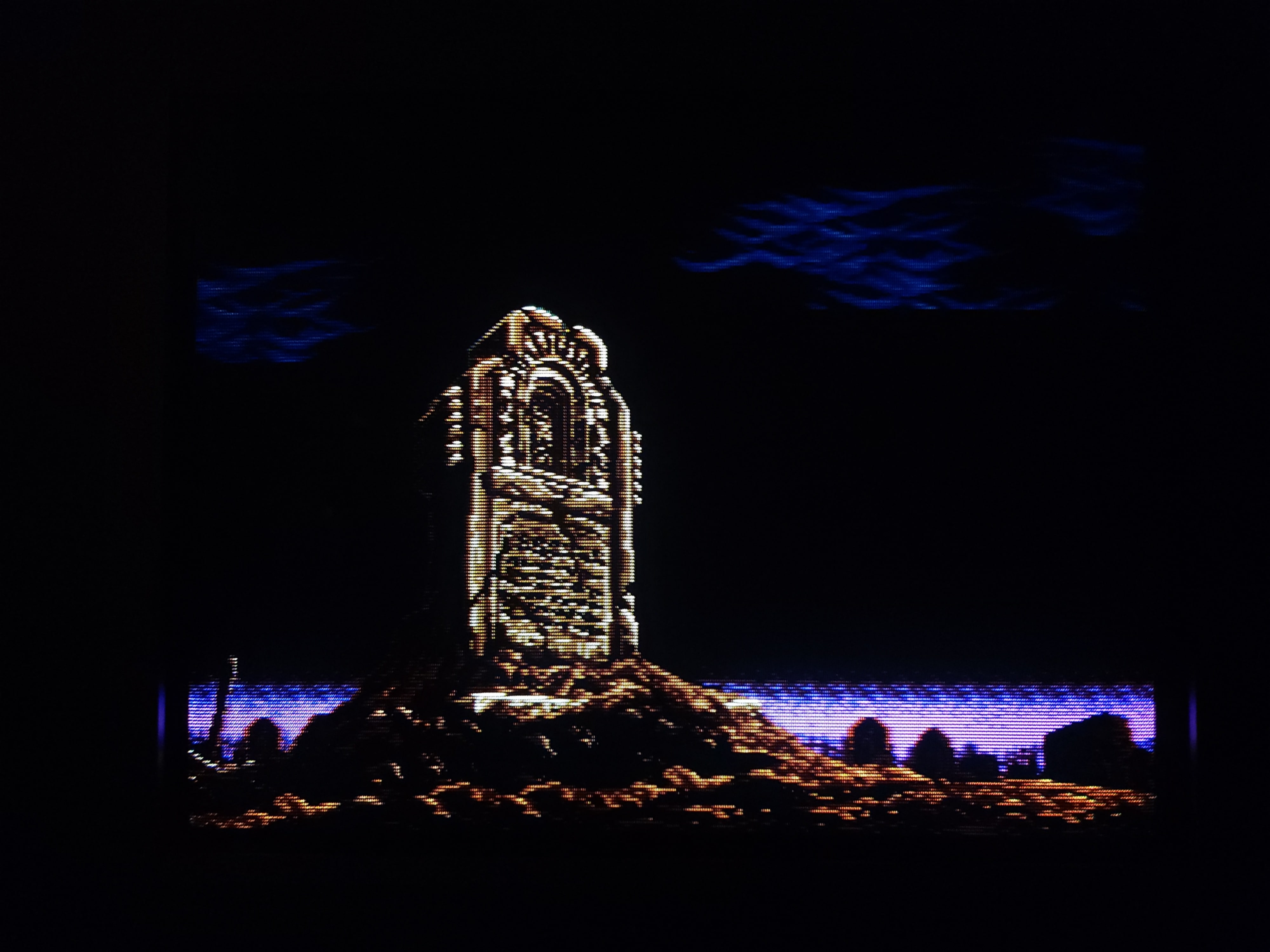

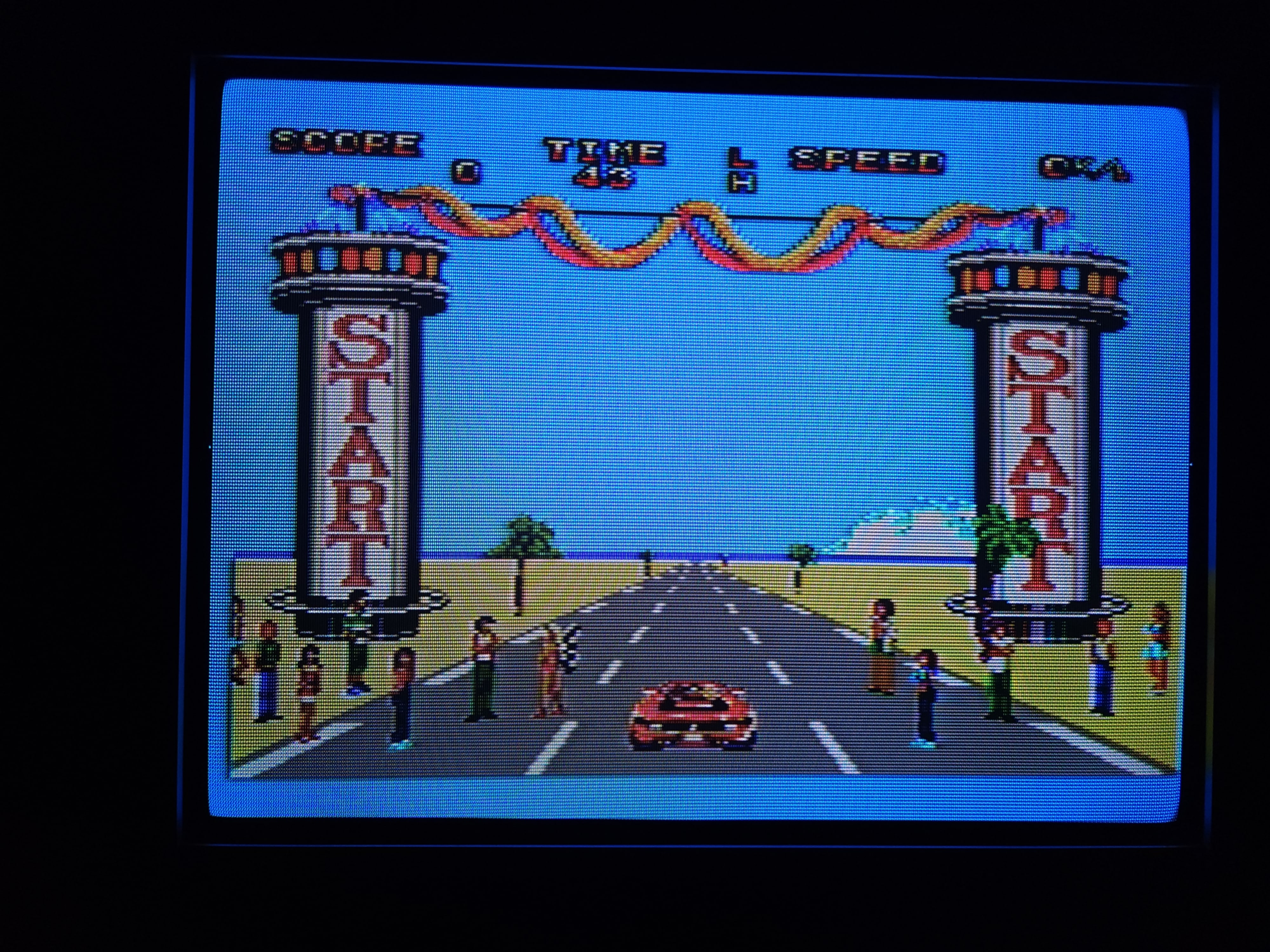

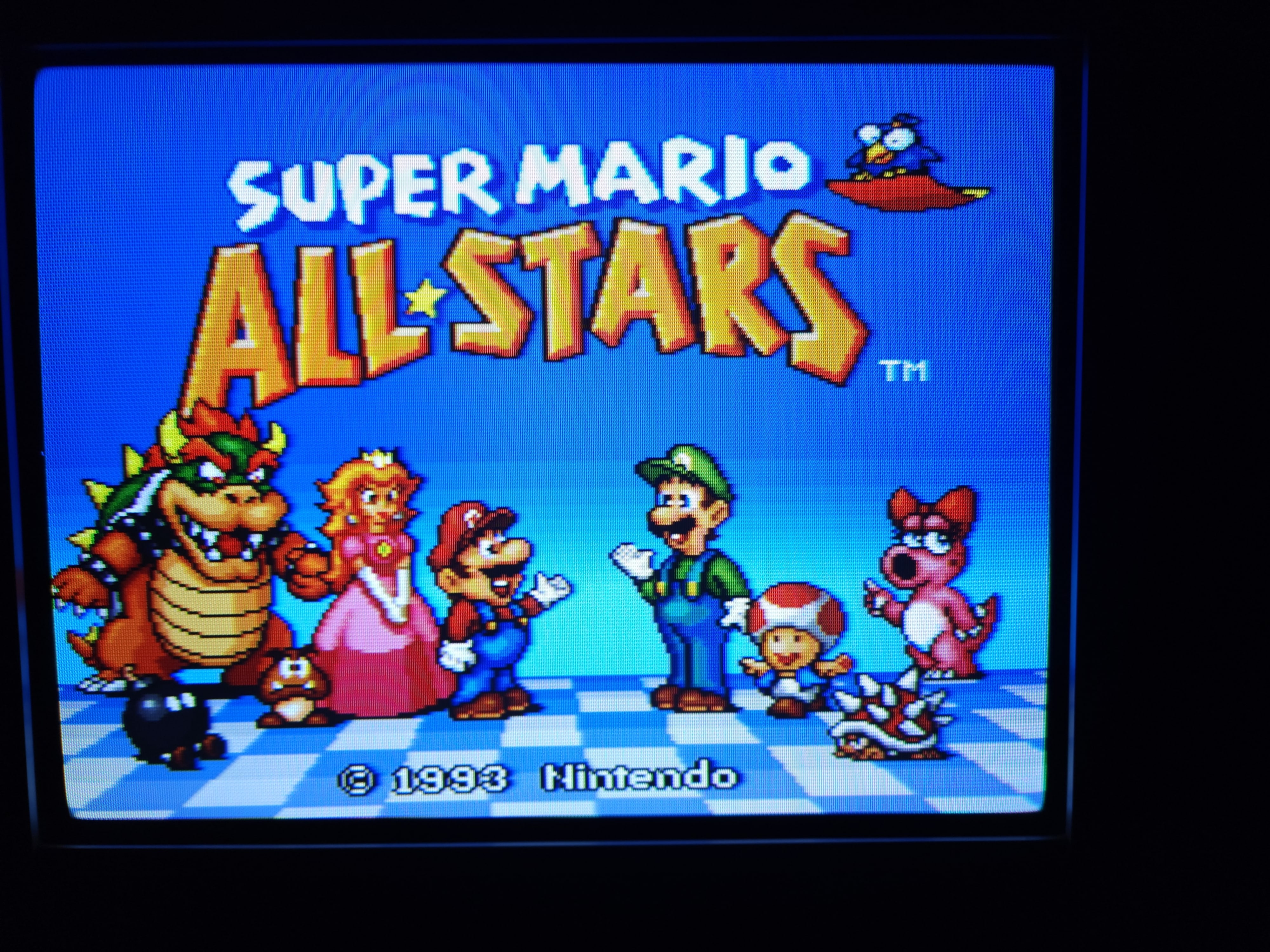

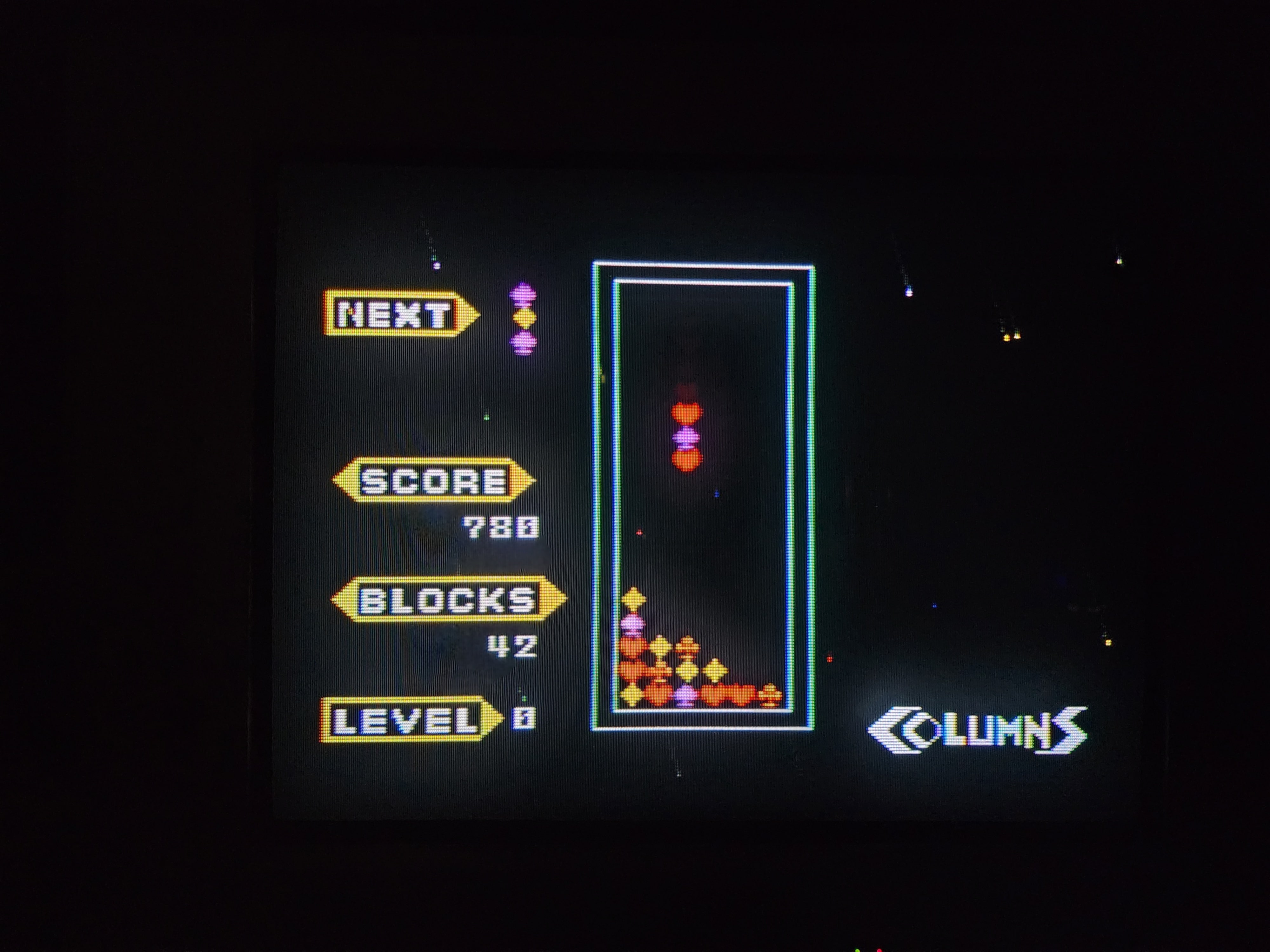

Component signal looks very clean, no complaints here.

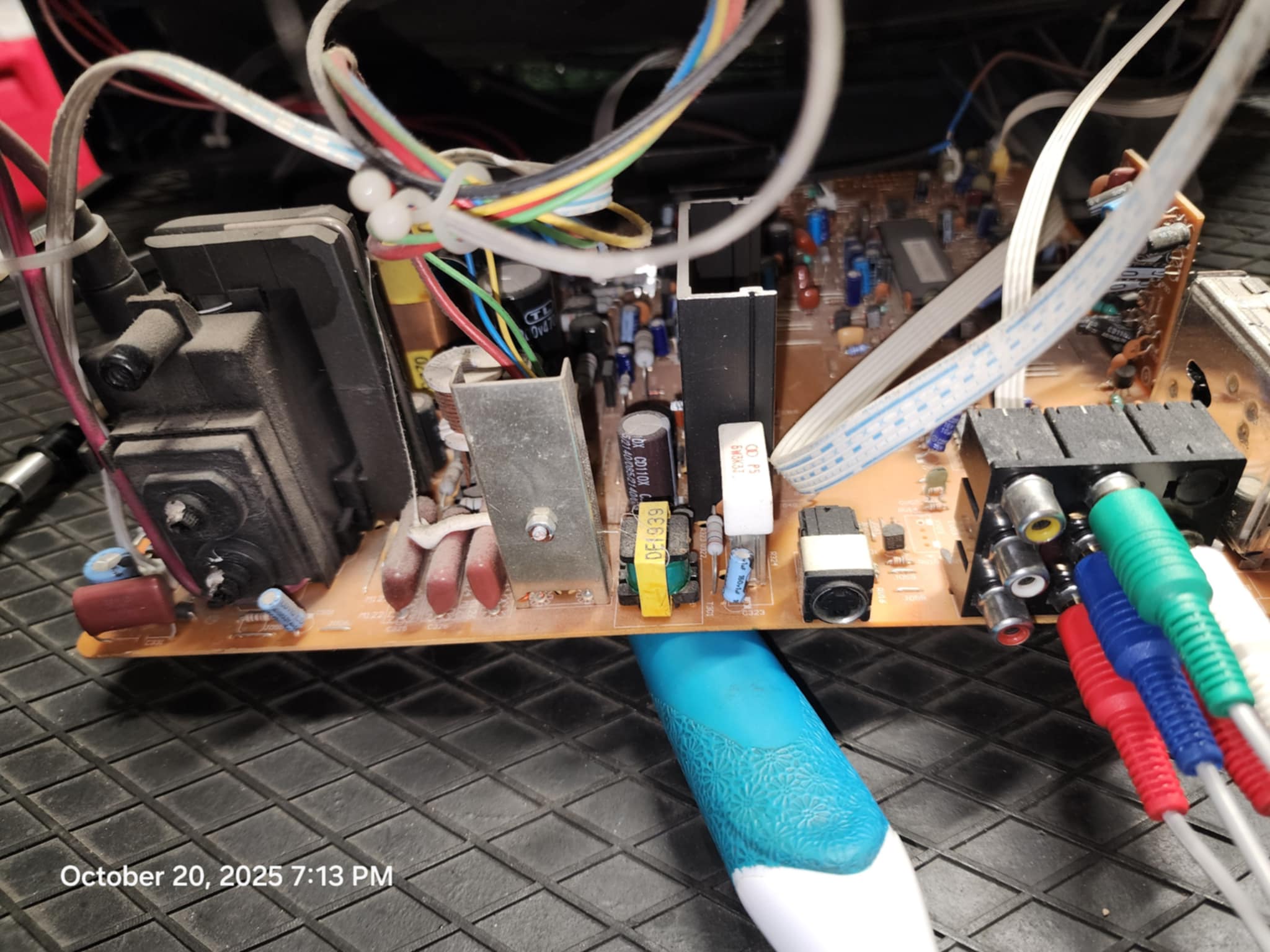

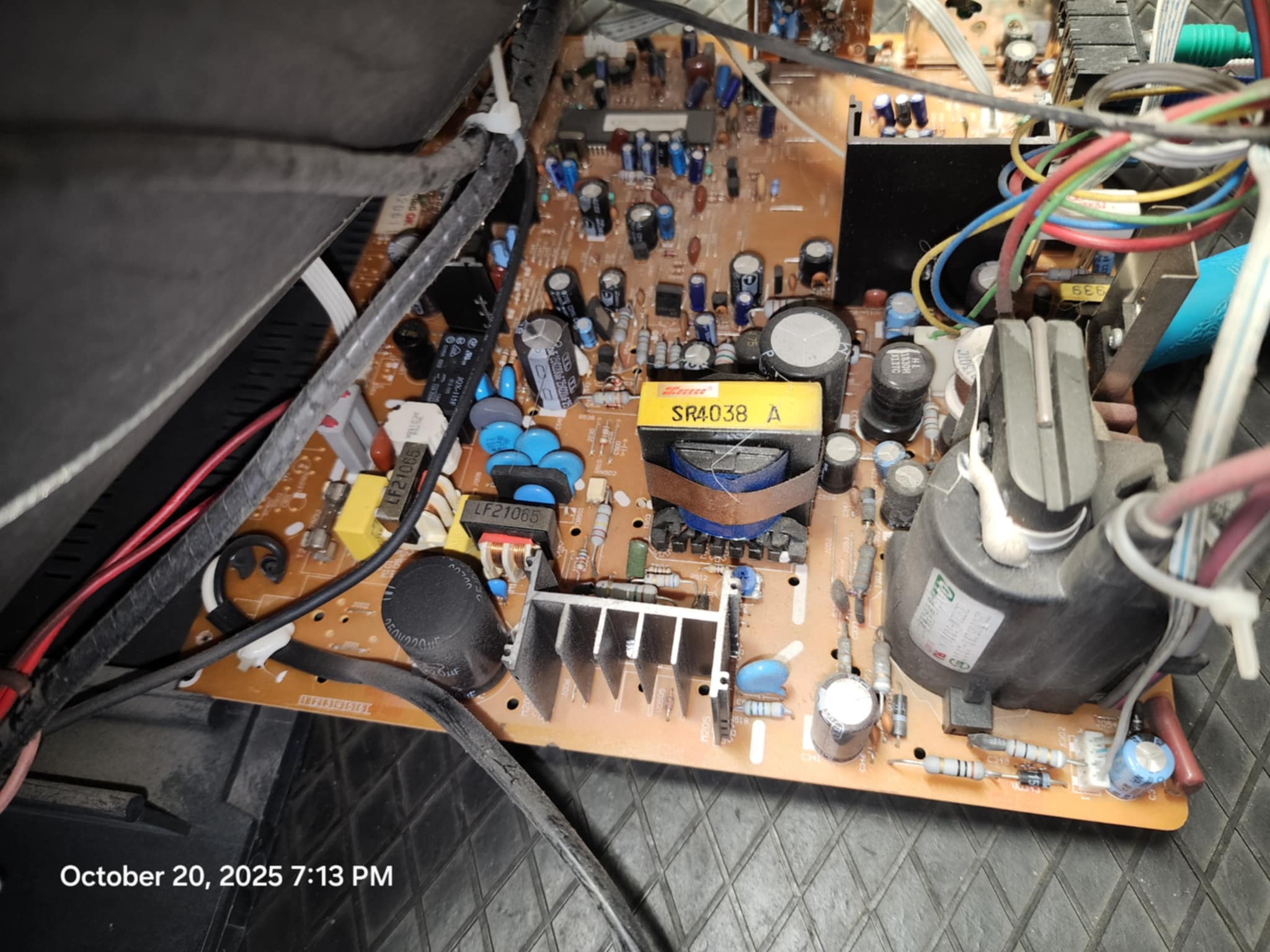

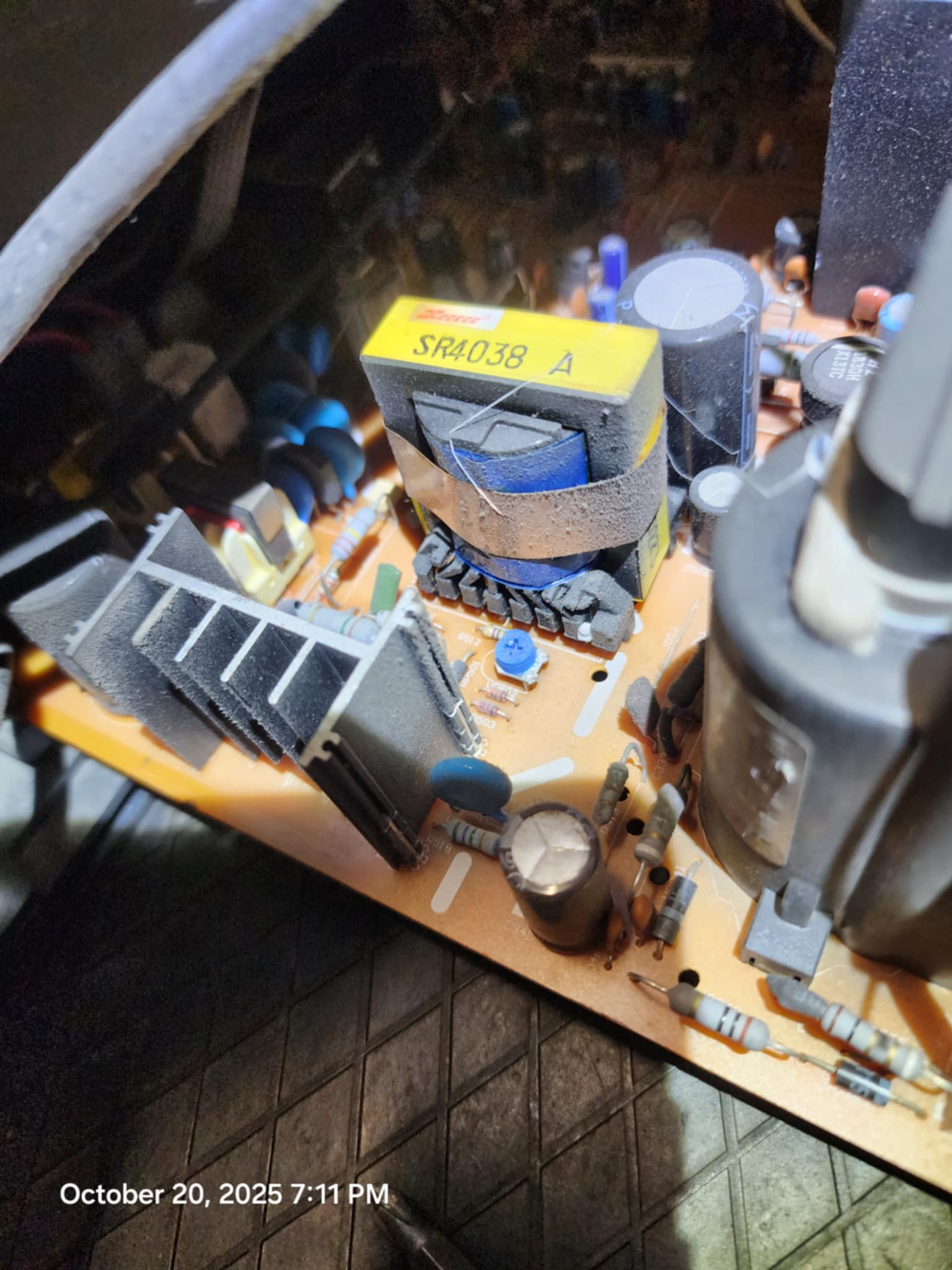

There is no horizontal size adjustment in the service menu. However, there is a coil that controls width inside the set you can adjust by using a fine-tip flat-head screwdriver.

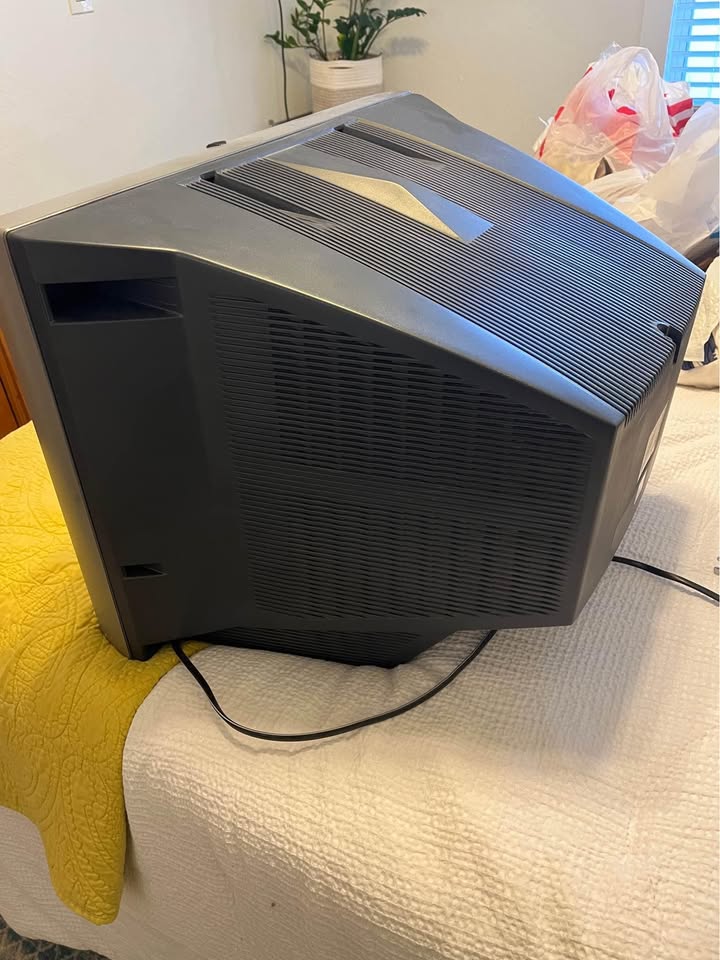

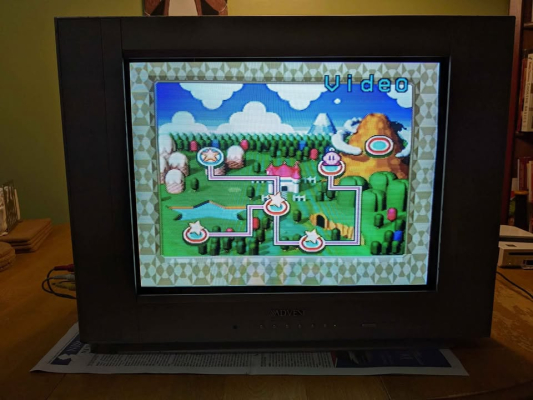

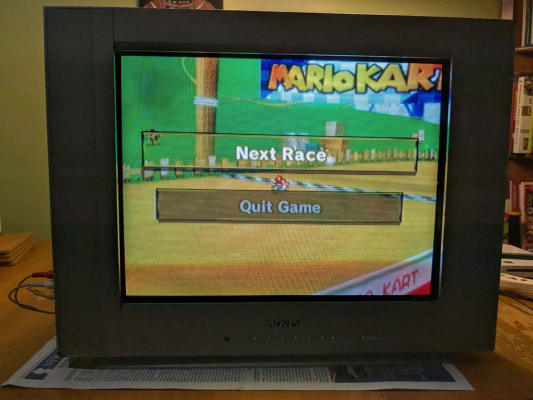

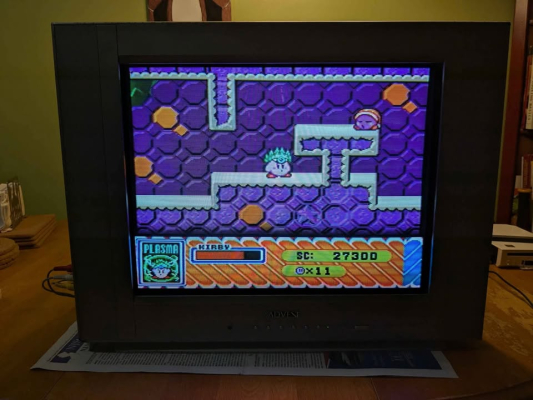

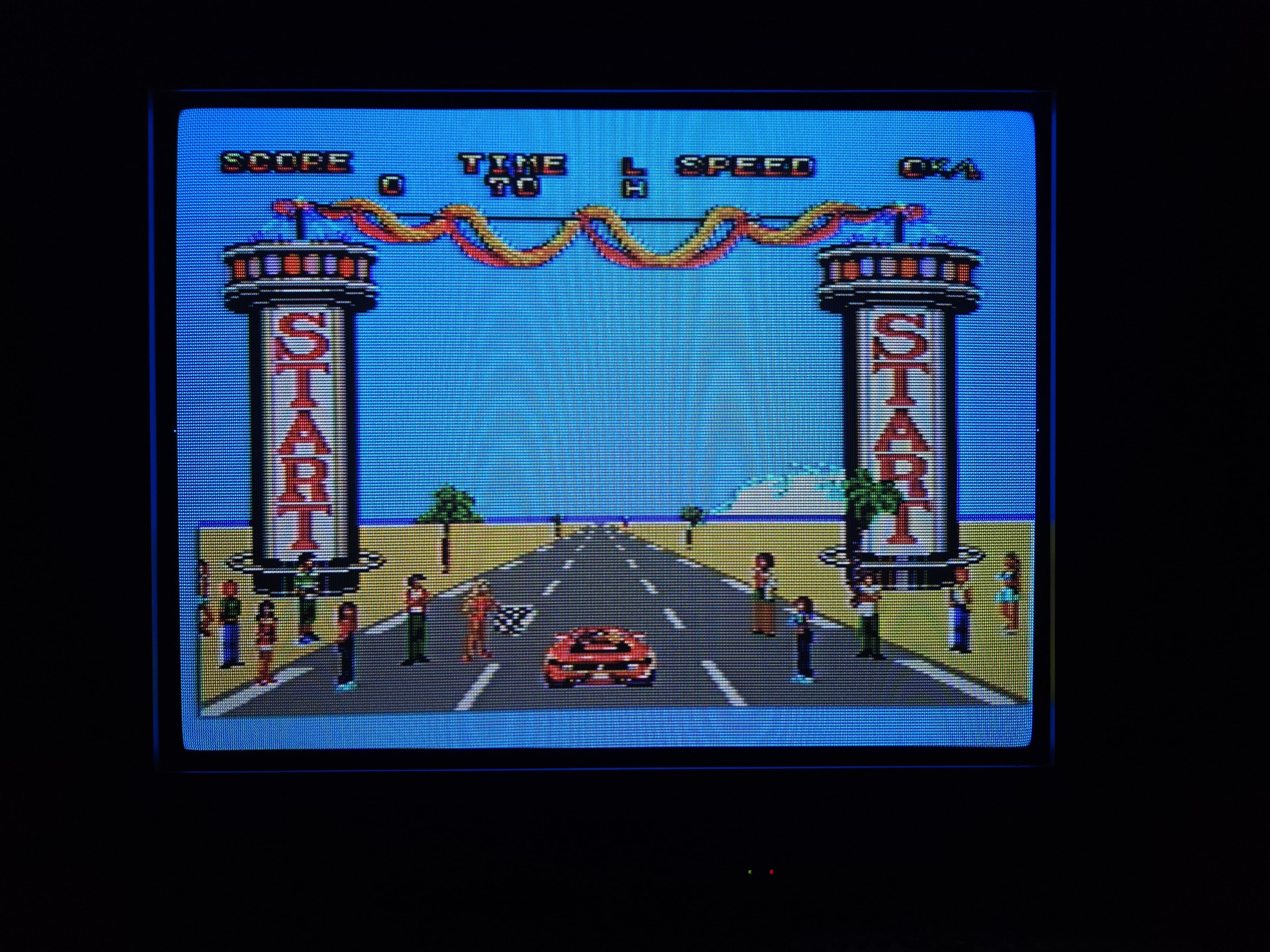

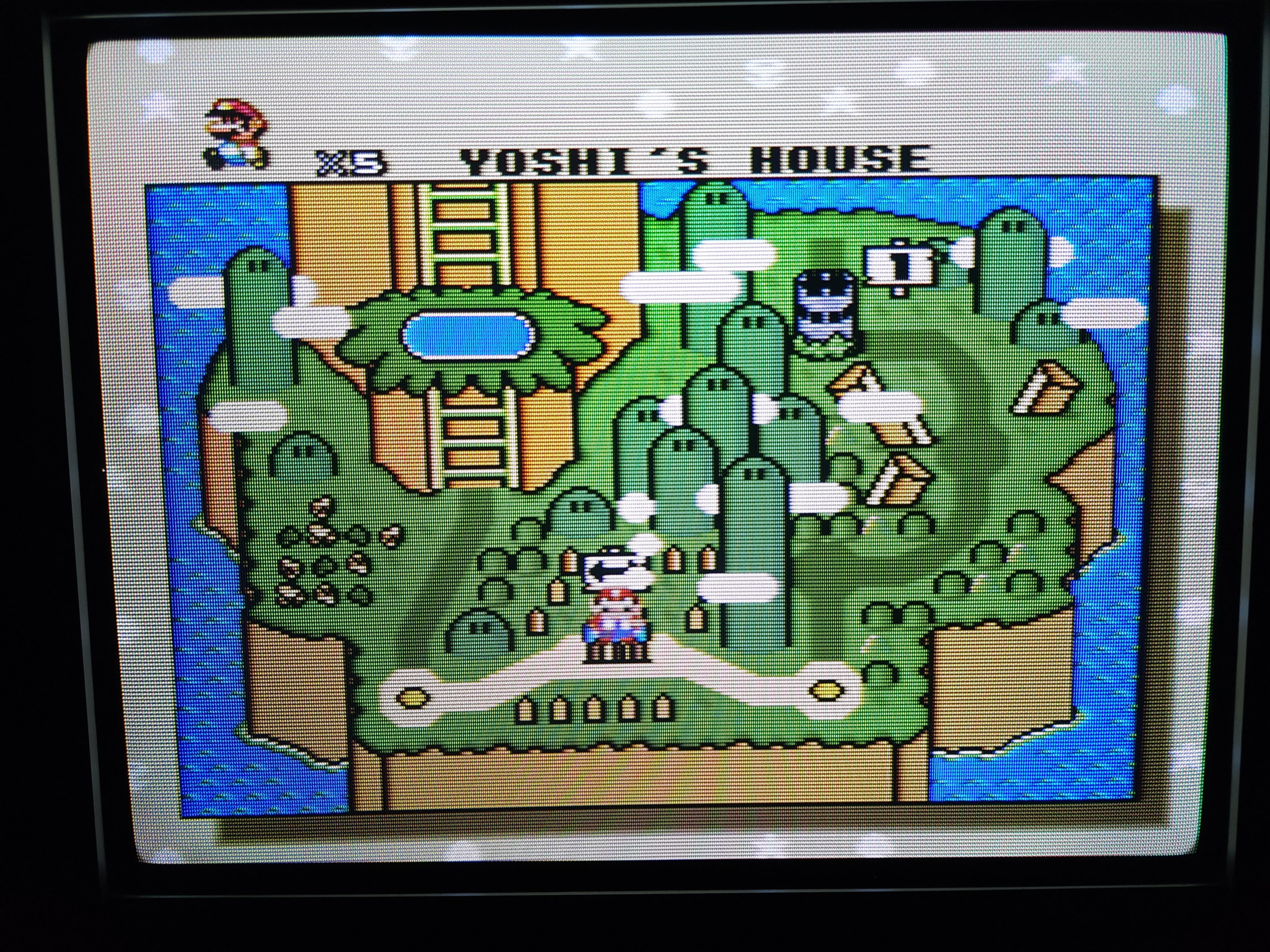

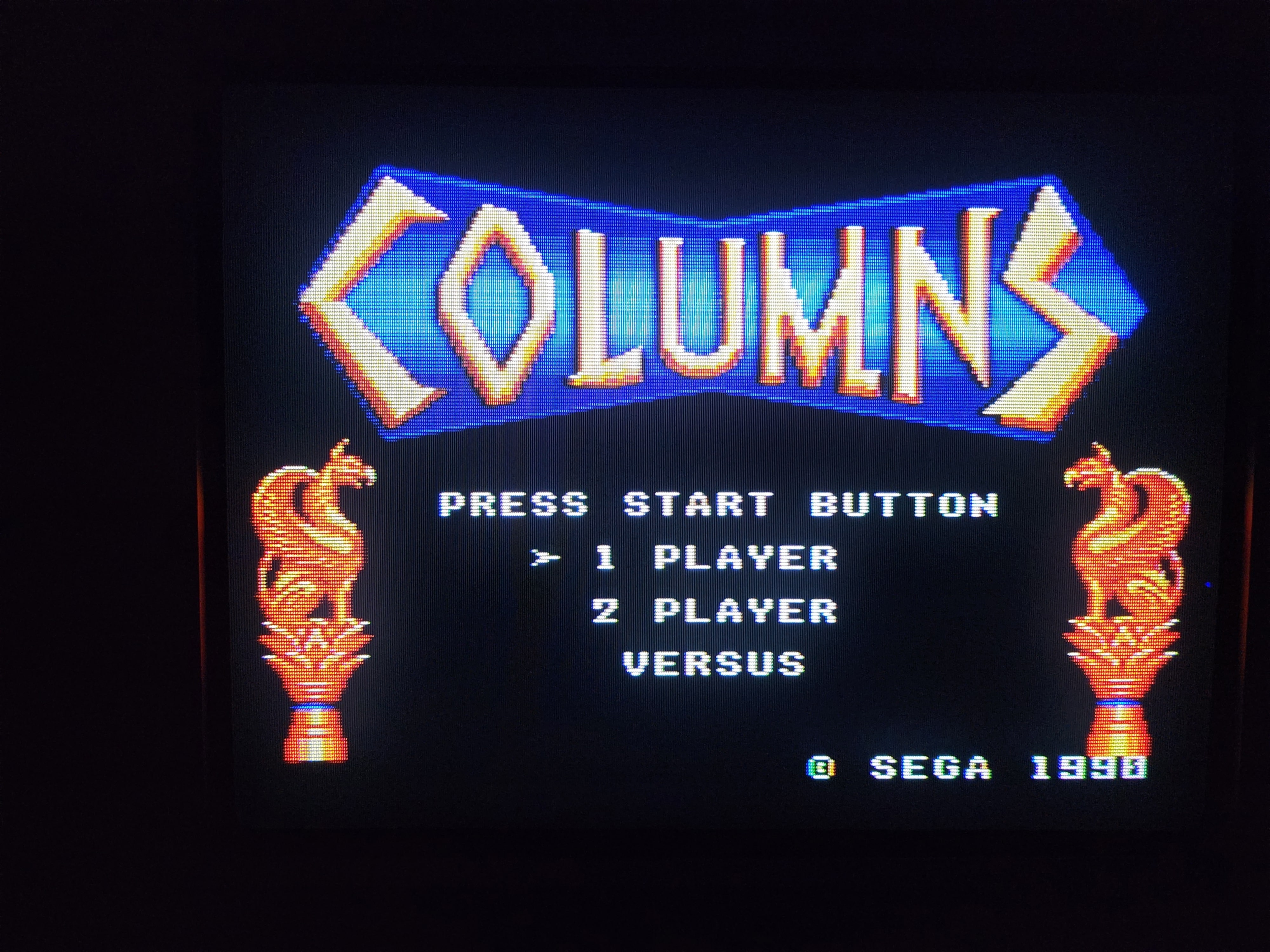

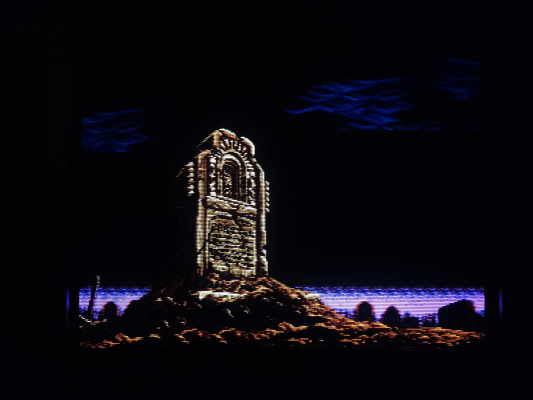

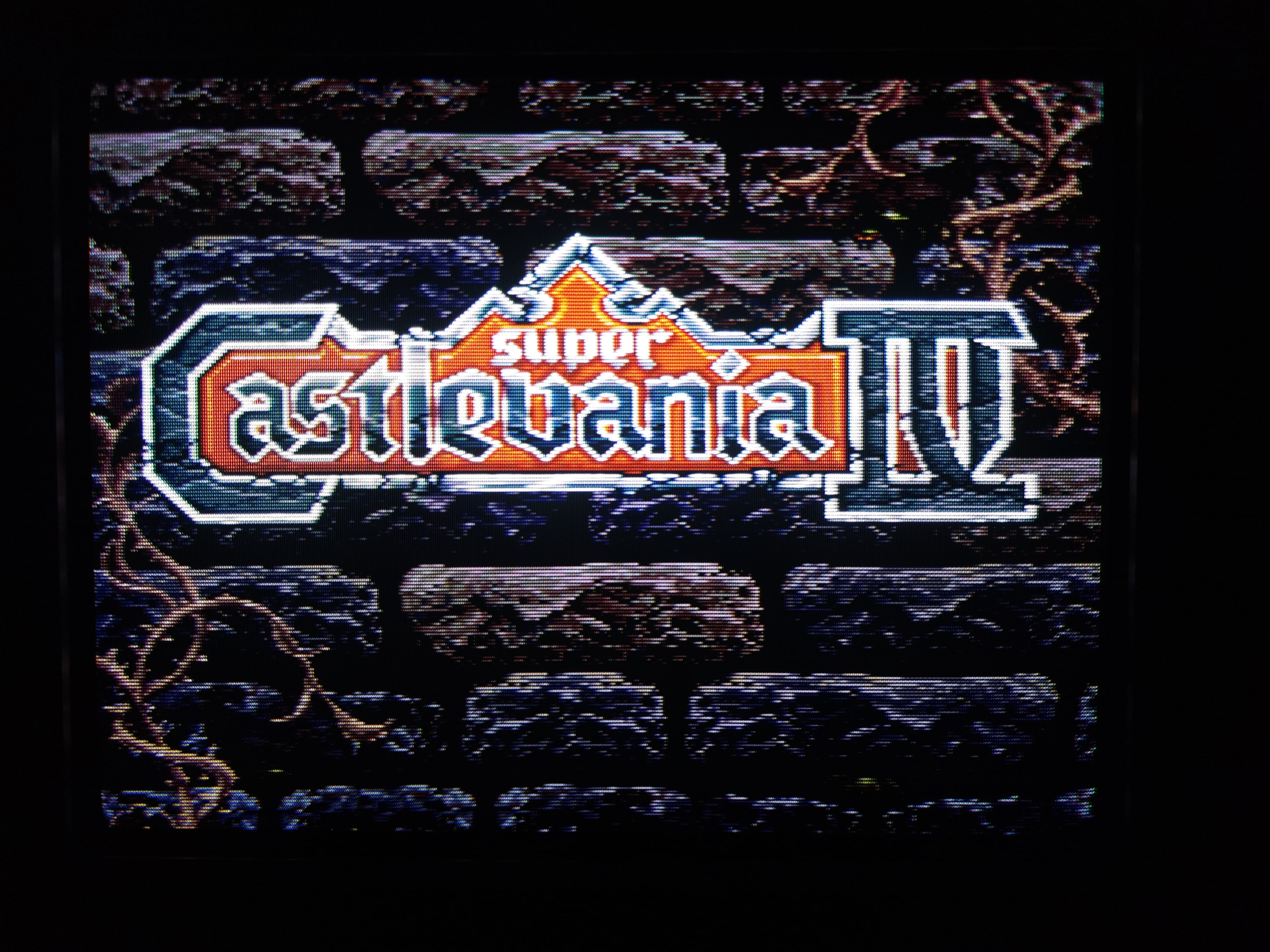

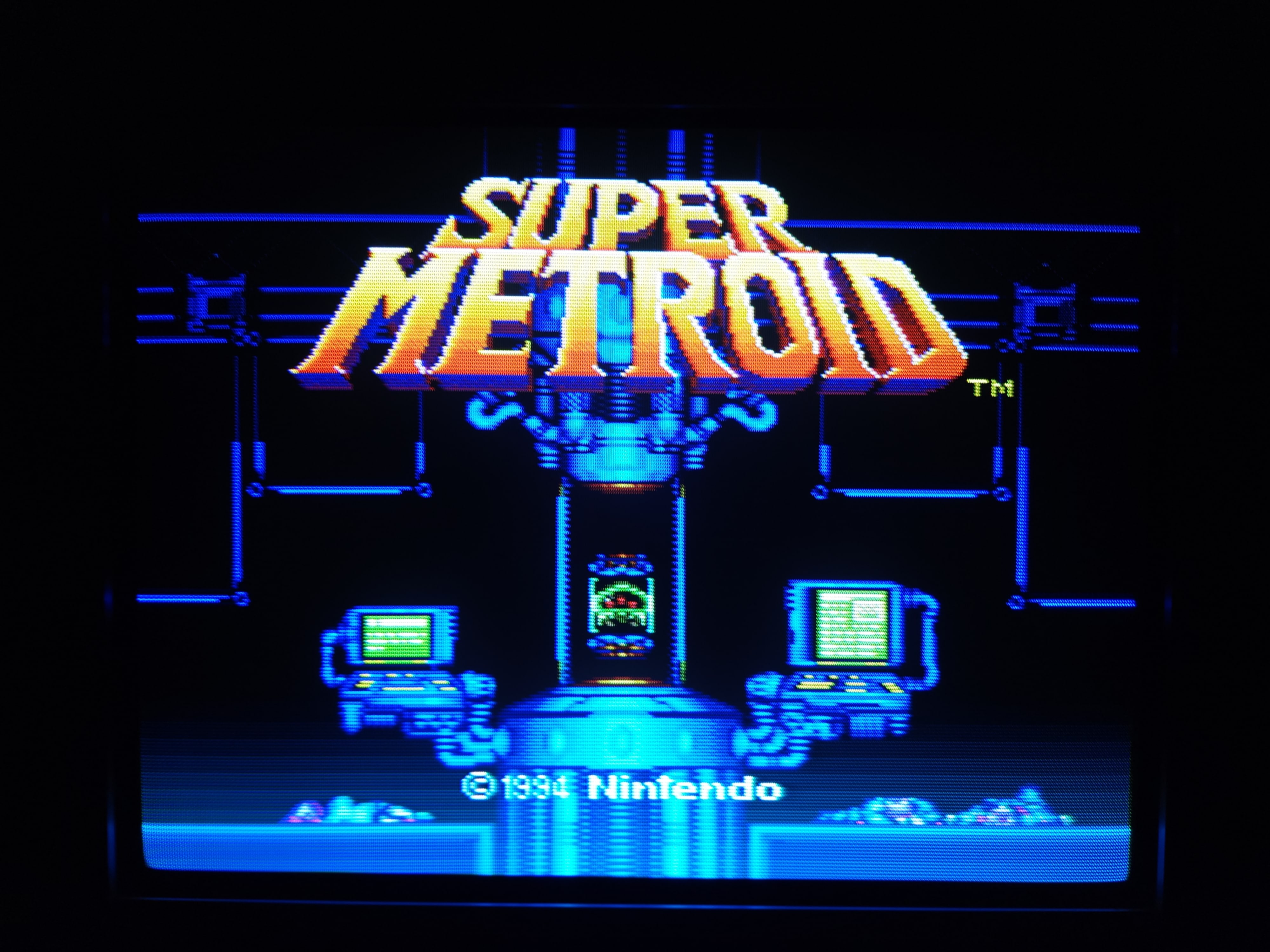

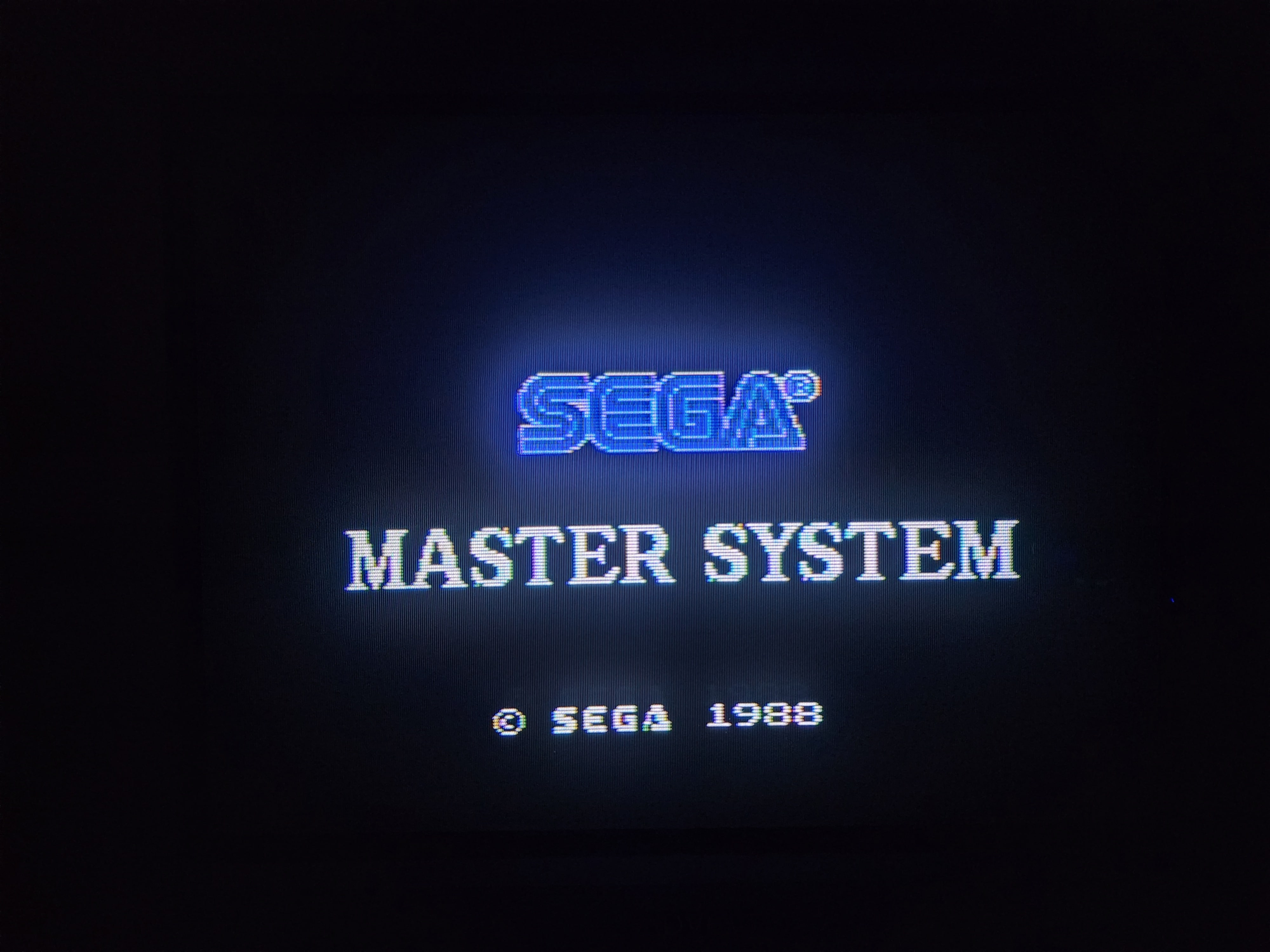

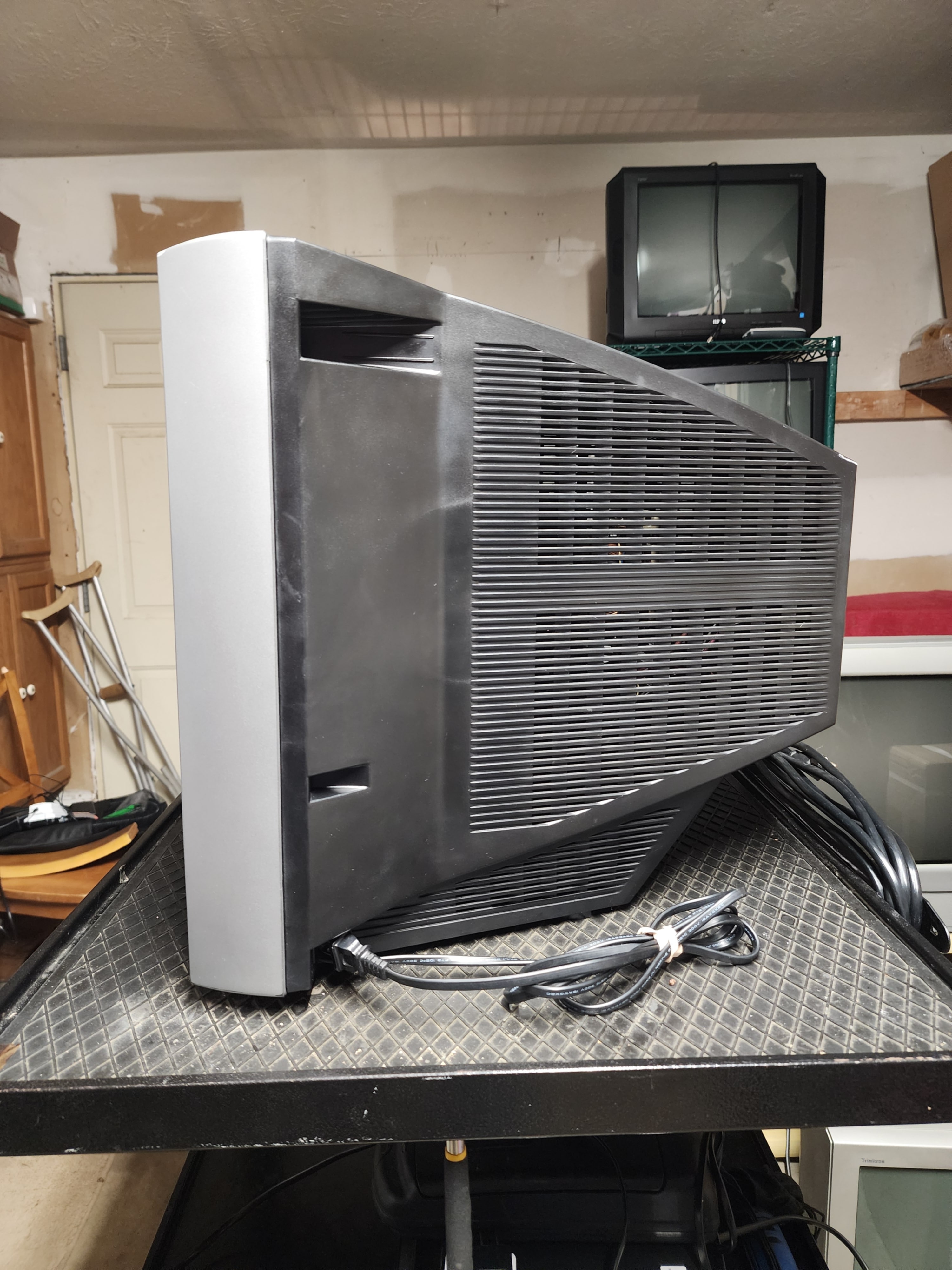

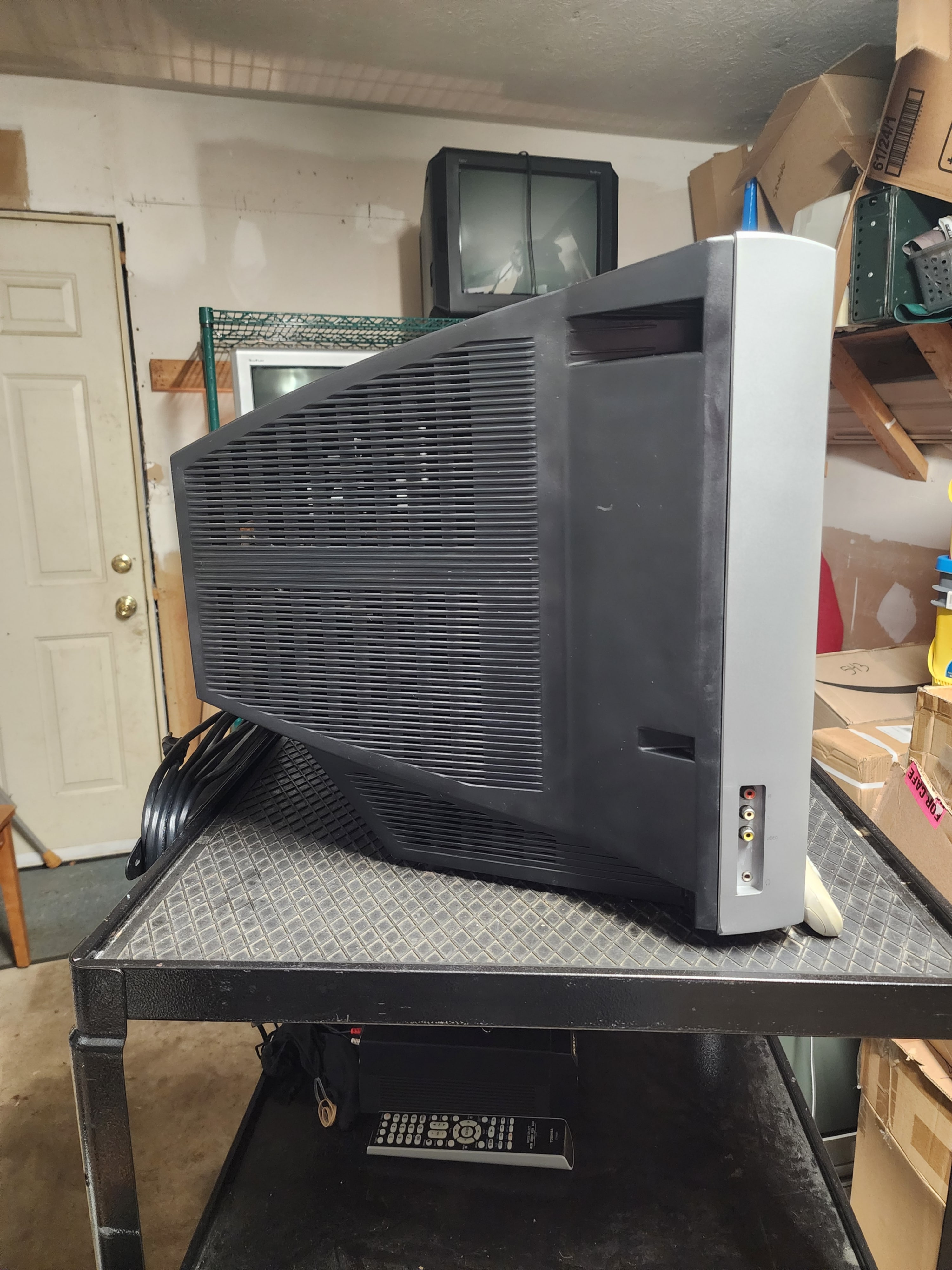

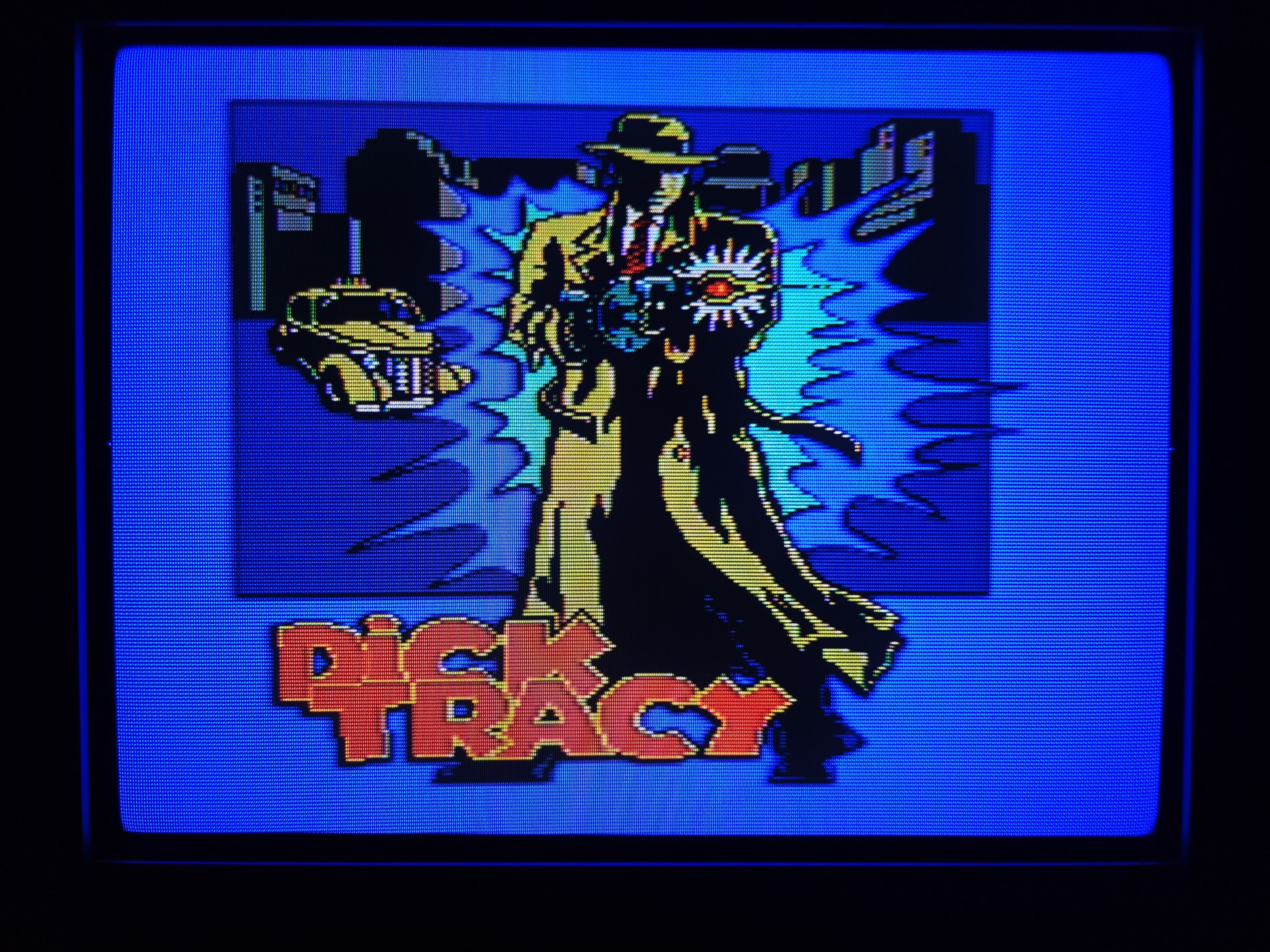

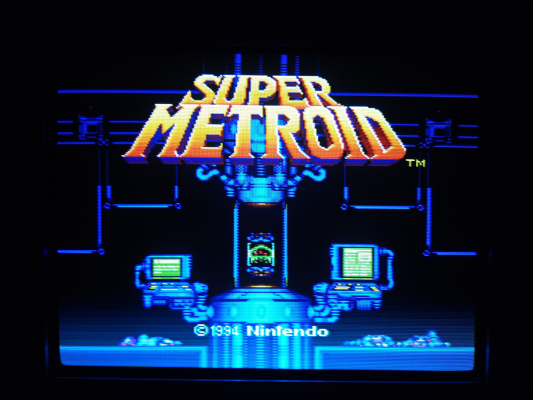

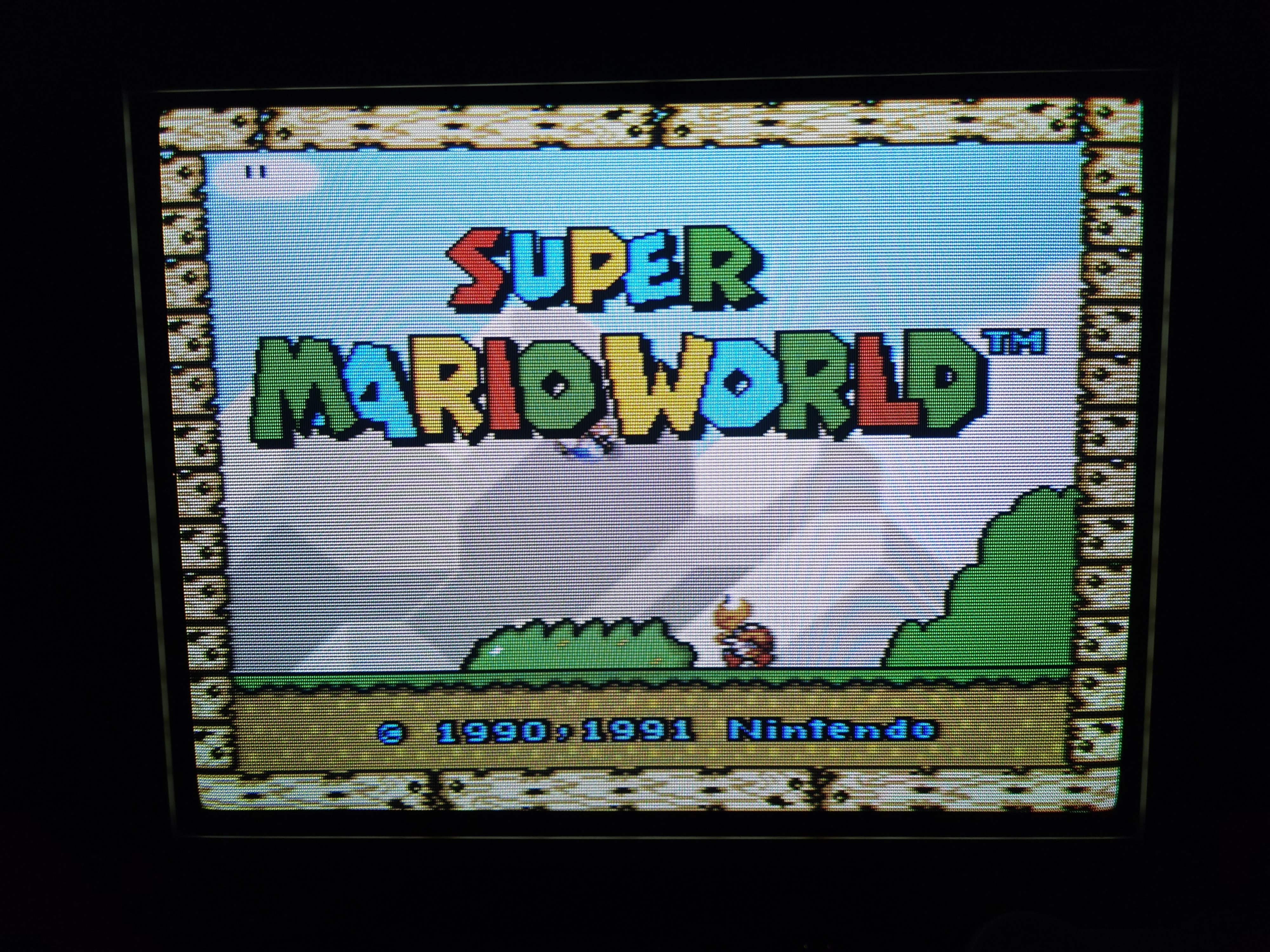

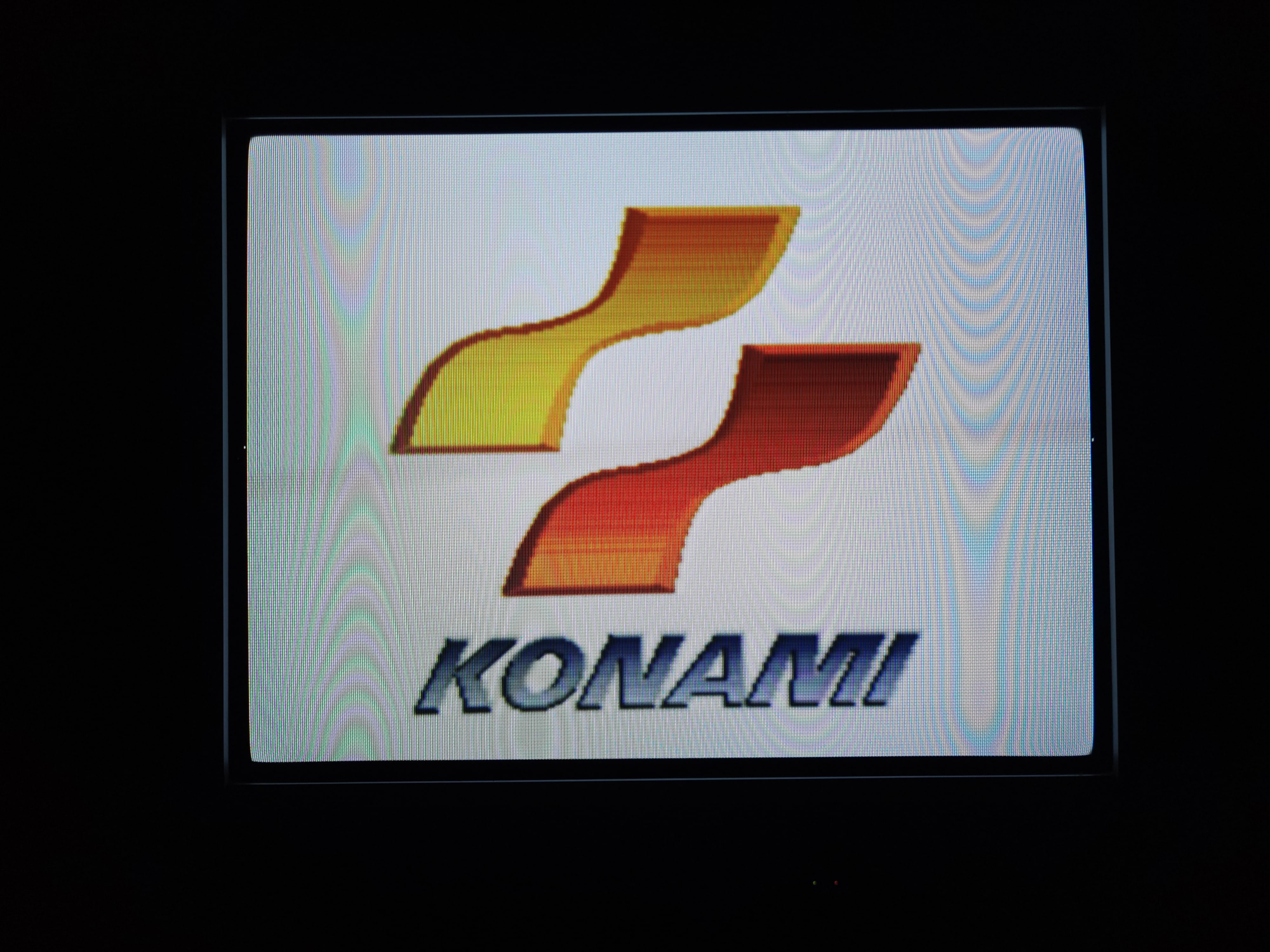

Gallery
| Specifications | |
|---|---|
| Brand: | Advent |
| Manufacturer: | Prima |

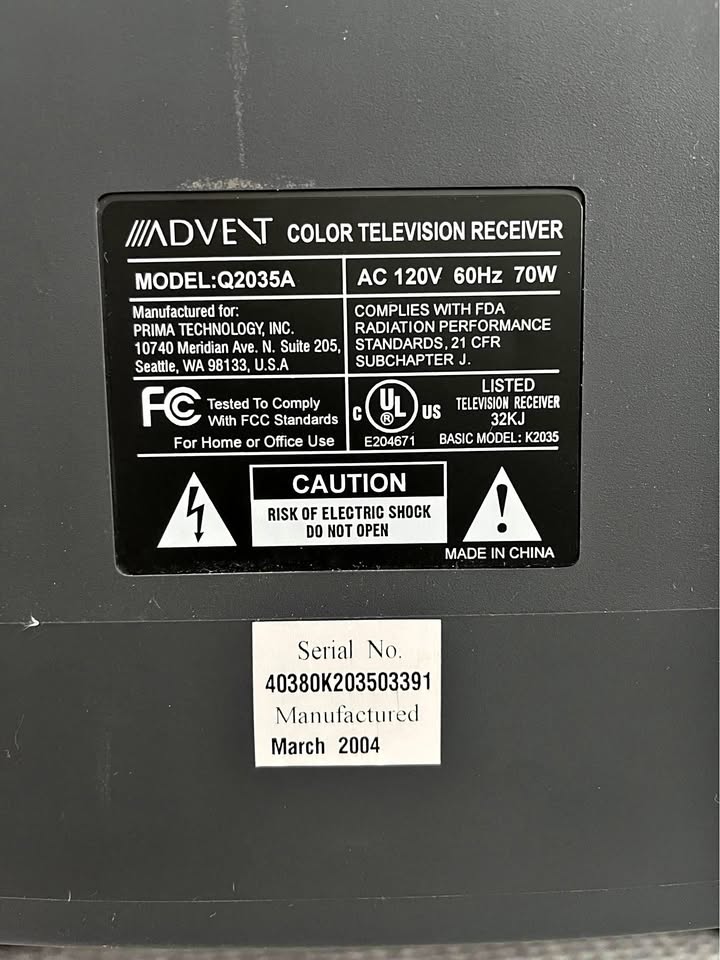

| Model: | Q2035A |
| Series: | Q |
| Viewable Size: | 20" |

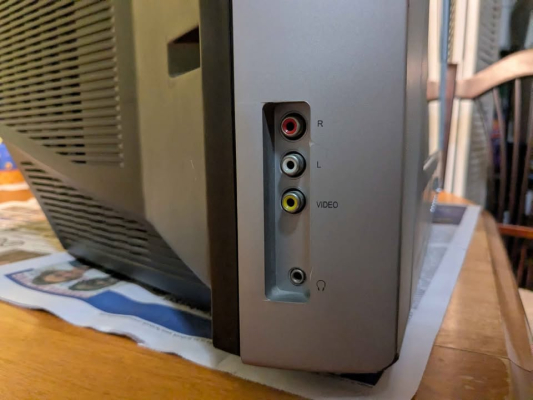

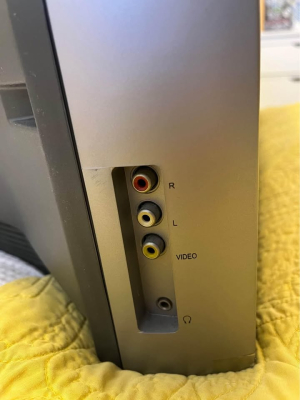

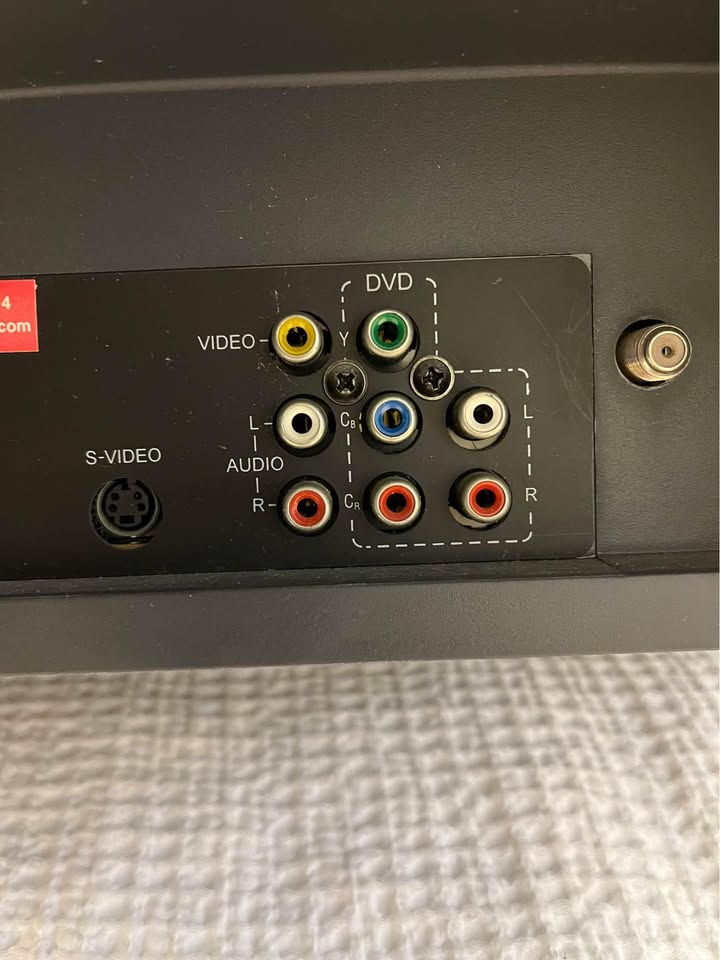

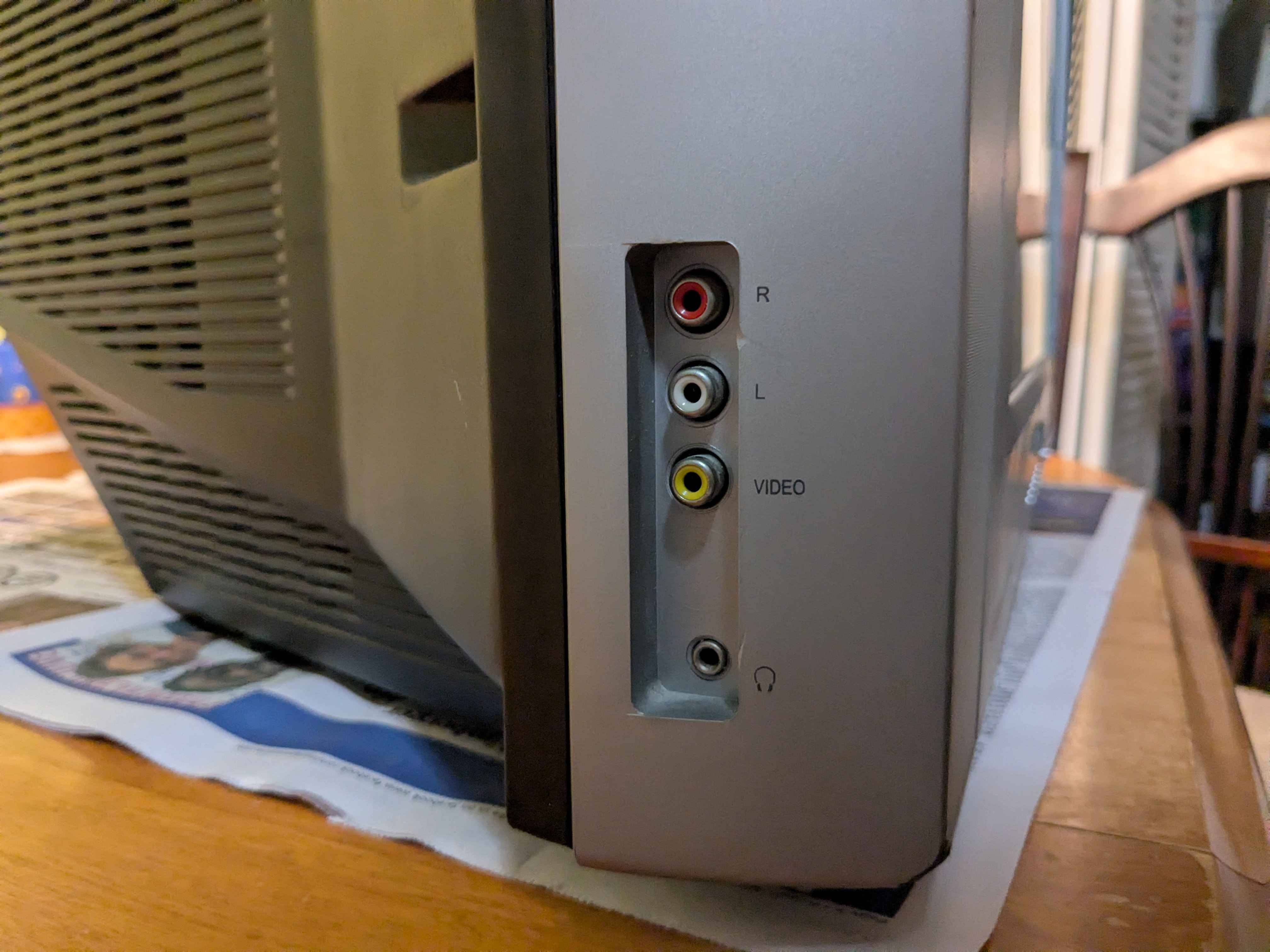

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC, PAL, NTSC4.43 |
| Aspect: | 4:3 |

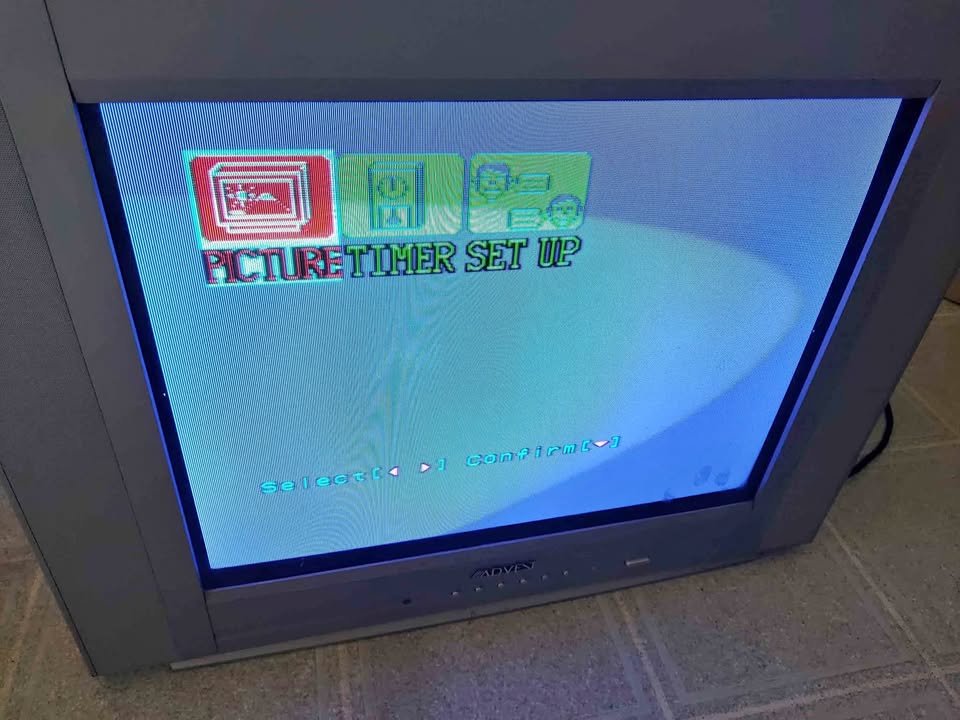

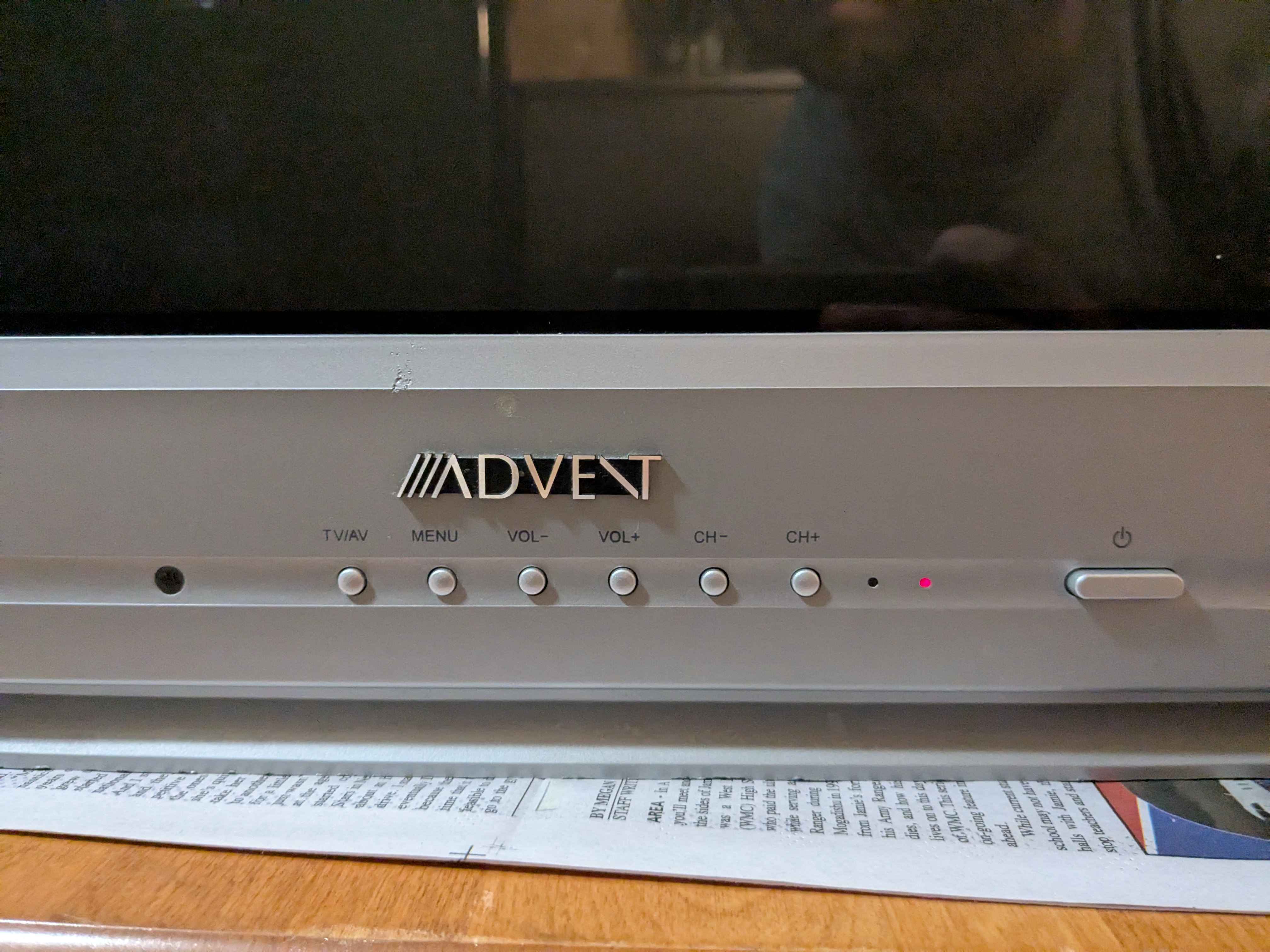

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TMPS8801PSAN |

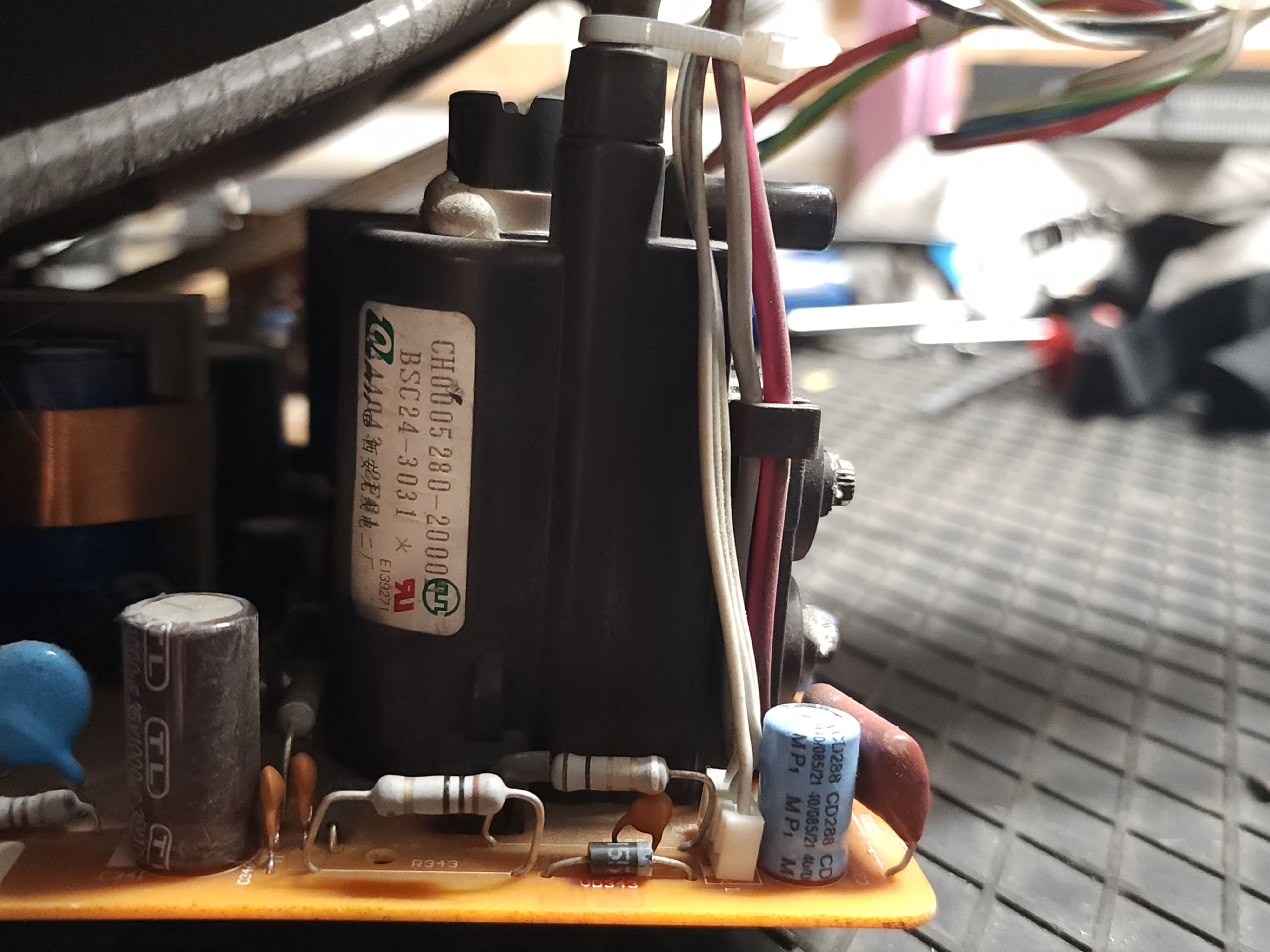

| Flyback: | BSC24-3031 |
| Focus Type: | Single |

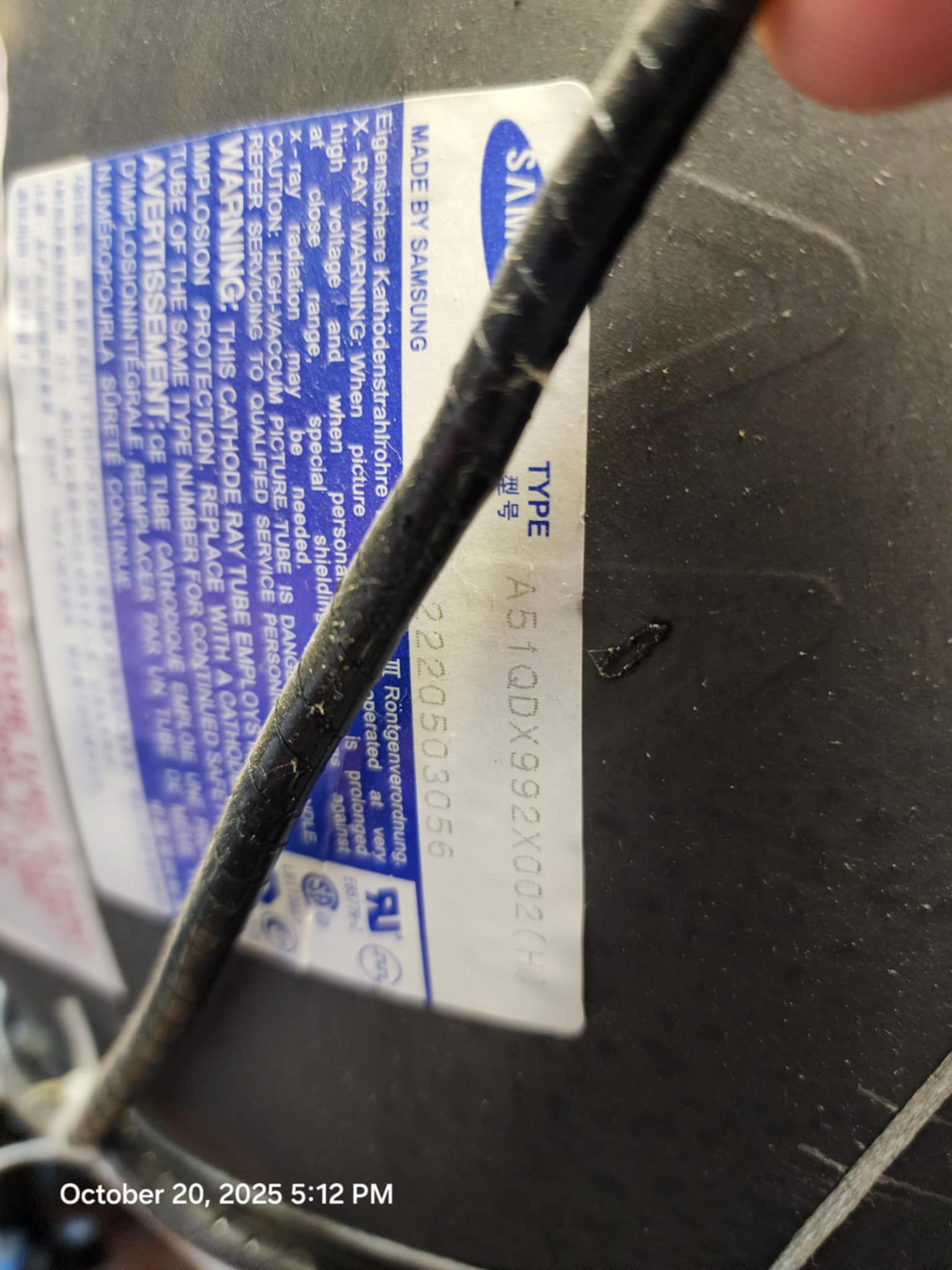

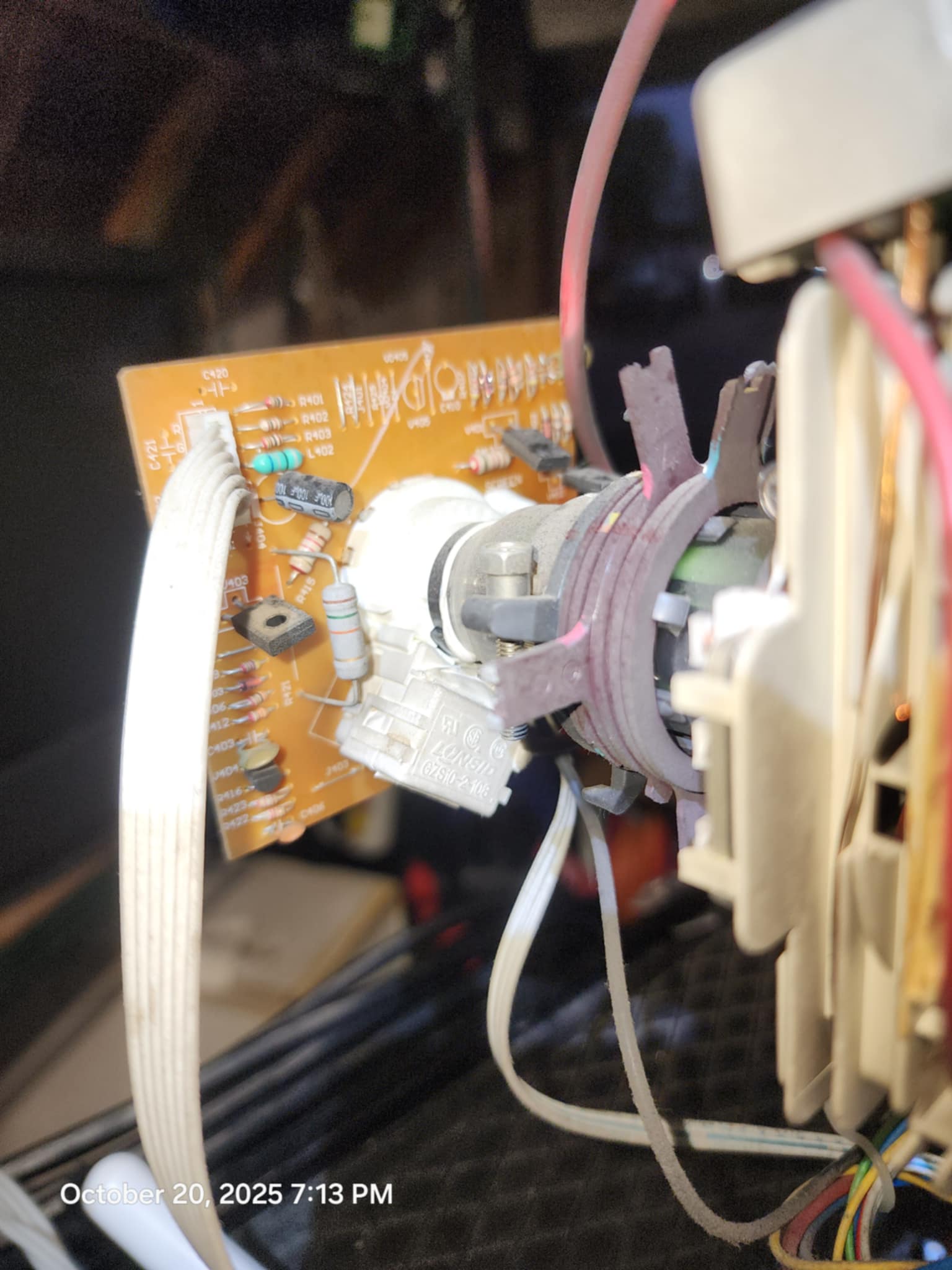

| Tube: | Samsung , A51QDX992X , A51QDX992X002 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

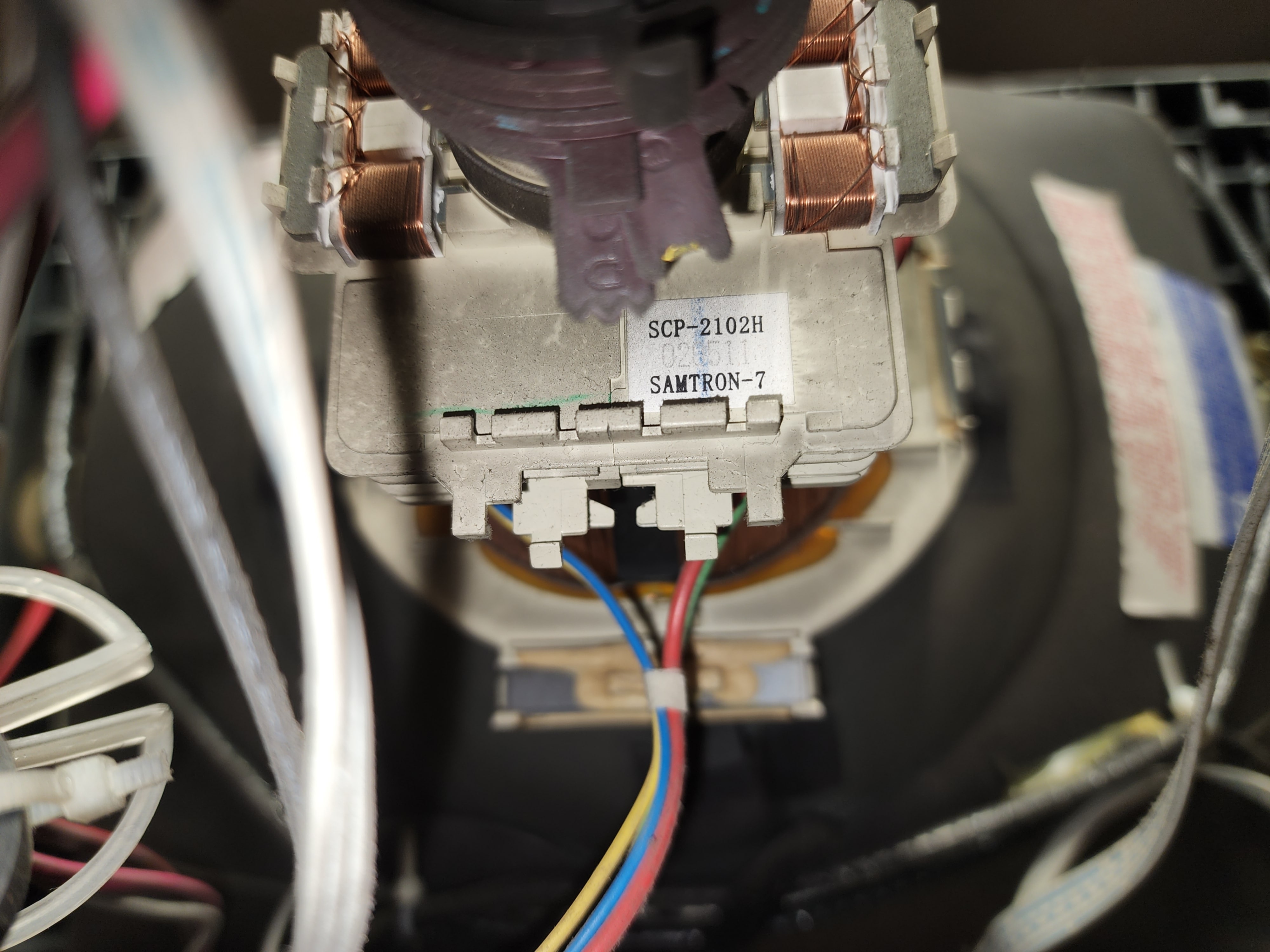

| Yoke: | SCP-2102H |
| Speakers: | Stereo, 2W x 2, Headphone Jack |

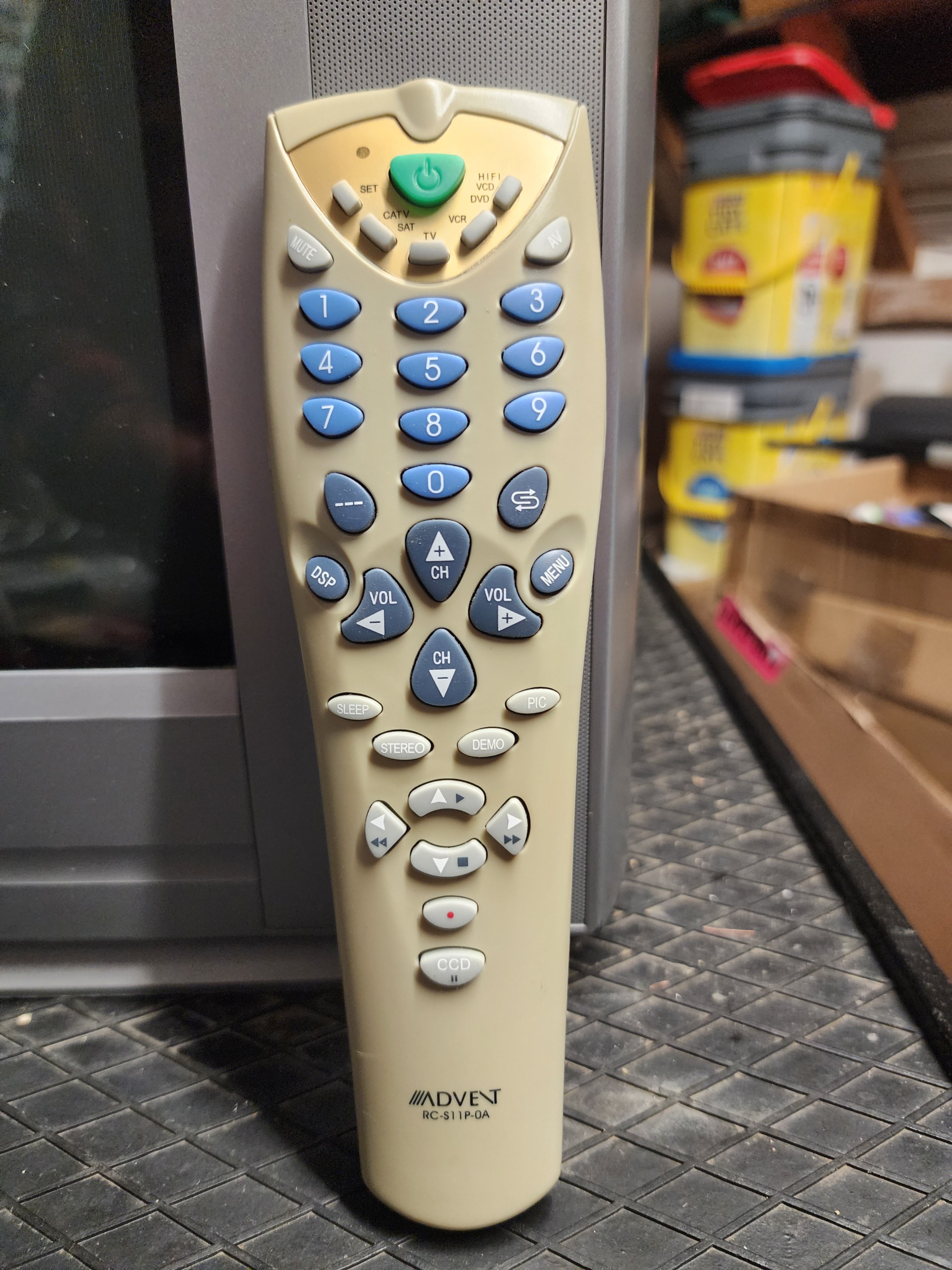

| Remote: | RC-S11P-0A |
| Weight: | 51 lbs (23.1 kg) |
| Dimensions (W/H/D): |
612 x 465 x 475 mm
(24.1 x 18.3 x 18.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 199 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
