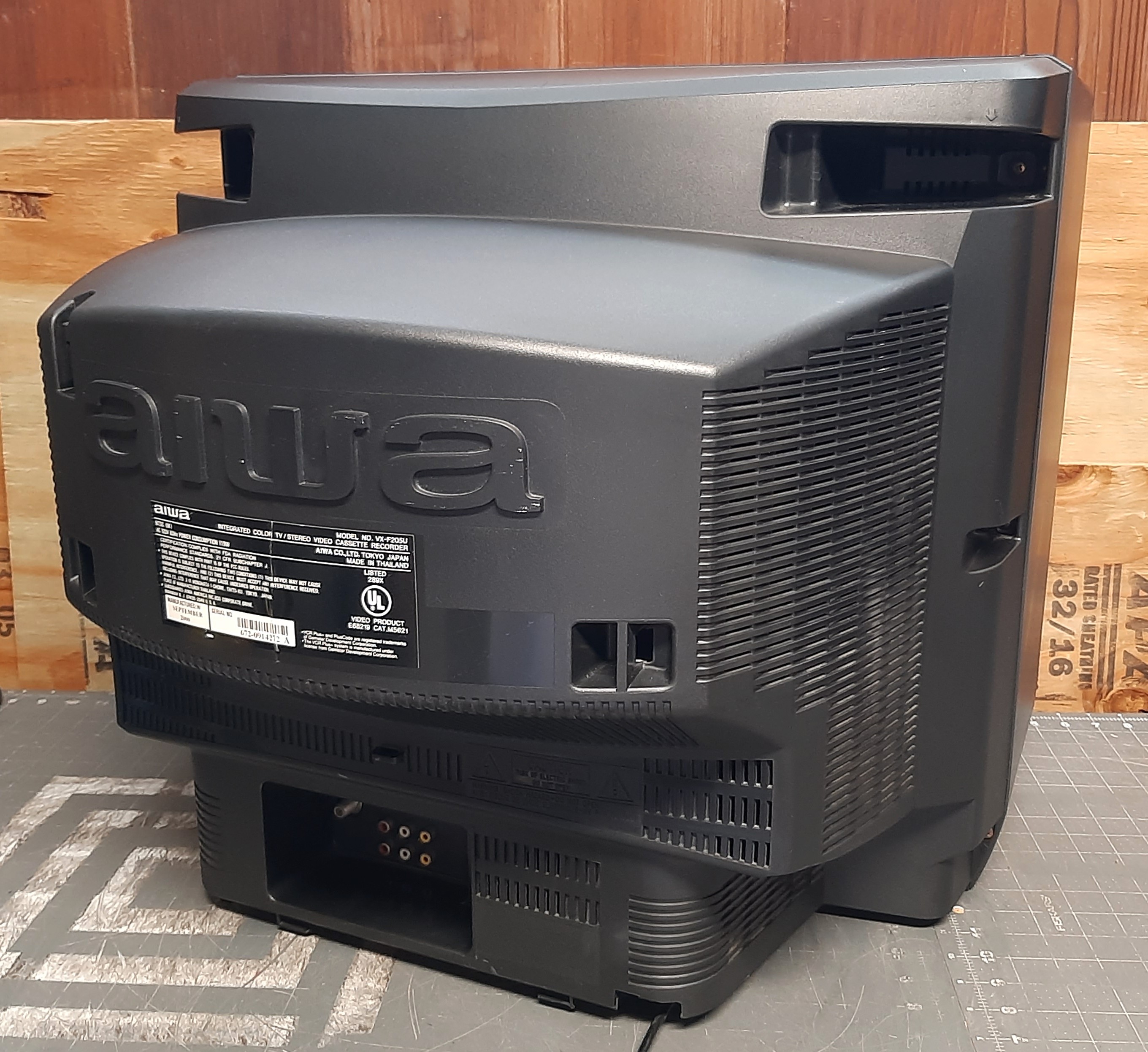

Gallery
| Specifications | |
|---|---|
| Brand: | Aiwa |
| Manufacturer: | Orion |
| Model: | VX-F205 |
| Series: | VX |
| Viewable Size: | 20" |

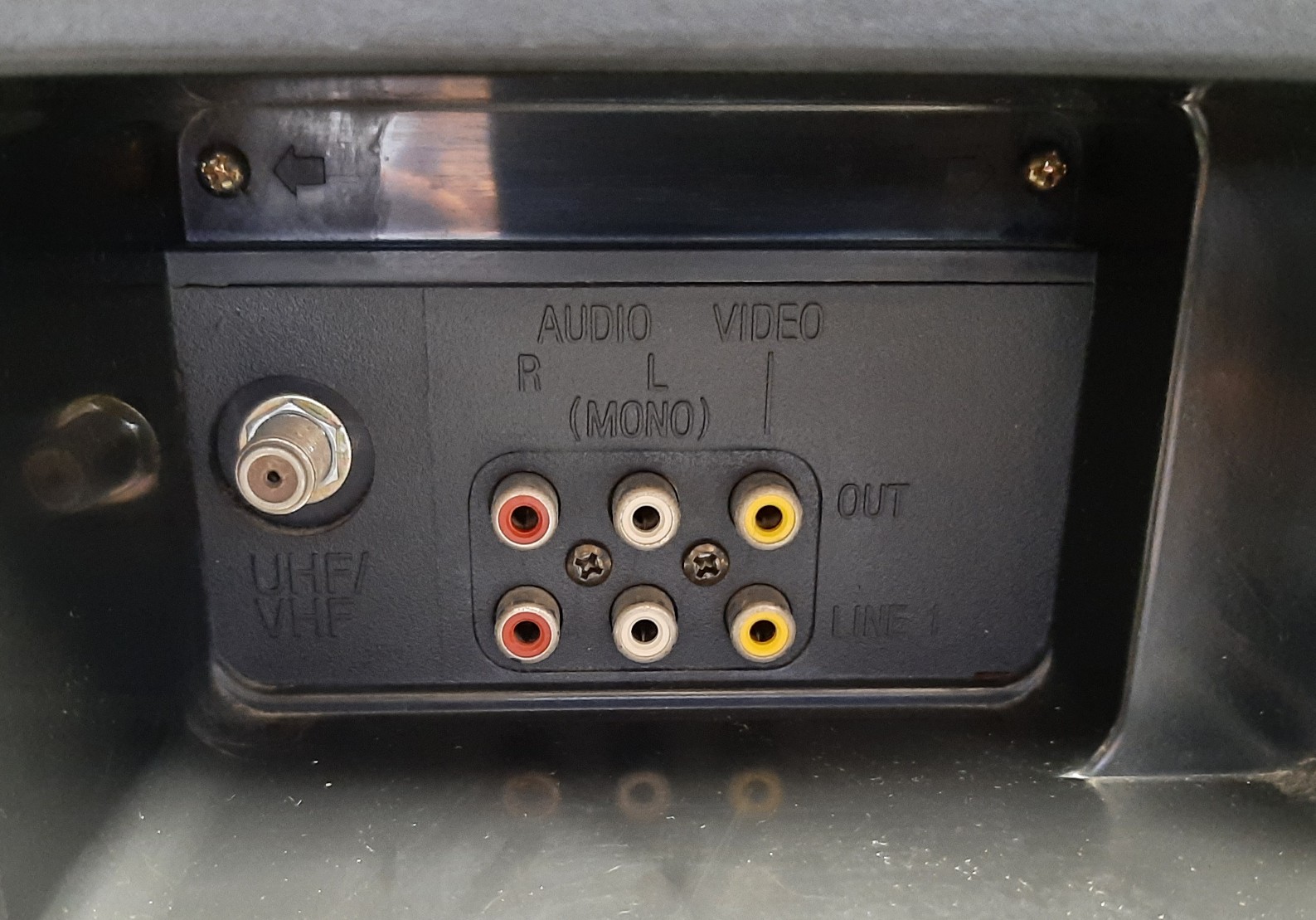

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls, OSD Service Menu |

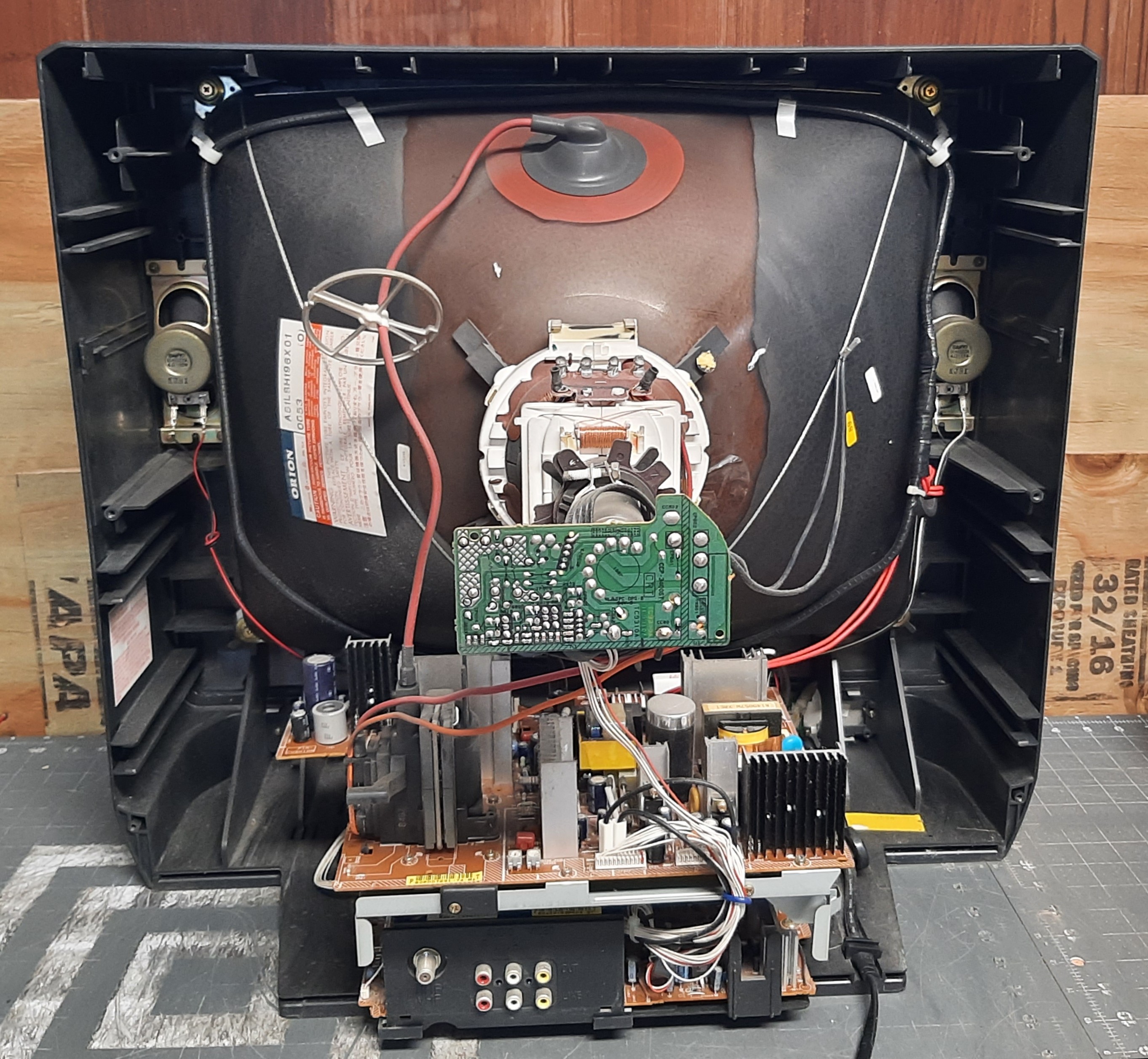

| Jungle IC: | LA78614BM |
| Flyback: | 3221011Q |
| Focus Type: | Single |
| Tube: | A51LSH196X , A51LSH196X01 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | KDY3NWB29T |
| Speakers: | Stereo |
| Weight: | 55.6 lbs (25.2 kg) |
| Dimensions (W/H/D): |
574 x 502 x 489 mm
(22.6 x 19.7 x 19.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
