Summary

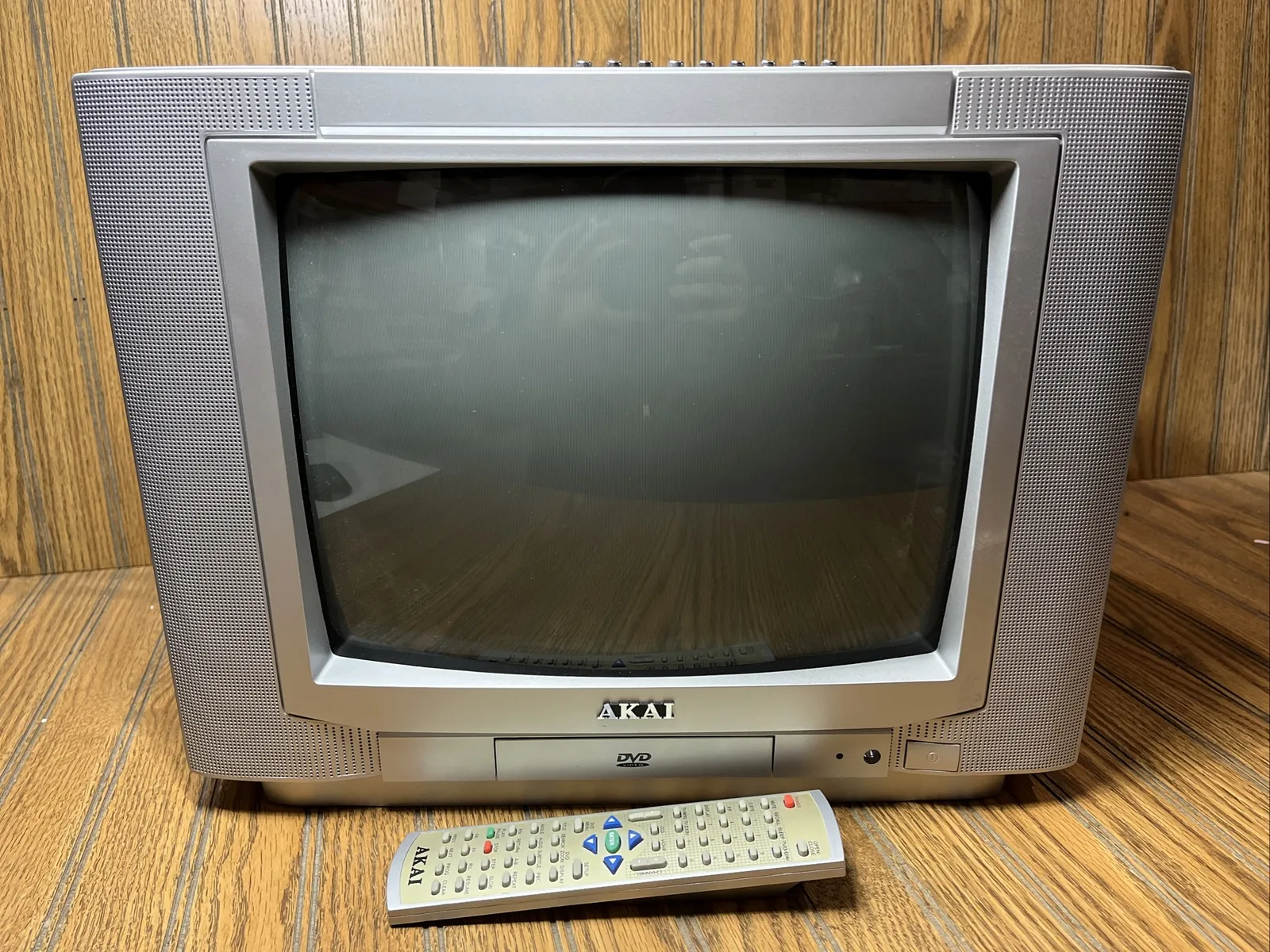

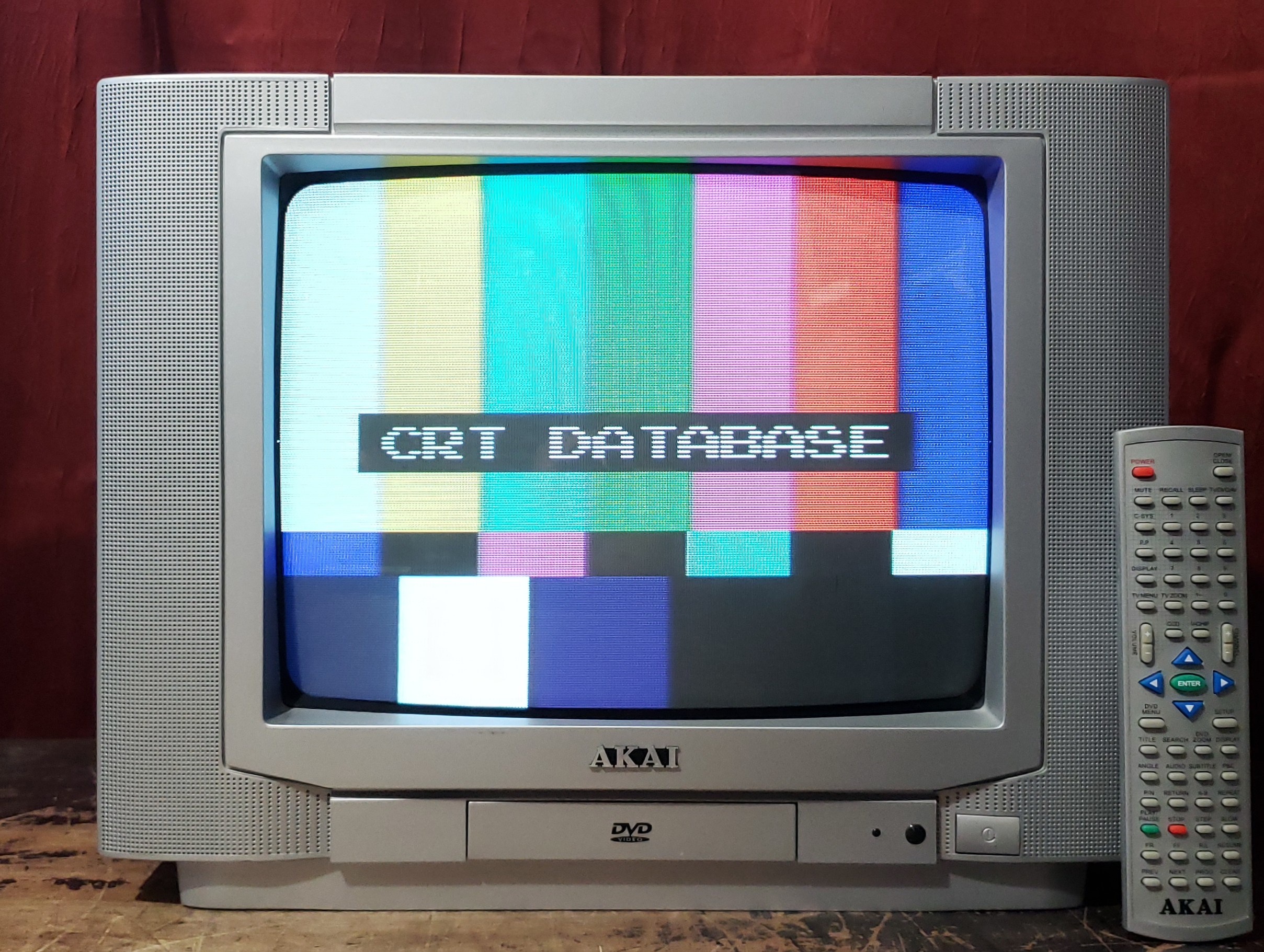

An odd 13" stereo TV/DVD combo set by Akai. Sold at Radio Shack and other electronics stores in 2005. Originally manufactured by the obscure Chinese electronics manufacturer Wuxi Xindong.
Manuals
Mods & Repait Guides
- Method for getting into the service menu
Notes
Similar to many of Wuxi Xindong's other sets, this one is essentially a universal chassis that has been rebadged as an unassuming consumer TV. It supports the South American standards such as PAL-M and PAL-N, but not the European standard.
A nifty thing to see on a 13" set is s-video input. This set is perfect for Commodore and Atari 8-bit computers outputting s-video, as the screen size is the same as the 1701/2 and other monitors of the time.
Gallery
| Specifications | |
|---|---|
| Brand: | Akai |
| Manufacturer: | Wuxi Xindong |
| Model: | CTD1390 |
| Series: | CTD |
| Viewable Size: | 13" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, NTSC4.43, PAL-M, PAL-N |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | LC863432C, Sanyo |
| Focus Type: | Single |
| Tube: | Irico , 37SX110Y22-DC11 , 37SX110Y22 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Horz. Resistance: | 2.3 ohm |
| Yoke Vert. Resistance: | 14.9 ohm |
| Speakers: | Stereo |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 139 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Measurements |
