Akai CTS2550

SegaSaturn94
August 24, 2024, 3:45 am
November 27, 2024, 5:10 am

Summary

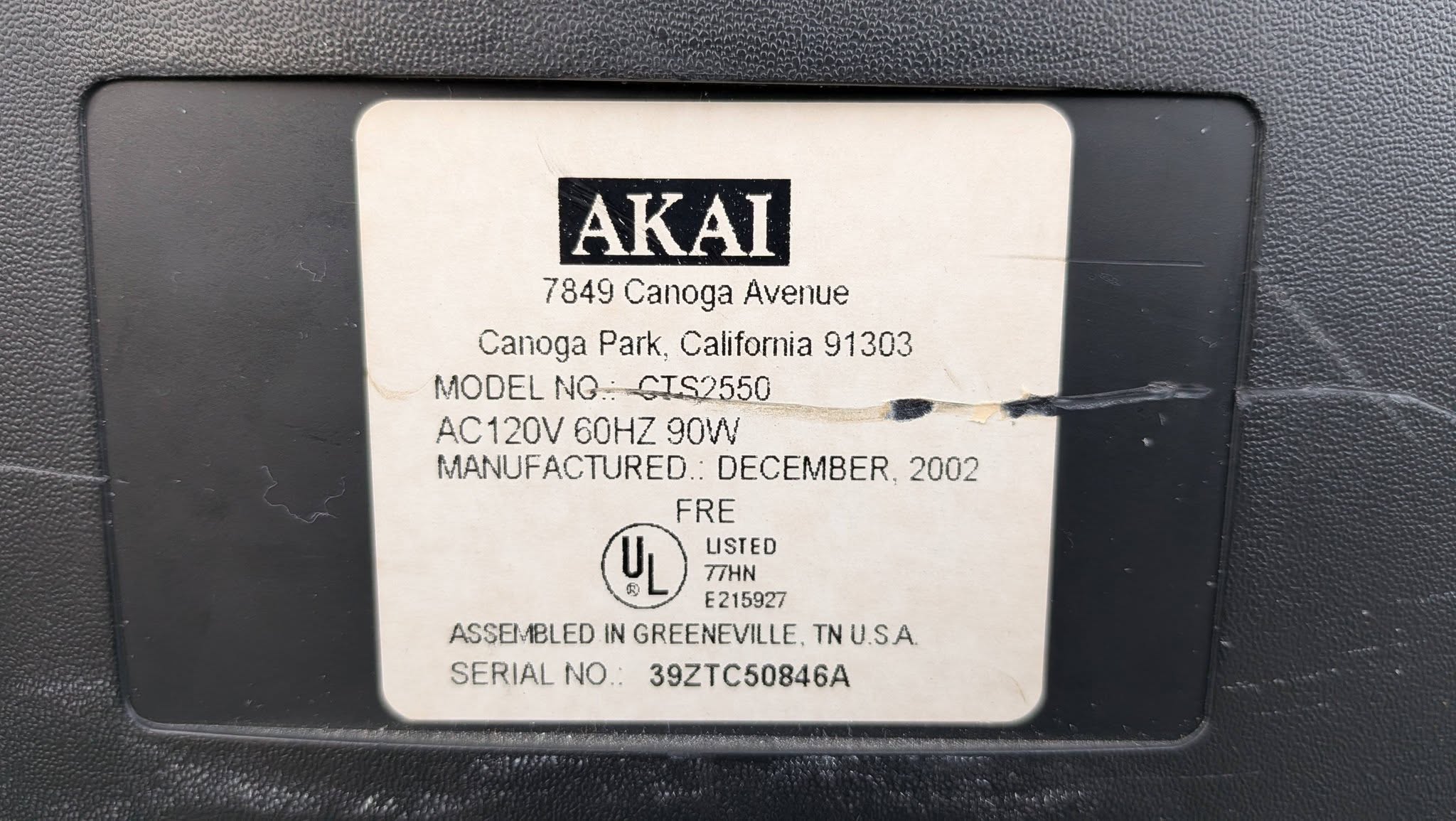

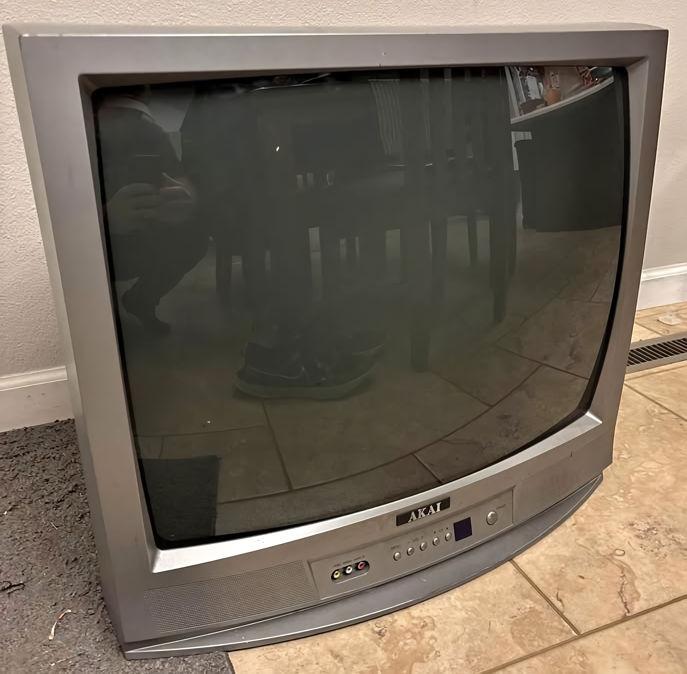

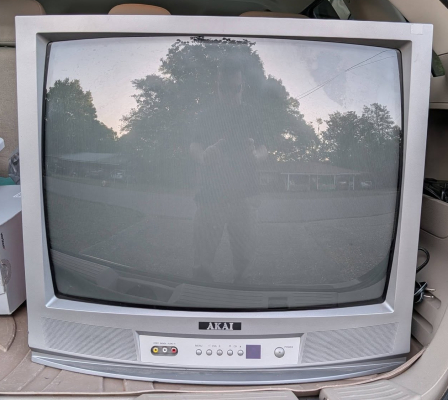

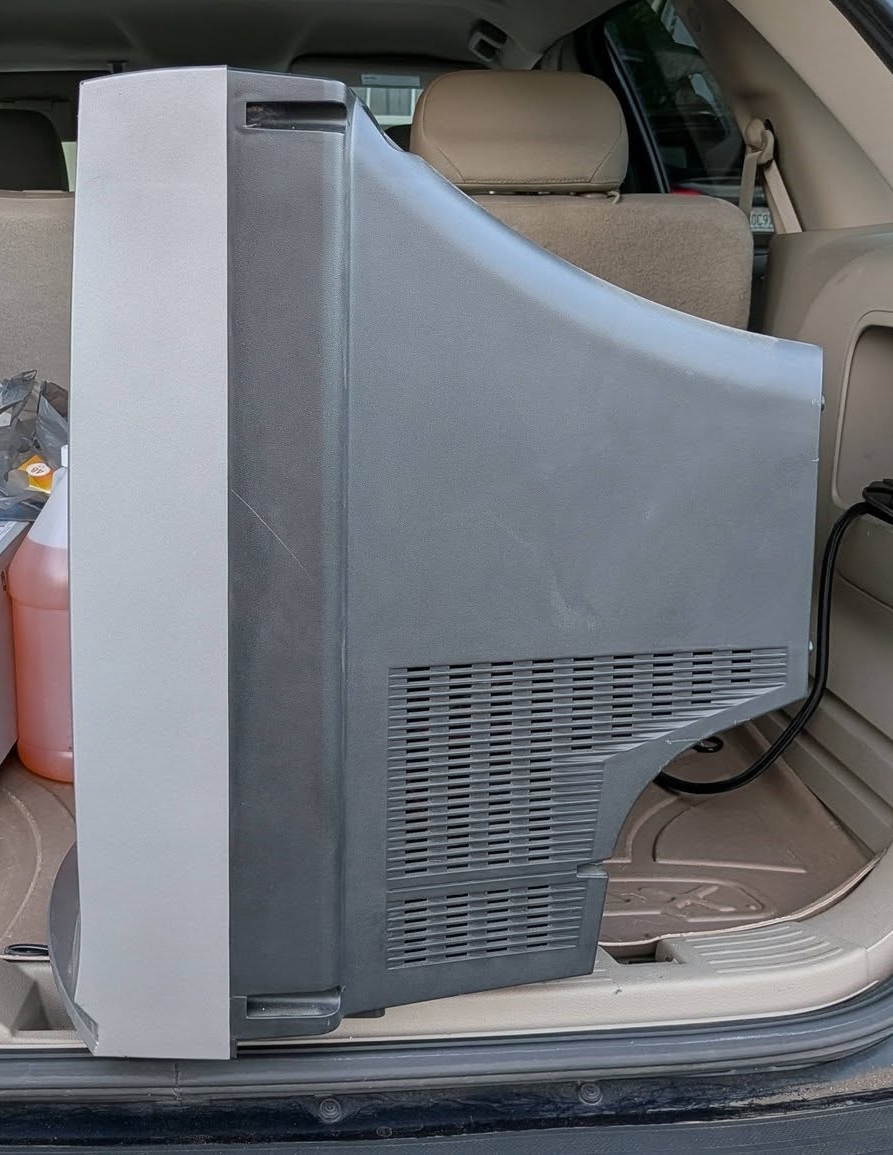

This Akai set from 2002 features a rare combination to see in the west: a 25" CRT with component inputs! This set is a rebadge of Samsung's TXM2556, but in a silver case variety.

Literature

Notes

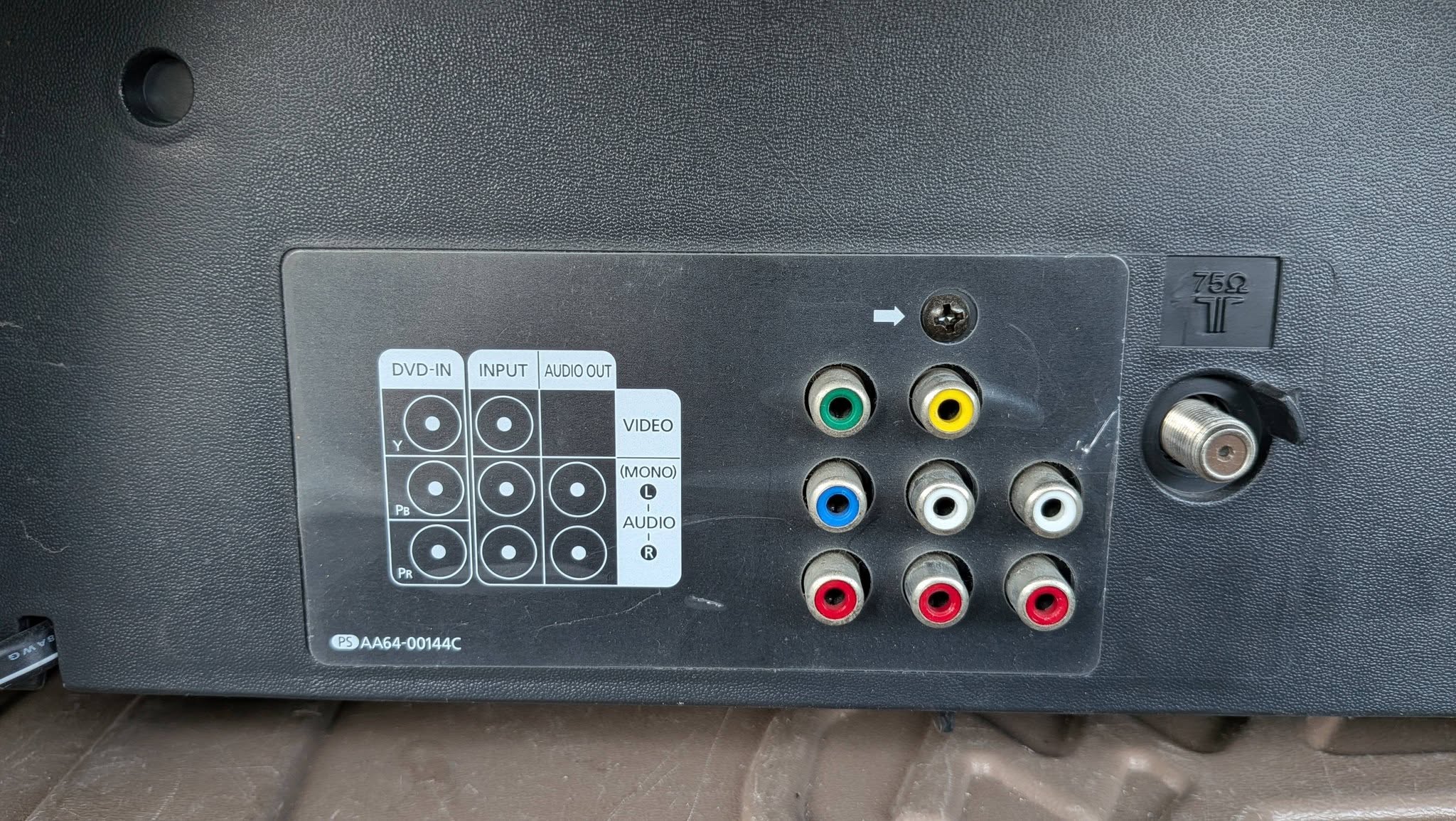

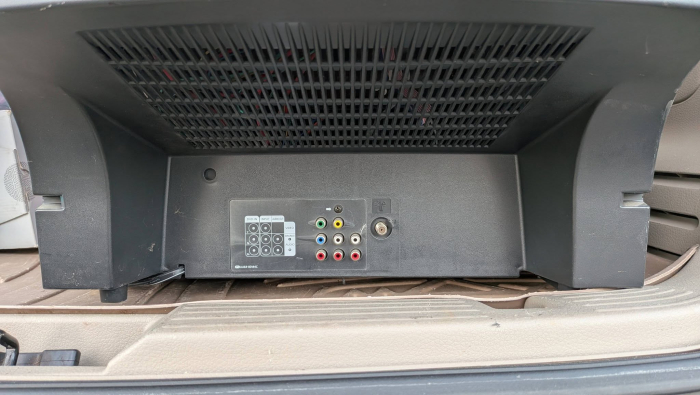

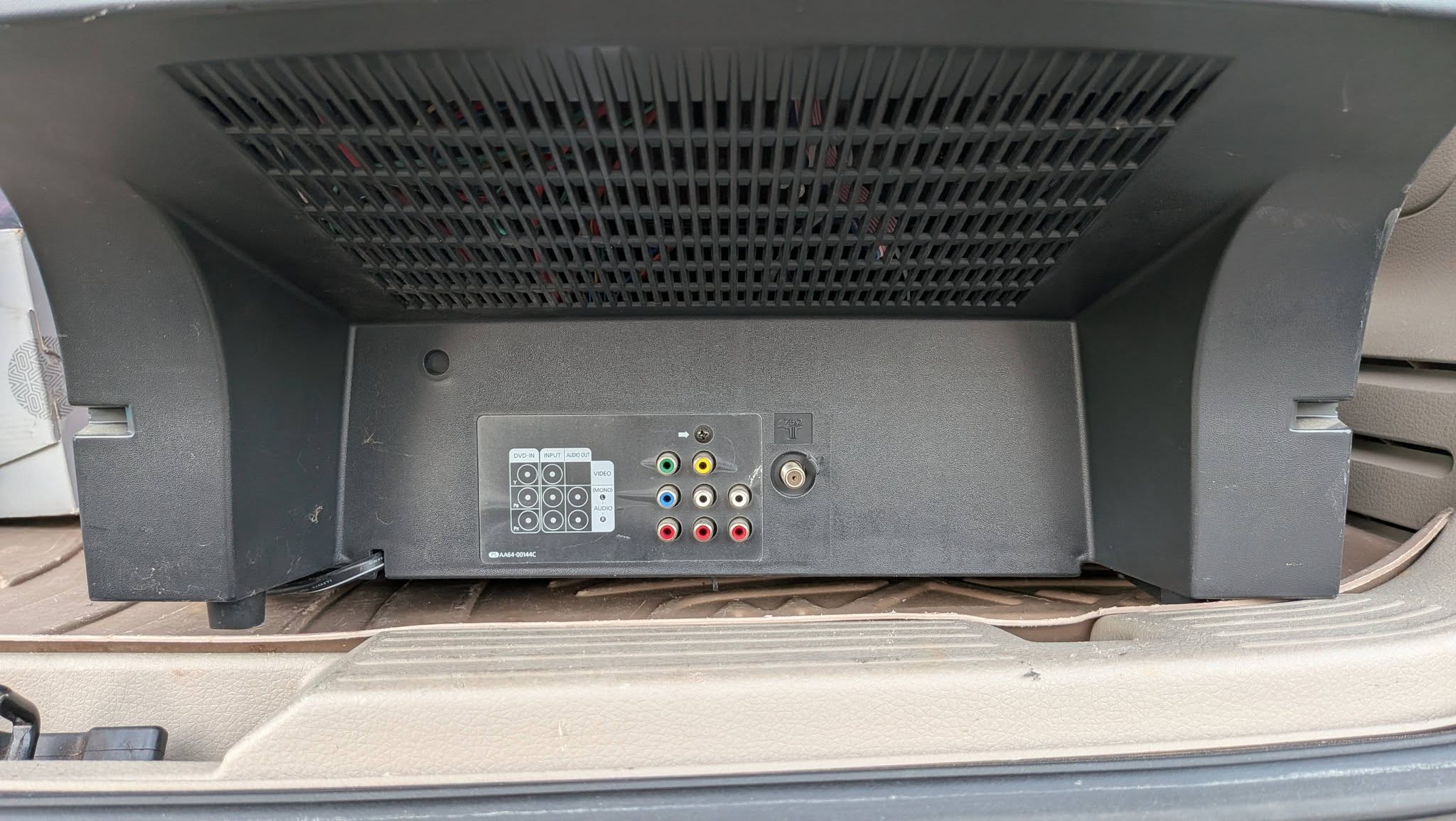

The component video quality looks quite good, which is thanks to it's Philips TDA9377 jungle chip. While the set sadly has no input for s-video, the chip has been documented to support a modification for that signal.

There are three known picture tube models this set used, a Samsung one, a Philips one, and an RCA one. These picture tube models can be found in many other sets of the time, including arcade chassis.

Geometry is reportedly not the greatest, but it can be dealt with. Getting into the service menu is the same as Samsung sets, so you should not have any trouble.

The 25" screen paired with the clean component signal evokes the look of an early-90s arcade monitor. It is not confirmed, but I believe this set may support 50hz. Someone give it a try to enjoy 15khz arcade titles that display in wonky resolutions and refresh rates!
