Summary

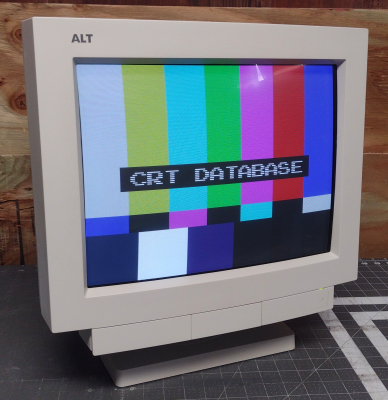

17" PC monitor, sold by Alps LSI Technologies Inc. Originally made by KDS in Korea, it features a relatively high 84 kHz horizontal scan rate and a set of BNC inputs.
Manuals
No documentation is available online at this time.
Notes
The BNC and VGA connectors on the back of the monitor are not separate inputs, and only one can be used at a time.
Gallery
| Specifications | |
|---|---|
| Brand: | ALT |
| Manufacturer: | KDS |
| Model: | 7FES |
| Series: | ALT |
| Viewable Size: | 16" |
| Inputs: | VGA, BNC |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal Scan Range: | 28 kHz, 84 kHz |
| Vertical Scan Range: | 130 Hz, 41 Hz |
| Aspect: | 4:3 |
| Adjustments: | External Potentiometers, Front Mounted Buttons |
| Vertical Output IC: | TDA1675A |
| Flyback: | Y265271 |
| Focus Type: | Dual |
| Tube: | Samsung , M41KUN36X , M41KUN36X24 |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Speakers: | None |
| Weight: | 40.8 lbs (18.5 kg) |
| Dimensions (W/H/D): |
411 x 430 x 451 mm
(16.2 x 16.9 x 17.7") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Country of Manufacture: | Korea |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
