Summary

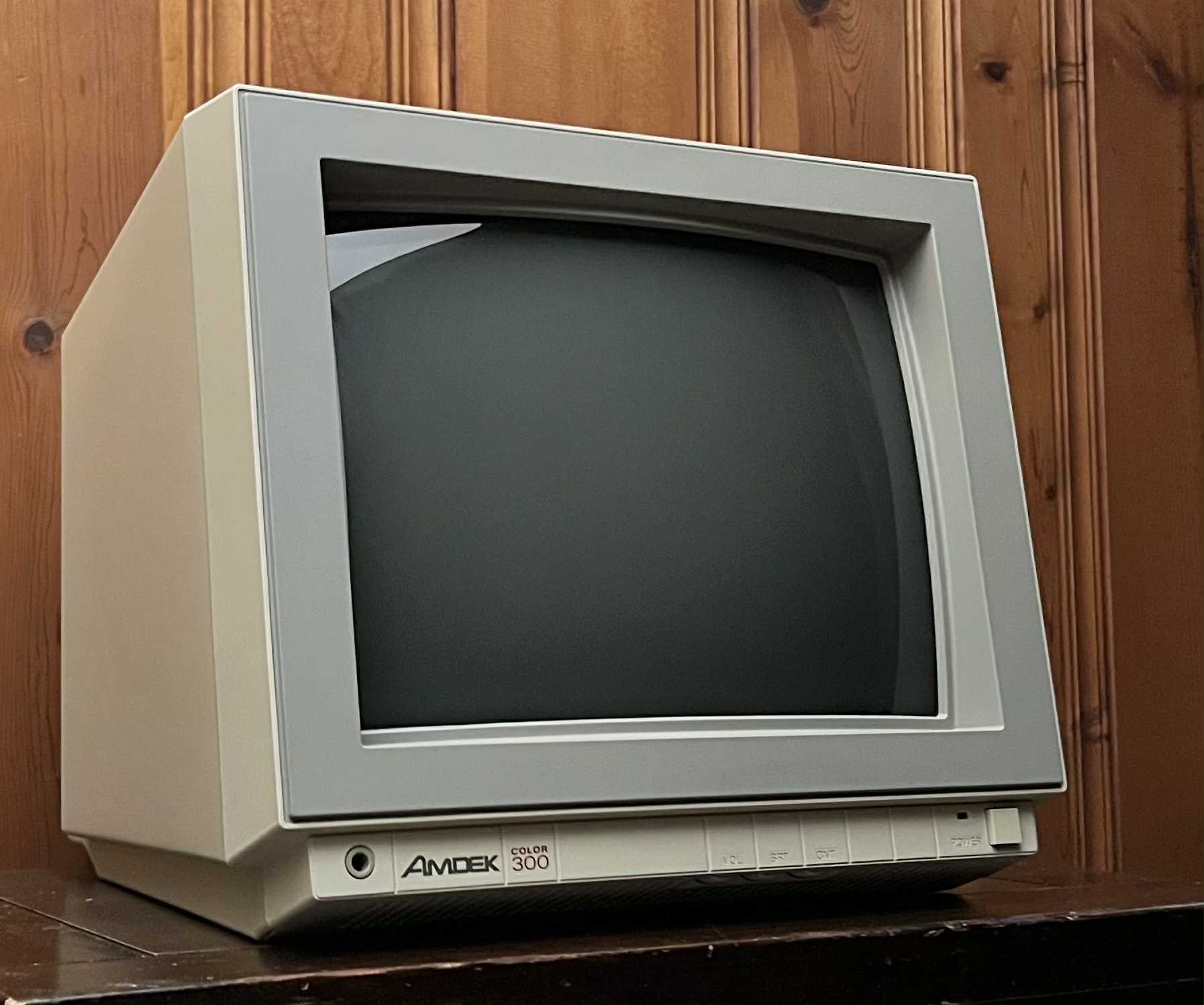

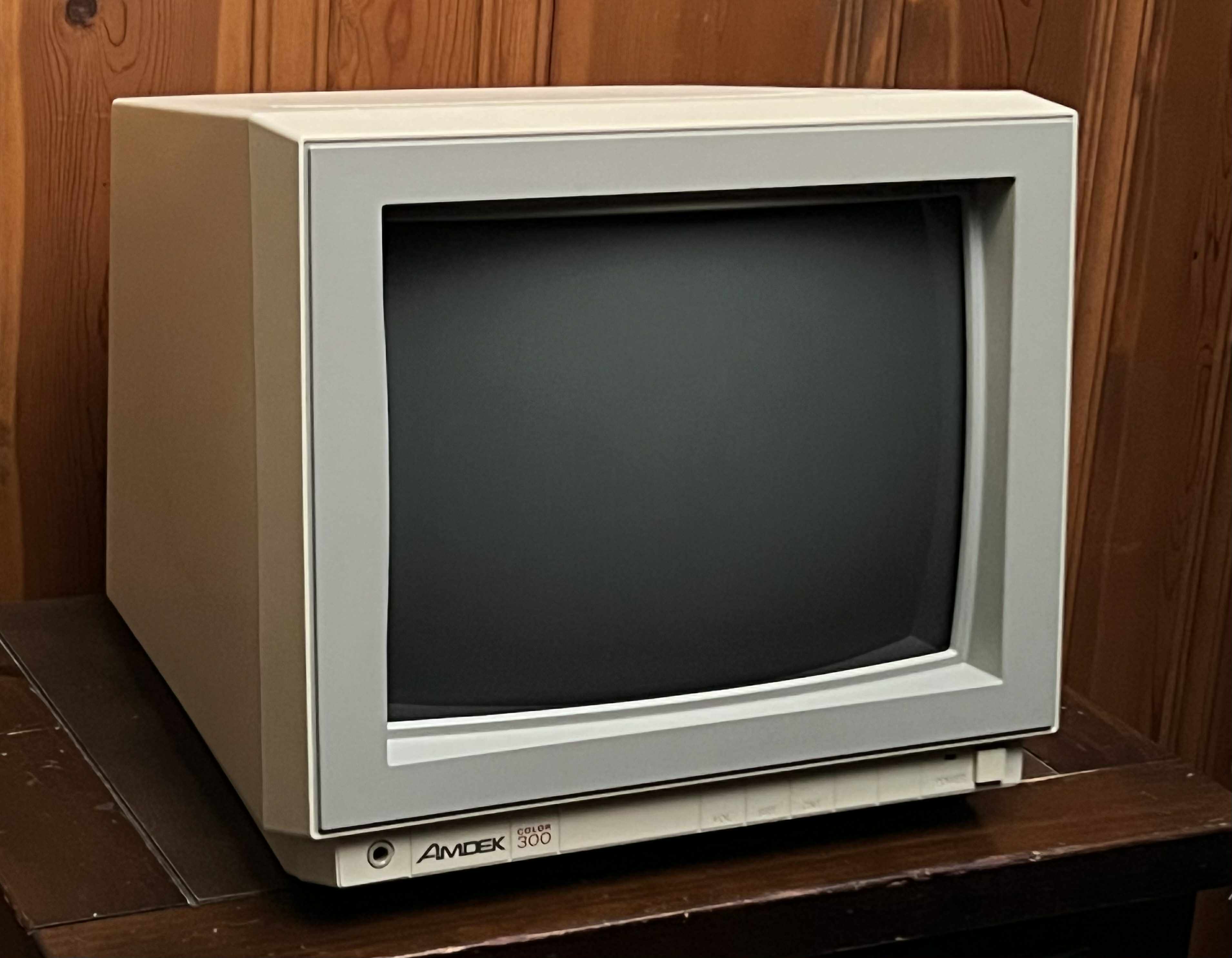

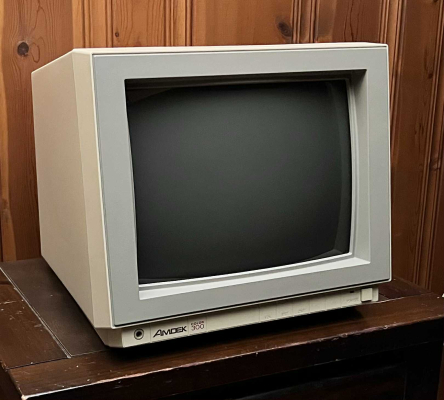

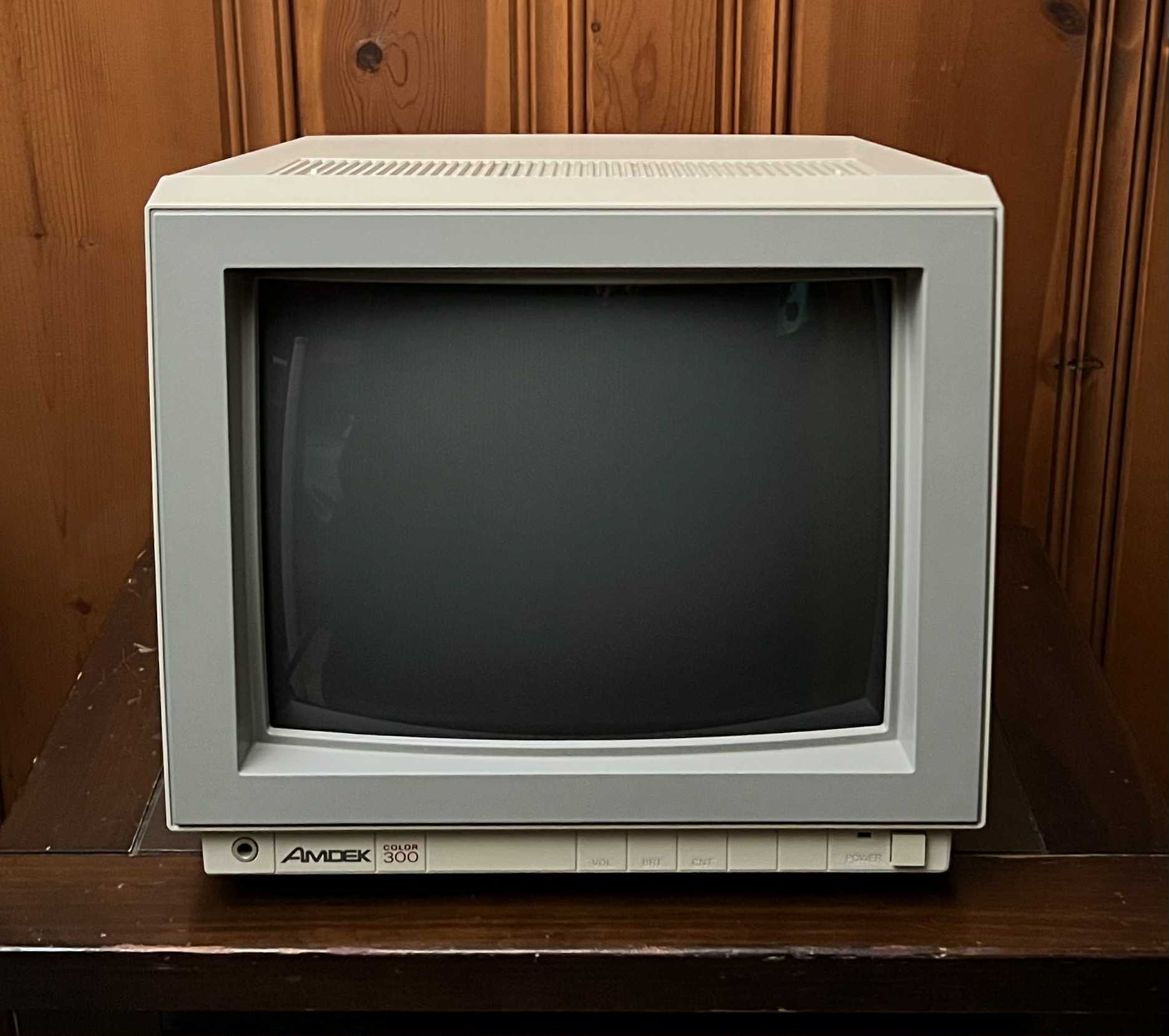

13" color monitor by Amdek, released in 1984. Designed for computers and other equipment with composite and Y/C output. Originally manufactured by Hitachi in Japan.
(Special thanks to Austin G. for the pics!)
Manuals
Notes

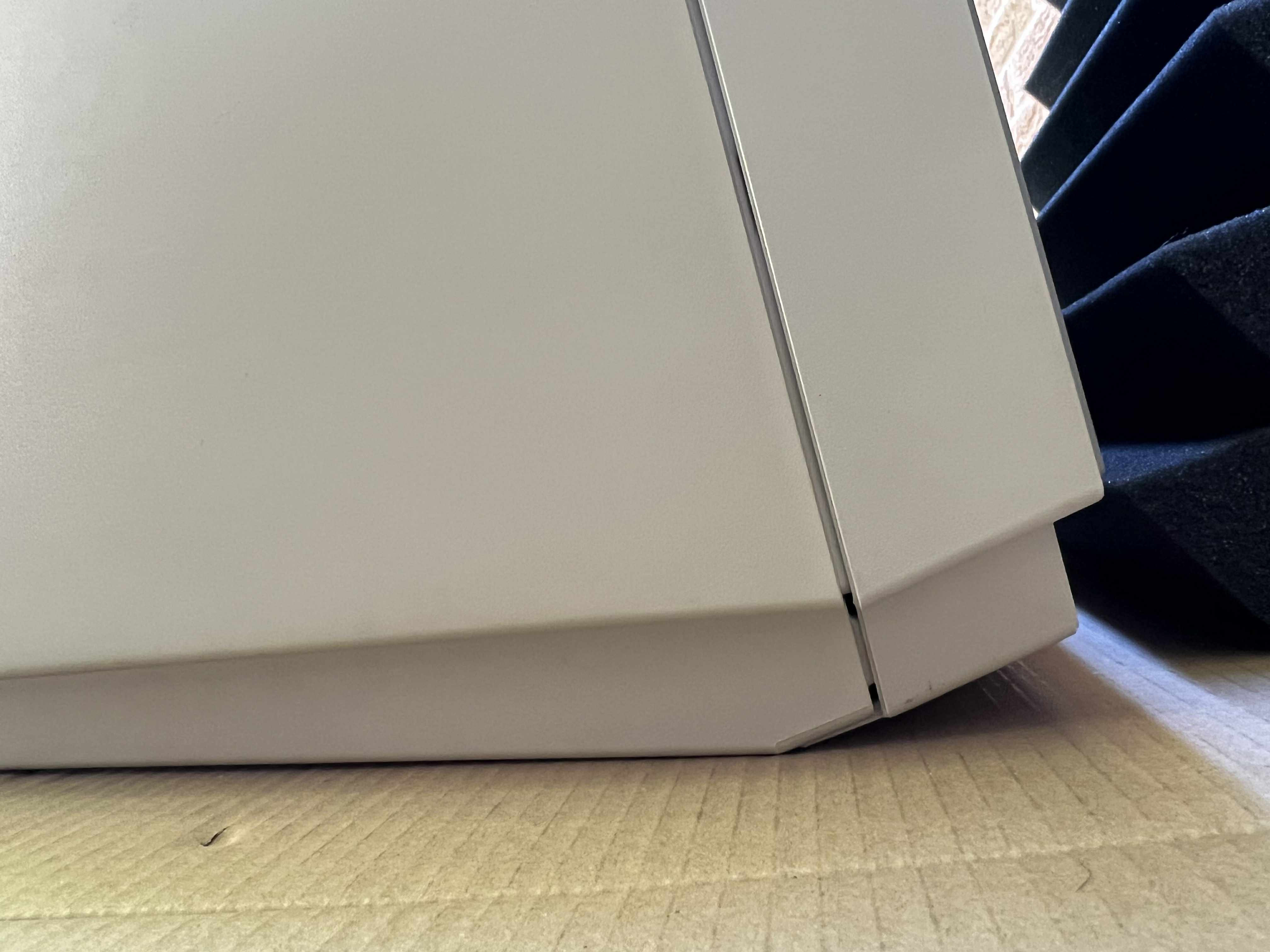

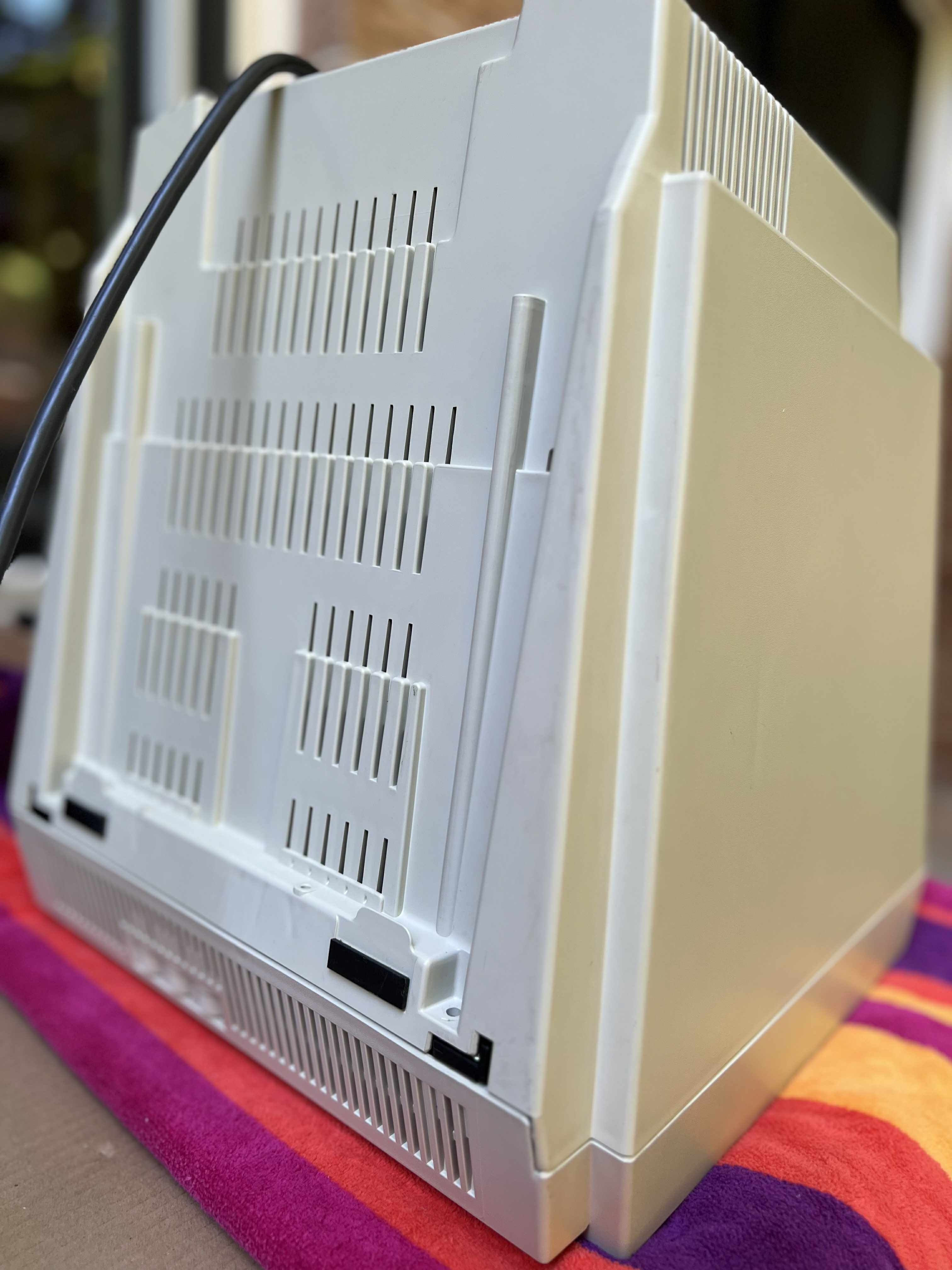

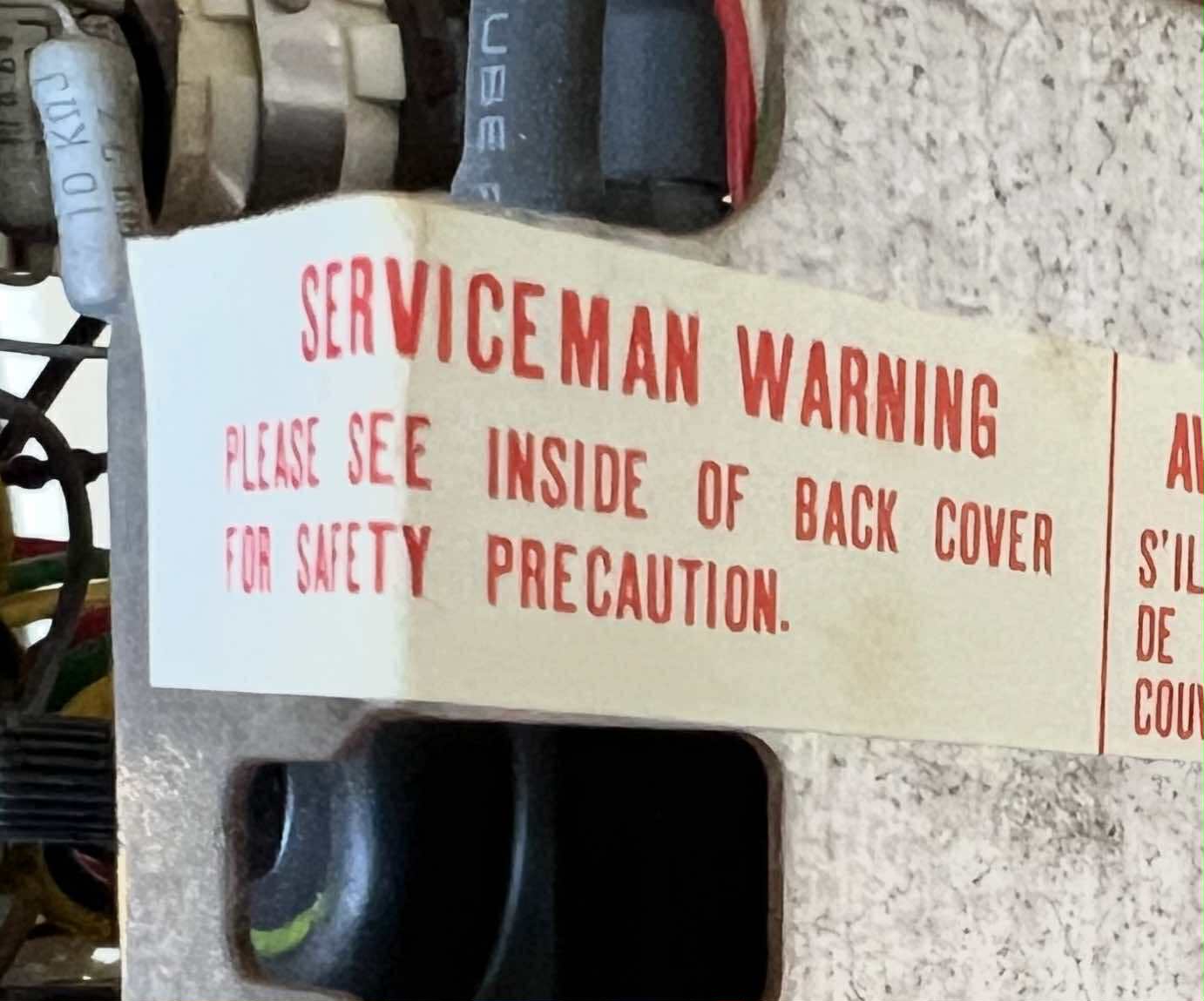

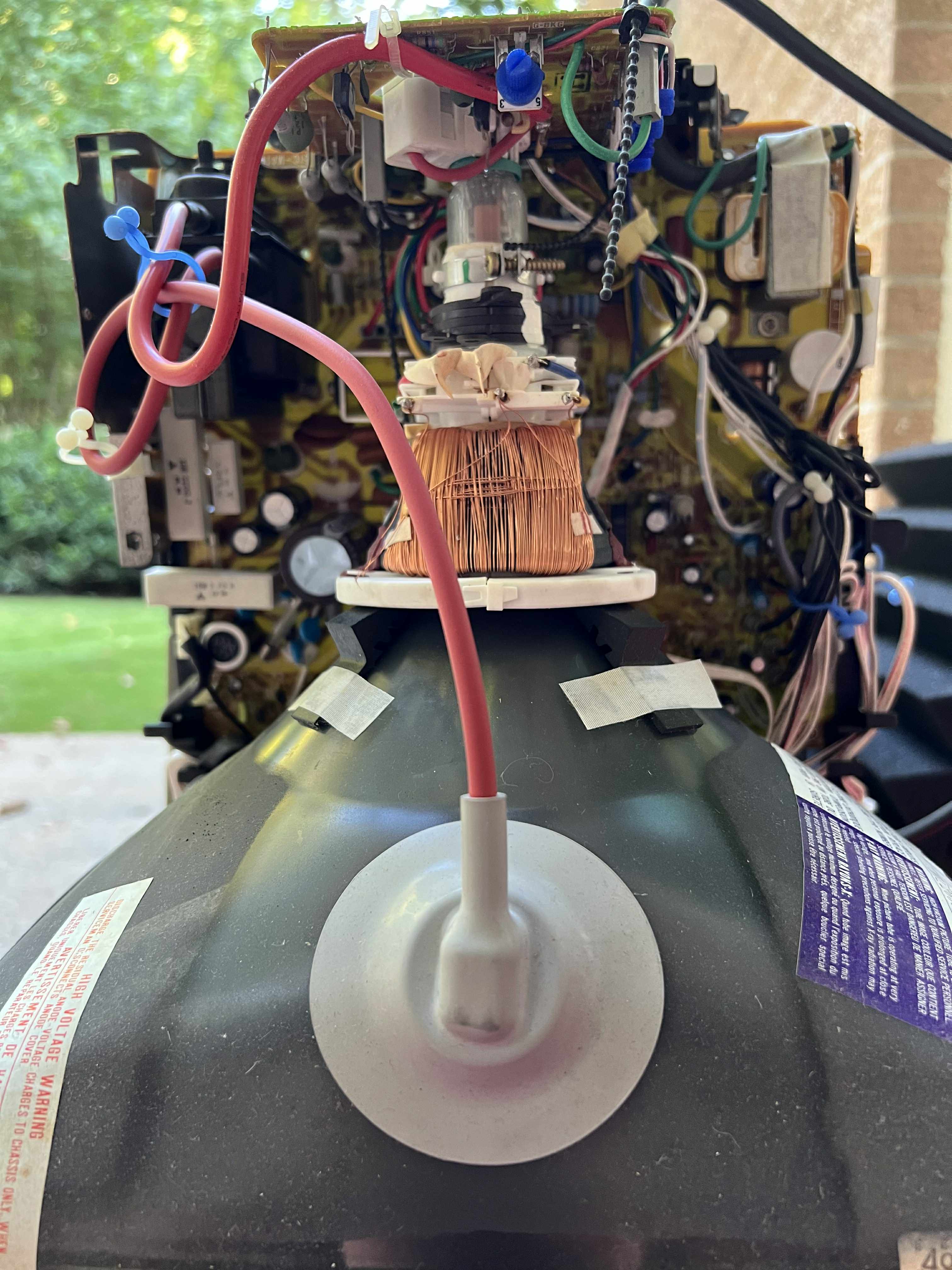

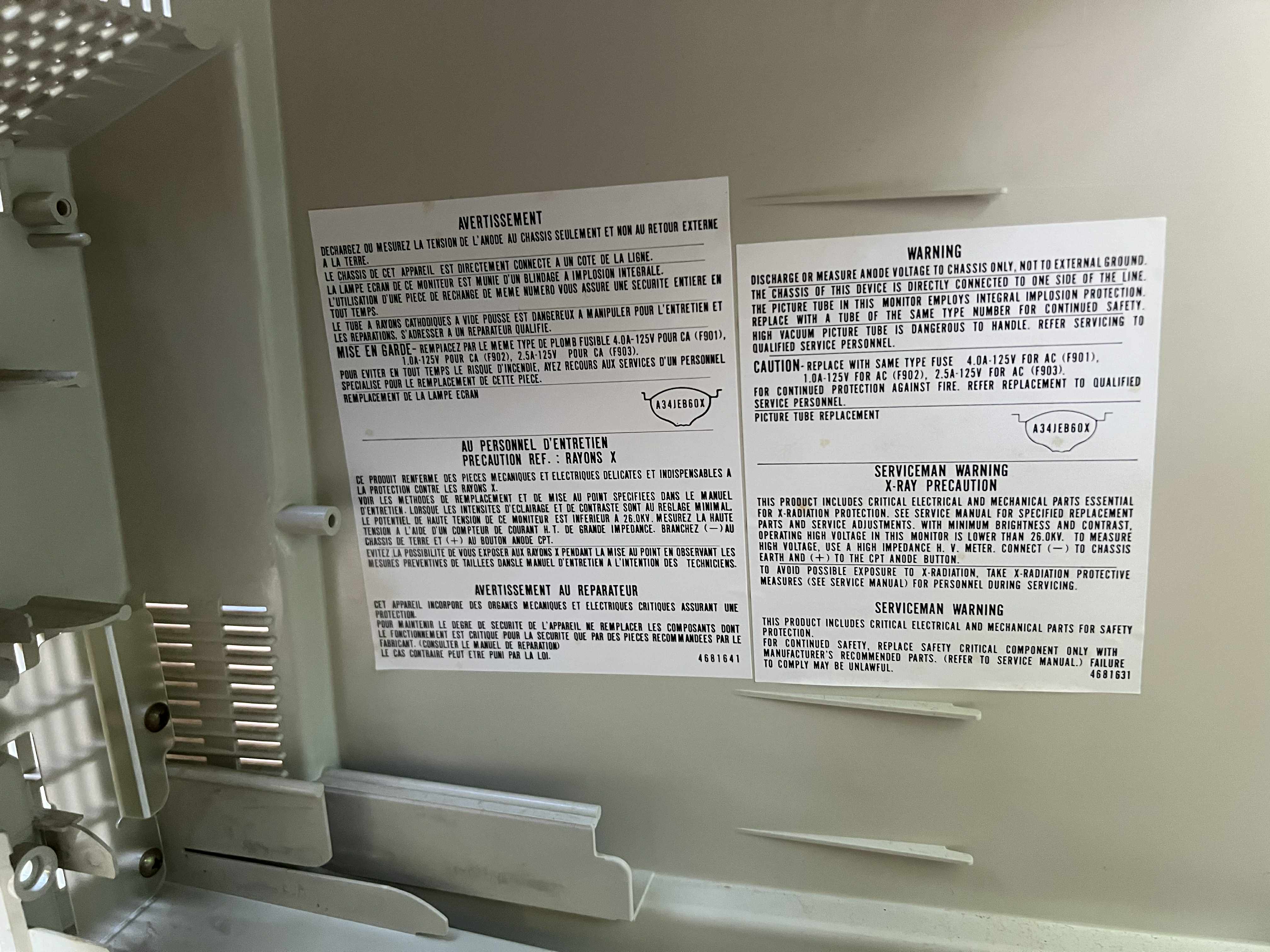

To remove the back cover from the monitor, the display must be laid face-down to slide it off.

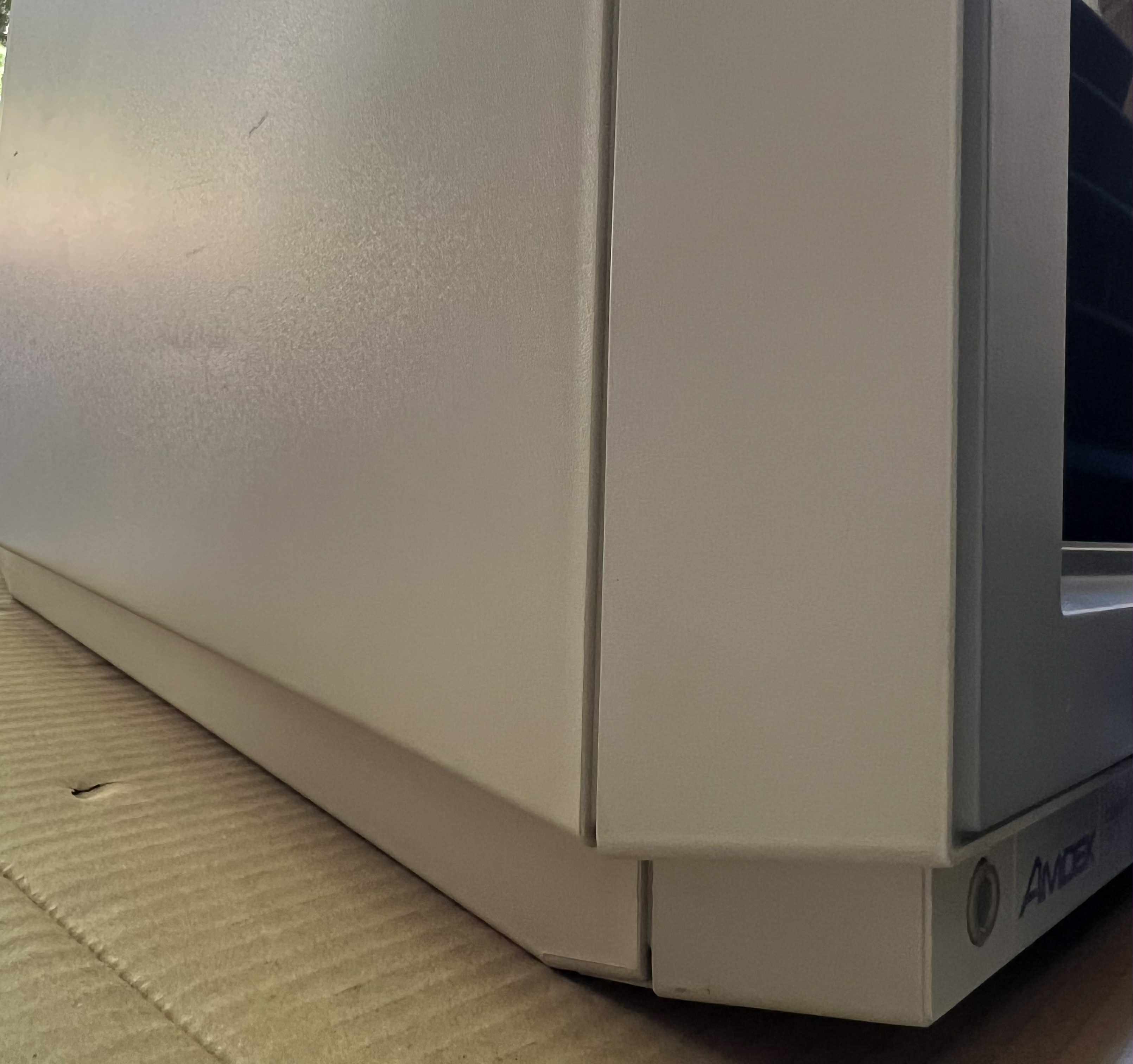

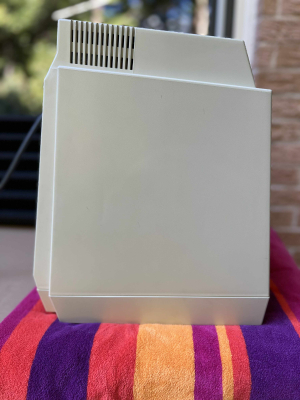

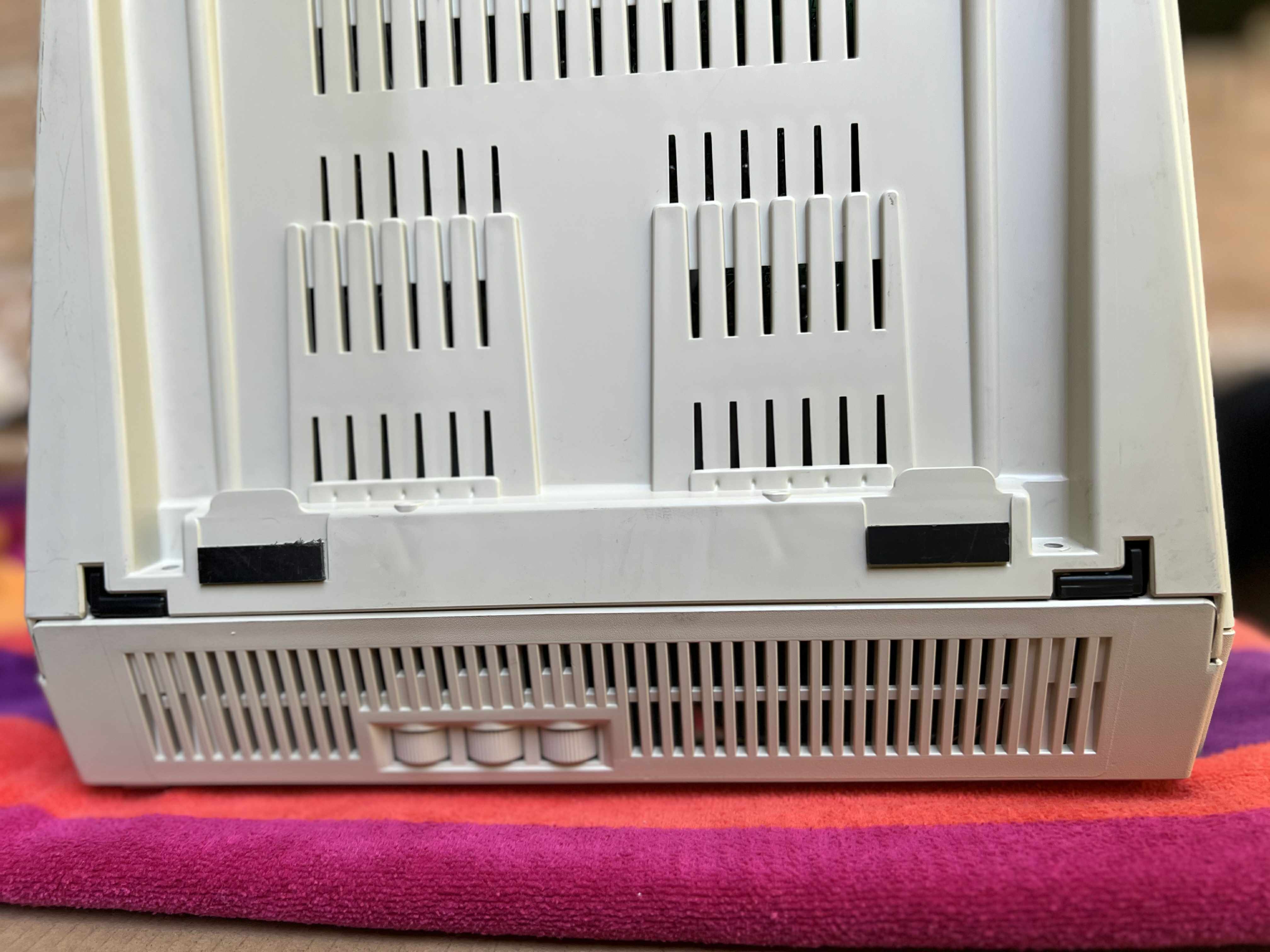

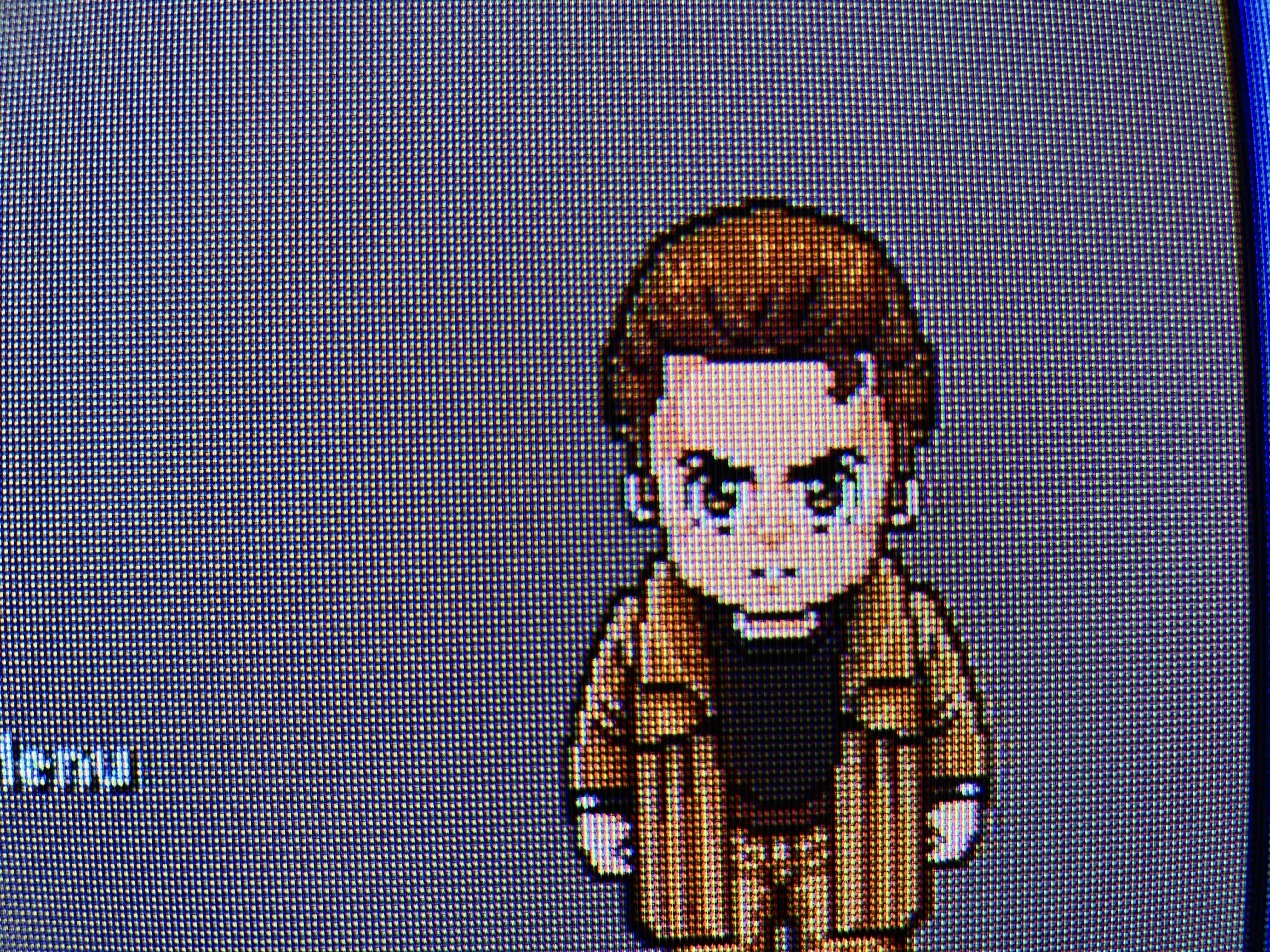

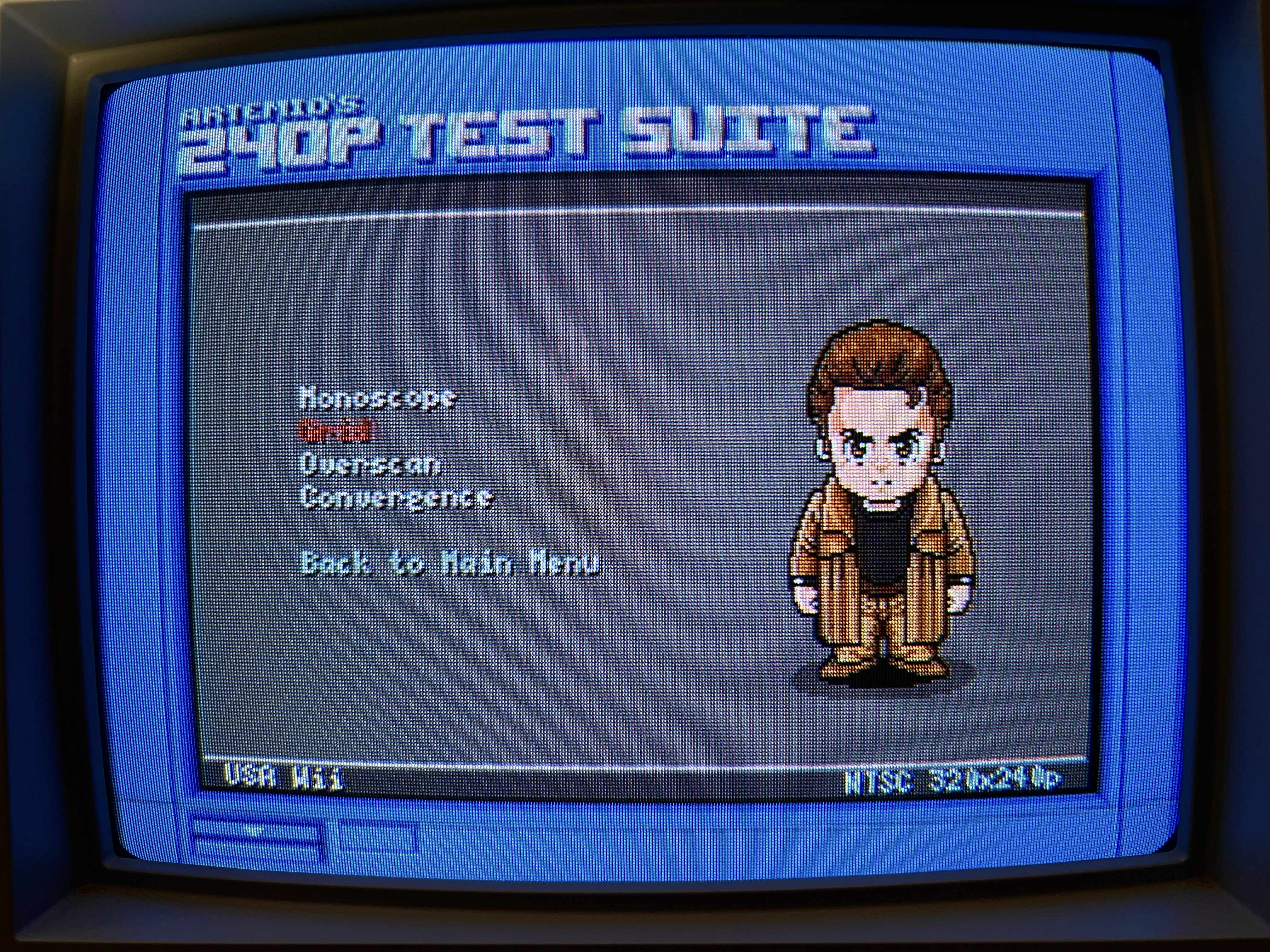

Gallery
| Specifications | |
|---|---|
| Brand: | Amdek |
| Manufacturer: | Hitachi |
| Model: | Color 300 |
| Series: | Color |
| Viewable Size: | 13" |

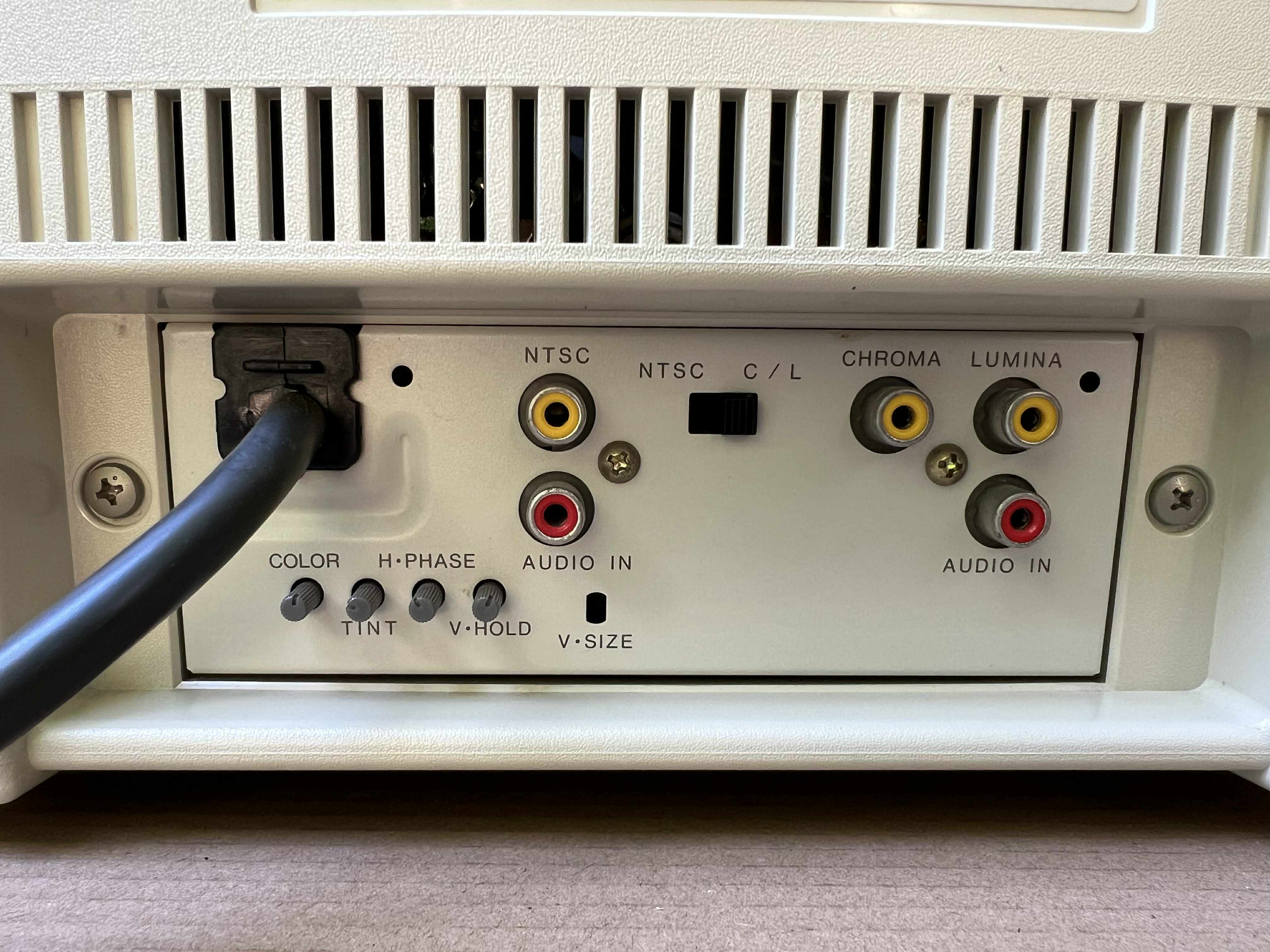

| Inputs: | Composite, S-Video |

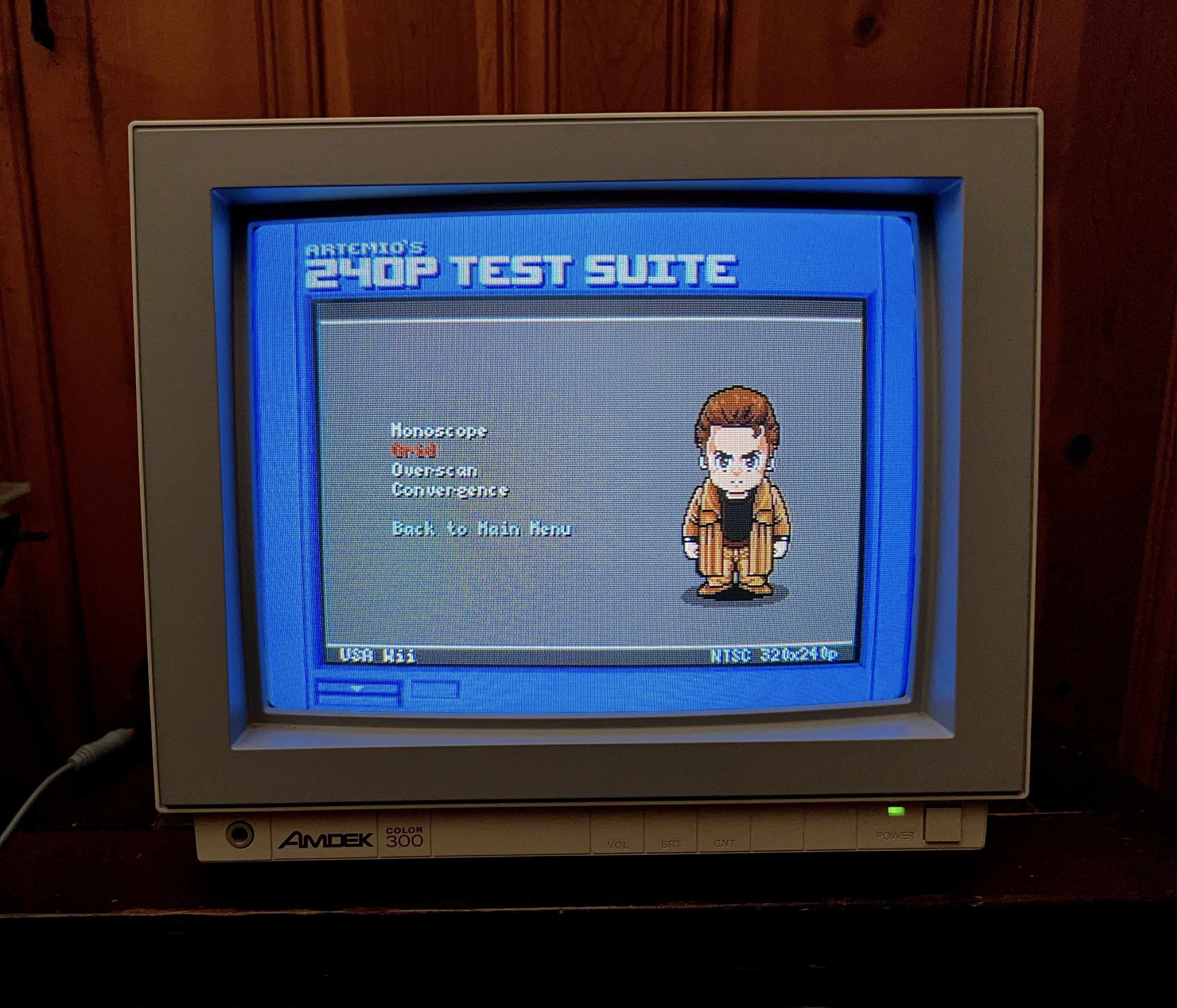

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |

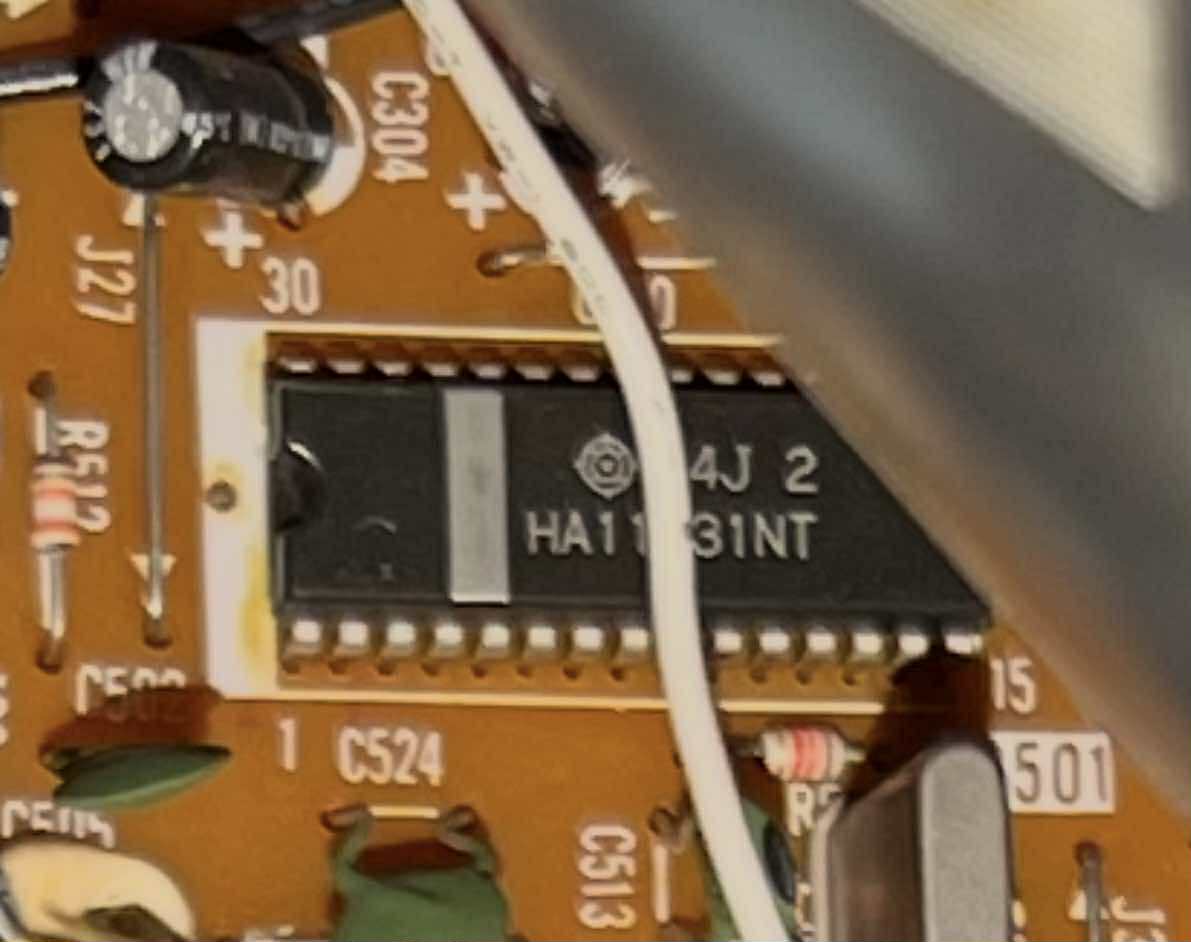

| Jungle IC: | Hitachi, HA11431NT |

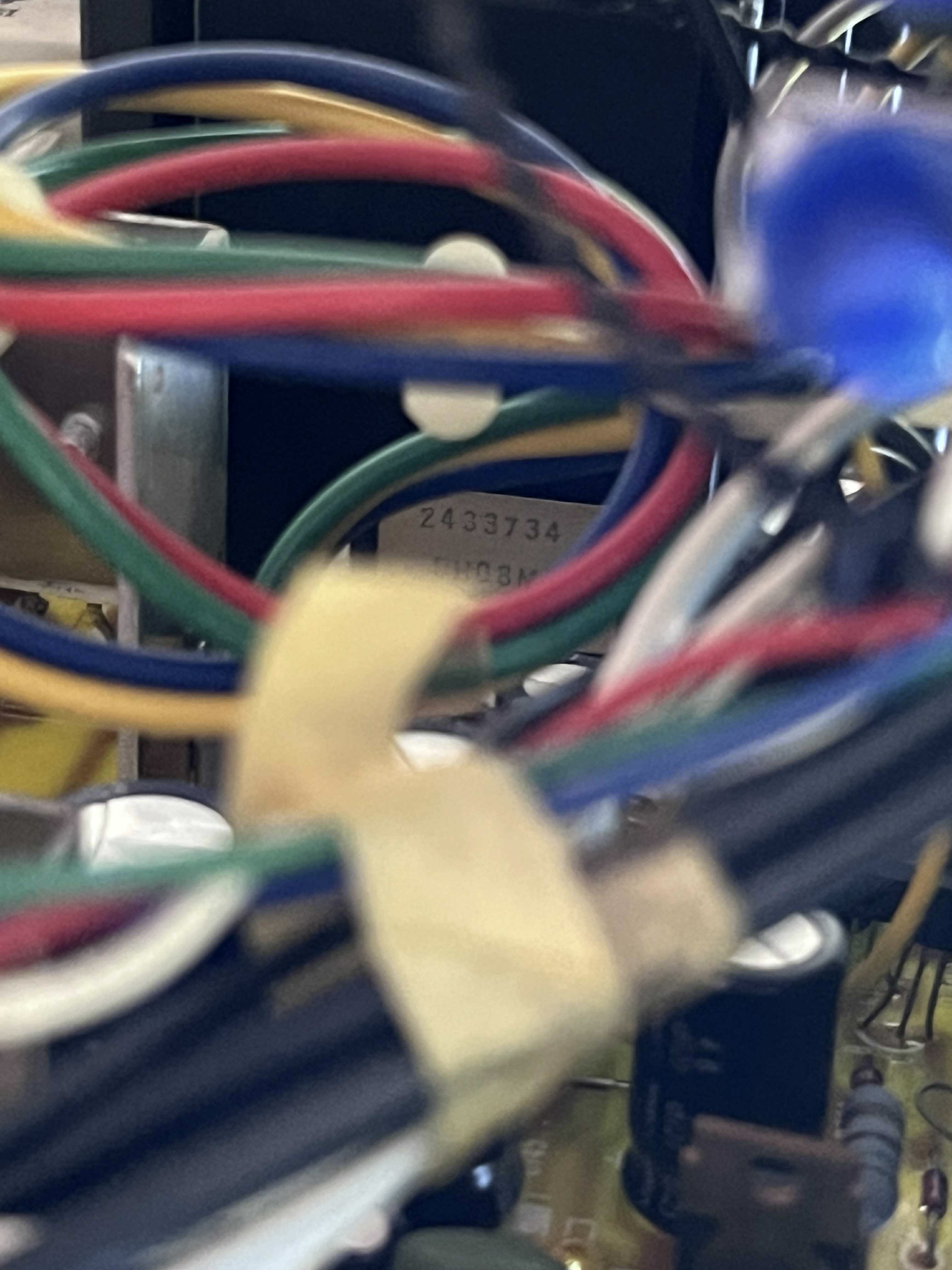

| Flyback: | 2433734 |
| Focus Type: | Single |

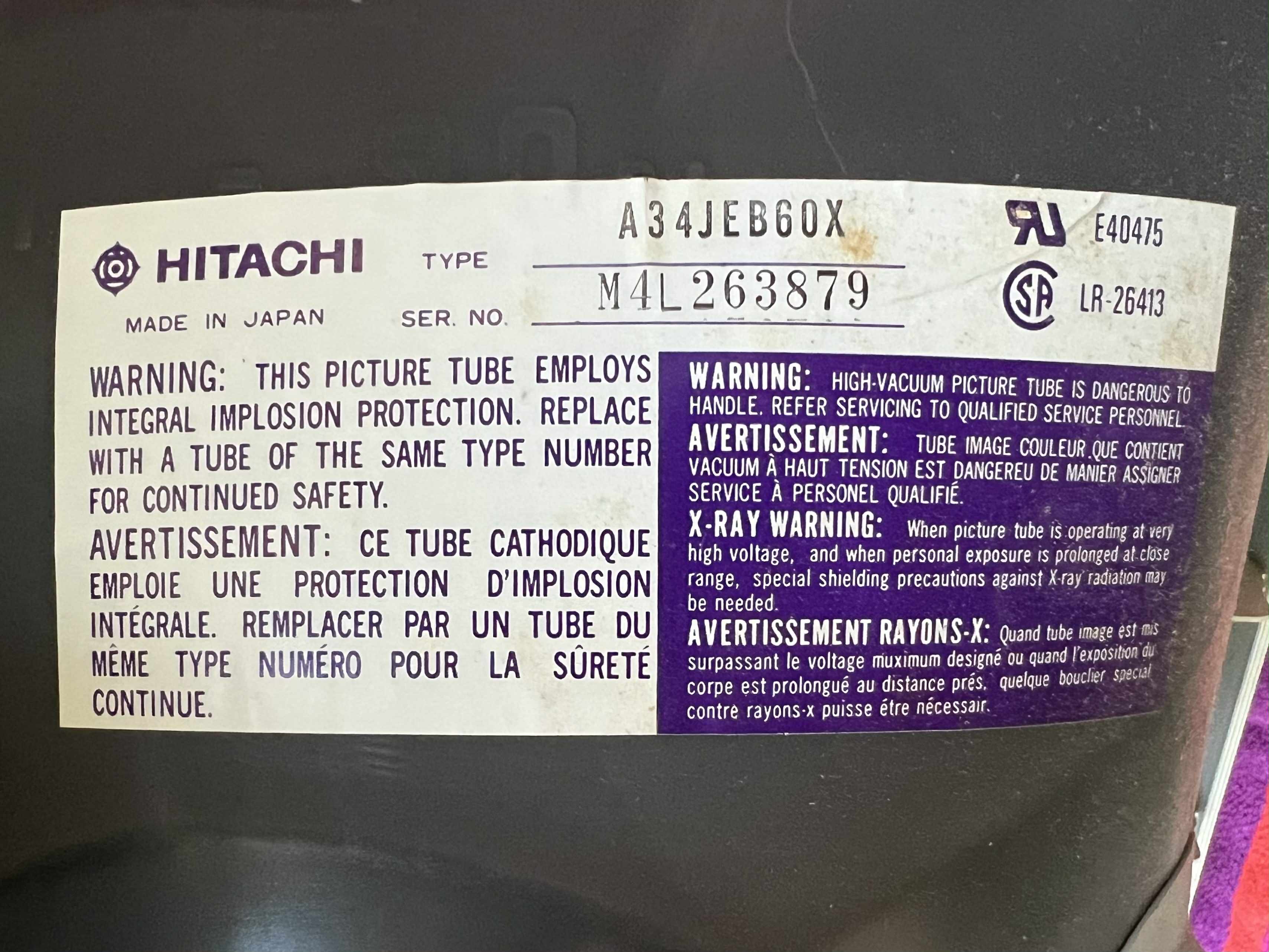

| Tube: | Hitachi , A34JEB60X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

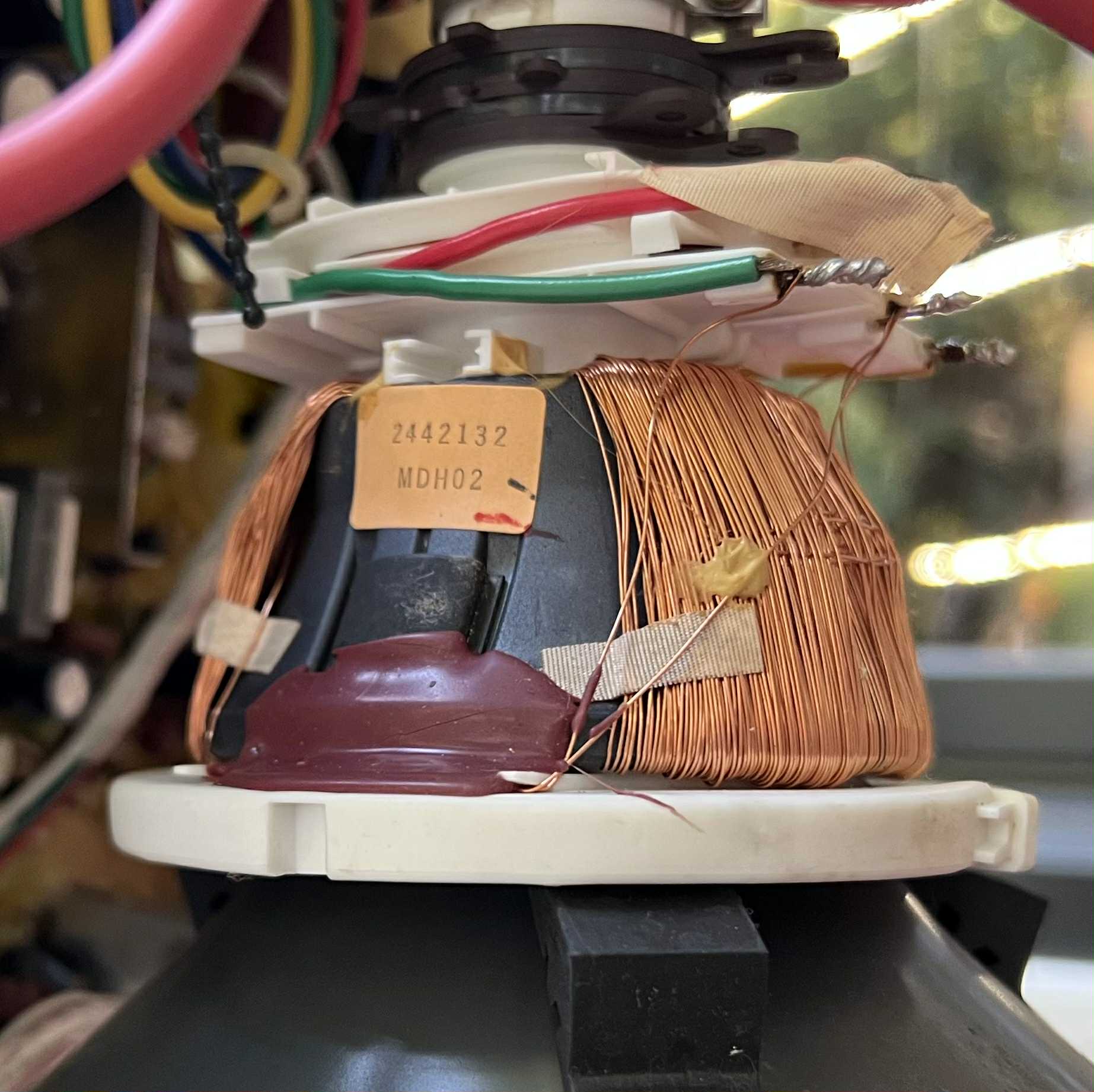

| Yoke: | 2442132 |
| Speakers: | Mono, 1W |

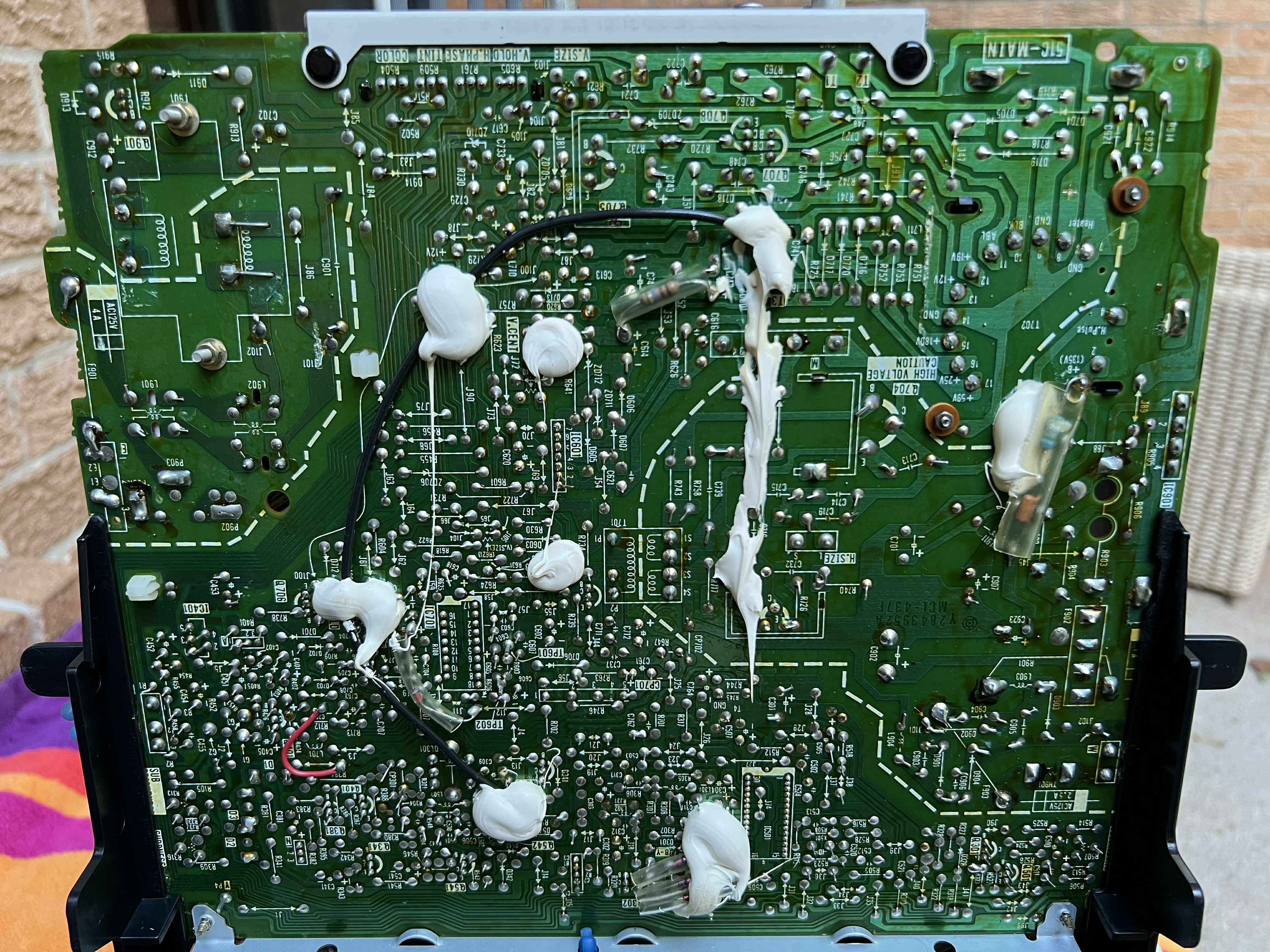

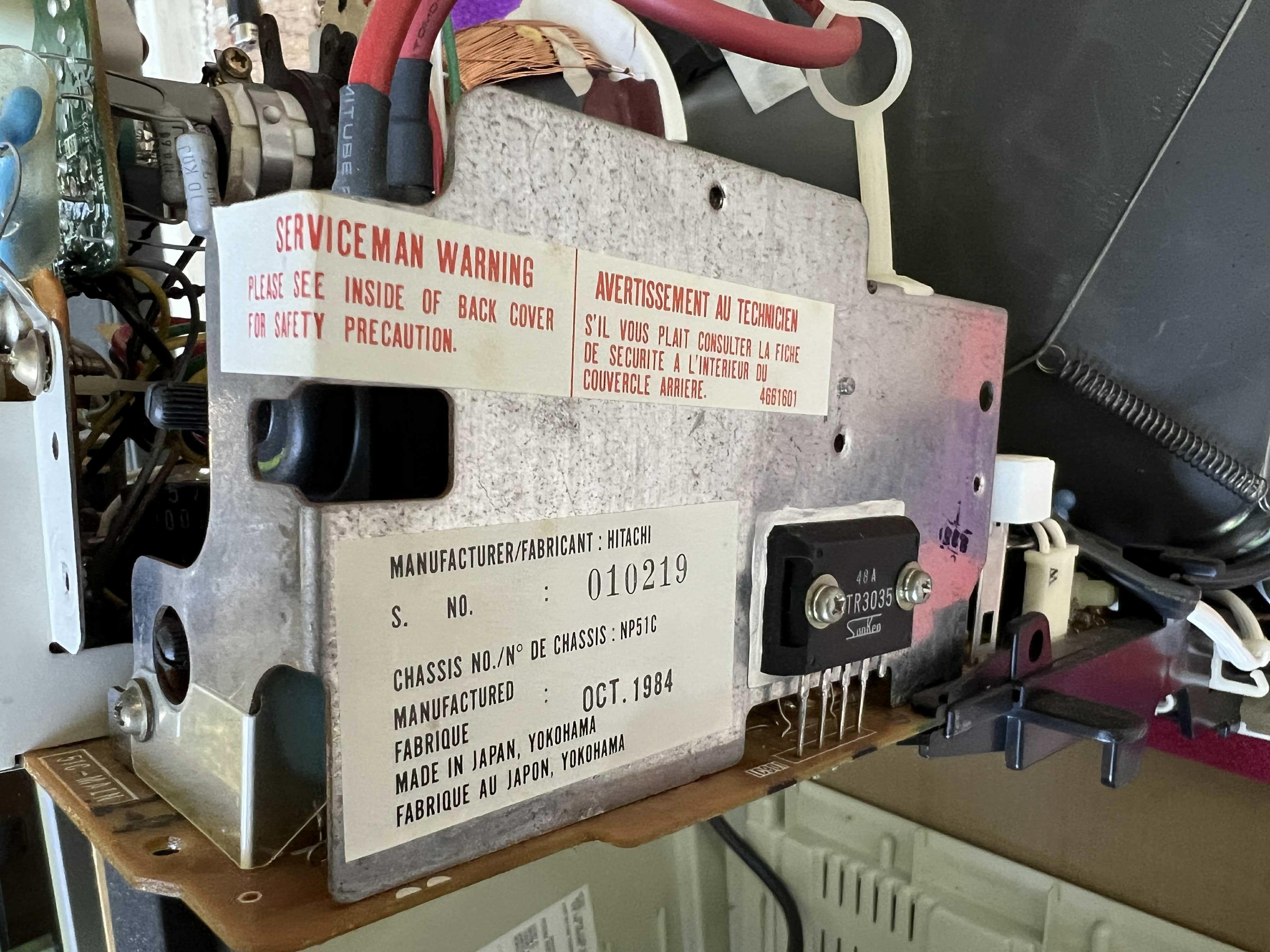

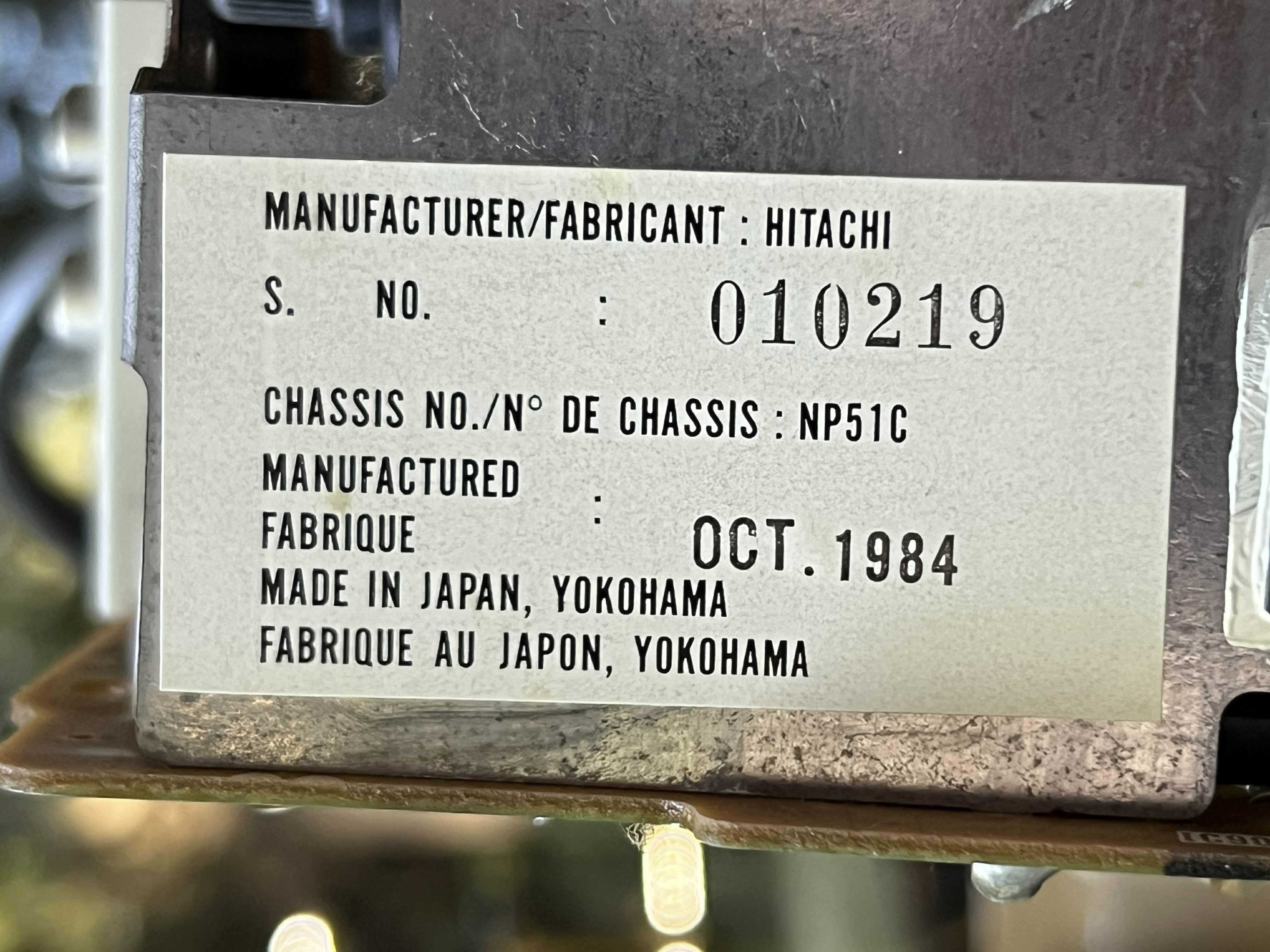

| Chassis: | NP51C |
| Weight: | 25.57 lbs (11.6 kg) |
| Dimensions (W/H/D): |
363 x 317 x 399 mm
(14.3 x 12.5 x 15.7") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1984 |
| MSRP: | 1095 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Kickstand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
