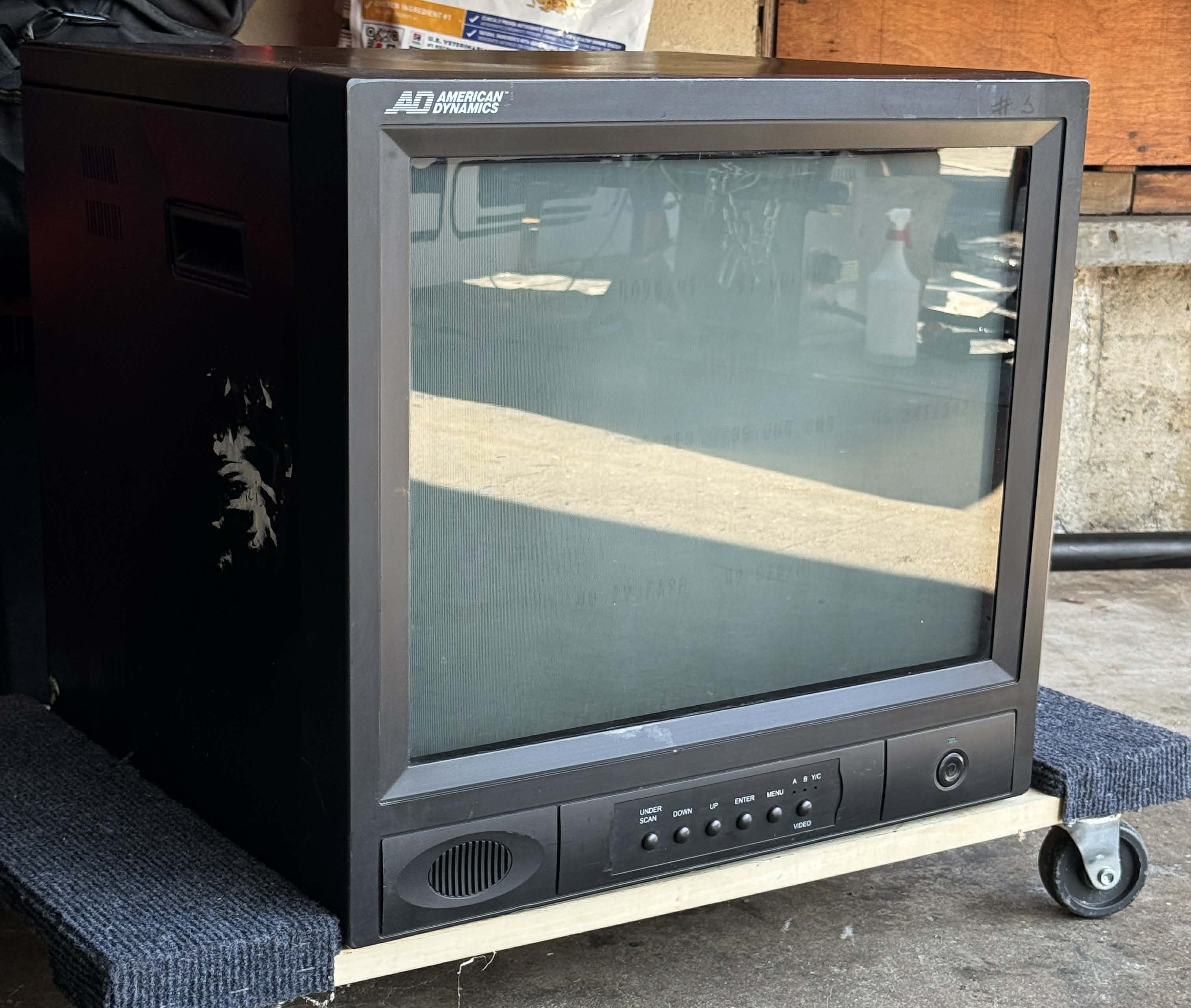

American Dynamics HS-CM217A
SegaSaturn94
February 23, 2026, 8:43 pm
February 24, 2026, 1:47 am
February 23, 2026, 8:43 pm
February 24, 2026, 1:47 am
Summary
20" flat-tube CCTV monitor by American Dynamics, launched in 2003. Has composite-BNC and s-video inputs with mono sound. Supports NTSC, and PAL video standards. Originally manufactured by Li Chen Technology in Taiwan.
(Special thanks to Felipe Ortiz for the pics!)
Manuals
Media & Promo Materials

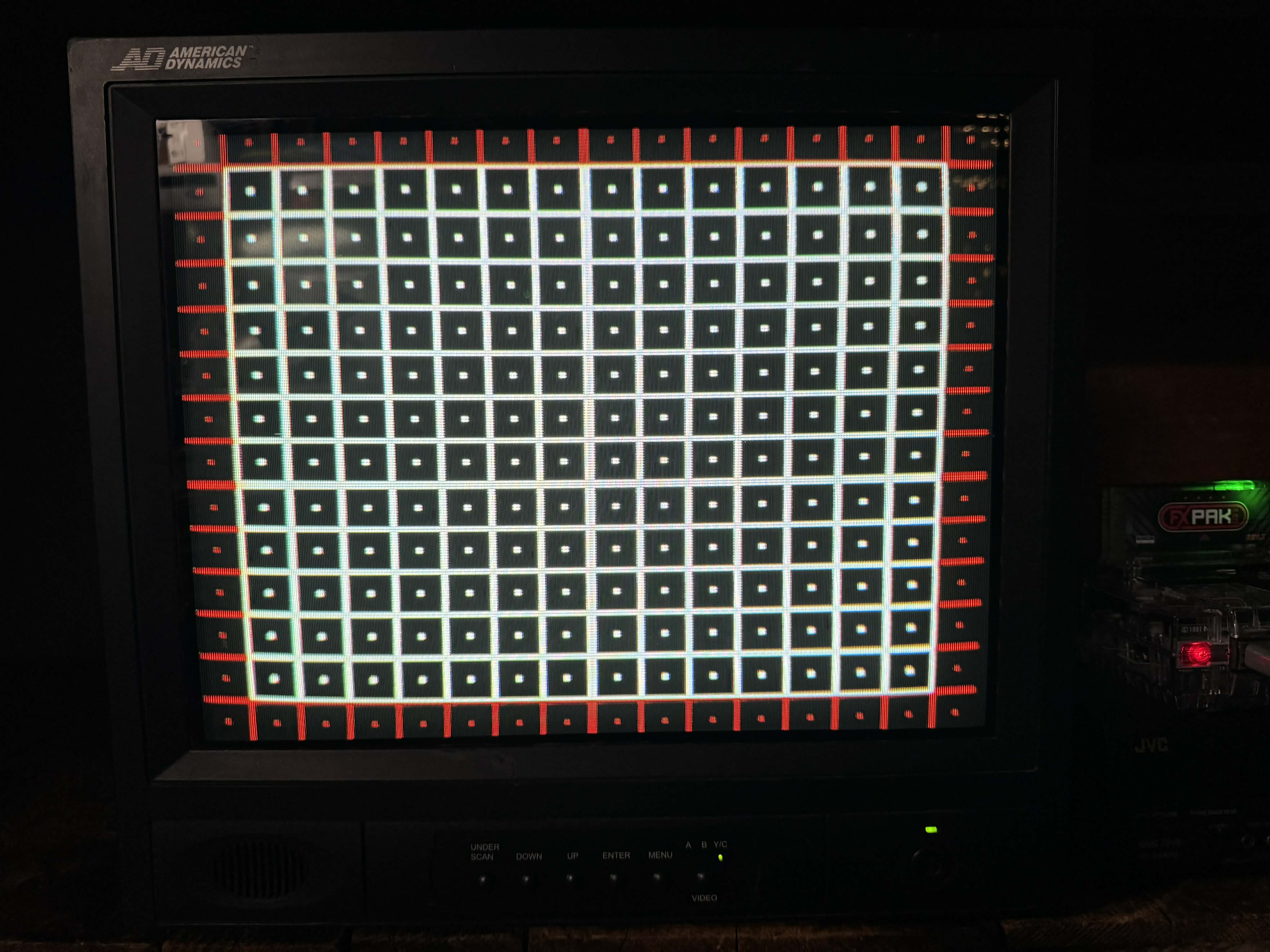

Gallery

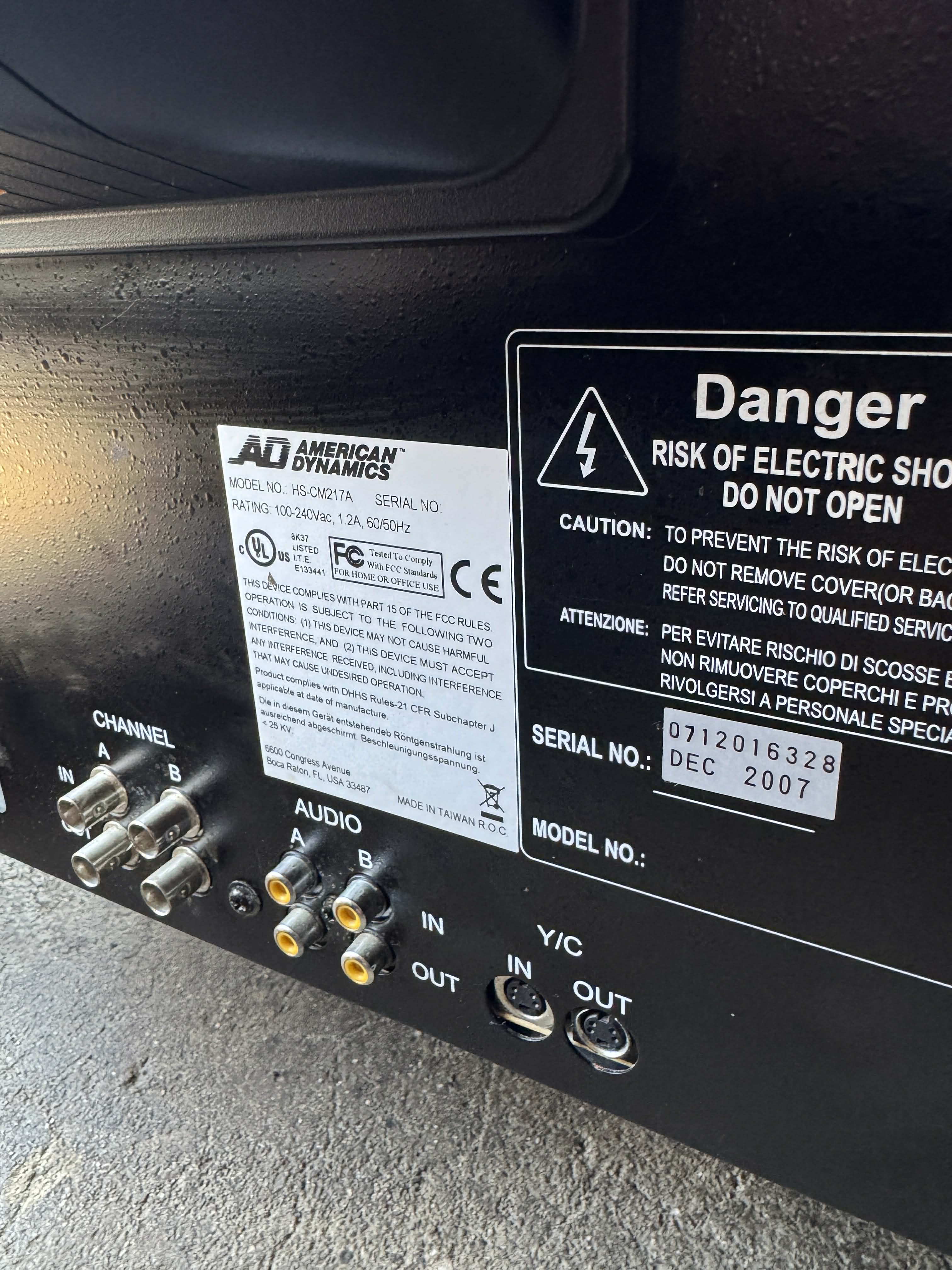

| Specifications | |
|---|---|
| Brand: | American Dynamics |
| Manufacturer: | Li Chen Technology |
| Model: | HS-CM217A |
| Series: | HS |
| Viewable Size: | 20" |
| Input Signals: | Composite, S-Video |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz, 50 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |

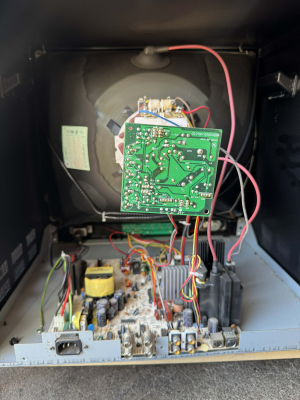

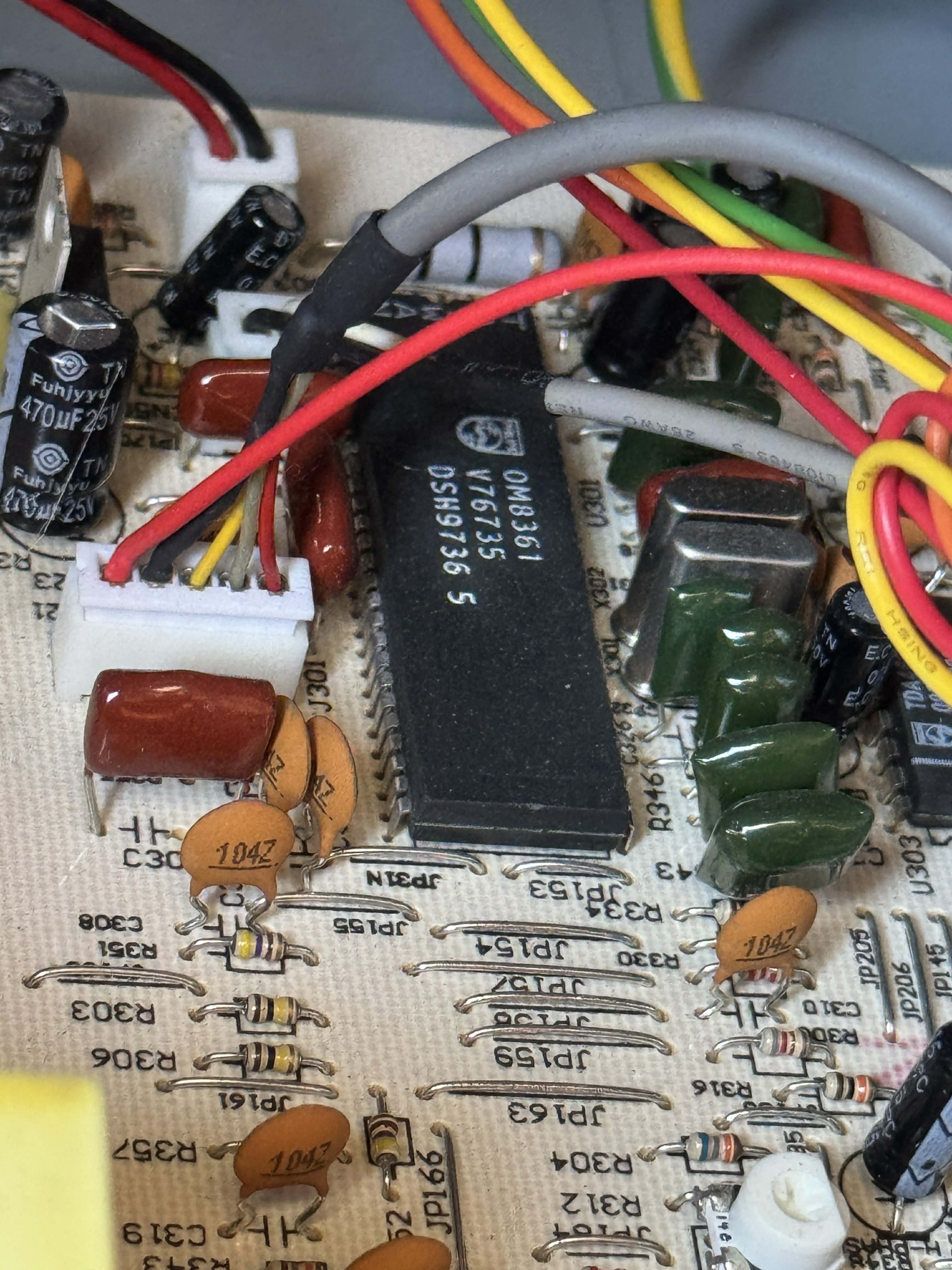

| Jungle IC: | Philips, TDA8361, OM8361 |
| Focus Type: | Single |

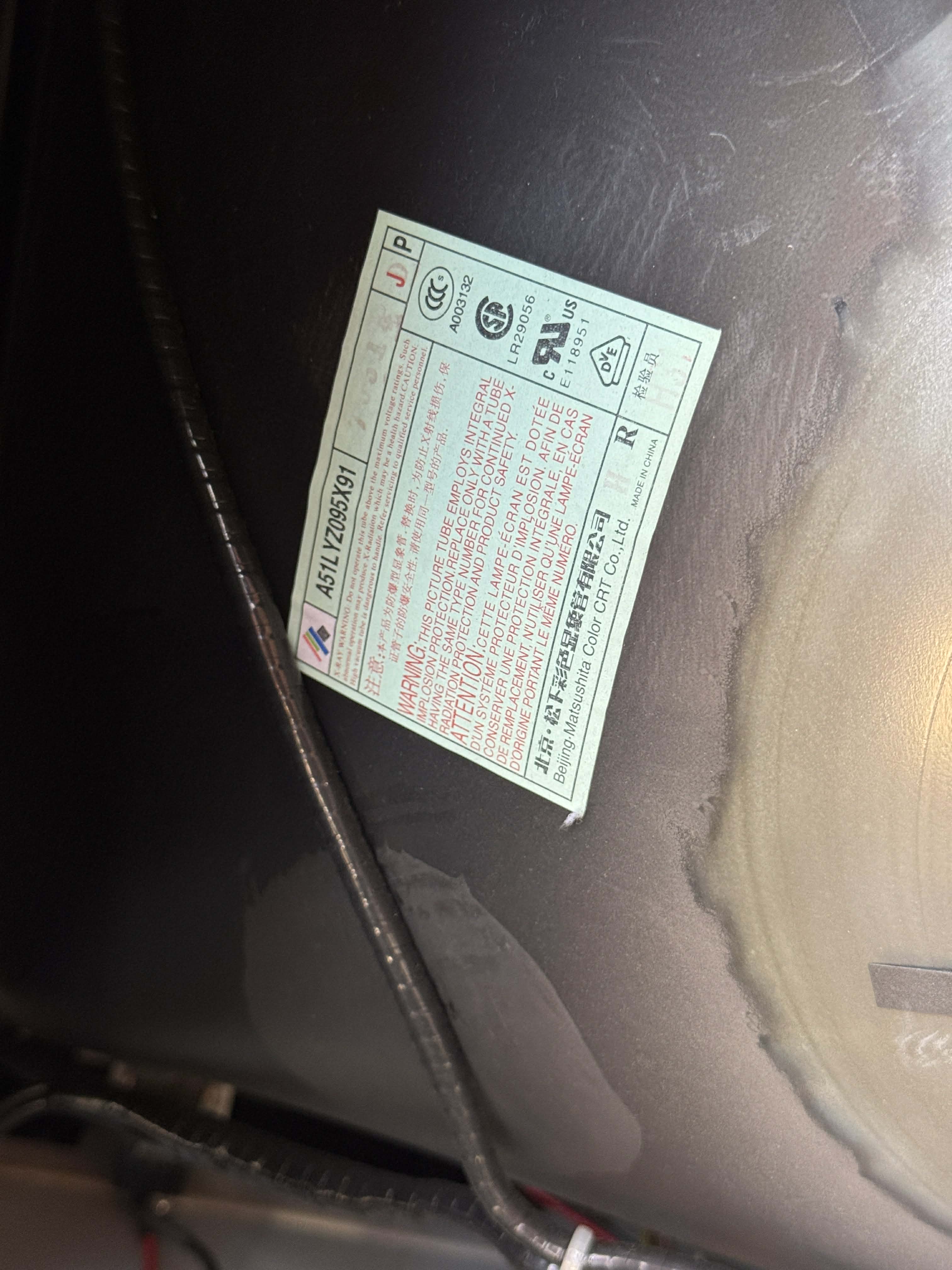

| Tube: | Beijing-Matsushita , A51LYZ095X , A51LYZ095X91 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|

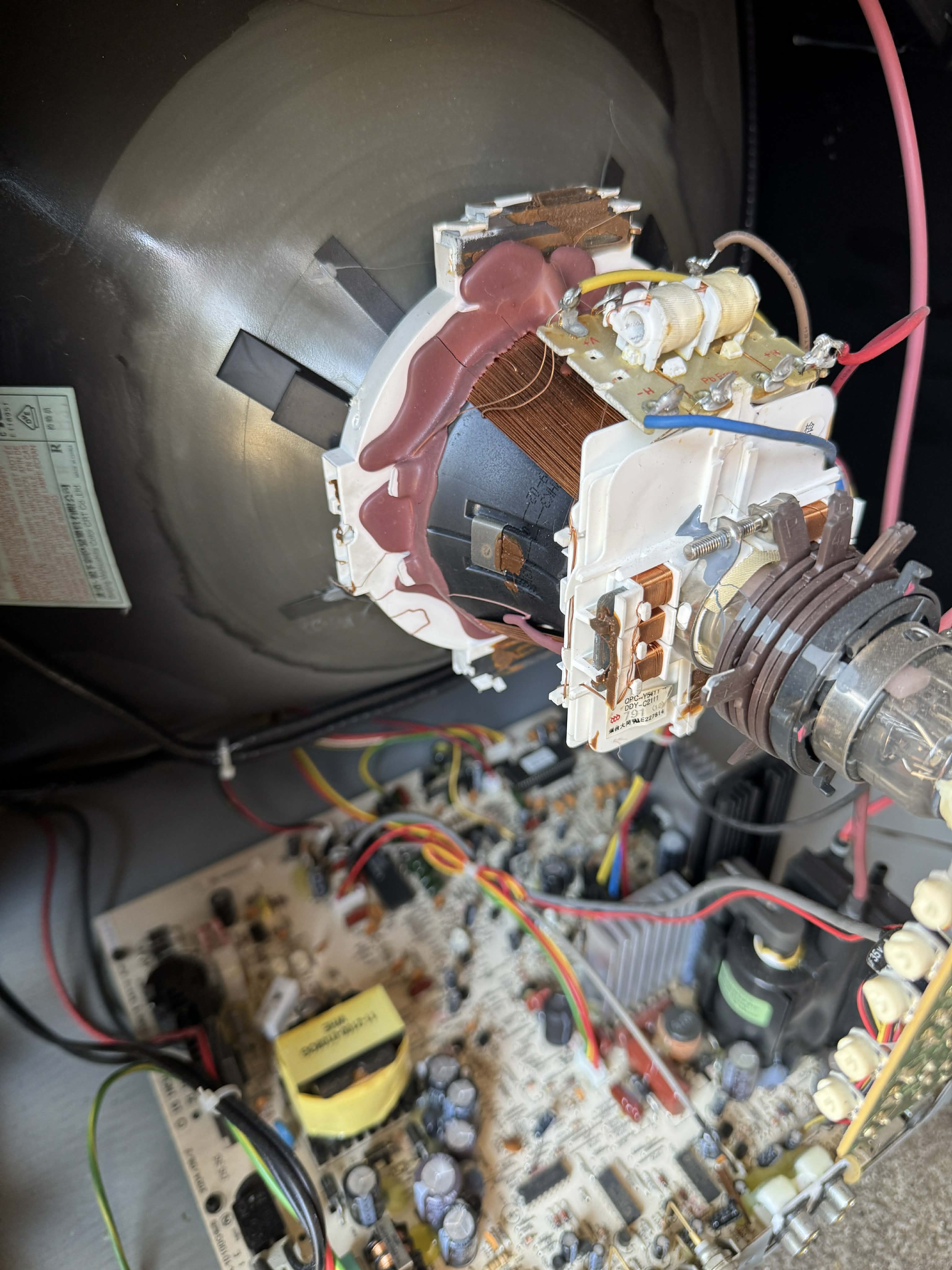

| Pitch: | .7 mm, .70 mm, 0.7 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | QPC-Y5411 |
| Speakers: | Mono |
| Weight: | 56 lbs (25.4 kg) |
| Dimensions (W/H/D): |
490 x 453 x 501 mm
(19.3 x 17.8 x 19.7") |
| Application: | Commercial |
| Cabinet Material: | Metal |
| Launched: | 2003 |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
