Summary

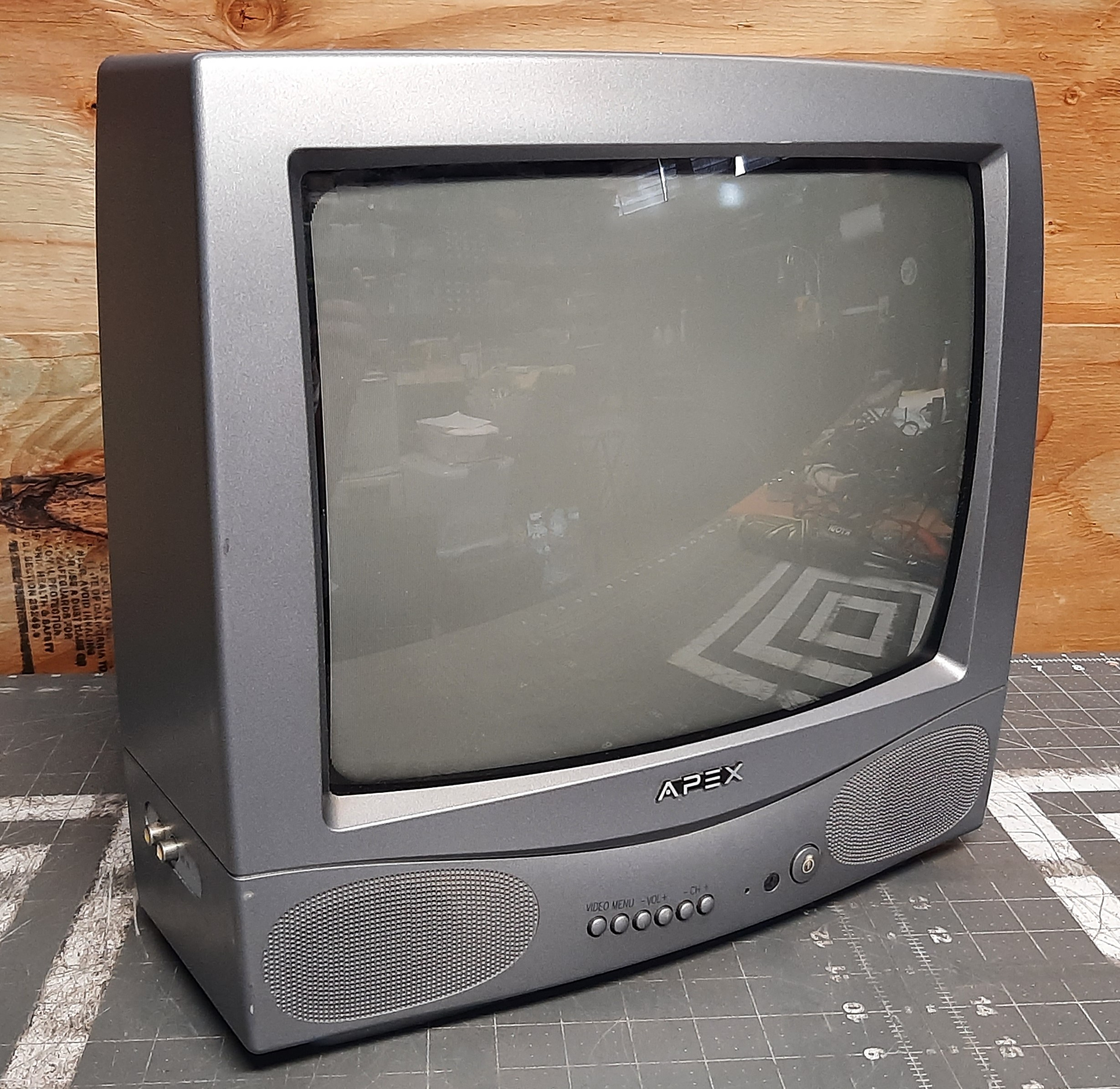

13" budget model TV from Apex.
Manuals
Notes
Despite having two speakers, this TV only has mono audio. The speakers are wired in parallel and it has a single channel audio amp.
This model has a well designed deflection circuit that contains a linearity coil and a width coil. Unlike most 13" TVs (including those from better known brands), It has very good horizontal linearity, and the picture size can be adjusted.
The jungle chip has analog RGB inputs, and it should be possible to modify this TV for RGB.

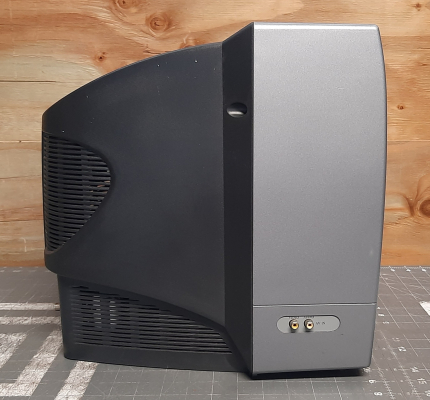

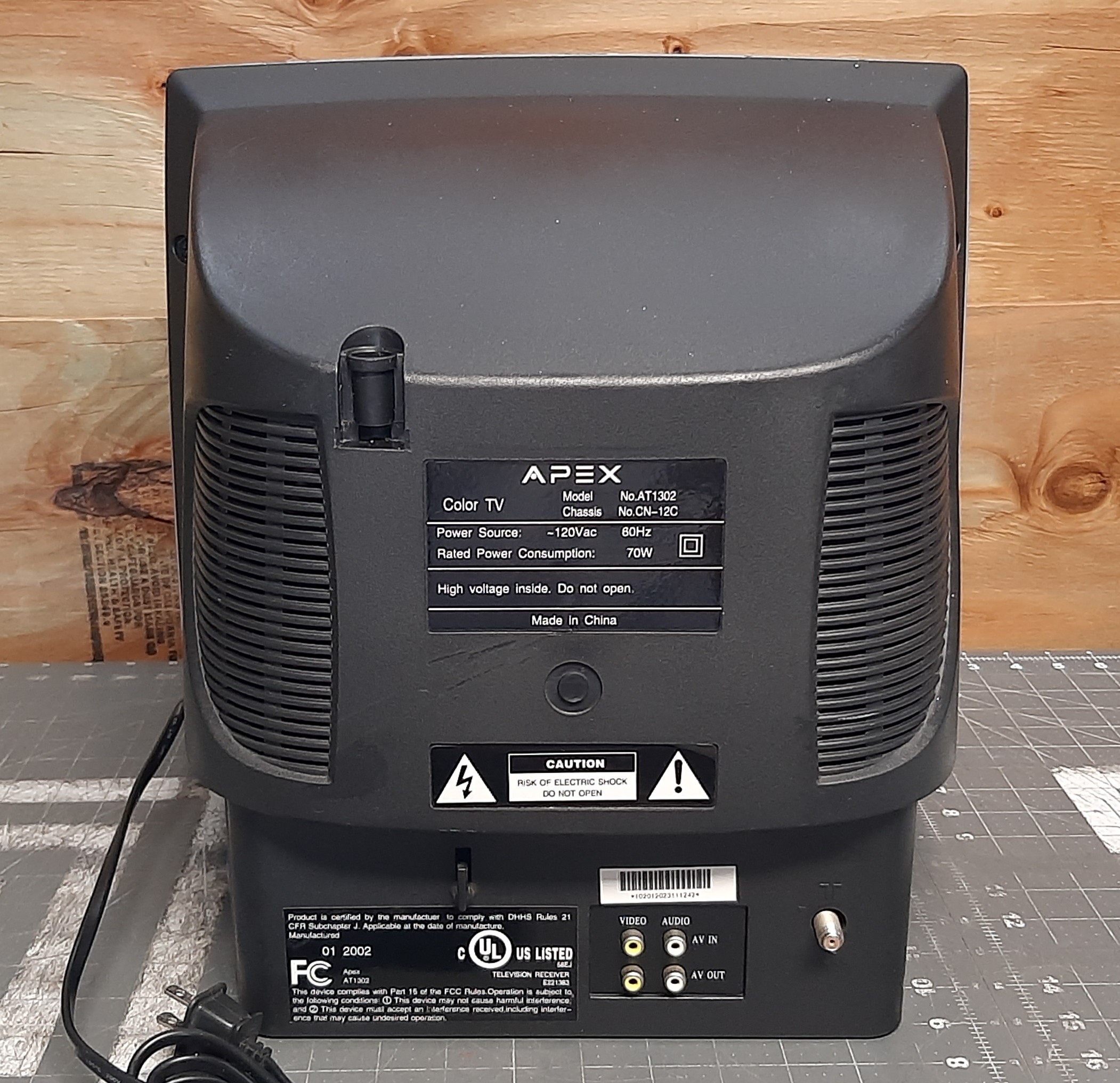

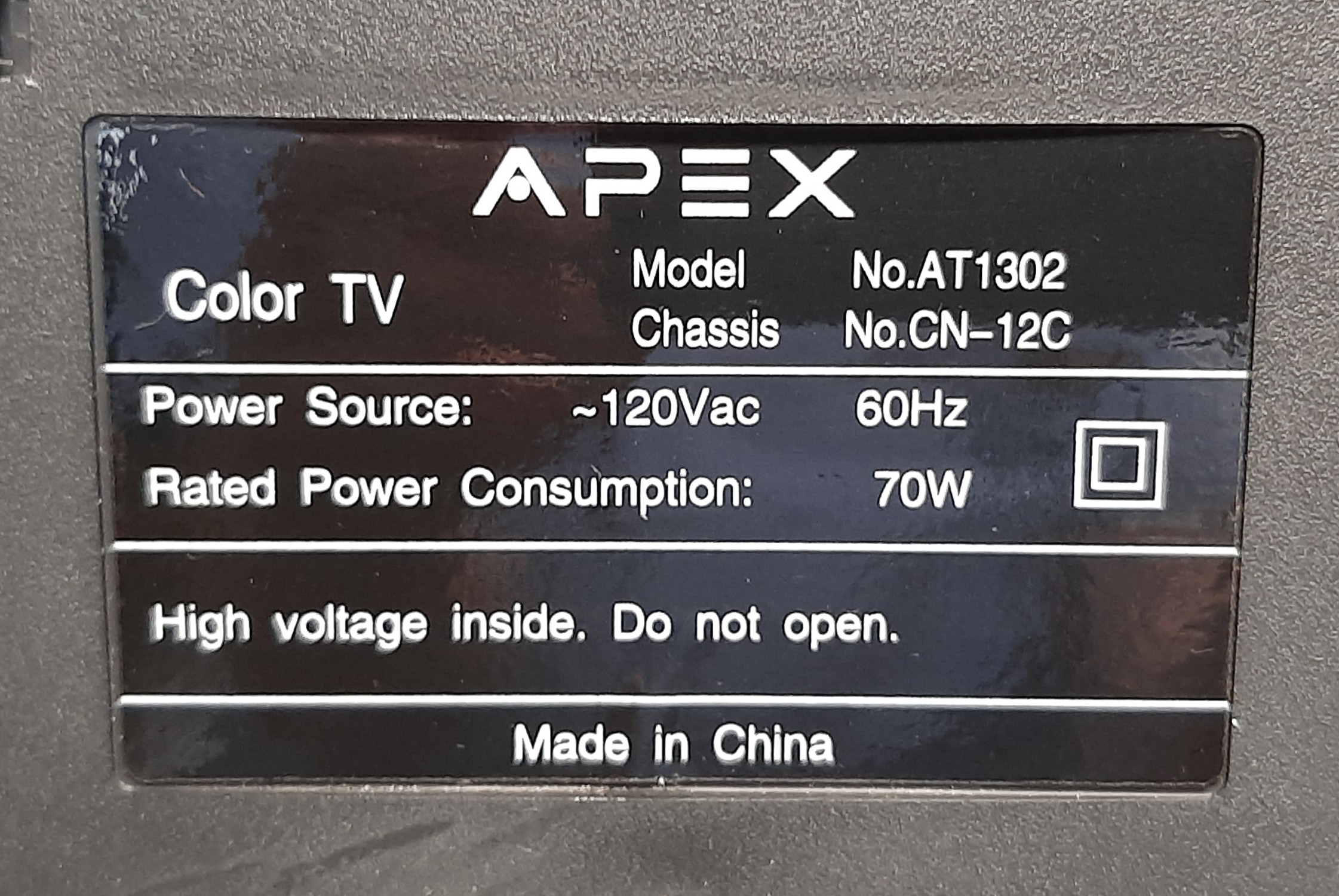

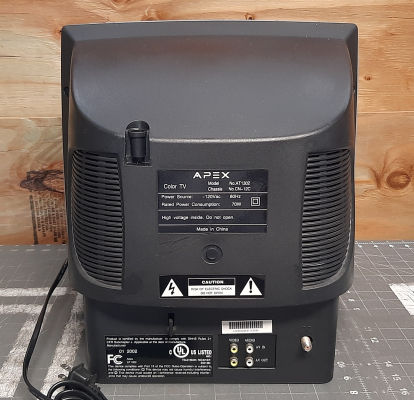

Gallery
| Specifications | |
|---|---|
| Brand: | Apex |
| Manufacturer: | Changhong Electric |
| Model: | AT1302 |
| Series: | AT |
| Viewable Size: | 13" |

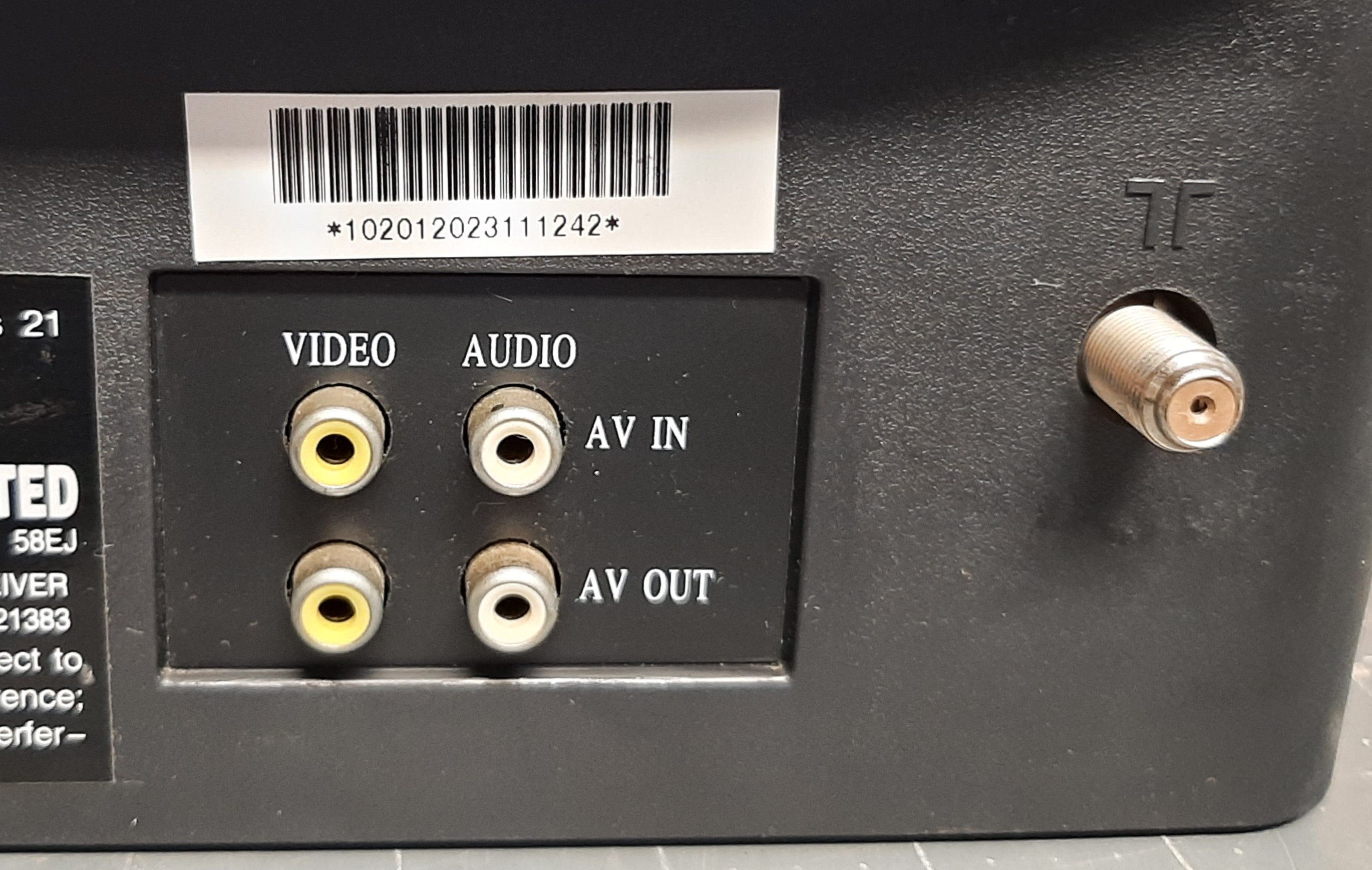

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | LA7840 |
| Jungle: | LA76814 |
| Comb Filtering: | None |
| Flyback: | BSC60T2 |
| Tube: | Irico , 37SX110Y22-DC05 |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Chassis: | CN-12C |
| Weight: | 25.3 lbs (11.5 kg) |
| Dimensions (W/H/D): |
450 x 425 x 425 mm
(17.7 x 16.7 x 16.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | China |
| Degaussing: | Automatic on Power-on |
