Summary

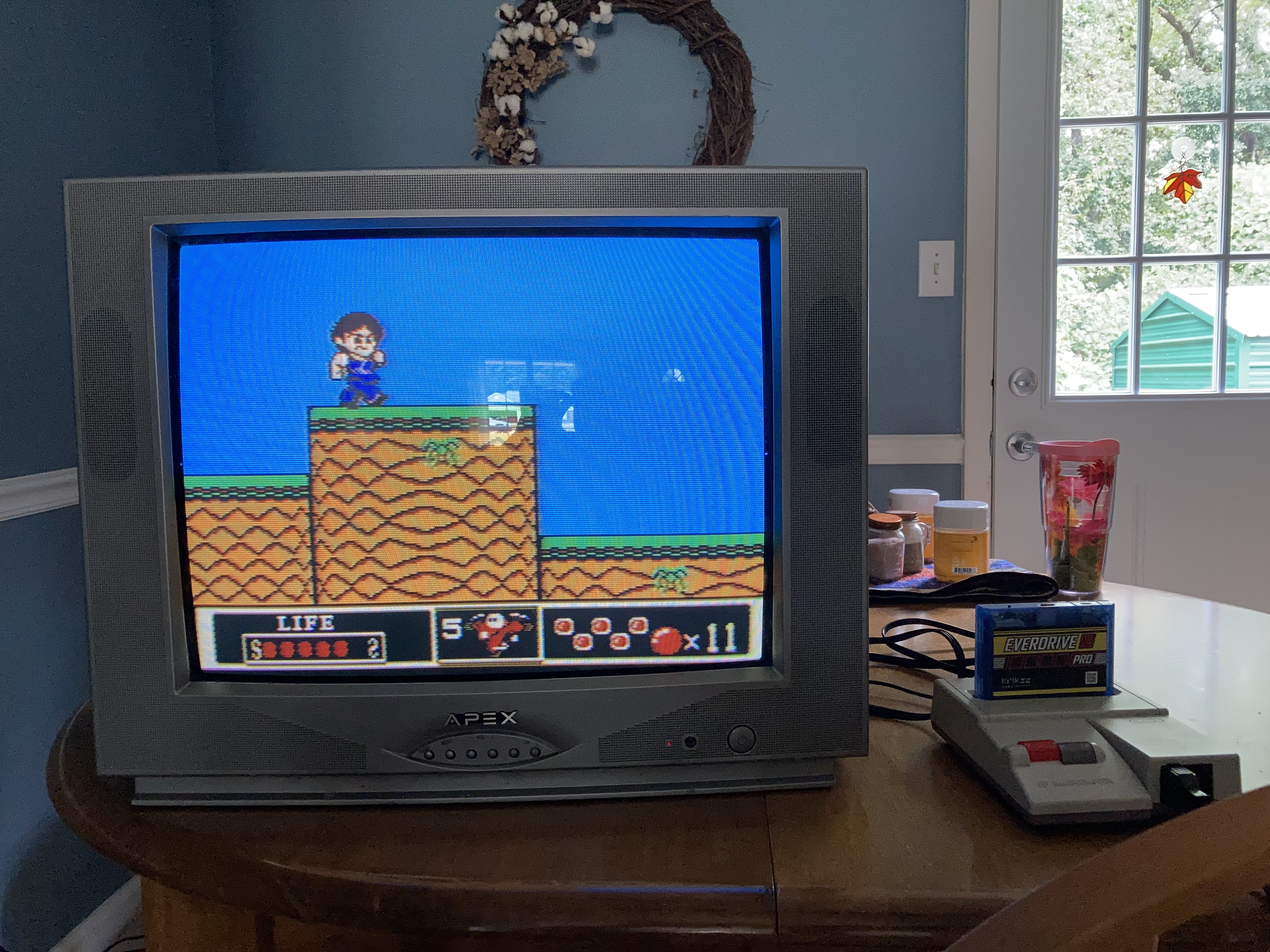

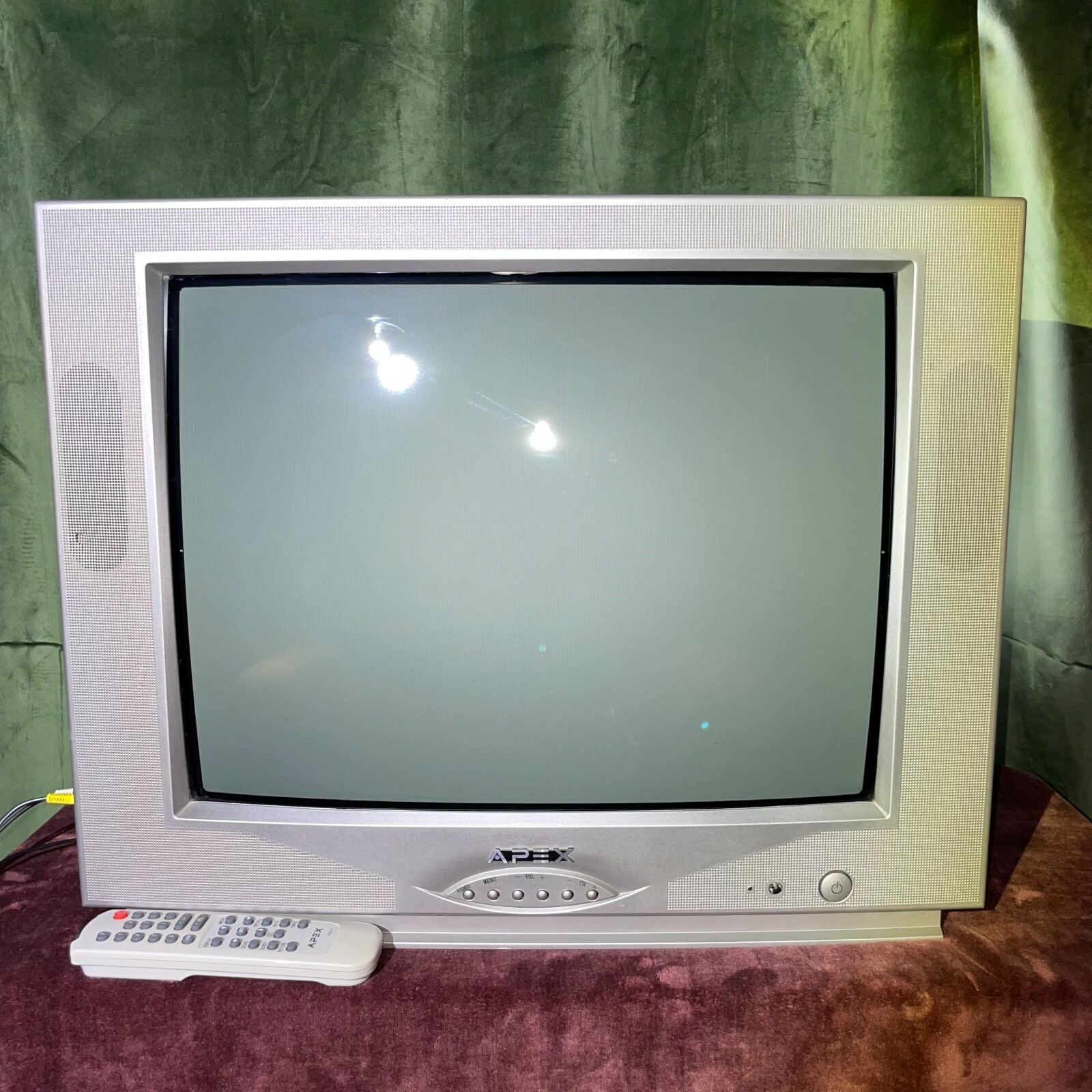

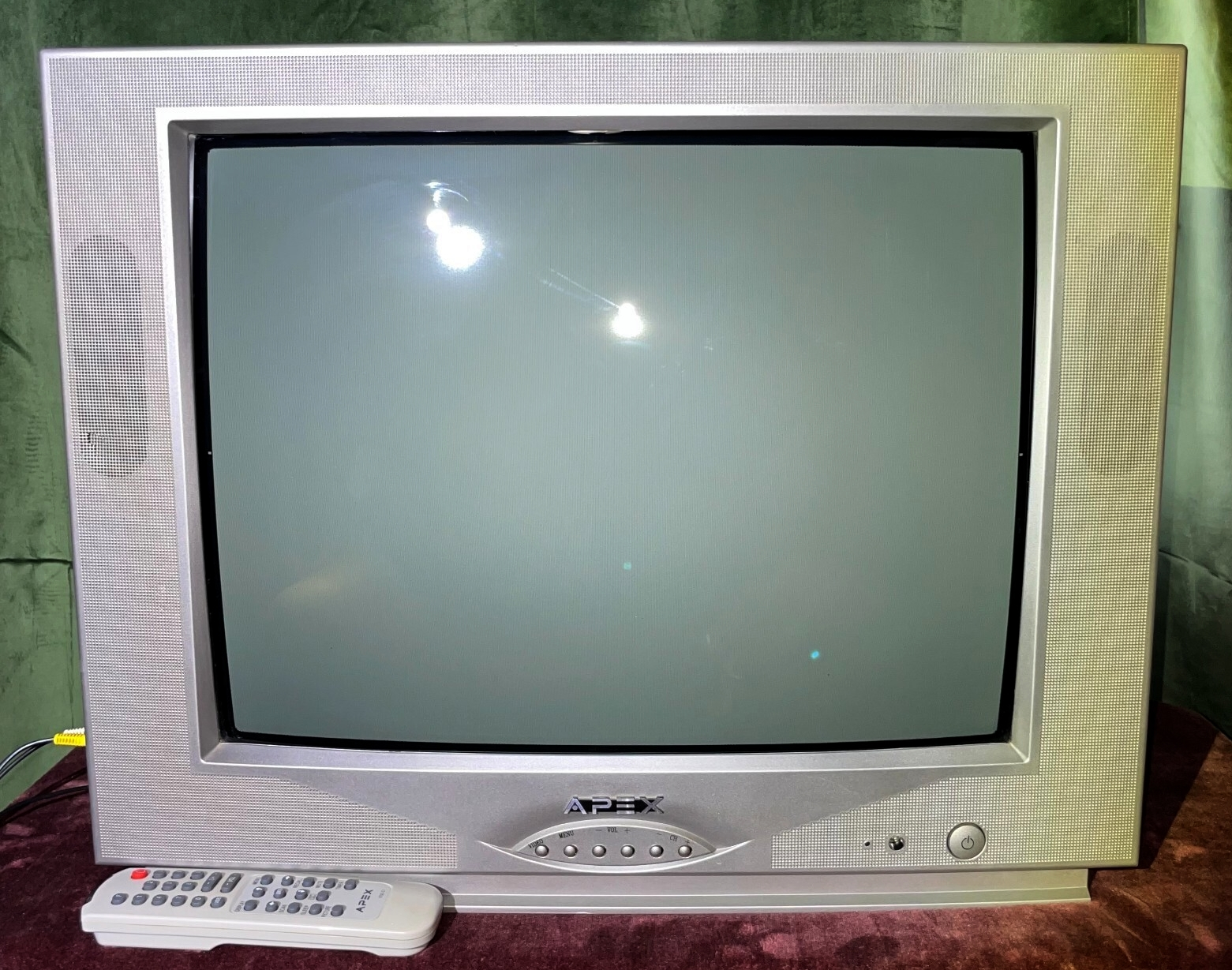

Basic 20" TV by Apex. Has RF and composite video inputs with mono sound. Made by Changhong Electric in China in 2002.
Manuals
Notes
Despite having two speakers, this TV only has mono audio. The speakers are wired in parallel and it has a single channel audio amp.
The jungle chip has analog RGB inputs, and it should be possible to modify this TV for RGB.
Gallery














Specifications | |
---|---|
Brand: | Apex |
Manufacturer: | Changhong Electric |
Model: | AT2008 |
Series: | AT |
Viewable Size: | 20" |

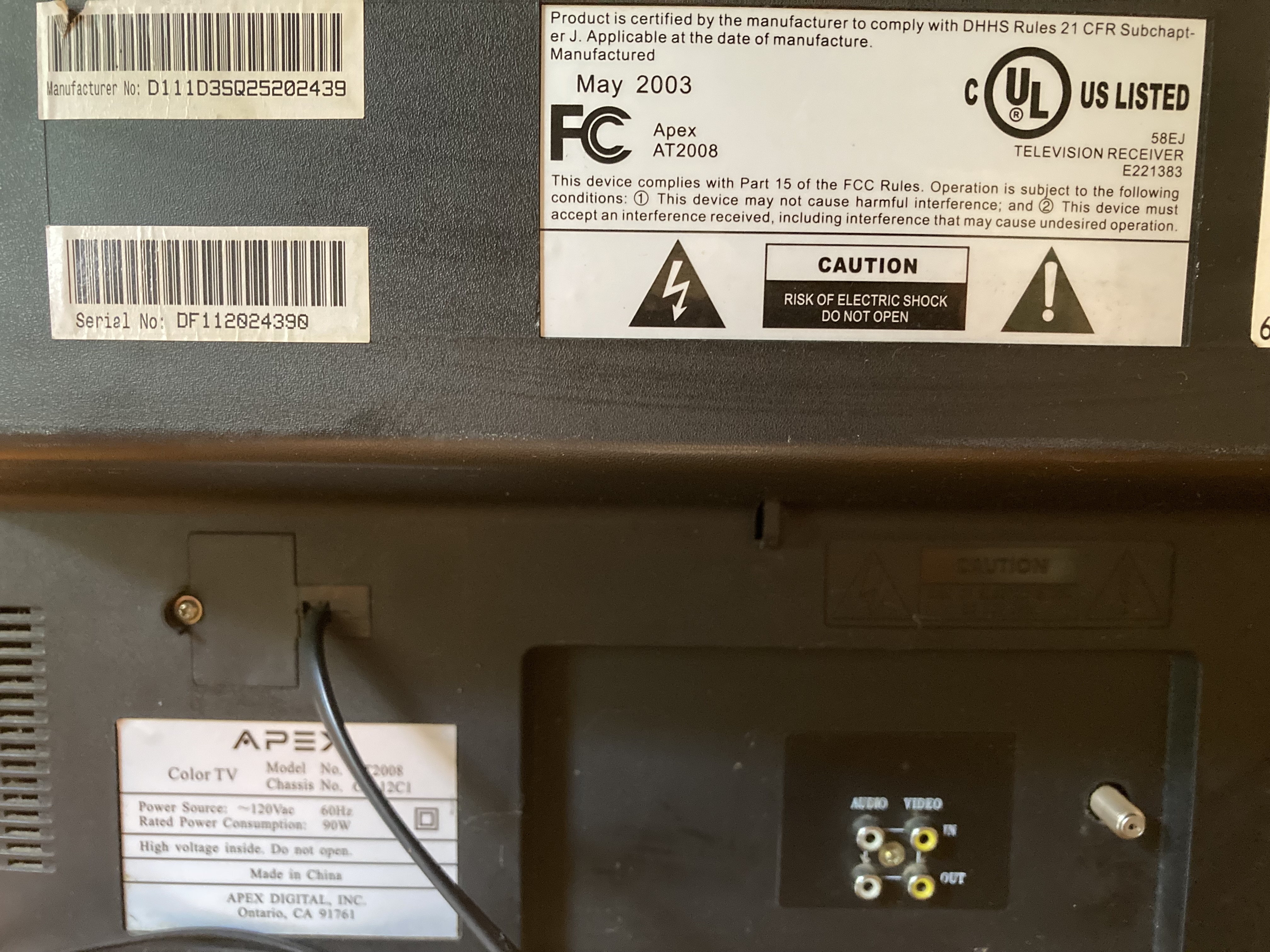

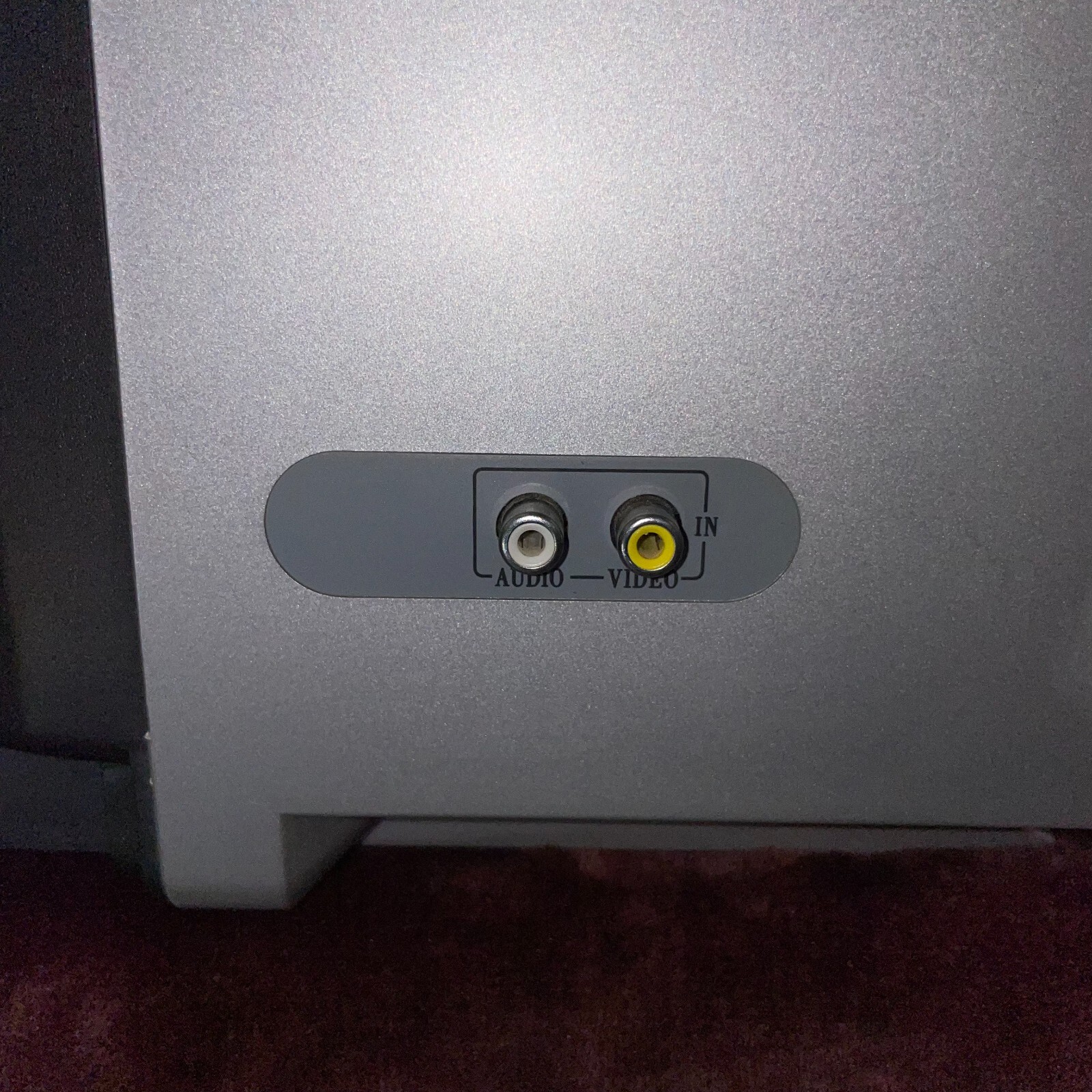

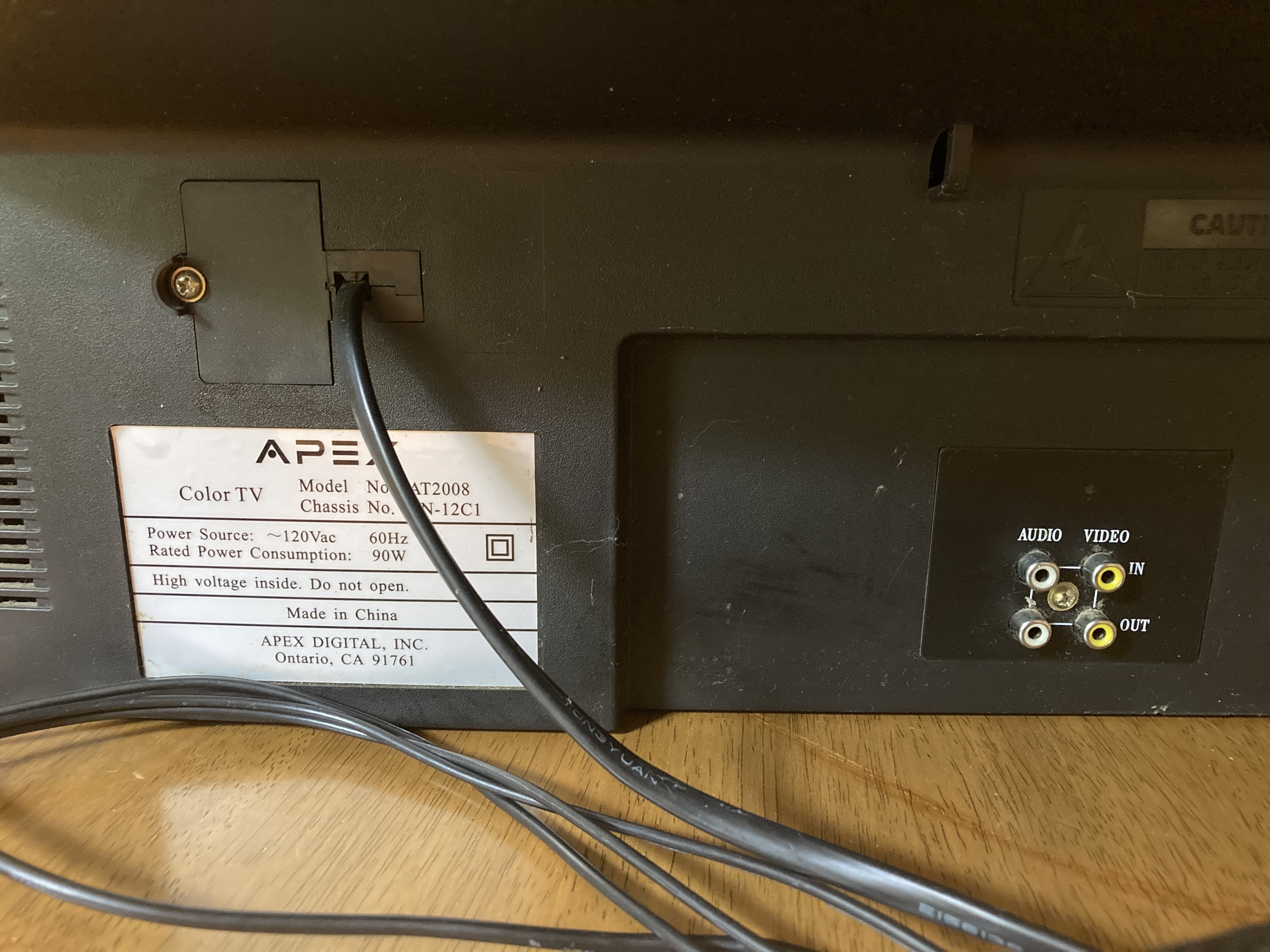

Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |

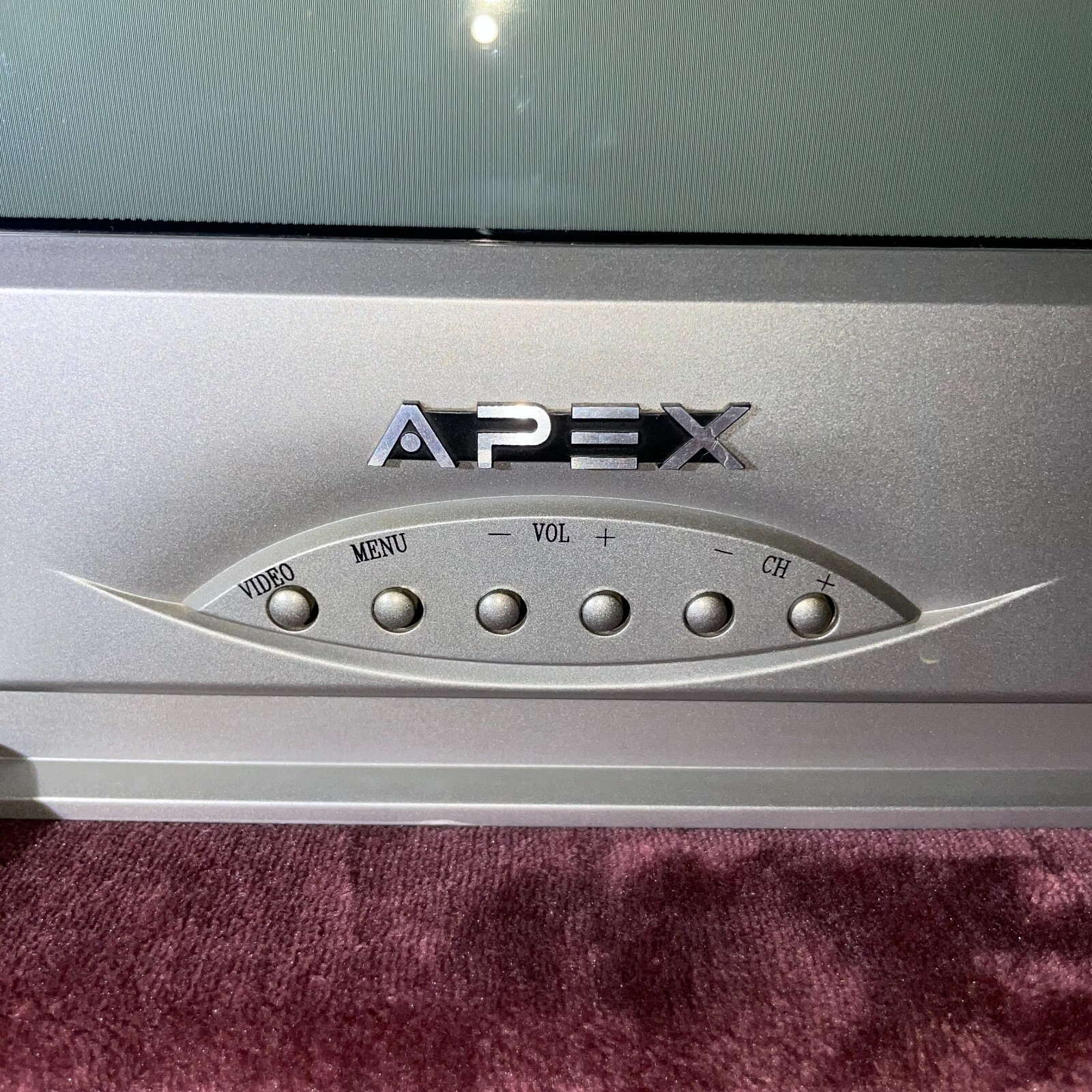

Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | LA7840, Sanyo |
Jungle: | Sanyo, LA76814 |
Comb Filtering: | None |
Focus Type: | Single |
Tube: | Samsung , Irico , LG.Philips , SEG-Hitachi , A51KQK99X , A51KQK99X01 , A51EHW135X , A51EHW135X96 , 54SX53Y22-DC01 , Thai CRT Co. , A51LMV10X , A51LMV10X02 , A51JFC82X13 , A51JFC82X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Mono |

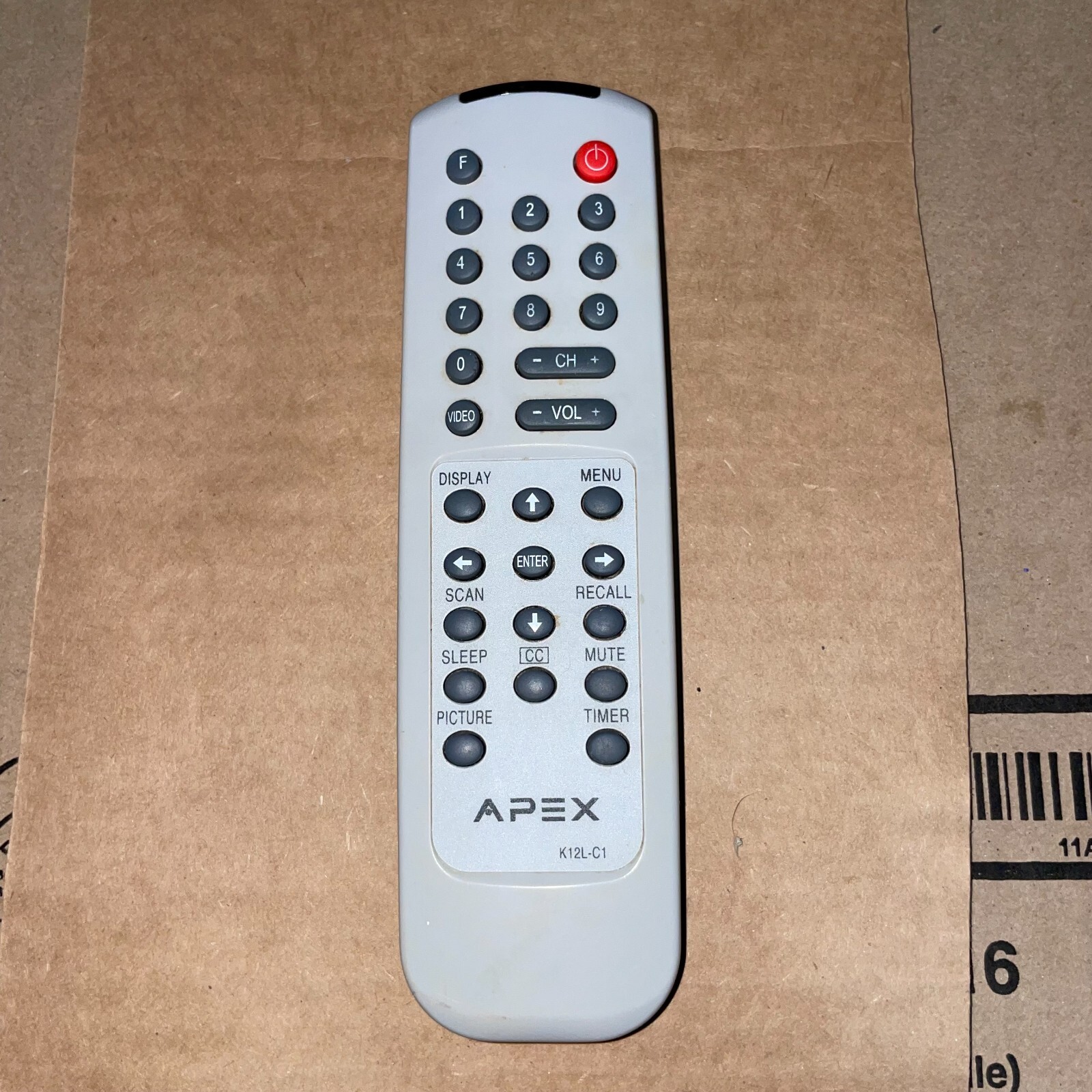

Remote: | K12L-C1 |
Chassis: | CN-12C1 |
Weight: | 55 lbs (24.9 kg) |
Dimensions (W/H/D): |
566 x 450 x 477 mm
(22.2 x 17.7 x 18.7") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2003 |
MSRP: | 99 USD |
Country of Manufacture: | China |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual |
