Summary

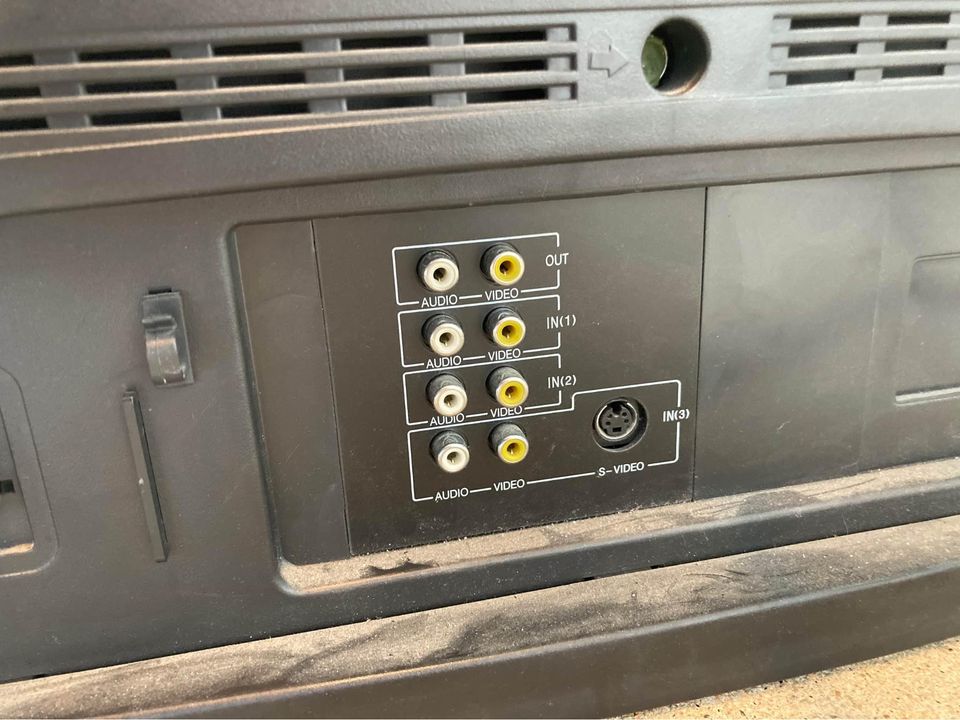

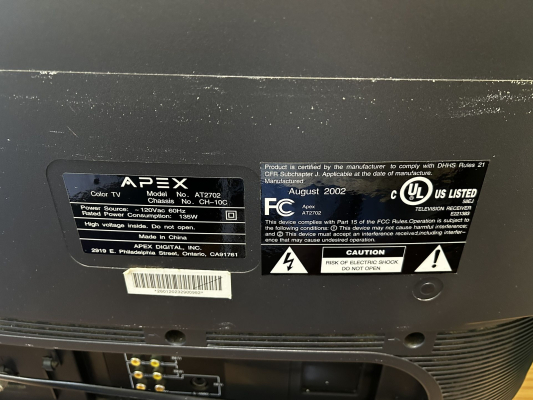

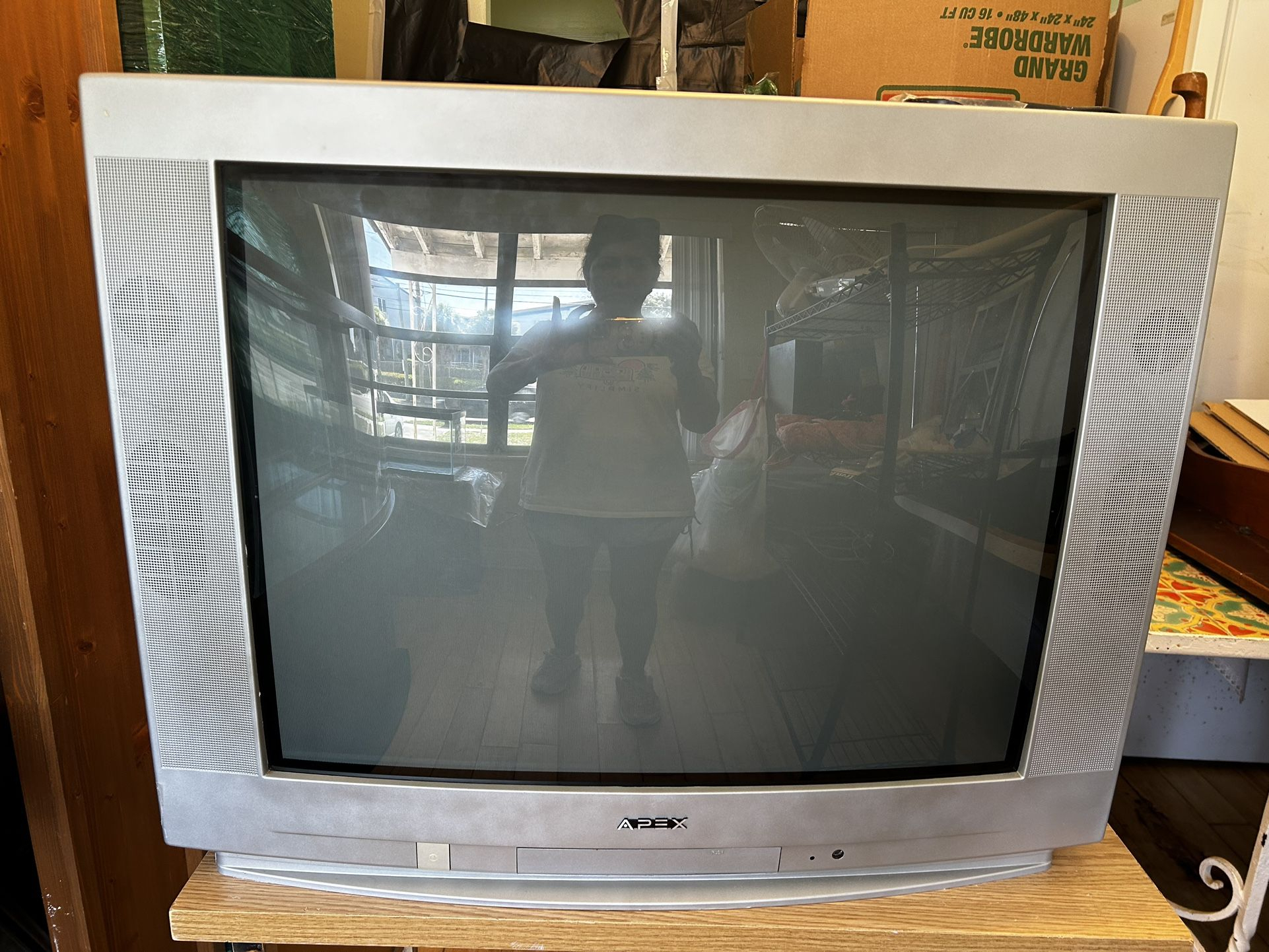

Decent 27" set by Apex. Has composite and s-video input with monaural sound. Originally manufactured by Changhong Electric in China.

Manuals

• User Manual
• Service Manual

Notes

S-video quality is quite good, no complaints to report.

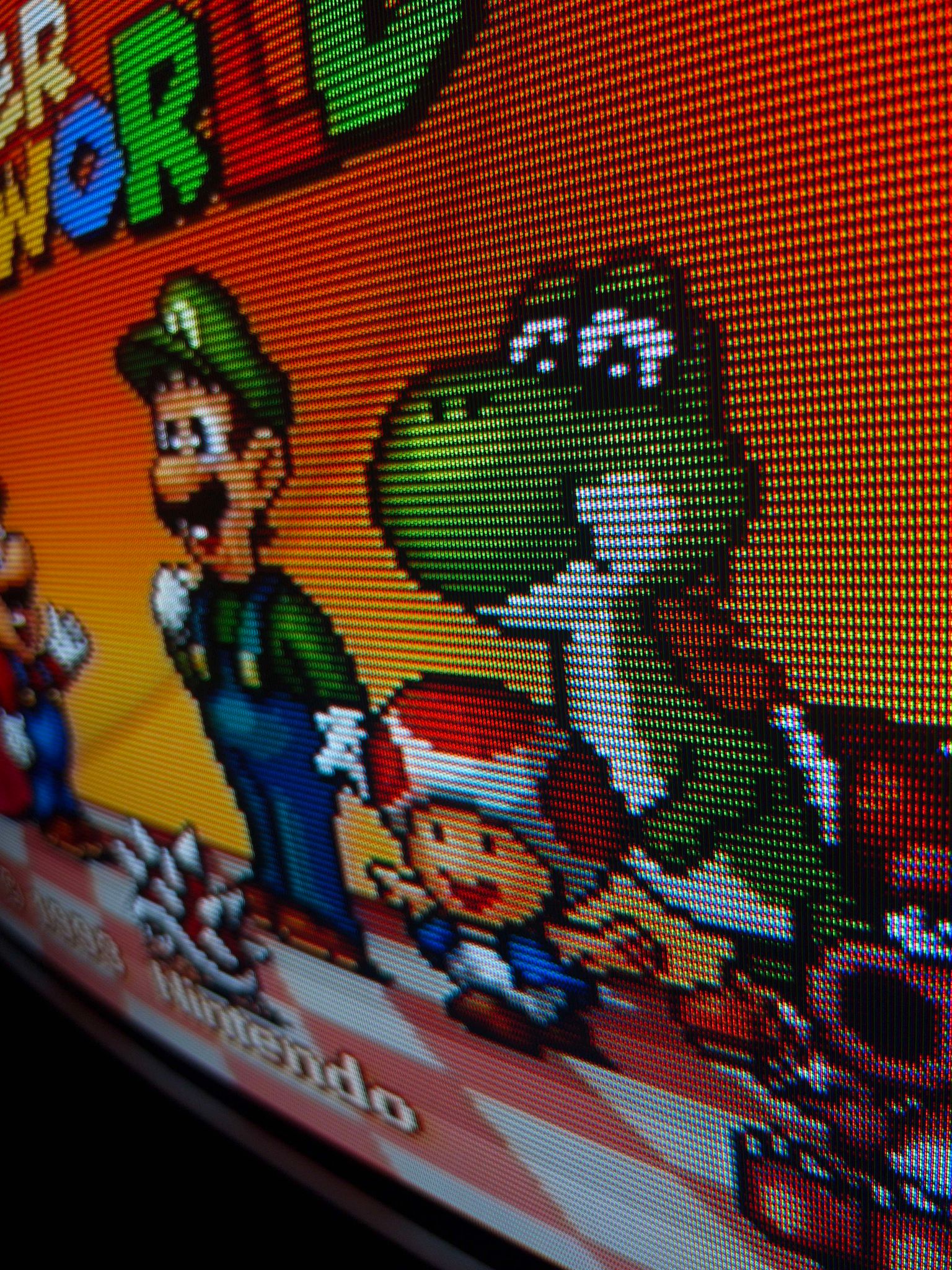

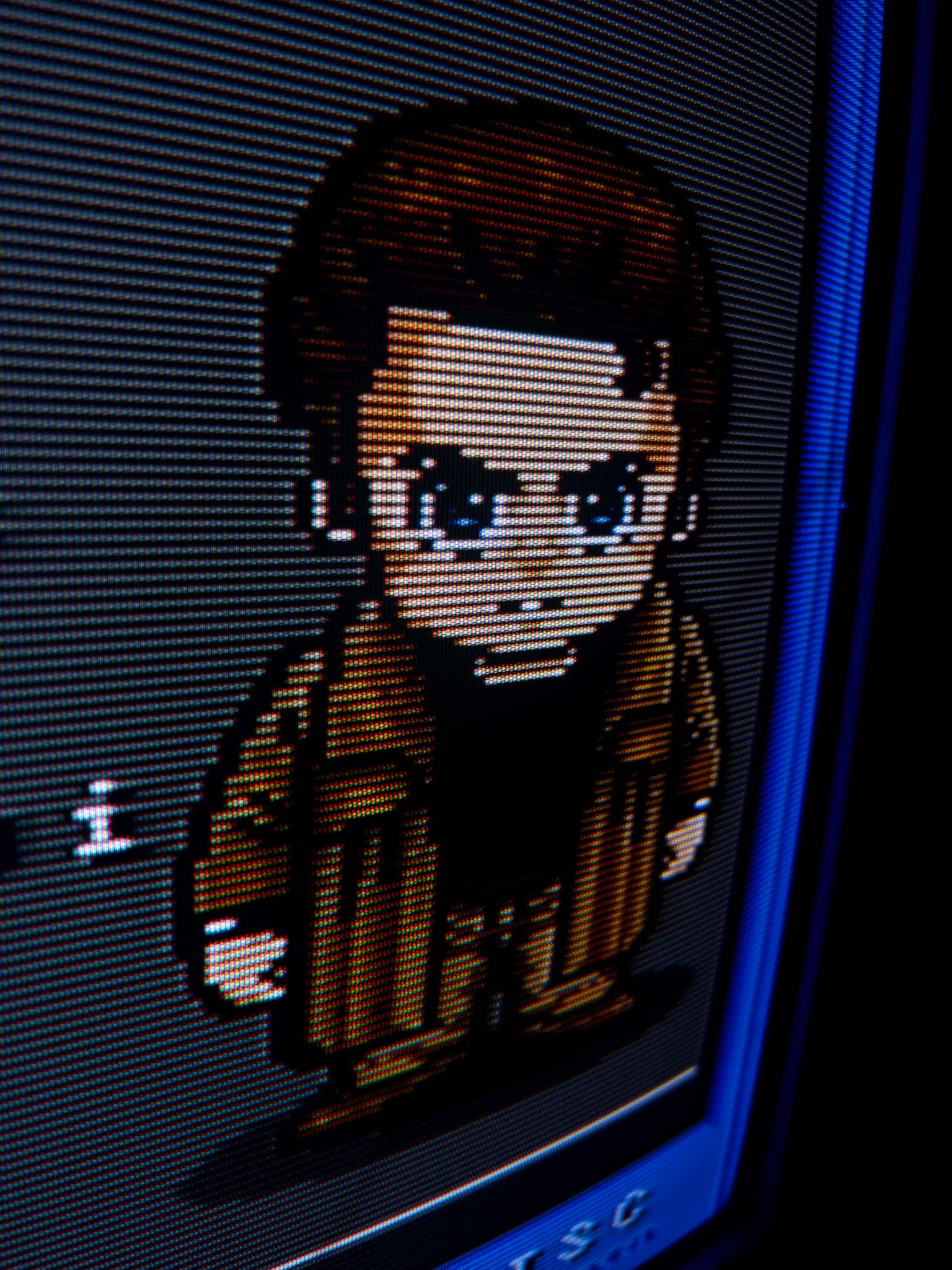

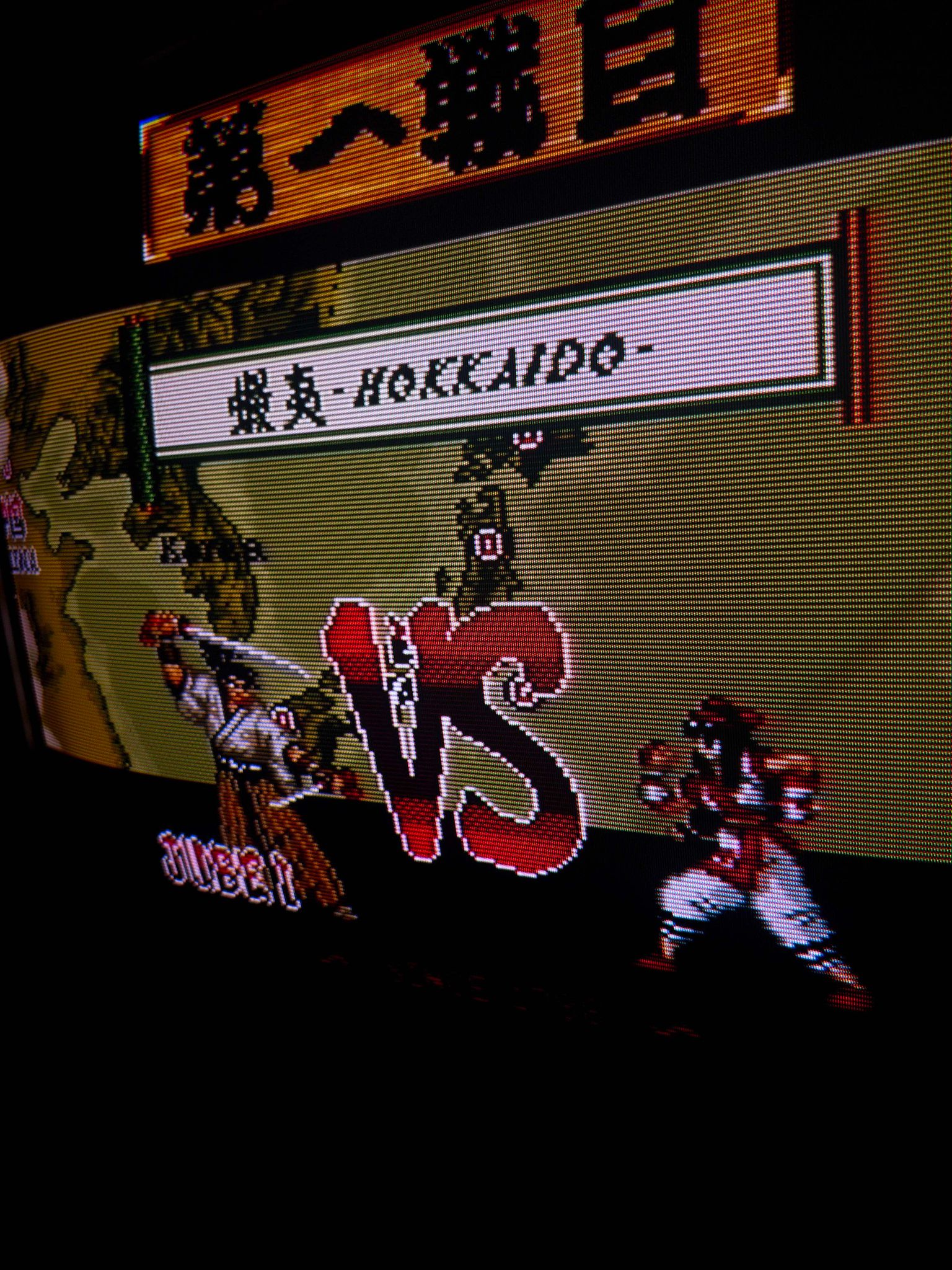

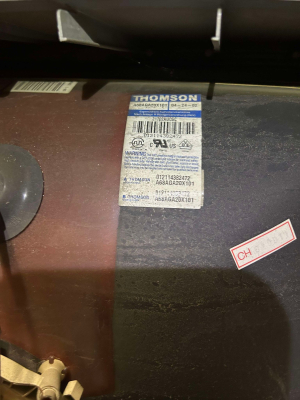

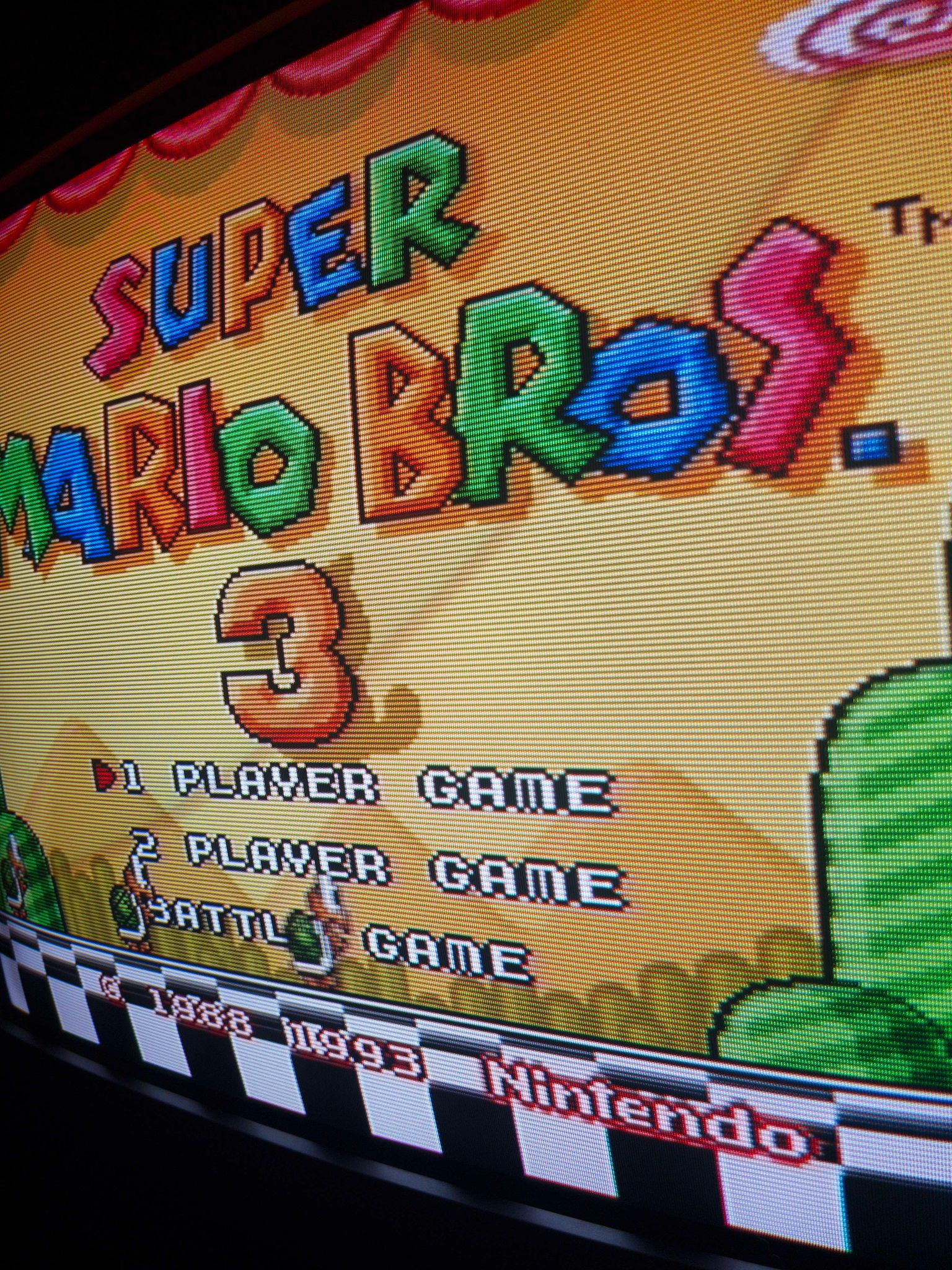

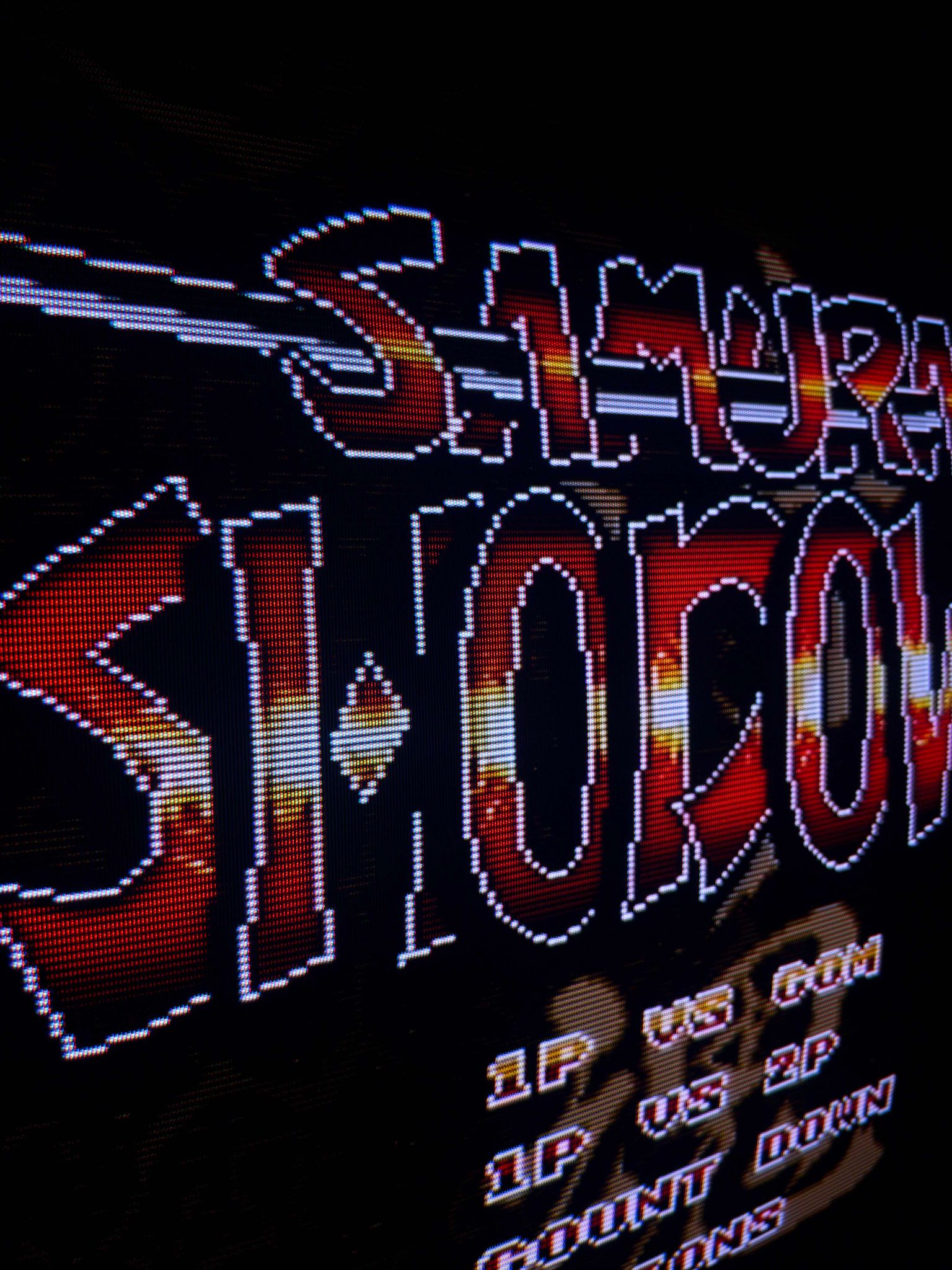

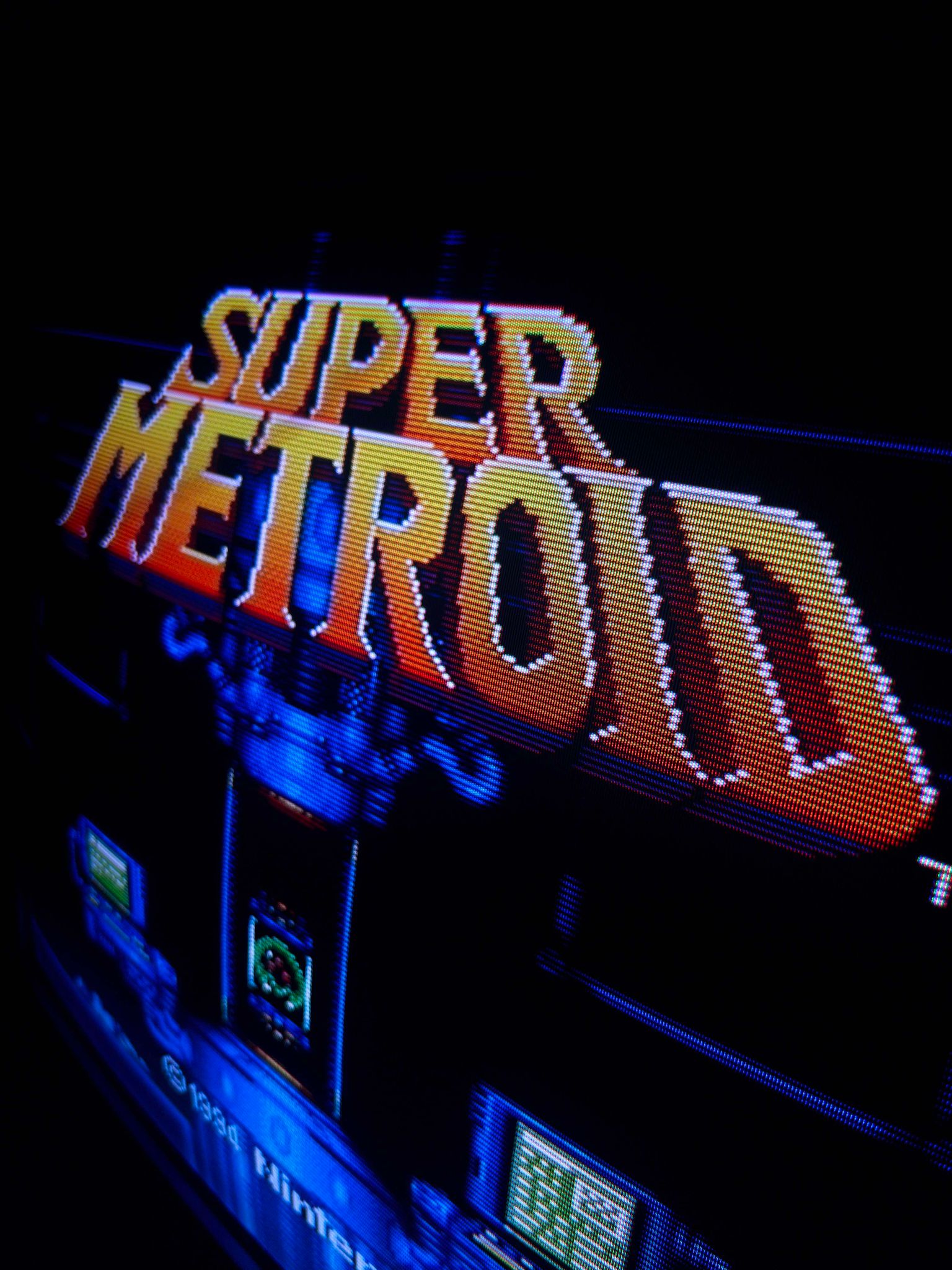

There are two known tube models used in these sets: a Thomson one and a Samsung one. The pics below are of the Thomson model, and with the TVL increase trick applied for more pronounced scanlines.

Despite having two speakers, this TV only has mono audio. The speakers are wired in parallel and it has a single channel audio amp. The stereo model, AT-2702S, has audio processor chip TDA9859.

The jungle chip has pins for analog RGB, and it should be possible to modify this TV for that signal.

These sets are very cheaply made for the most part. Therefore, it is best to inspect these sets for issues if you were to get one.
