Summary
27" curved-screen TV by Apex, made by Changhong Electric in China in 2002. This model appears to be a dark gray variant of the AT2702S. It did not have a dedicated page on the official website. Has RF, composite, and s-video inputs with stereo sound.

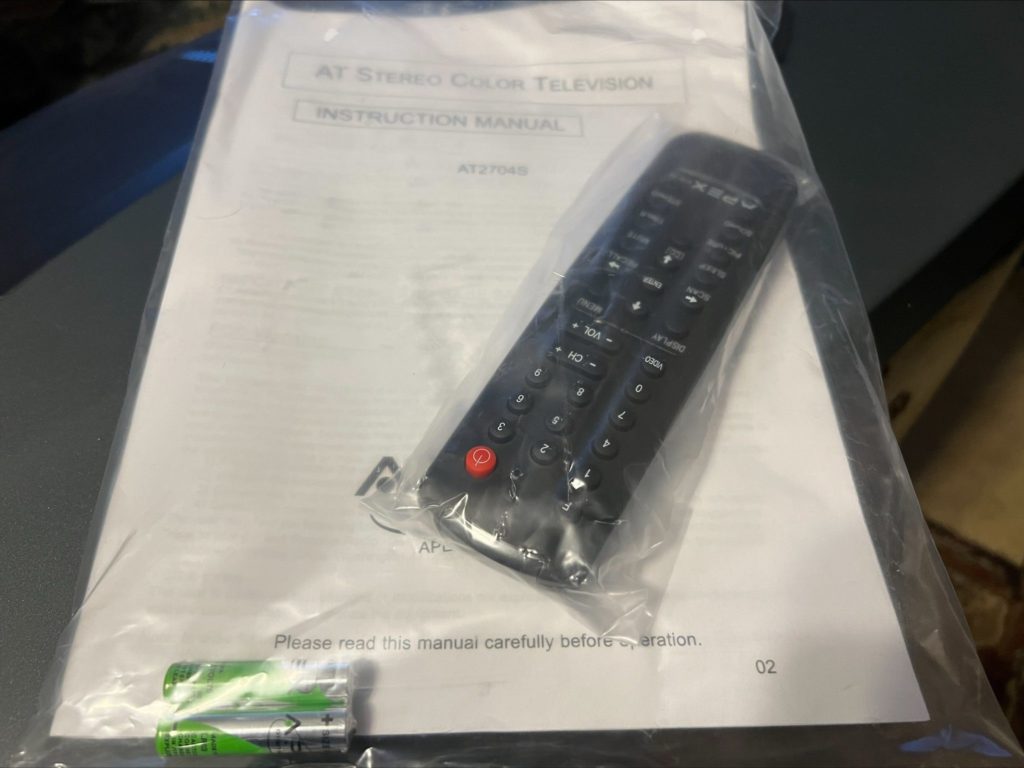

Manuals
Notes
The jungle chip has analog RGB inputs, and it should be possible to modify this TV for RGB.

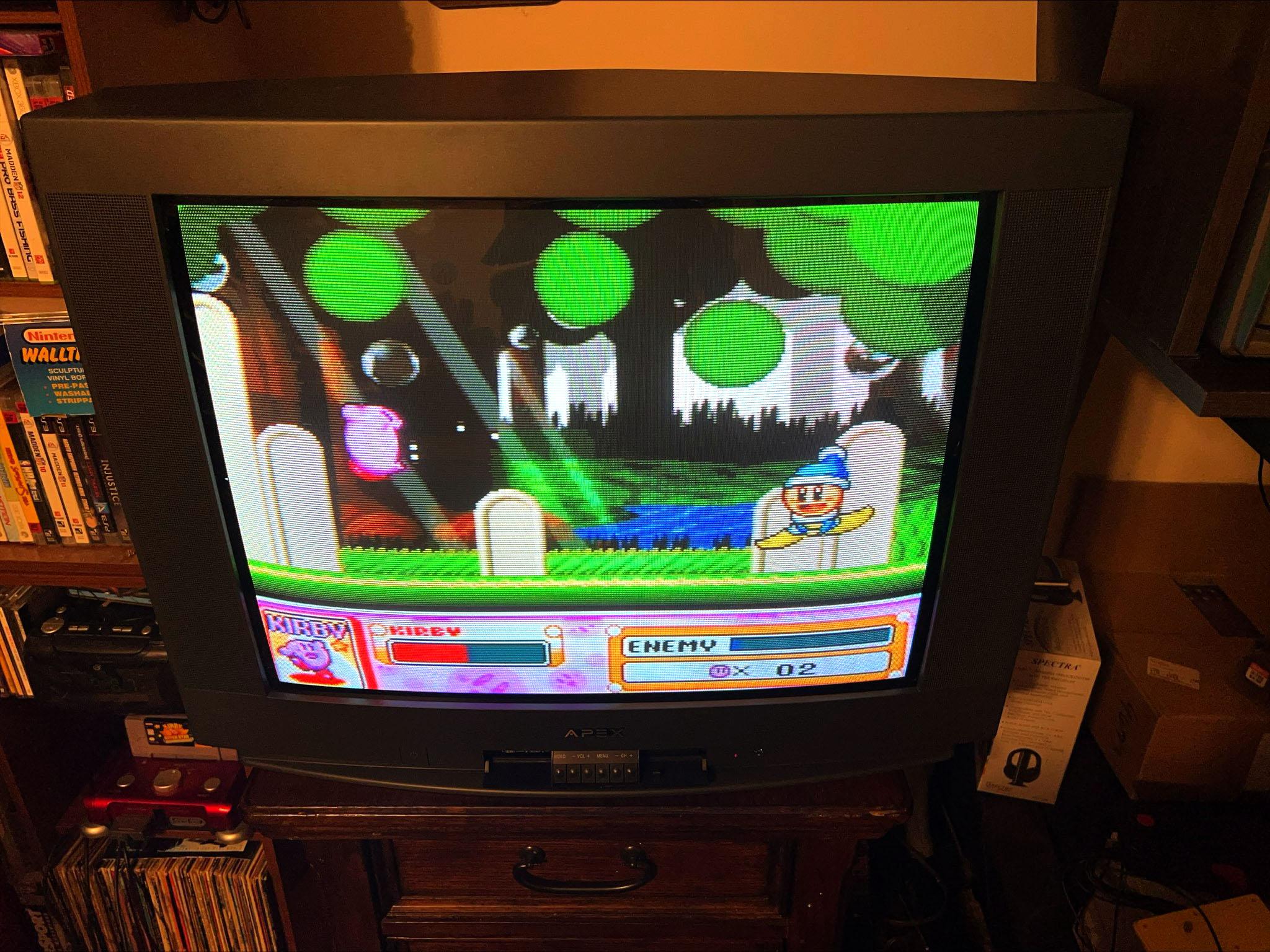

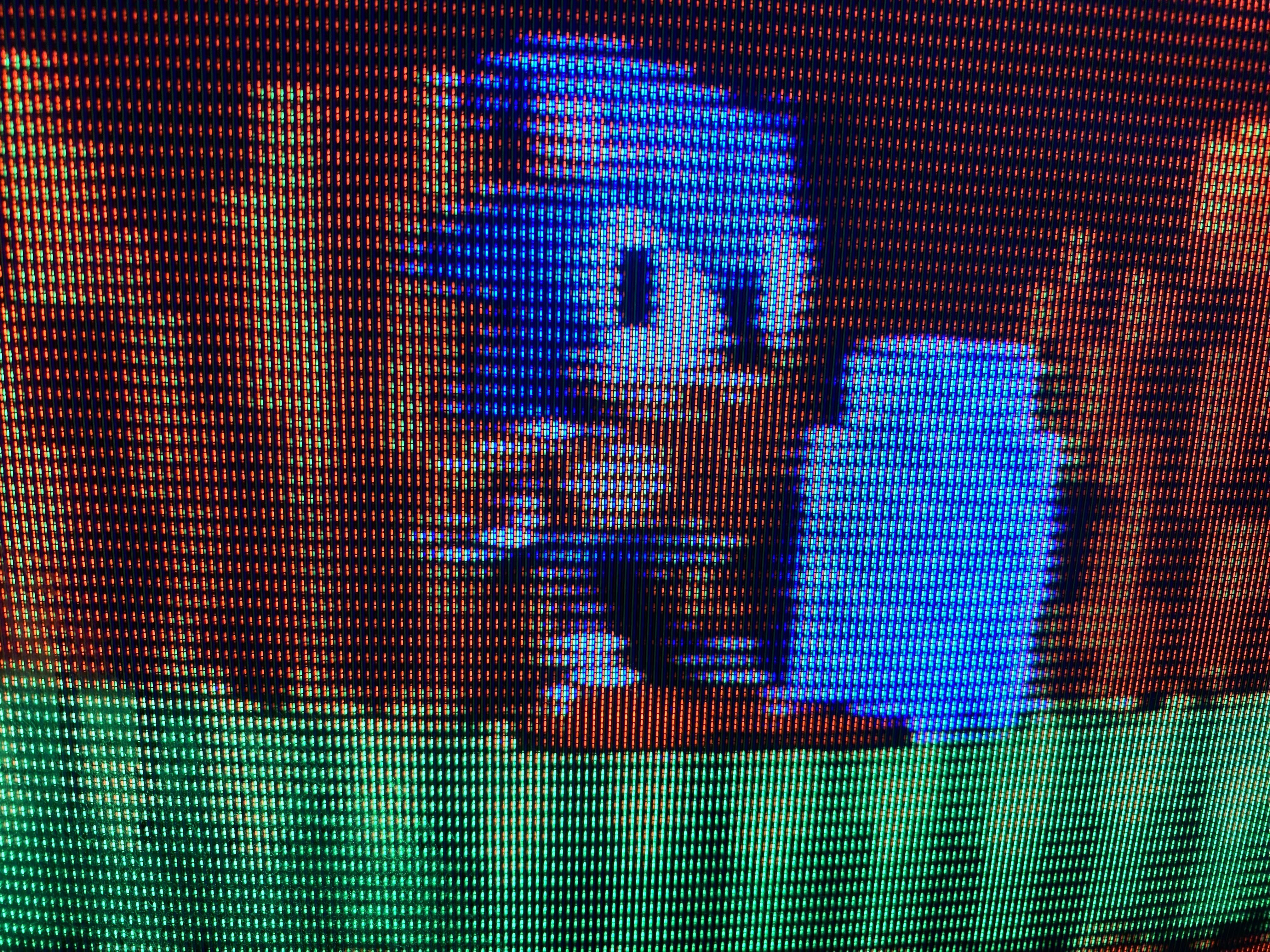

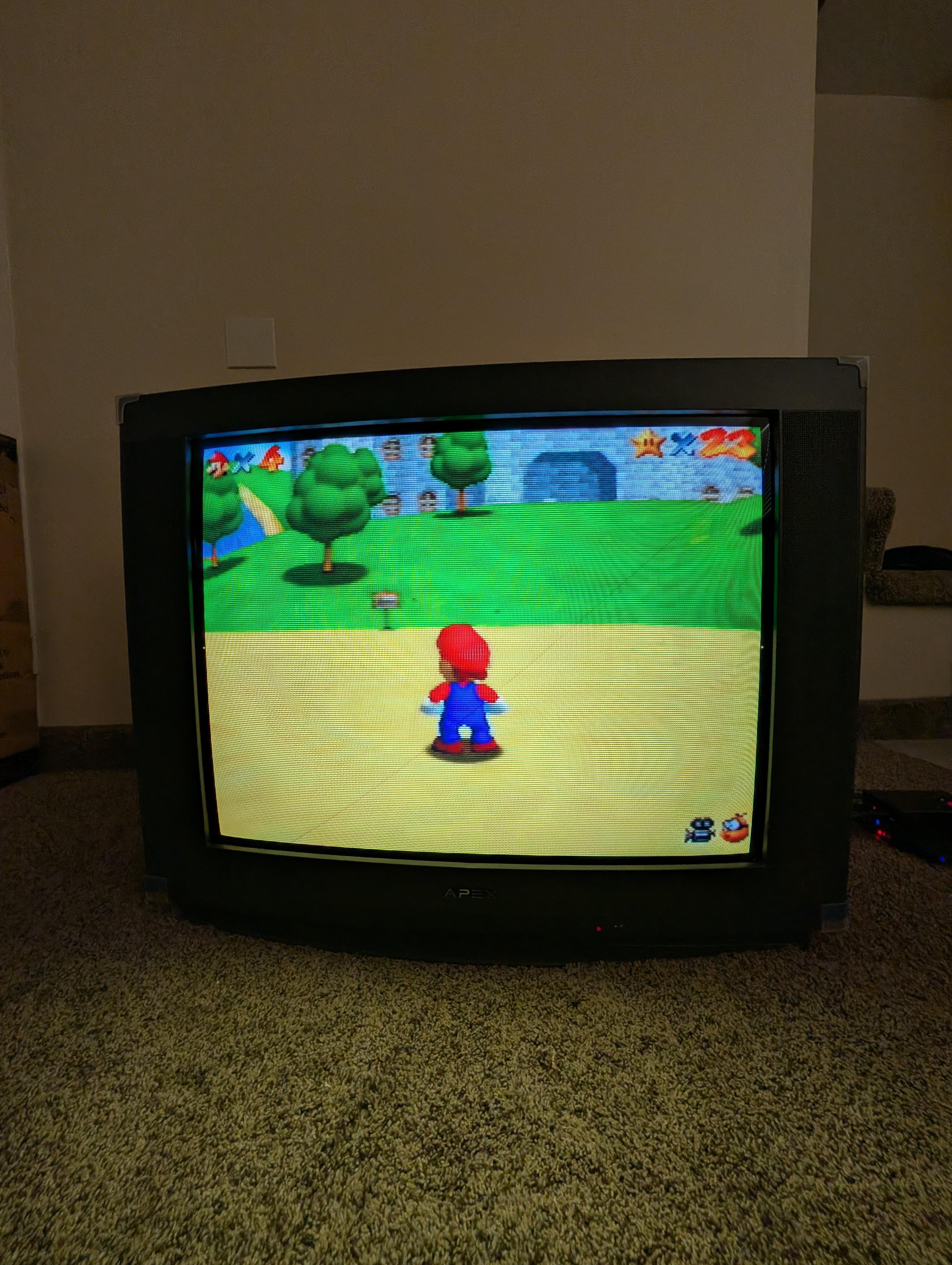

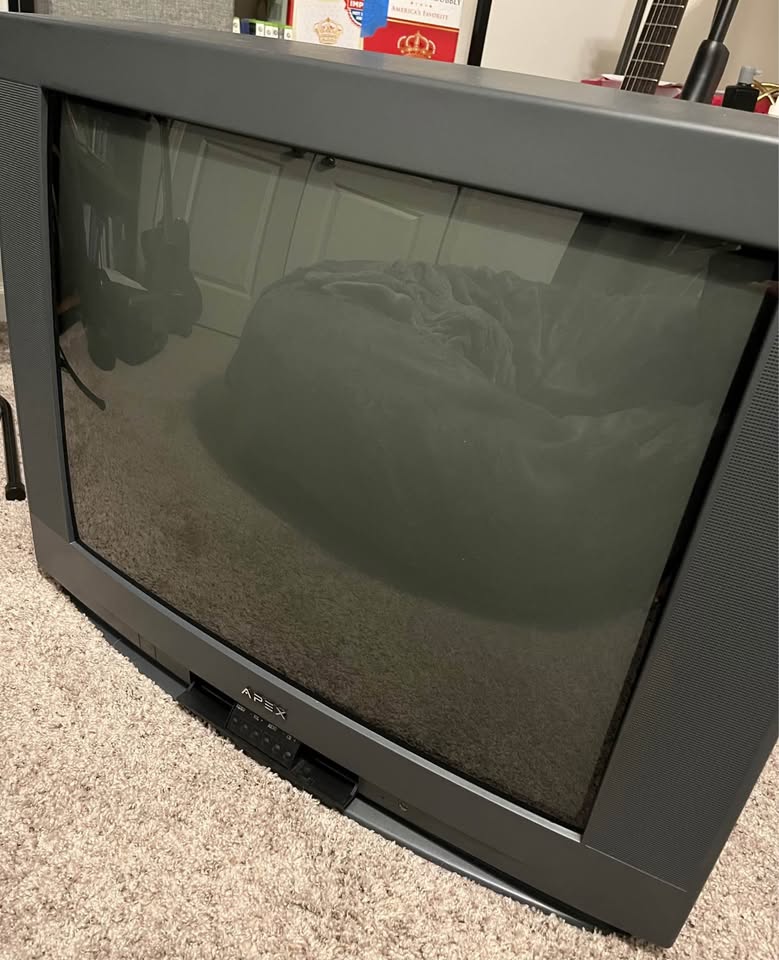

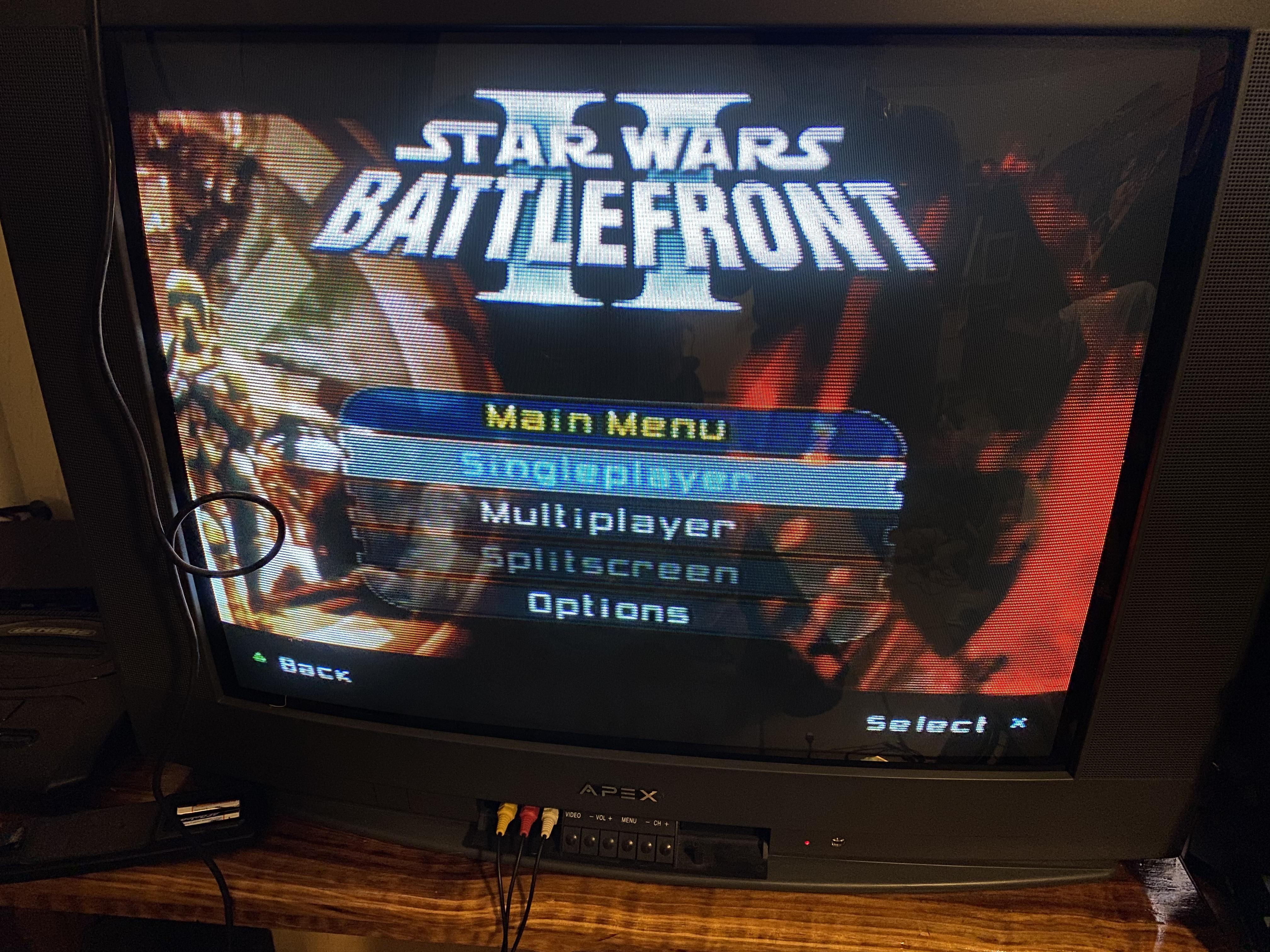

Gallery
| Specifications | |
|---|---|
| Brand: | Apex |
| Manufacturer: | Changhong Electric |
| Model: | AT2704S |
| Series: | AT |
| Viewable Size: | 27" |

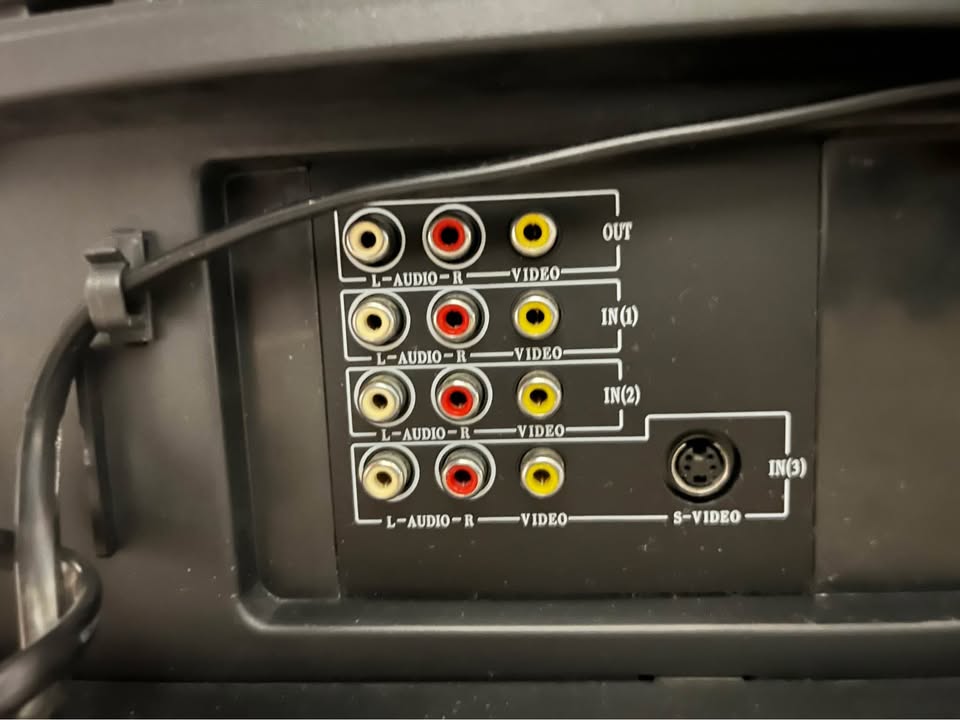

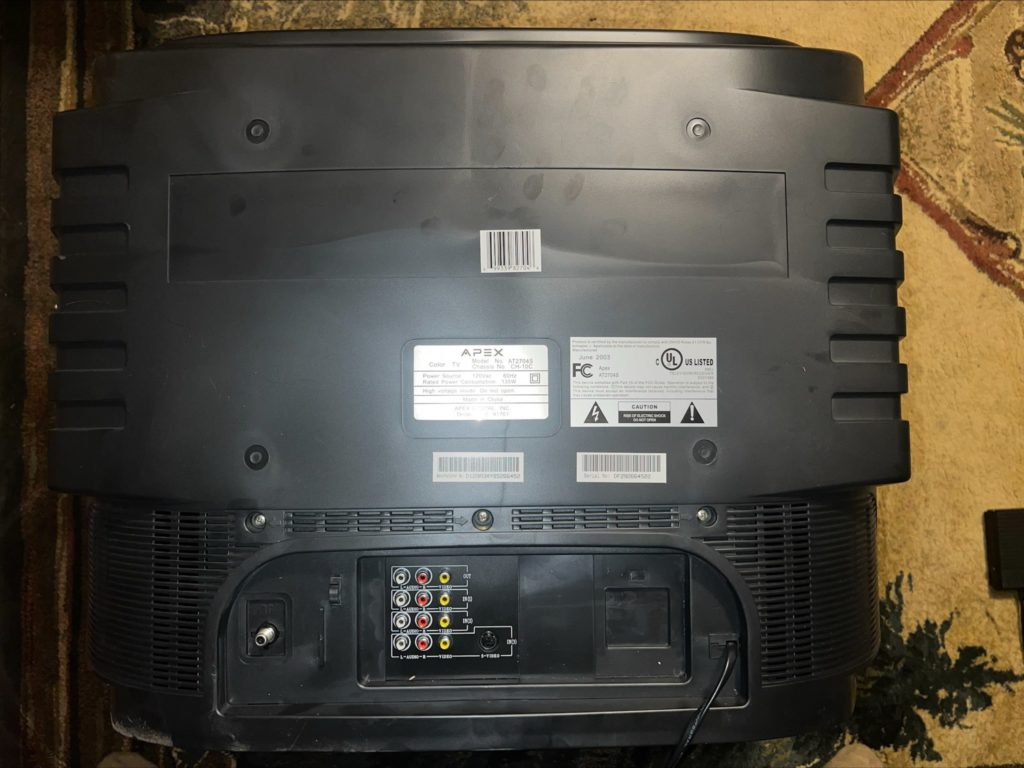

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

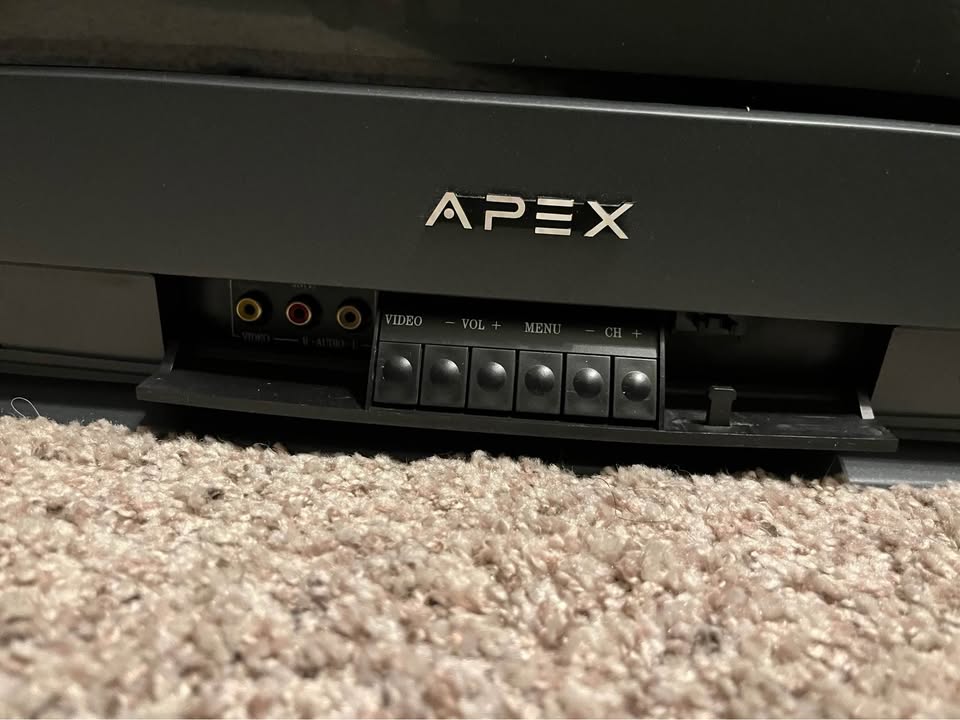

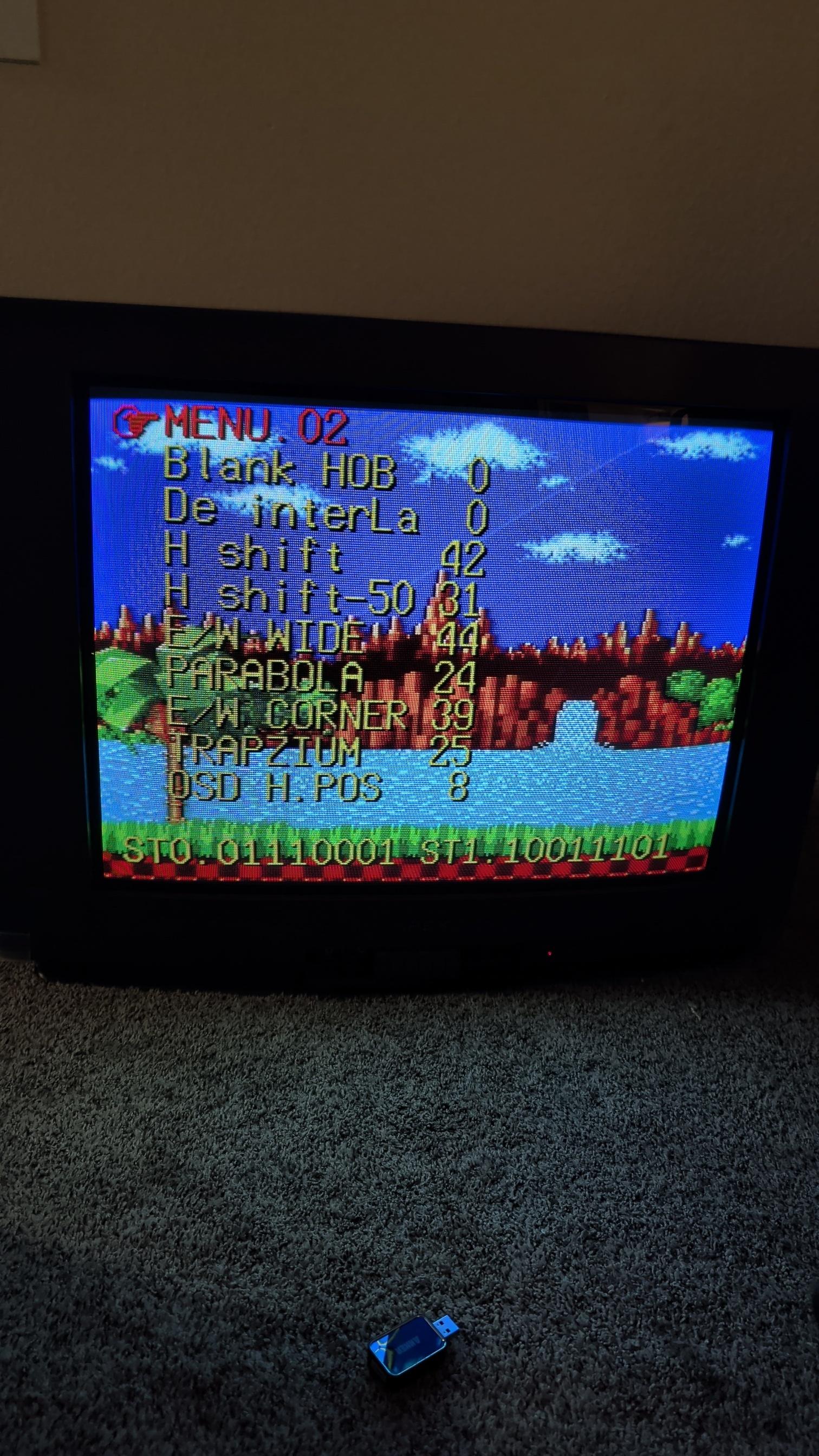

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Philips, TDA8350, TDA8350Q |
| Jungle IC: | Philips, OM8839PS, TDA8839, TDA8843-N2 |
| Focus Type: | Single |
| Tube: | Thomson , RCA , A68AGA20X , A68AGA20X99 , A68AGA20X101 , Samsung , A68QBT892X02 , A68QBT892X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |
| Remote: | K12B-C2 |
| Chassis: | CH-10C |
| Weight: | 88 lbs (39.9 kg) |
| Dimensions (W/H/D): |
750 x 589 x 474 mm
(29.5 x 23.1 x 18.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 249 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
