Summary

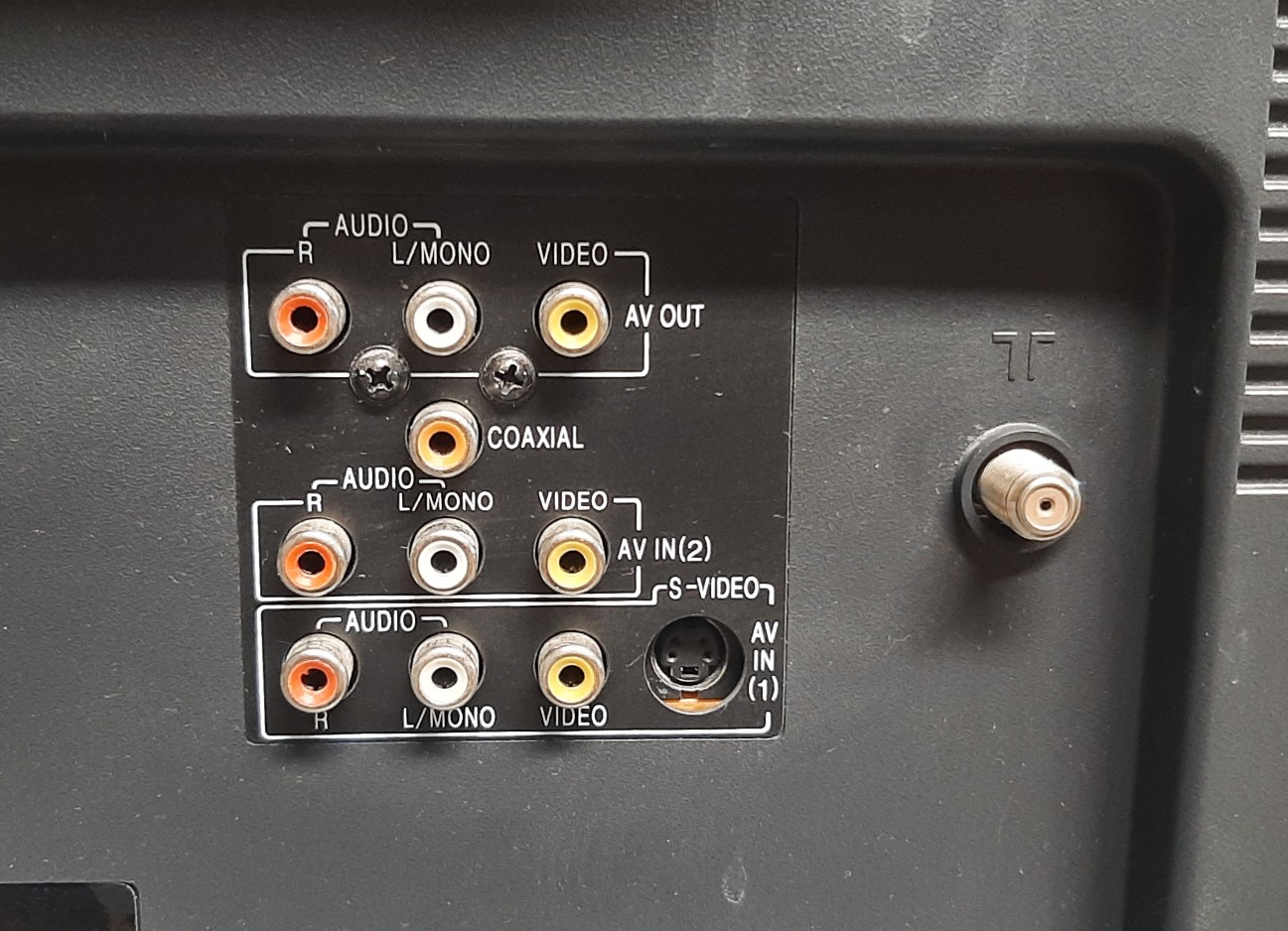

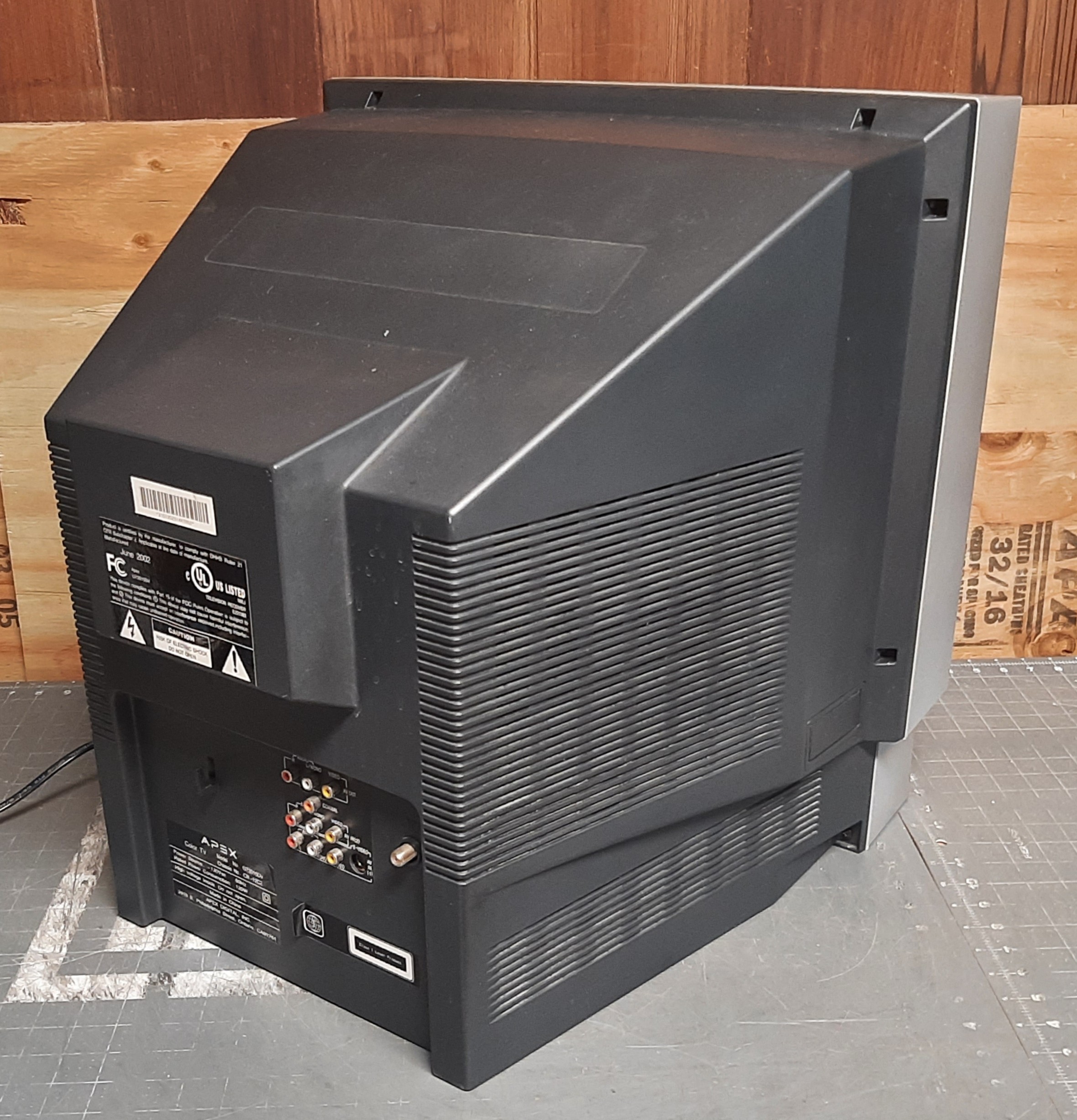

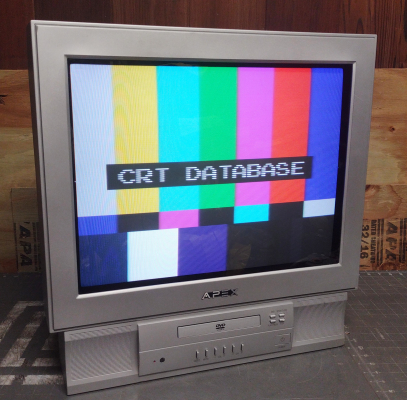

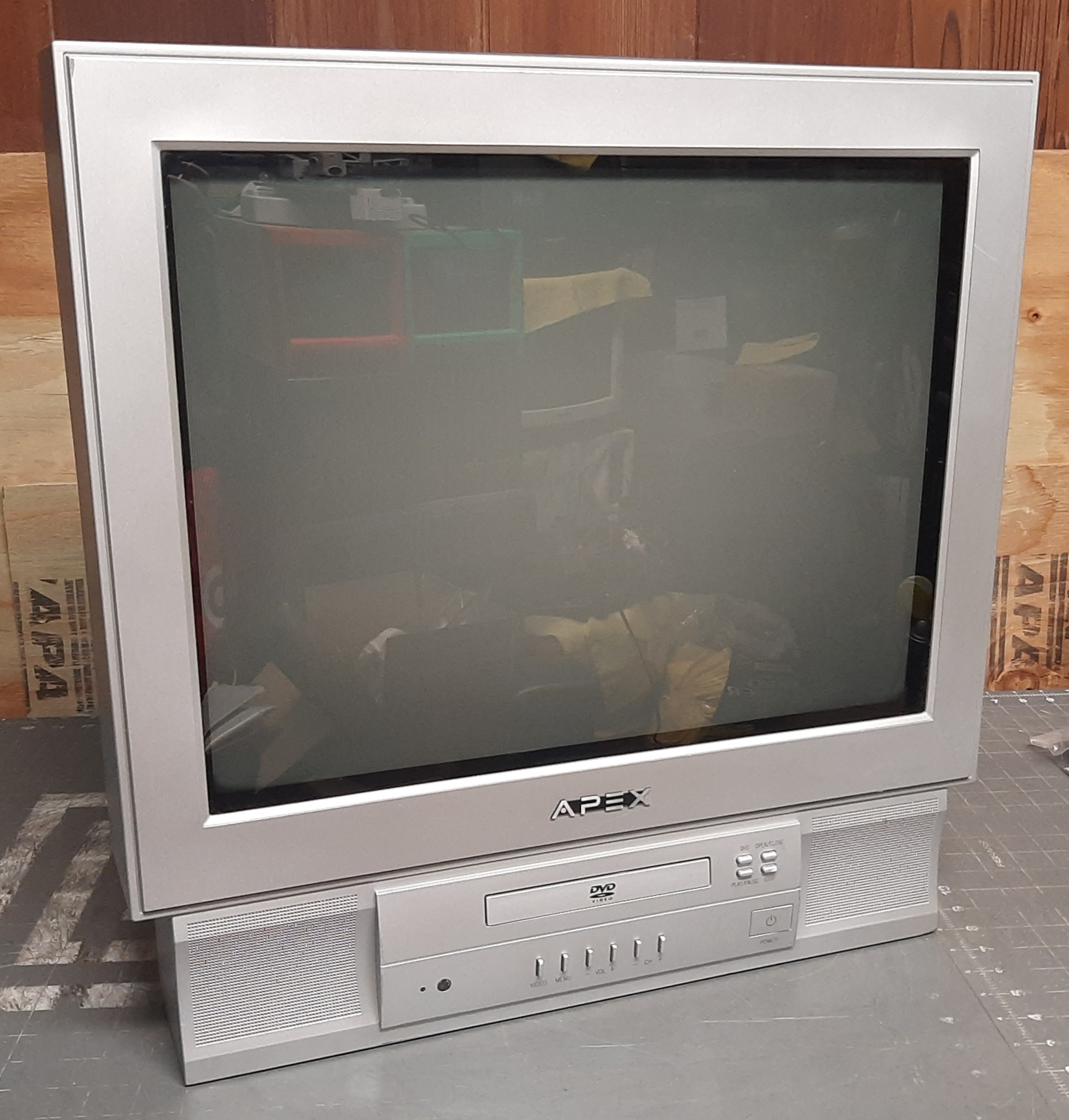

20" flat tube TV/DVD combo. Very similar to the GT2015, it shares the same case design & dimensions despite including a built in DVD drive. Originally manufactured by Changhong Electric in China. Has RF, composite and s-video input.
Manuals
Notes

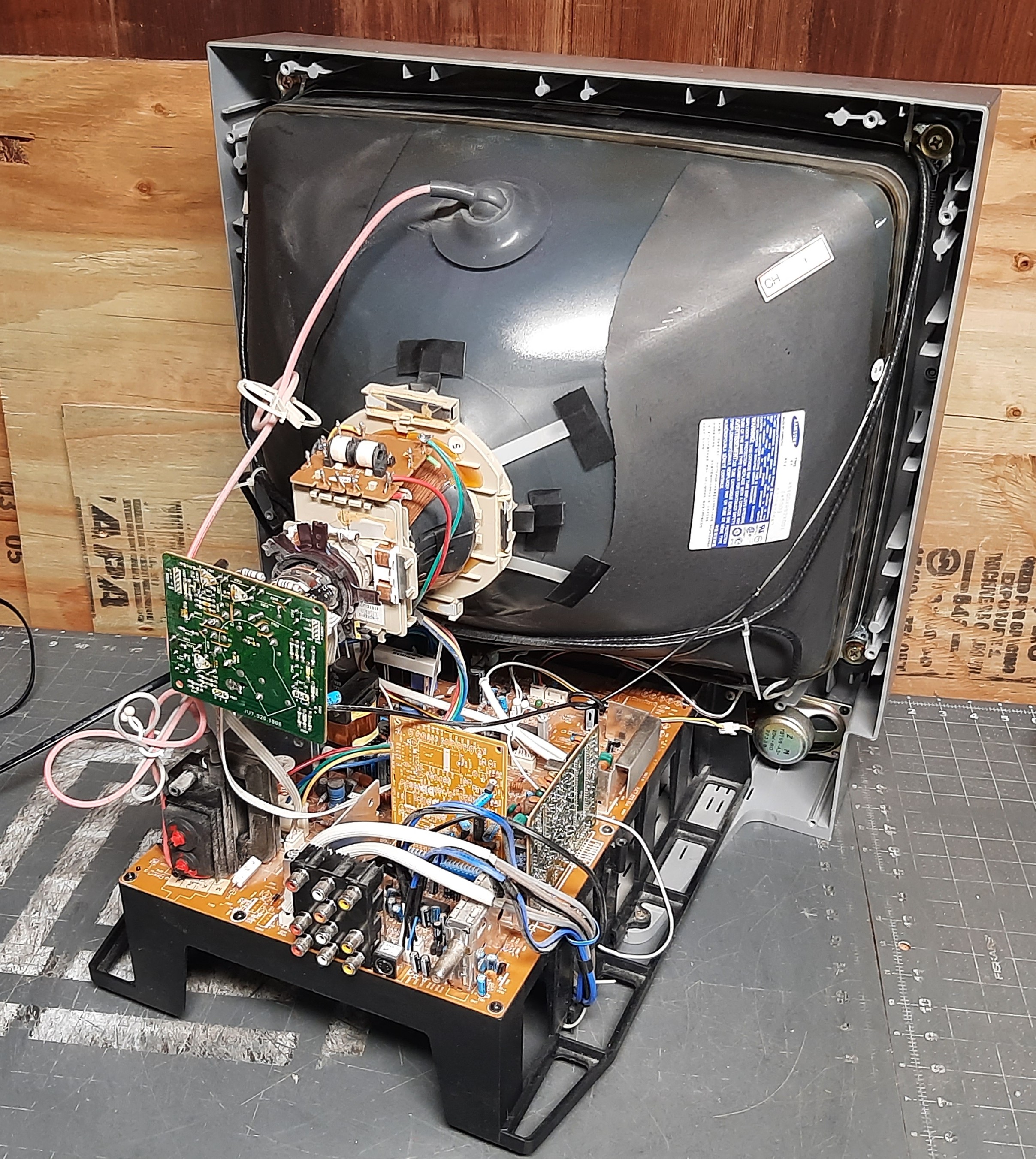

The jungle chip has pins for analog RGB, so it should be possible to modify this TV for that signal.
Gallery
| Specifications | |
|---|---|
| Brand: | Apex |
| Manufacturer: | Changhong Electric |
| Model: | GT2015DV |
| Series: | GT |
| Viewable Size: | 20" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2102 |
| Vertical Output IC: | LA7840 |
| Jungle IC: | Sanyo, LA76835 |
| Flyback: | BSC66G |
| Focus Type: | Single |
| Tube: | Samsung , A51QDX992X , A51QDX992X001 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |
| Remote: | KDT1A-C1 |

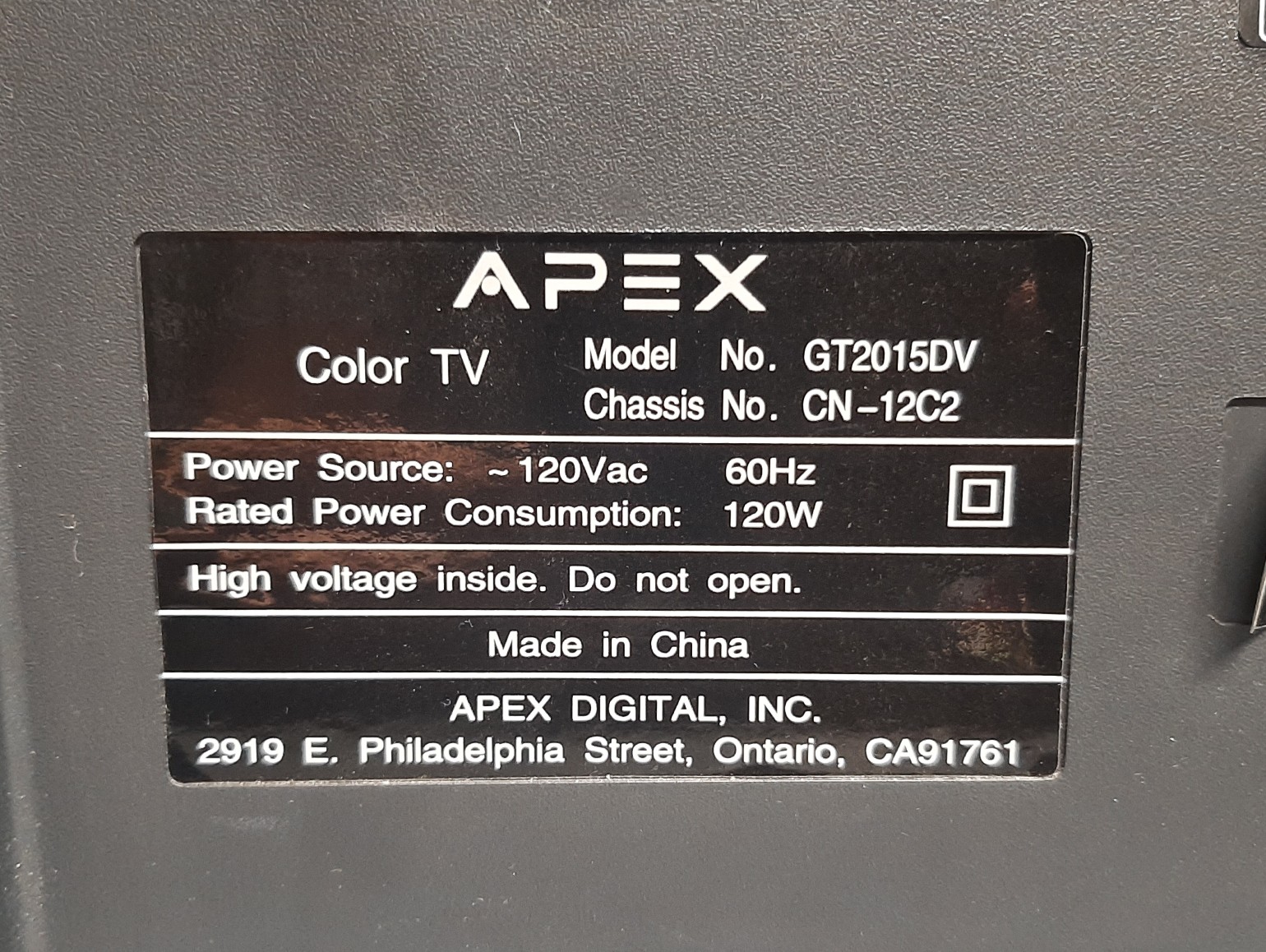

| Chassis: | CN-12C2 |
| Weight: | 61.2 lbs (27.8 kg) |
| Dimensions (W/H/D): |
512 x 522 x 510 mm
(20.1 x 20.5 x 20") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 199 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info |
