Summary

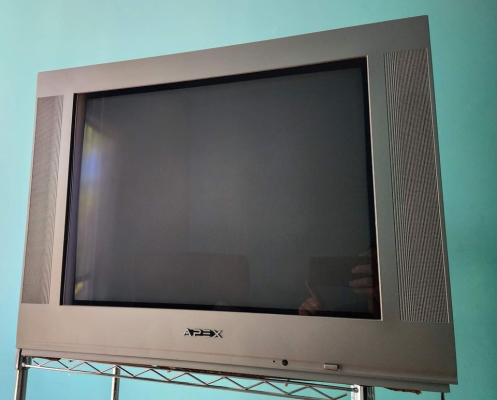

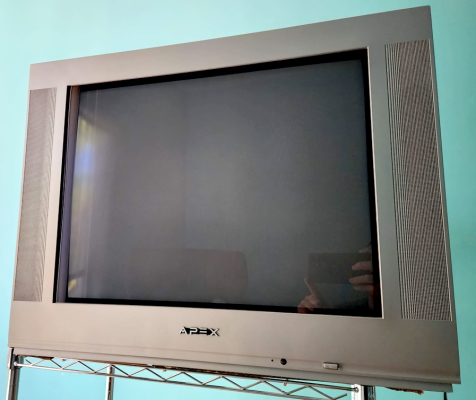

24" Apex "pure flat" TV from 2002. Has RF, composite, s-video, and component inputs. Made by Changhong Electric in China.
(Special thanks to Graeme Pass for the pics!)
Manuals
Notes

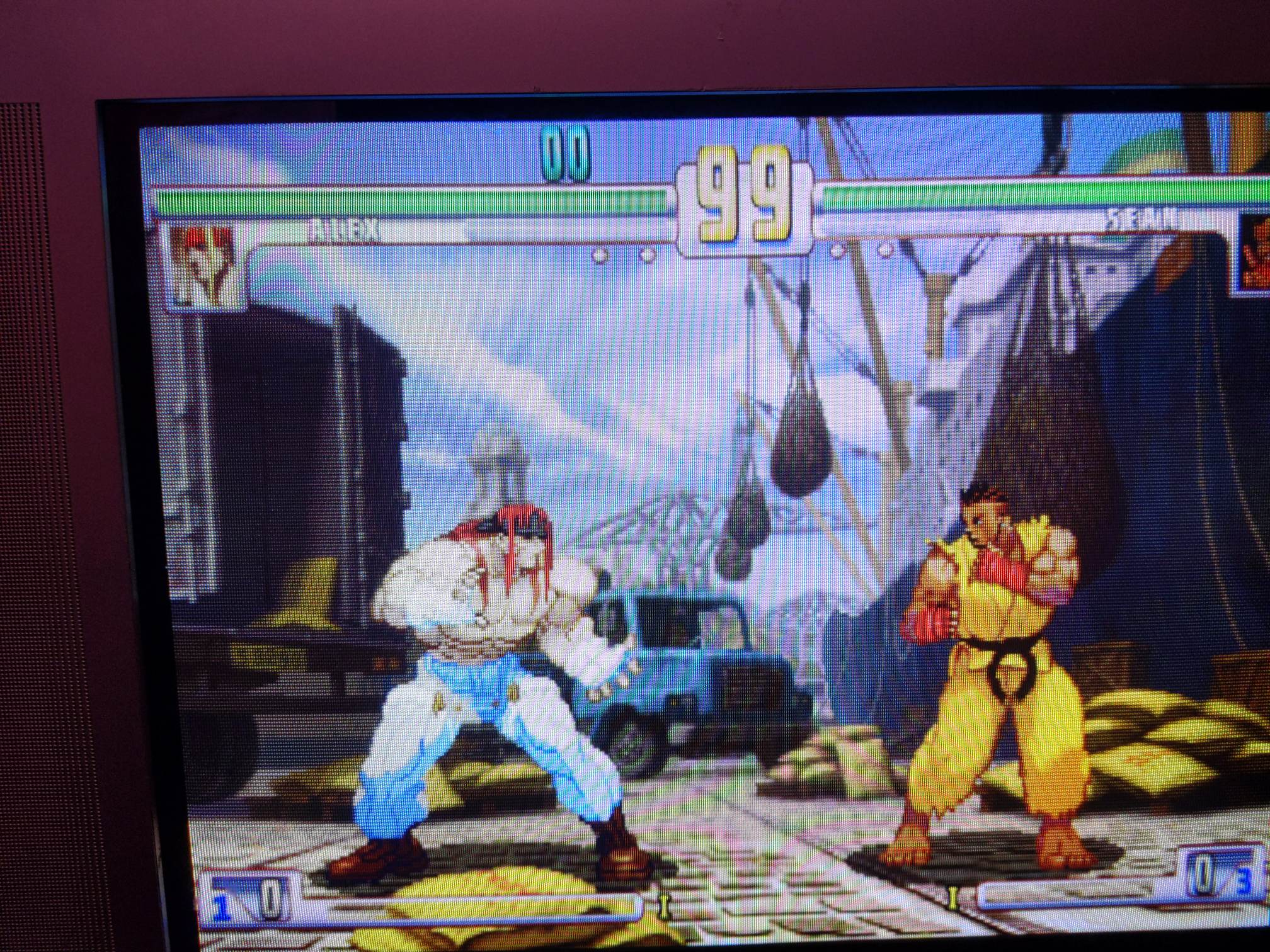

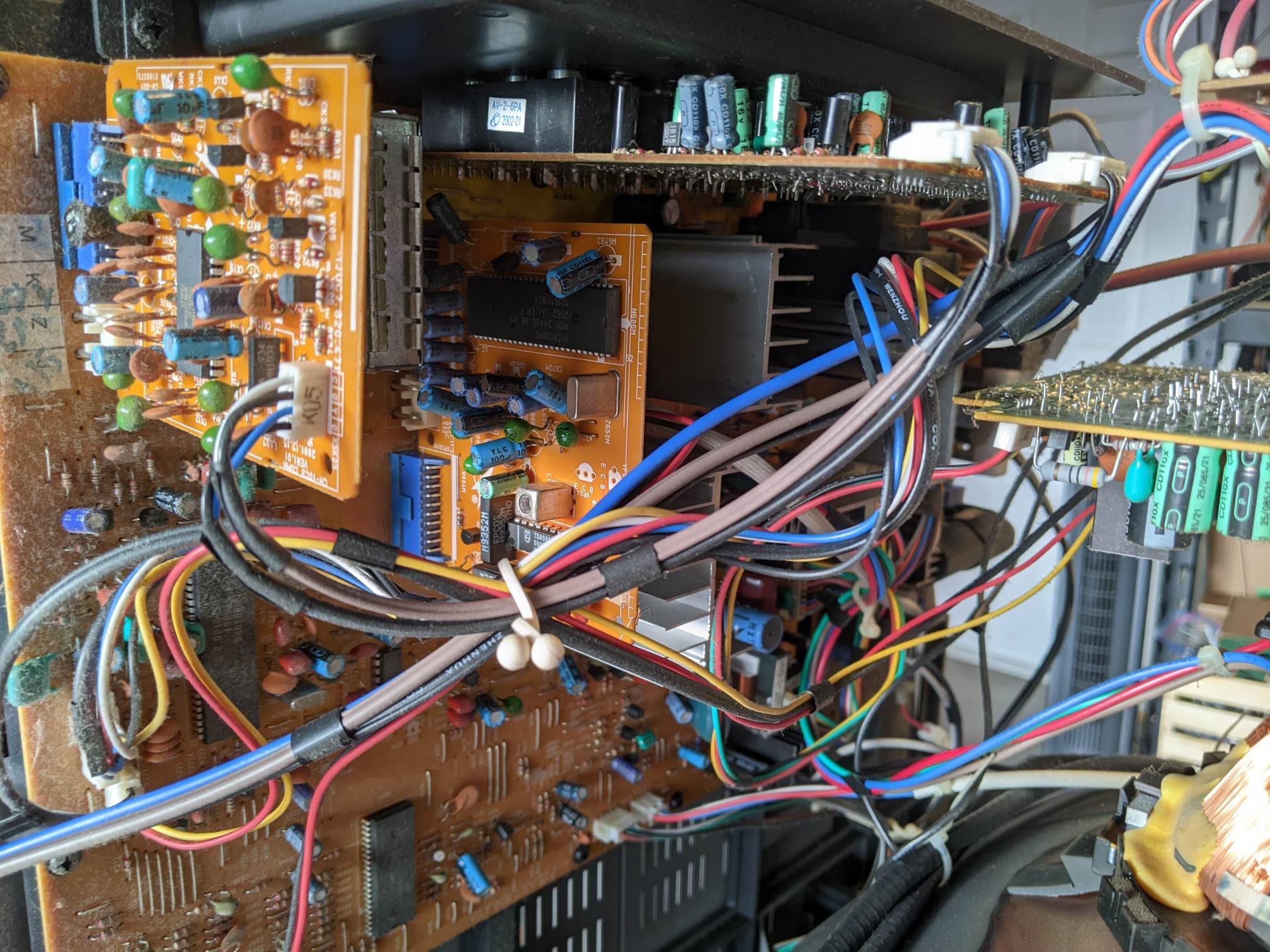

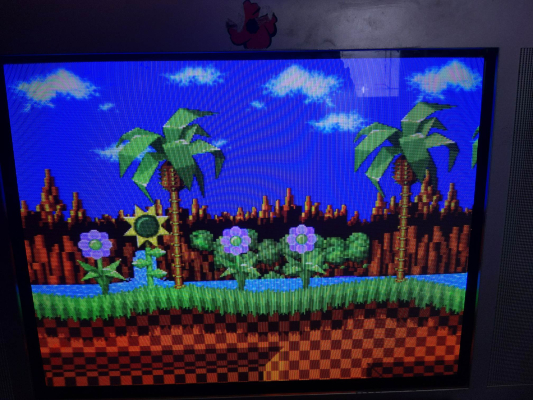

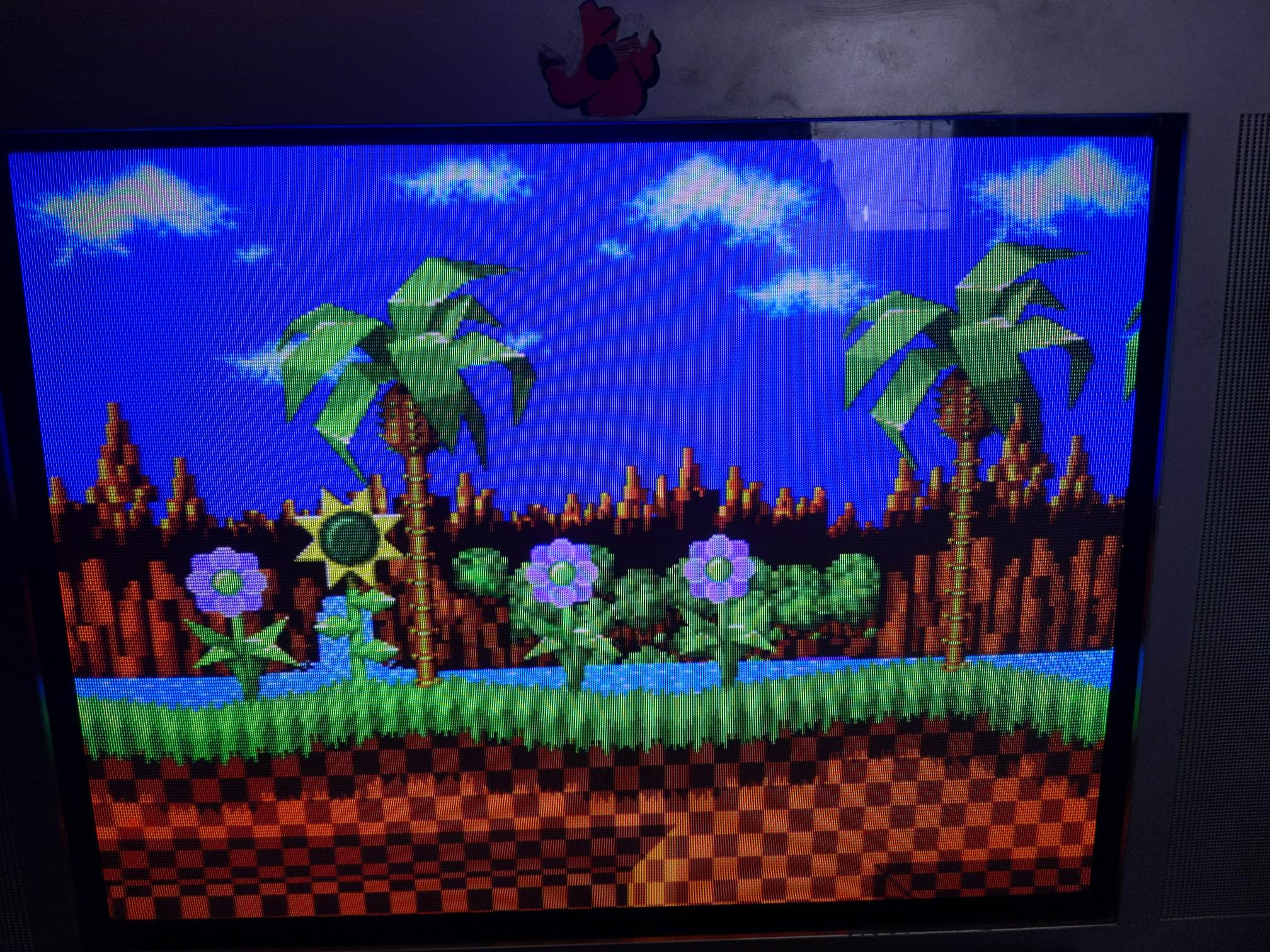

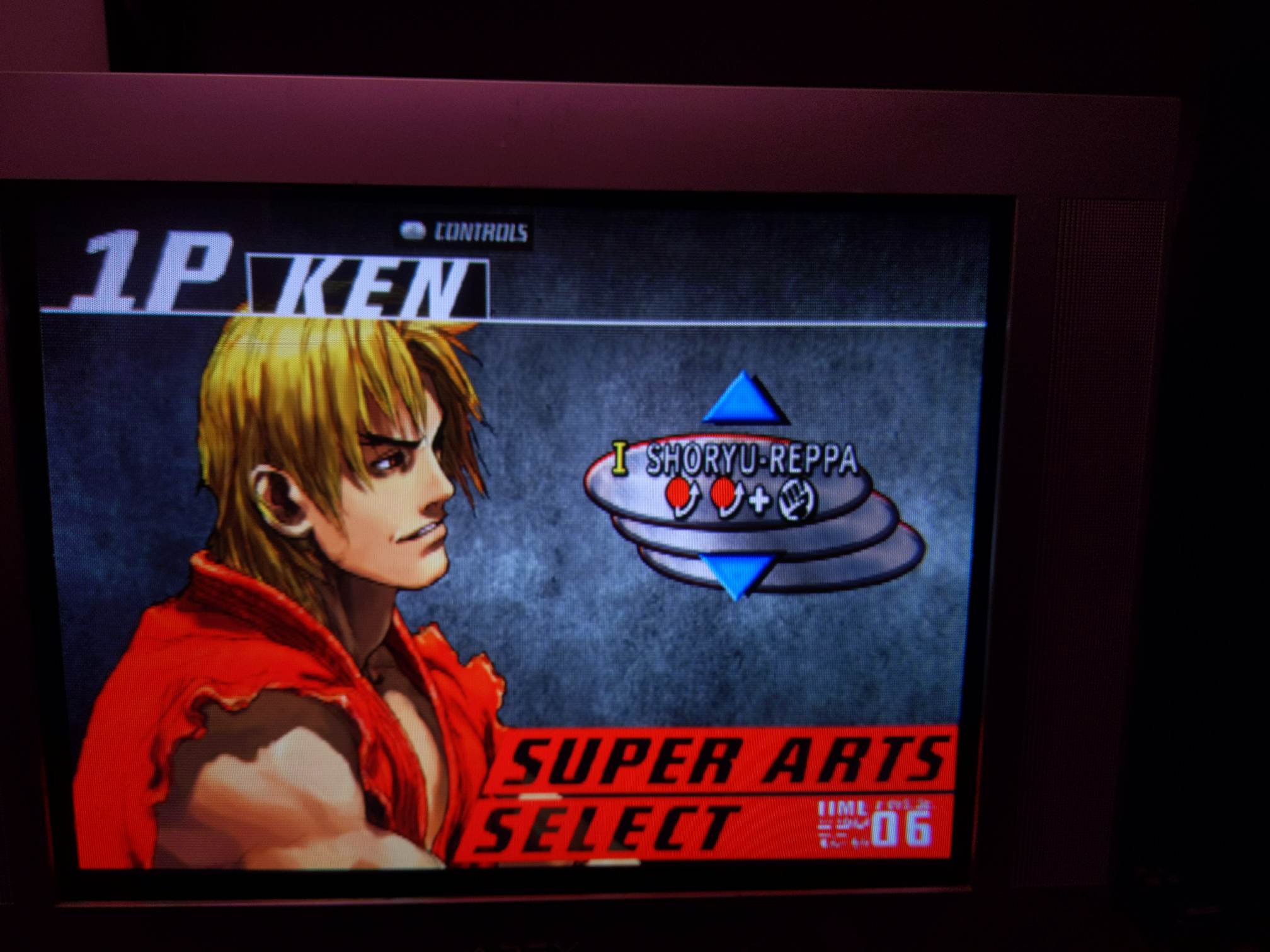

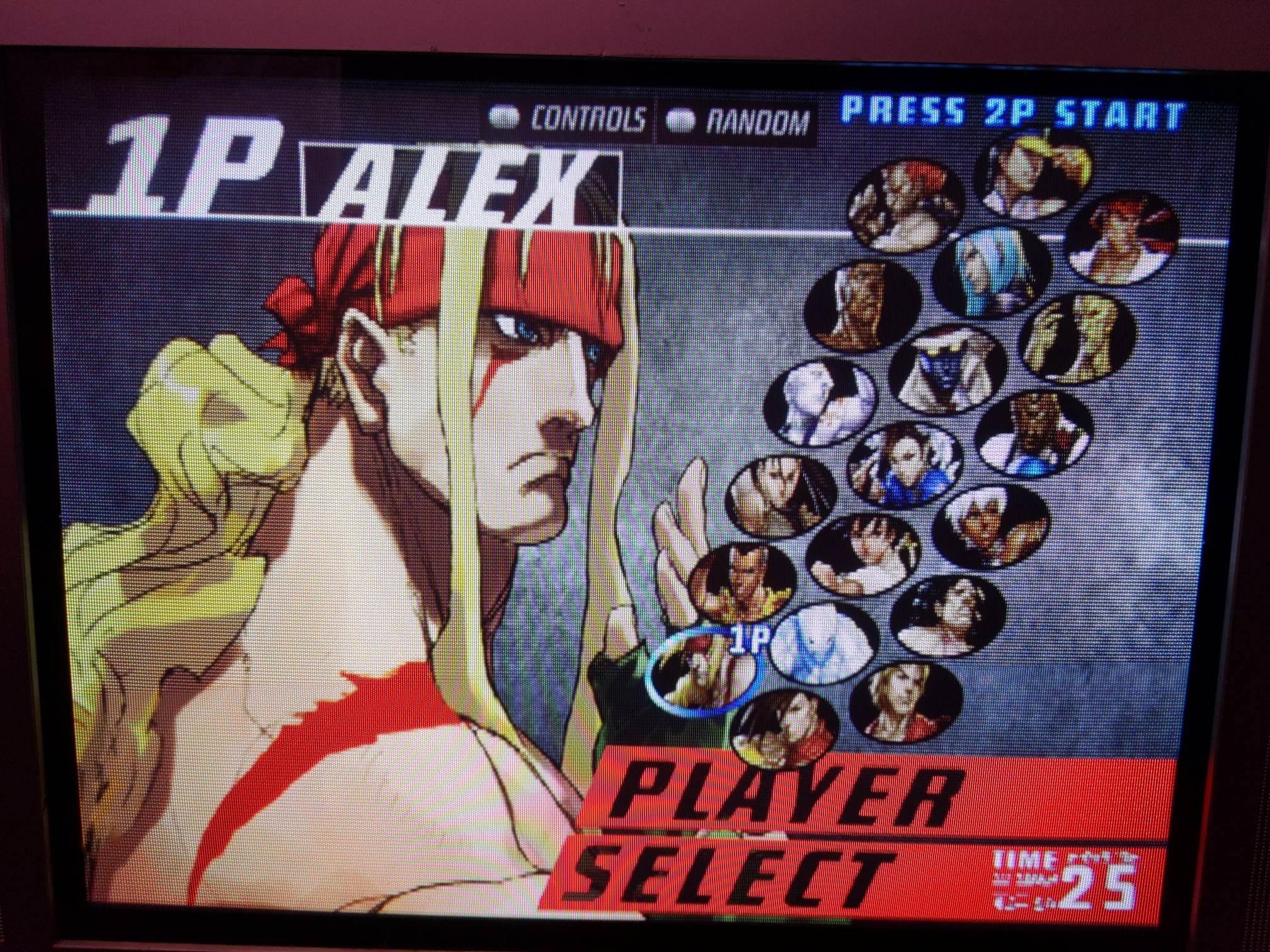

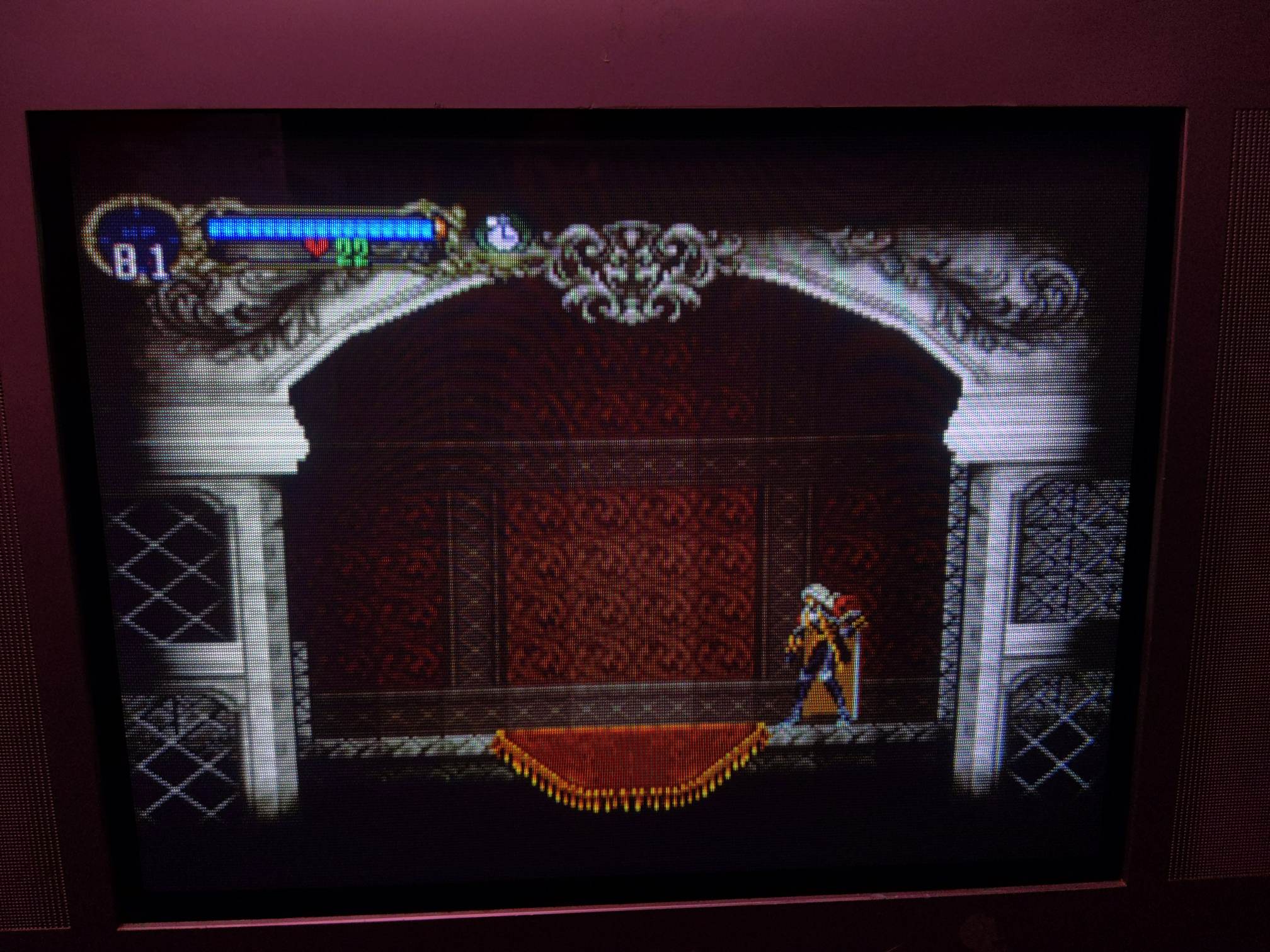

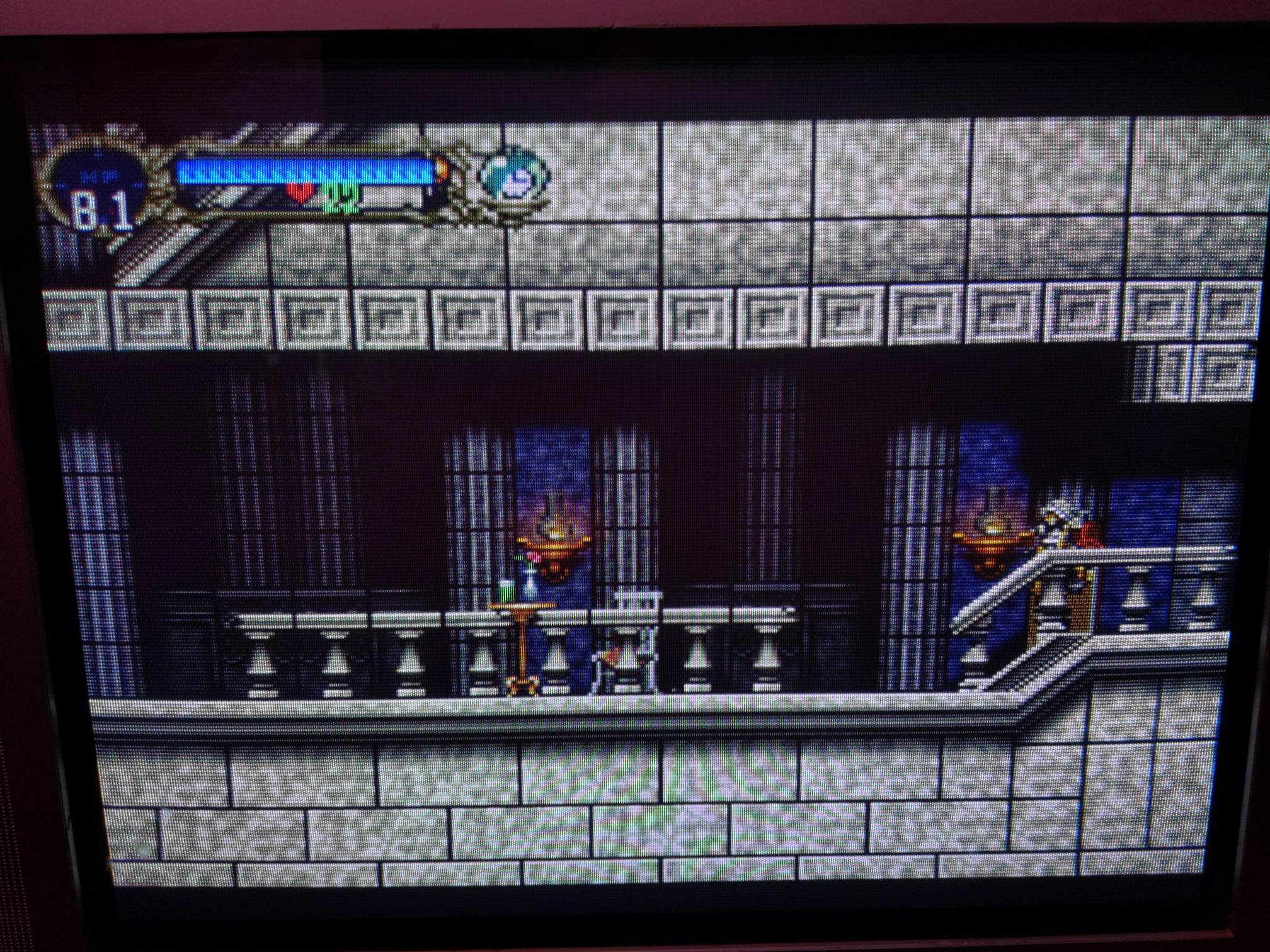

Picture quality is great over component thanks to the Philips jungle chip. It also can be tapped for RGB, if need be.

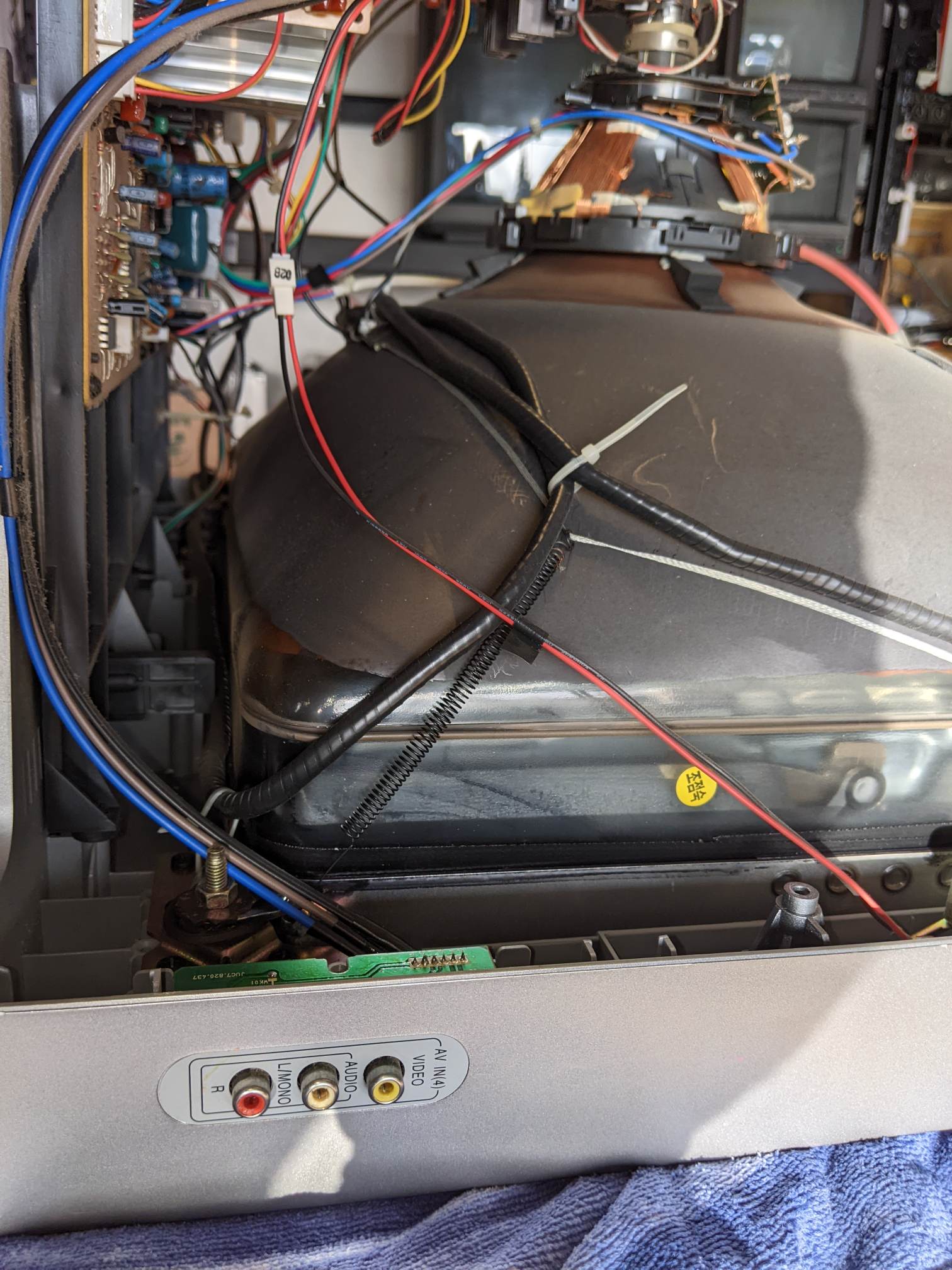

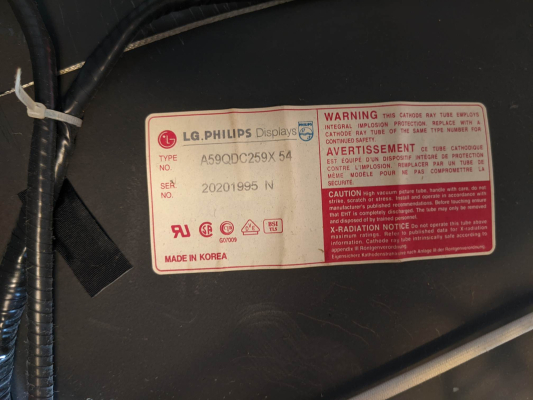

Tube is either a Samsung or LG-Philips model. The Samsung one can be found in their own sets, as well as some Sanyos.

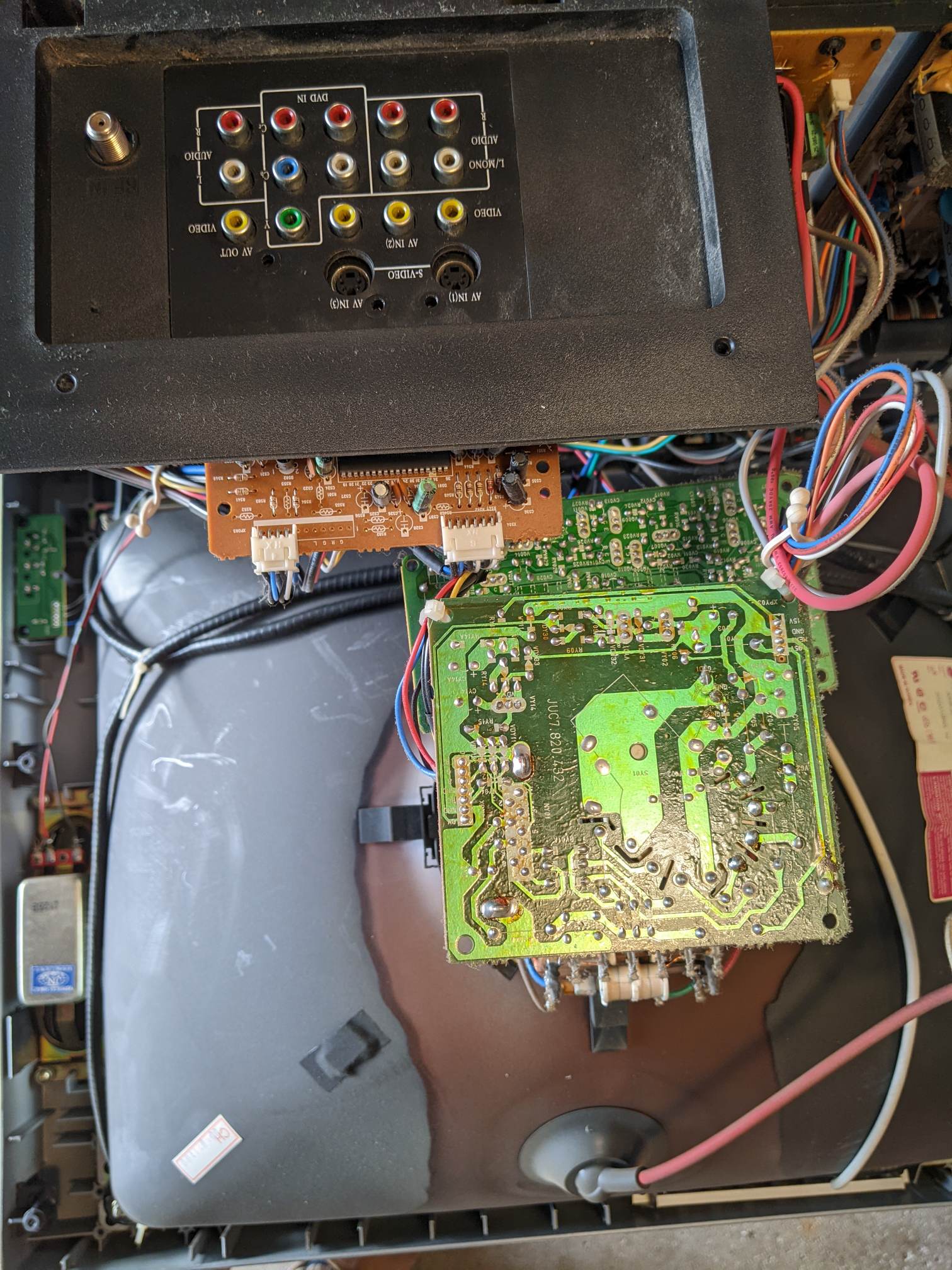

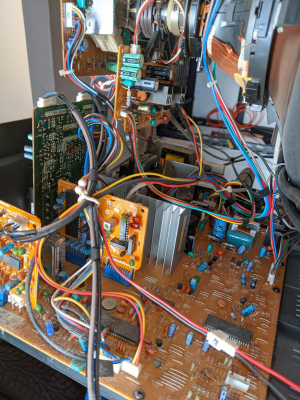

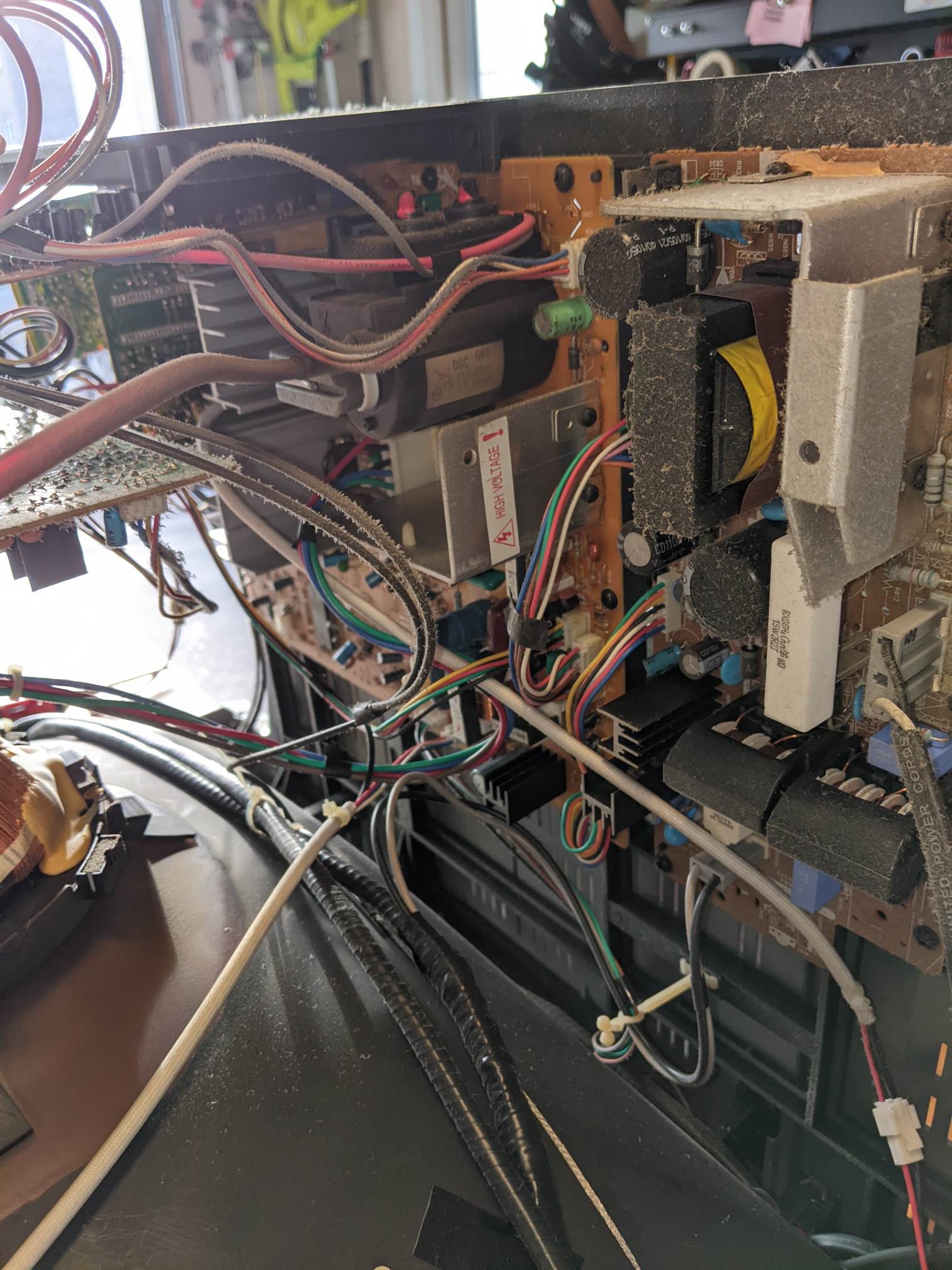

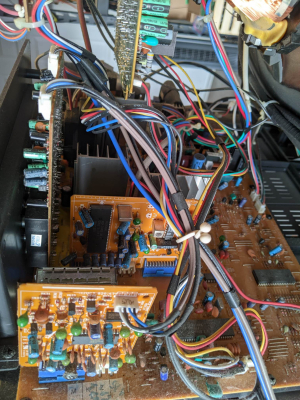

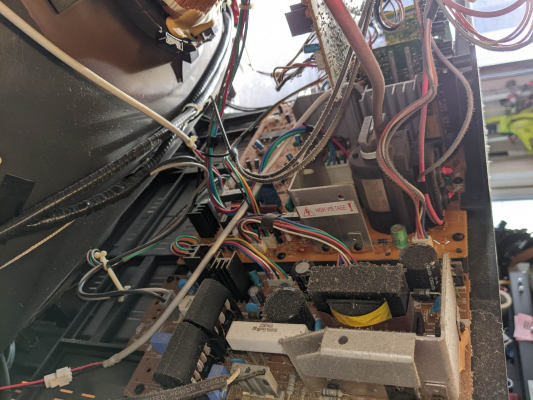

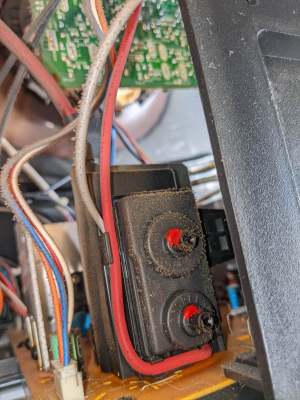

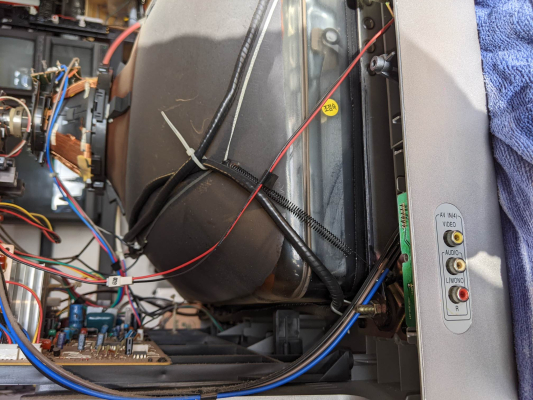

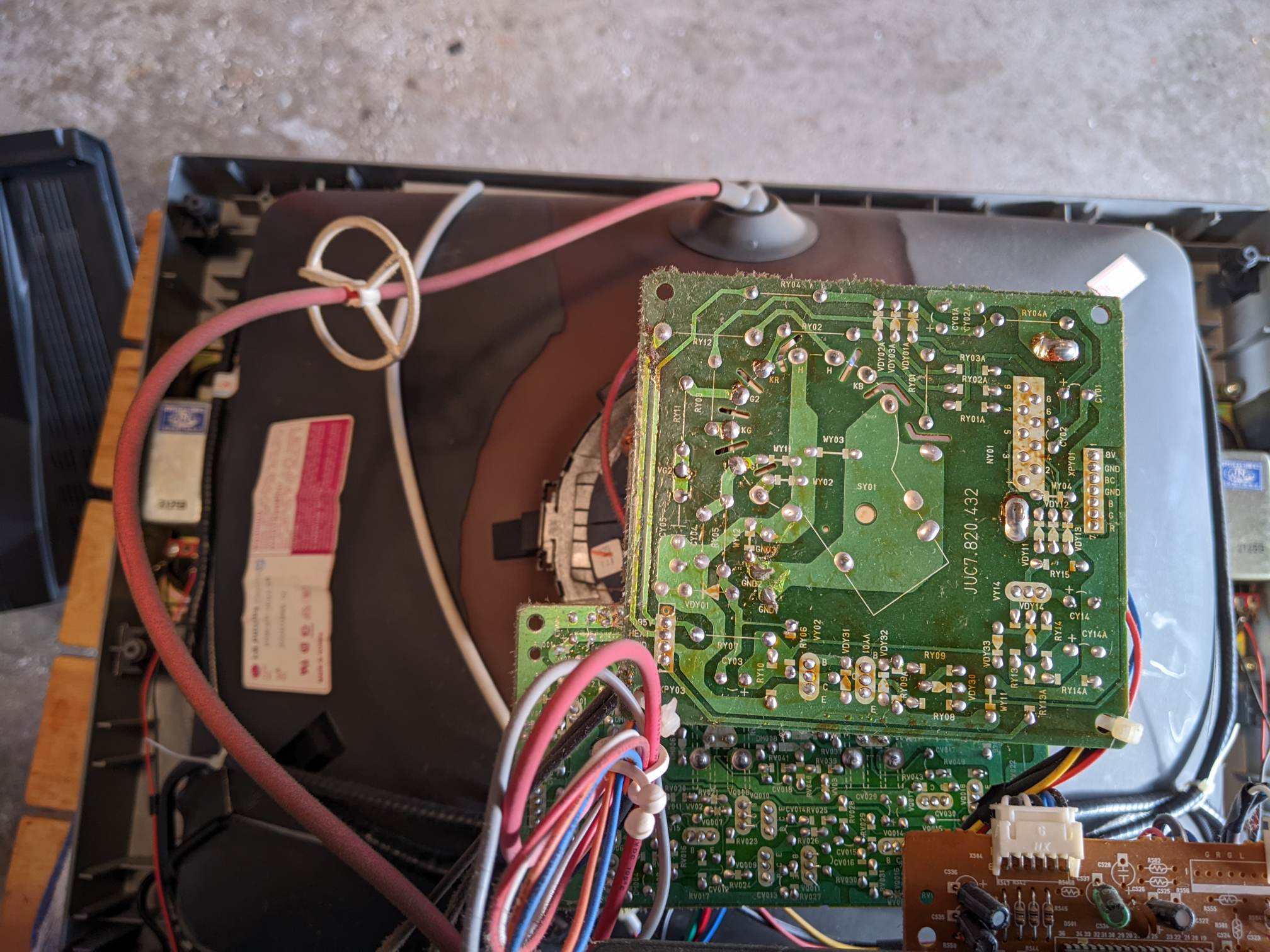

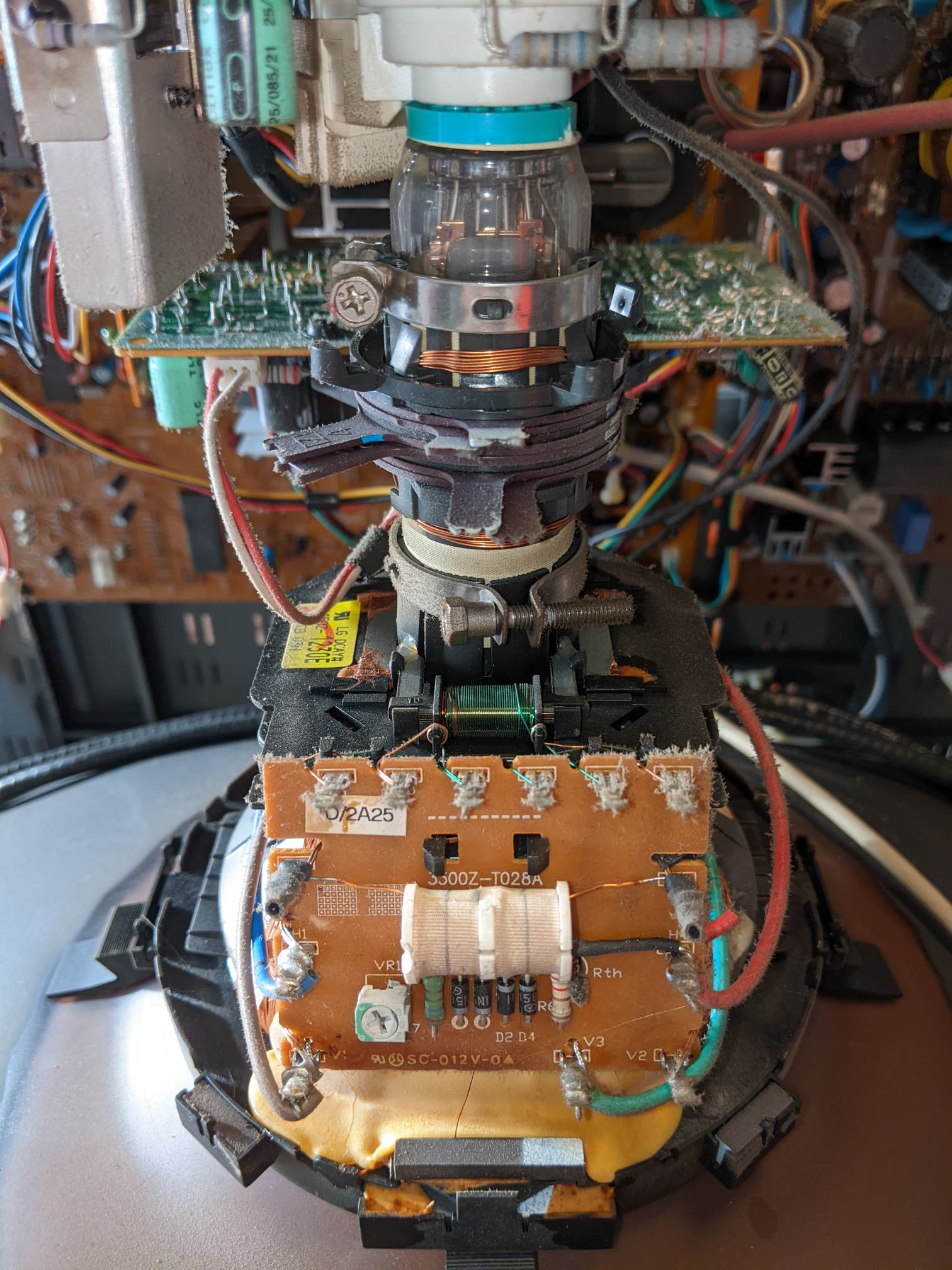

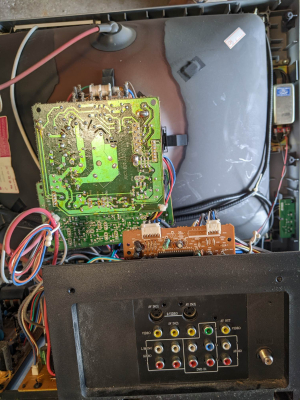

Gallery
| Specifications | |
|---|---|
| Brand: | Apex |
| Manufacturer: | Changhong Electric |
| Model: | PF2425 |
| Series: | PF |
| Viewable Size: | 24" |

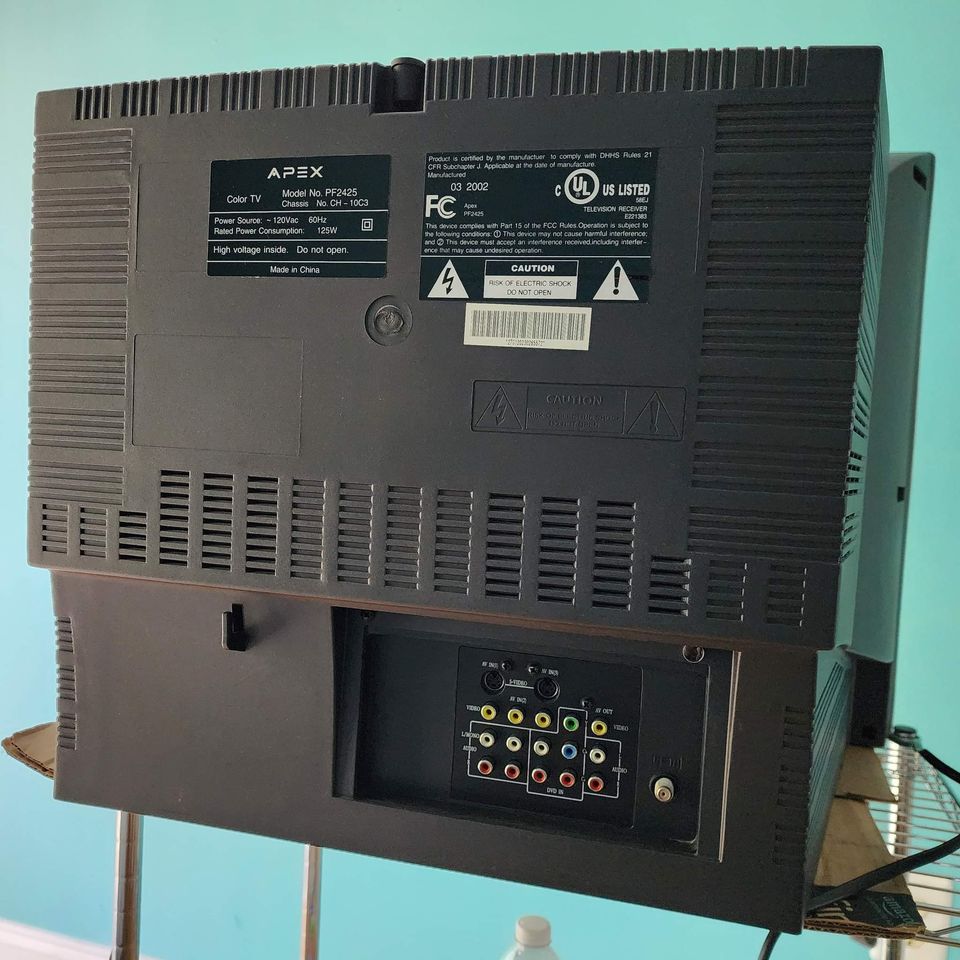

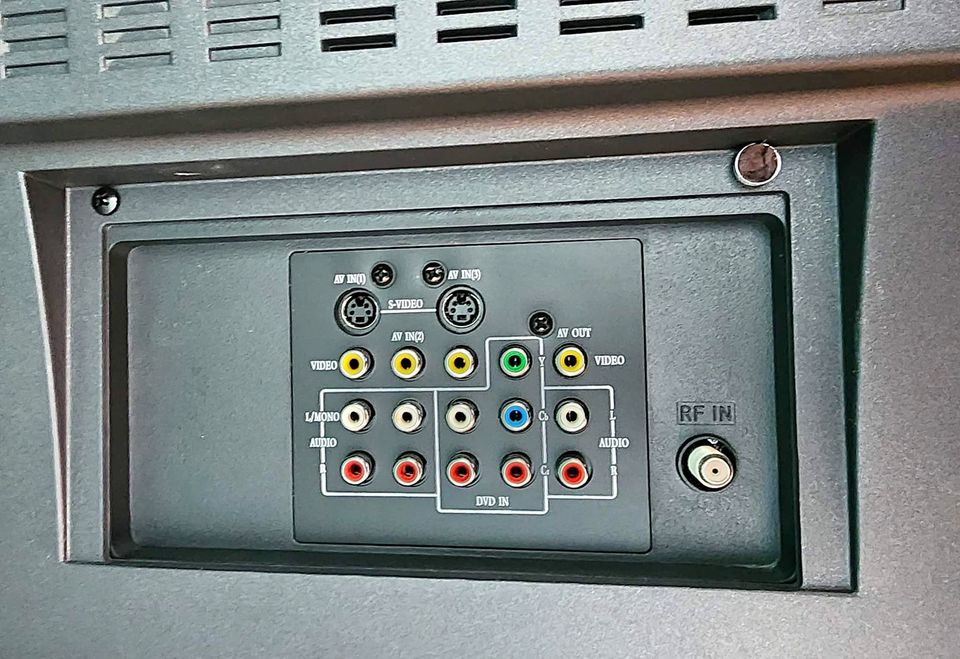

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

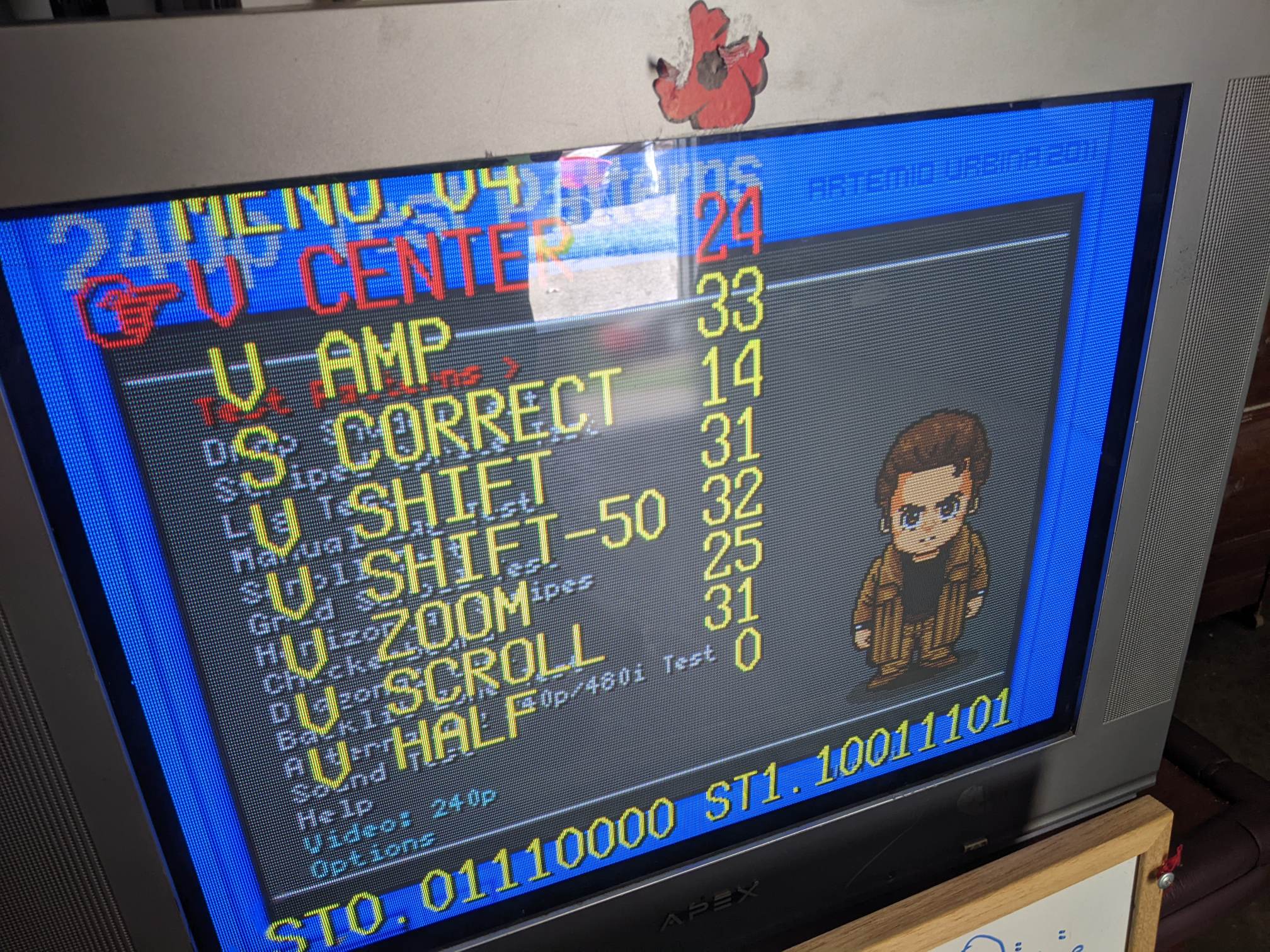

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | TDA8350, Philips, TDA8350-N6 |
| Jungle: | Philips, OM8839PS, TDA8839 |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Toshiba, TC90A13N |

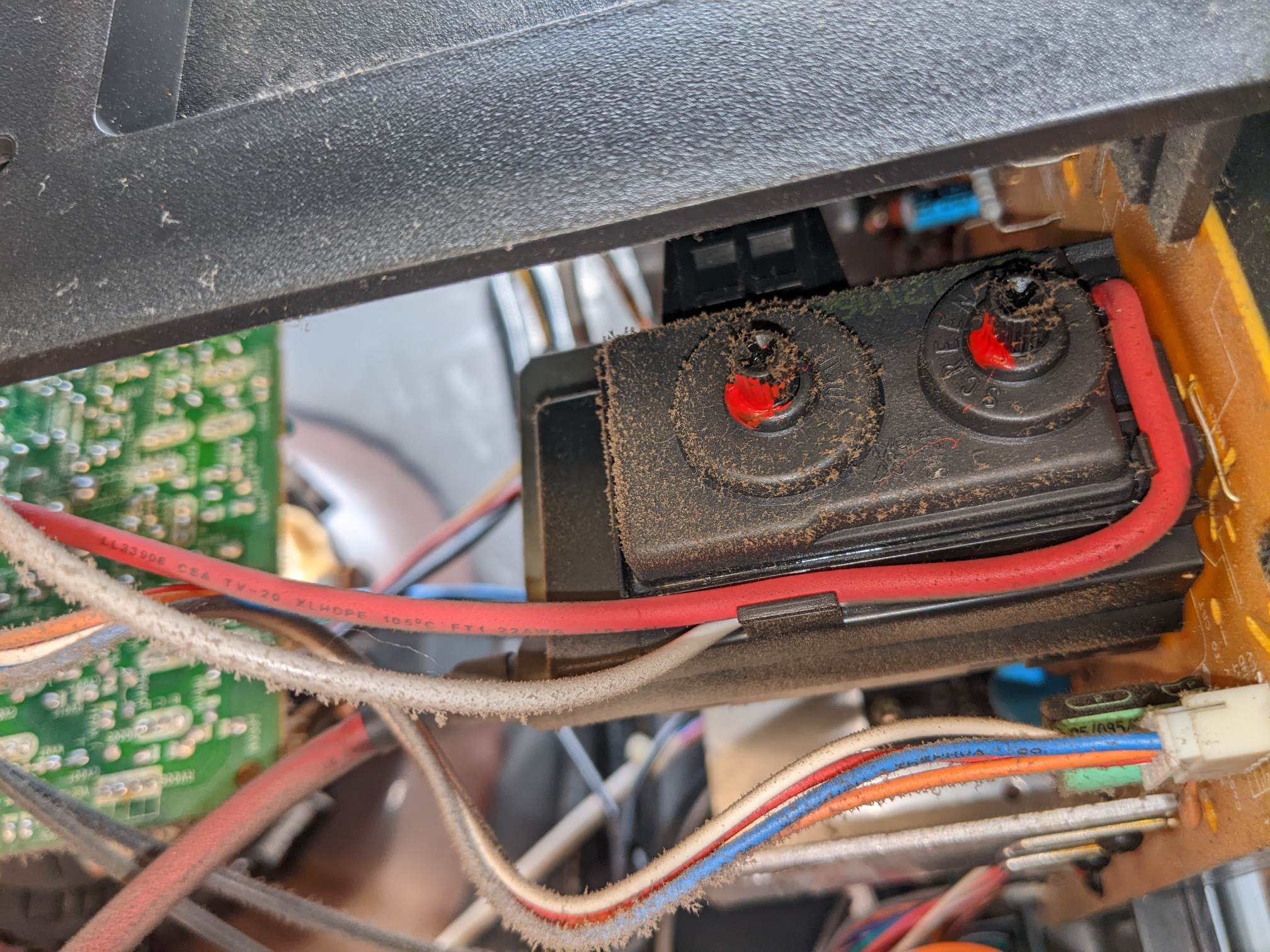

| Flyback: | BSC68E |
| Focus Type: | Single |

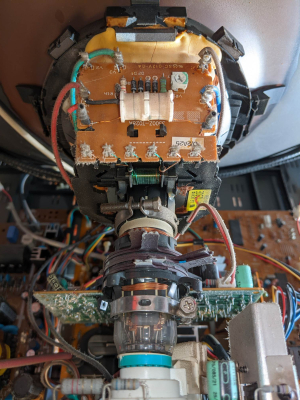

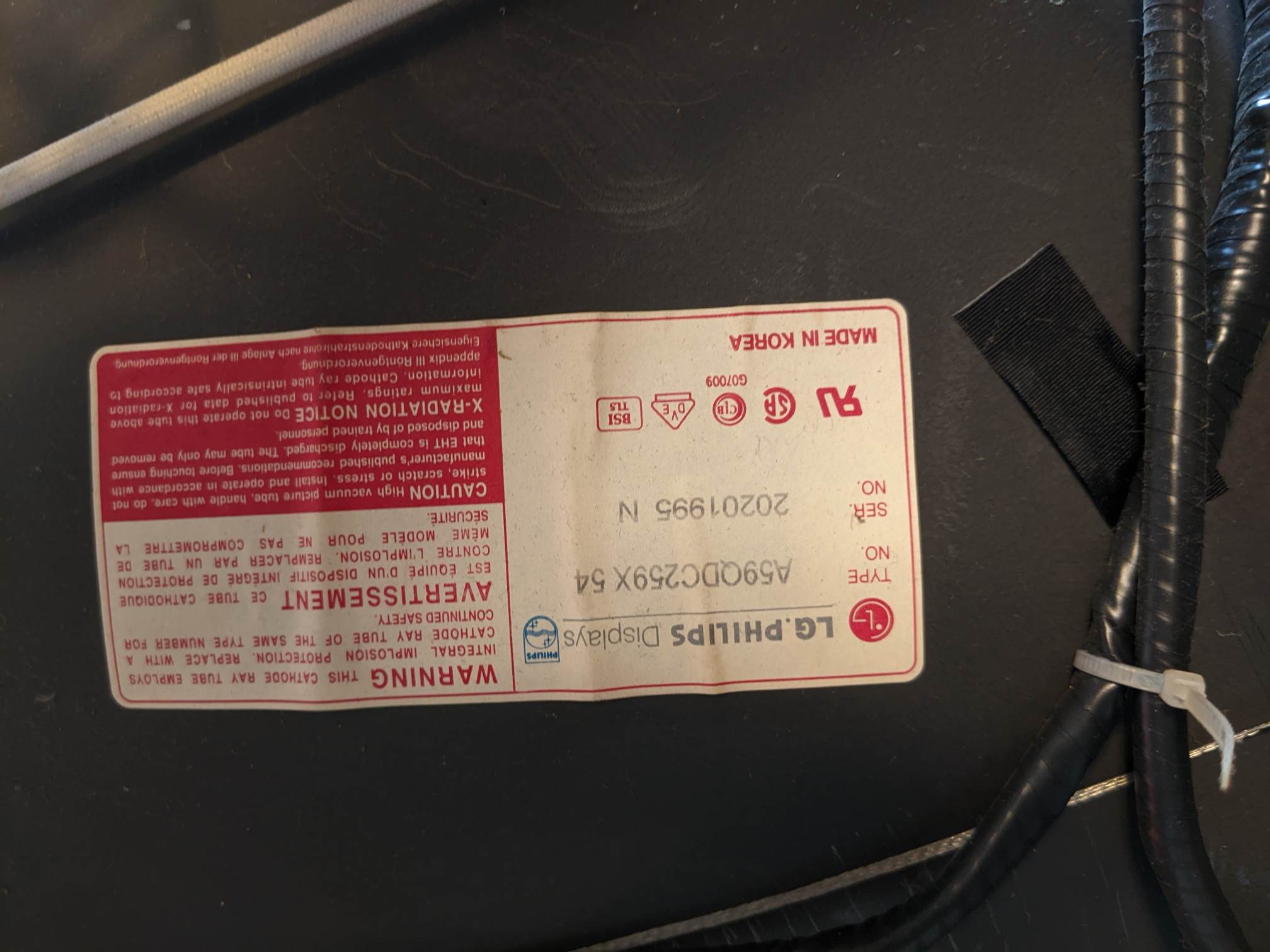

| Tube: | Samsung , LG.Philips , A59QDF891X , A59QDF891X002 , A59QDC259X , A59QDC259X54 |
| Heater Voltage: | 6.3v |
| Mask: |

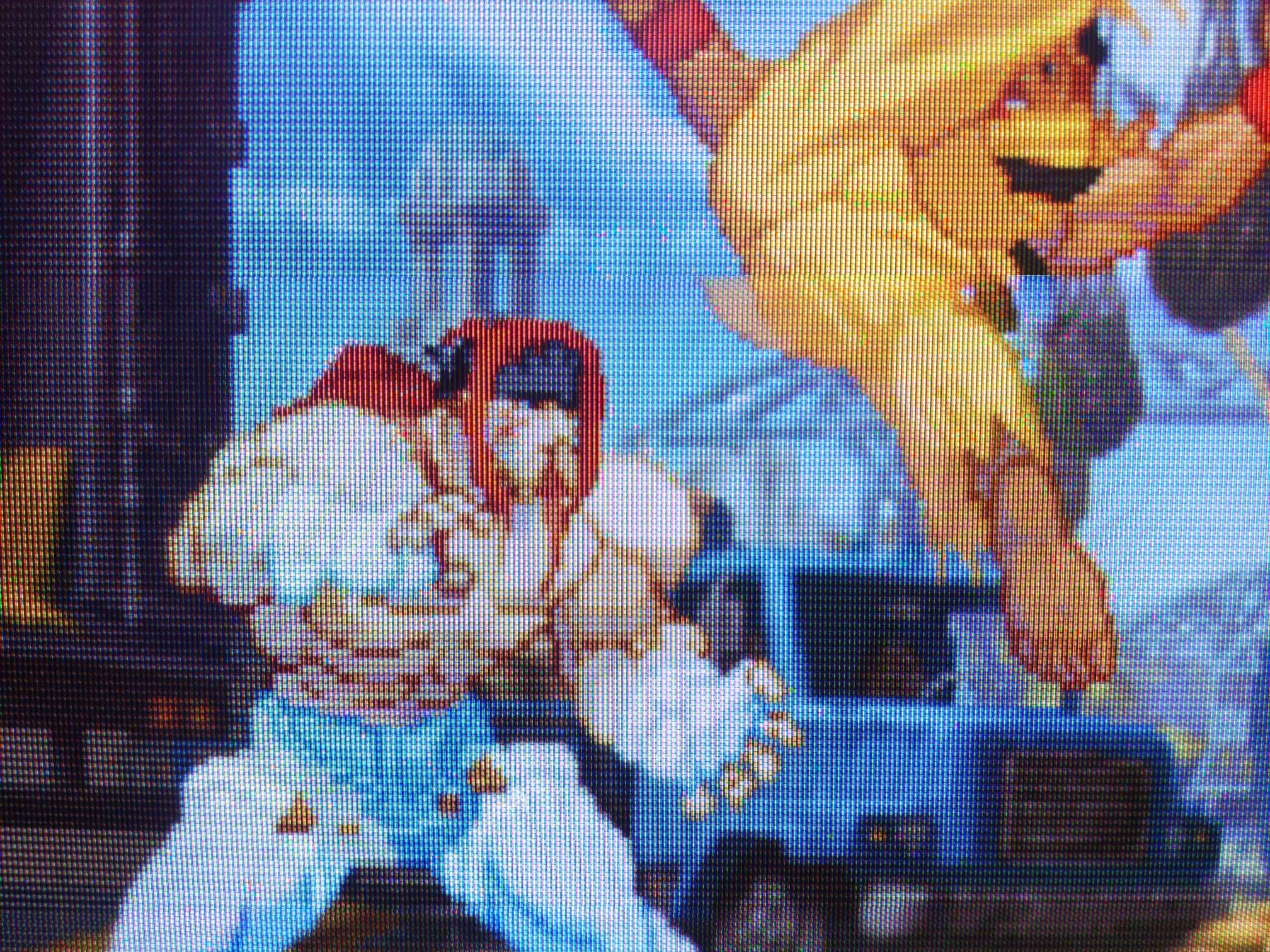

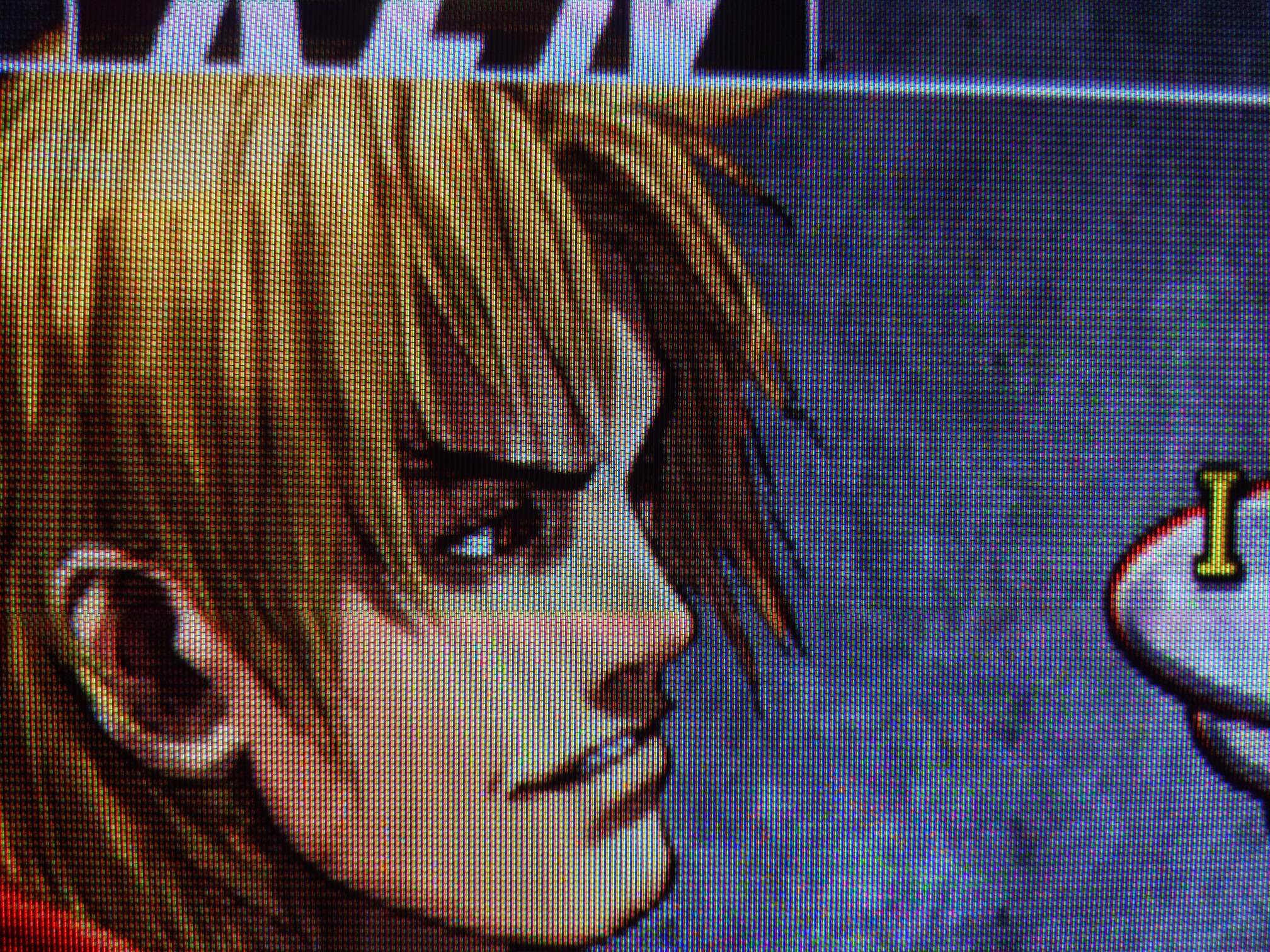

Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

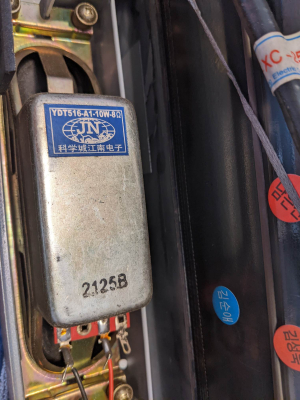

| Speakers: | Stereo, 5W x 2 |
| Remote: | CHKT1A |
| Chassis: | CH-10C3 |
| Weight: | 81 lbs (36.7 kg) |
| Dimensions (W/H/D): |
650 x 508 x 516 mm
(25.5 x 20 x 20.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 399 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
