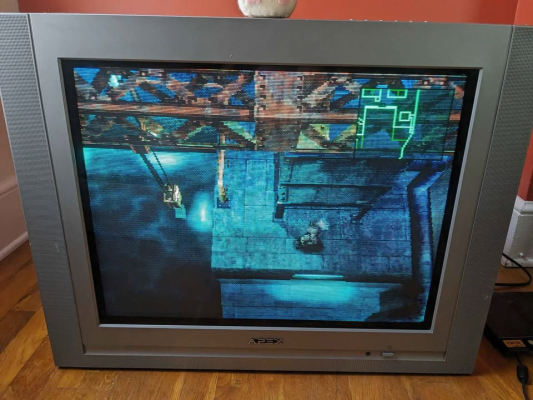

Apex PF2720
October 24, 2024, 7:58 pm
October 2, 2025, 6:51 pm
Summary

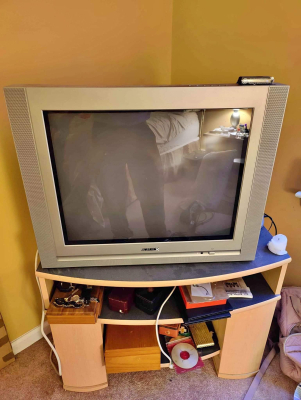

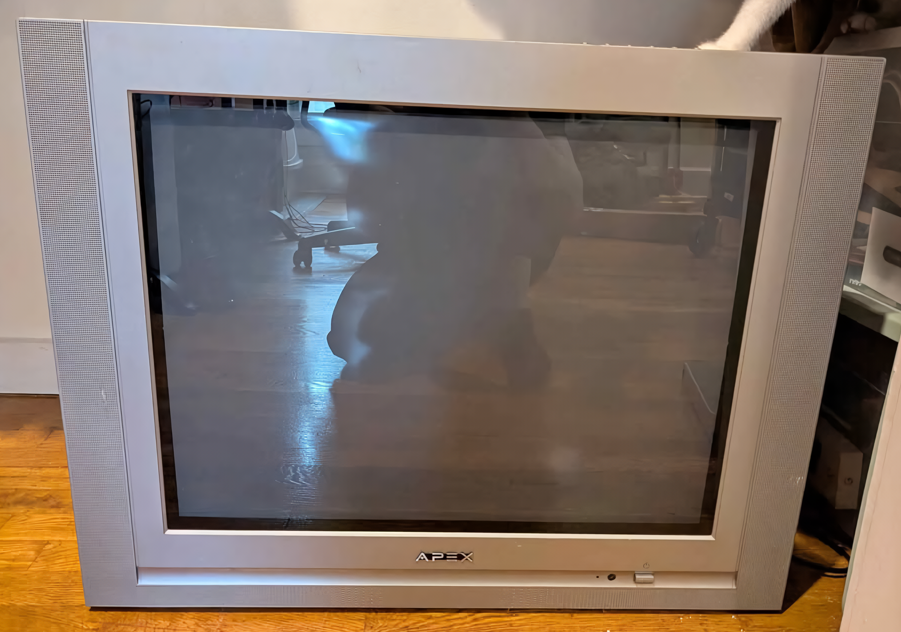

27" "pure flat" TV by Apex from 2003. Has RF, composite, s-video and component inputs. Originally manufactured by Changhong Electric in China.
Manuals
Notes
Great picture quality over component, thanks to the Philips jungle chip. There are actually two slight variants of the Philips jungle chip that this set can use, and the service menu options will differ as a result.
There are at least three possible tube models for this set.

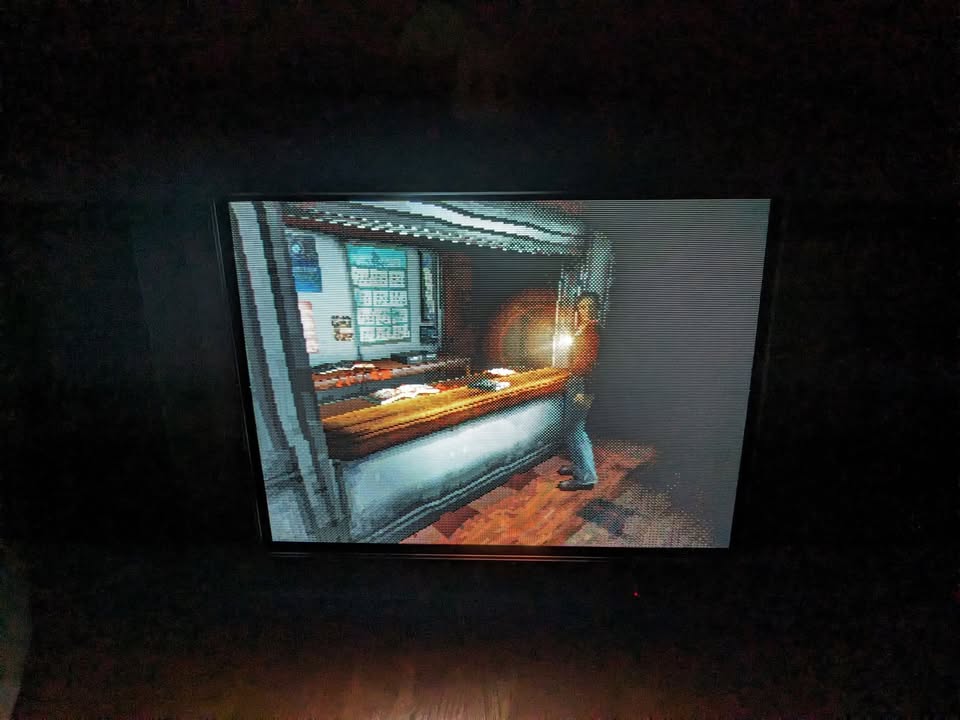

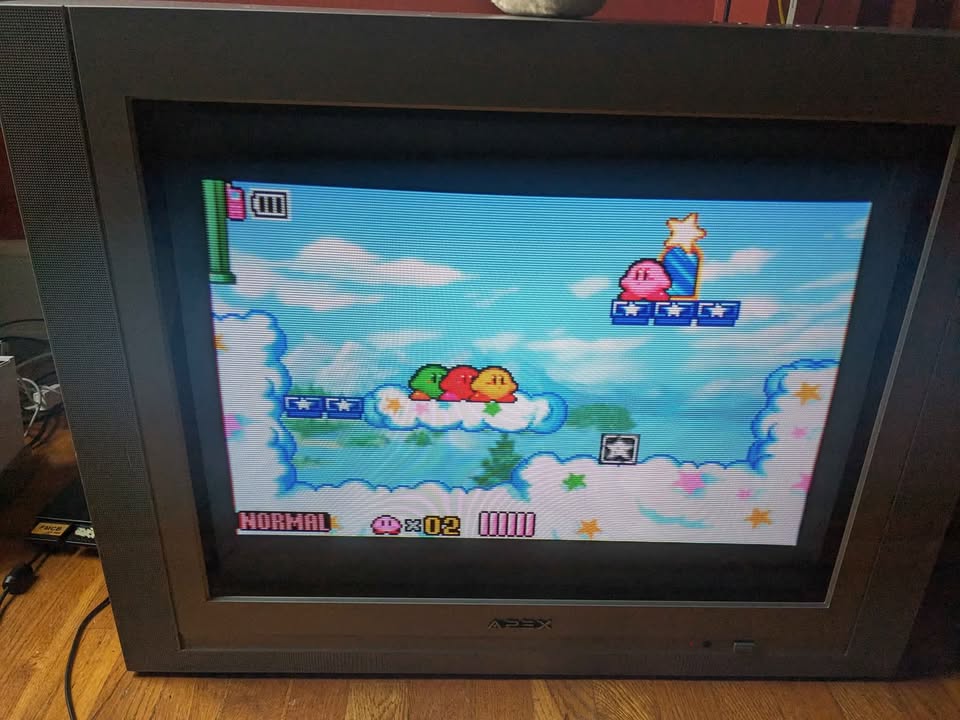

Composite 240p Performance
by Eli Krause
For composite decoding this set uses a Toshiba TC90A49P, a 3-line digital comb filter. Depending on the console/revision, dot artifacting ranges from slight to severe, and blending effects may be broken. If the set has an s-video or component YPbPr input, then using a good external notch filter to decode composite instead and sending that to the set would blend all dithering patterns and remove nearly all dot artifacts (full guide here).

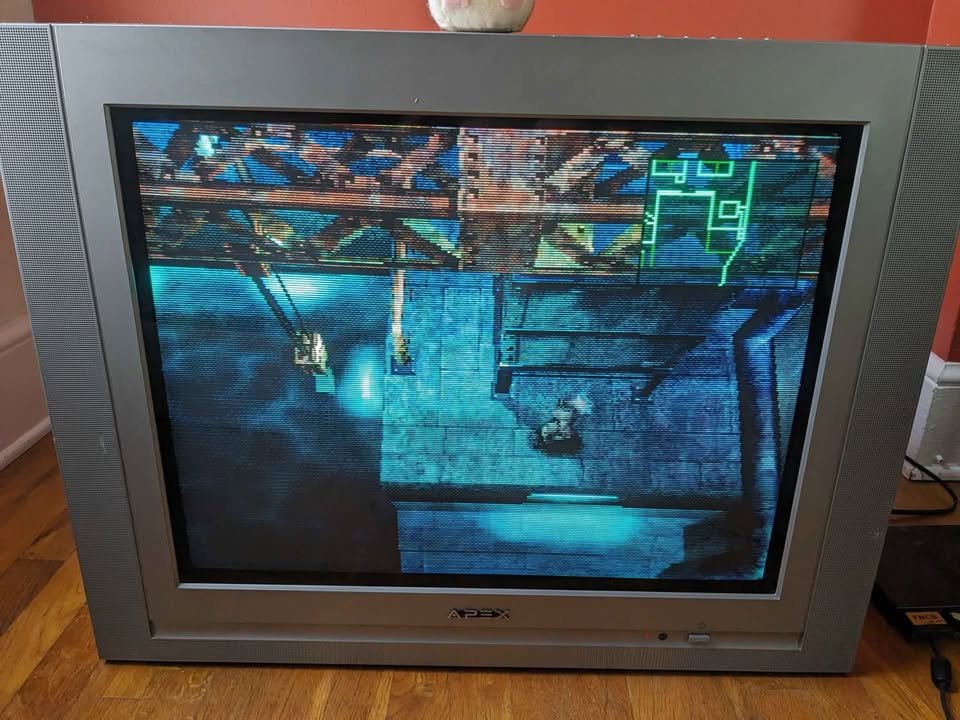

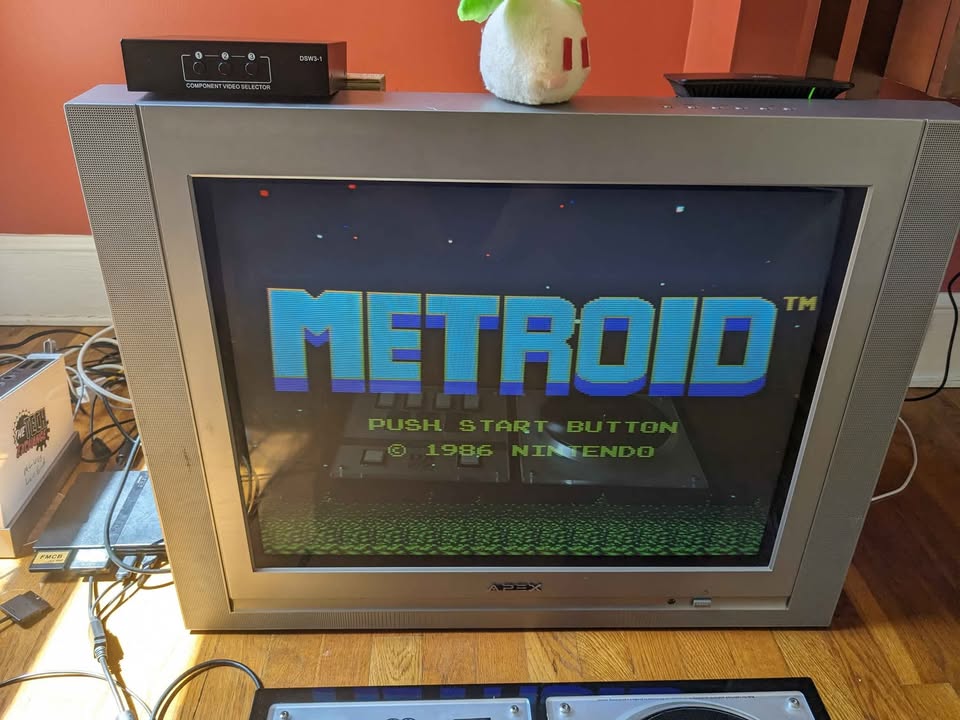

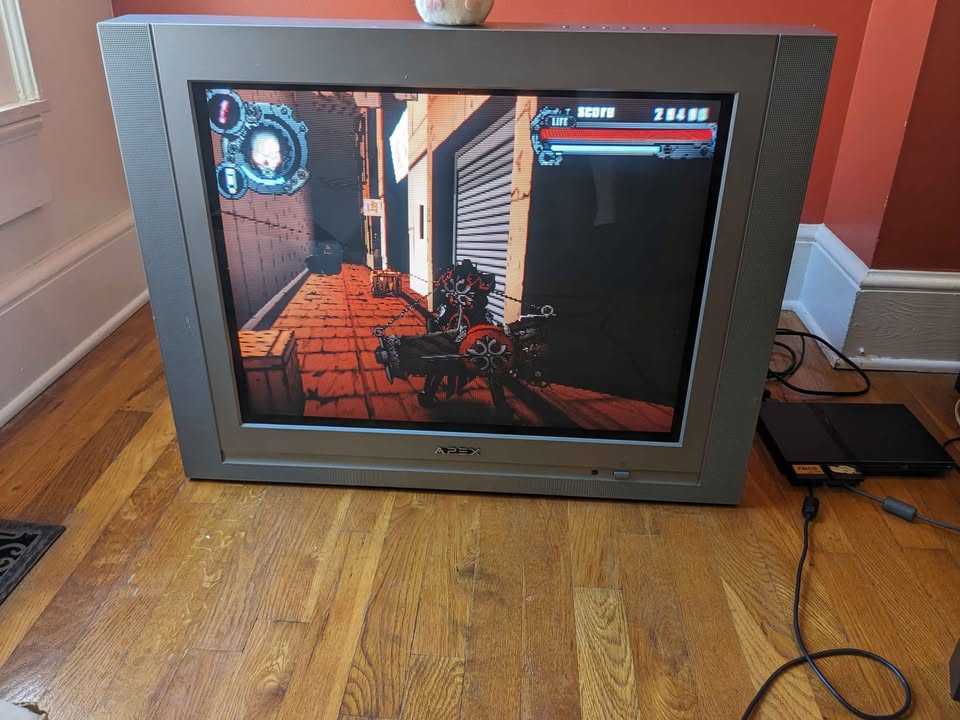

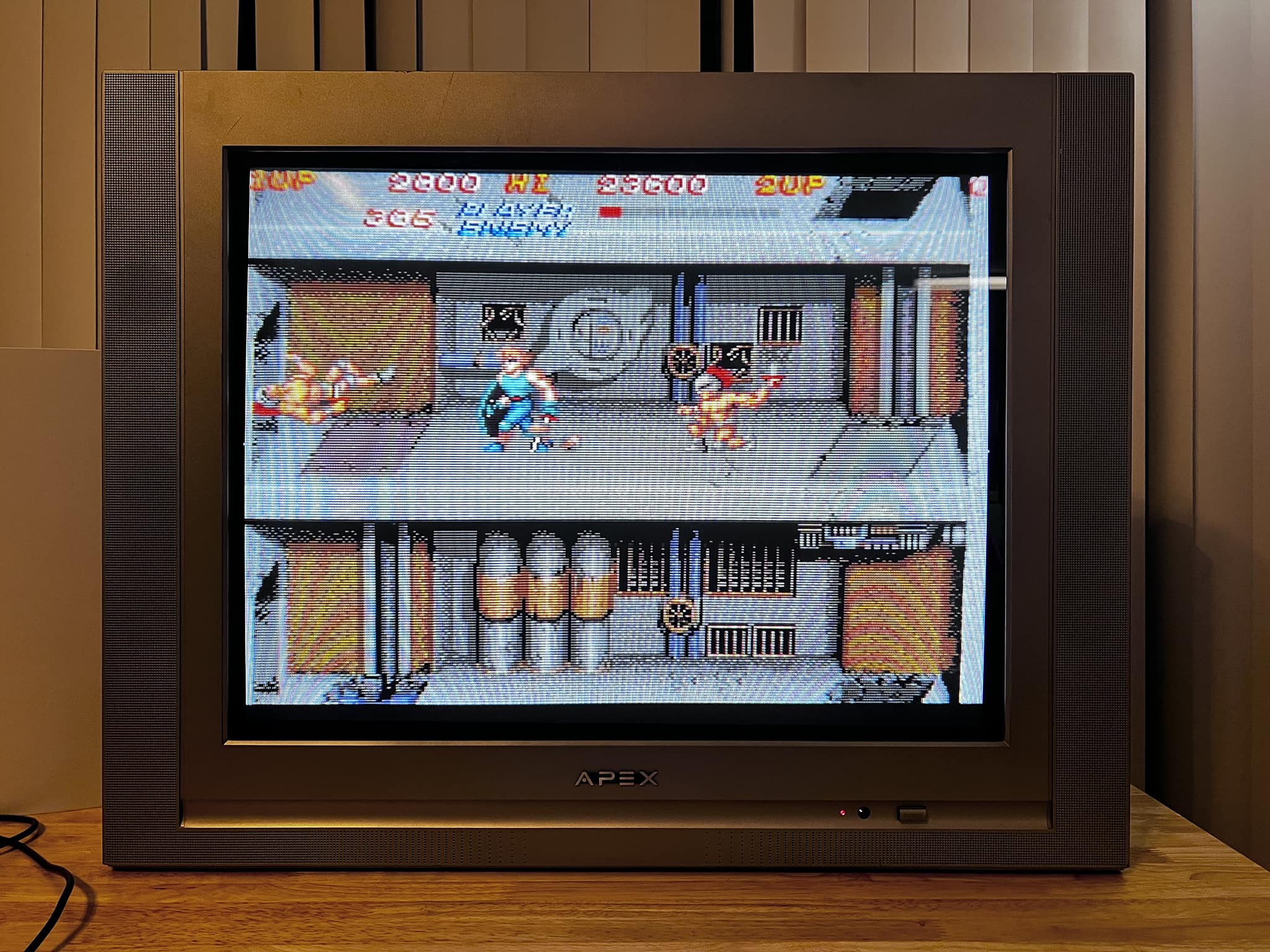

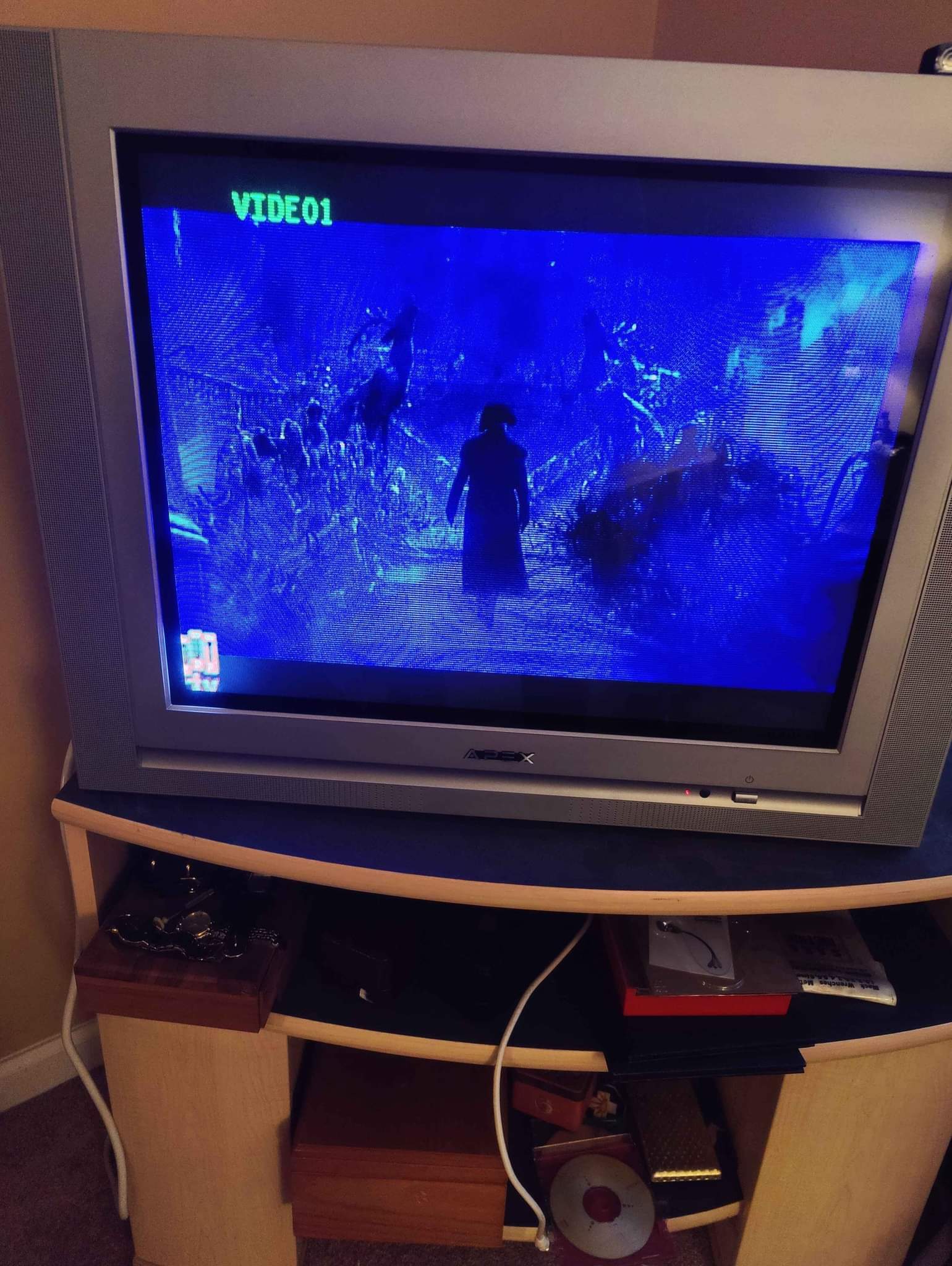

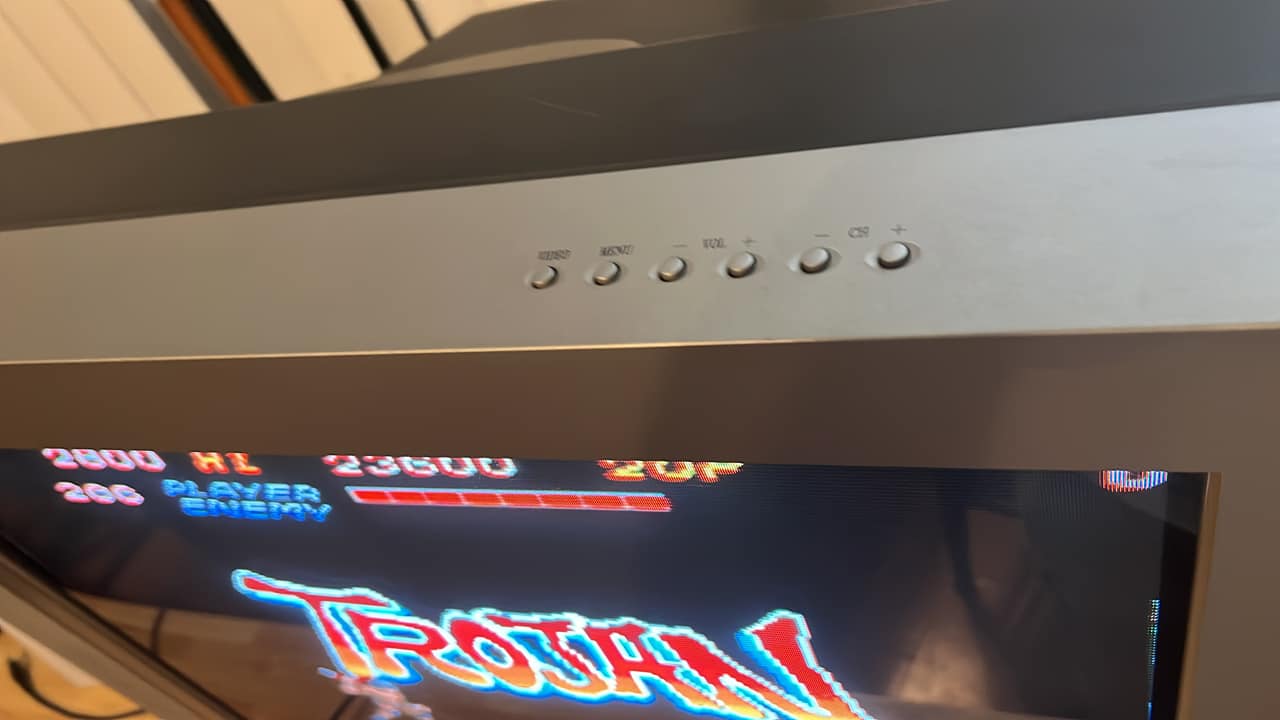

Gallery













Specifications | |
---|---|
Brand: | Apex |
Manufacturer: | Changhong Electric |
Model: | PF2720 |
Series: | PF |
Viewable Size: | 27" |

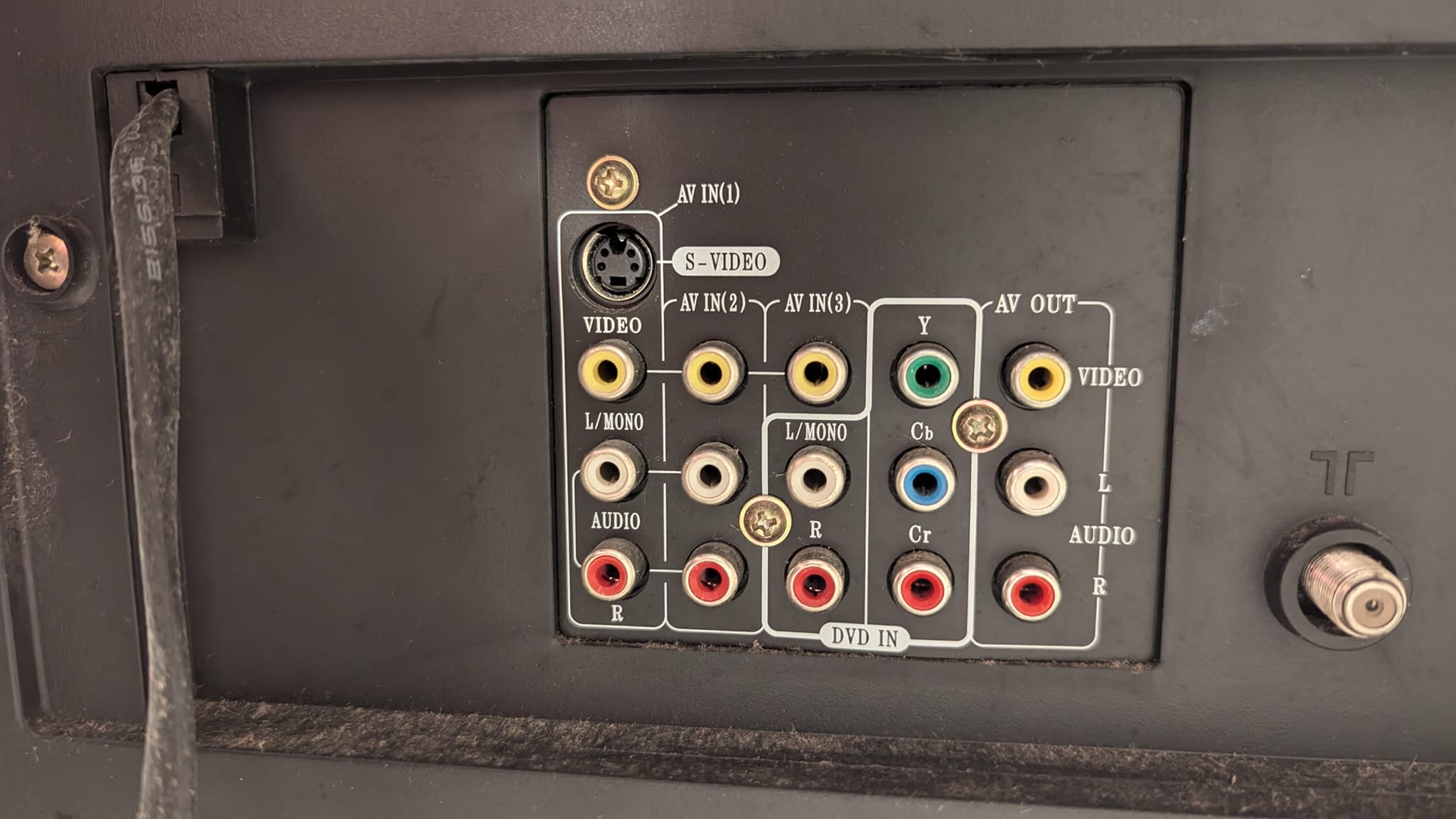

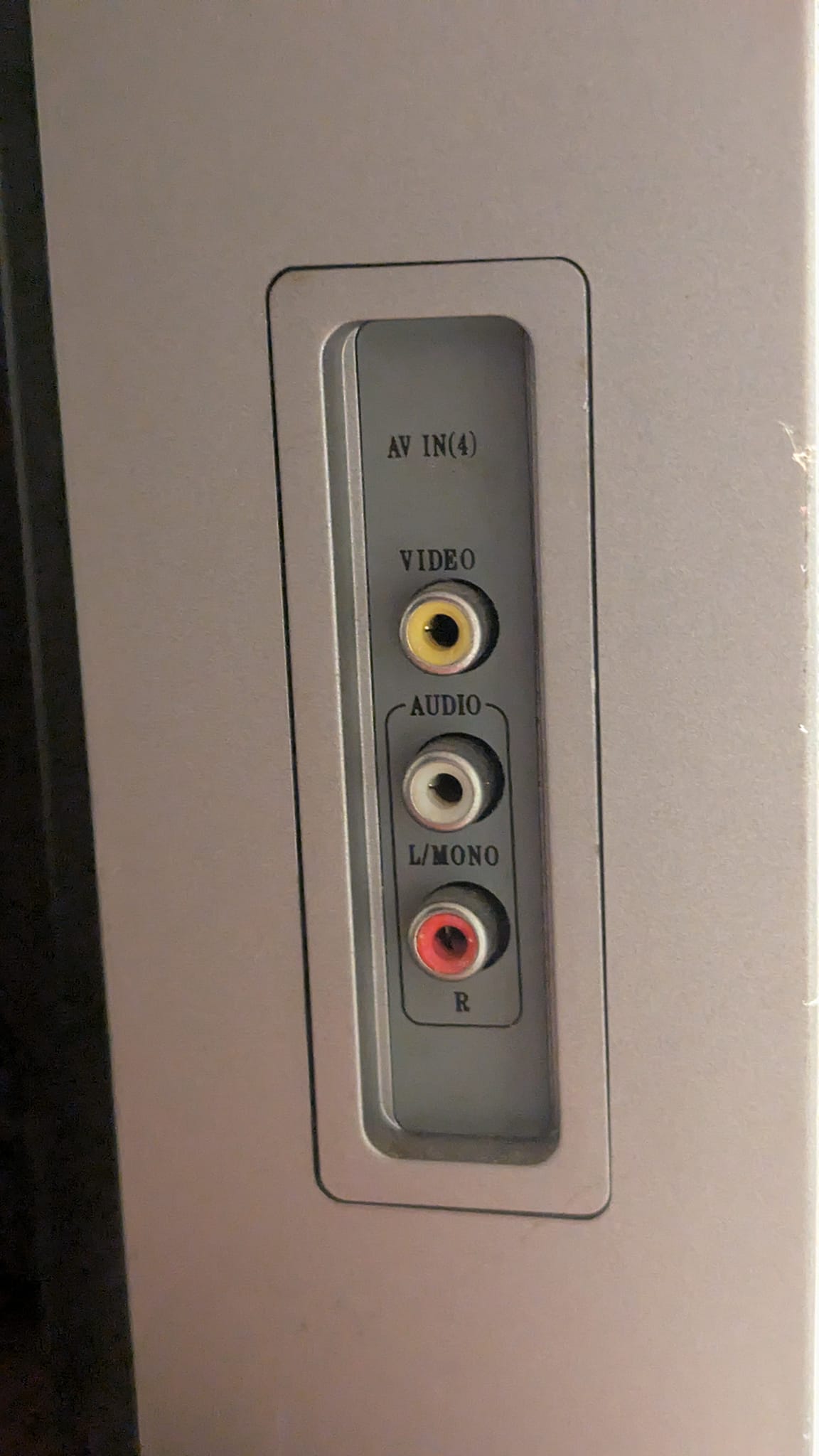

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |

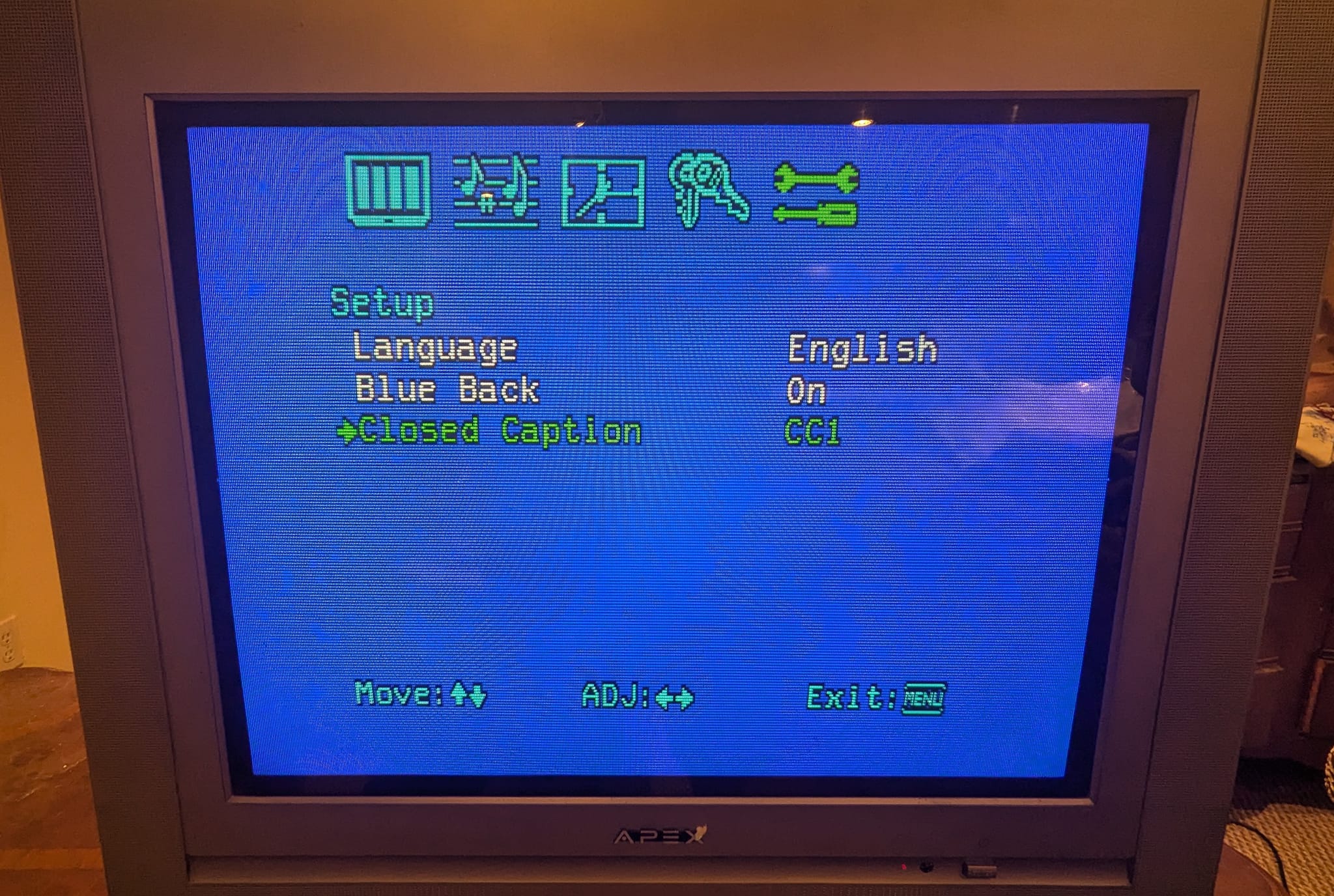

Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle IC: | Philips, TDA9375, TDA9379 |
Comb Filtering: | 3-Line Digital |
Comb Filter IC: | Toshiba, TC90A49P |
Focus Type: | Single |
Tube: | Samsung , LG.Philips , A68QCU259X550 , A68QCU259X , A68QCP891X001 , A68QCP891X , Daewoo-Orion , A68QDL080X013 , A68QDL080X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo, 5W x 2 |
Remote: | CK5D-C1 |

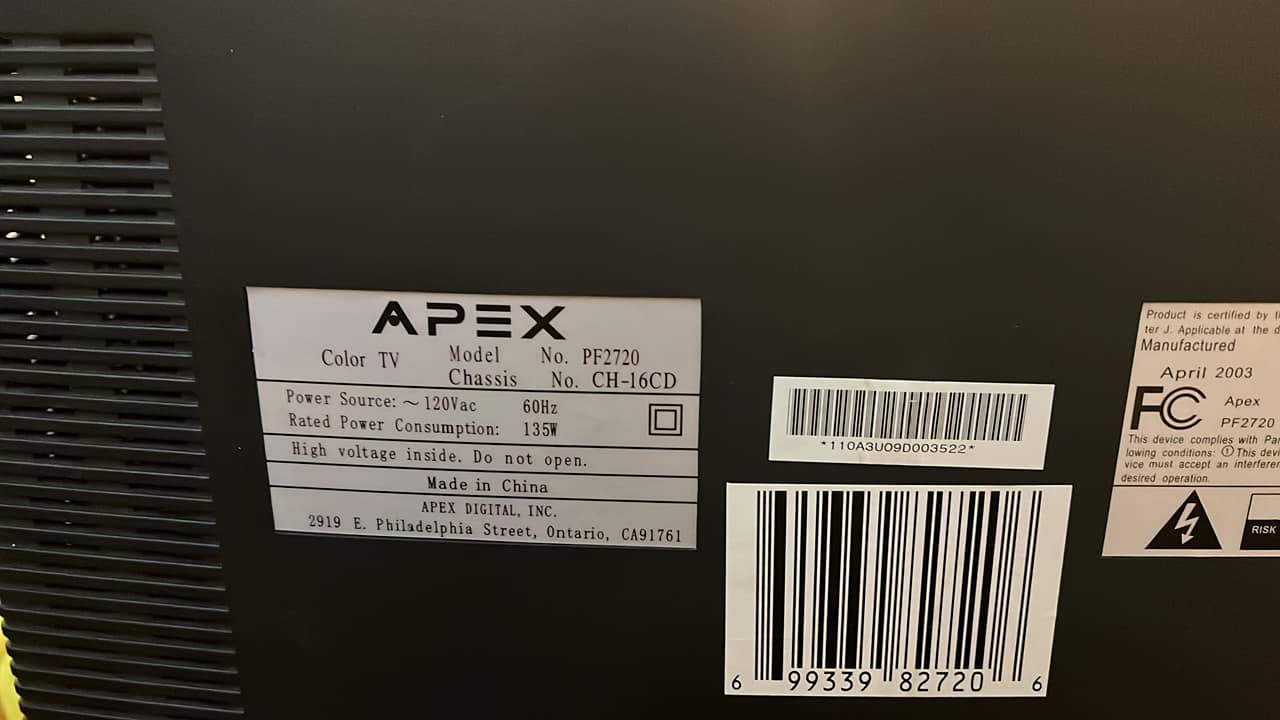

Chassis: | CH-16CD |
Weight: | 97.9 lbs (44.4 kg) |
Dimensions (W/H/D): |
739 x 580 x 490 mm
(29 x 22.8 x 19.3") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2003 |
MSRP: | 279 USD |
Country of Manufacture: | China |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
