Summary

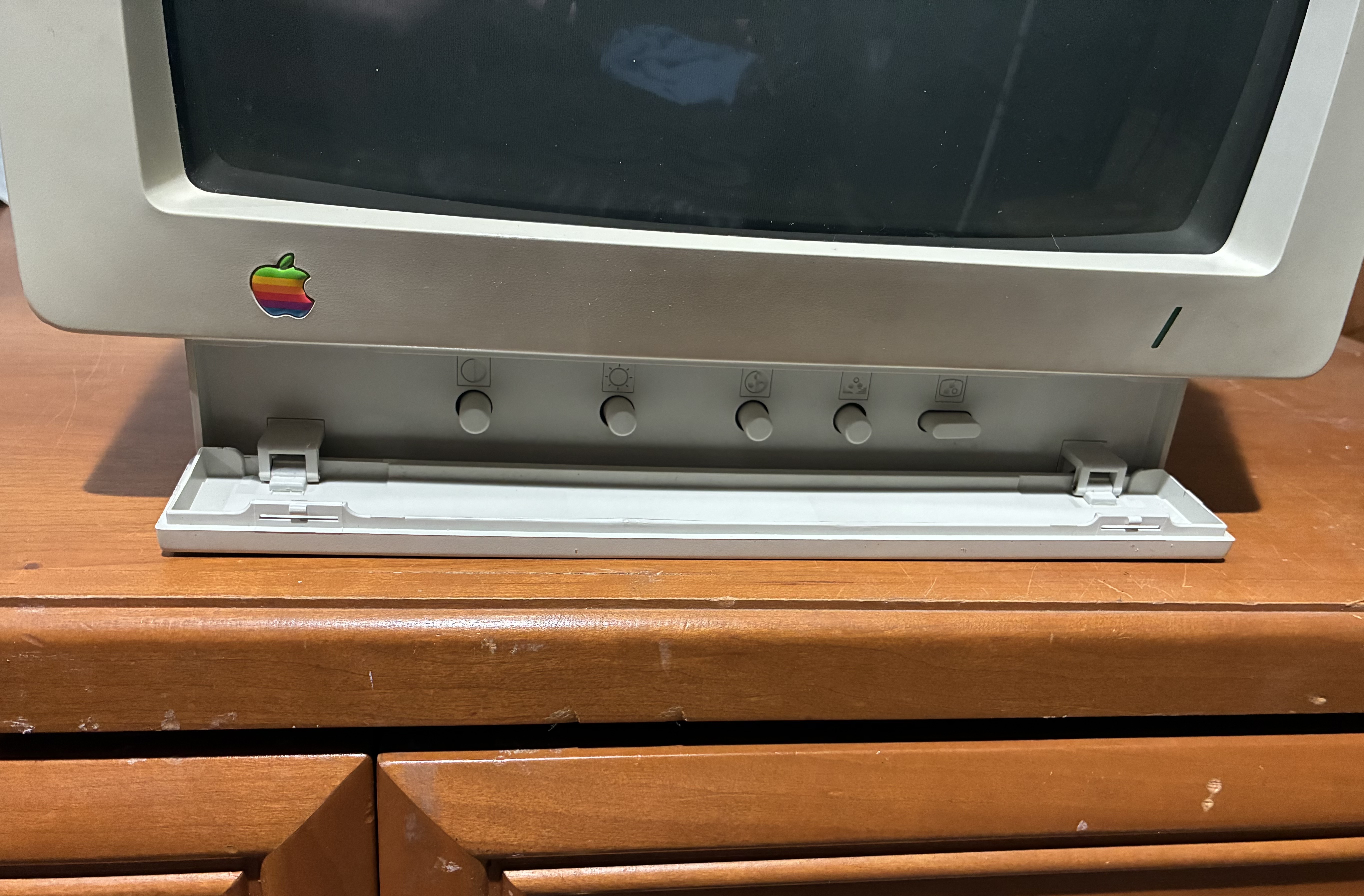

13" NTSC computer monitor designed by Apple (for the Apple lIe and Apple IIGS"). Features: "White Only" button for viewing 80-column text. Composite input, Attached power cord. External pots for adjusting vertical hold, vertical size, horizontal hold, brightness, contrast, color, and tint

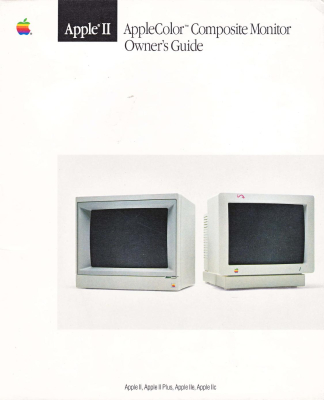

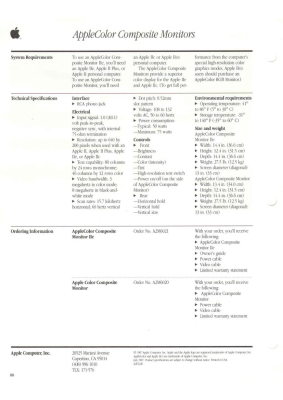

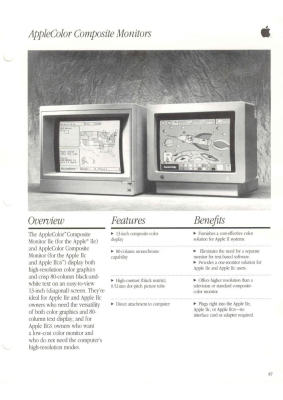

Manuals & Promo Materials
Notes
Shares a tube and likely other parts with the A2M2056
Has multiple manufactures; "S" model is manufactured by Samsung, and "H" model is manufactured by Hitachi
May have issues with the picture when adjusting brightness and contrast, fixed it by applying Deoxit to the pots; likely a common issue.

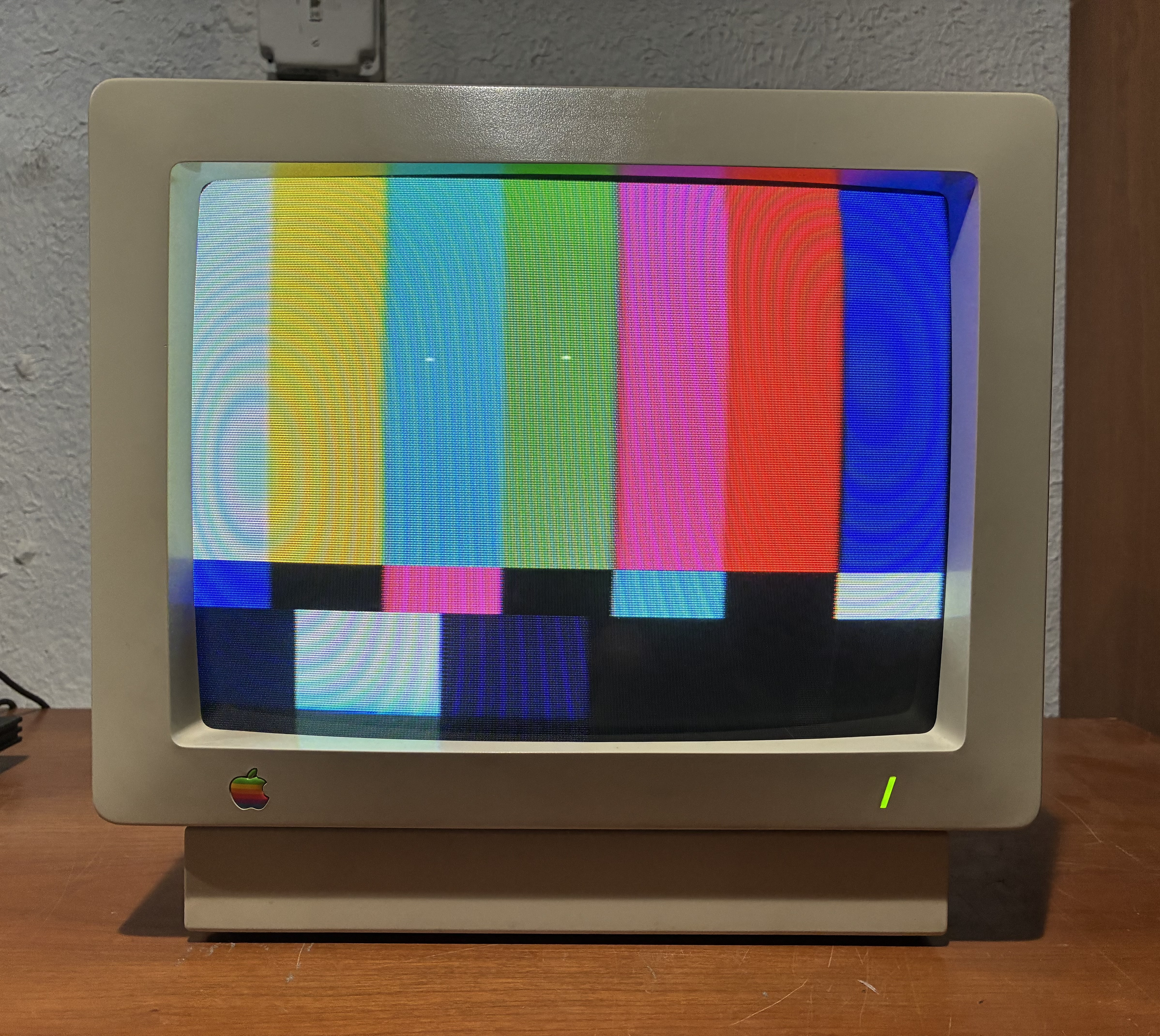

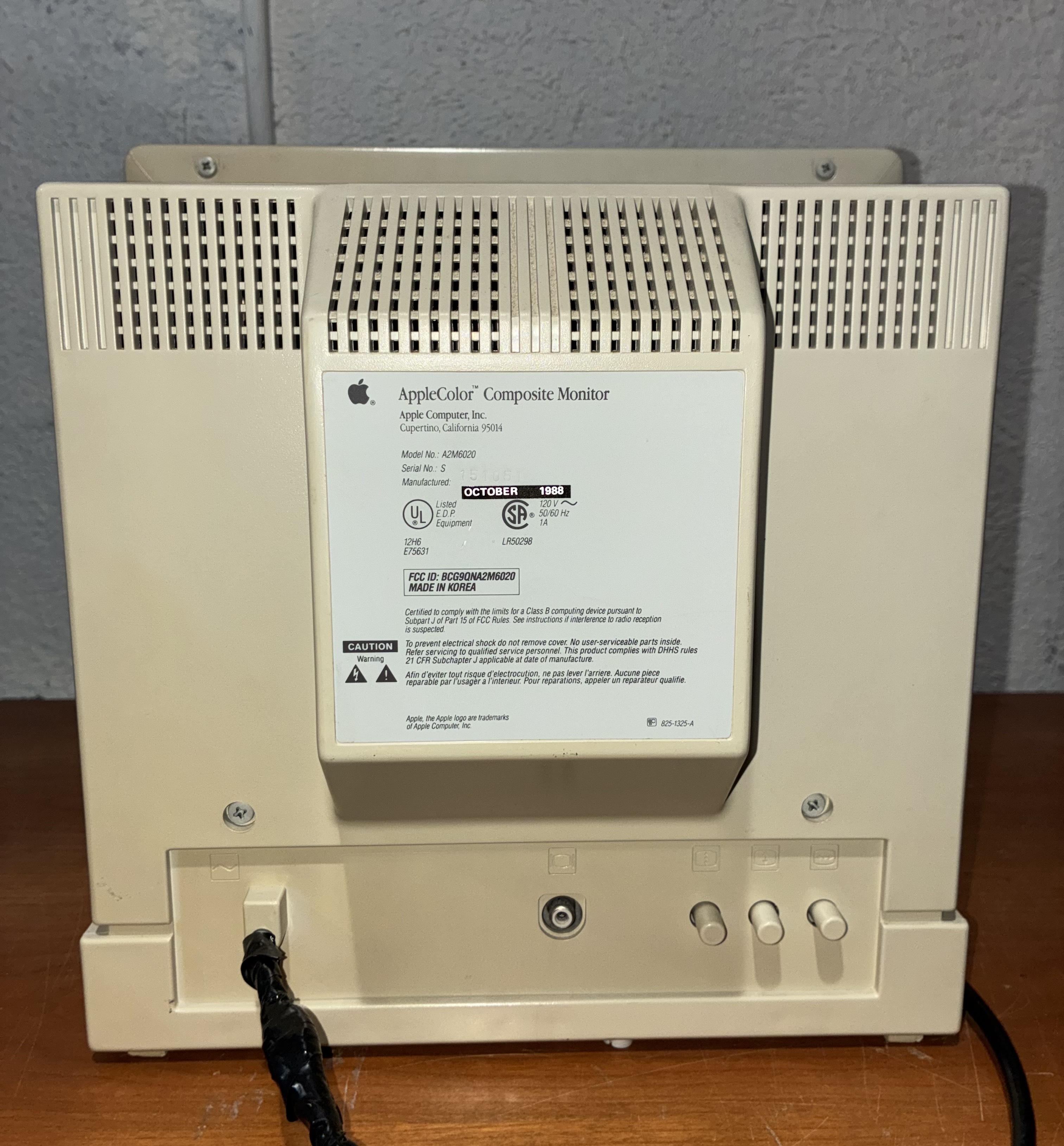

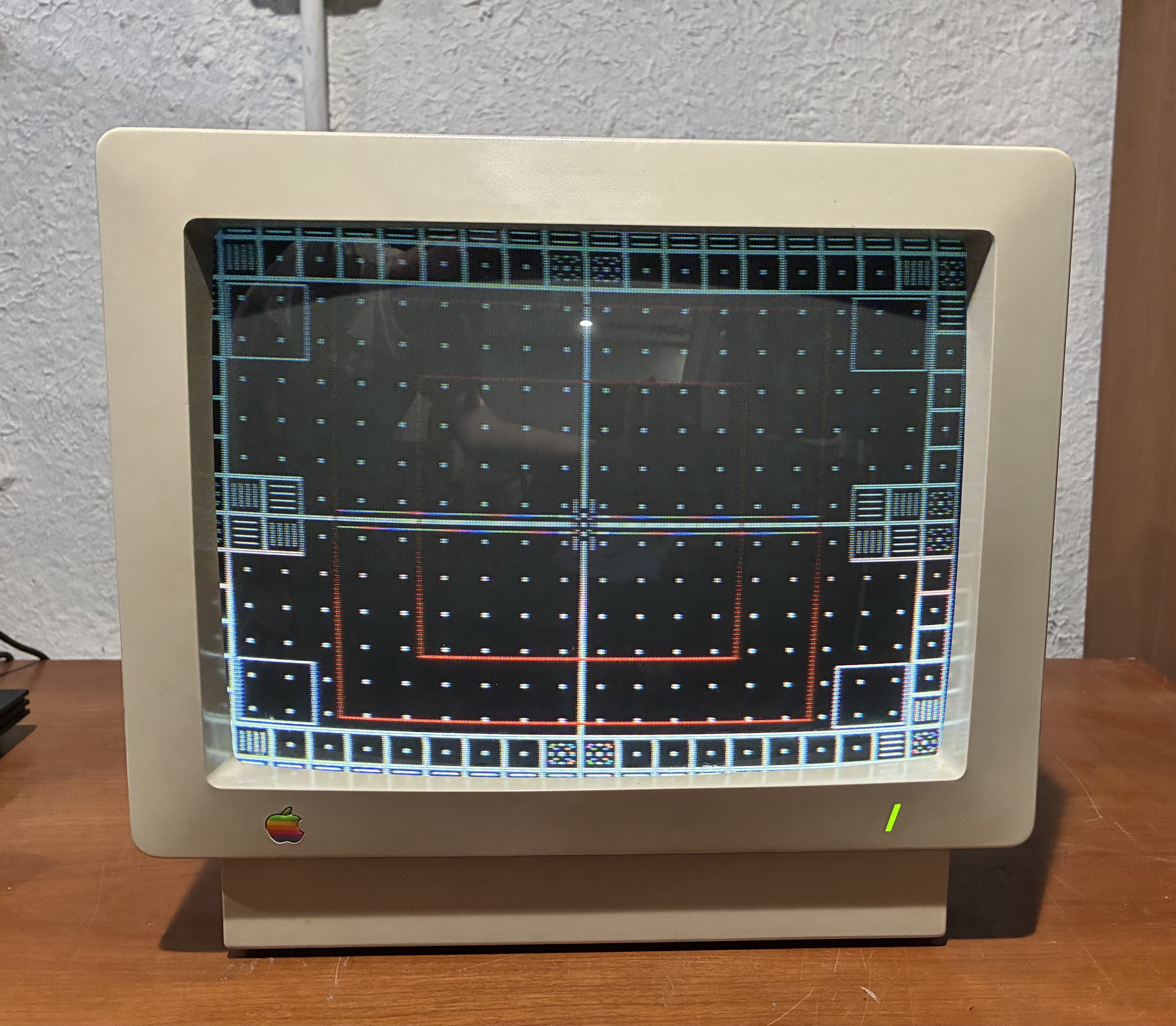

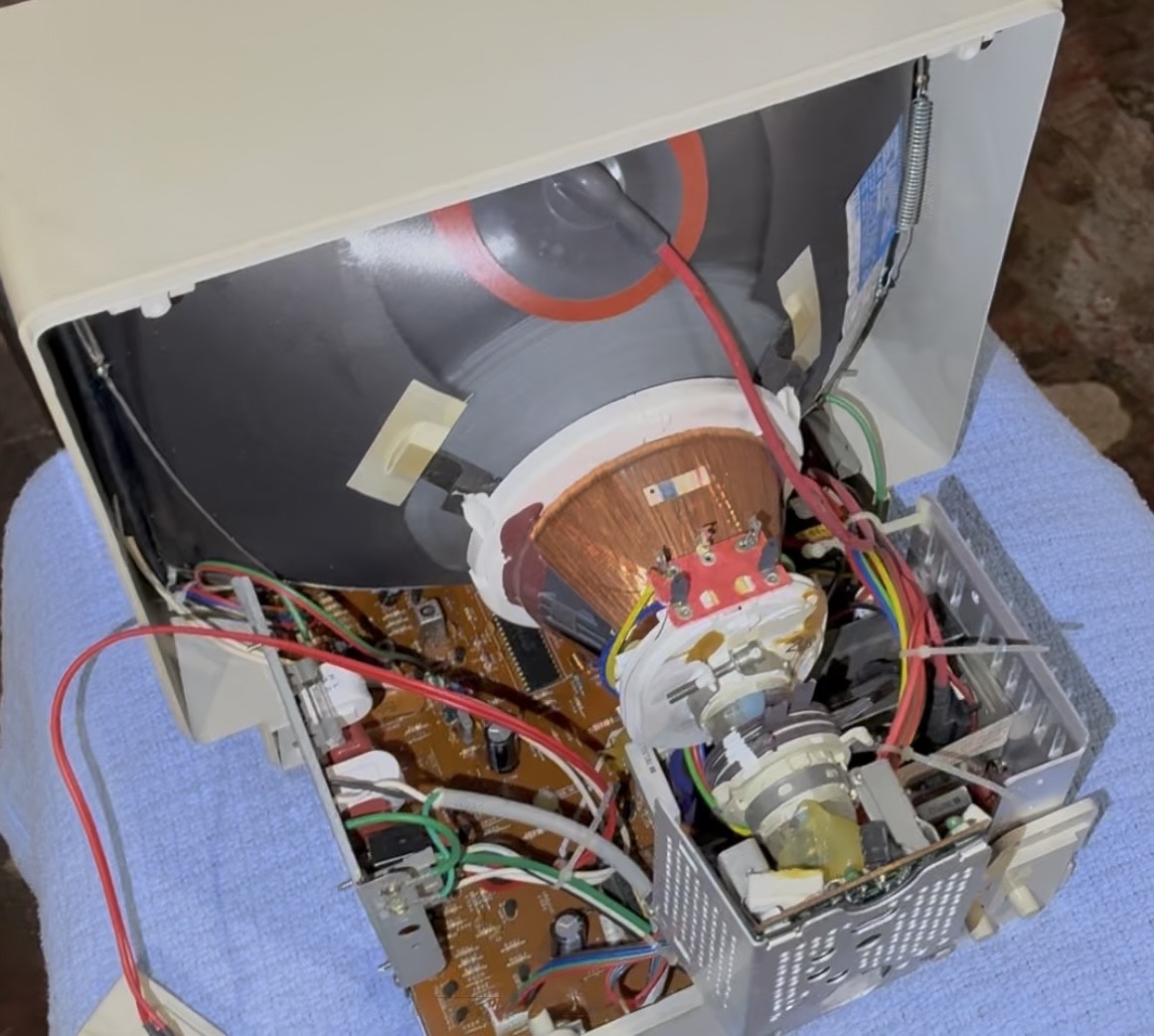

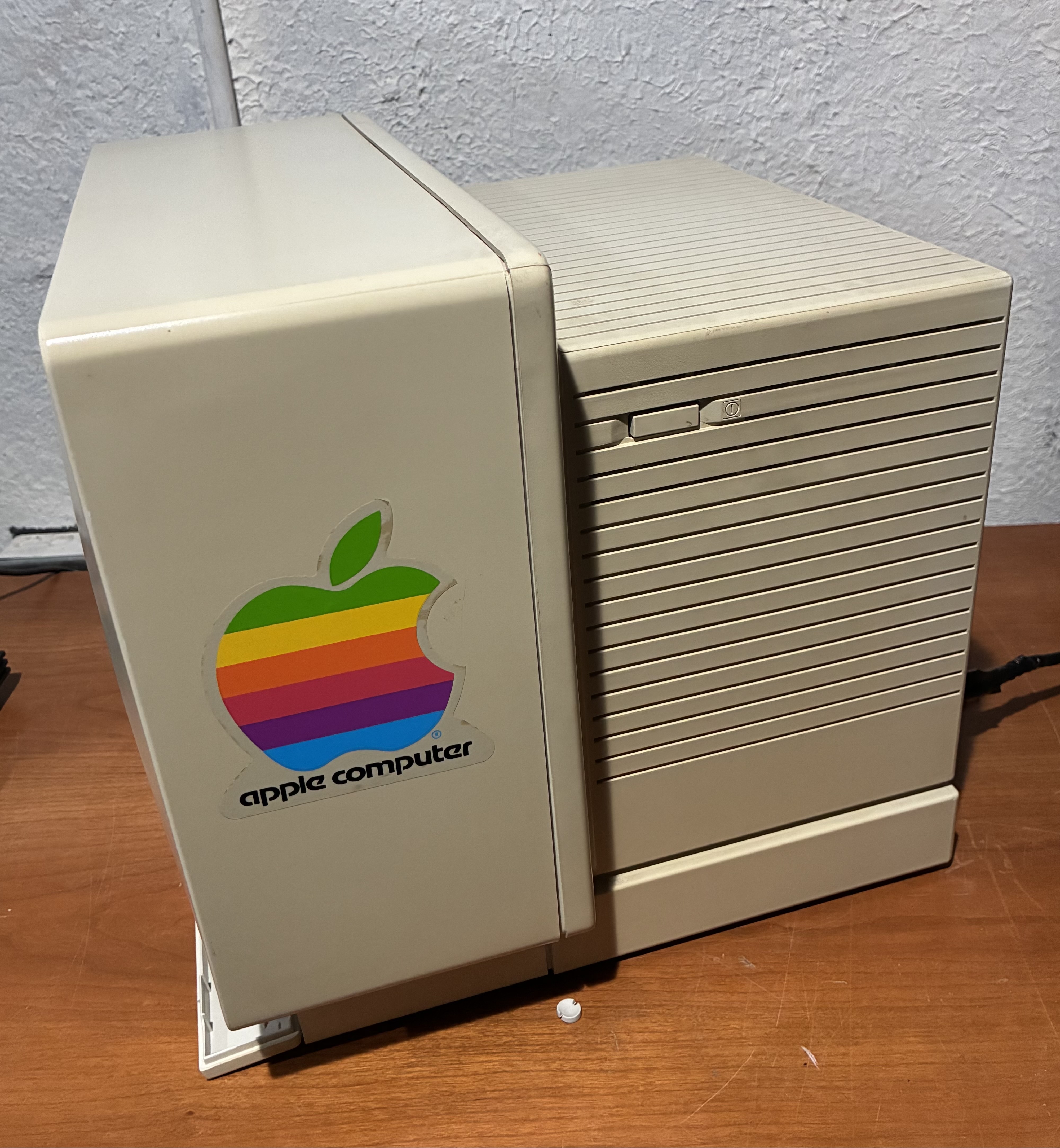

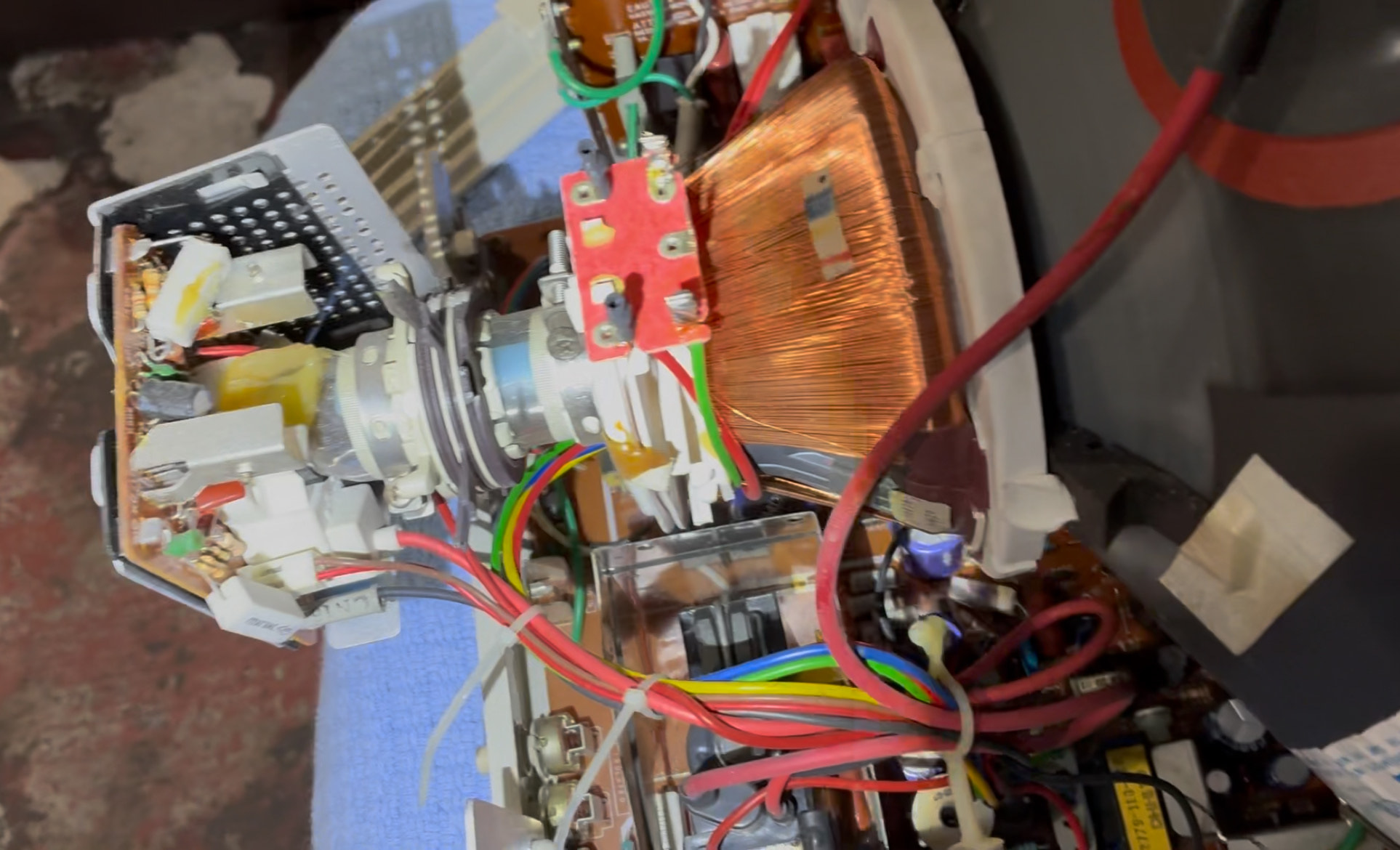

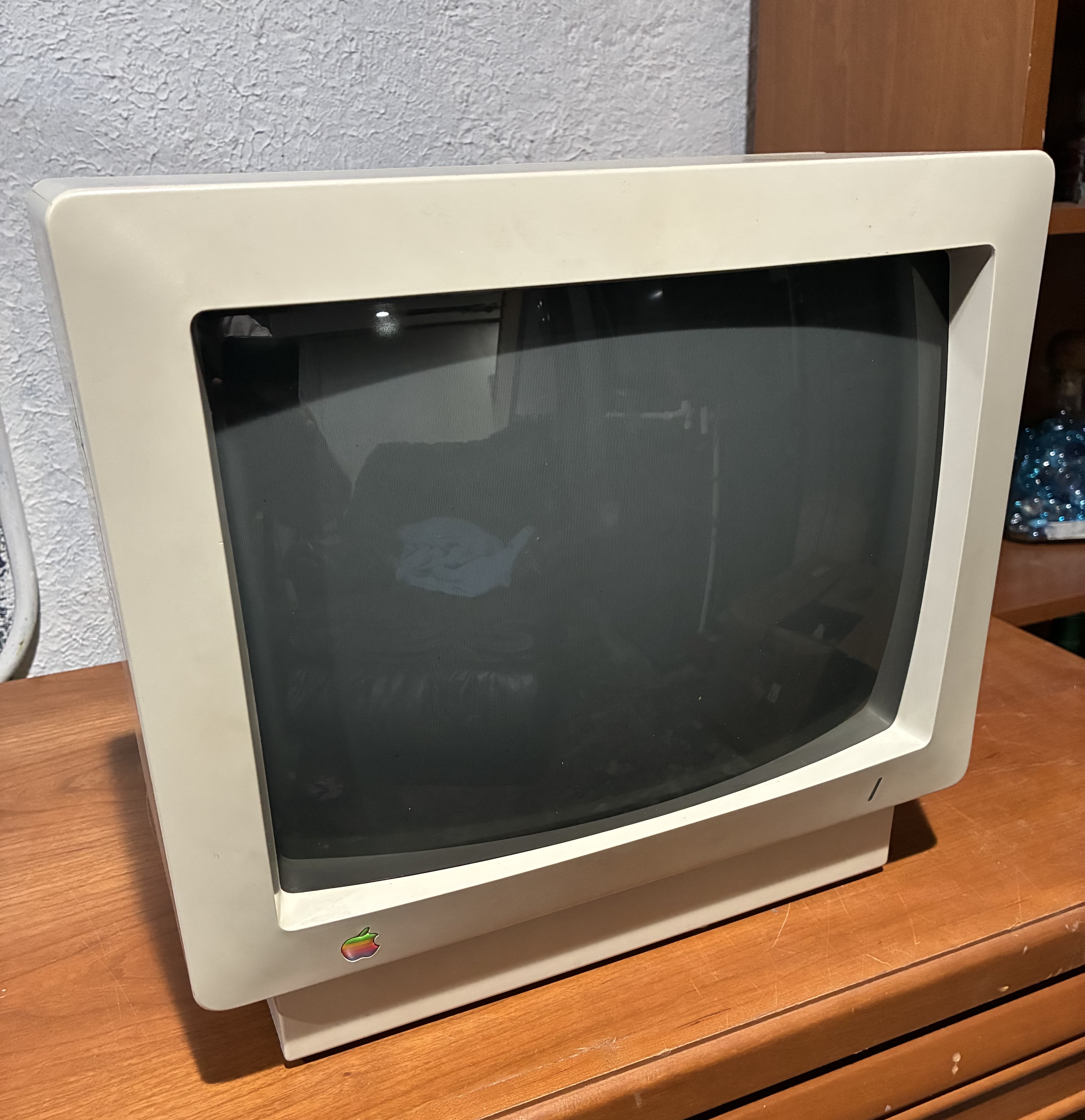

Gallery
| Specifications | |
|---|---|
| Brand: | Apple |
| Manufacturer: | Samsung |
| Model: | A2M6020 |
| Series: | AppleColor |
| Viewable Size: | 13" |
| Input Signals: | Composite |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |

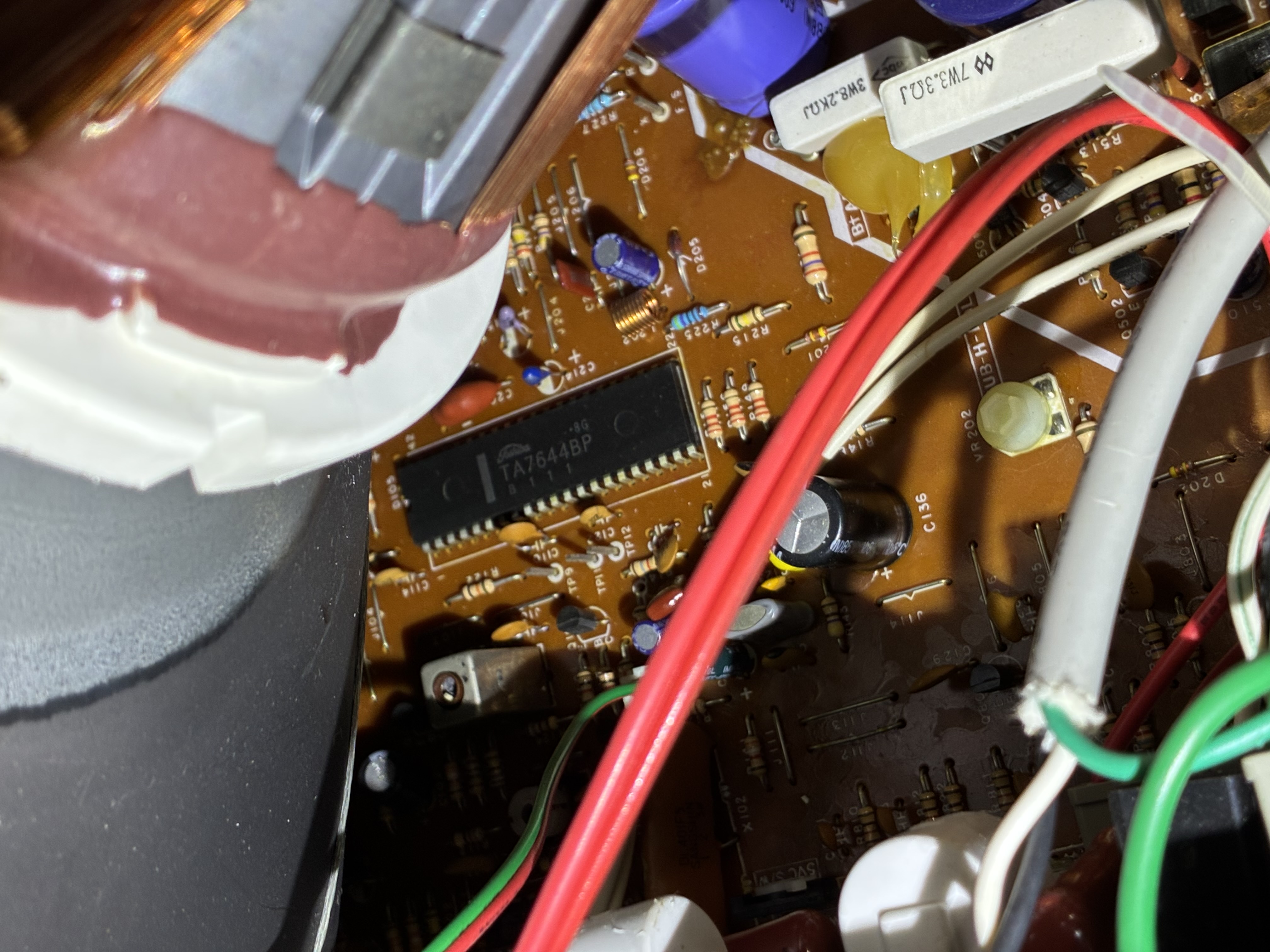

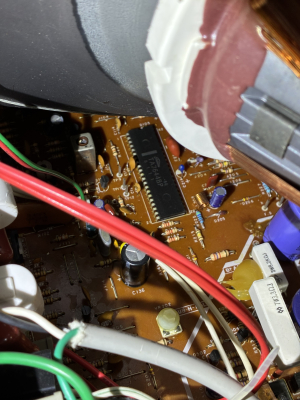

| Jungle IC: | TA7644BP |

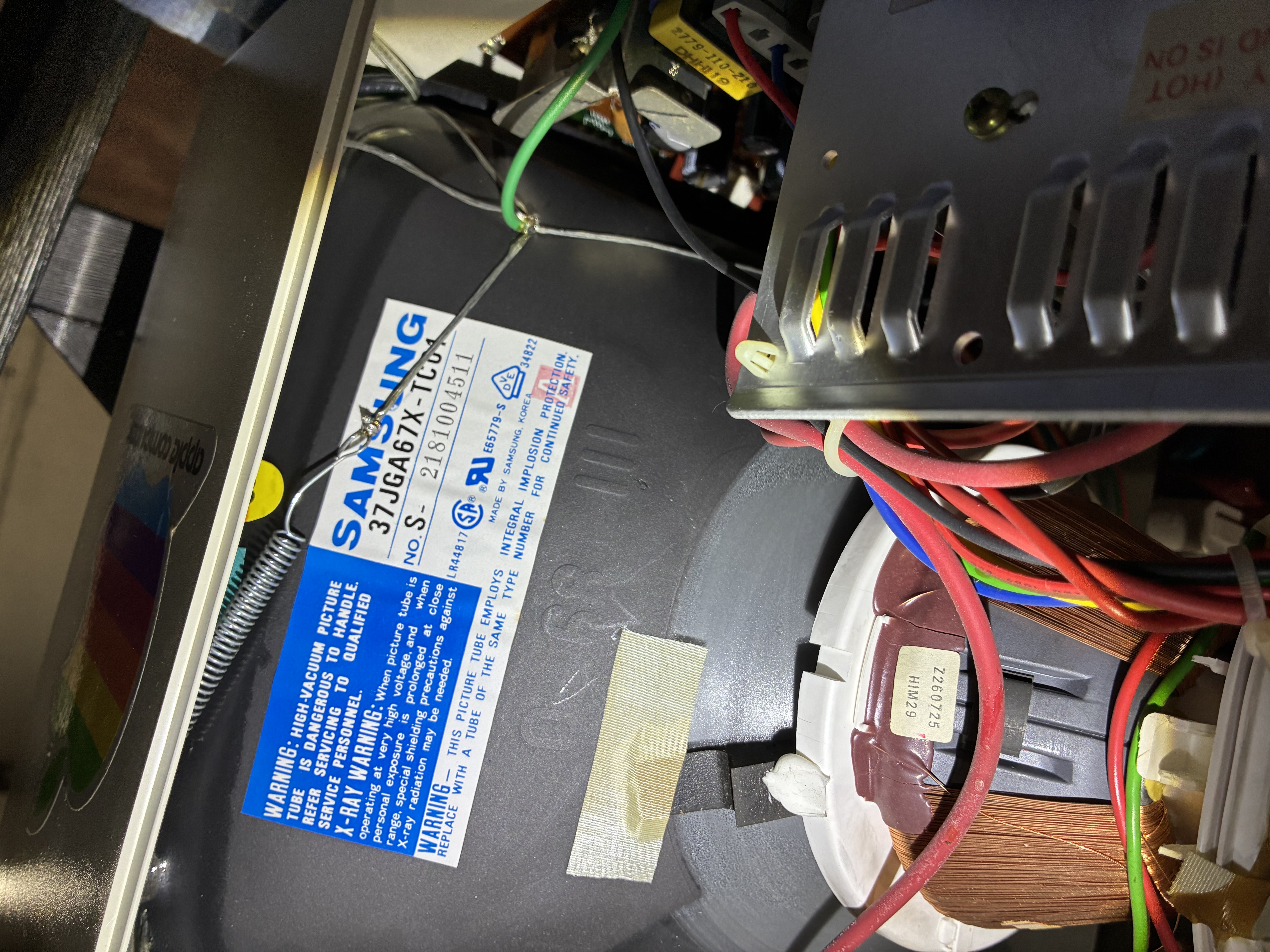

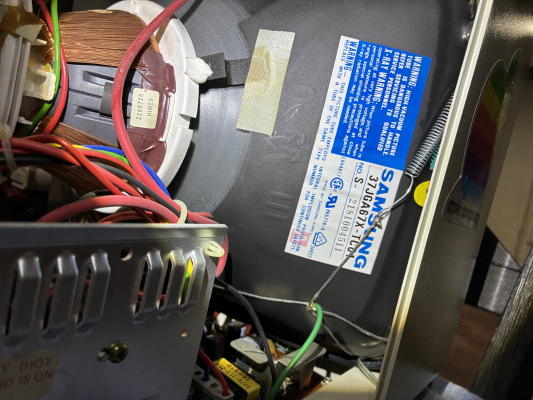

| Tube: | Samsung , 37JGA67X-TC01 |
| Mask: |
Slot
|
| Pitch: | .52 mm |
| Removable Glare Film: | No |
| Speakers: | None |
| Remote: | None |
| Weight: | 28 lbs (12.7 kg) |
| Dimensions (W/H/D): |
340 x 315 x 366 mm
(13.4 x 12.4 x 14.4") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1986 |
| Country of Manufacture: | Korea |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Desk Stand, Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission |
