Summary

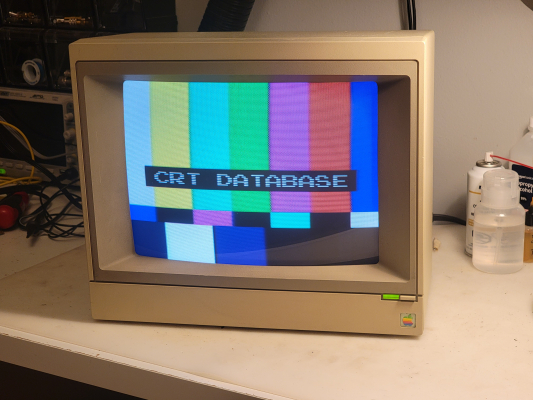

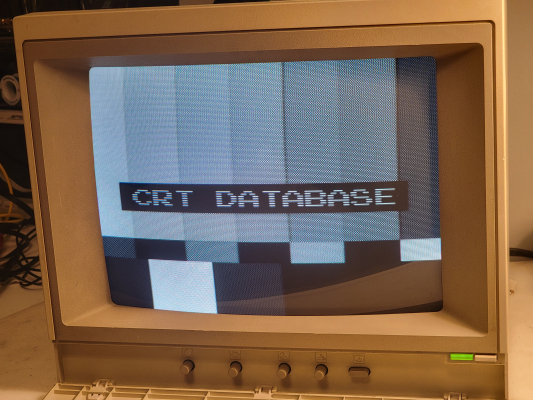

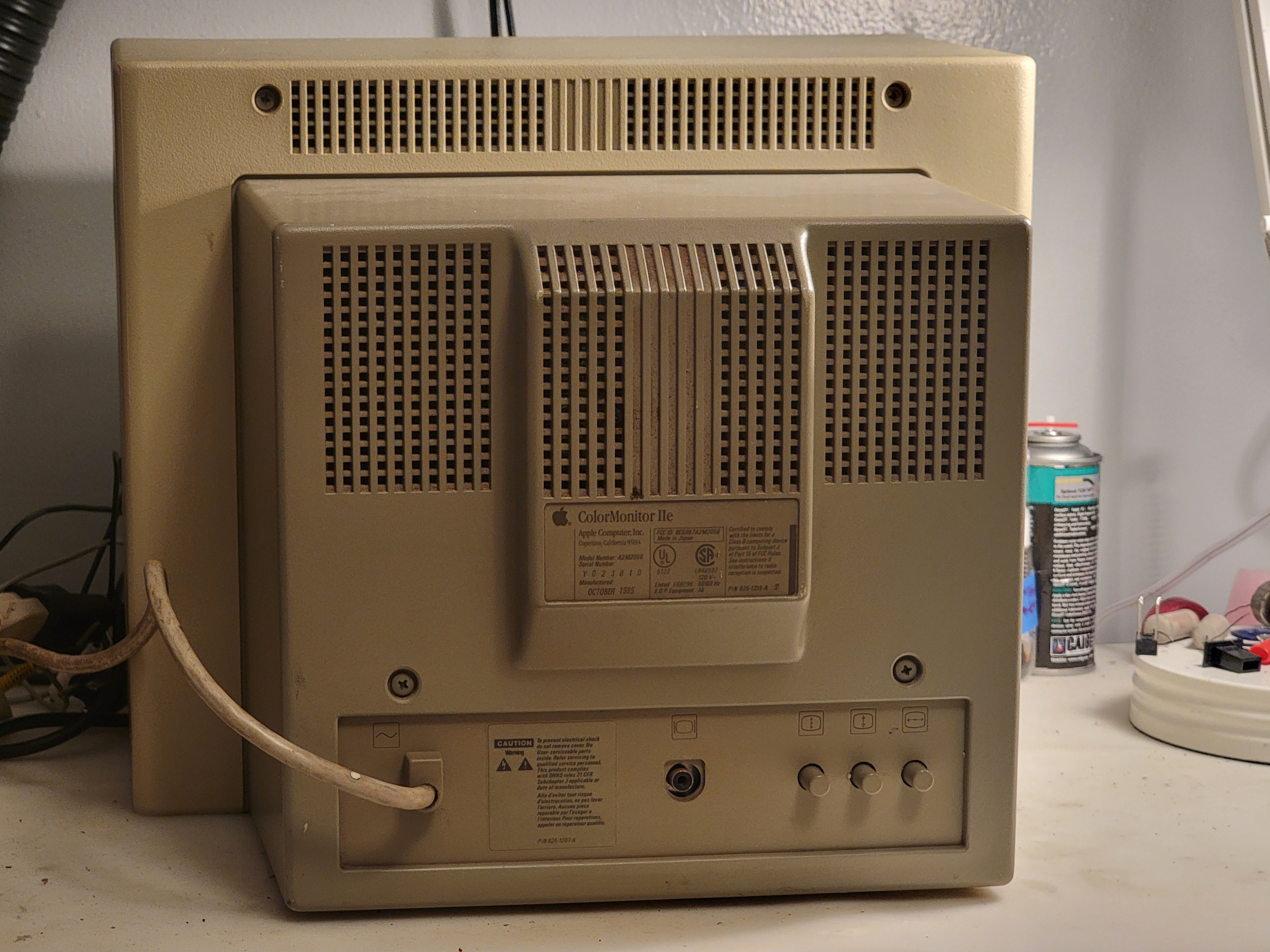

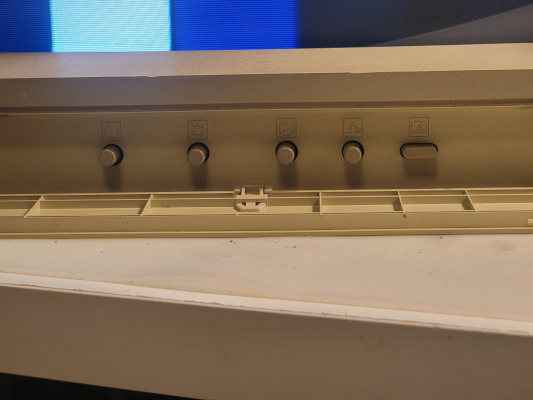

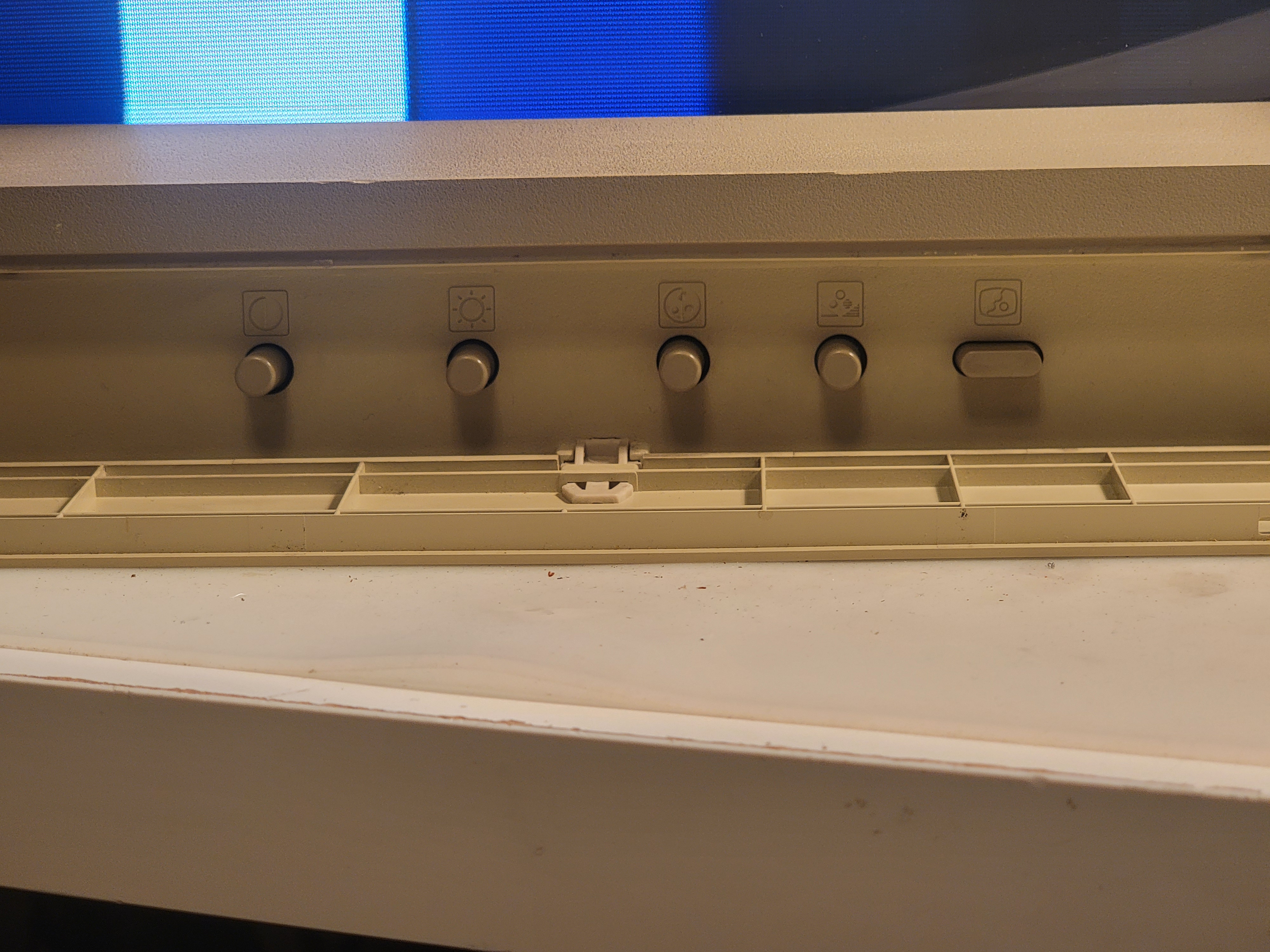

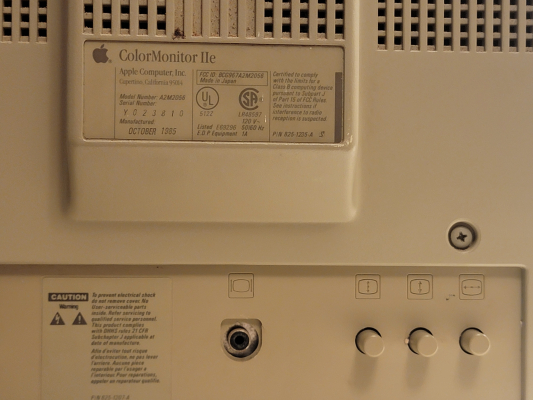

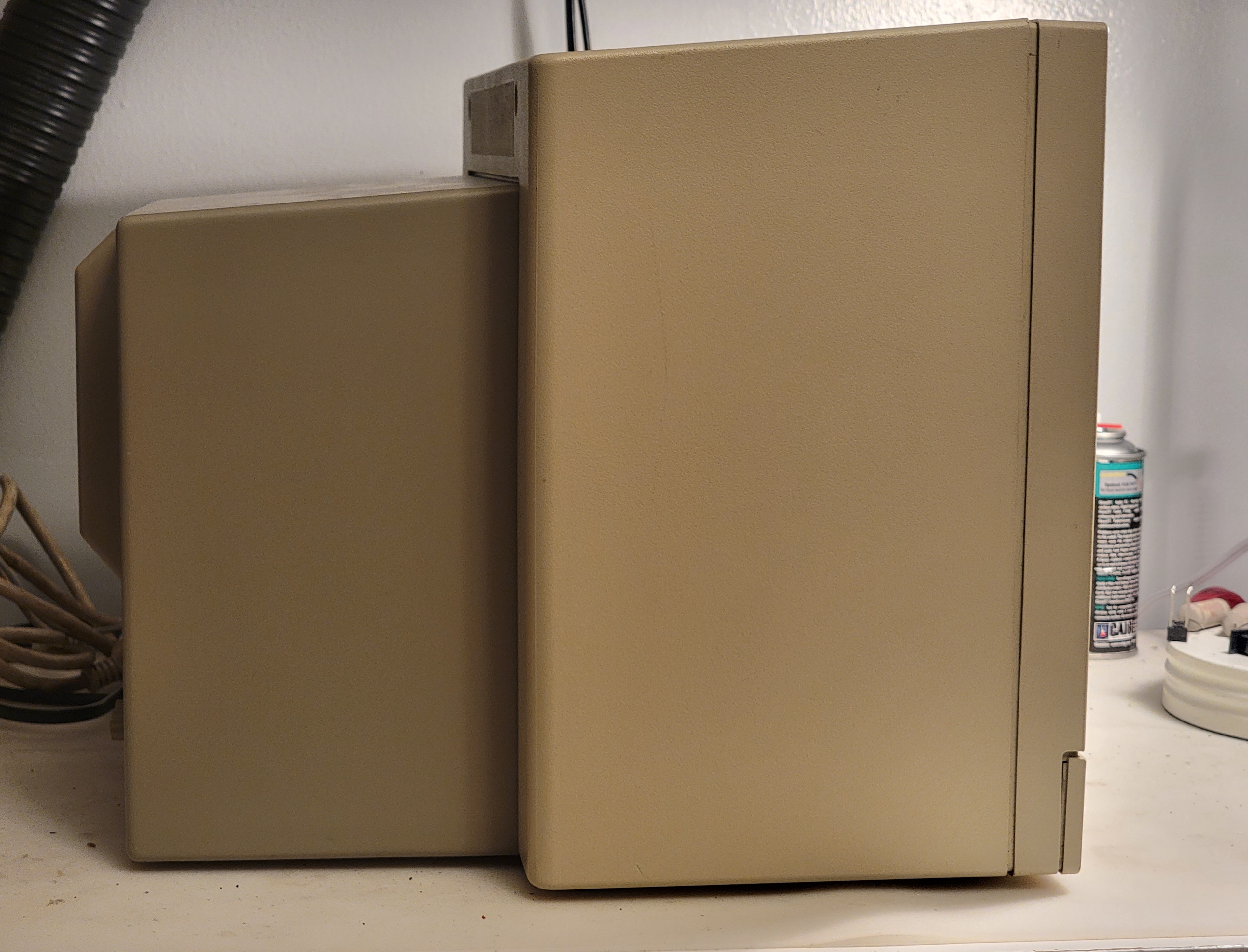

Designed for the Apple //e, the ColorMonitor //e is a beautiful little composite monitor. It accepts 15khz analog video through an RCA input on the back and has very charming mid-80s rainbow-fringed composite processing. The front of the monitor has a monochrome-mode toggle which shuts off the color processing (but is not displaying pure luma, resulting in a screen-door effect over the picture).
Manuals
- Owner's Manual
- Schematic / Service Manual unavailable
Media & Promo Materials
Notes

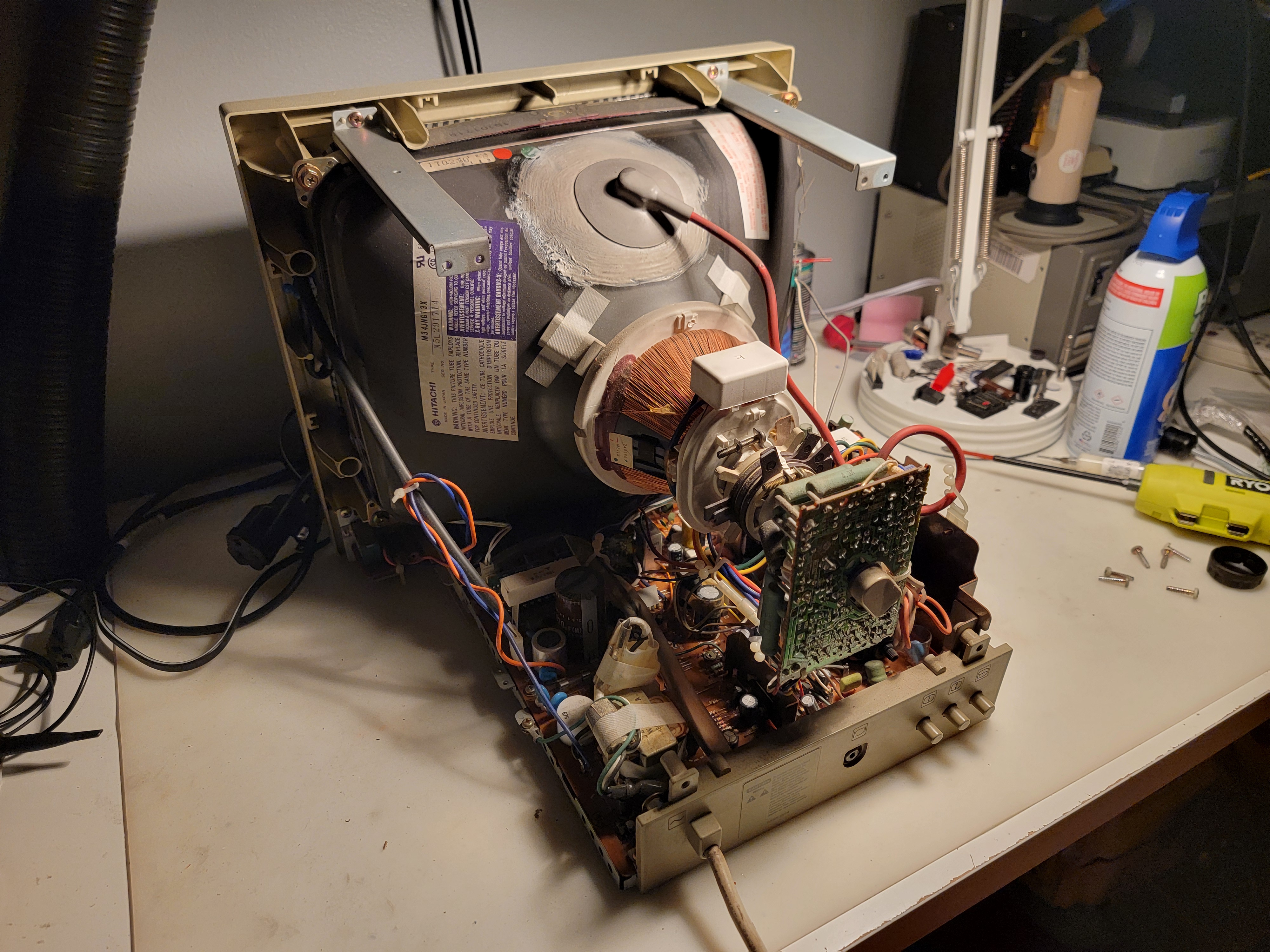

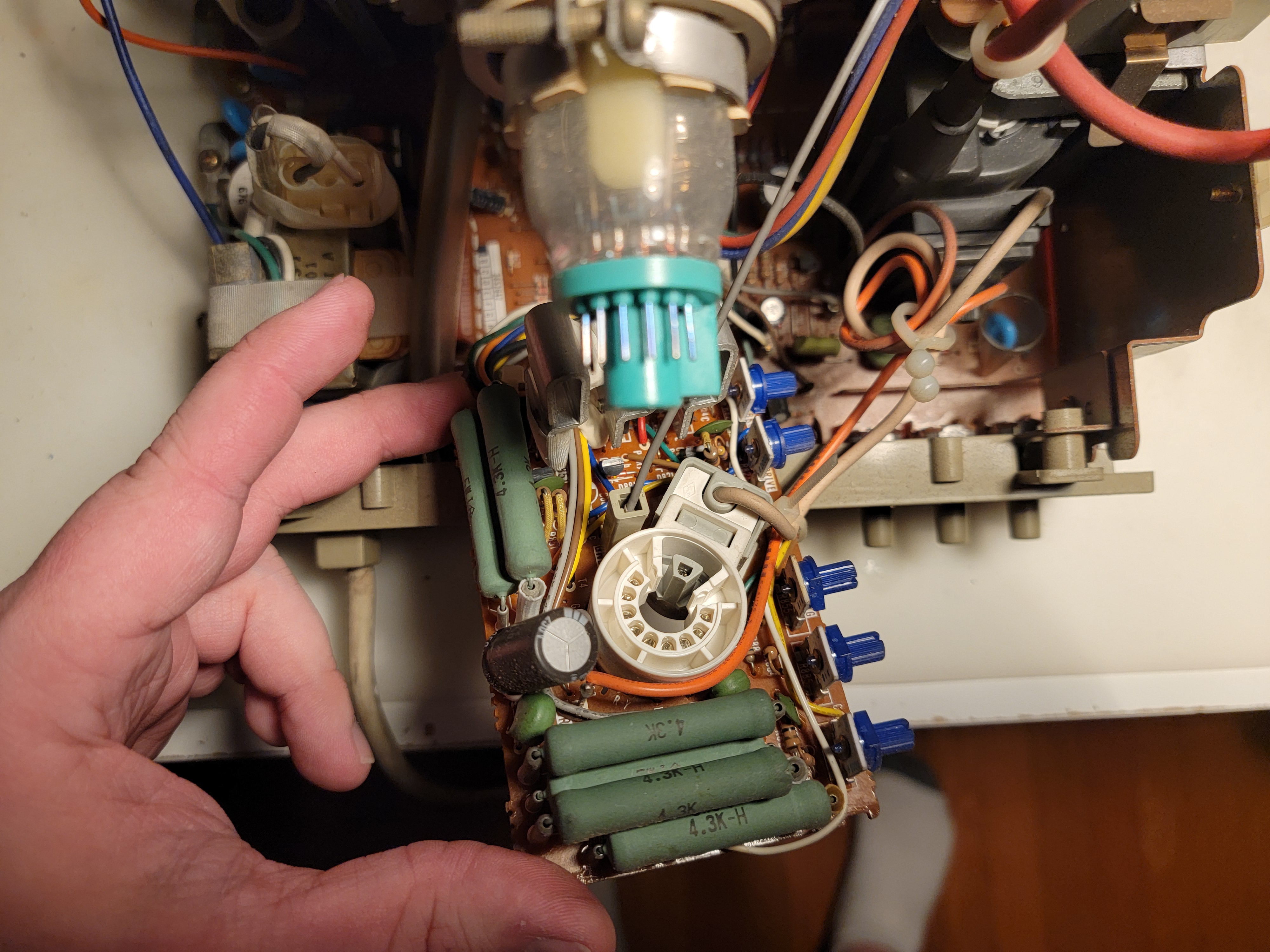

The capacitors in this monitor are prone to leaking and should be replaced. The neckboard inside has drive and bkg adjustments for white balance.
Gallery
| Specifications | |
|---|---|
| Brand: | Apple |
| Manufacturer: | Hitachi |
| Model: | A2M2056 |
| Series: | ColorMonitor |
| Viewable Size: | 13" |
| Inputs: | Composite |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Horz. Output Transistor: | 2SD1453 |
| Vertical Output IC: | uPC1378H |
| Focus Type: | Single |

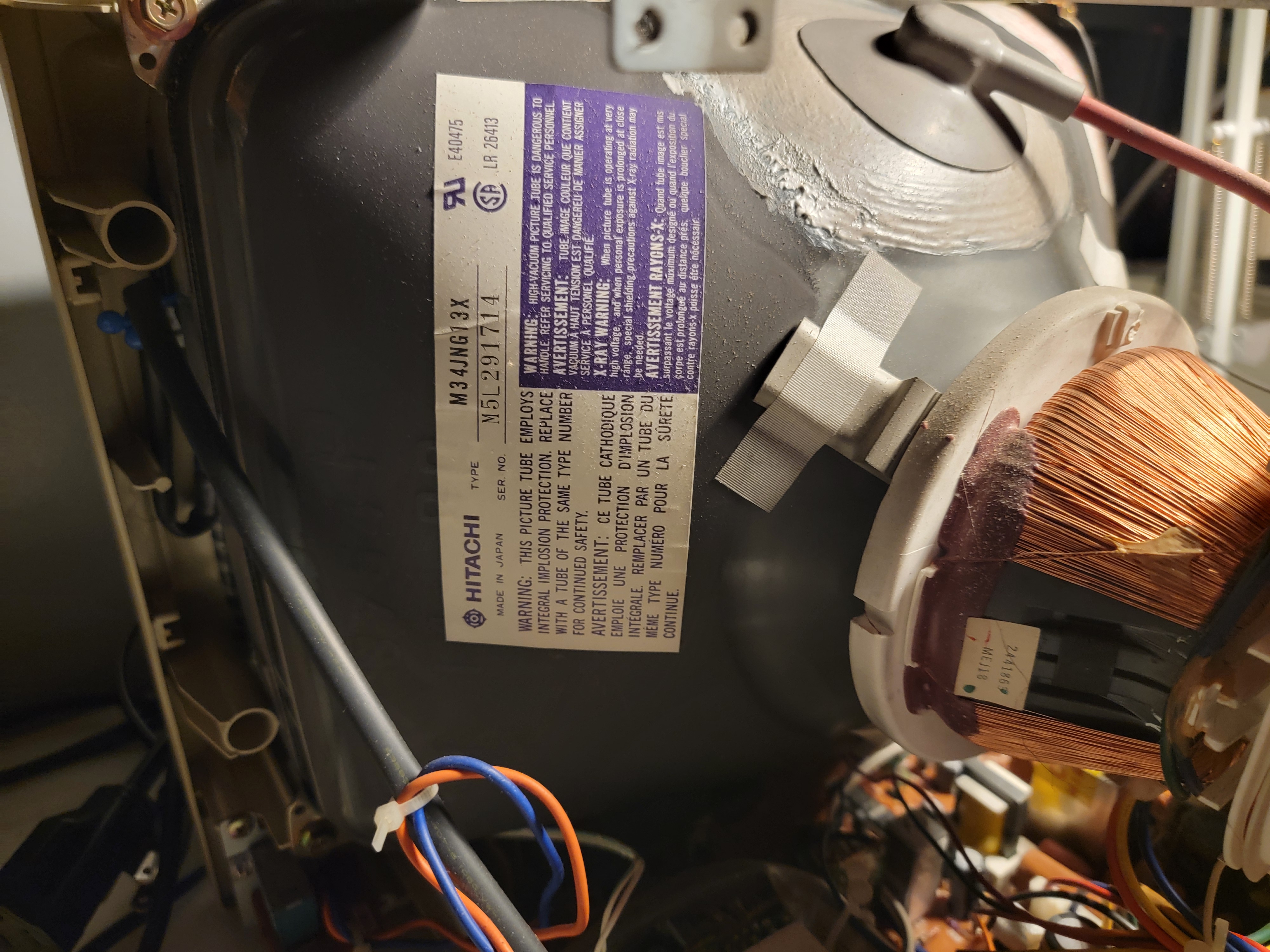

| Tube: | Hitachi , M34JNG13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | .52 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 2441863, MEJ18 |
| Yoke Horz. Inductance: | 2.808 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.81 mH (@ 100 Hz) |
| Speakers: | None |

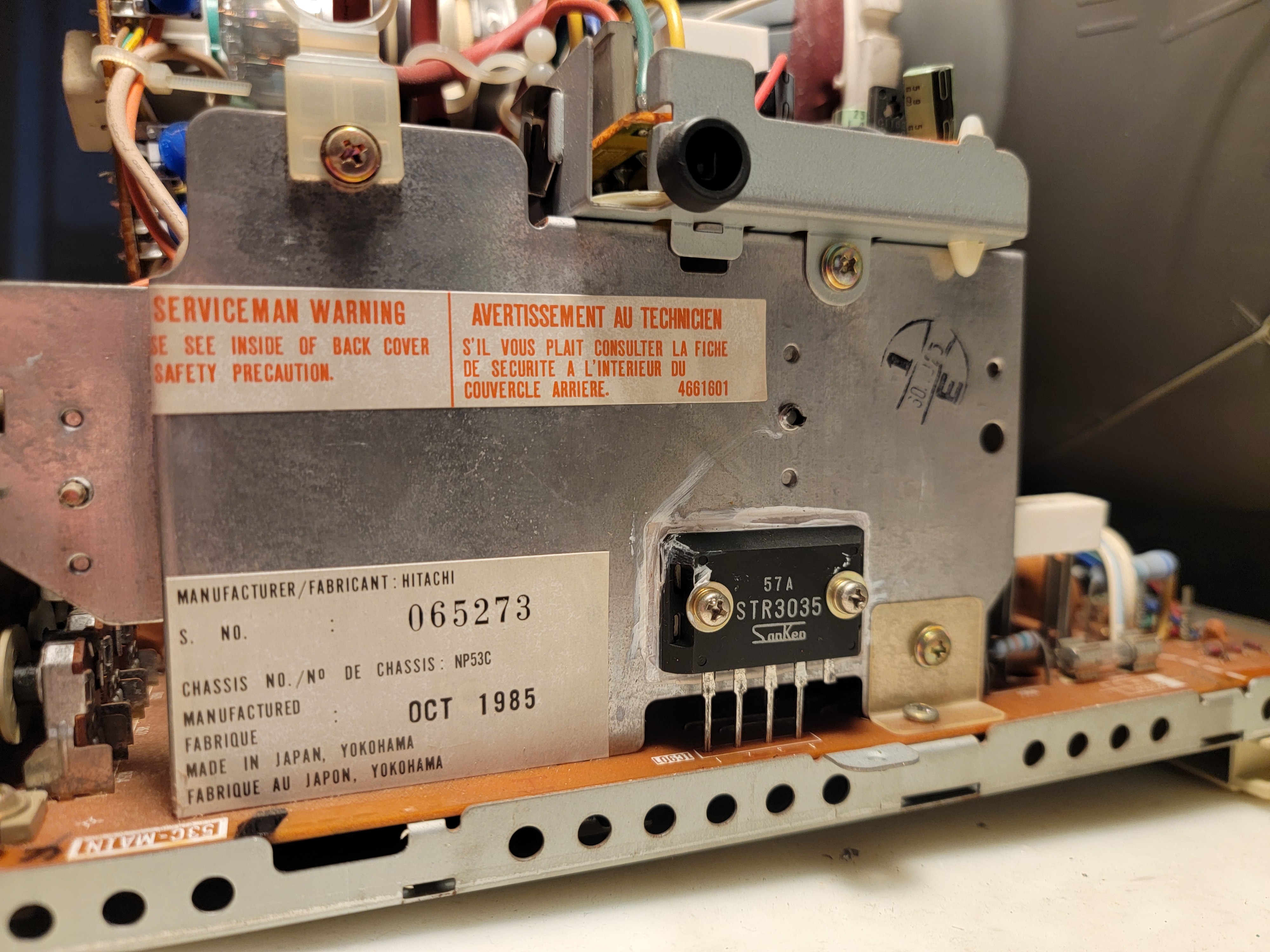

| Chassis: | NP53C |
| Weight: | 27.5 lbs (12.5 kg) |
| Dimensions (W/H/D): |
366 x 315 x 366 mm
(14.4 x 12.4 x 14.4") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1985 |
| Country of Manufacture: | Japan |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
