Summary
Apple's "Multiple Scan 720" monitor, despite its similarity to the classic skateboarding game, is a 70 kHz multisync computer monitor. Manufactured by LG, it uses a 17" shadow mask tube and has similar performance to other PC monitors of its size.
Manuals
Notes
The monitor comes with a built in video cable with a proprietary Macintosh DA-15 connector. It was advertised as being compatible with PCs, and was sold with a VGA to Mac adapter. An adapter can easily made by soldering a female DA-15 connector to a VGA cable, and commercially produced versions are available.
DB15 Pinout
- Ground
- Red
- Green
- Ground
- Blue
- V Sync
- Ground
- H Sync

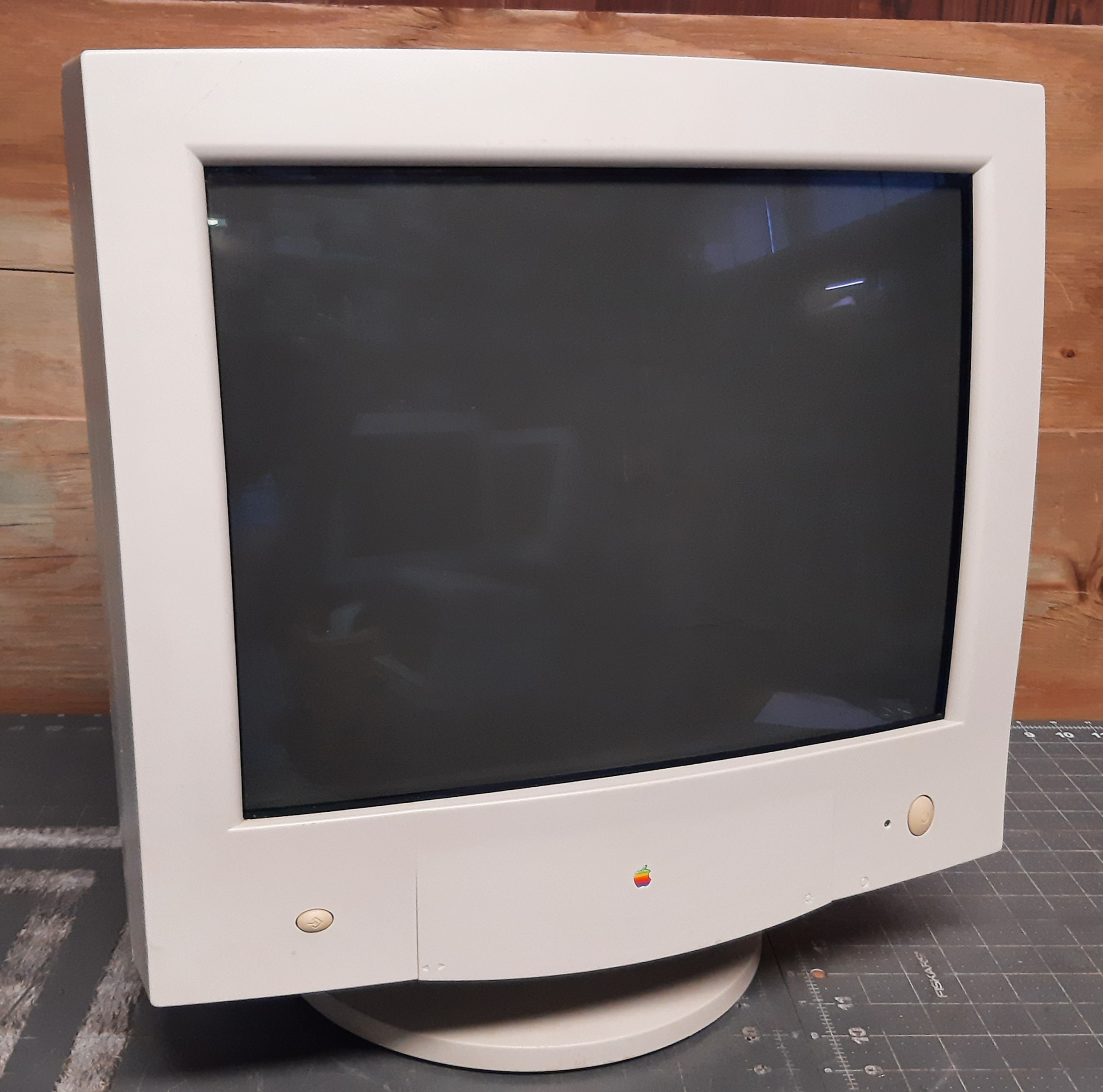

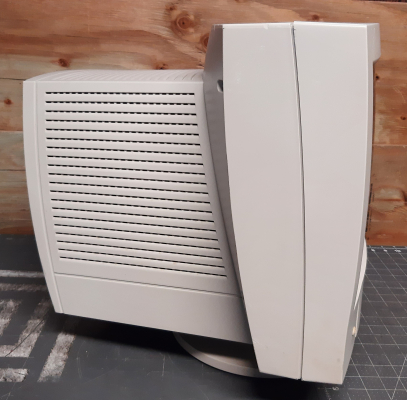

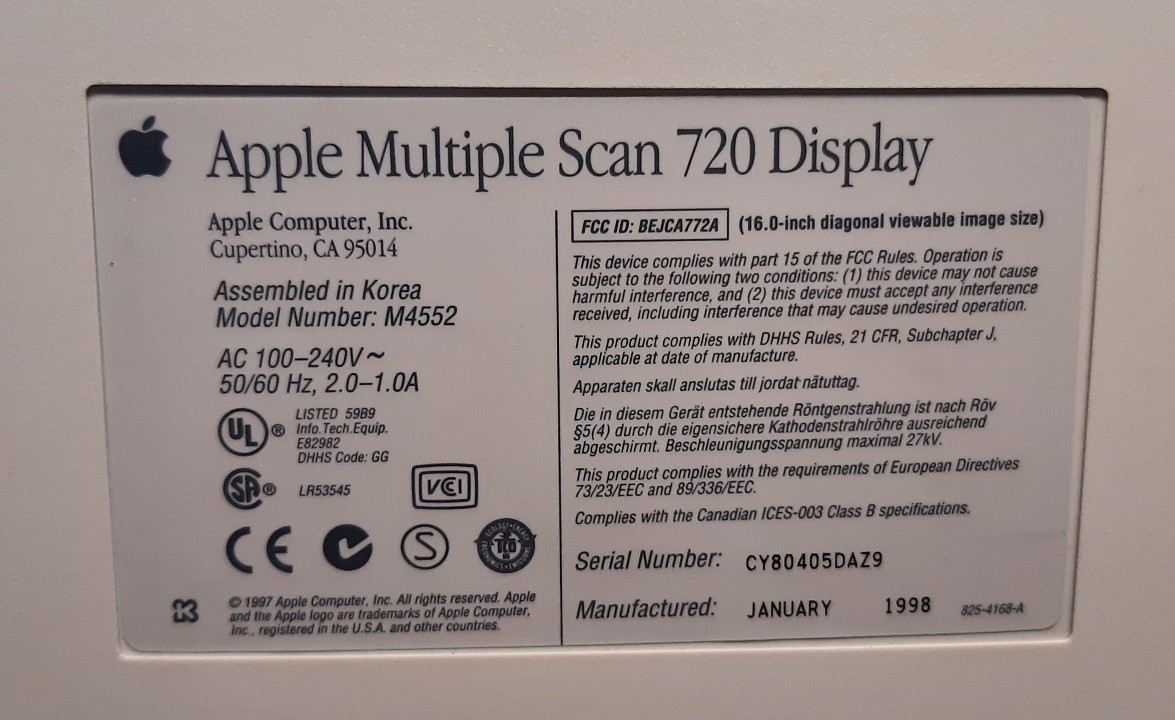

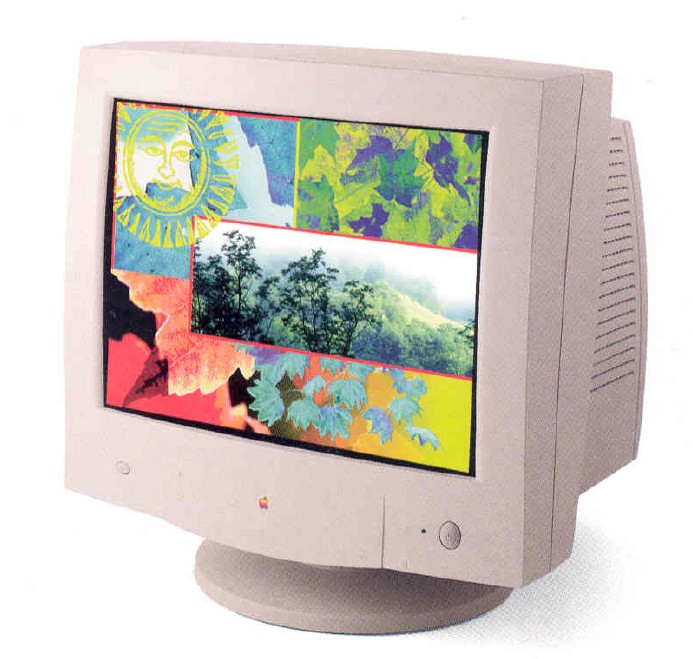

Gallery
| Specifications | |
|---|---|
| Brand: | Apple |
| Manufacturer: | LG |
| Model: | Multiple Scan 720 |
| Series: | Multiple Scan |
| Viewable Size: | 16" |
| Inputs: | RGB |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 69 kHz |
| Vertical Scan Range: | 48 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | Front Mounted Buttons |
| Tube: | LG , M41LFQ813X , M41LFQ813X07 |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | Yes |
| Yoke: | 6150Z-3221A |
| Yoke Horz. Inductance: | 0.13897 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 4.868 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.39 ohm, 0.390 ohm |
| Yoke Vert. Resistance: | 7.82 ohm |
| Speakers: | None |
| Weight: | 37.5 lbs (17 kg) |
| Dimensions (W/H/D): |
412 x 431 x 428 mm
(16.2 x 16.9 x 16.8") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| MSRP: | 649 USD |
| Country of Manufacture: | Korea |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Pictures |
