Bang & Olufsen MX4000
Trixter192, Is It Filip?
January 25, 2025, 11:08 pm
November 5, 2025, 8:13 pm
January 25, 2025, 11:08 pm
November 5, 2025, 8:13 pm
Summary

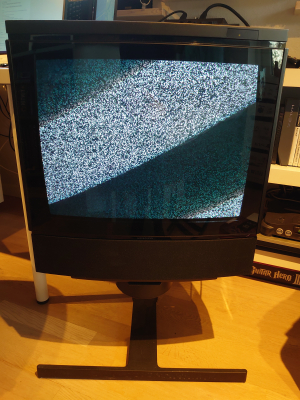

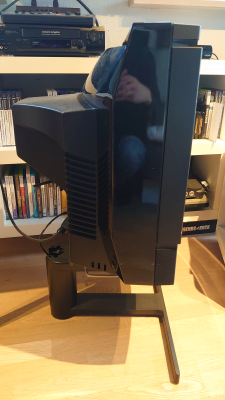

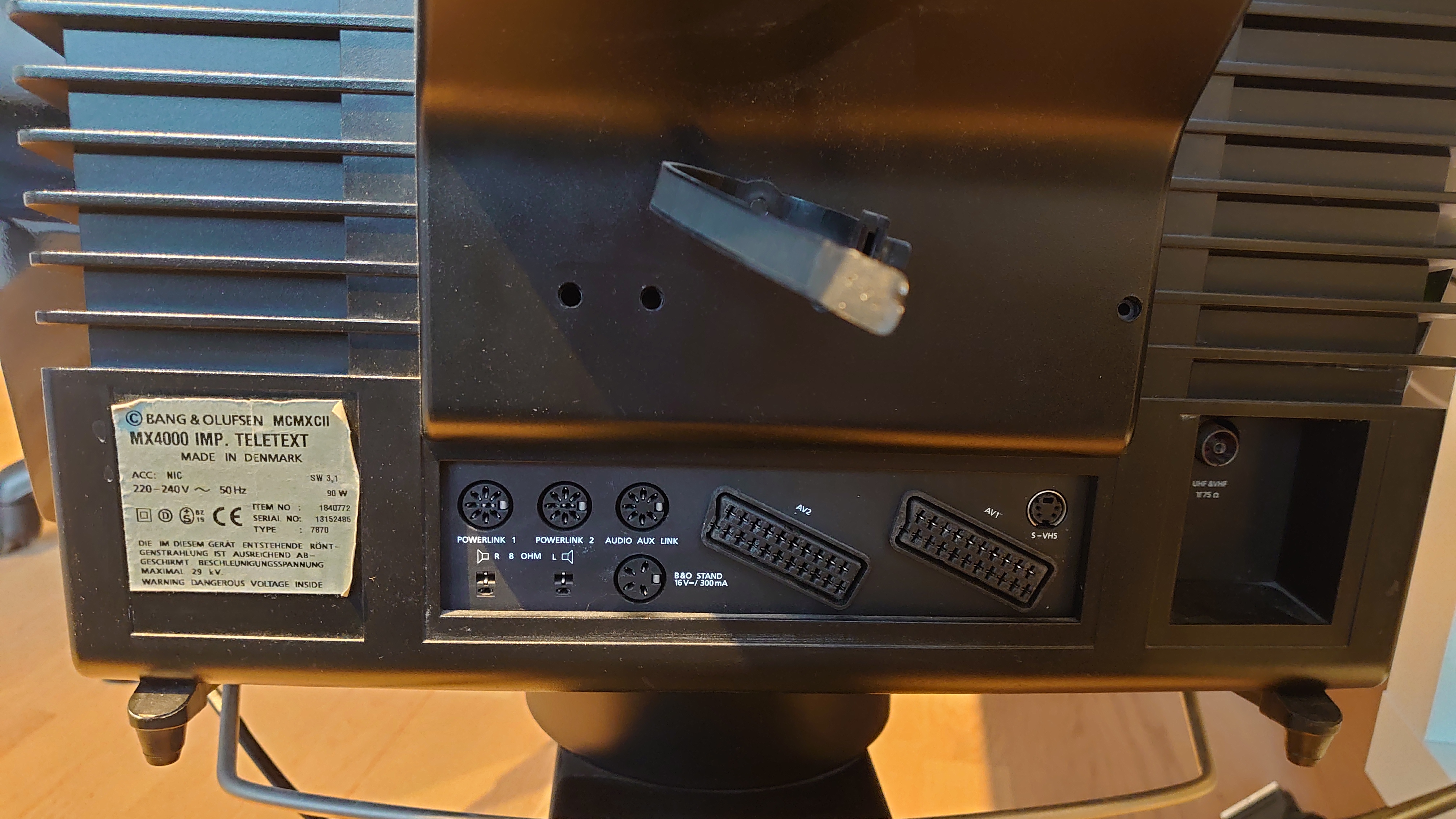

High end 220v european consumer set with RF, s-video, and 2 scart inputs. Two way communicating remote. Interesting stand with an optional horizontally motorized feature.
Manuals
Notes
- To use s-video, you need to disable one of the scart ports, which is done in settings/options. You can now run the audio for s-video through the scart port.
- There are multiple revisions of this tv, which affect internal software and different remotes. Pay close attention to what version you have compared to documentation you are reading.
- Reddit post with a lot of useful information and links
Media & Promo Materials

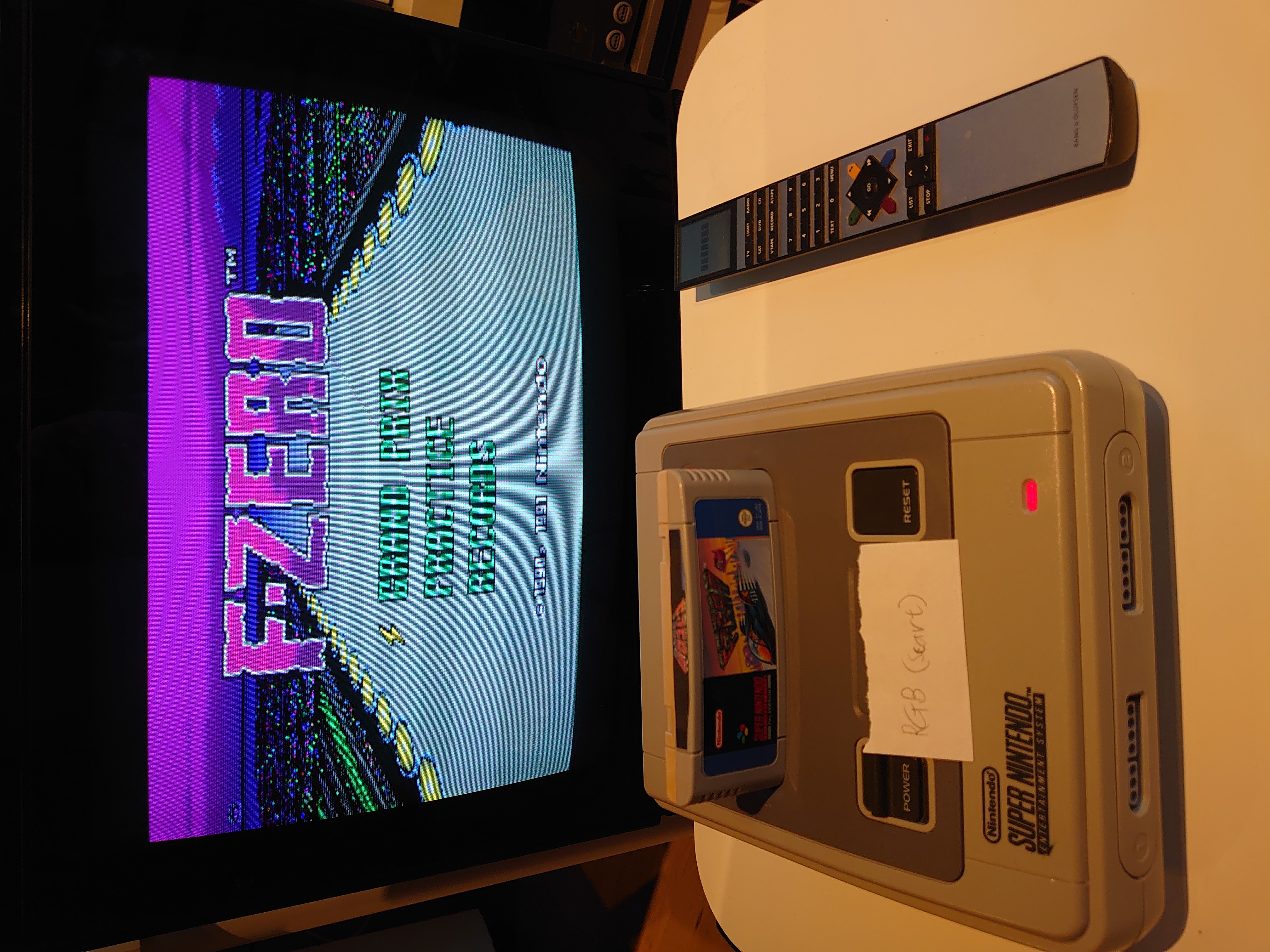

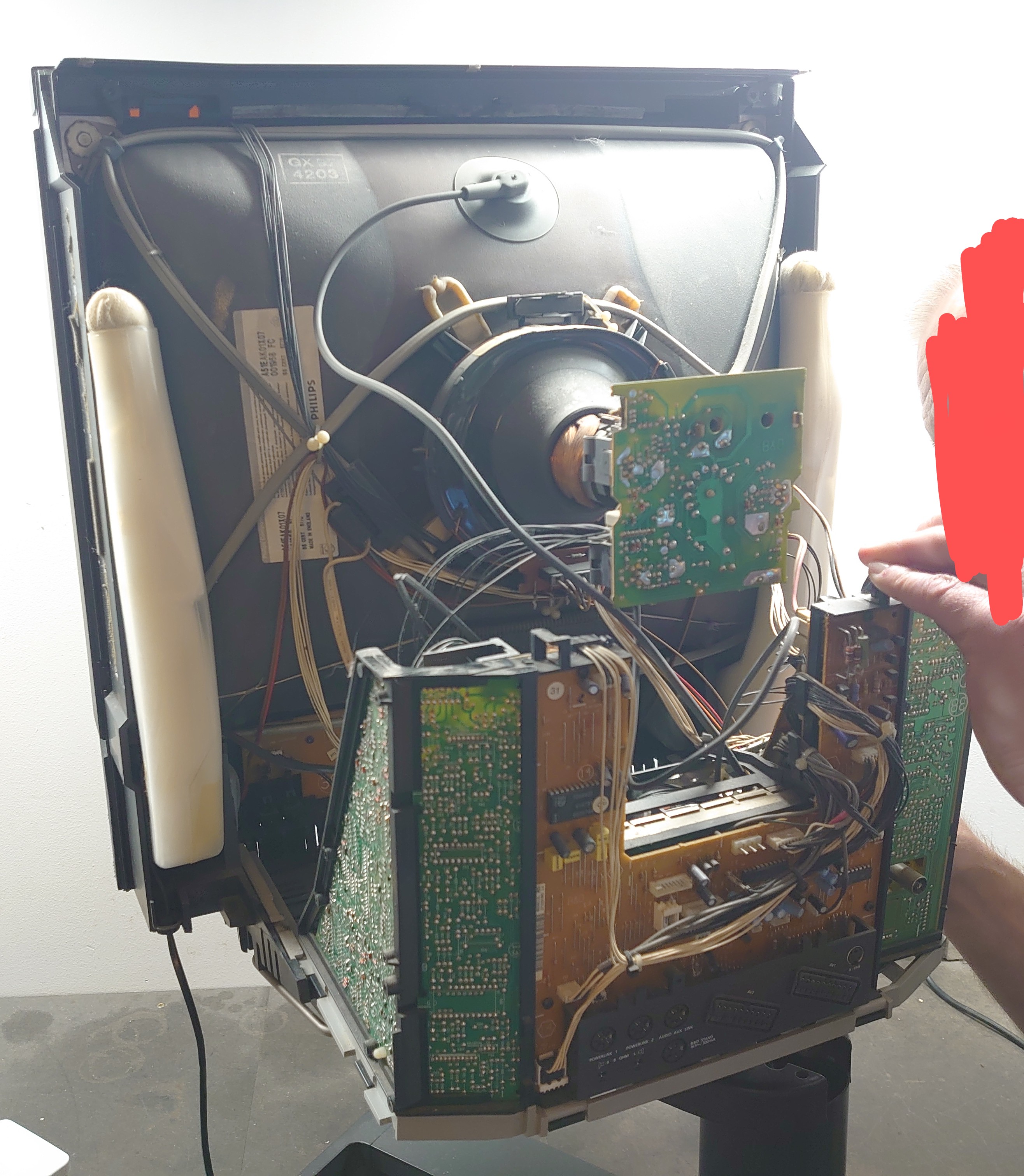

Gallery
| Specifications | |
|---|---|
| Brand: | Bang & Olufsen |
| Manufacturer: | Bang & Olufsen |
| Model: | MX4000 |
| Series: | MX |
| Viewable Size: | 20" |
| Inputs: | Composite, S-Video, RF, RGB |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | TDA8172 |
| Jungle IC: | TDA3505 |
| Focus Type: | Single |
| Tube: | Philips , A51EAK01X07 , A51EAK01X |
| Heater Voltage: | 6.3v |
| Deflection: | 100° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, Headphone Jack, Amplifier |

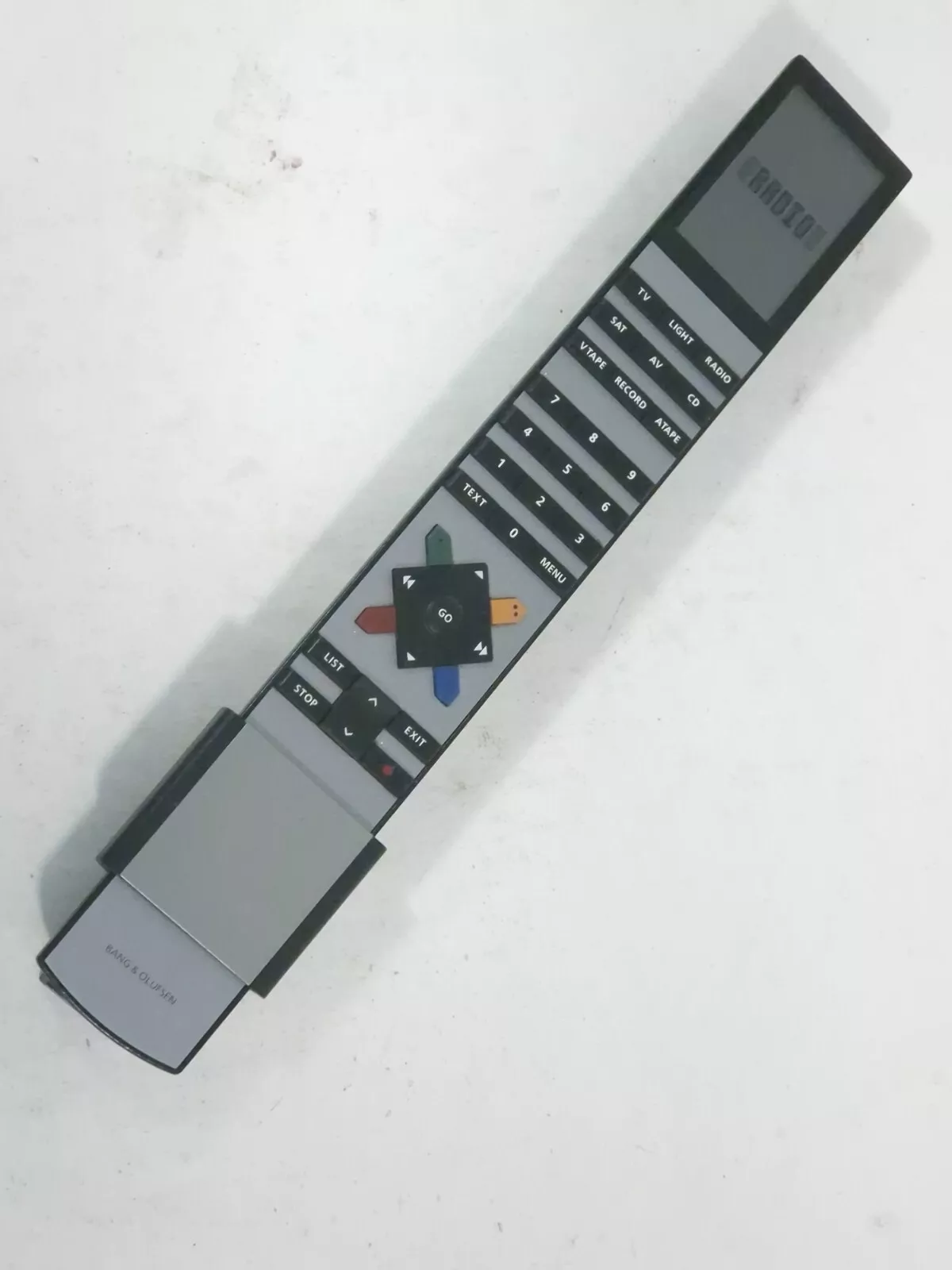

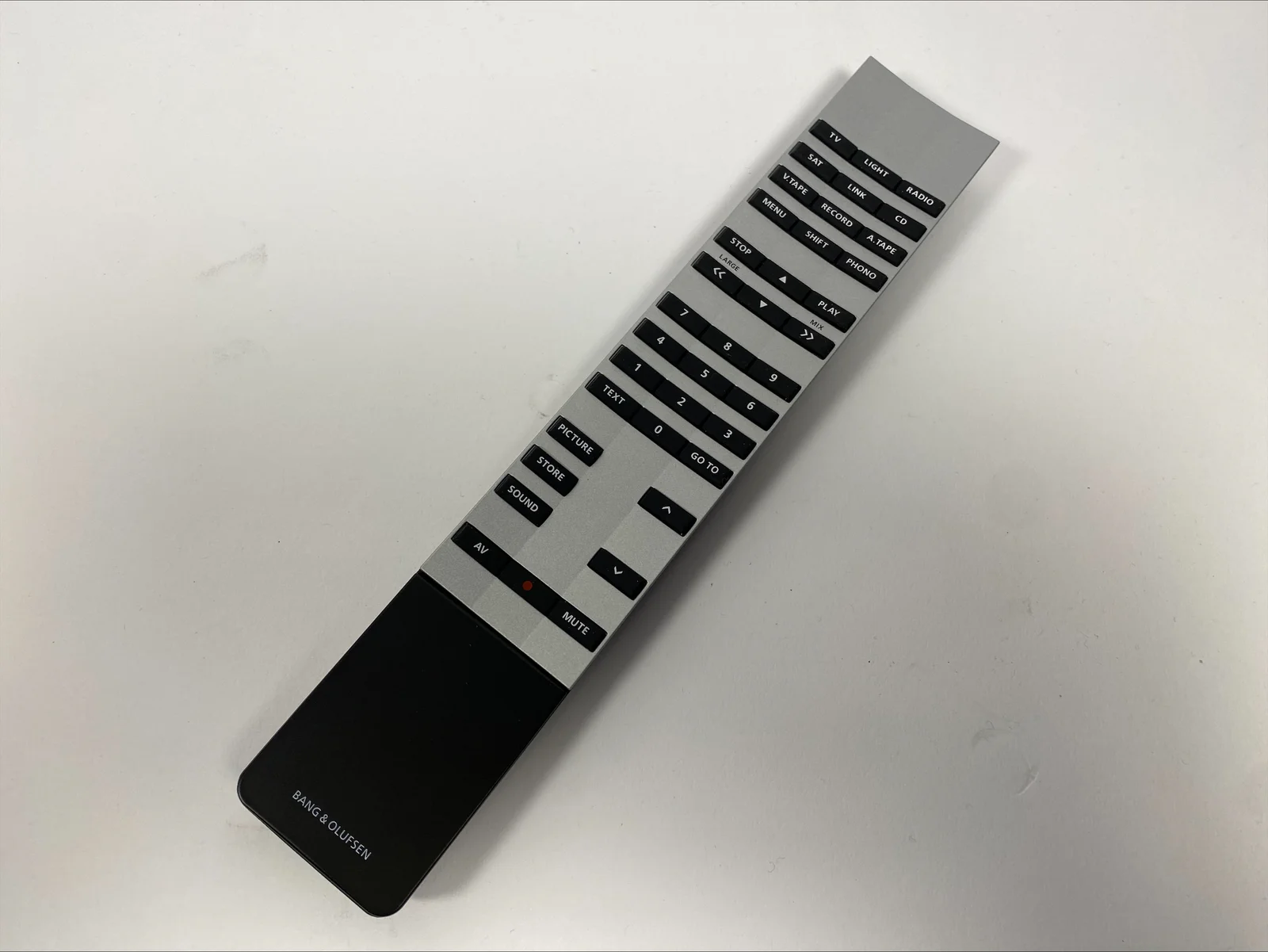

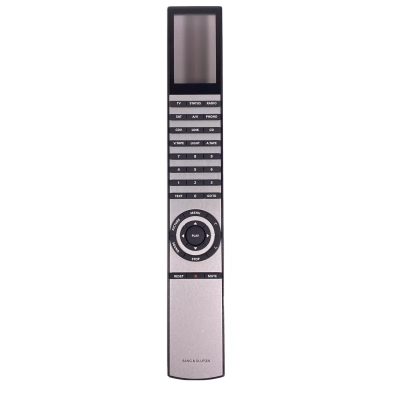

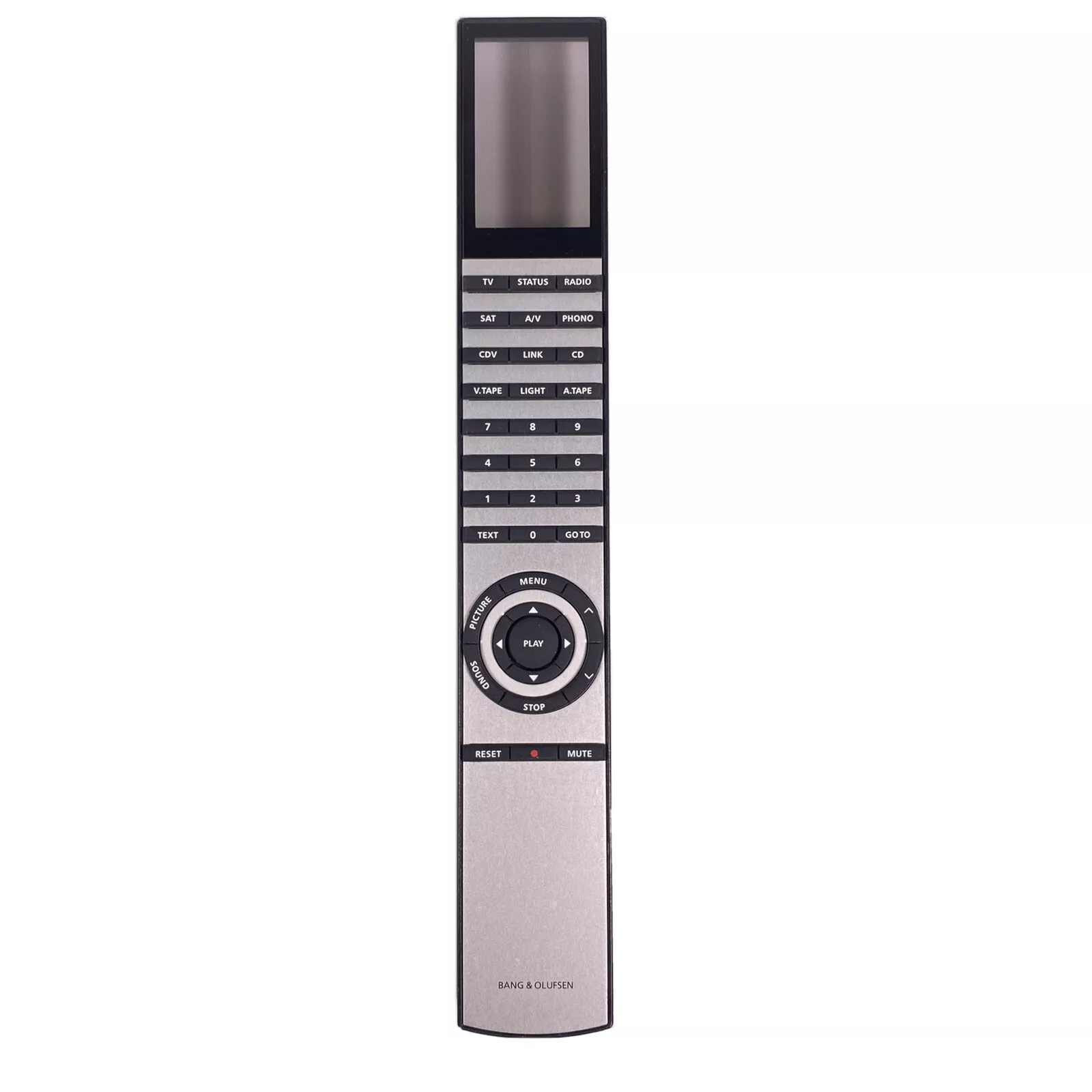

| Remote: | Beolink 1000, Beolink 5000, Beo4 MK I |
| Weight: | 51 lbs (23.1 kg) |
| Dimensions (W/H/D): |
510 x 550 x 415 mm
(20 x 21.6 x 16.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1986 |
| MSRP: | 1722 USD |
| Country of Manufacture: | Denmark |
| Market: | Europe |
| Power Standard: | 220v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info, Community Submission |
