Barco Mega Calibrator
July 3, 2025, 4:59 pm
Summary
The Mega Calibrator, along with its closely similar predecessor and variants, is presumed to be the largest 4:3 aspect CRT computer monitor ever commercially available. Built around a fine pitch 29" curved dot trio tube from Panasonic. With its combined size and resolution unmatched, it was marketed towards critical applications such as professional graphics, CAD, geography, film, and even medical imaging.
Controls
Barco's Calibrator line of computer monitors came equipped with a plethora of adjustments accessible to the end user, many of which are made through Barco's proprietary CalibratorTalk software. The earlier Calibrator line which the Mega Calibrator belongs to, features an off-screen-display, in this case a matrix LCD placed between the front panel control buttons. It is possible to disable much of the front panel controls using CalibratorTalk, placing the monitor in a partially functional state without the software.
Literature
User Manual (partially complete)
Notes
Currently no CalibratorTalk version compatible with the MegaCalibrator is known to exist online.
There is very little online regarding this monitor. Almost or user discussion exists on it, and very few photos. If you own one or have any copies of software or documentation, please submit some info.

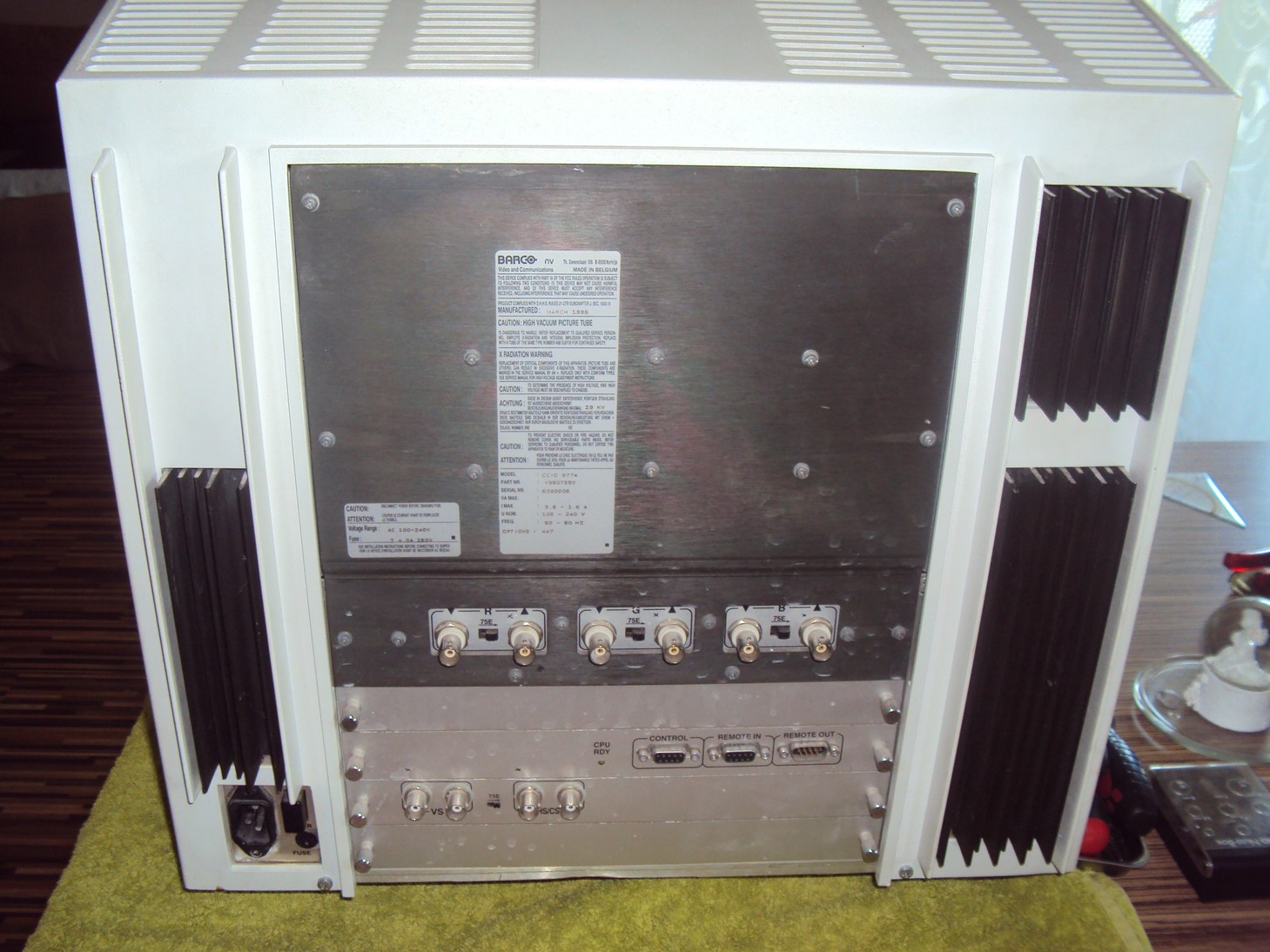

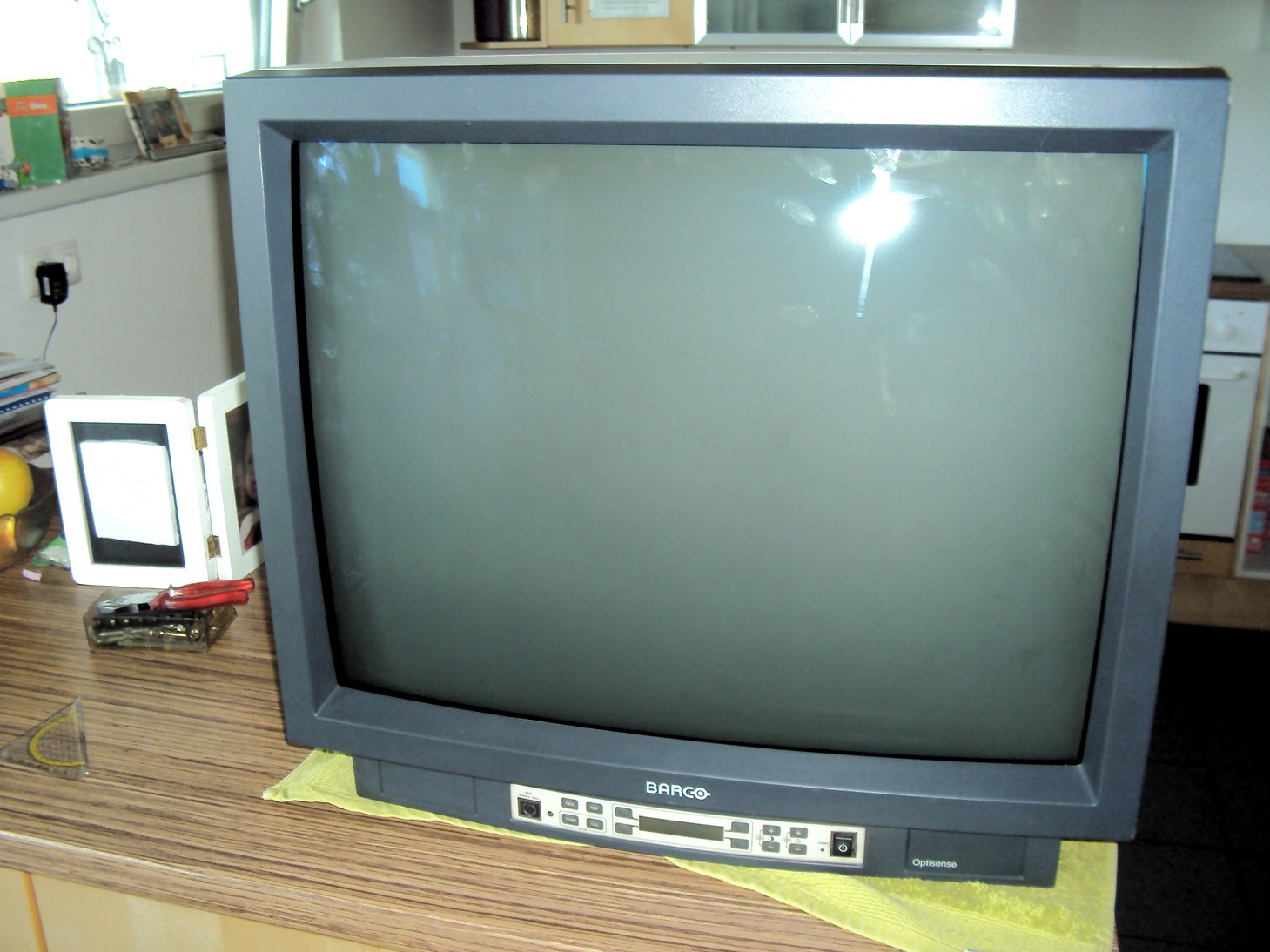

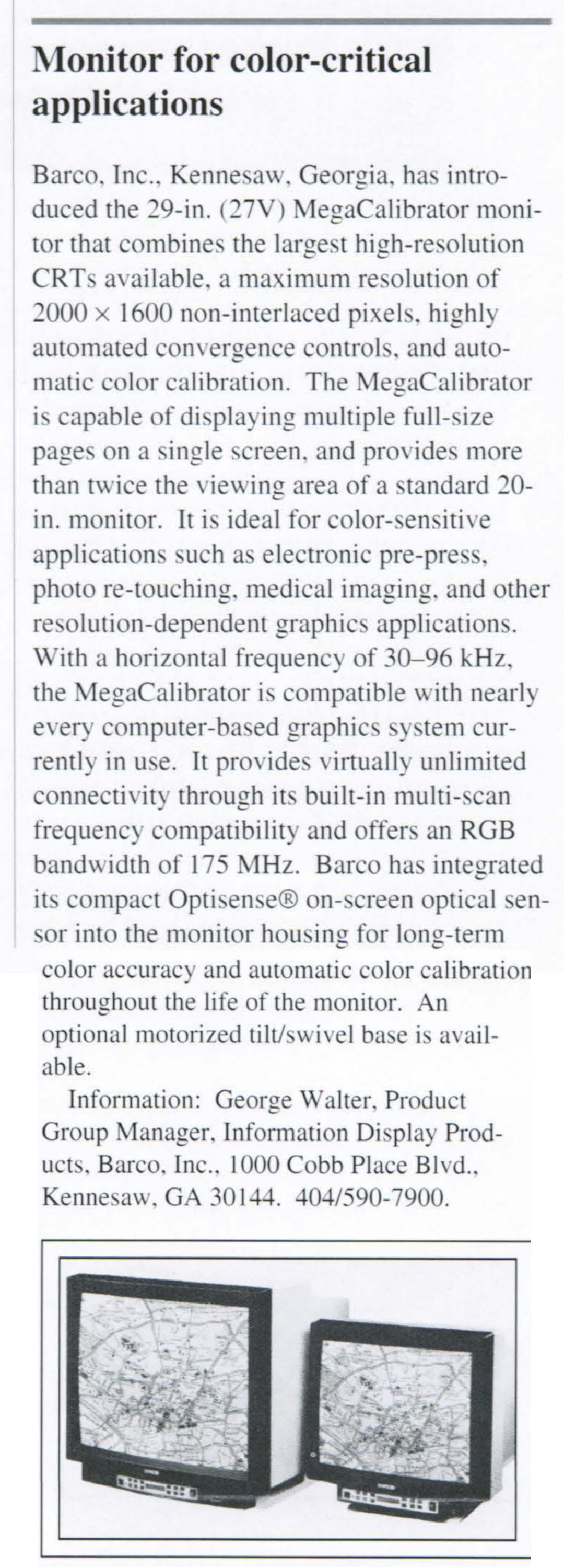

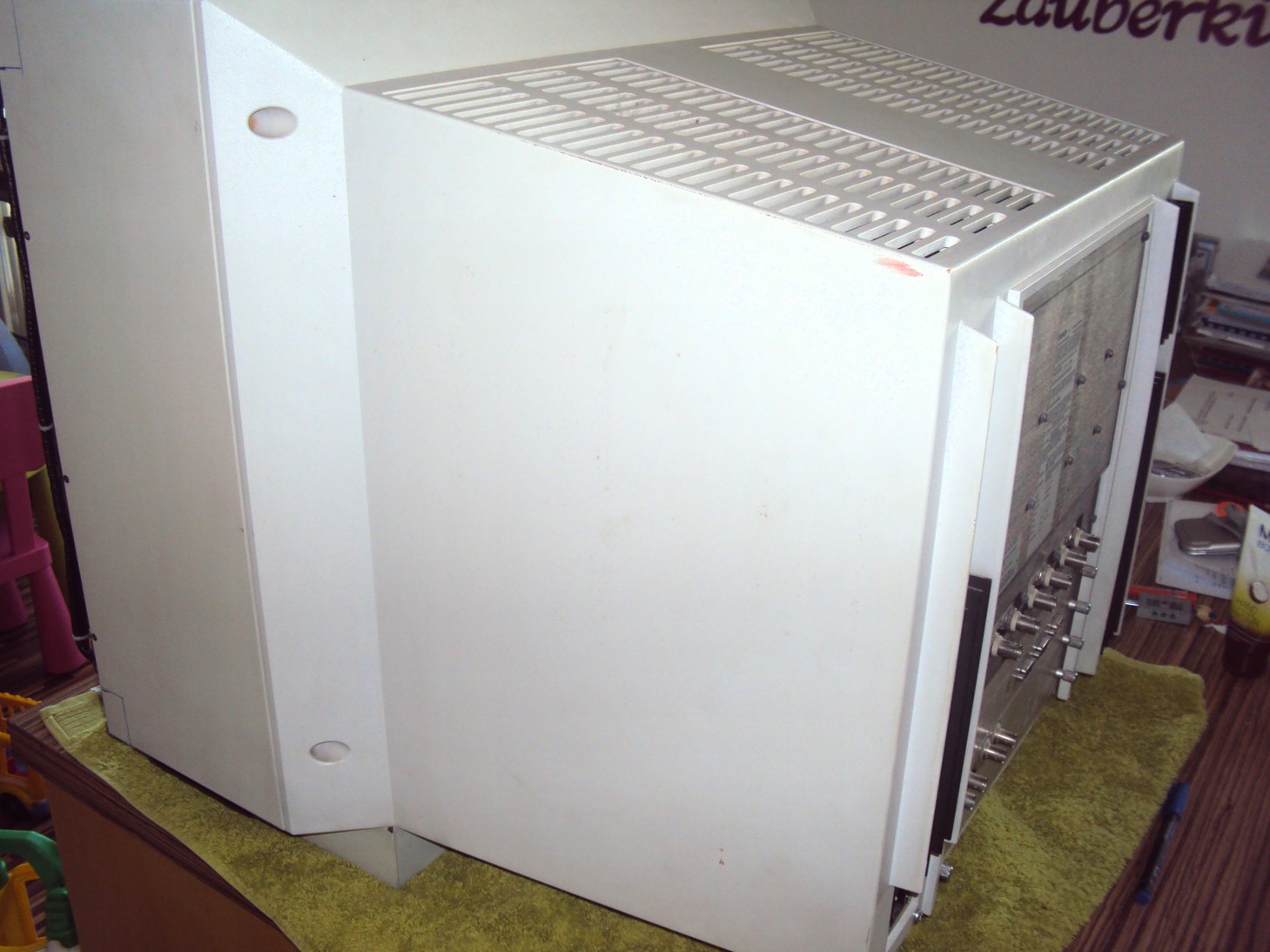

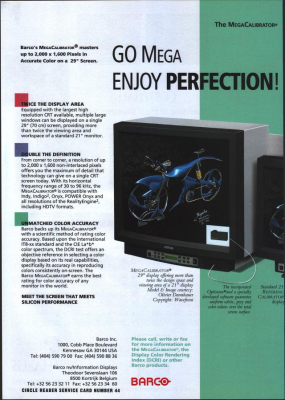

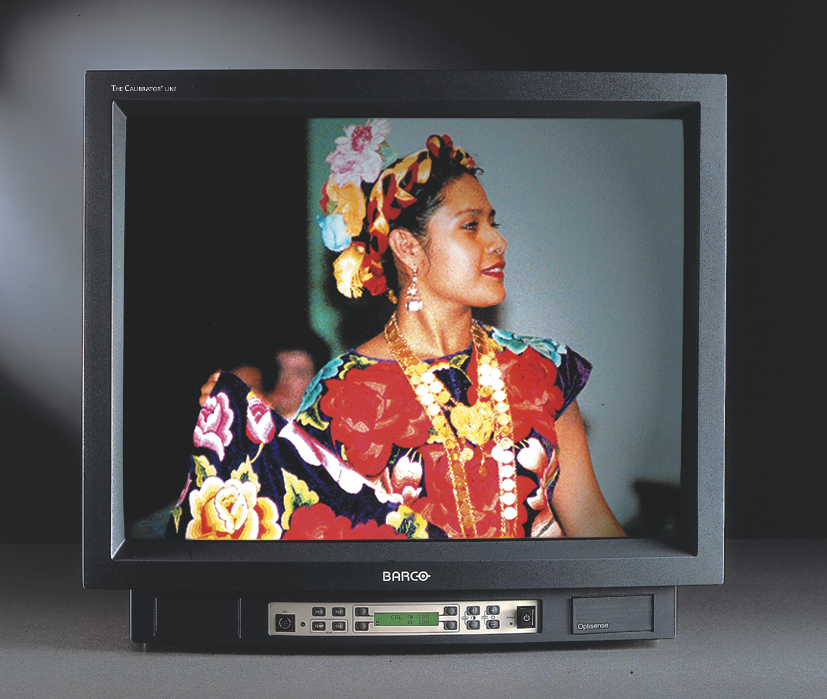

Gallery

Specifications | |
---|---|
Brand: | Barco |
Manufacturer: | Barco |
Model: | CCID-9774 |
Series: | Calibrator |
Viewable Size: | 27" |

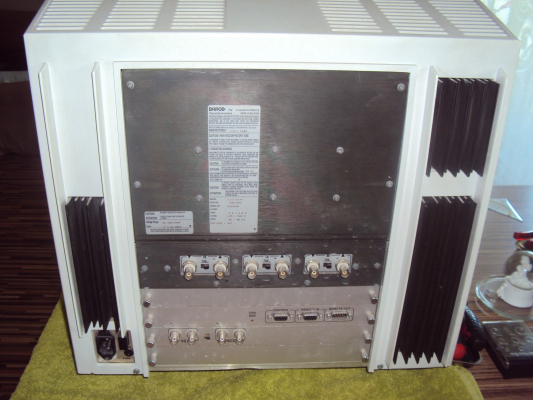

Inputs: | RGBHV, BNC |
Sync: | HV Sync, CSYNC, Sync on Green |
Native Resolutions: | VGA, SVGA, XGA, 1080i, 720p |
Horizontal Scan Range: | 30 kHz, 96 kHz |
Vertical Scan Range: | 120 Hz, 46 Hz |
Aspect: | 4:3 |
Adjustments: | Front Mounted Buttons, Software Calibration, Digital Convergence |
Focus Type: | Dual |
Tube: | Panasonic , M68KPW115X |
Deflection: | 90° |
Mask: |
Shadow
![]() |
Pitch: | 0.37 mm |
Speakers: | None |
Weight: | 163 lbs (73.9 kg) |
Application: | Computer Monitor |
Cabinet Material: | Metal |
MSRP: | 20000 USD |
Country of Manufacture: | Belgium |
Market: | Worldwide |
Power Standard: | Universal |
Mounting: | Table Surface (Standard) |
Tag: | Needs Owners Manual, Needs Service Manual, Needs Yoke Info, Needs Pictures |
