Summary

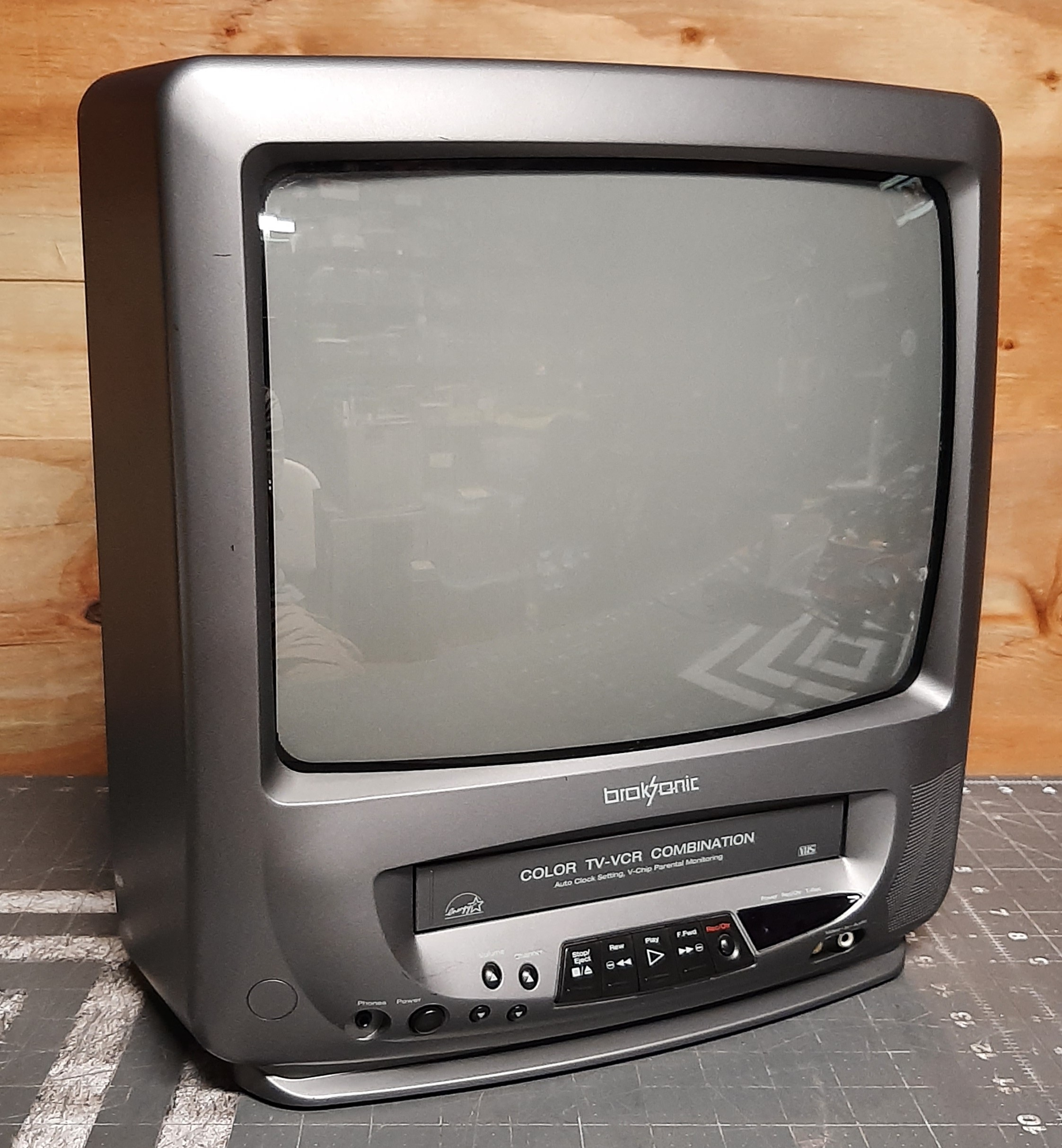

13" TV/VCR combo, manufactured by Orion. This TV was sold under several brand names including Toshiba, JVC, and Zenith (with minor stylistic changes).
Manuals
Media & Promo Materials
Notes
Unlike some Orion TVs, the AV input can be selected with the channel buttons. However, a remote is still required to access the user menu.
Gallery
| Specifications | |
|---|---|
| Brand: | Broksonic |
| Manufacturer: | Orion |
| Model: | CTSGT-8118CTTC |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2627 |
| Vertical Output IC: | AN5522 |
| Flyback: | 3213013R |
| Tube: | Orion , A34AGT13X98 , A34AGT13X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Yoke: | MK-14003AL2 |
| Yoke Horz. Inductance: | 3.934 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.82 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 5.4 ohm |
| Yoke Vert. Resistance: | 14.7 ohm |
| Speakers: | Mono |
| Weight: | 24.3 lbs (11 kg) |
| Dimensions (W/H/D): |
502 x 483 x 514 mm
(19.7 x 19 x 20.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Thailand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
