Summary
13" RF only TV, manufactured by Orion.
Literature
No documentation is available online at this time.
Notes
Service menu can be accessed the same way as most Orion TVs. Set volume to minimum, then hold volume down on the TV and number 9 on the remote.
As with most RF-only TVs, this model has a hot chassis and should not be modified for additional inputs.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.

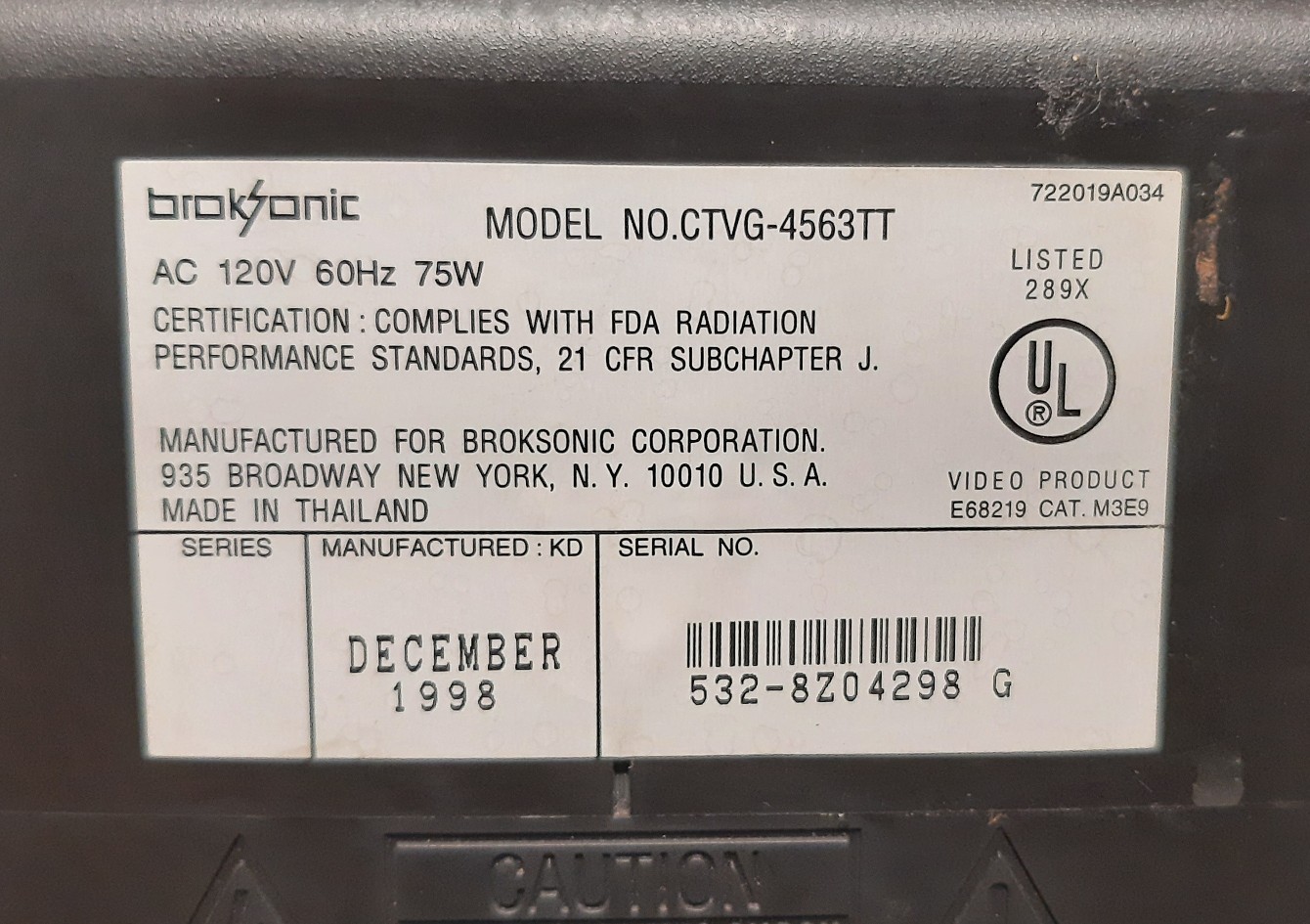

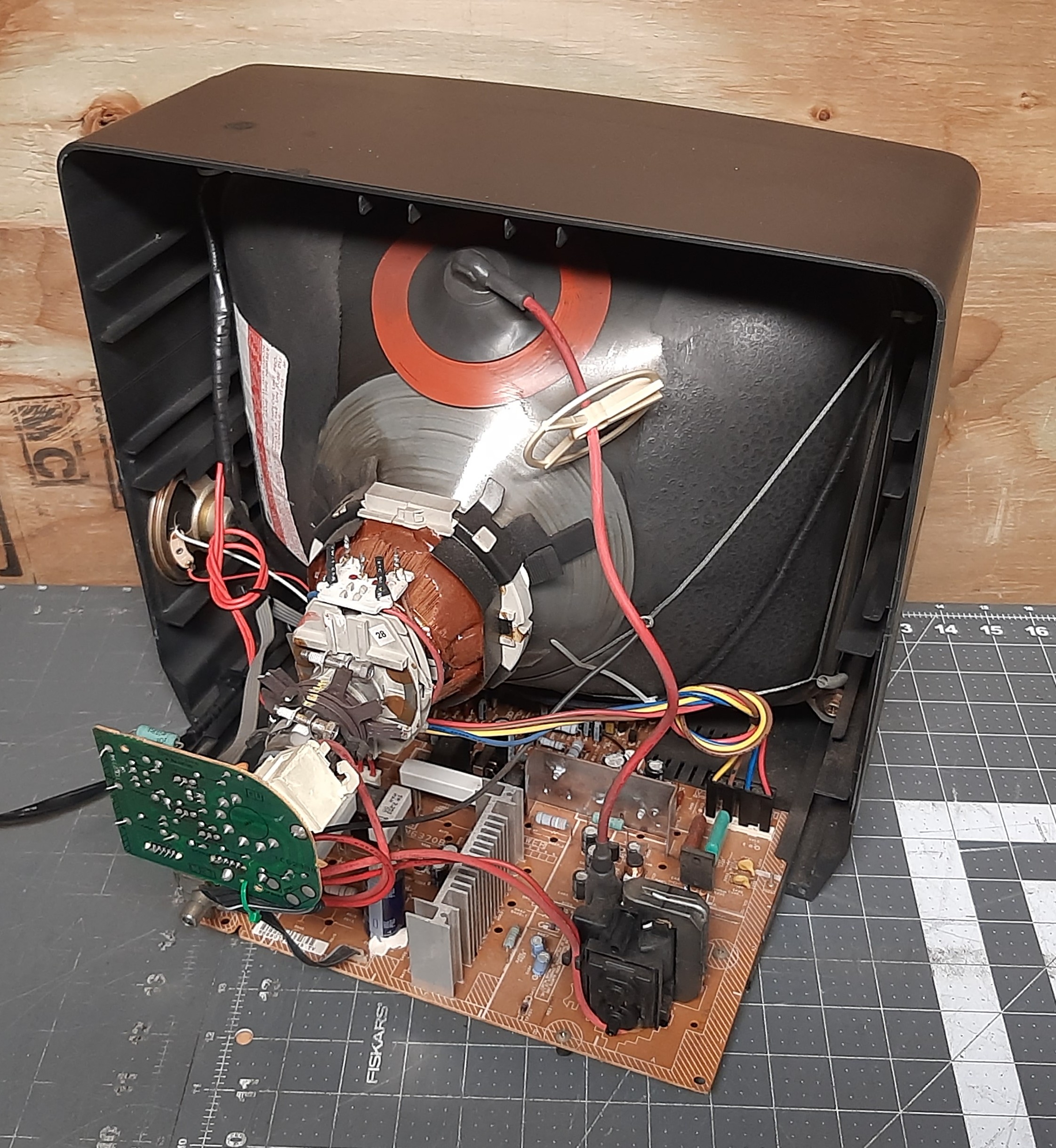

Gallery
| Specifications | |
|---|---|
| Brand: | Broksonic |
| Manufacturer: | Orion |
| Model: | CTVG-4563TT |
| Series: | CTV |
| Viewable Size: | 13" |
| Inputs: | RF |
| Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2599 |
| Vertical Output IC: | LA7840 |
| Jungle: | LA76070 |
| Comb Filtering: | None |
| Flyback: | FCK-14A025A |
| Tube: | Orion , A34AGT13X , A34AGT13X78 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Yoke: | MK-14003AL2 |
| Yoke Horz. Inductance: | 3.727 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.74 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 5.18 ohm |
| Yoke Vert. Resistance: | 15.60 ohm |
| Speakers: | Mono |
| Weight: | 19.8 lbs (9 kg) |
| Application: | Consumer |
| Launched: | 1998 |
| Country of Manufacture: | Thailand |
