Summary

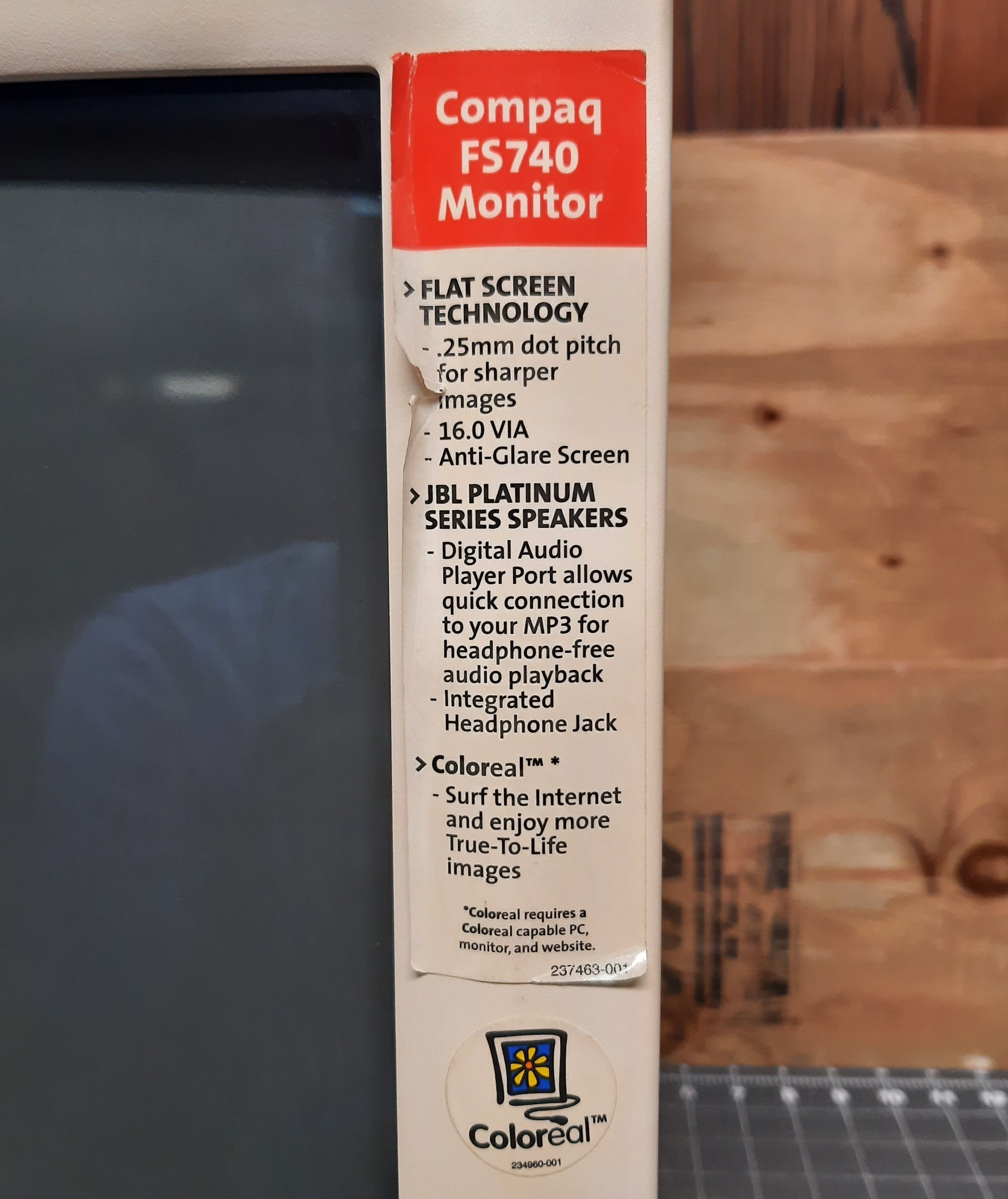

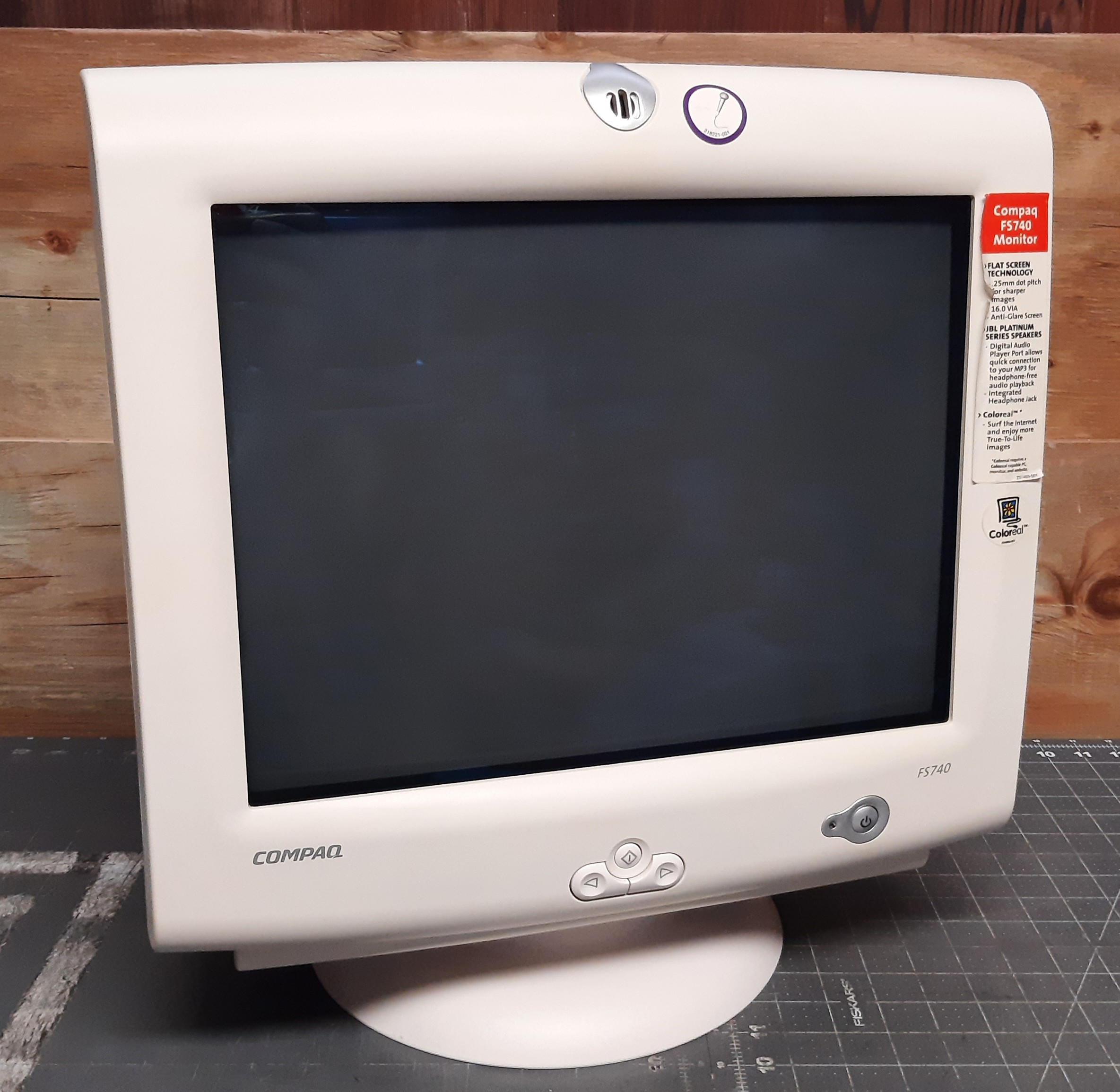

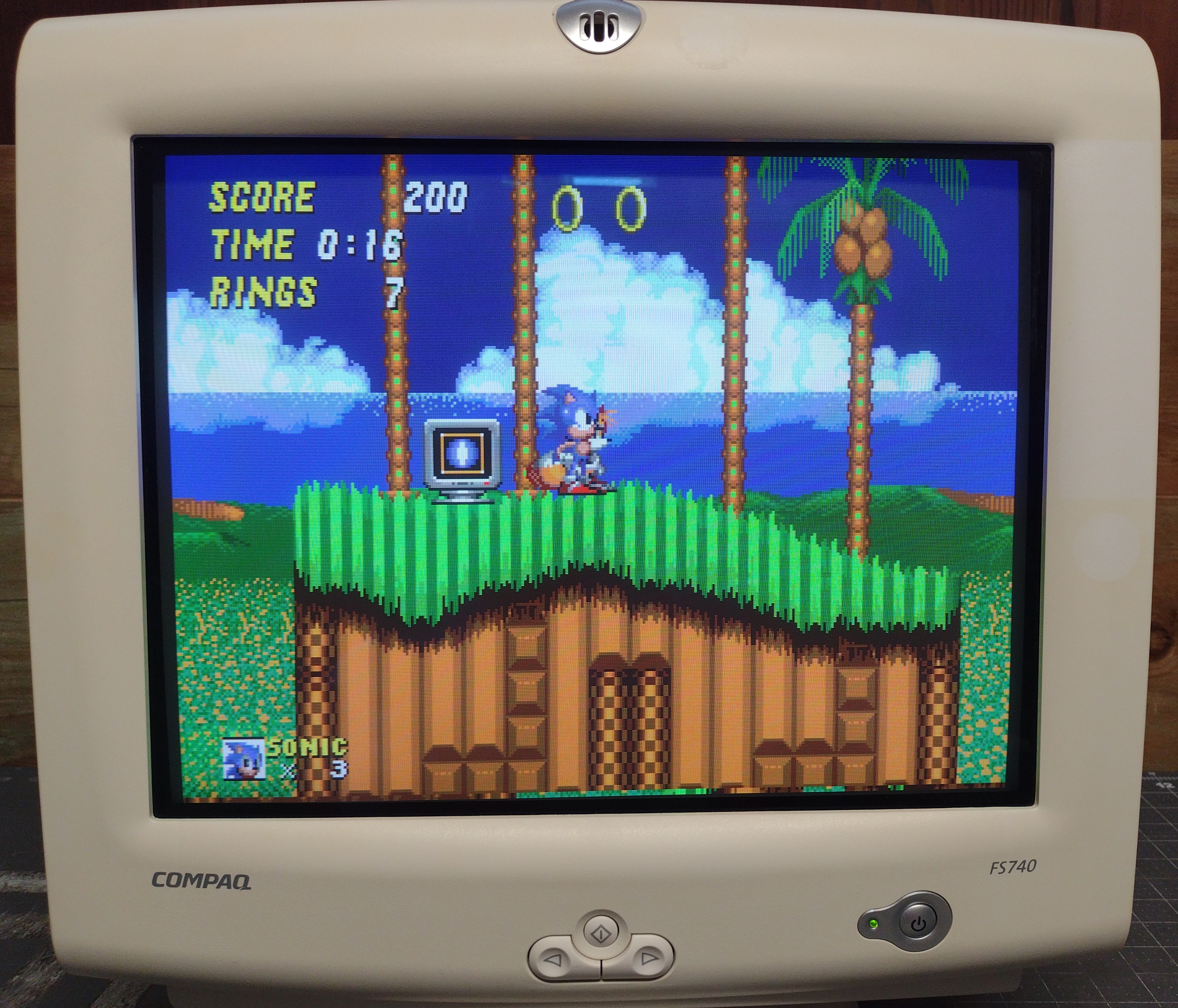

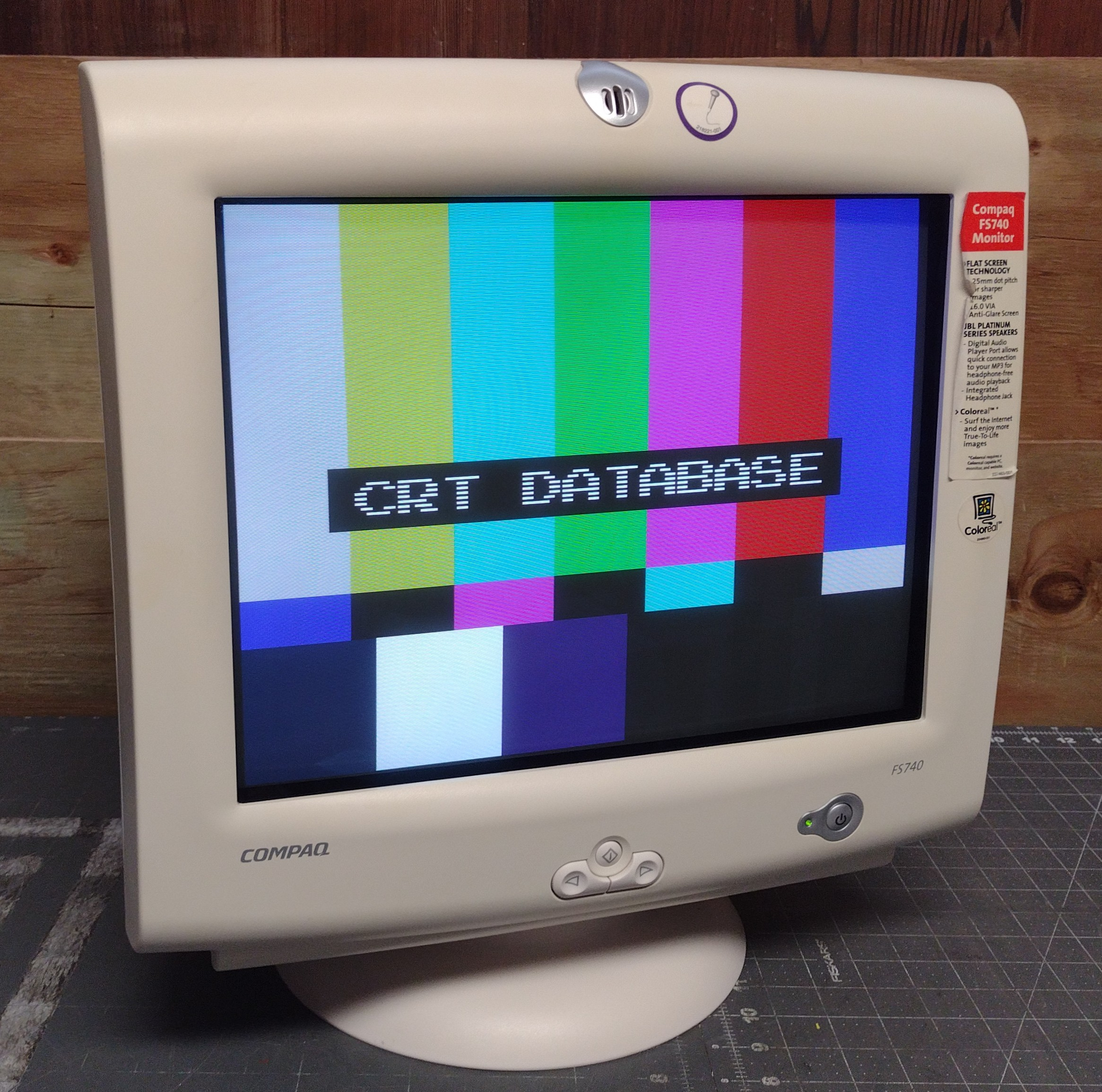

Flat screen 17" computer monitor with a classic early 2000s bubble aesthetic. Includes a built in microphone and features the enigmatic "Coloreal" technology, which appears to be a color standard for website graphics. Uses a 0.25mm pitch tube, which is finer than most monitors of that size.
Manuals
No documentation is available online at this time.
Notes

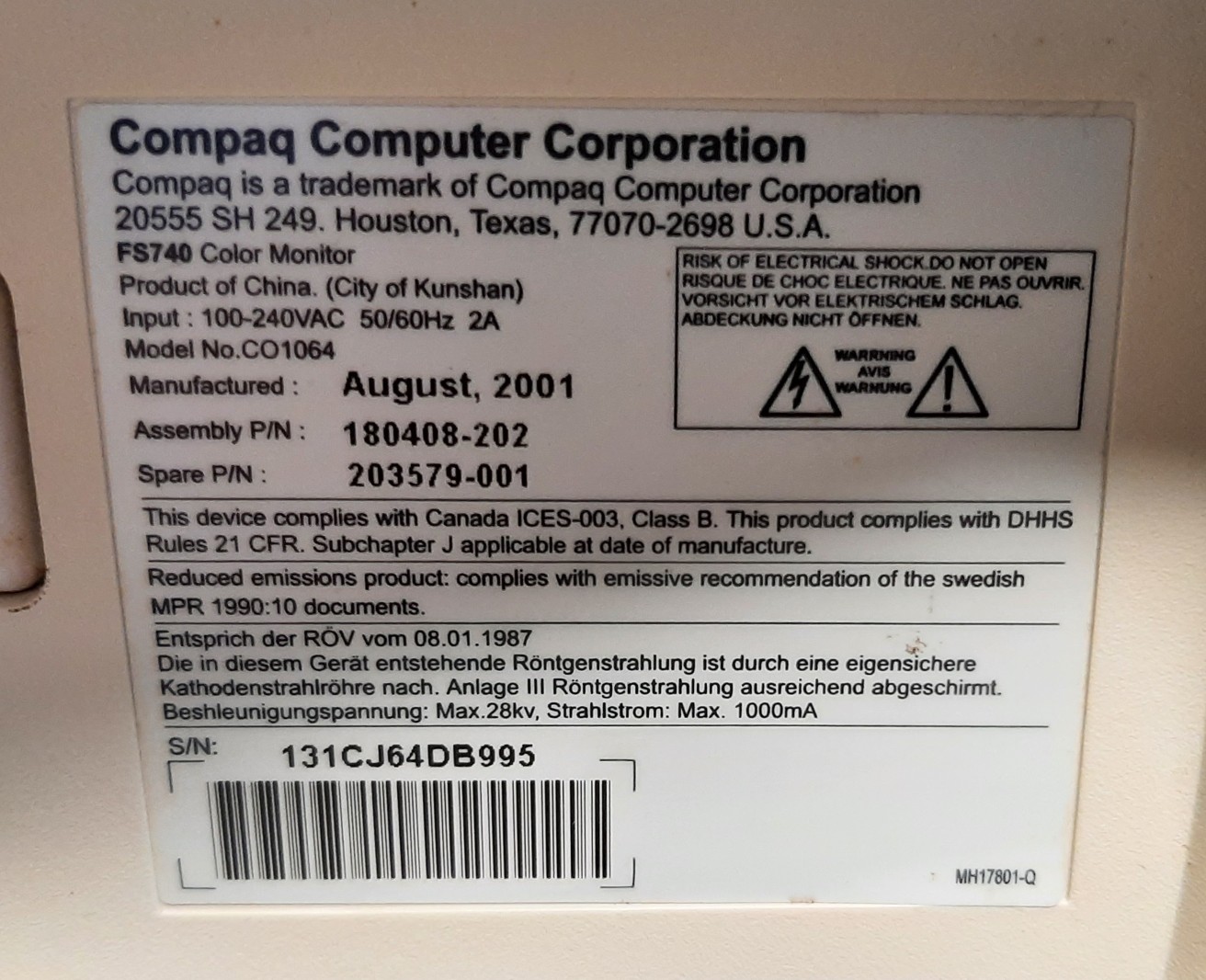

Multiple variants of this monitor were produced by different manufacturers. While cosmetically similar and having the same specs, they may be internally very different. This version, labeled CO1064, was manufactured by Compal Electronics.
Gallery
Specifications | |
---|---|
Brand: | Compaq |
Manufacturer: | Compal |
Model: | FS740 |
Series: | Color Monitor |
Viewable Size: | 16" |
Inputs: | VGA |
Sync: | HV Sync |
Native Resolutions: | VGA, SVGA, XGA |
Horizontal Scan Range: | 30 kHz, 70 kHz |
Vertical Scan Range: | 50 Hz, 160 Hz |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, Software Calibration |
Vertical Output IC: | TDA4863AJ |
Flyback: | FEA965 |

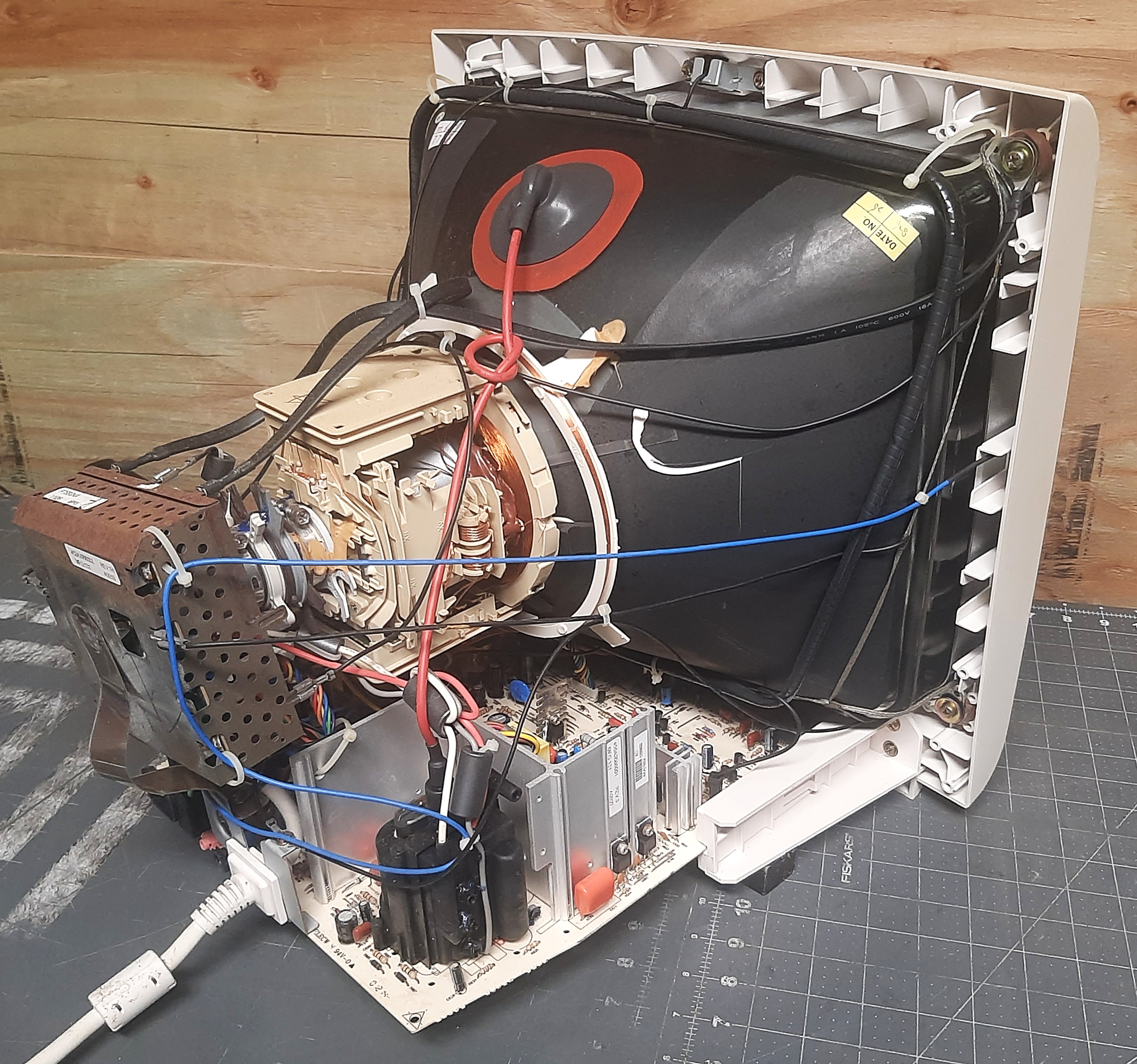

Tube: | M41AJR93X , M41AJR93X76 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Shadow |
Pitch: | 0.28 mm |
Tint: | Dark, Matte Anti-Glare |
Removable Glare Film: | No |
Yoke: | JNA-7722C1 |
Speakers: | None |
Weight: | 28.2 lbs (12.8 kg) |
Application: | Computer Monitor |
Cabinet Material: | Plastic |
Launched: | 2001 |
Country of Manufacture: | Korea |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on, Manual |
Tag: | Needs Measurements |
