Summary

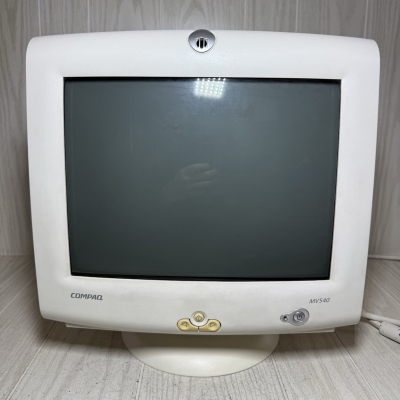

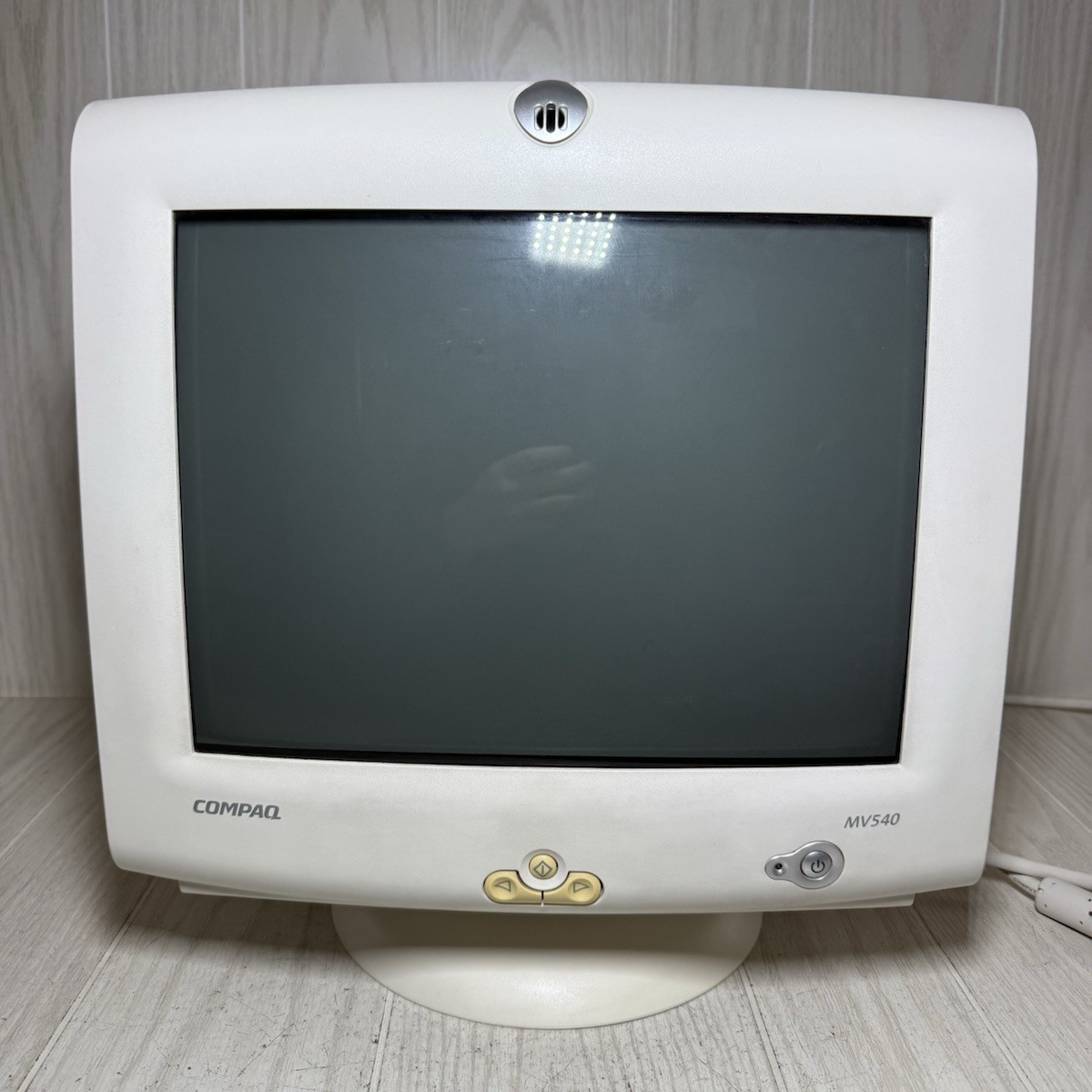

A fairly low-end 14" computer monitor by Compaq, made in China in 2000 by Compal Electronics. Intended for use with Compaq's Presario line of computers.
Manuals
Notes

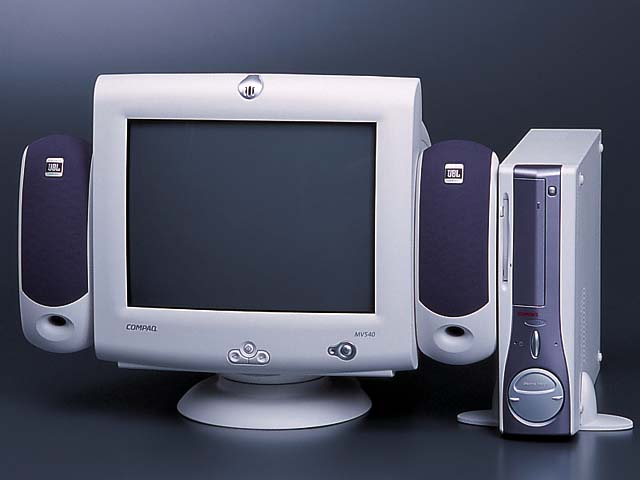

Originally would come shipped with detachable speakers and can be powered from a connection on the back of the monitor. Monitor has its own microphone input.
Promo Materials
Gallery
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Compaq |
| Manufacturer: | Compal |
| Model: | MV540 |
| Series: | Presario |
| Viewable Size: | 14" |

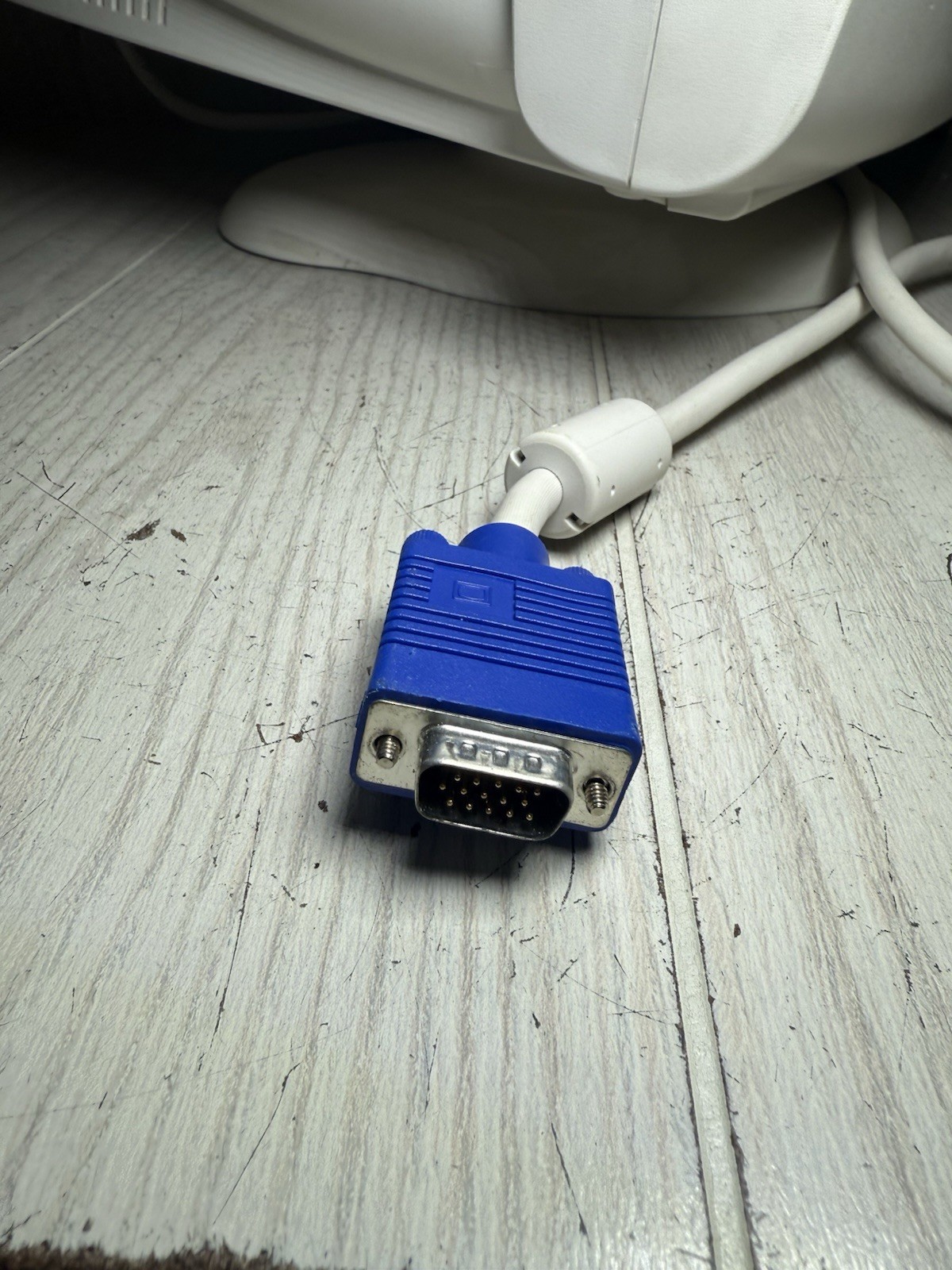

| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 54 kHz, 31.5 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |

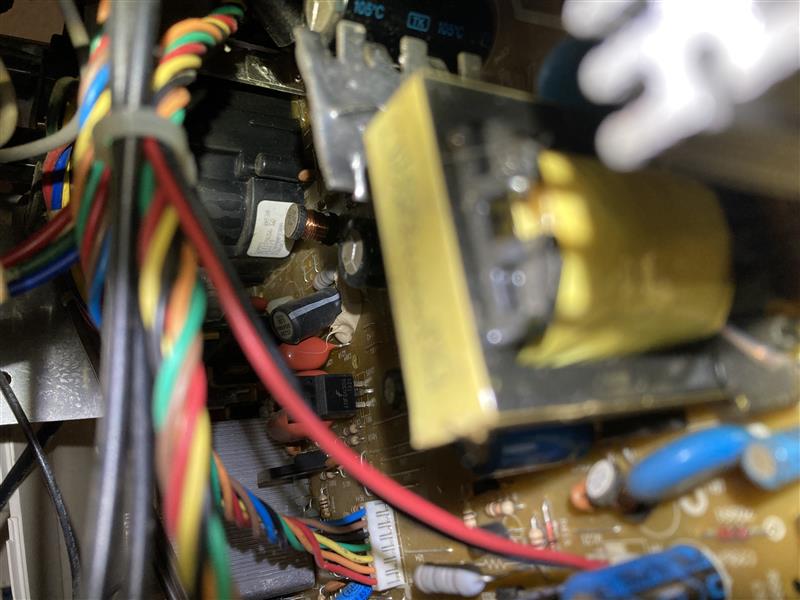

| Flyback: | Sampo, DG300009300, HR46610 |
| Focus Type: | Single |

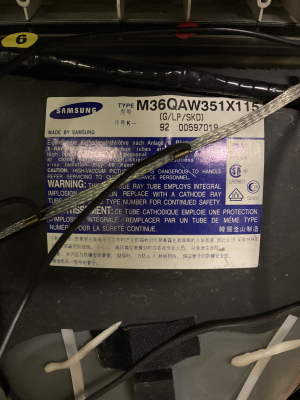

| Tube: | Samsung , M36QAW351X115 , M36QAW351X |
| Heater Voltage: | 6.3v |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | DMX-1591HB, Samsung |
| Speakers: | Stereo, Optional Side Mount, 3W x 2 |
| Weight: | 28.7 lbs (13 kg) |
| Dimensions (W/H/D): |
368 x 397 x 413 mm
(14.5 x 15.6 x 16.2") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 299 USD |
| Country of Manufacture: | China |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
