Summary

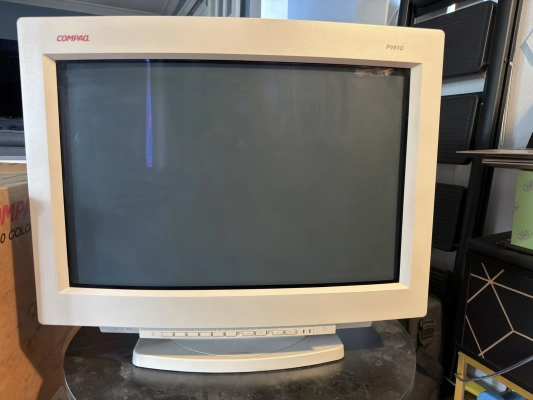

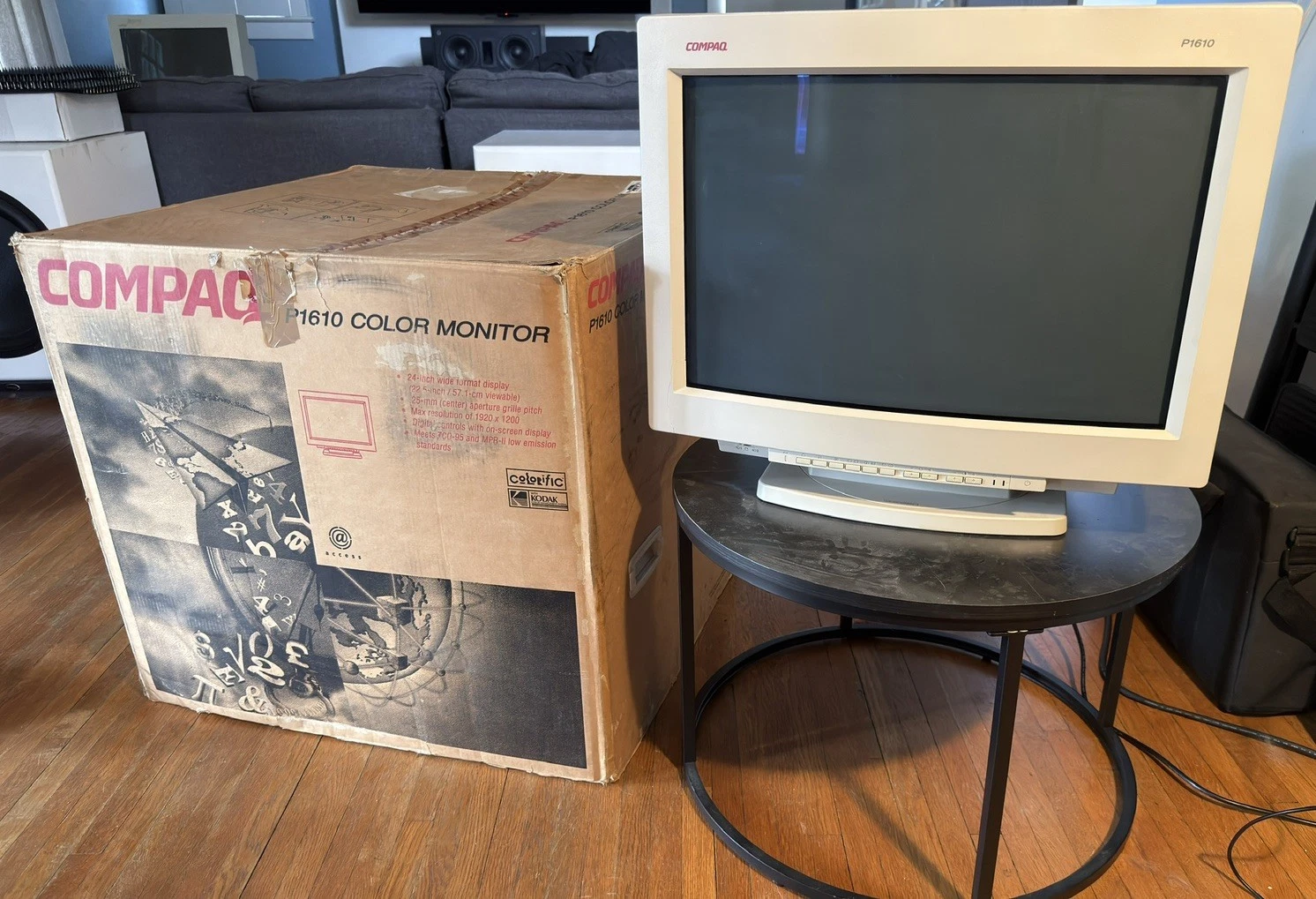

This monitor is a rebrand of the Sony GDM-W900, a lesser-known precursor to the famous Sony FW900. The W900 features a curved tube and a slightly lower scan range. It still supports 1080p but is very picky about the sync porch from game consoles. You can sometimes get it to work using Extron sync boxes that allow for horizontal position adjustment. 720p works much easier. Capable of 96kHz horizontal and 160Hz vertical scan ranges.

MAXIMUM REFRESH RATES

• Sony 16:10: 1920 x 1200/76 Hz
• Sony 16:9: 1920 x 1080/85 Hz

PRESET GRAPHICS MODES

• VGA Graphics: 640 x 480/60 Hz Sony 16:9: 1920 x 1080/60 Hz
• VGA Text: 720 x 400/70 Hz Sony 16:9: 1920 x 1080/72 Hz
• VESA: 1280 x 1024/75 Hz Sony 16:9: 1920 x 1035/60 Hz
• VESA: 1600 x 1200/75 Hz Sony 16:10: 1600 x 1024/76 Hz
• Sony 16:10: 1920 x 1200/76 Hz

COLOUR TEMPERATURE CONTROL

• Normal mode: 5000 K/6500 K/9300 K, variable
• Expert mode: 5000 K/6500 K/9300 K, variable,
• RGB Bias/Gain

Variable Aperture Grille Pitch

• (0.25 - 0.28 mm)

Manuals

• Service Manual (Full, including schematics) (Sony GDM-W900 version)
• Supplement
• Owner's Manual

Promo Materials

• Specification Sheet
• Sales Brochure
