Summary
Entry level 15" PC monitor designed for 800X600 and 1024X768 resolutions. Bundled with Compaq's Presario line of pre-built PCs in the late '90s.
Manuals
No documentation is available online at this time.
Promo Materials
Notes

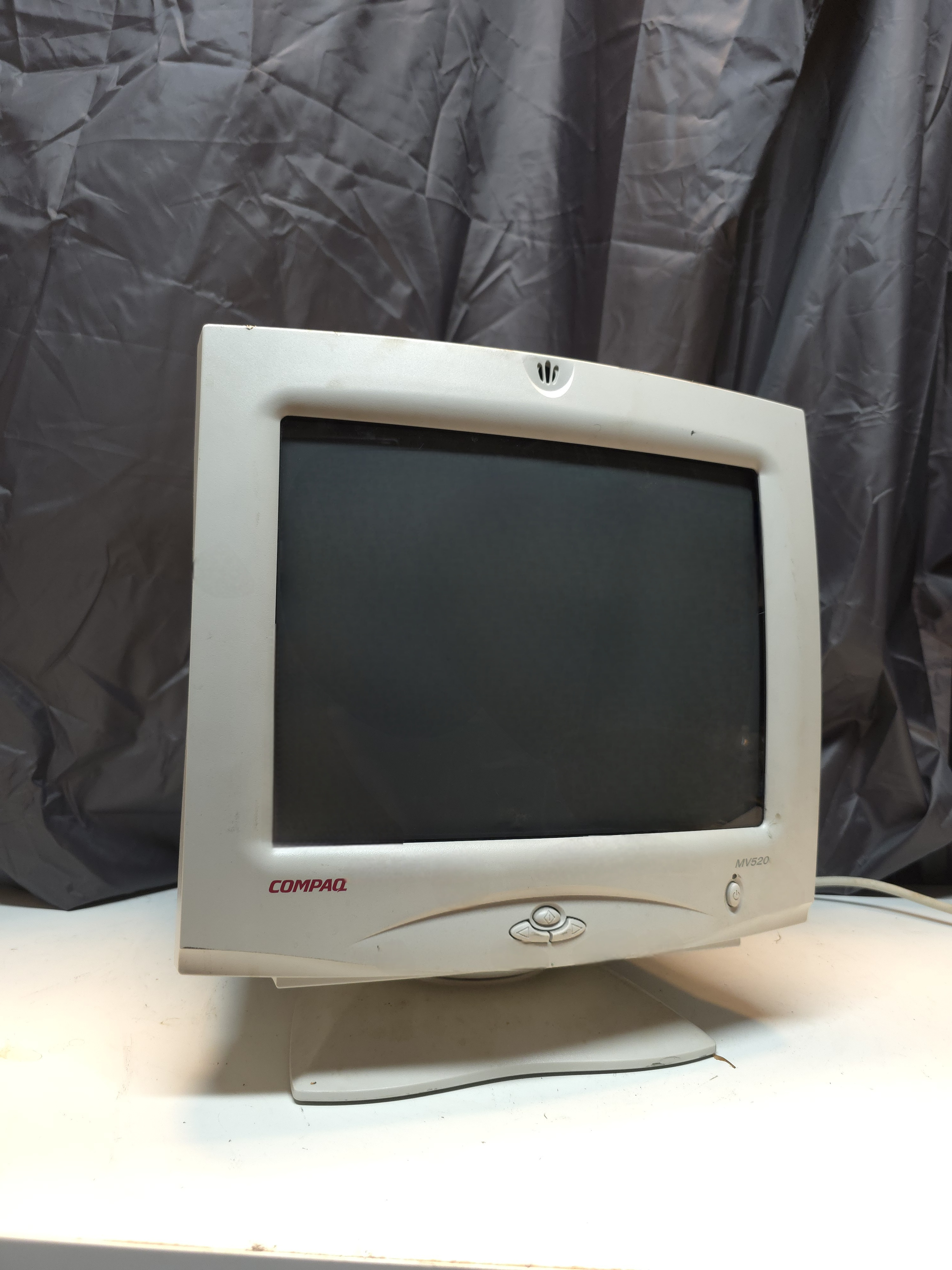

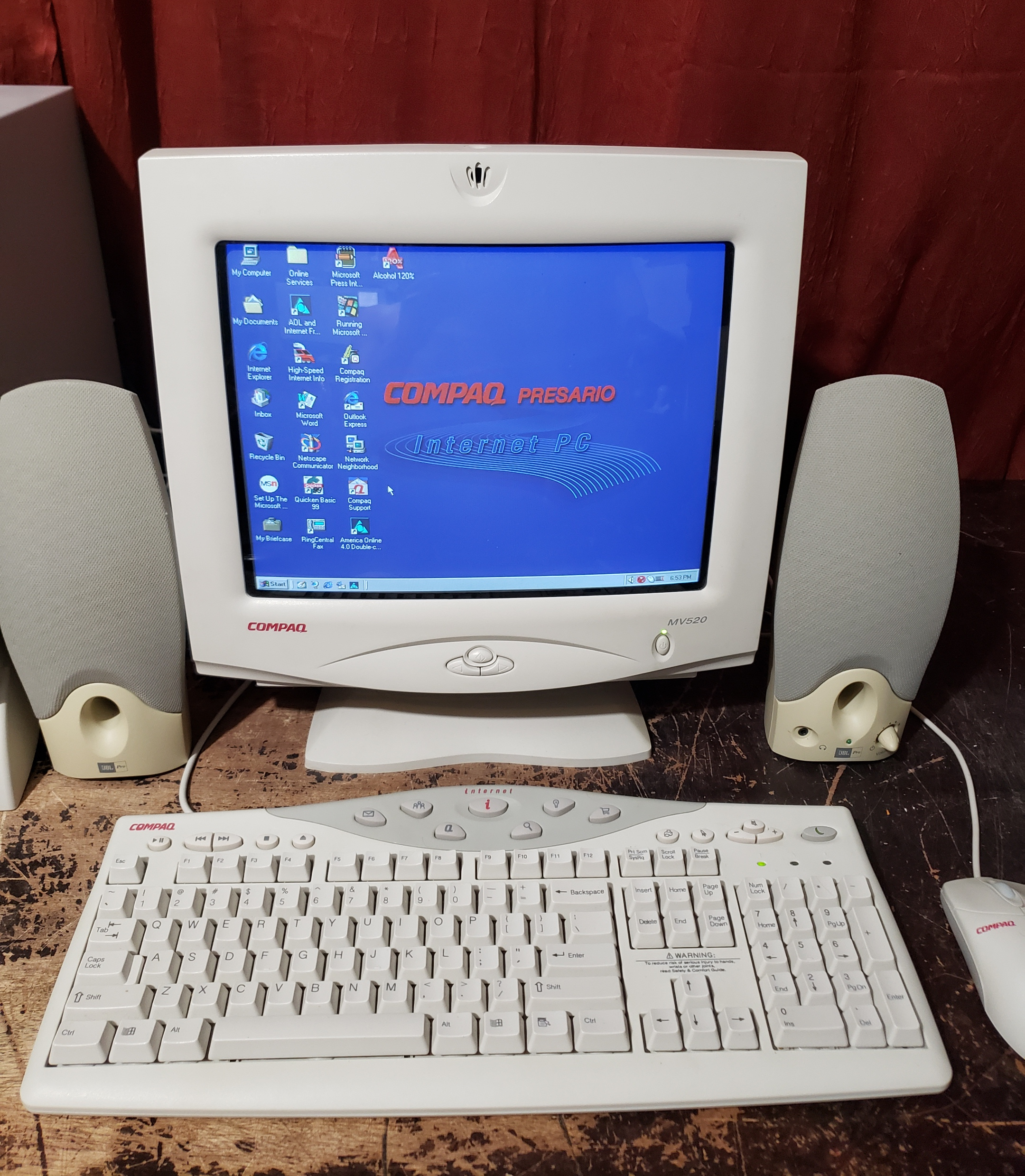

Sold as a "multimedia monitor", the Compaq Presario MV520 has a built-in microphone at the top of the tube.

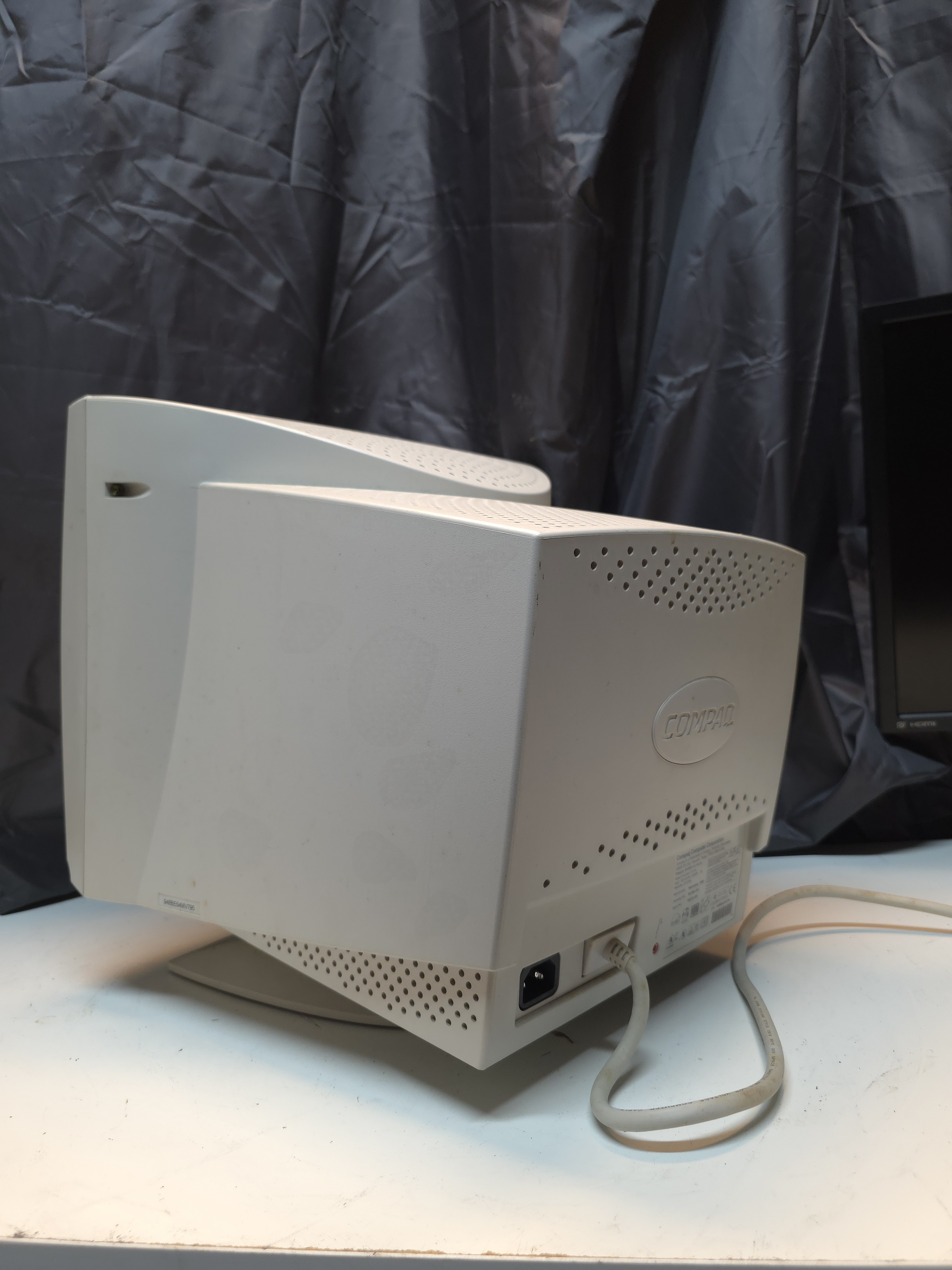

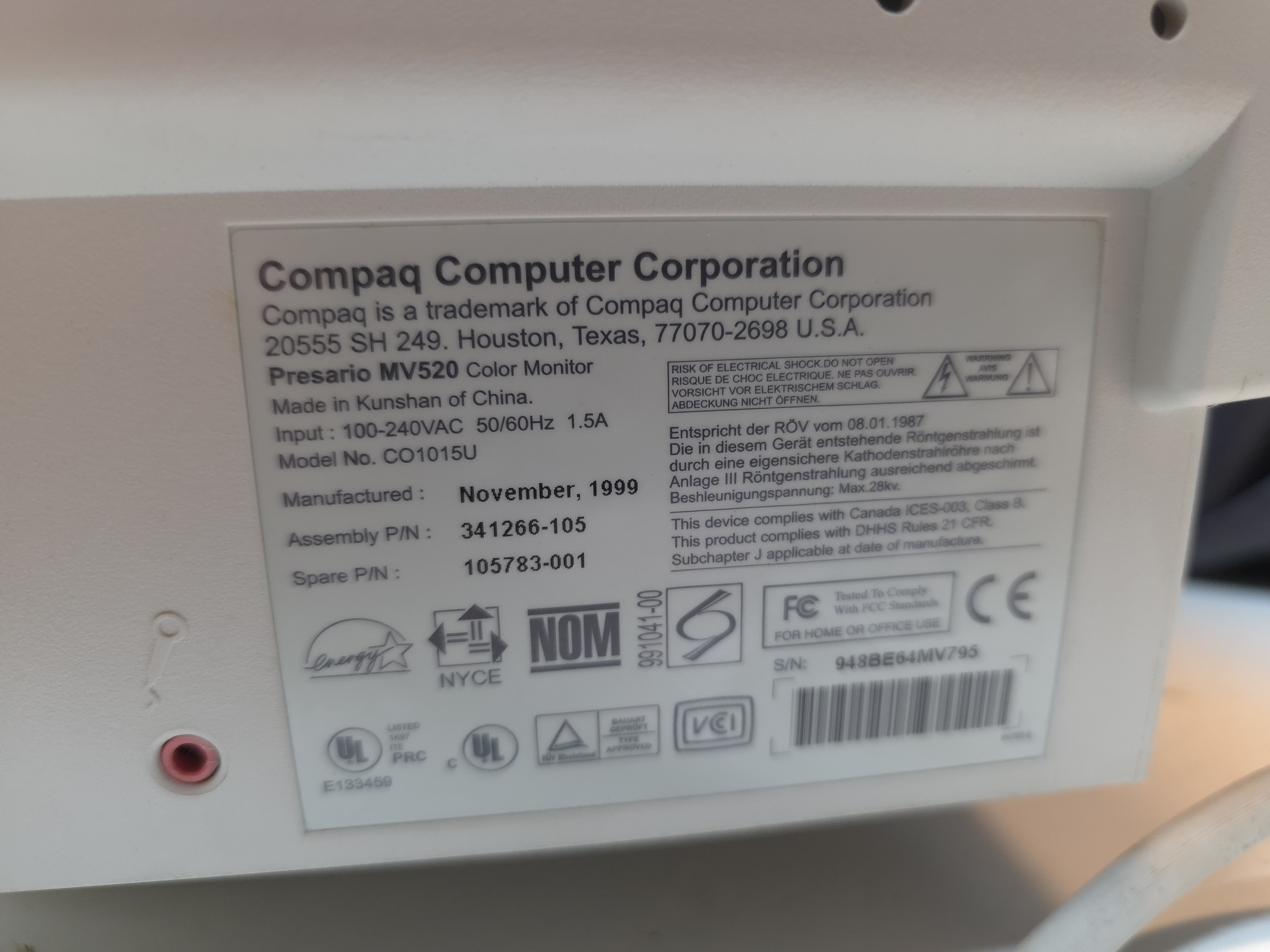

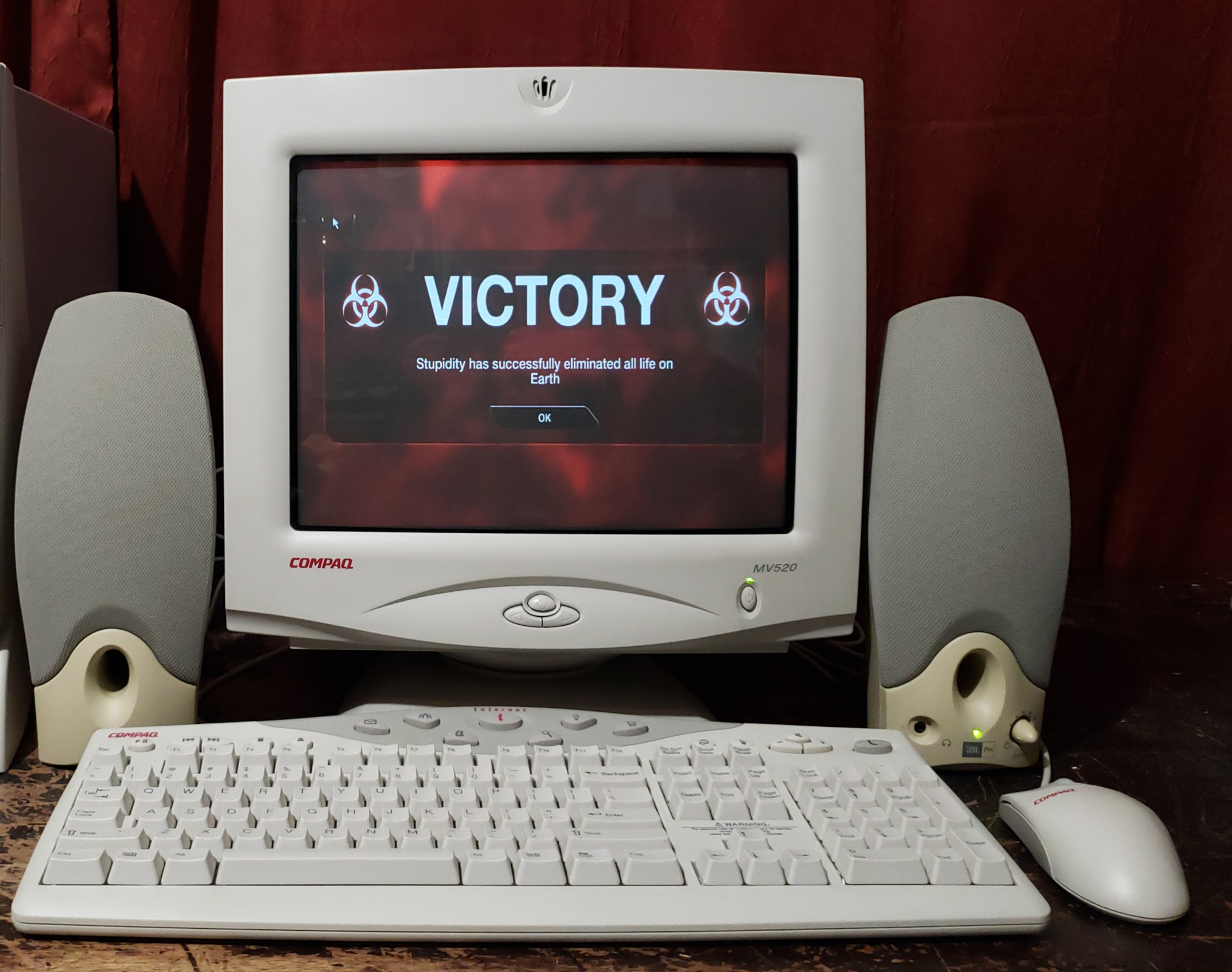

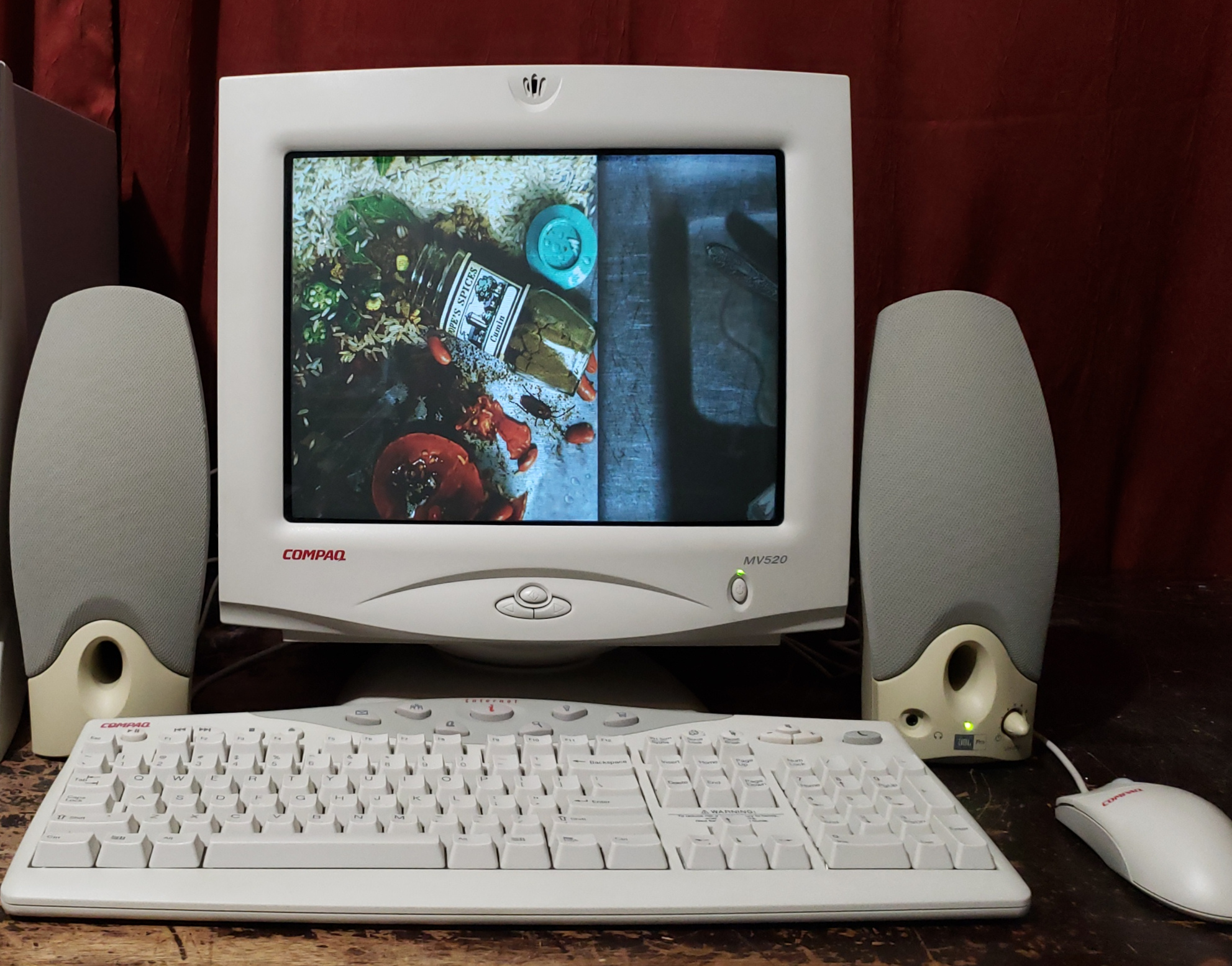

Gallery
 - June 2000 06.png "Click to view image in new tab")

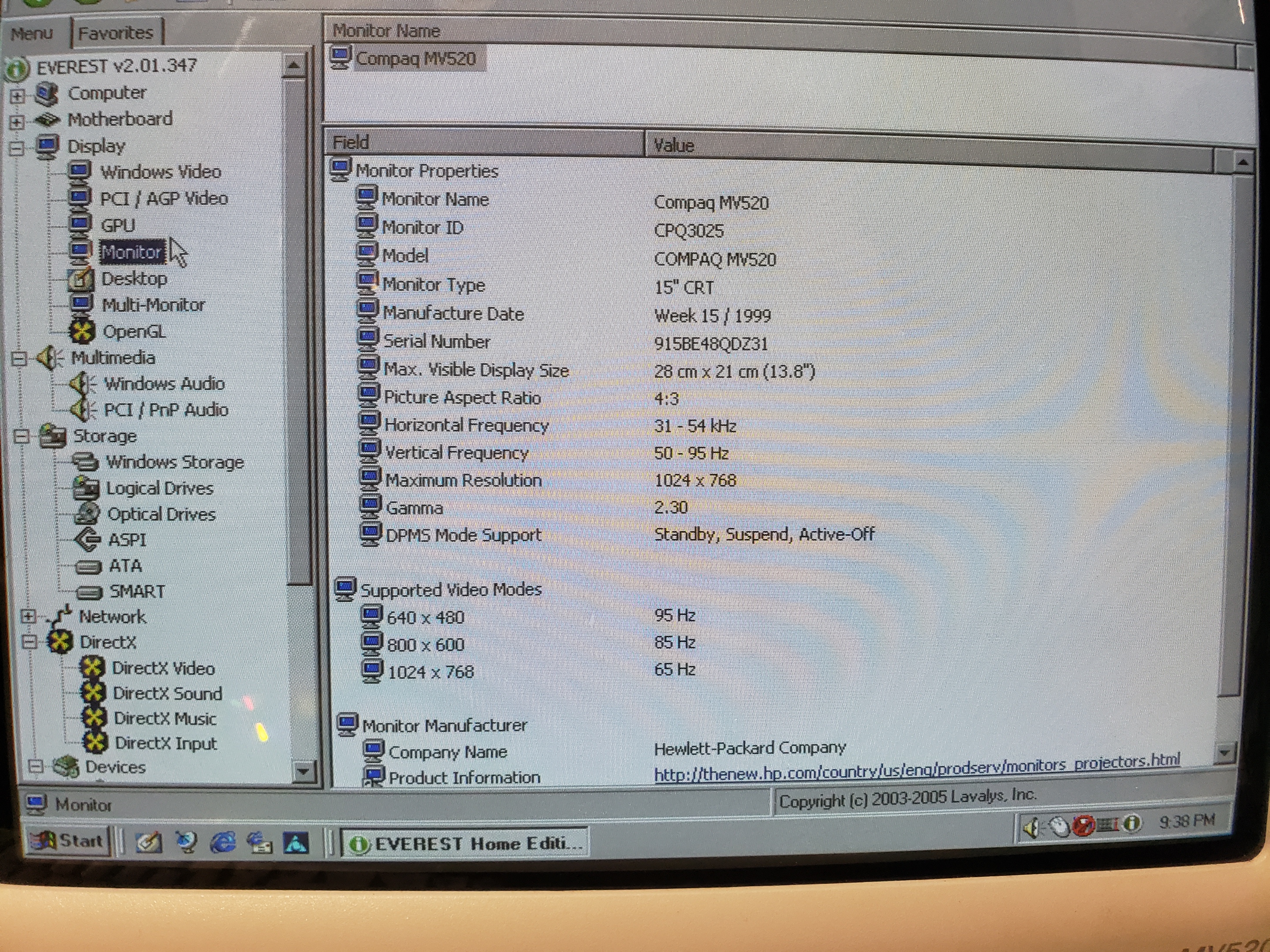

| Specifications | |
|---|---|
| Brand: | Compaq |
| Manufacturer: | Compaq |
| Model: | MV520 |
| Series: | Presario |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 31 kHz, 54 kHz |
| Vertical Scan Range: | 50 Hz, 195 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Focus Type: | Single |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 299 USD |
| Country of Manufacture: | China |
| Market: | Worldwide |
| Power Standard: | 120v, 240v, 220v, 100v, 115v |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Yoke Info, Needs Tube Info |
