Compaq V500 (PE1111)

Matt Ross
August 25, 2024, 4:36 am
December 24, 2024, 11:08 am

Summary

Compact 15" PC monitor. It has good specs for its size, with a 70 kHz horizontal scan rate.

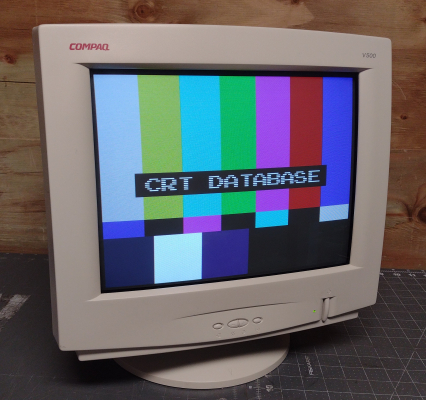

At least two variants were produced. The P1111, pictured here, was made by Samsung and is a rebranded Syncmaster 510B. There was also a P1110 version, which was made by ADI.

Literature

Notes

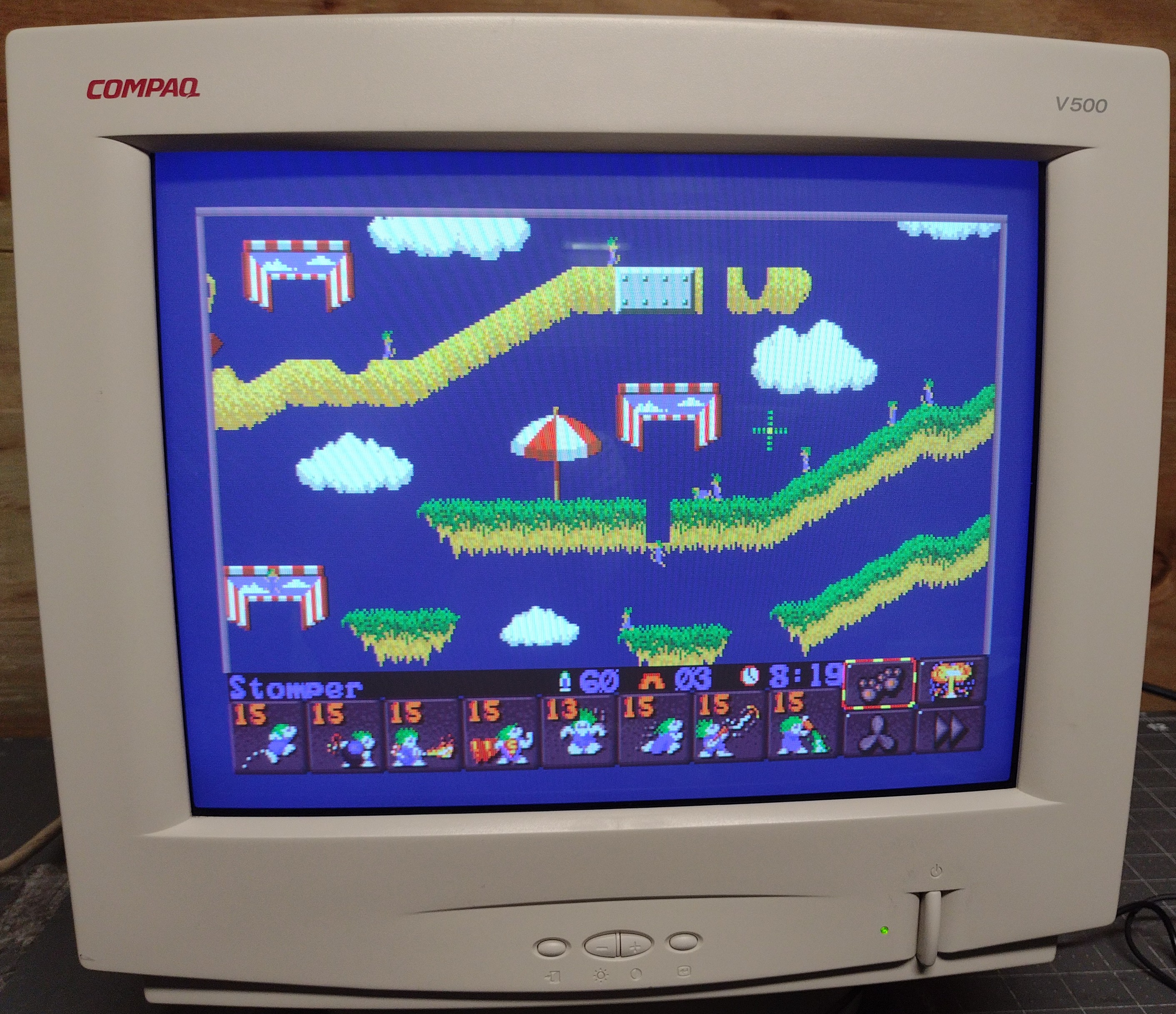

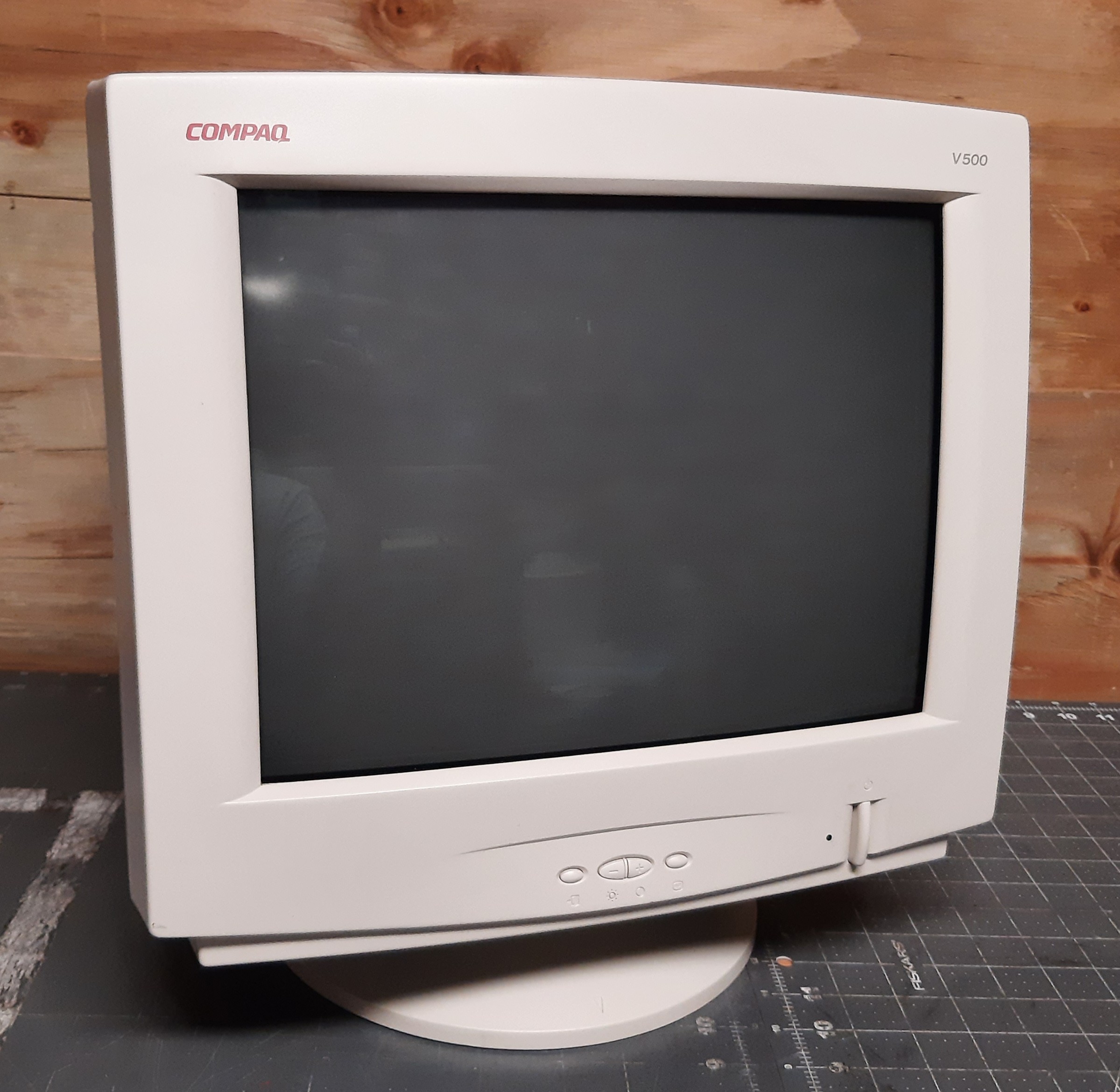

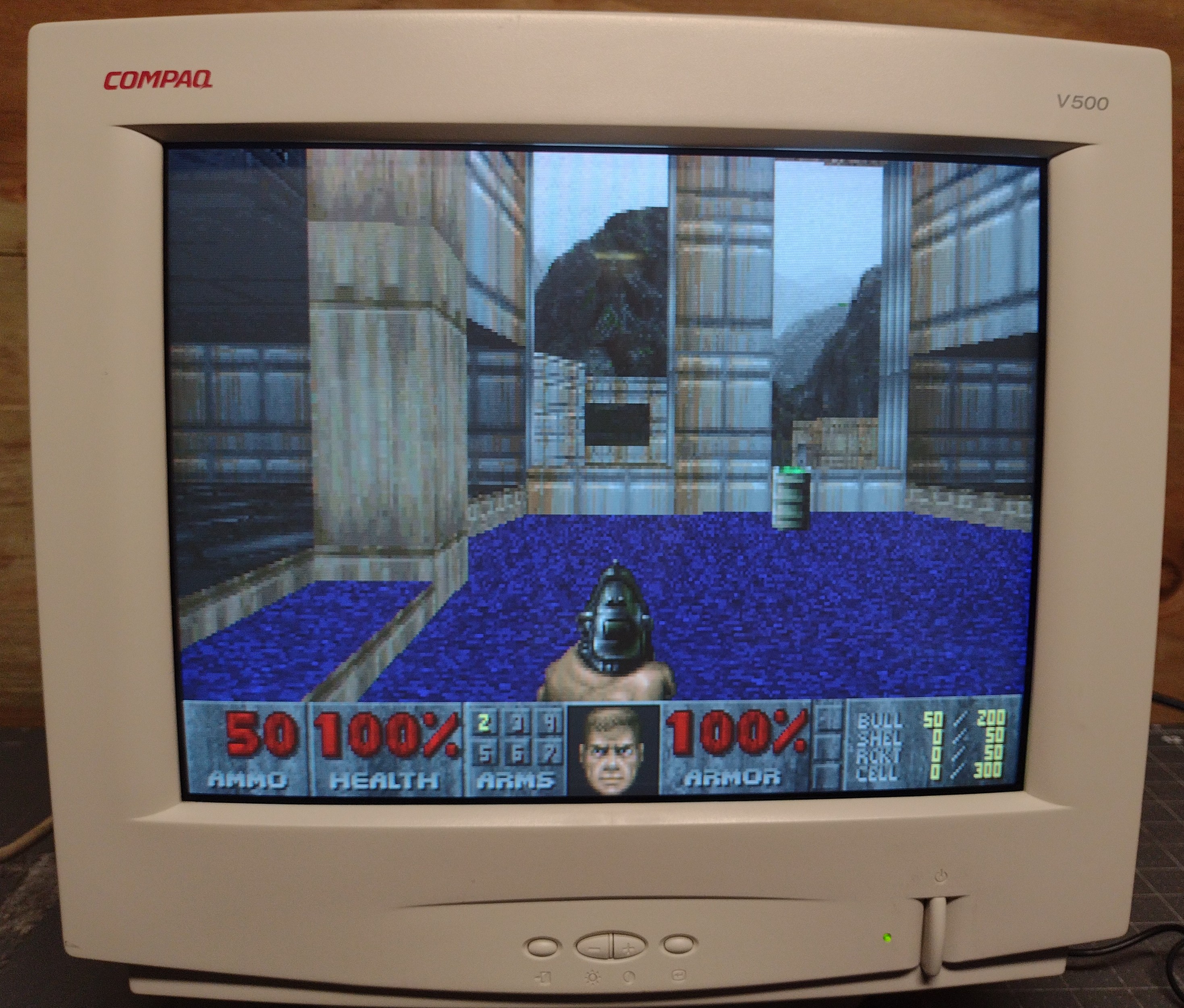

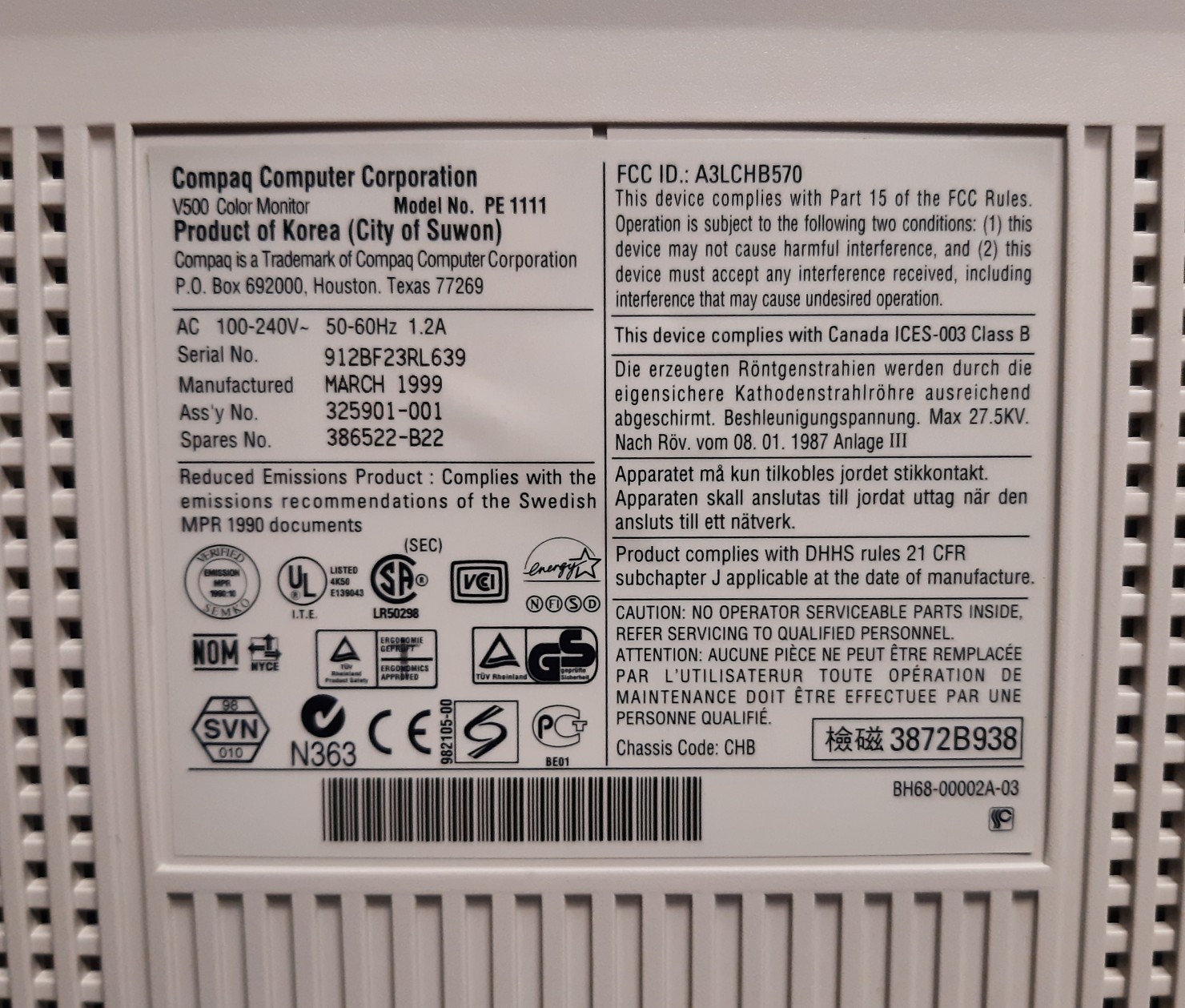

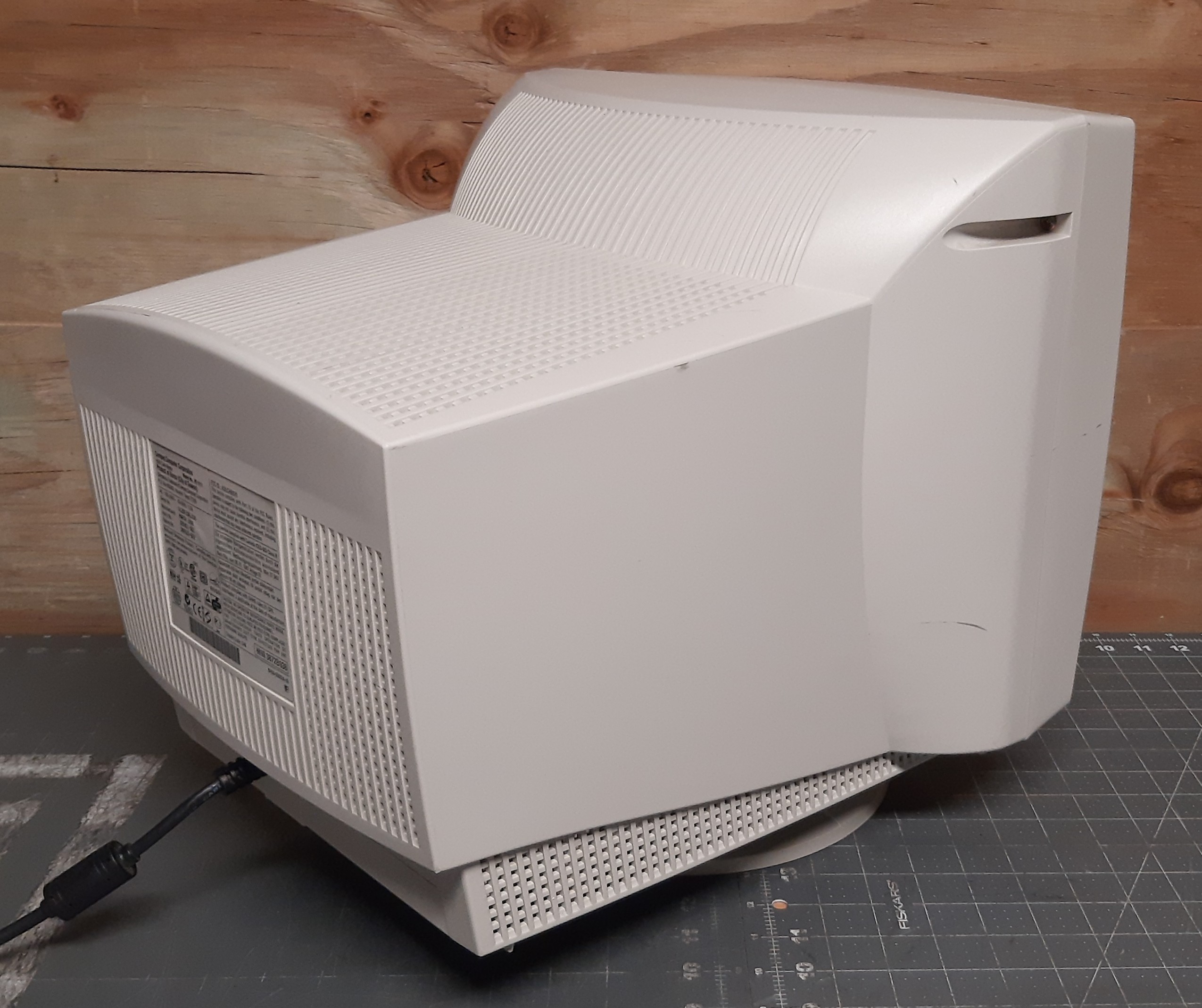

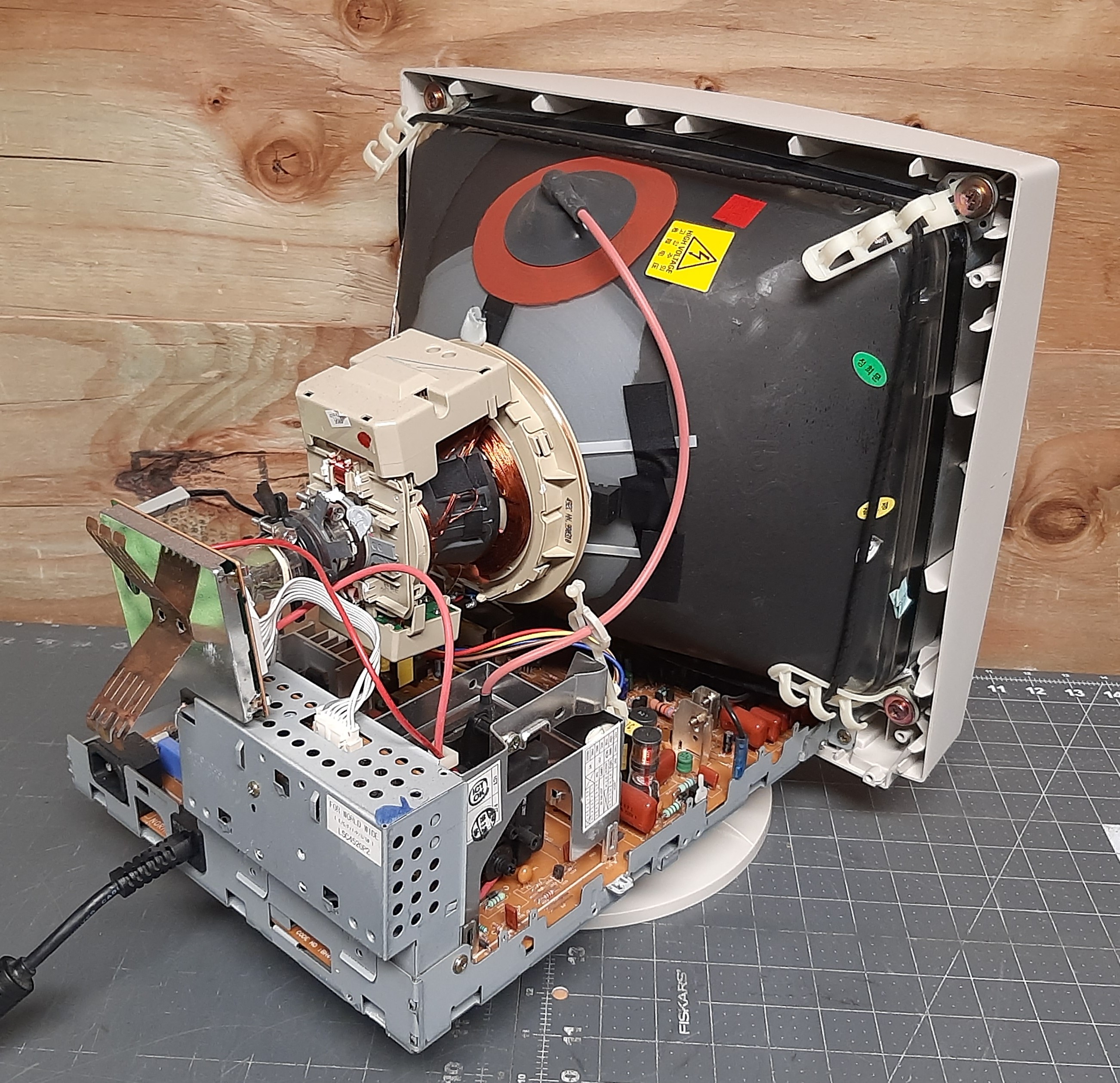

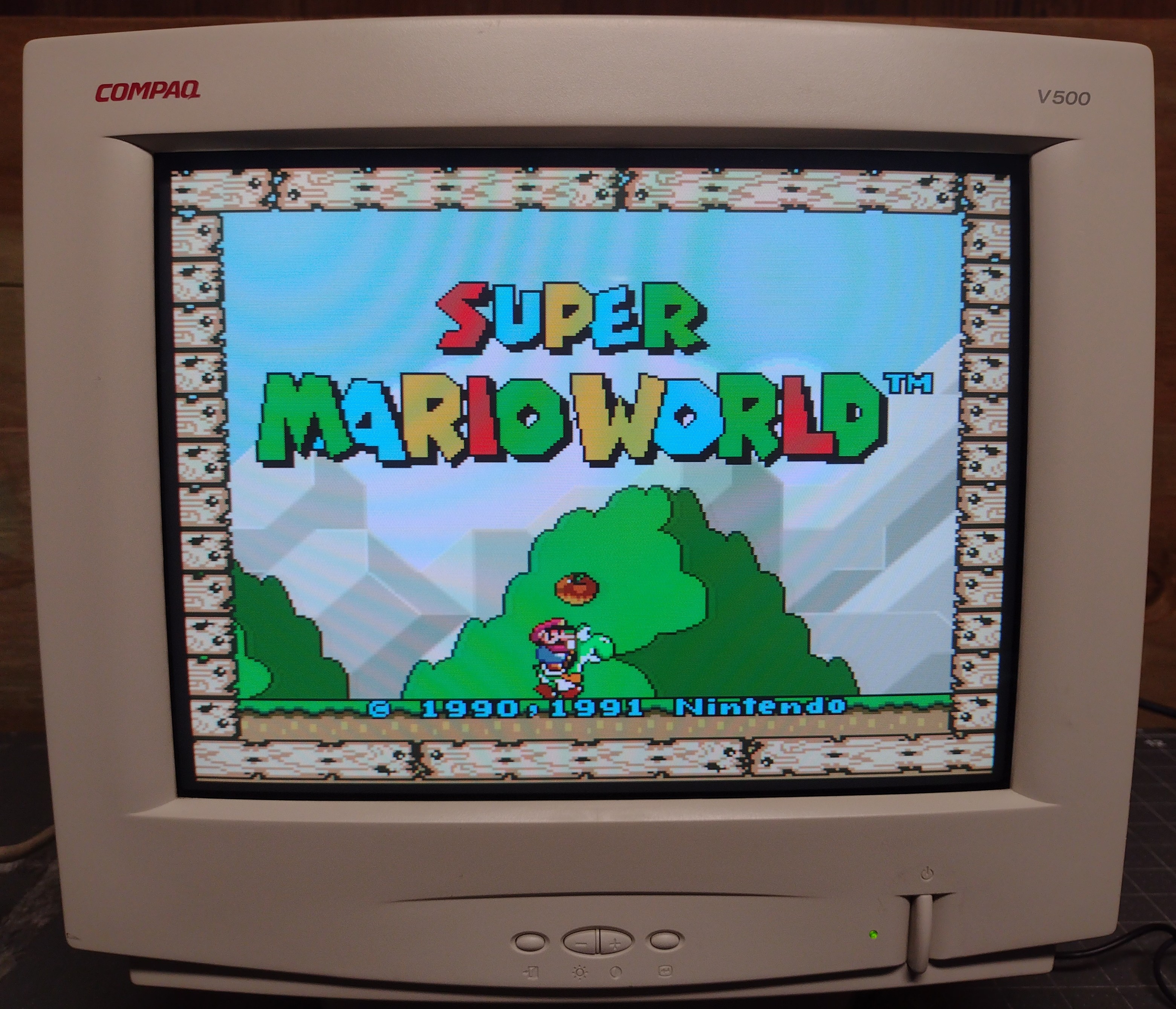

Gallery

Compaq V500 (PE1111) Compaq V500 (PE1111) Compaq V500 (PE1111) Compaq V500 (PE1111) Compaq V500 (PE1111) Compaq V500 (PE1111) Compaq V500 (PE1111)
Specifications
Brand: Compaq
Manufacturer: Samsung
Model: V500
Series: Color Monitor
Viewable Size: 14"
Inputs: VGA
Sync: HV Sync
Native Resolutions: VGA, SVGA, XGA
Horizontal Scan Range: 30 kHz, 70 kHz
Vertical Scan Range: 50 Hz, 160 Hz
Aspect: 4:3
Adjustments: OSD Customer Controls, Software Calibration
Flyback: FKG-15D002, FEA758
Tube: M36QAM351X , M36QAM351X115
Heater Voltage: 6.3v
Deflection: 90°
Mask: Shadow
Pitch: 0.28 mm
Tint: Dark
Removable Glare Film: No
Yoke: DMX-1524CL
Yoke Horz. Inductance: 0.18724 mH (@ 10 kHz)
Yoke Vert. Inductance: 4.984 mH (@ 100 Hz)
Yoke Horz. Resistance: 0.679 ohm
Yoke Vert. Resistance: 7.32 ohm
Speakers: None
Weight: 34.8 lbs (15.8 kg)
Dimensions (W/H/D): 374 x 405 x 415 mm
(14.7 x 15.9 x 16.3")
Application: Computer Monitor
Cabinet Material: Plastic
Launched: 1998
Country of Manufacture: Korea
Mounting: Desk Stand
Degaussing: Automatic on Power-on, Manual
