CompUSA CPC-7861
Matt Ross
May 26, 2024, 4:17 am
October 2, 2024, 5:50 pm
May 26, 2024, 4:17 am
October 2, 2024, 5:50 pm
Summary

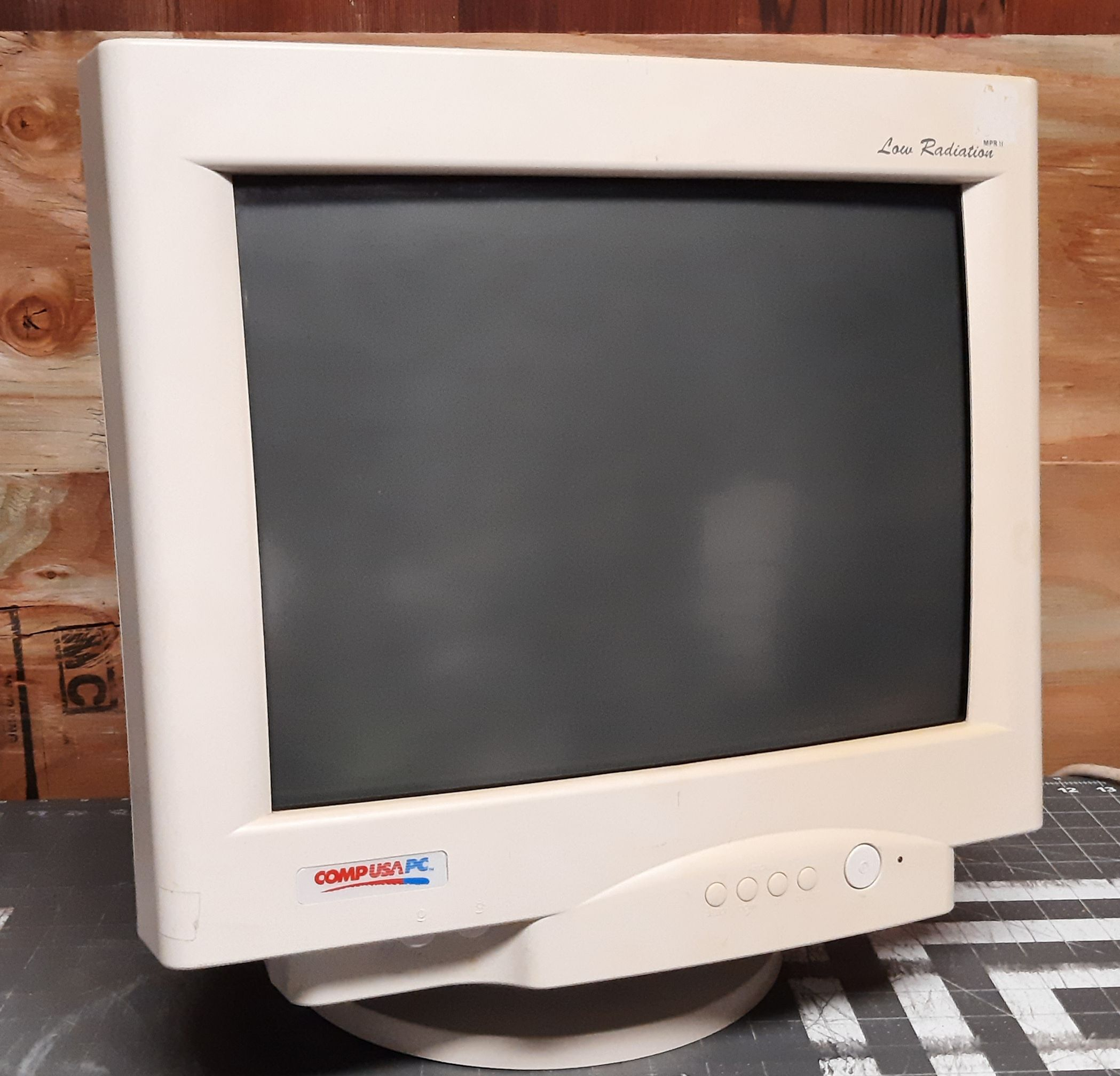

Basic 17" computer monitor, sold by big box computer chain CompUSA under their store brand. Most likely manufactured by GVC corporation, this and similar monitors were also branded as "Maxtech".
Literature
No documentation is available online at this time.
Notes
This monitor has an unusually wide range of vertical sync rates, from 40 Hz to 196 Hz. As expected, 40 Hz is extremely flickery and is impractical to use.
Gallery
Specifications | |
---|---|
Brand: | CompUSA |
Manufacturer: | GVC |
Model: | CPC-7861 |
Series: | CPC |
Viewable Size: | 16" |
Inputs: | VGA |
Sync: | HV Sync |
Resolutions: | VGA, SVGA, XGA, SXGA |
Horizontal Scan Range: | 69 kHz, 28 kHz |
Vertical Scan Range: | 40 Hz, 195 Hz |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls |
Flyback: | LCE CF1010 |
Tube: | Chunghwa , M41AGE83X46 , M41AGE83X |
Deflection: | 90° |
Mask: | Shadow |
Tint: | Dark |
Yoke: | E39091 6H014 |
Yoke Horz. Inductance: | 0.1854 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 6.411 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 0.619 ohm |
Yoke Vert. Resistance: | 8.47 ohm |
Speakers: | None |
Application: | Computer Monitor |
Launched: | 1998 |
Country of Manufacture: | China |
Mounting: | Desk Stand |
