Summary
Bundled with numerous 486 and Pentium systems.
Manuals
- Unavailable
Media & Promo Materials
- Listed in 1992 Byte Magazine Ad
- Included with 1993 Austin 486/DLC-33

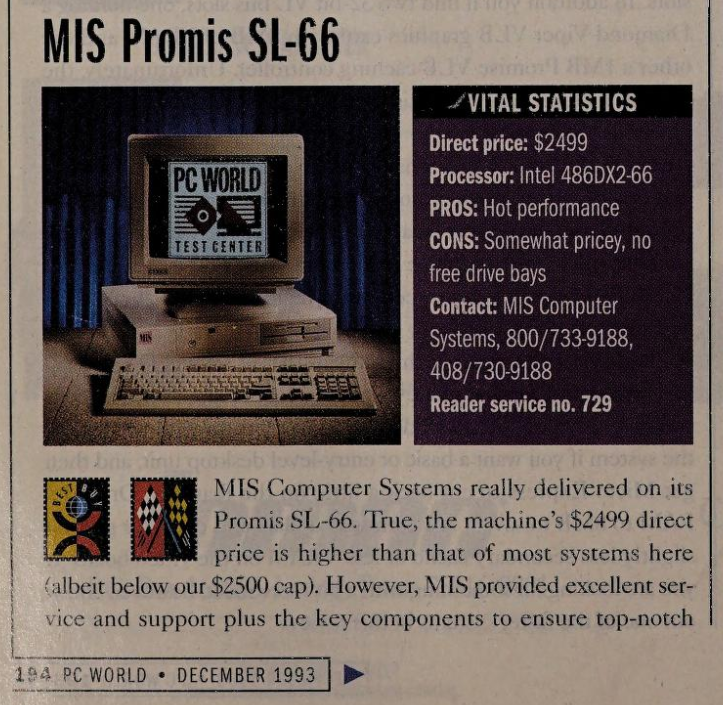

- Included with 1993 MIS Promis SL-66, PC World Best Buy
- Included with 1994 USA Flex VL486DX2-66
- Included with 1994 Inmac Insignia 466P

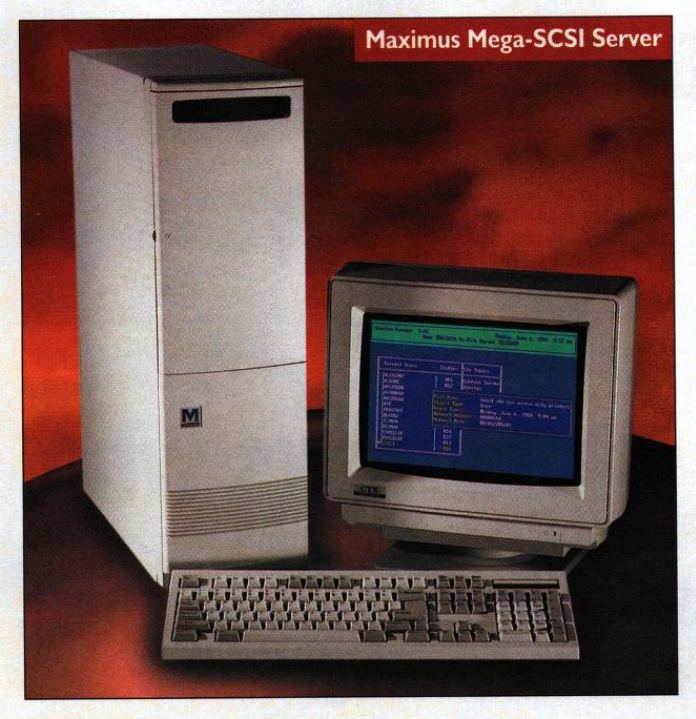

- Included with 1994 Maximus Mega-SCSI Server, Pentium 66MHz
Notes
Max refresh of 60Hz at 1024x768, 75Hz at 800x600. Does not have a horizontal width adjustment.
Repair Notes

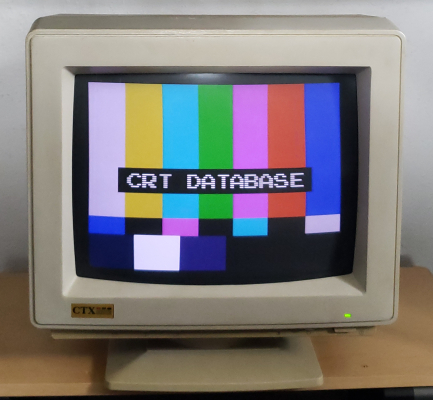

Unit pictured was dim when acquired, but increasing the G2/picture knob on the flyback drastically increased overall brightness. I also de-yellowed most of the front bezel of the unit pictured.
Gallery
| Specifications | |
|---|---|
| Brand: | CTX |
| Manufacturer: | Chuntex Electronic Co. |
| Model: | CVP-5468NI |
| Series: | CVP |
| Viewable Size: | 13" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 50 kHz, 44 kHz |
| Vertical Scan Range: | 50 Hz, 90 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Speakers: | None |
| Weight: | 26 lbs (11.8 kg) |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1992 |
| MSRP: | 306 USD |
| Country of Manufacture: | Taiwan |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Tube Info, Needs Yoke Info |
