Summary
Mid-range 15" PC monitor. Displays at a 70 kHz scan rate, which is quite good for its size.
Literature
Notes
Although not specified in the manual, this monitor will accept composite sync over the H Sync pin.
Additional service adjustments can be accessed by holding contrast + and - buttons while powering on the monitor. This will allow you to adjust G2 voltage, sub contrast, and RGB bias values for each color setting.

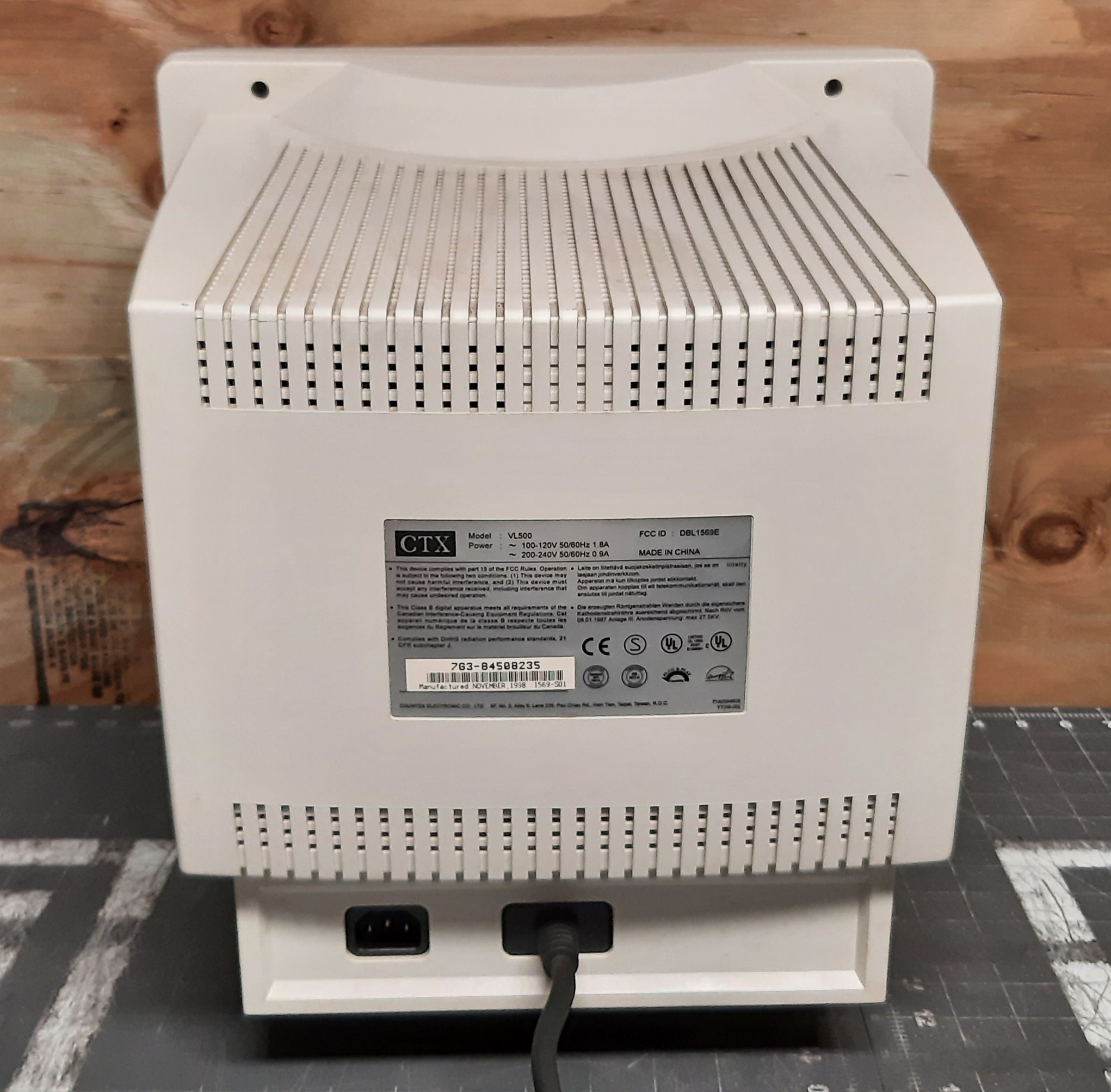

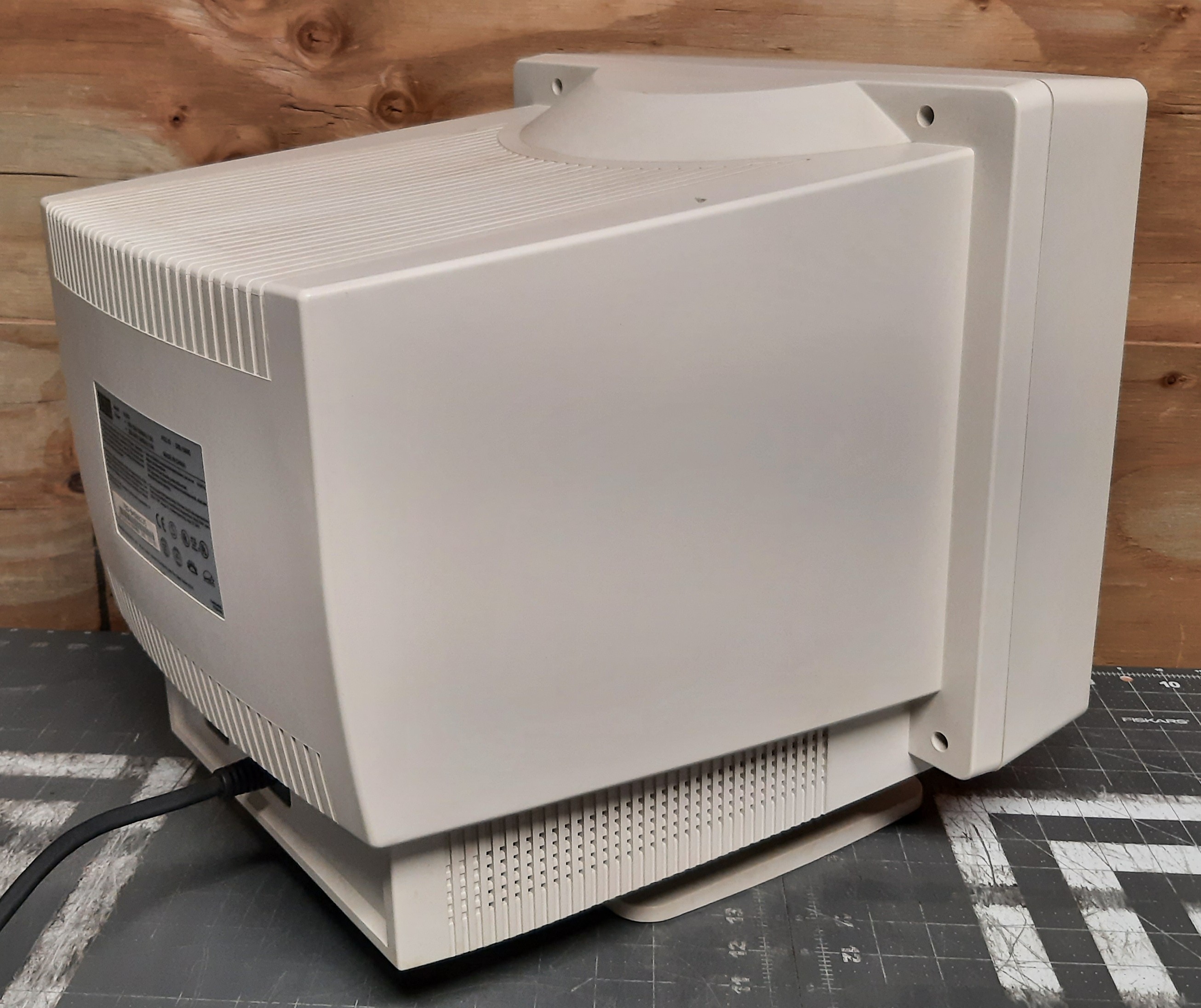

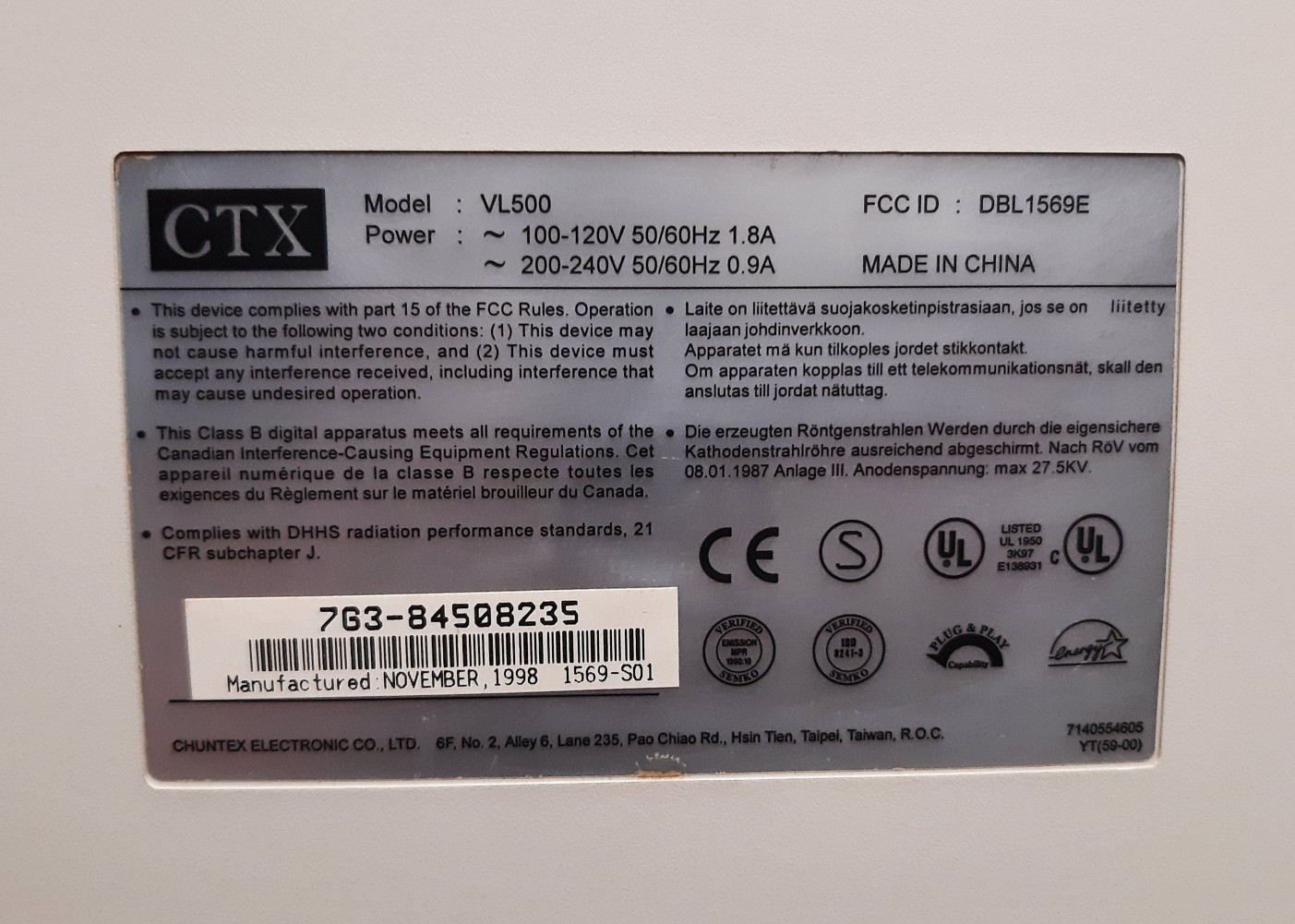

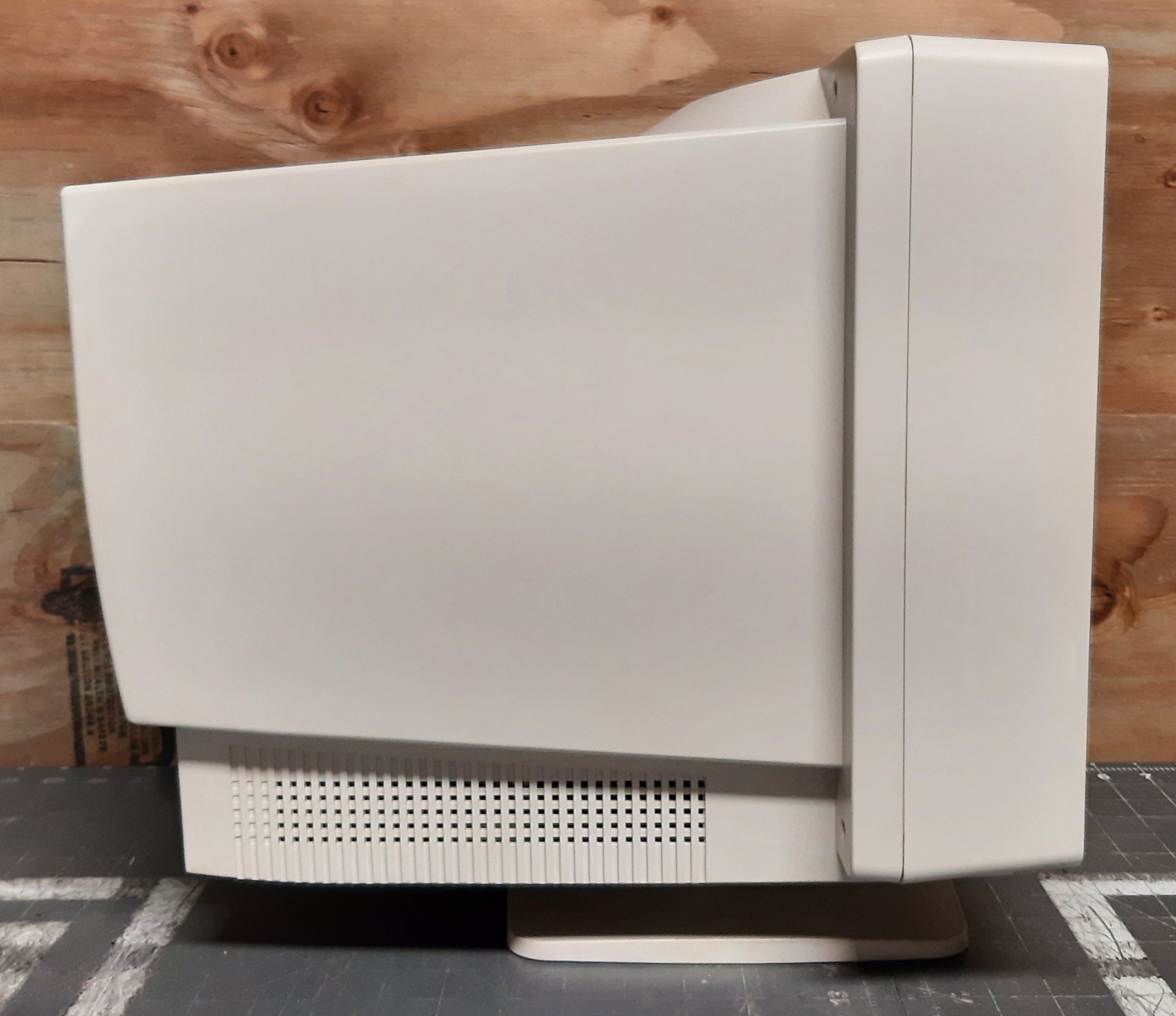

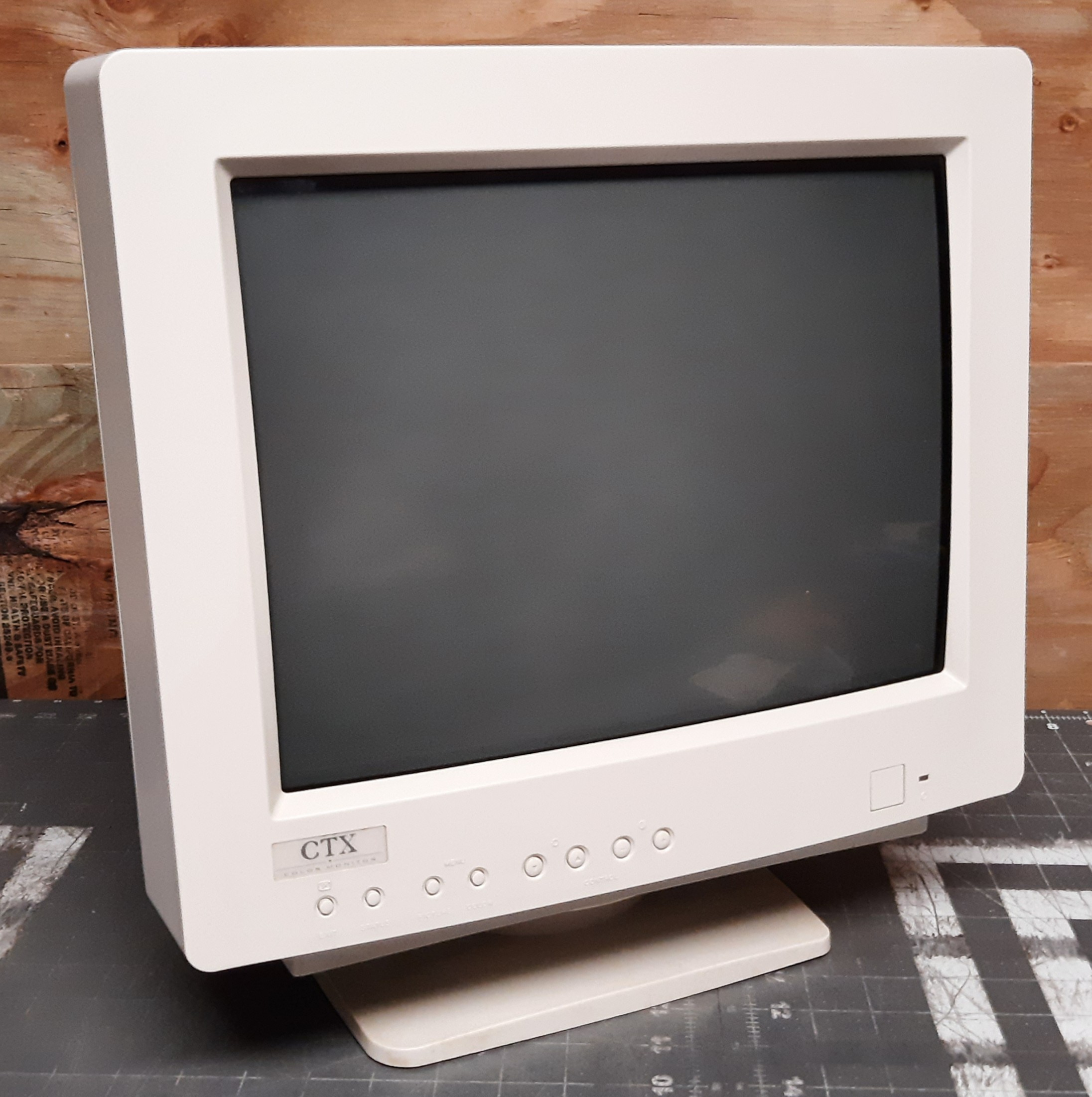

Gallery
| Specifications | |
|---|---|
| Brand: | CTX |
| Manufacturer: | Chuntex Electronic Co. |
| Model: | VL500 |
| Series: | VL |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 70 kHz, 29 kHz |
| Vertical Scan Range: | 49 Hz, 132 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | LA7838 |
| Flyback: | 47F13-0760Y |
| Tube: | M36LBL803X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | None |
| Weight: | 27.7 lbs (12.6 kg) |
| Dimensions (W/H/D): |
362 x 368 x 390 mm
(14.2 x 14.5 x 15.3") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| Country of Manufacture: | China |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
