Daewoo DTQ-13V5FC
Trixter192, Dani Feng
October 25, 2025, 10:51 pm
October 26, 2025, 2:54 pm
October 25, 2025, 10:51 pm
October 26, 2025, 2:54 pm
Summary

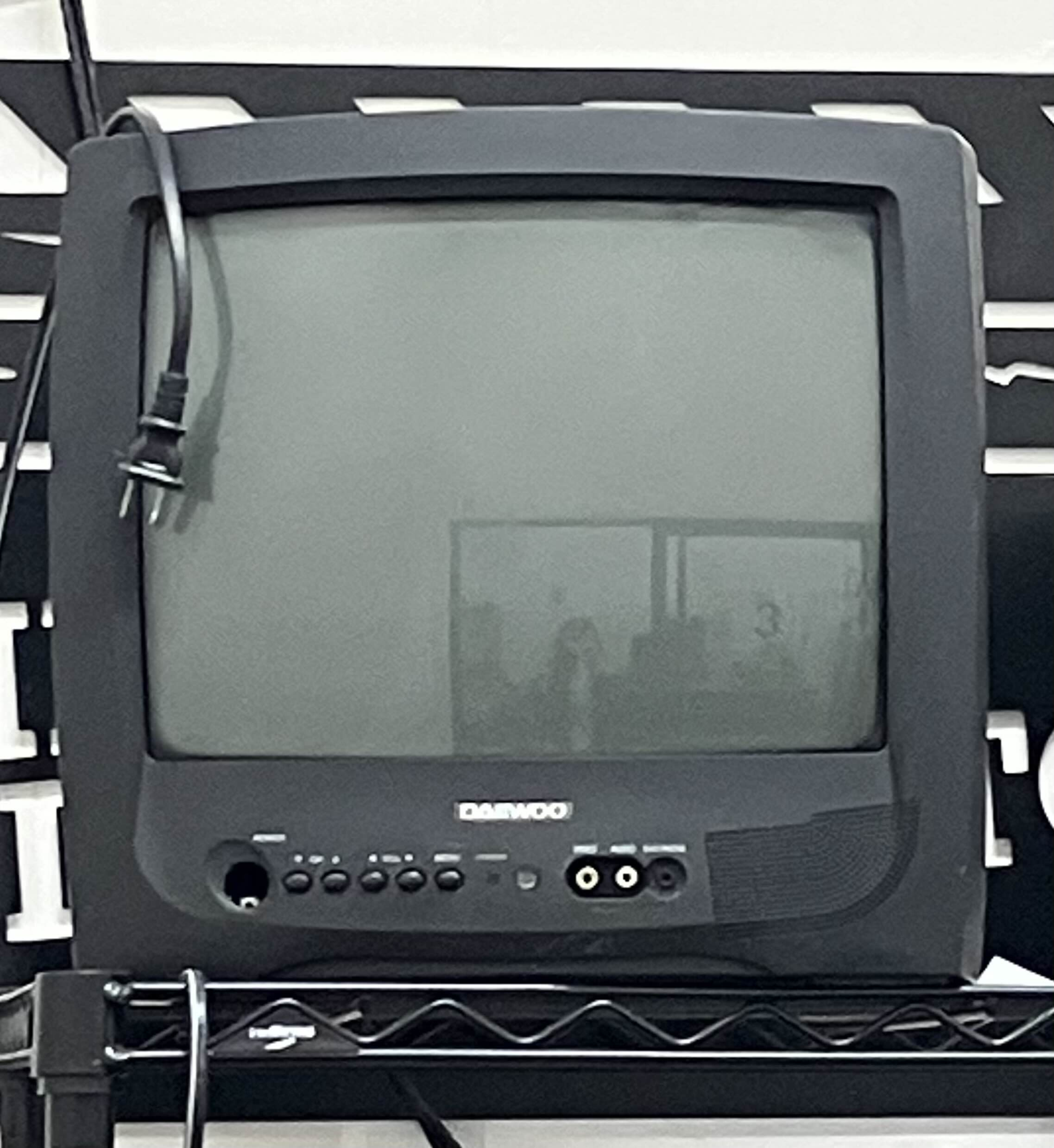

Basic 13" television with mono audio, composite and RF input.
Manuals & Promo Materials
- Owner's Manual
- Service Manual for the CN-001G chassis.
Gallery
.webp "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Daewoo |
| Manufacturer: | Daewoo |
| Model: | DTQ-13V5FC |
| Series: | DTQ |
| Viewable Size: | 13" |

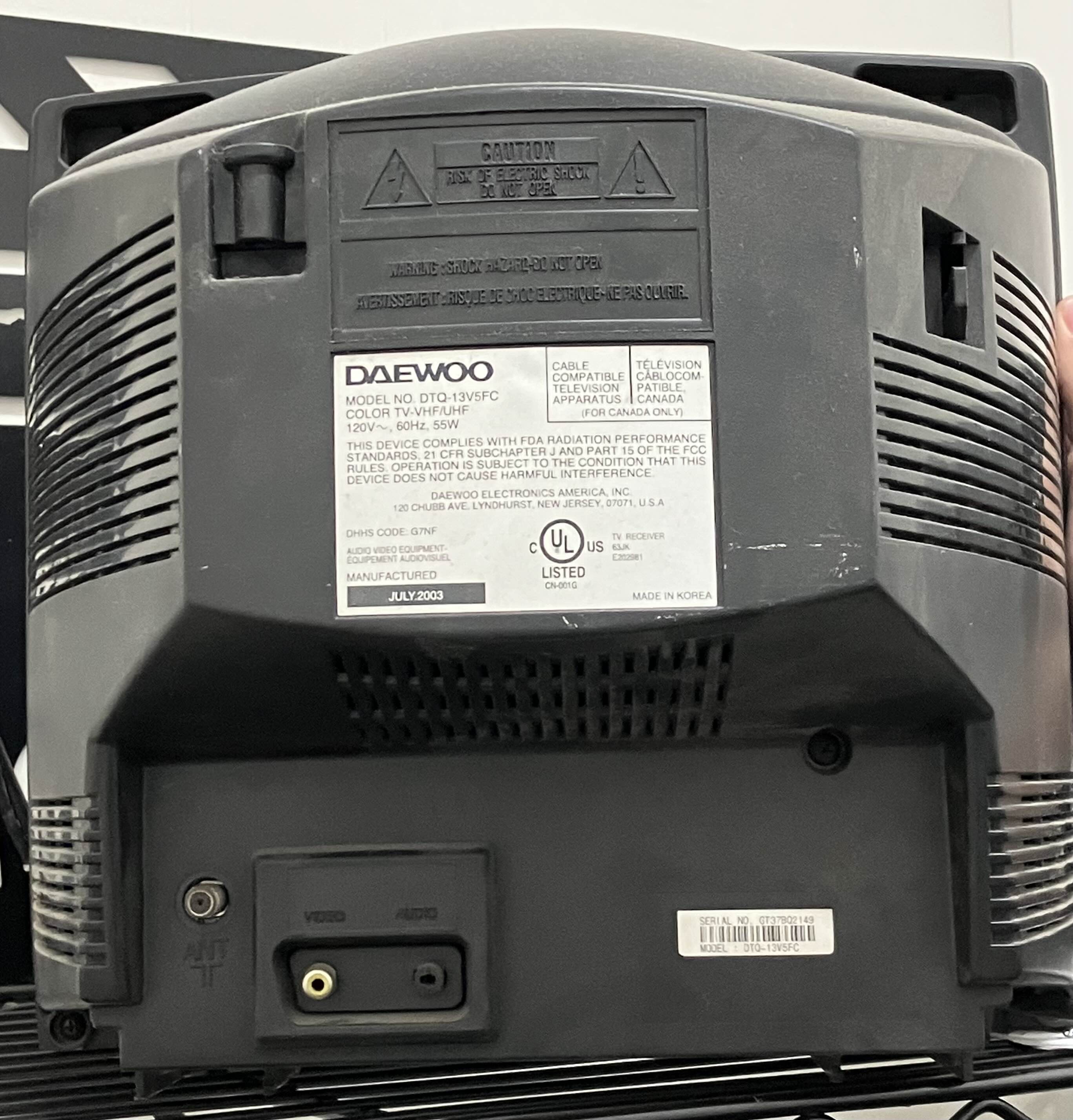

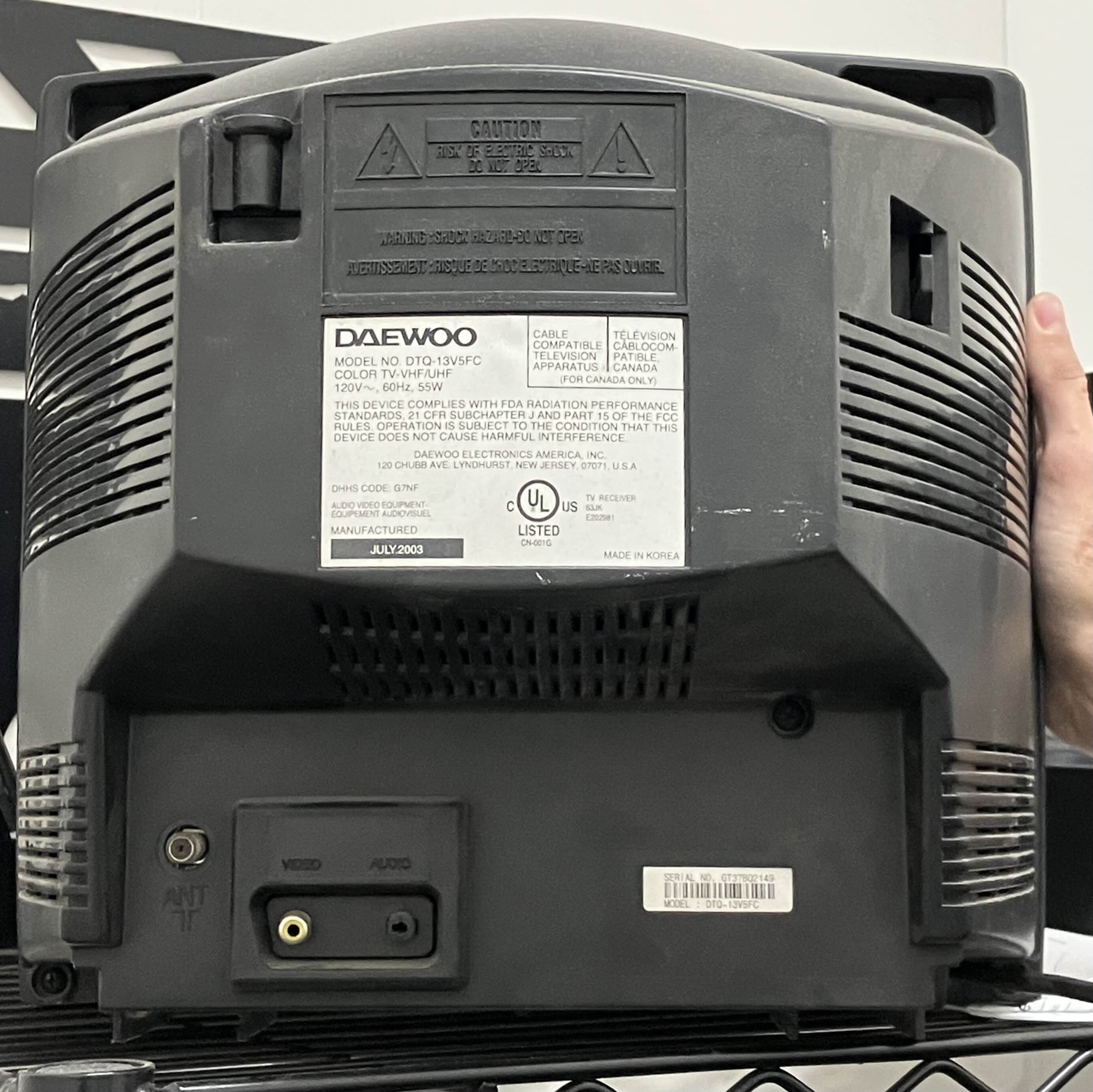

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Menu for picture adjustment (OSD), On-Screen Display |
| Horz. Output Transistor: | 2SD2499 |
| Vertical Output IC: | LA78041 |
| Jungle IC: | Renesas, 1M61250FP |
| Flyback: | FSA37023M |
| Focus Type: | Single |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | 3W |

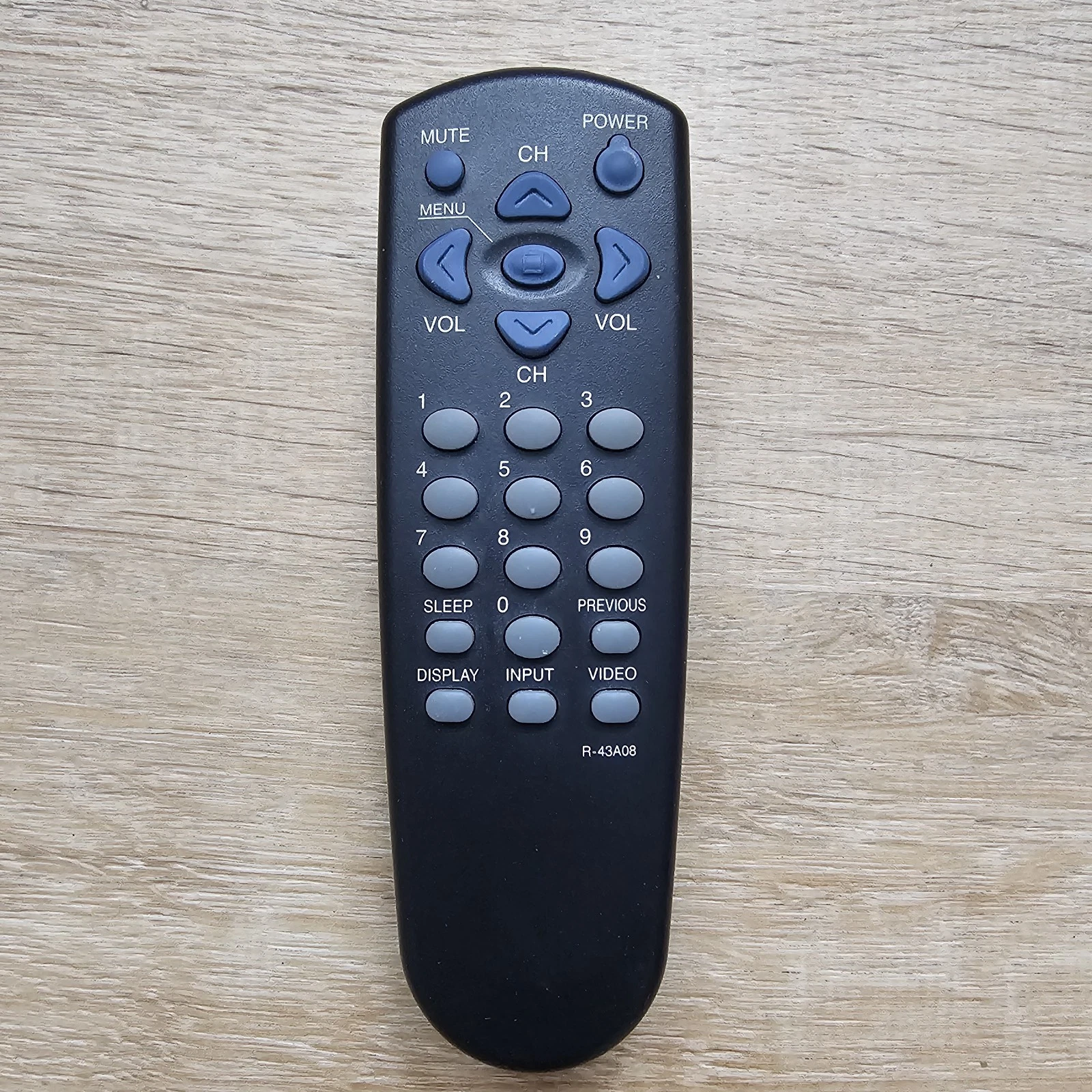

| Remote: | R-43A08 |

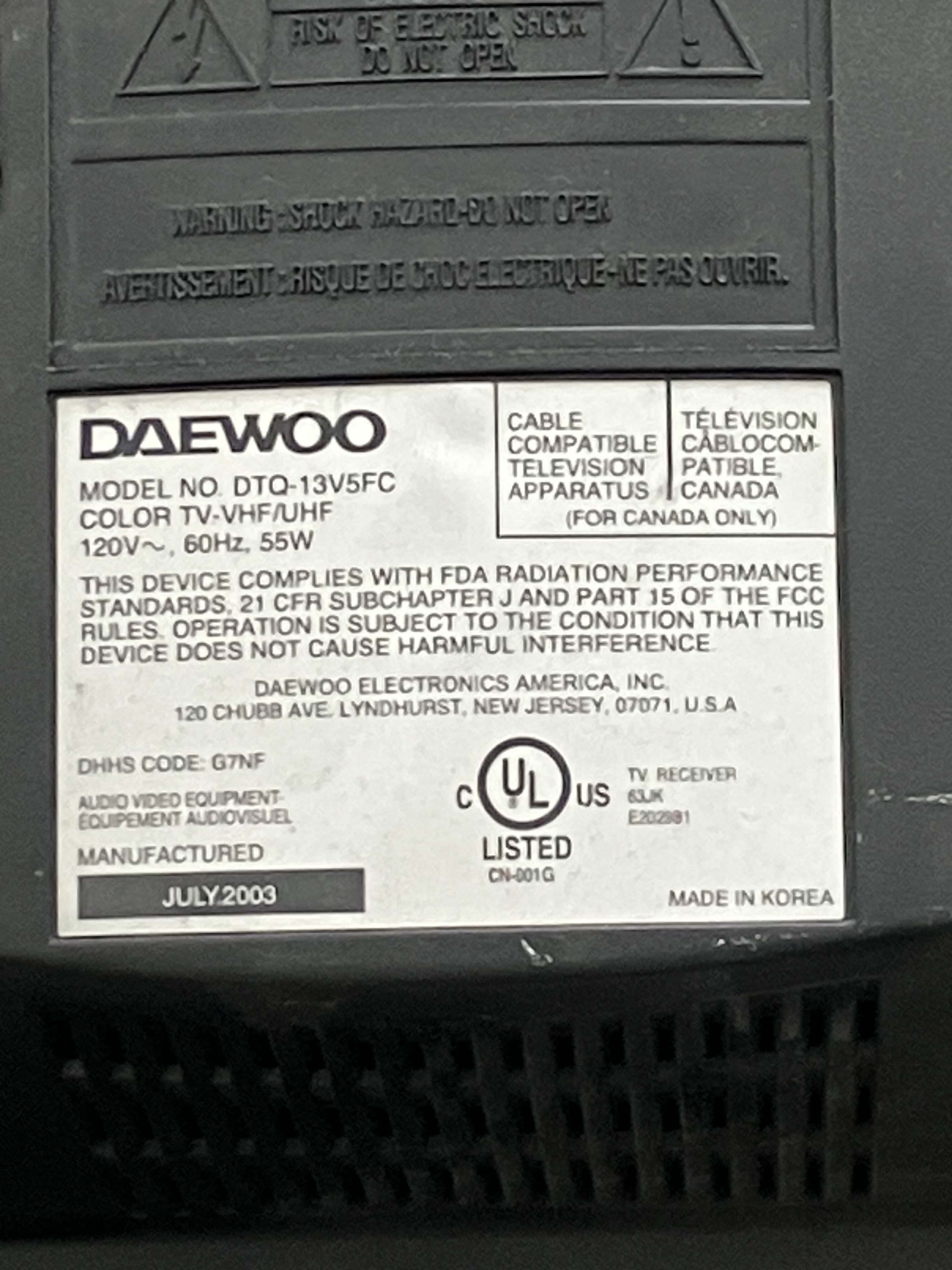

| Chassis: | CN-001G |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Korea |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Measurements, Needs Yoke Info, Community Submission, Needs Pictures, Needs Tube Info |
