Summary

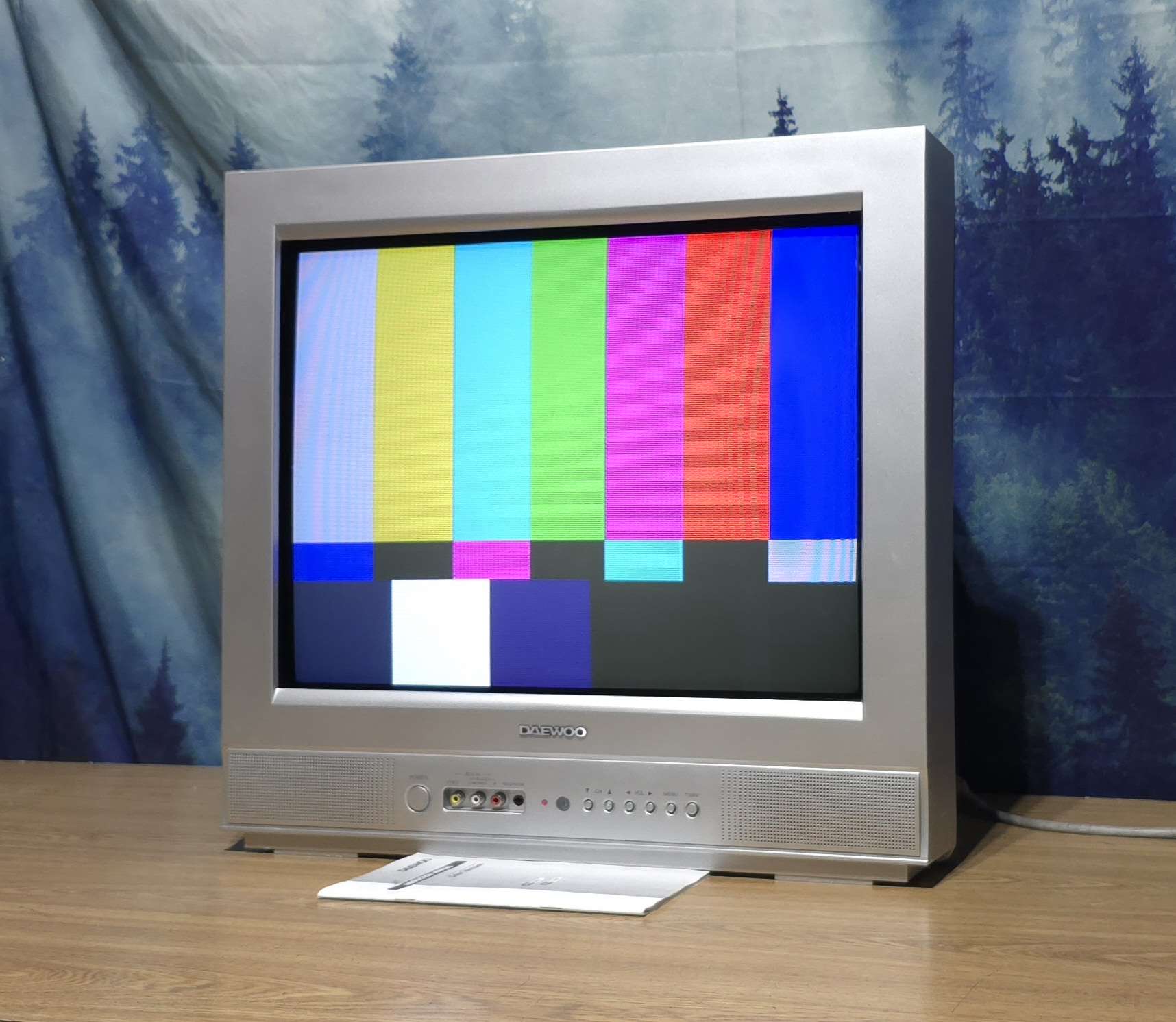

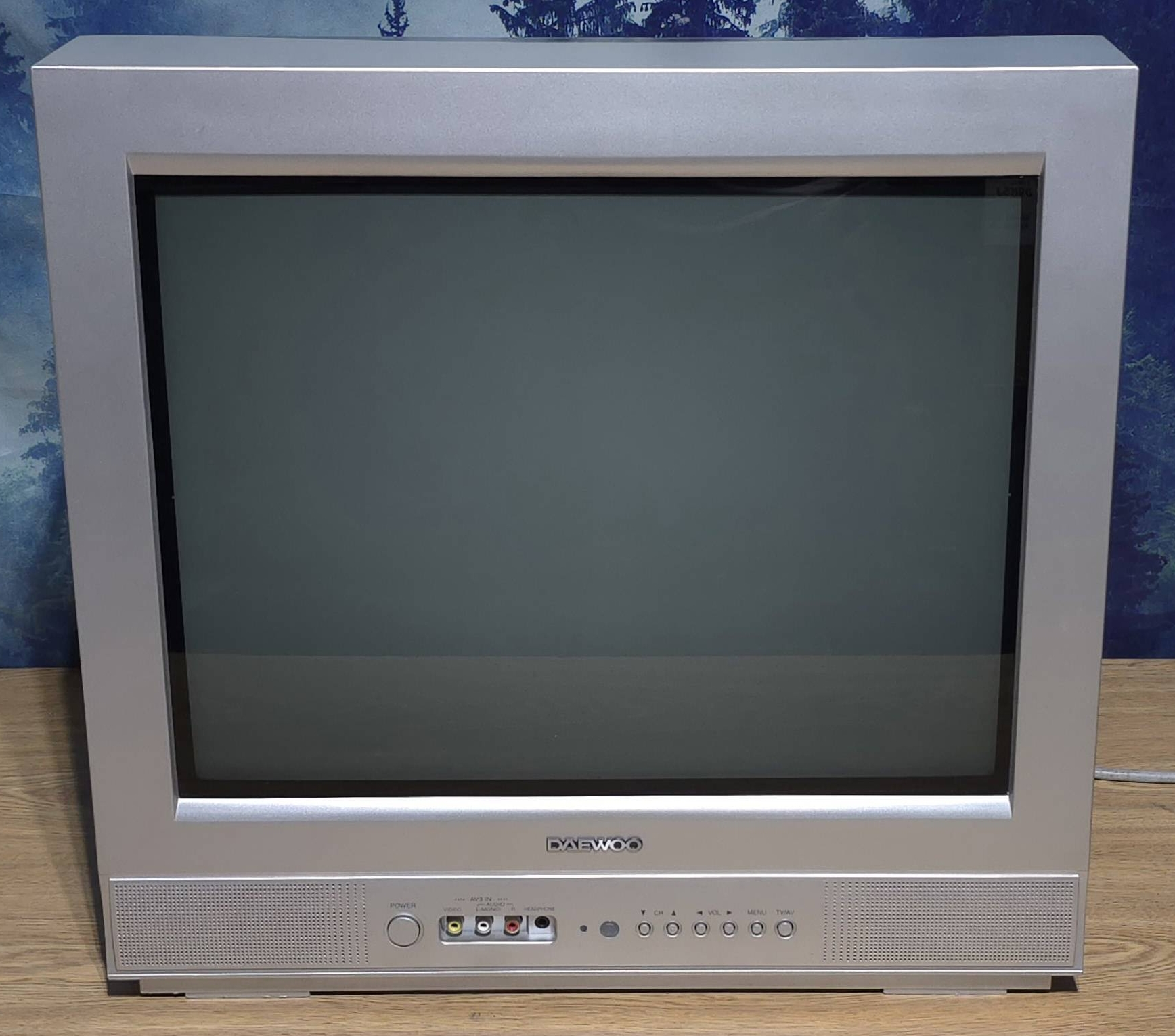

20" flat CRT by Daewoo, made in Korea in 2003. Has a full set of inputs.
Manuals
Notes
The picture processing on this set is a mixed bag. It uses a Micronas jungle chip, and those were not known to be of the best quality. Composite and s-video looking good, but component looks... off. There seems to be some luma artifacting you can't quite dial out, which is annoying. Reds are pushed, yet also at a lower chroma resolution, so they bleed.
It would seem the 20" model doesn't have velocity modulation.
Gallery
| Specifications | |
|---|---|
| Brand: | Daewoo |
| Manufacturer: | Daewoo |
| Model: | DTQ-20U4SC |
| Series: | DTQ |
| Viewable Size: | 20" |

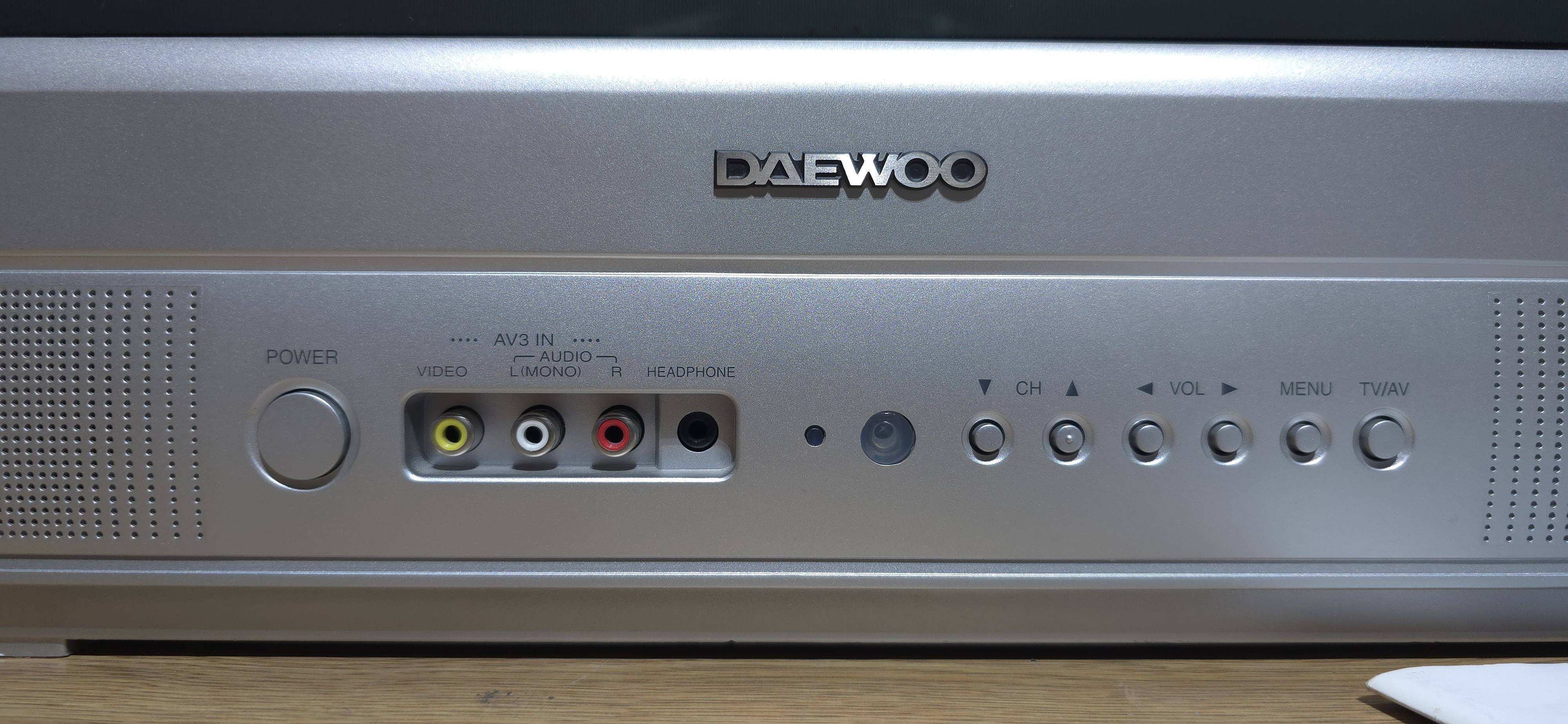

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7848 |
| Jungle IC: | Micronas, VDP3130Y |
| Flyback: | FFA64717M |
| Focus Type: | Single |
| Tube: | Daewoo-Orion , A51QDK090X03 , A51QDK090X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |
| Remote: | R-43A07 |
| Chassis: | CN-230F |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| MSRP: | 149 USD |
| Country of Manufacture: | Korea |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Measurements |
