Summary

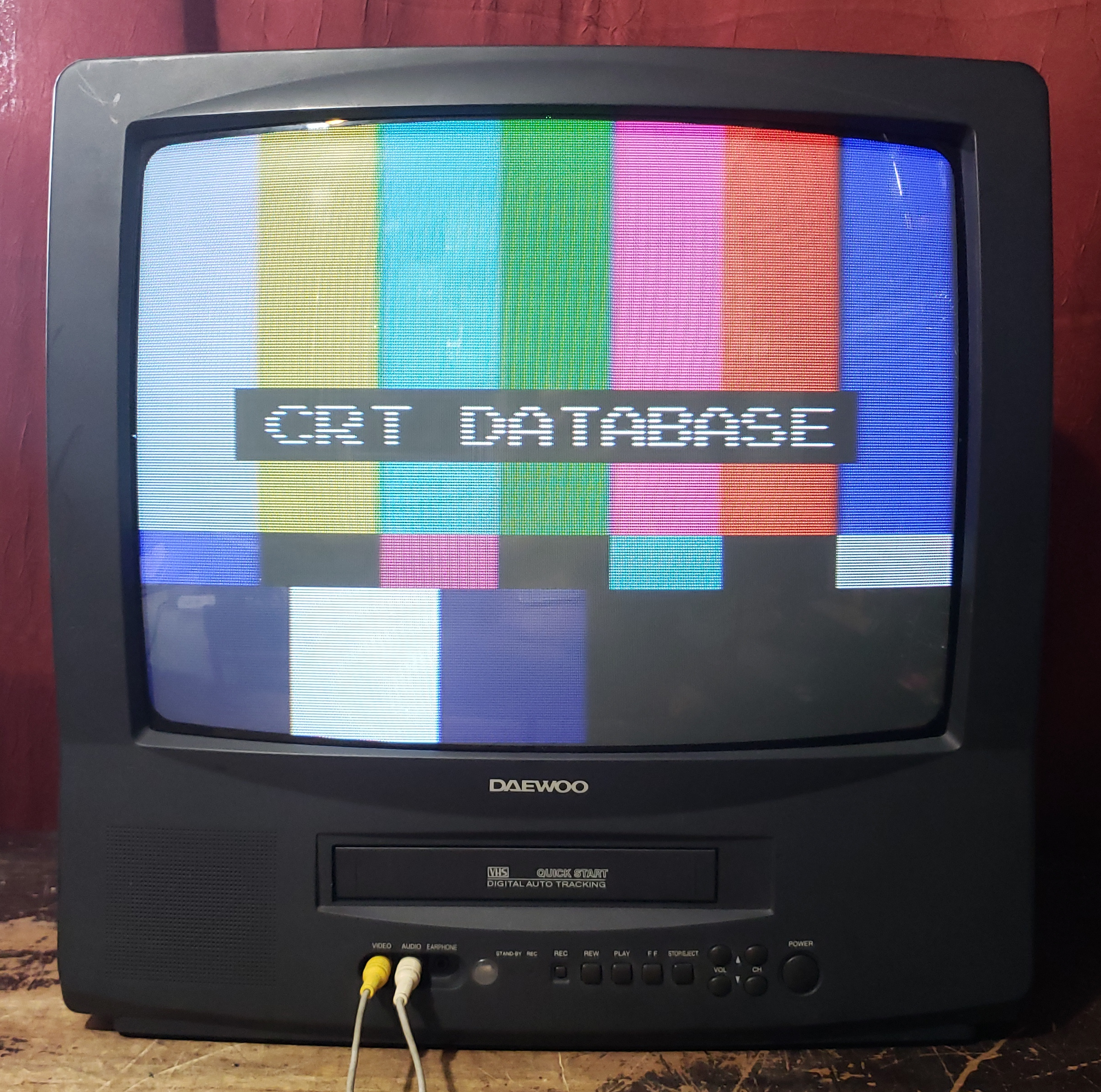

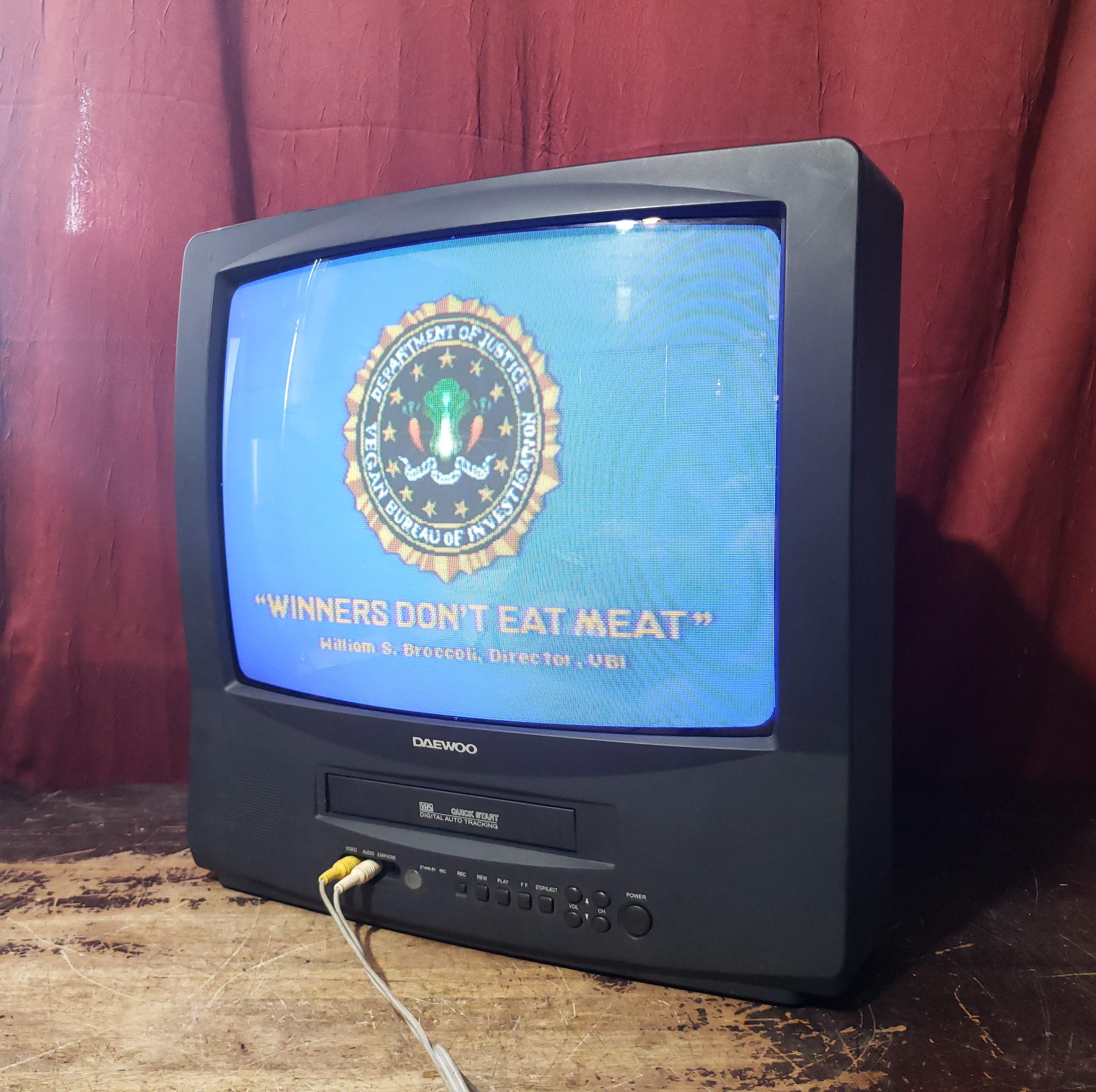

13" TV/VCR combo from Daewoo, with a mono speaker and a single front AV input.
Manuals
- Owner's Manual for a similar Daewoo-made set with the same chassis
- Service Manual
Notes

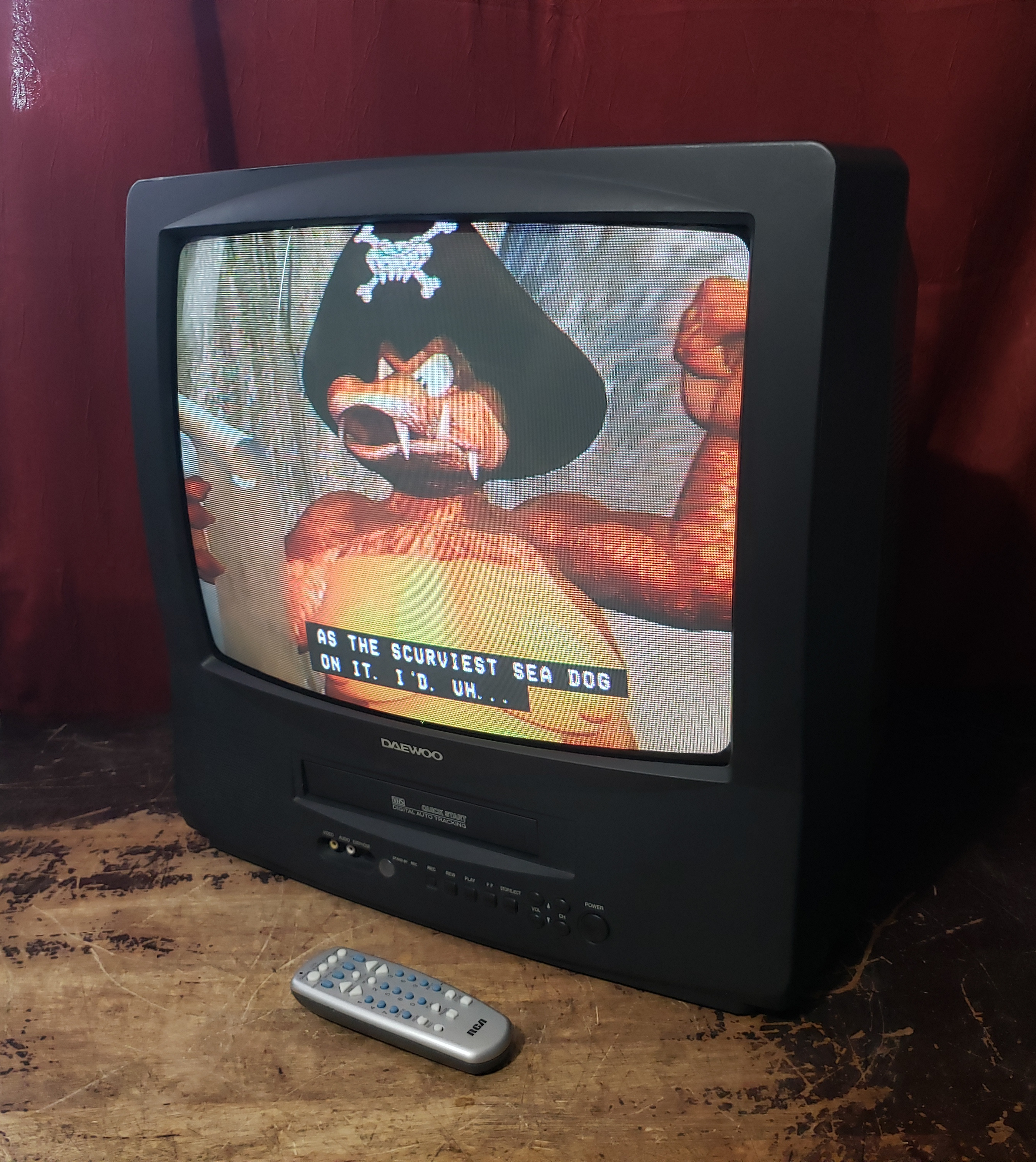

Switching video inputs and accessing the menu requires a compatible remote. I was able to program an RCA RCU704 series universal remote for both the TV and VCR functionality.
Gallery
| Specifications | |
|---|---|
| Brand: | Daewoo |
| Manufacturer: | Daewoo |

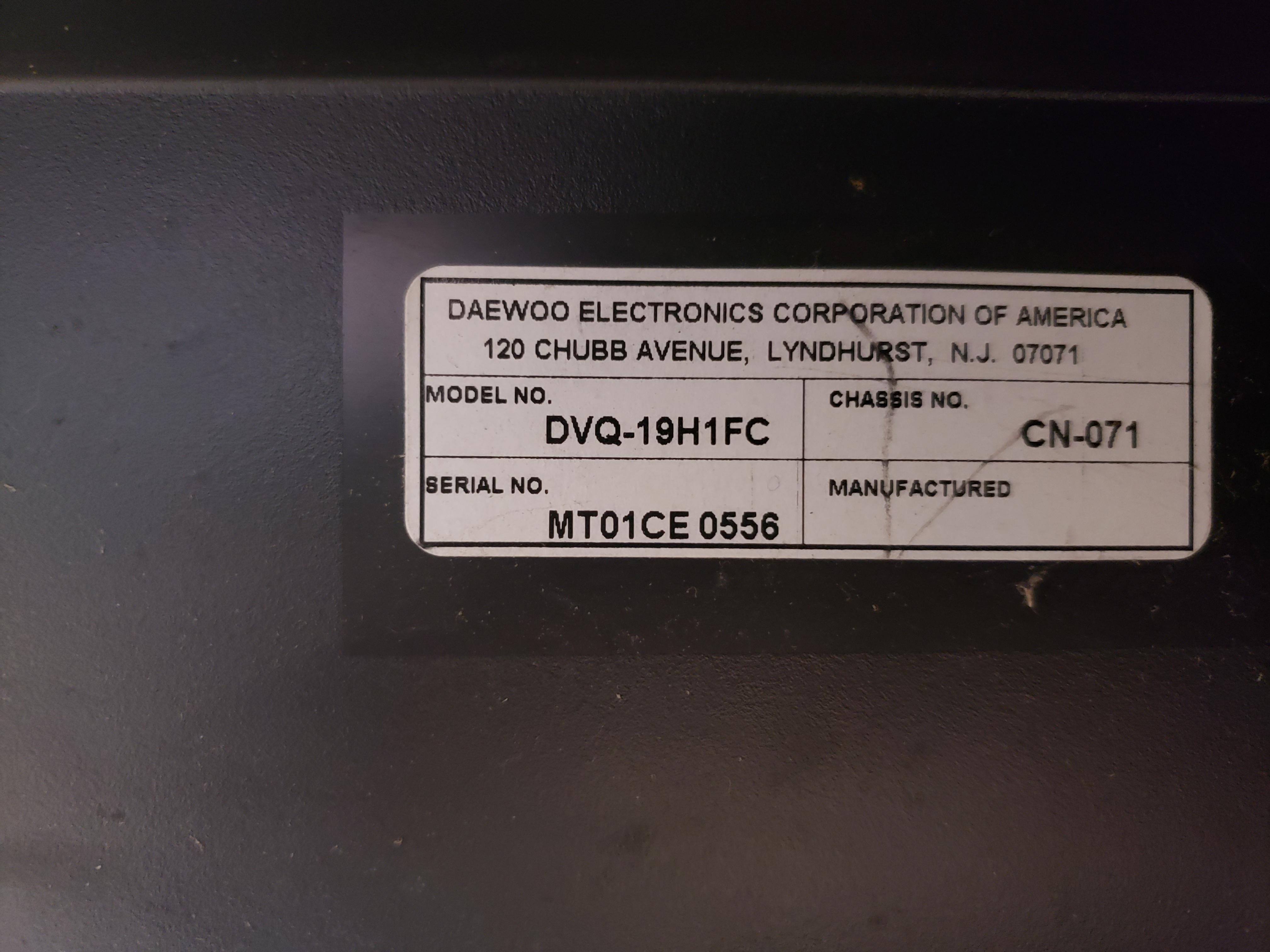

| Model: | DVQ-19H1FC |
| Series: | TV/VCR Combo |
| Viewable Size: | 19" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |

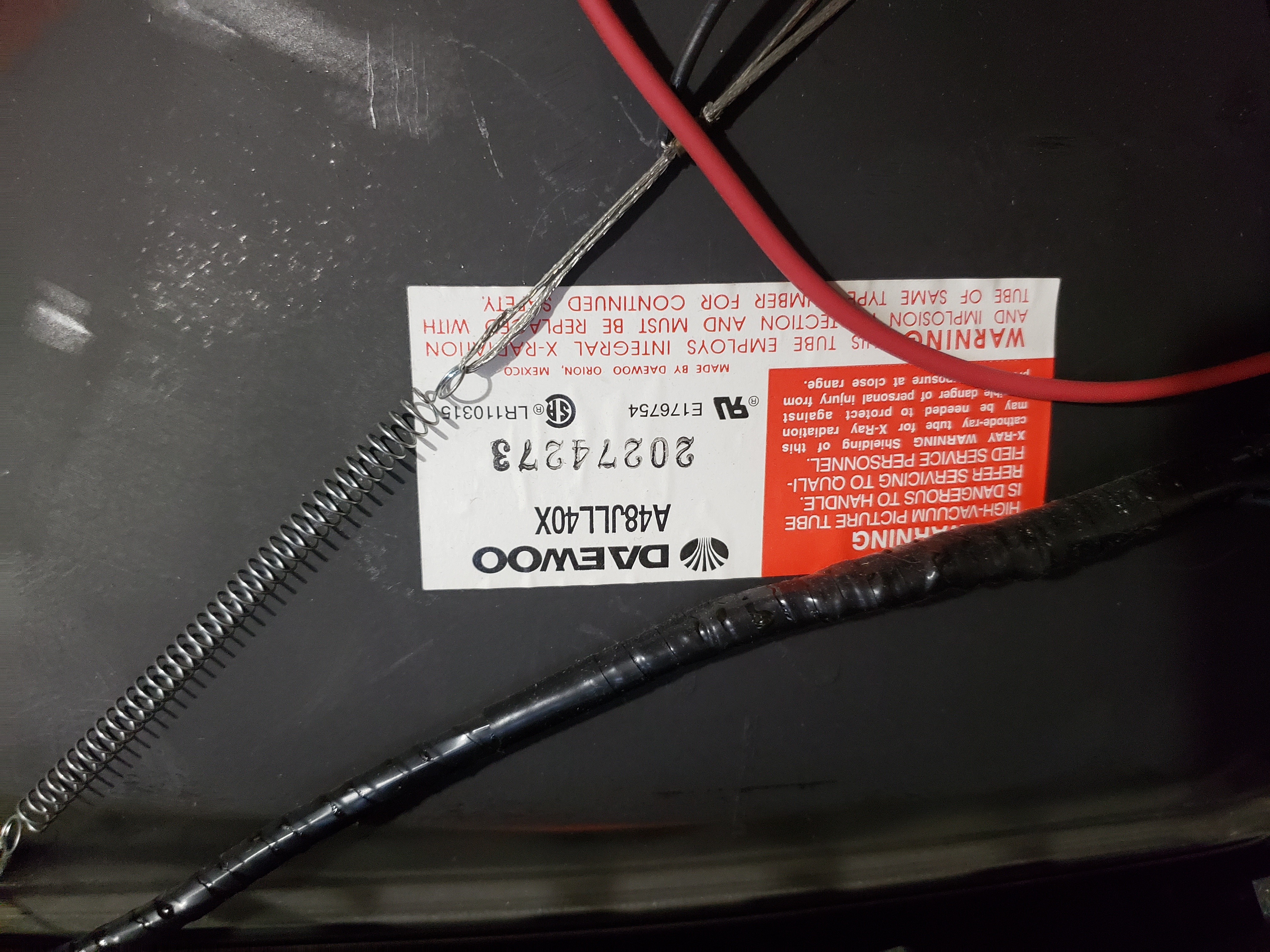

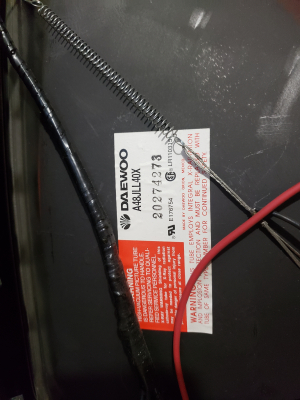

| Tube: | A48JLL40X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

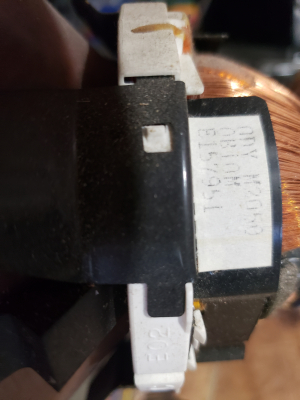

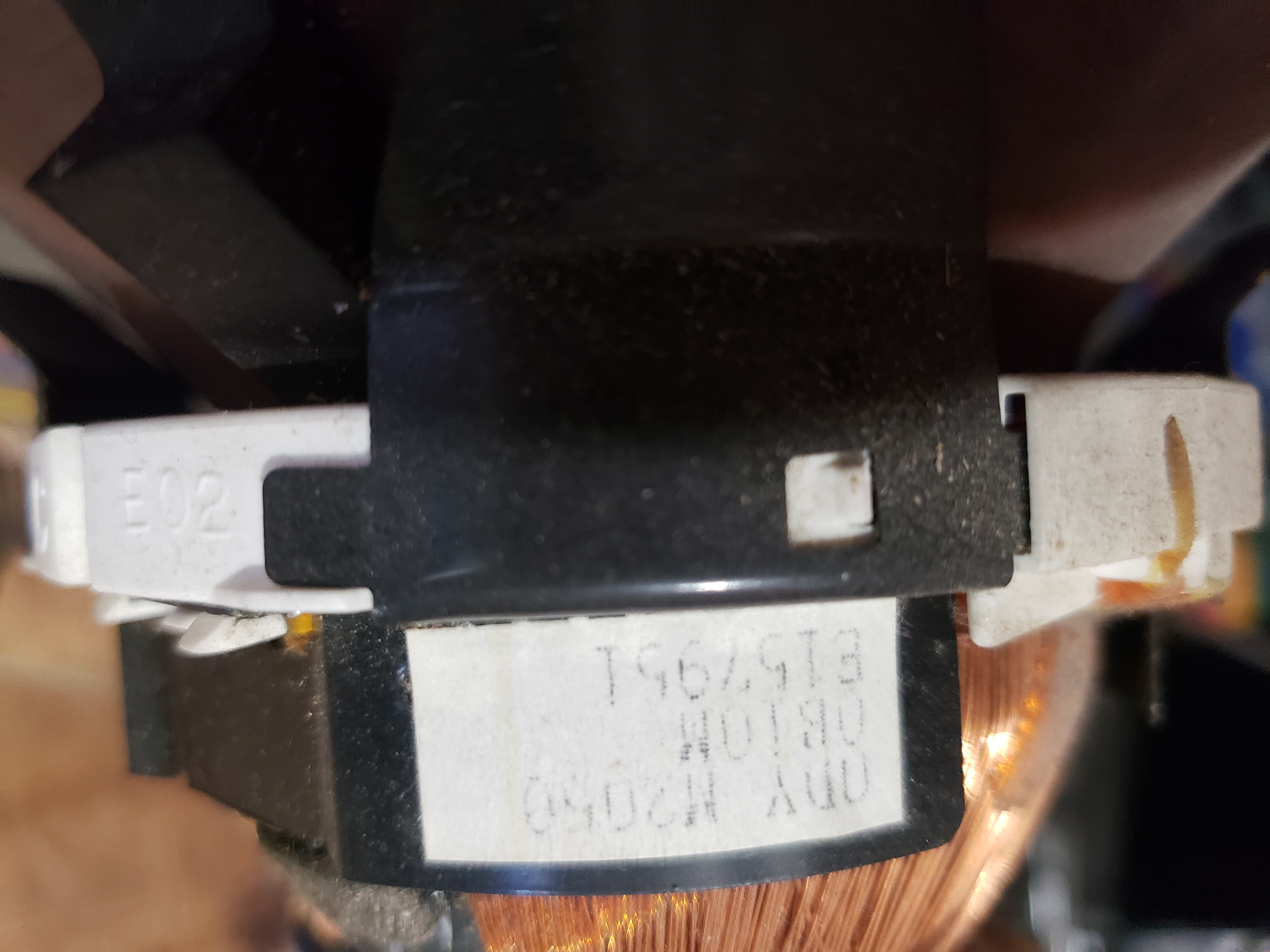

| Yoke Horz. Inductance: | 2.797 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.16 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.39 ohm |
| Yoke Vert. Resistance: | 15.60 ohm, 15.6 ohm |
| Speakers: | Mono |

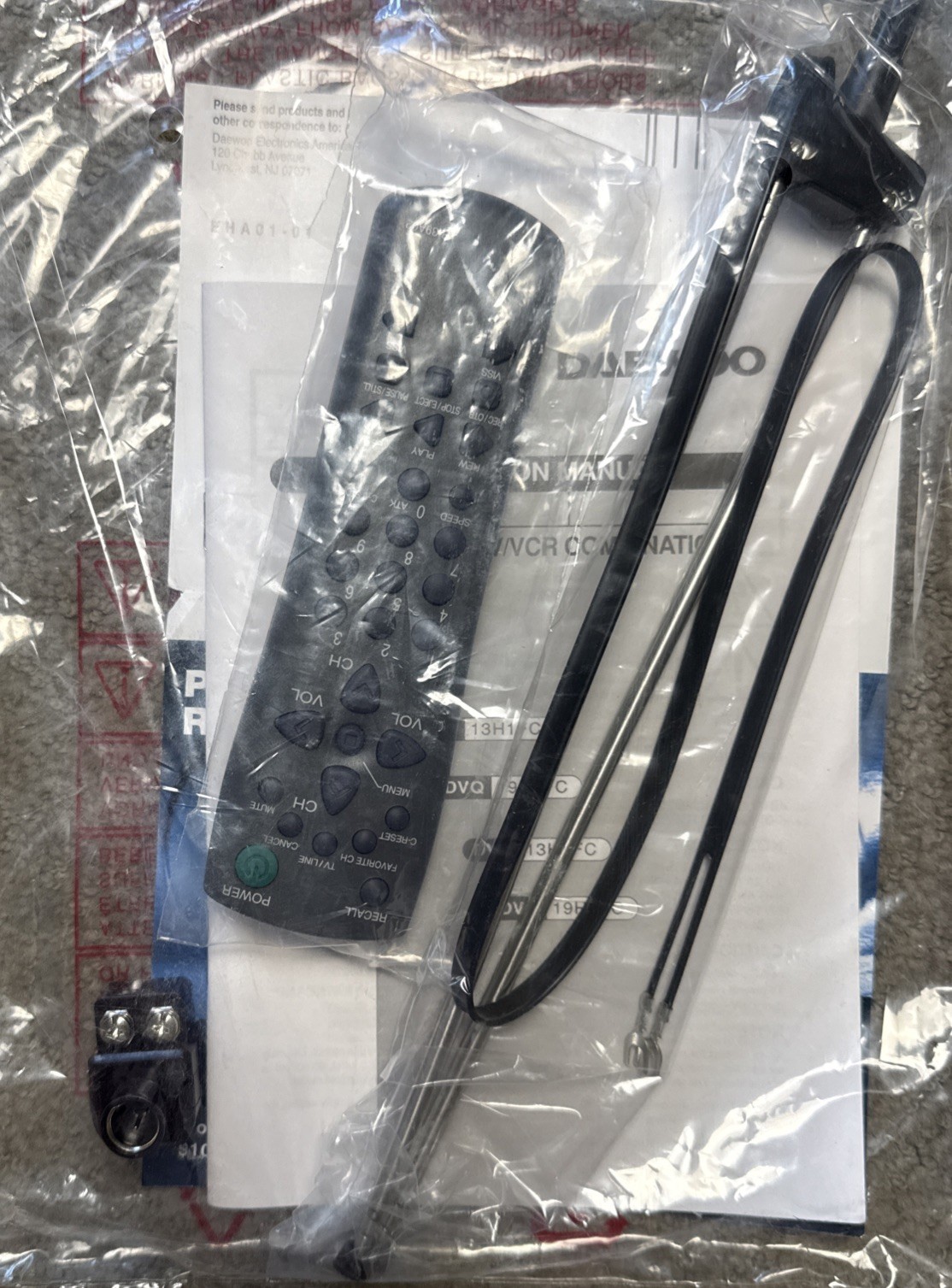

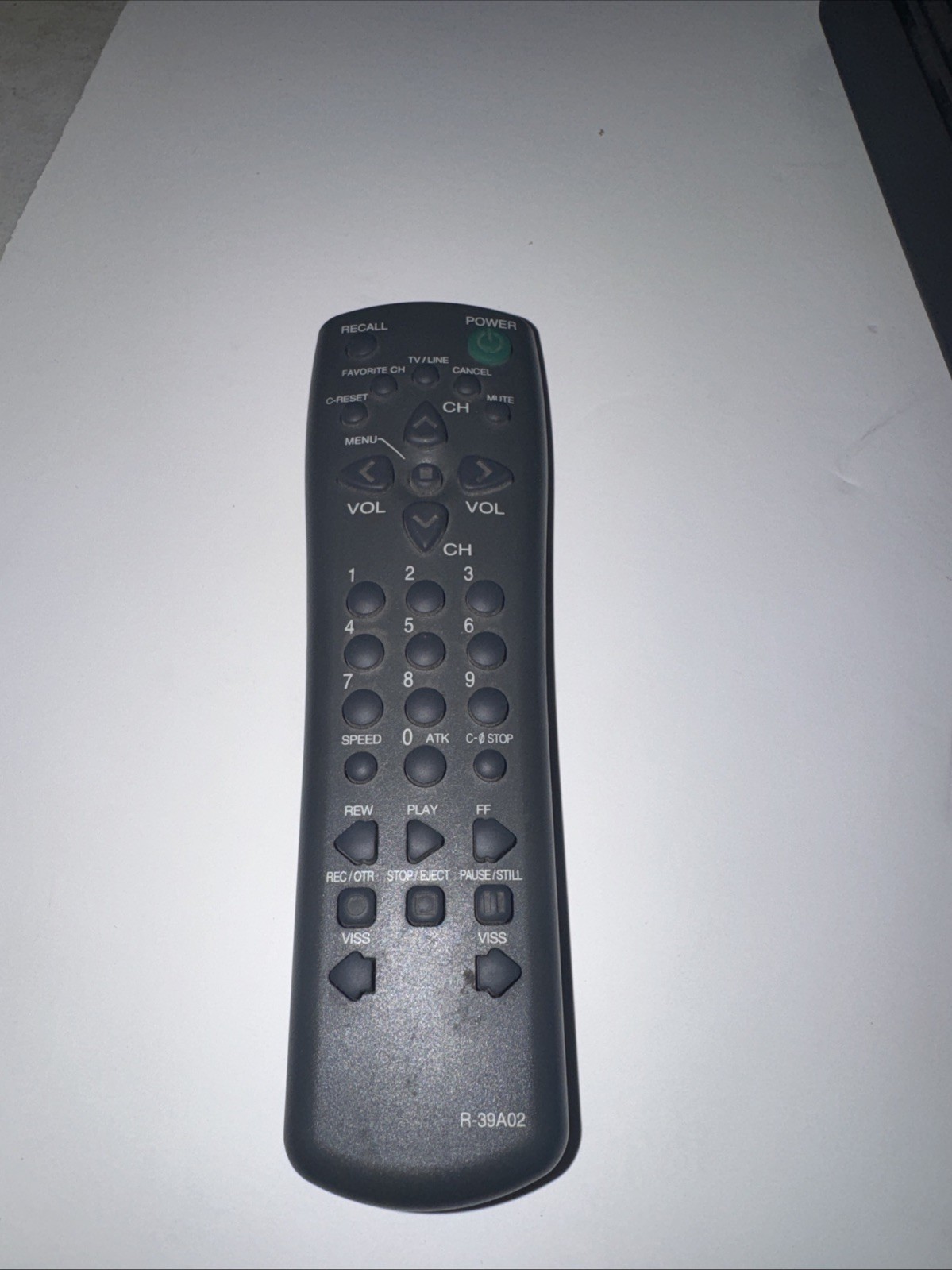

| Remote: | R-39A02 |
| Chassis: | CN-071 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs IC Info |
