Summary

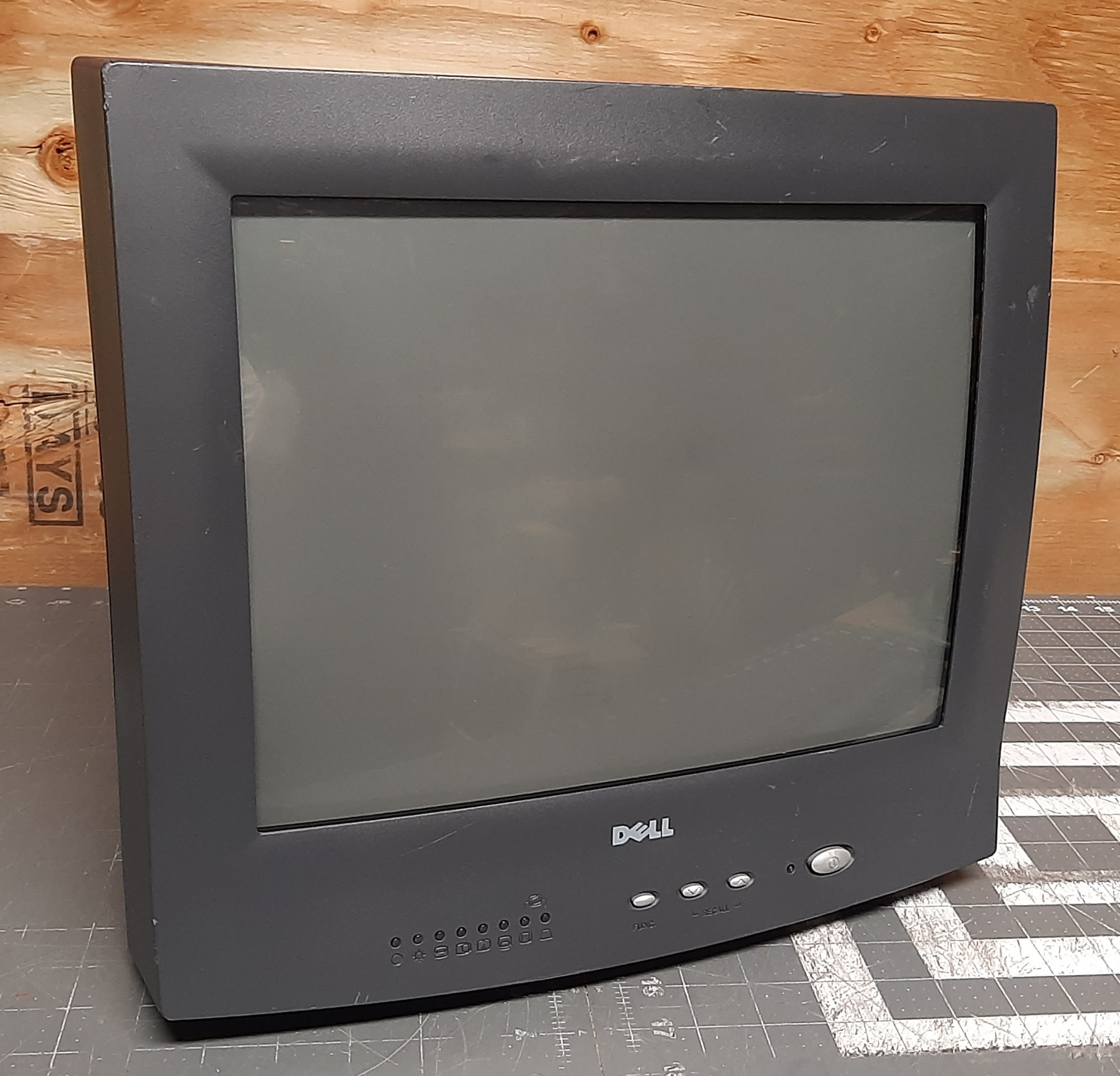

Entry level 15" computer monitor, manufactured by AOC and sold under the Dell brand. Capable of a modest 54 kHz scan rate, it was intended to display 800x600 at 85 Hz, or 1024x768 at 60 Hz.
Literature
Notes

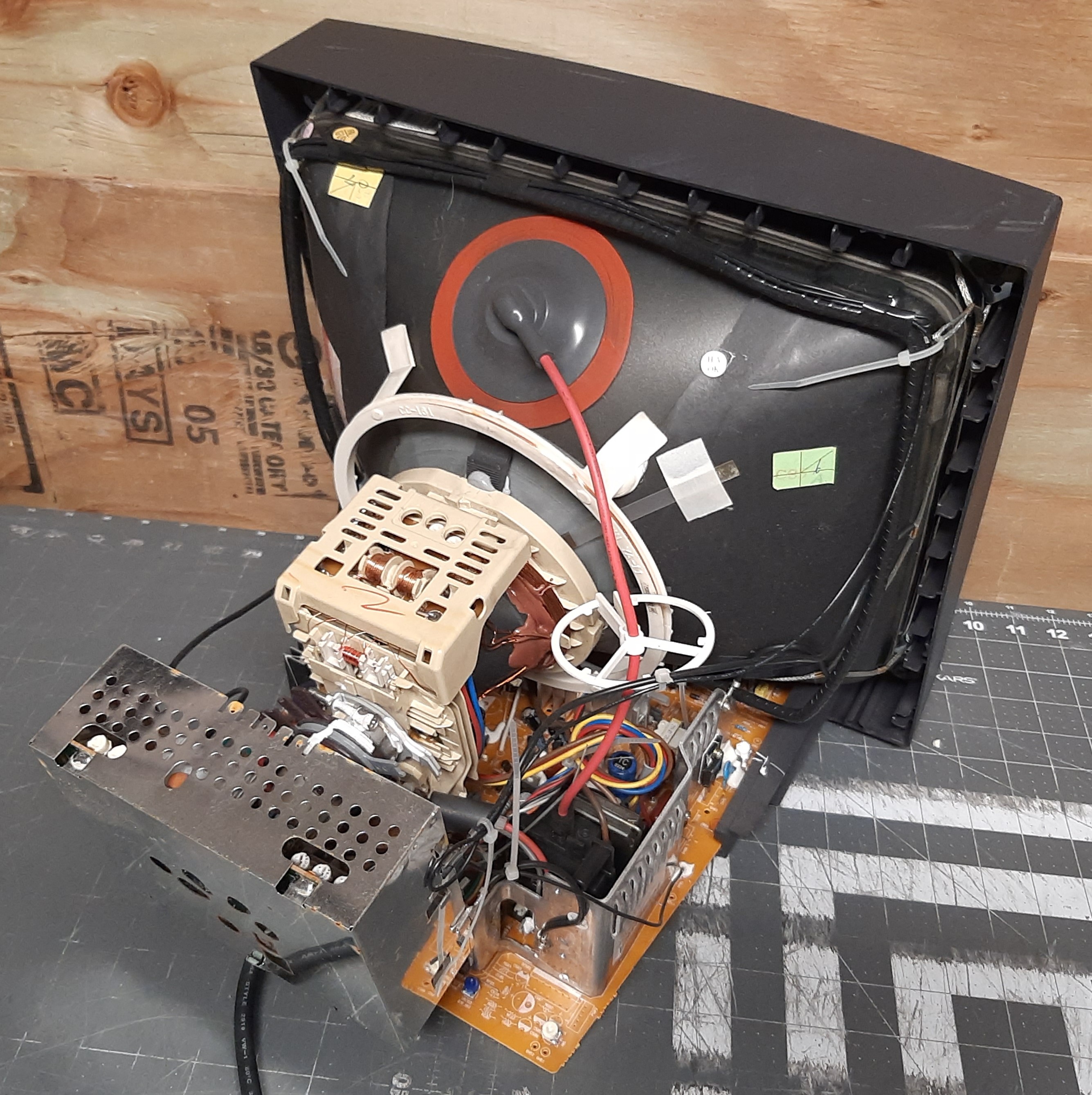

This monitor shares the same tube and yoke (M36AES83X01) as the Ikegami HTM-1517R. This tube is also a drop-in replacement for the M36AES13X01 used in the JVC TM-H150CG.
Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | AOC |
| Model: | E551c |
| Series: | E |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 30 kHz, 54 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, Front Mounted Buttons |
| Vertical Output IC: | TDA9302H |
| Flyback: | 79A355-4-A |
| Tube: | M36AES83X01 , M36AES83X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY-5101C1 |
| Yoke Horz. Inductance: | 0.3007 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.441 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.687 ohm |
| Yoke Vert. Resistance: | 10.01 ohm |
| Speakers: | None |
| Weight: | 27.5 lbs (12 kg) |
| Application: | Computer Monitor |
| Launched: | 2001 |
| Country of Manufacture: | China |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
