Summary
17" multimedia CRT computer monitor, A typical early 2000s 70 kHz monitor, it was designed to be used with 1024x768 at 85 Hz.
Notes
Sold as a "multimedia monitor", the Dell E771mm has a built-in microphone at the top of the tube and two bottom mounted mounted speakers. A volume dial and headphone jack are located on the right side of the case.

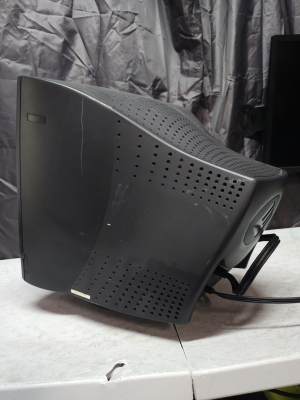

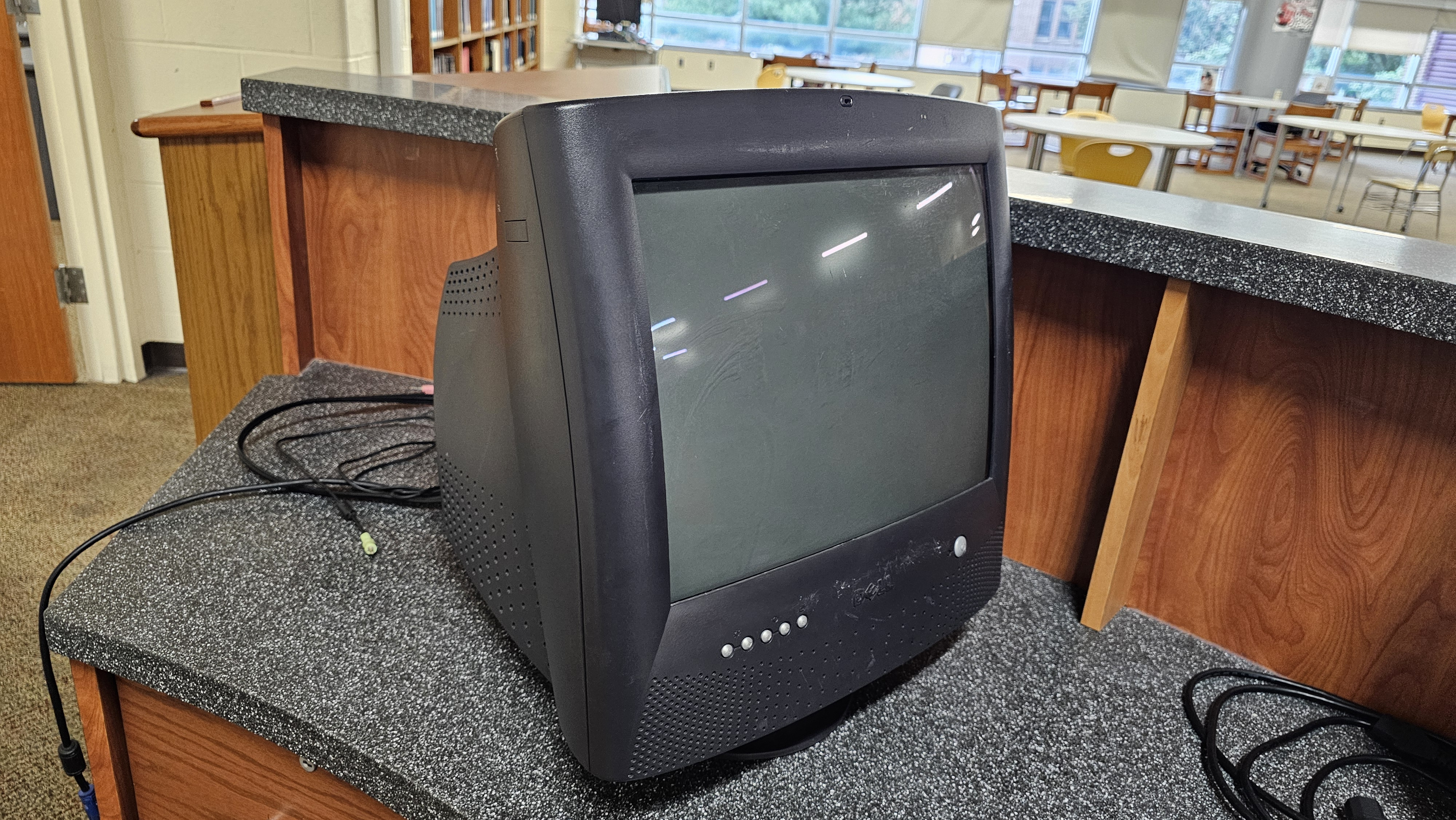

Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | Dell |
| Model: | E771mm |
| Series: | E |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 70 kHz |
| Aspect: | 4:3 |

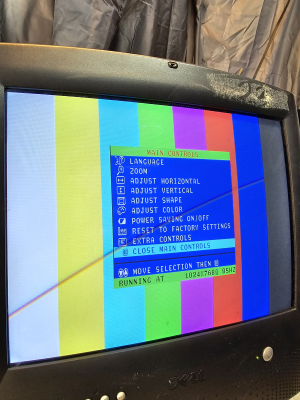

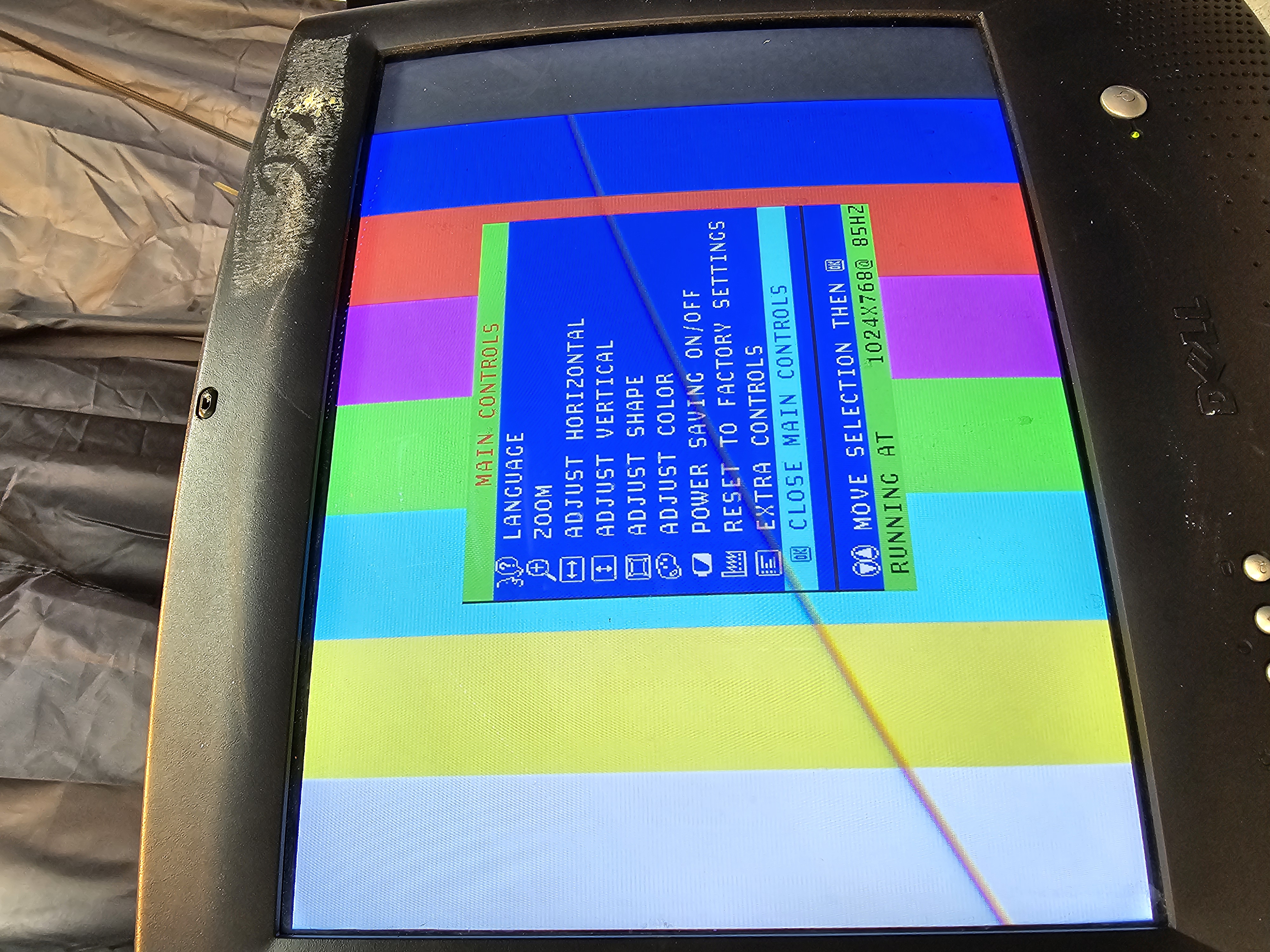

| Adjustments: | OSD Customer Controls |

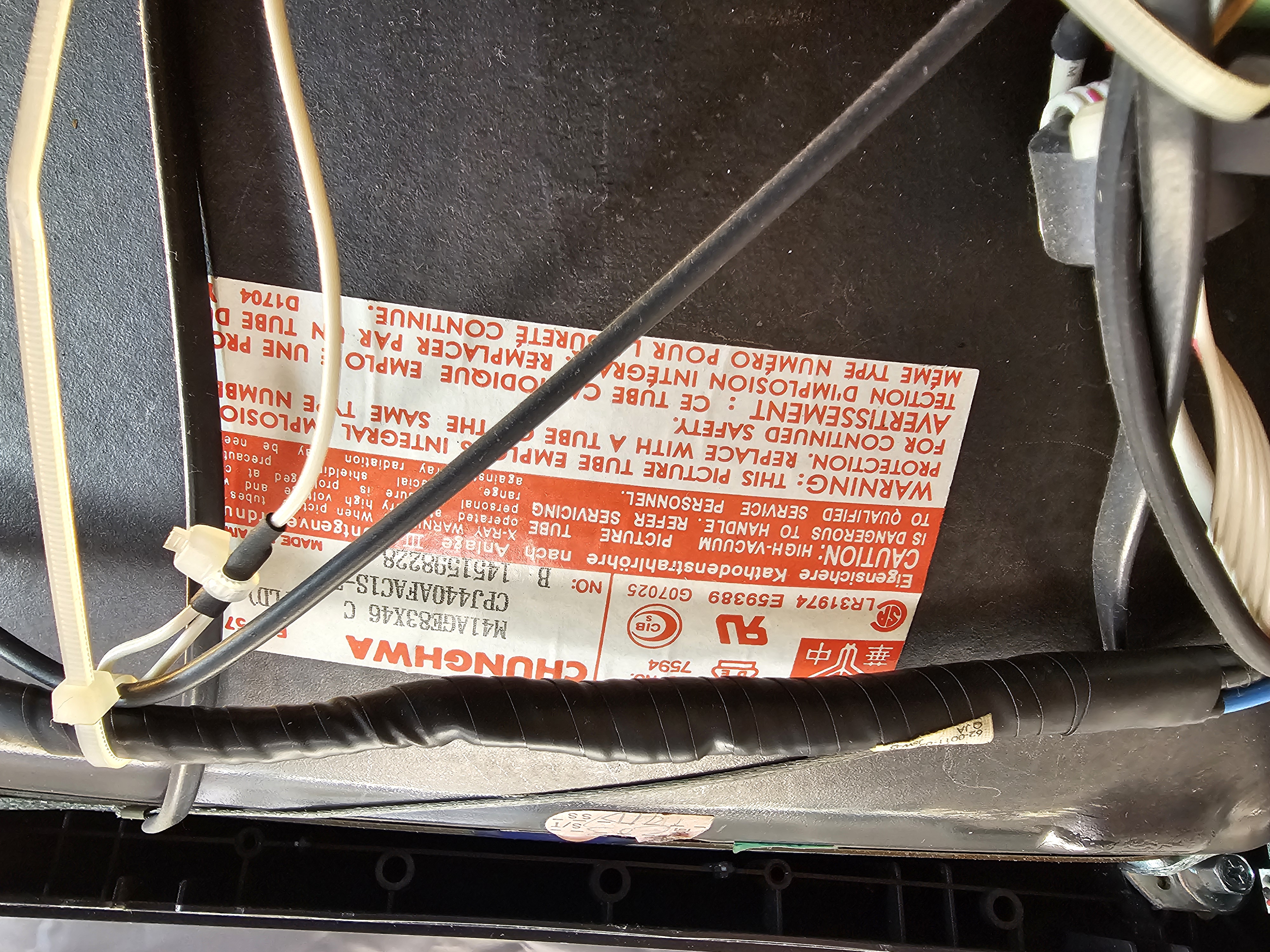

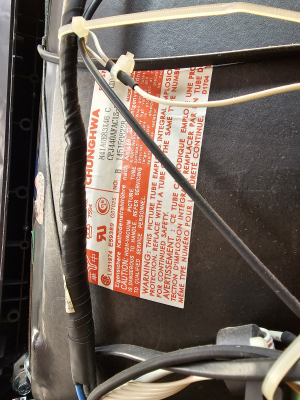

| Tube: | Chunghwa , M41AGE83X46 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Speakers: | Stereo |

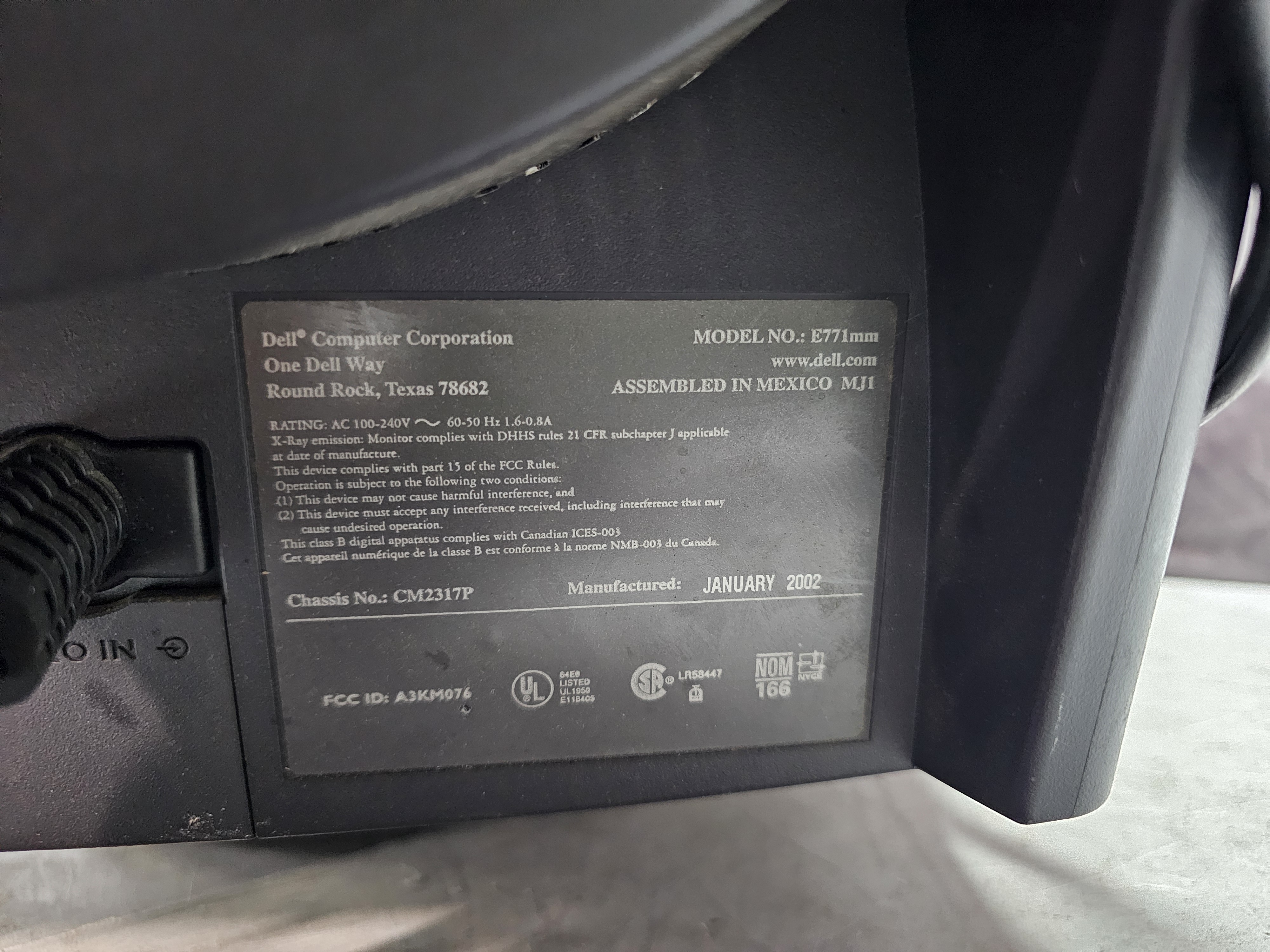

| Chassis: | CM3217P |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Mexico |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
