Dell E773c
Matt Ross
April 20, 2024, 6:33 pm
April 20, 2024, 6:33 pm
Summary
Manufactured by AOC, the E773 is a very widespread monitor, as it was bundled with large number of Dell PCs during the early 2000s. With a 17" tube and 70 kHz scan rate, it's a typical entry level monitor for that time period.
Literature
- To read, open the ISO disk image and click on "Monitor.htm"

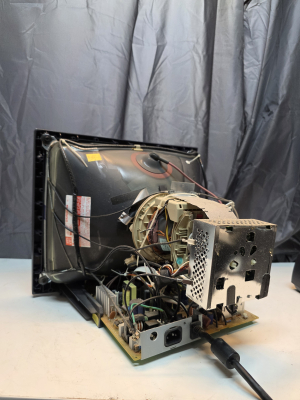

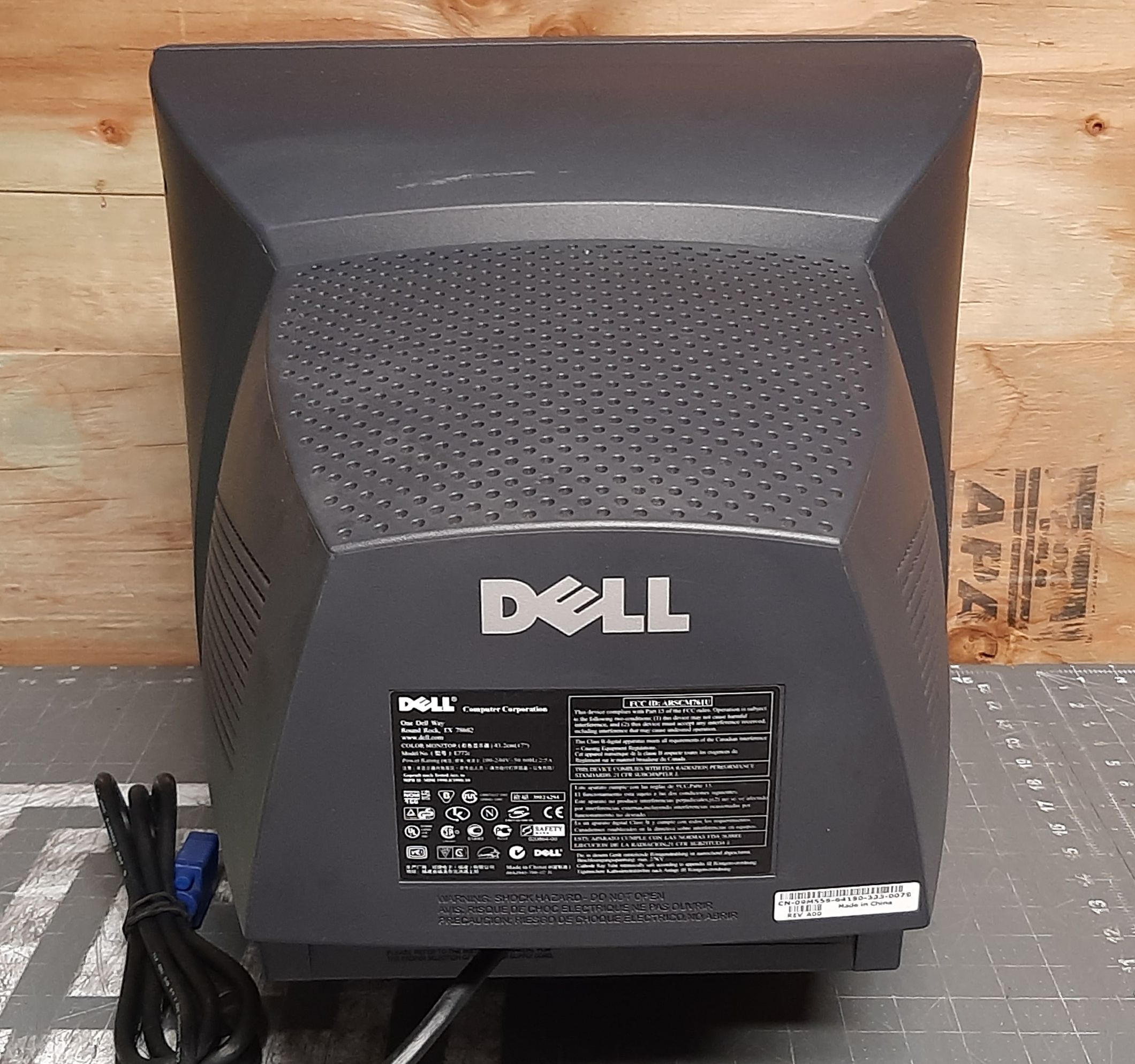

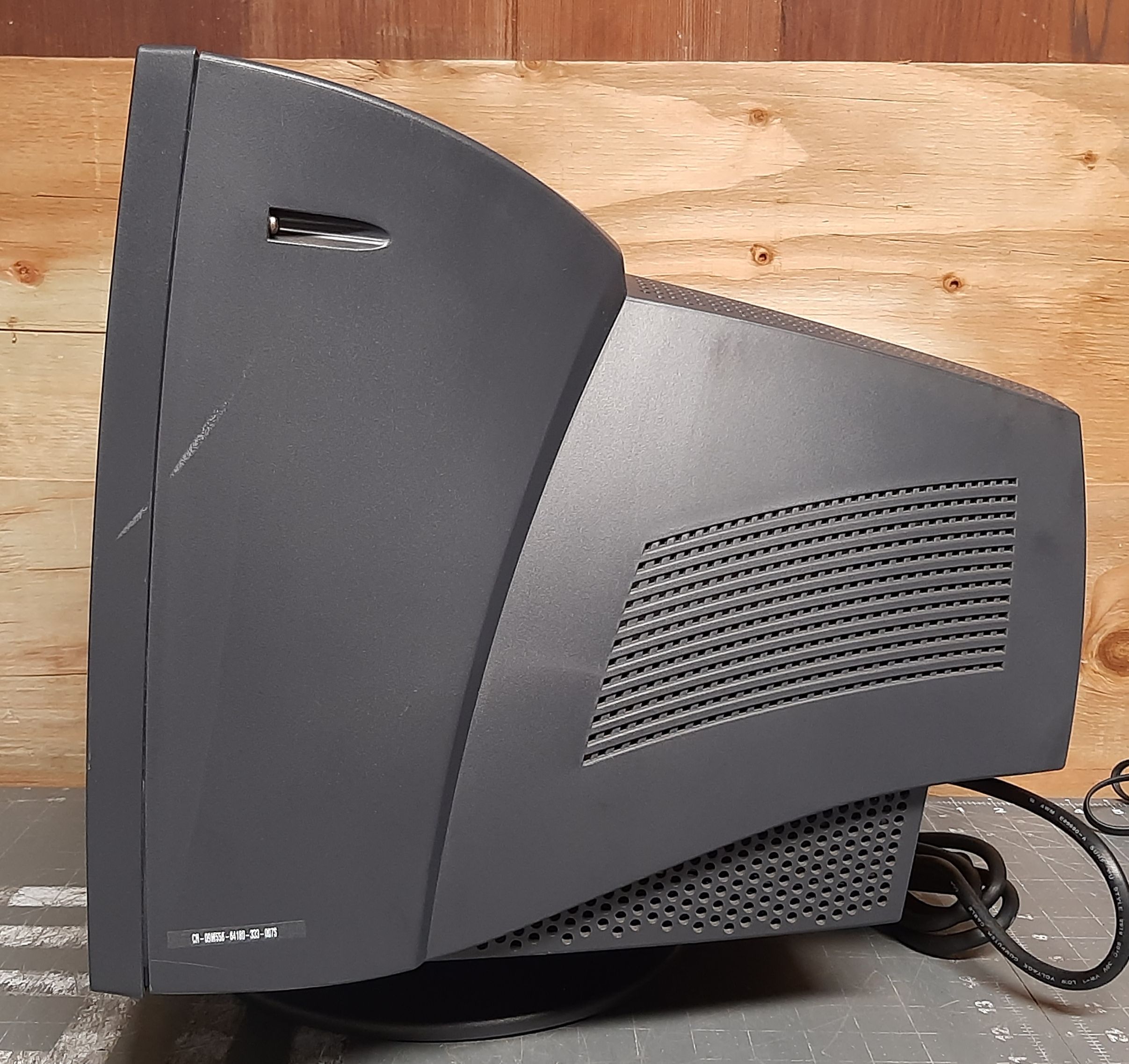

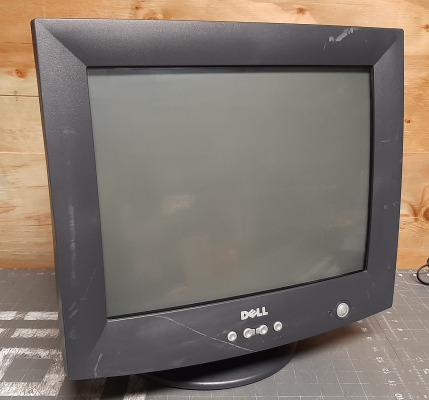

Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | AOC |
| Model: | E773c |
| Series: | E |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Max: | 30 kHz, 70 kHz |
| Vertical Max: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Flyback: | FAO0153 |

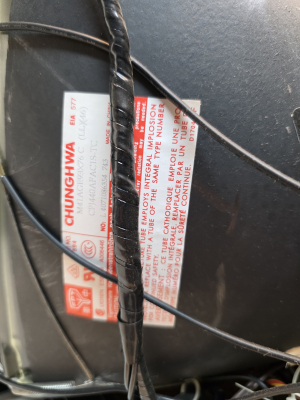

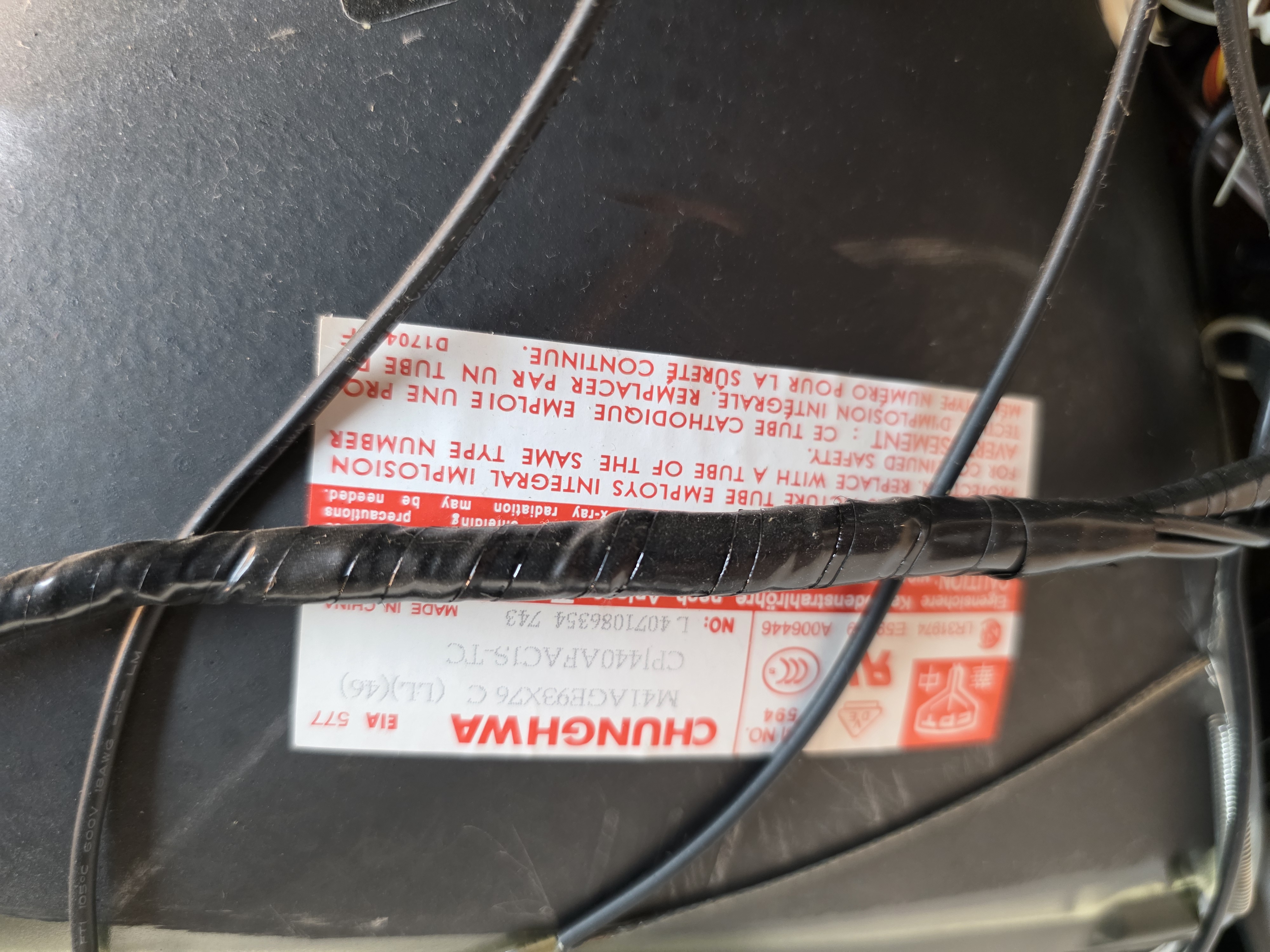

| Tube: | Chunghwa , M41AGE93X76 |
| Deflection: | 90 deg. |
| Mask: | Shadow |
| Pitch: | .27mm |
| Tint: | Dark |
| Removable Glare Film: | No |

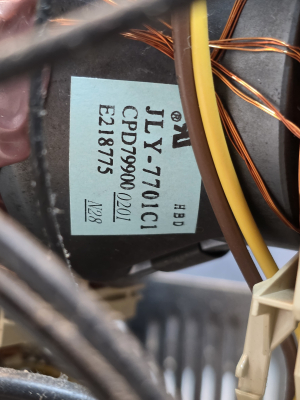

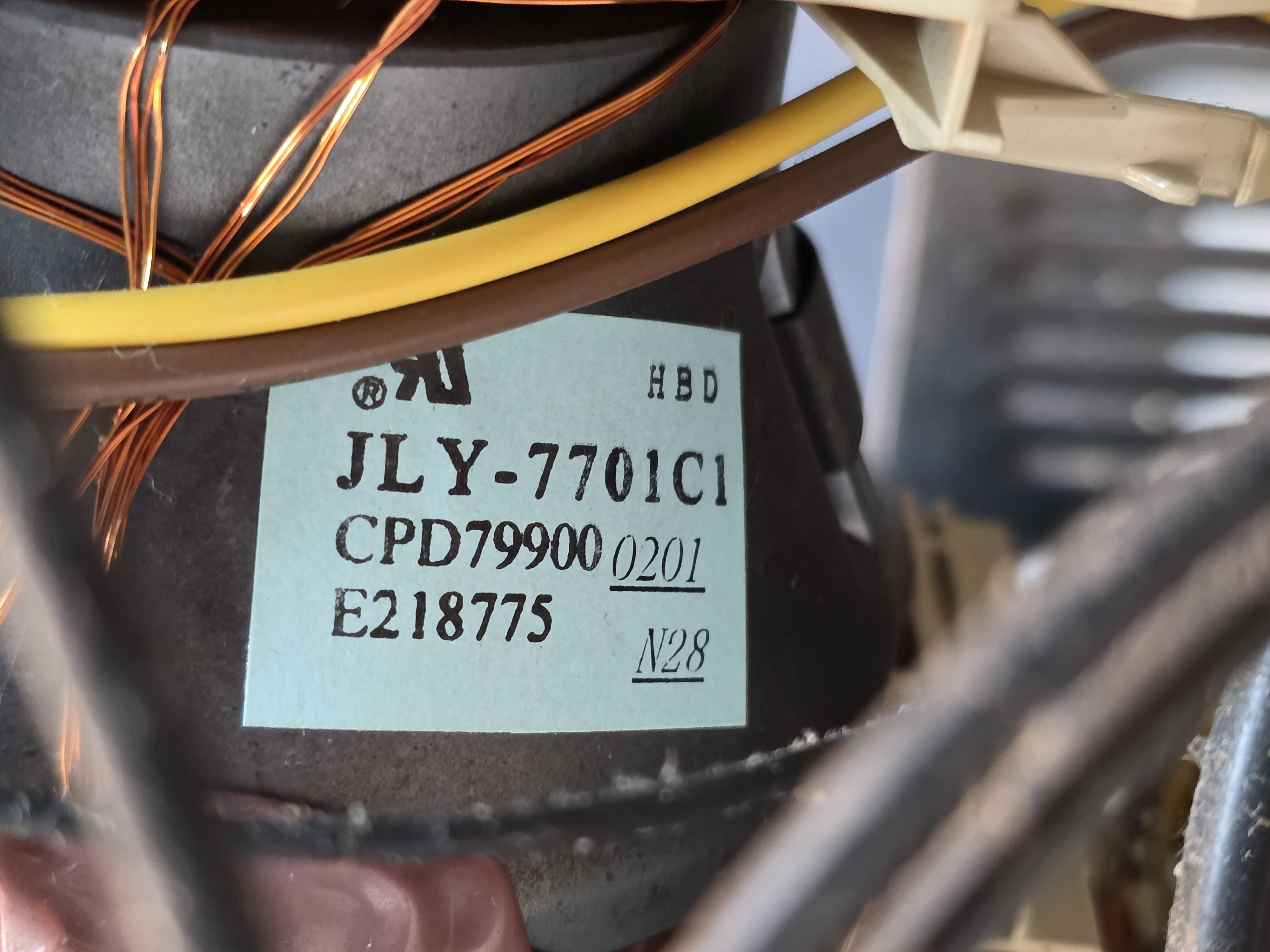

| Yoke: | JLY-7702C1 |
| Speakers: | None |
| Weight: | 34 lbs (15 kg) |
| Application: | Computer Monitor |
| Launched: | 2003 |
| Country of Manufacture: | China |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
