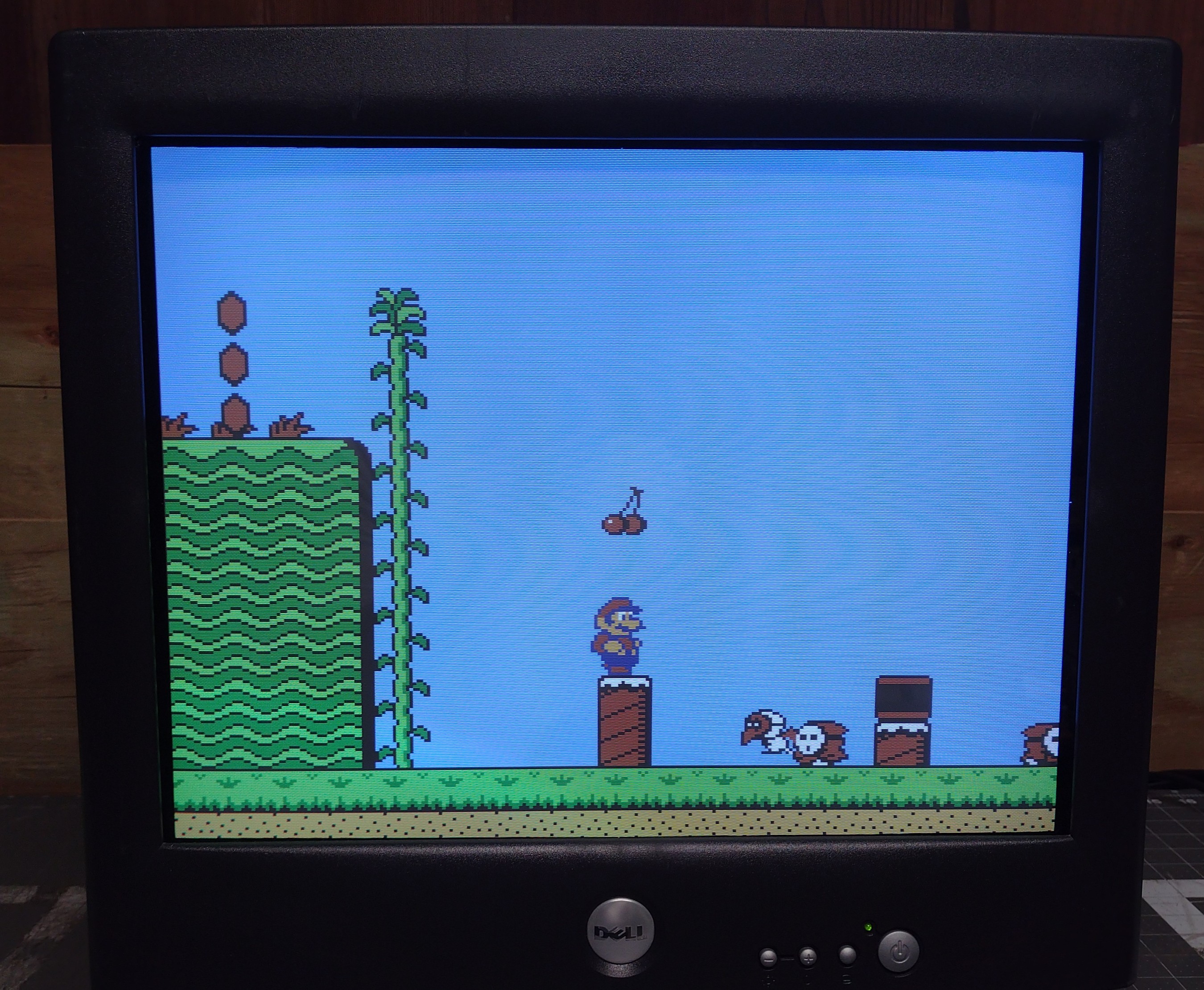

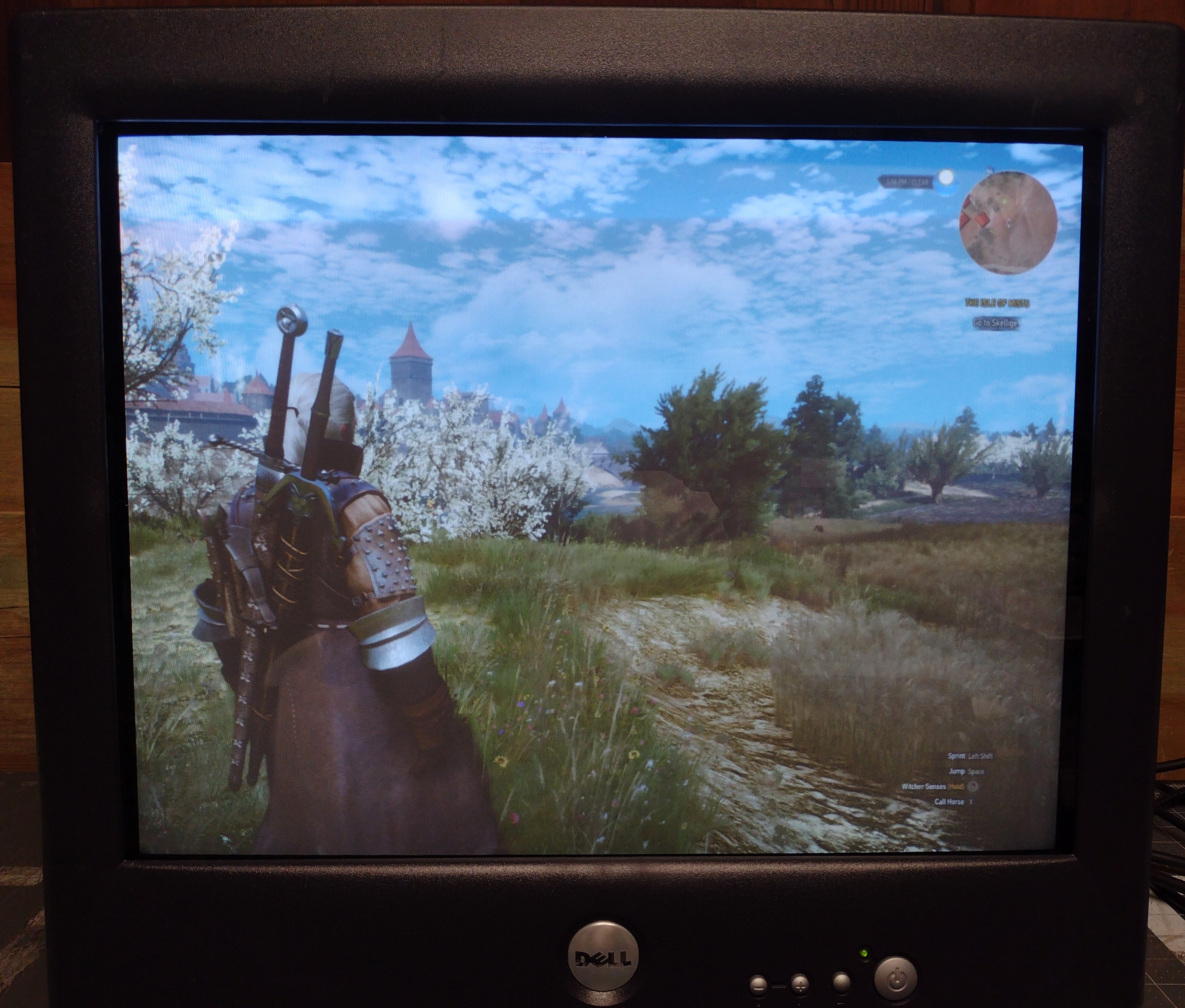

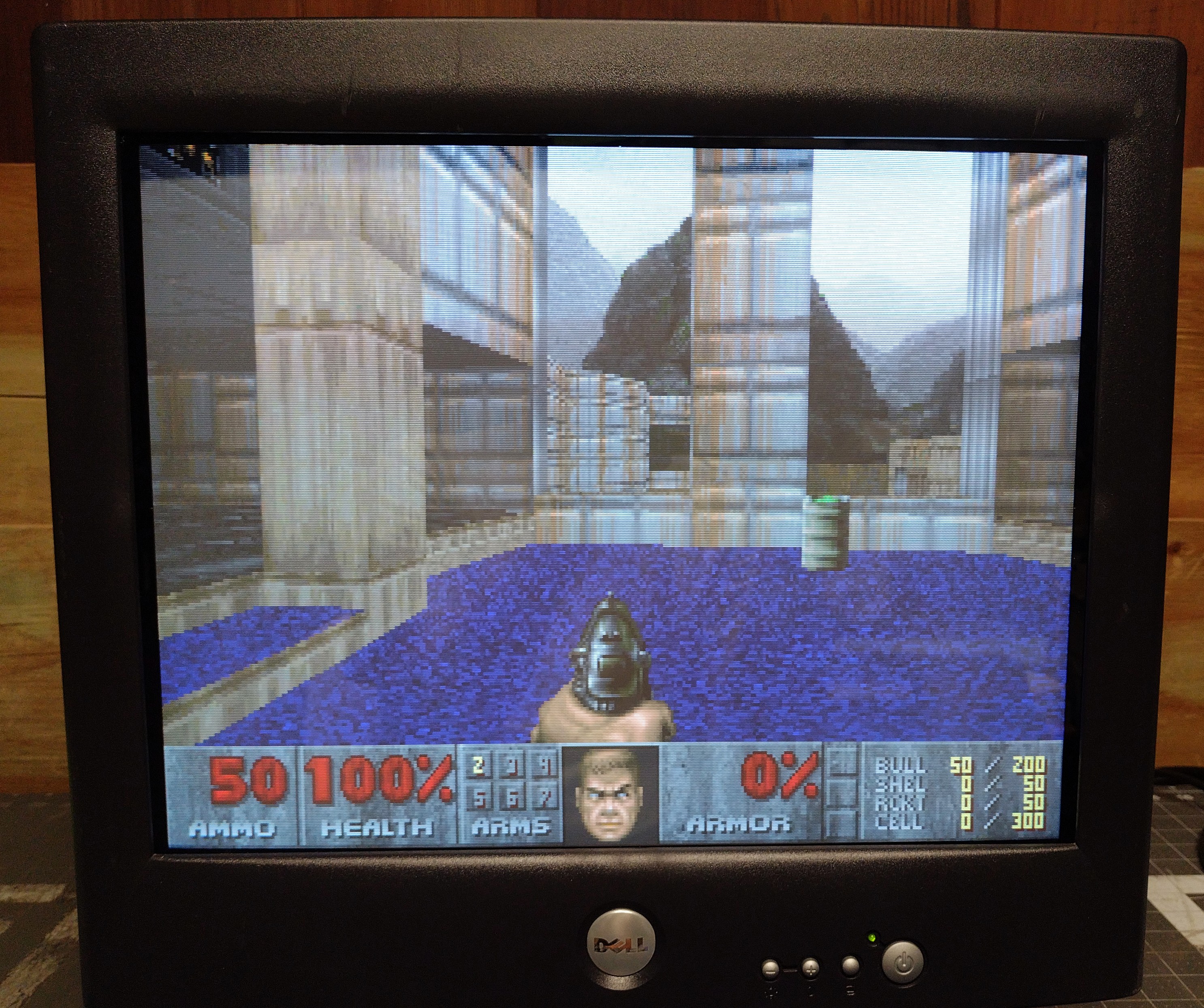

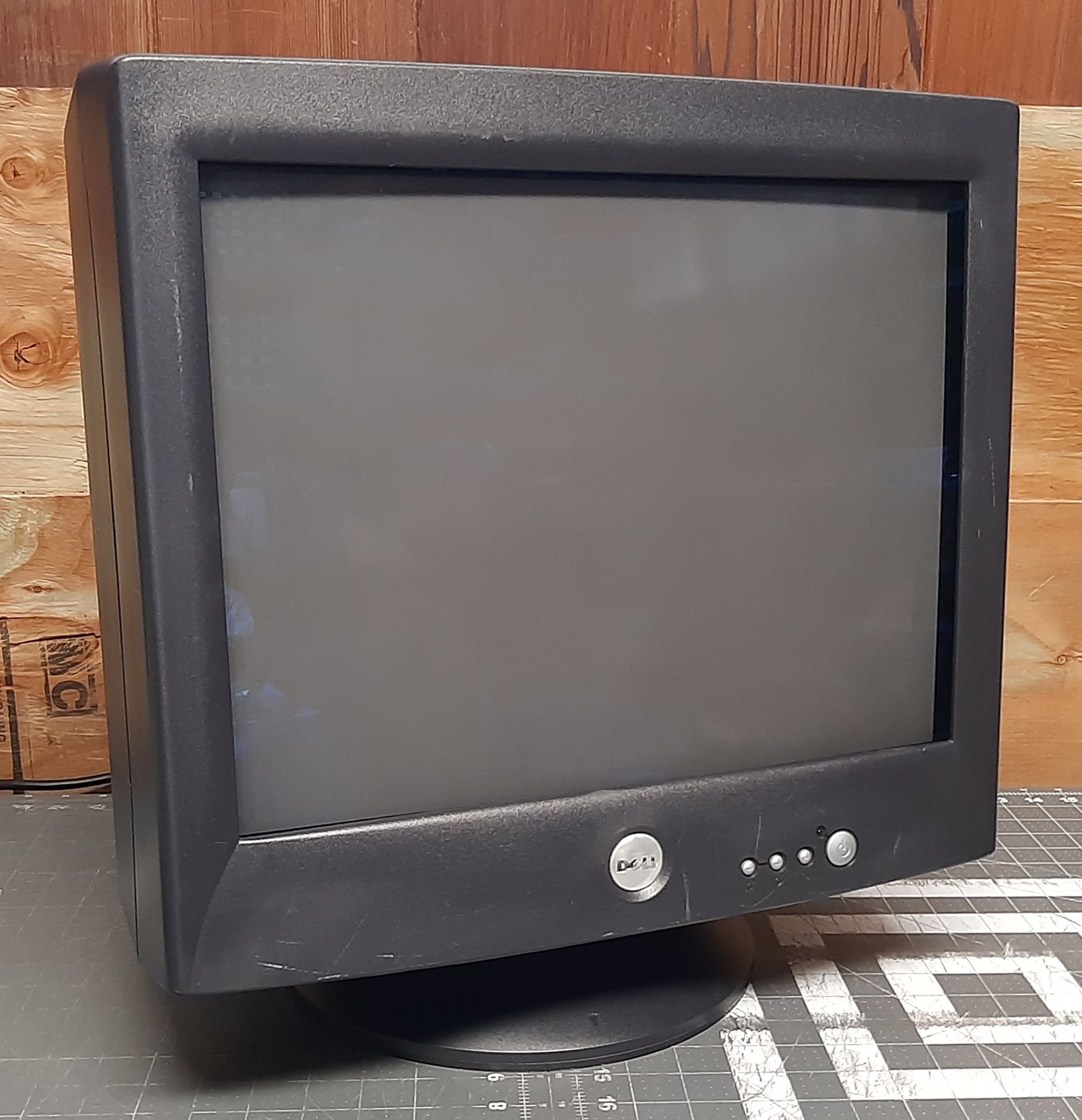

Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | Samsung |
| Model: | M992 |
| Series: | M |
| Viewable Size: | 18" |
| Input Signals: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA, QXGA |
| Horizontal Scan Range: | 30 kHz, 97 kHz |
| Vertical Scan Range: | 49 Hz, 165 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Flyback: | BH26-00096B, HR 46500, BH26-00096A |
| Tube: | Samsung , M46QCK761X123 , M46QCK761X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | DMX-1992ATS |
| Yoke Horz. Inductance: | 0.10353 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 4.825 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.37 ohm |
| Yoke Vert. Resistance: | 11.89 ohm |
| Speakers: | None |
| Weight: | 46 lbs (20.9 kg) |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Malaysia |
| Mounting: | Desk Stand |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
