Summary
High-end flagship Aperture Grille CRT monitor that uses a Diamondtron Natural Flat (NF) Aperture Grille tube. Manufactured by Philips. Capable of 130kHz horizontal and 160Hz vertical. Maximum resolution of 2048x1536 @80Hz
Manuals
Notes
Unlike the Dell P1130 which uses a Sony FD Trinitron tube, this Dell P1230 uses a Mitsubishi Diamondtron NF tube.

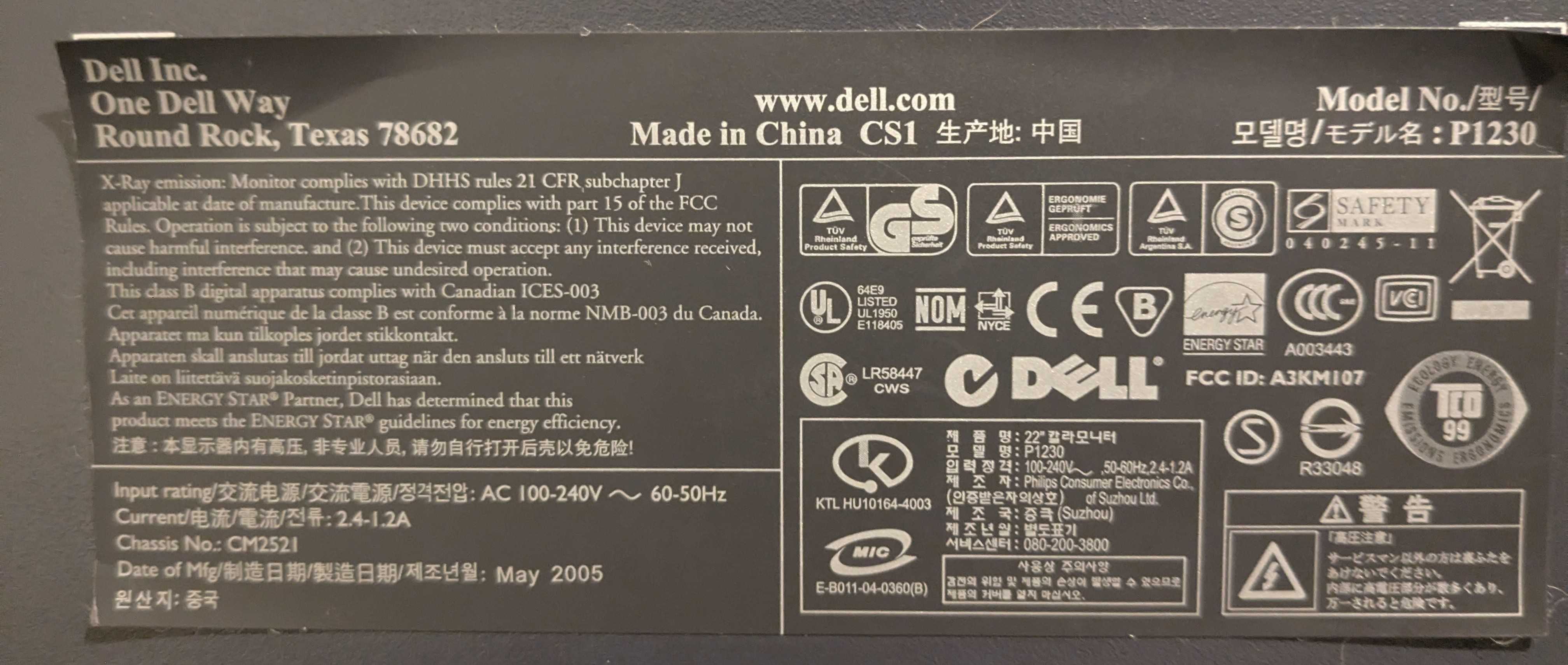

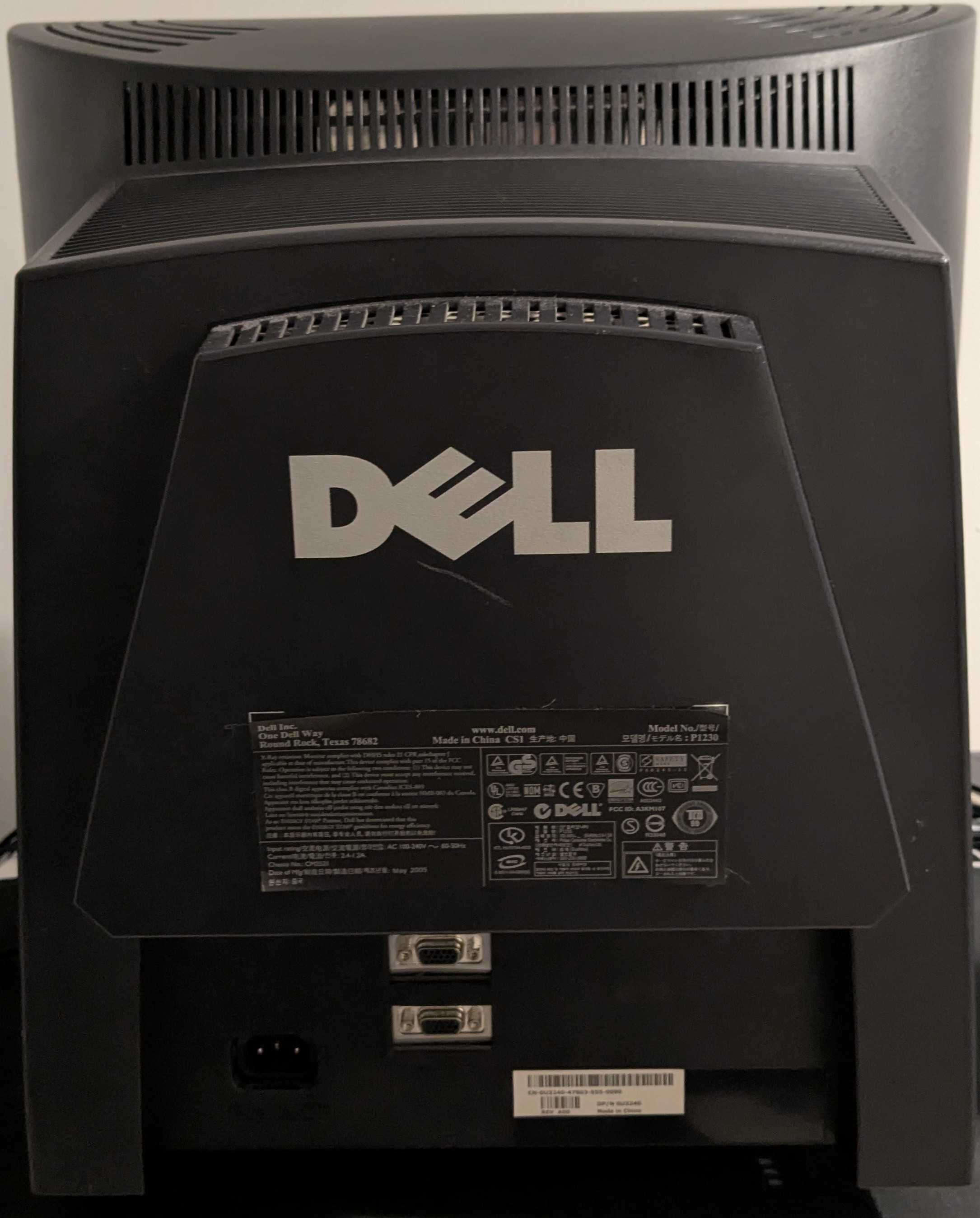

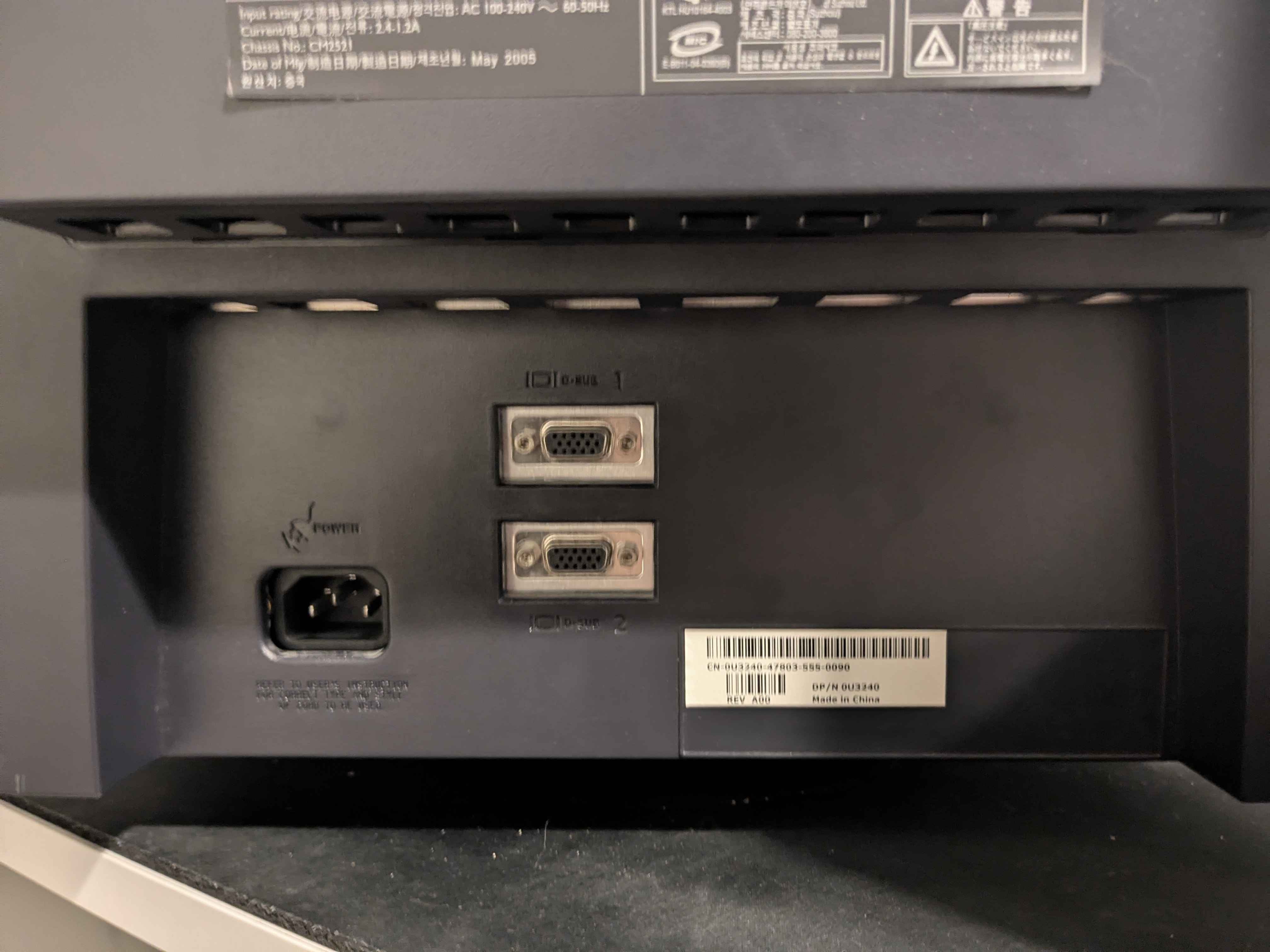

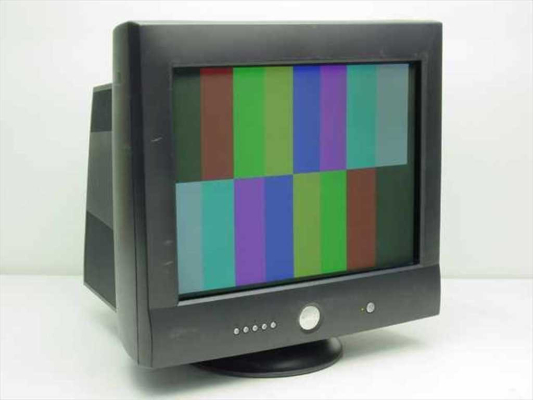

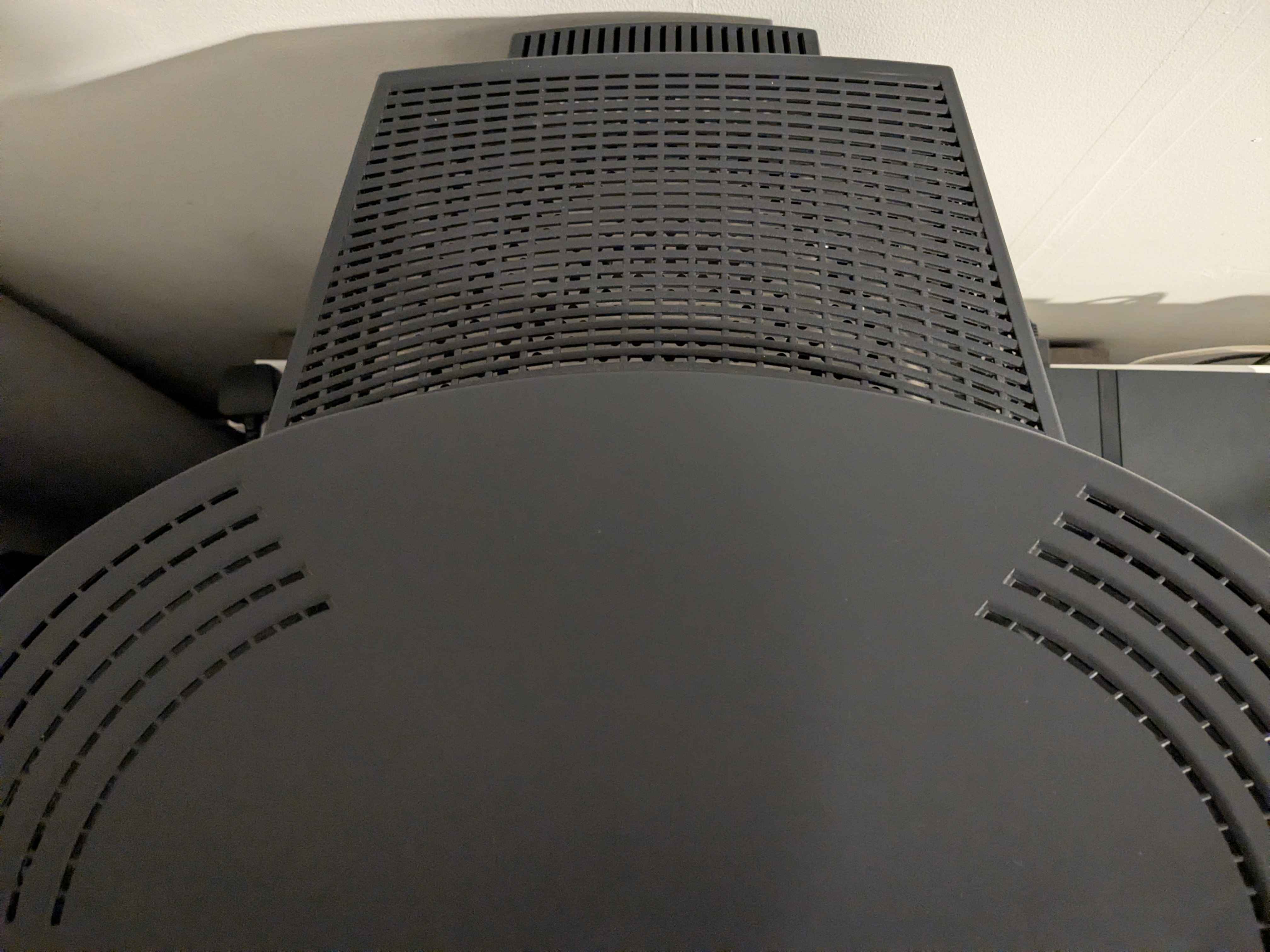

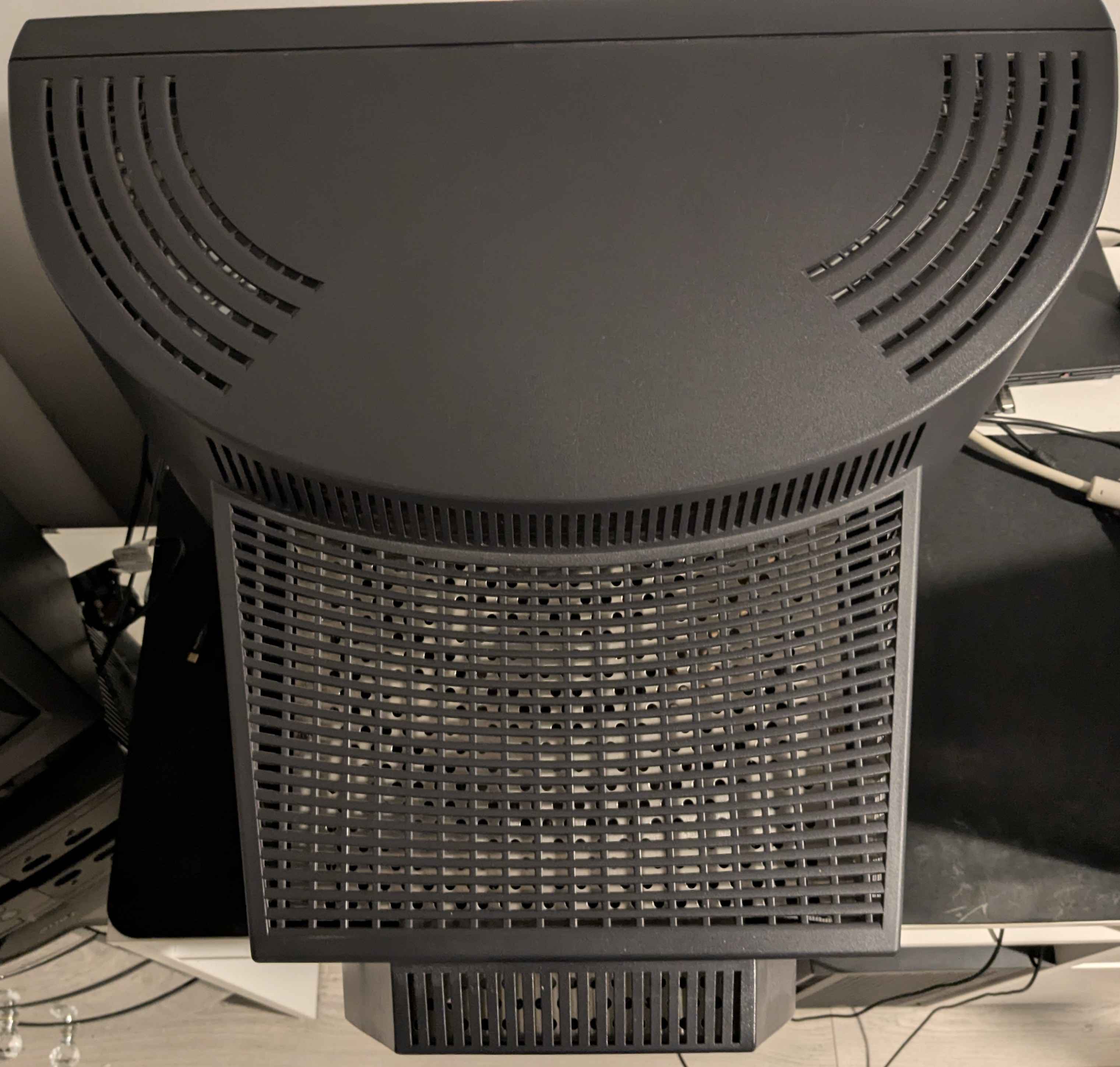

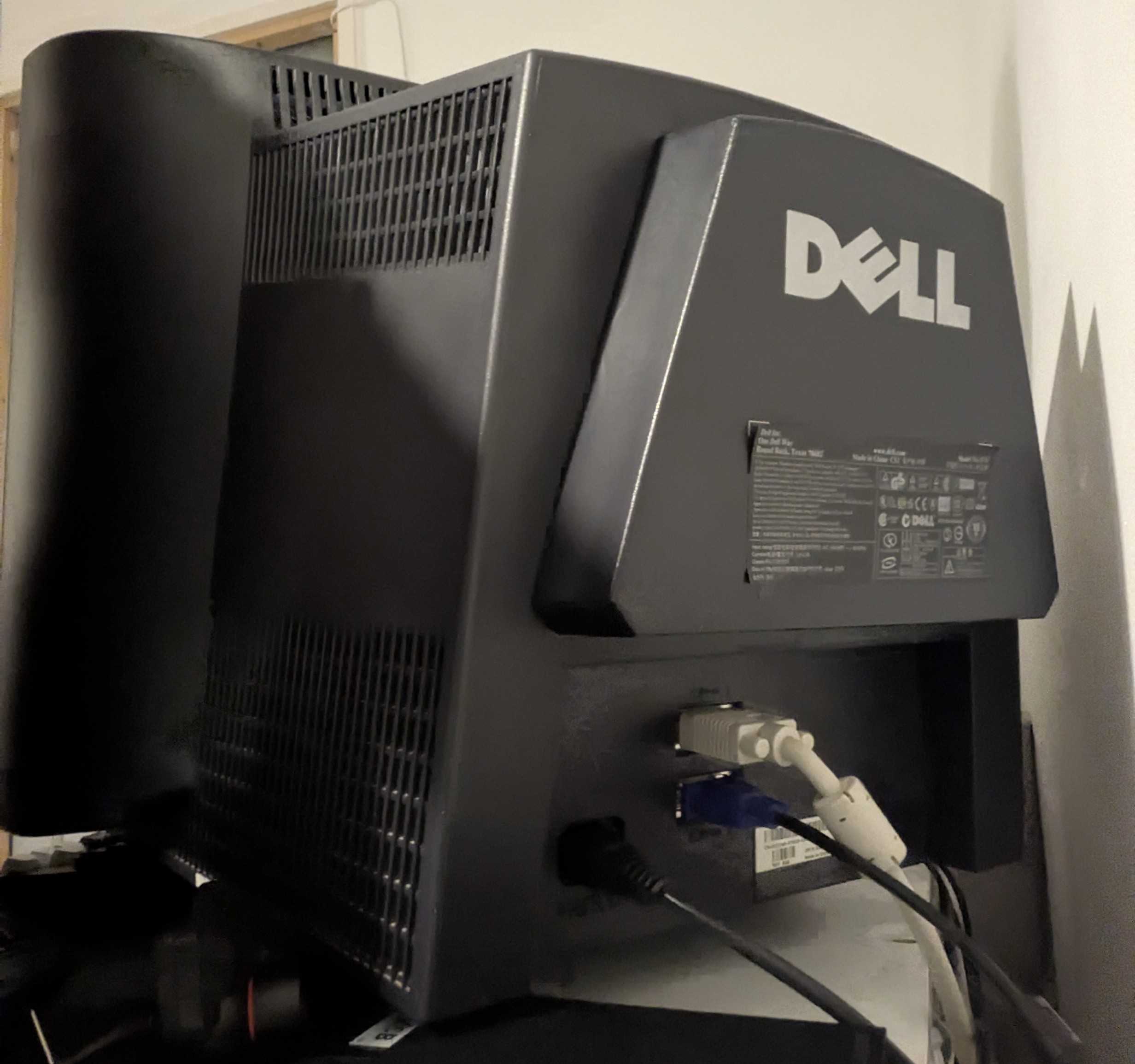

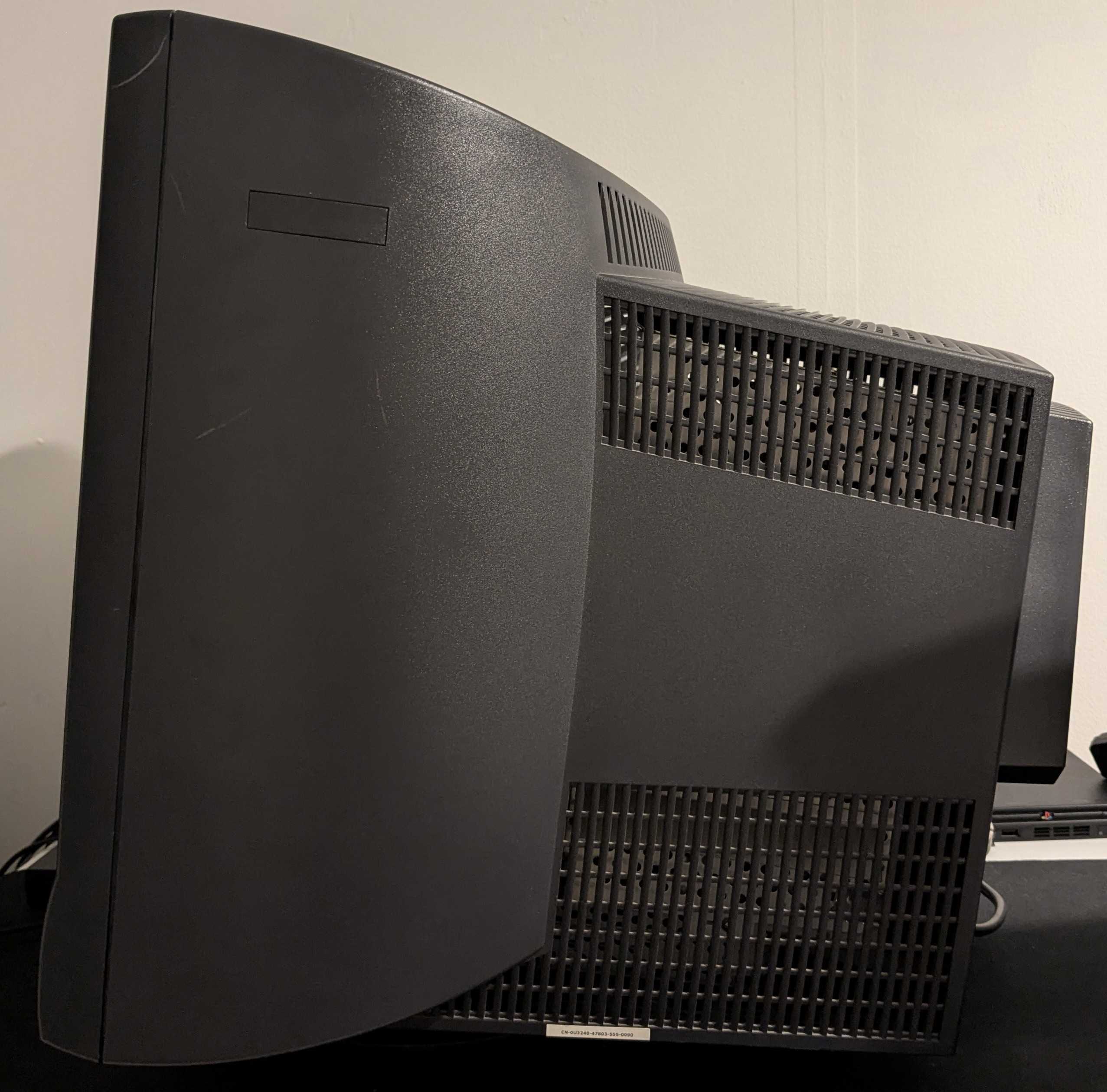

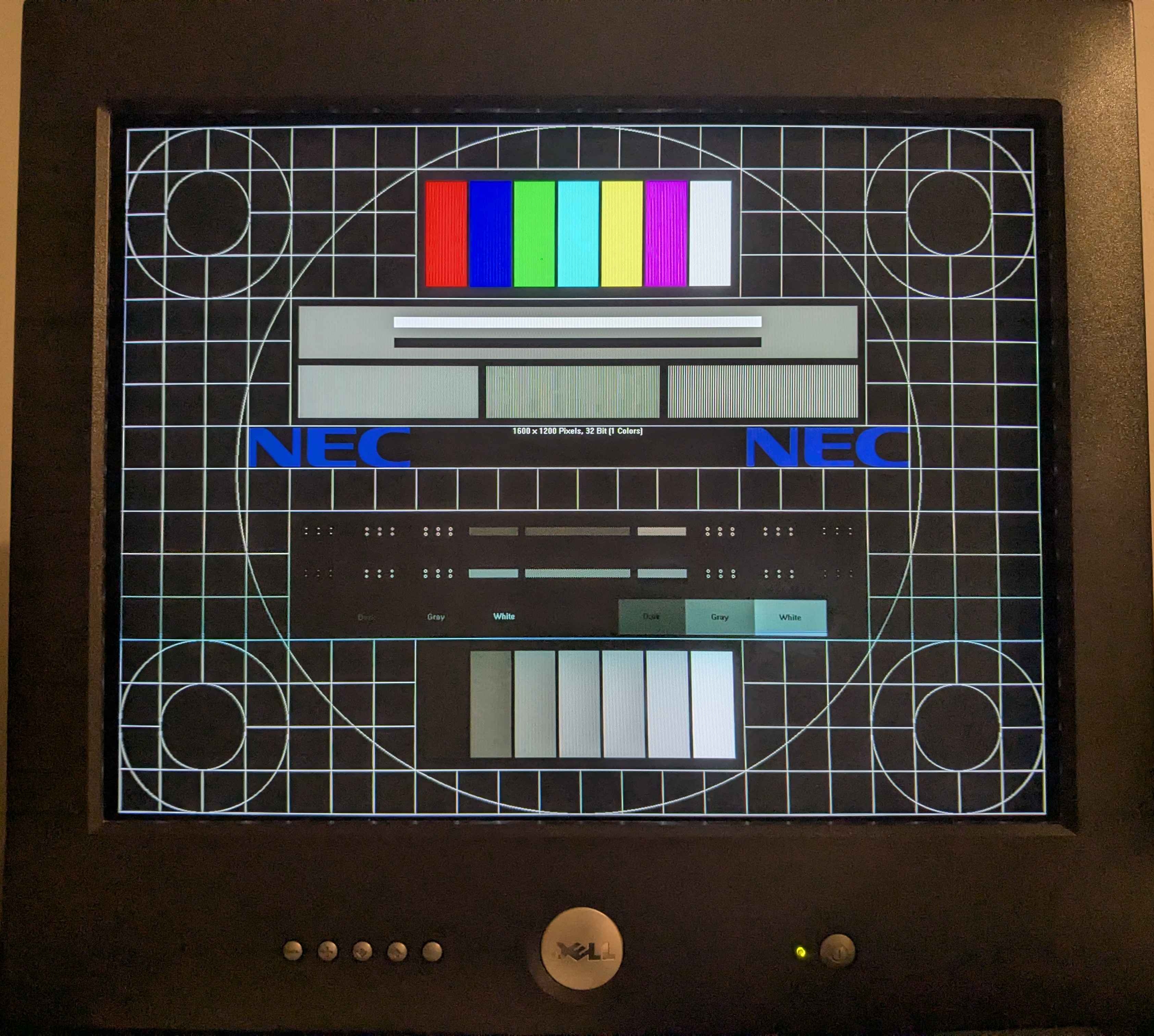

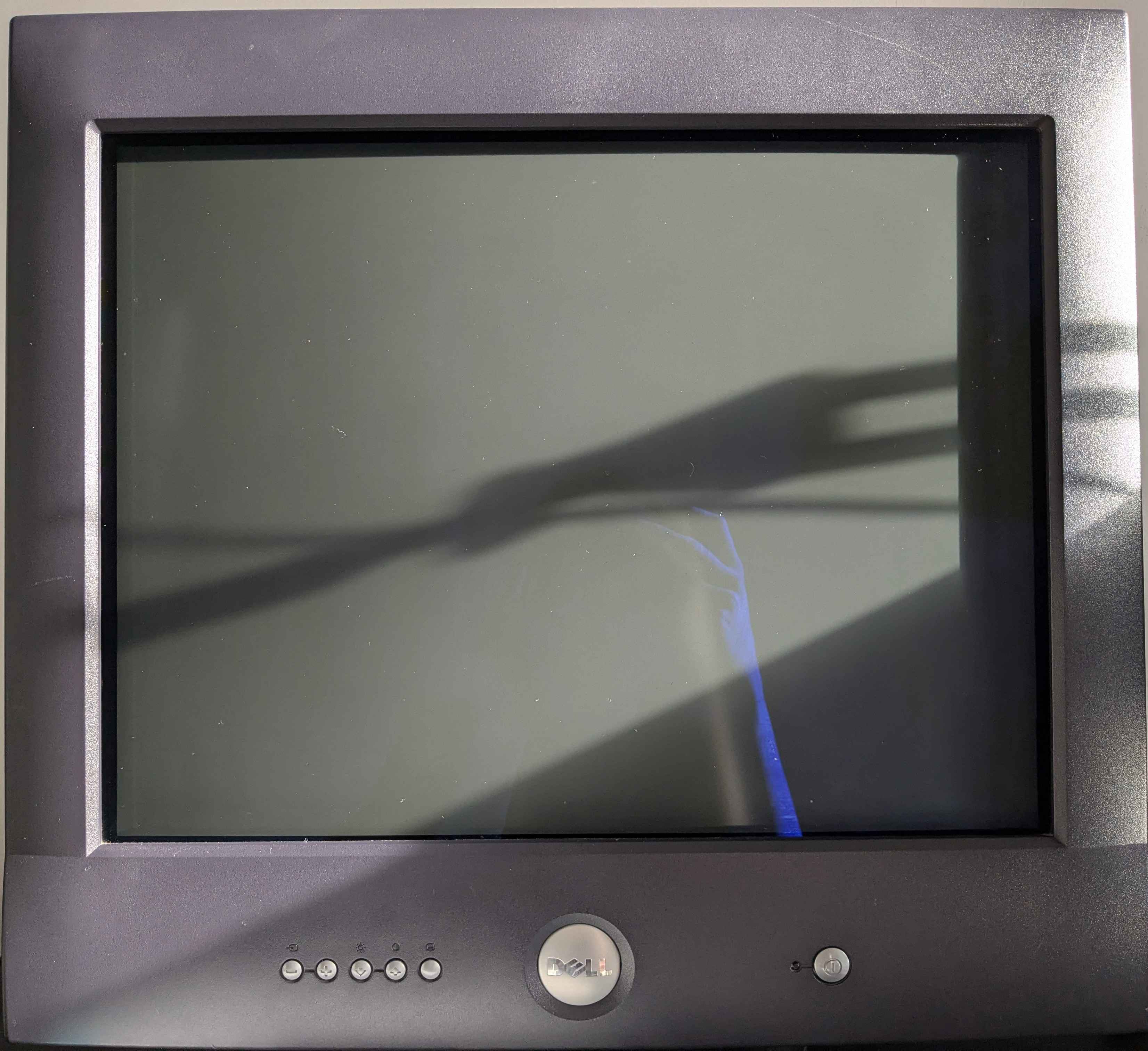

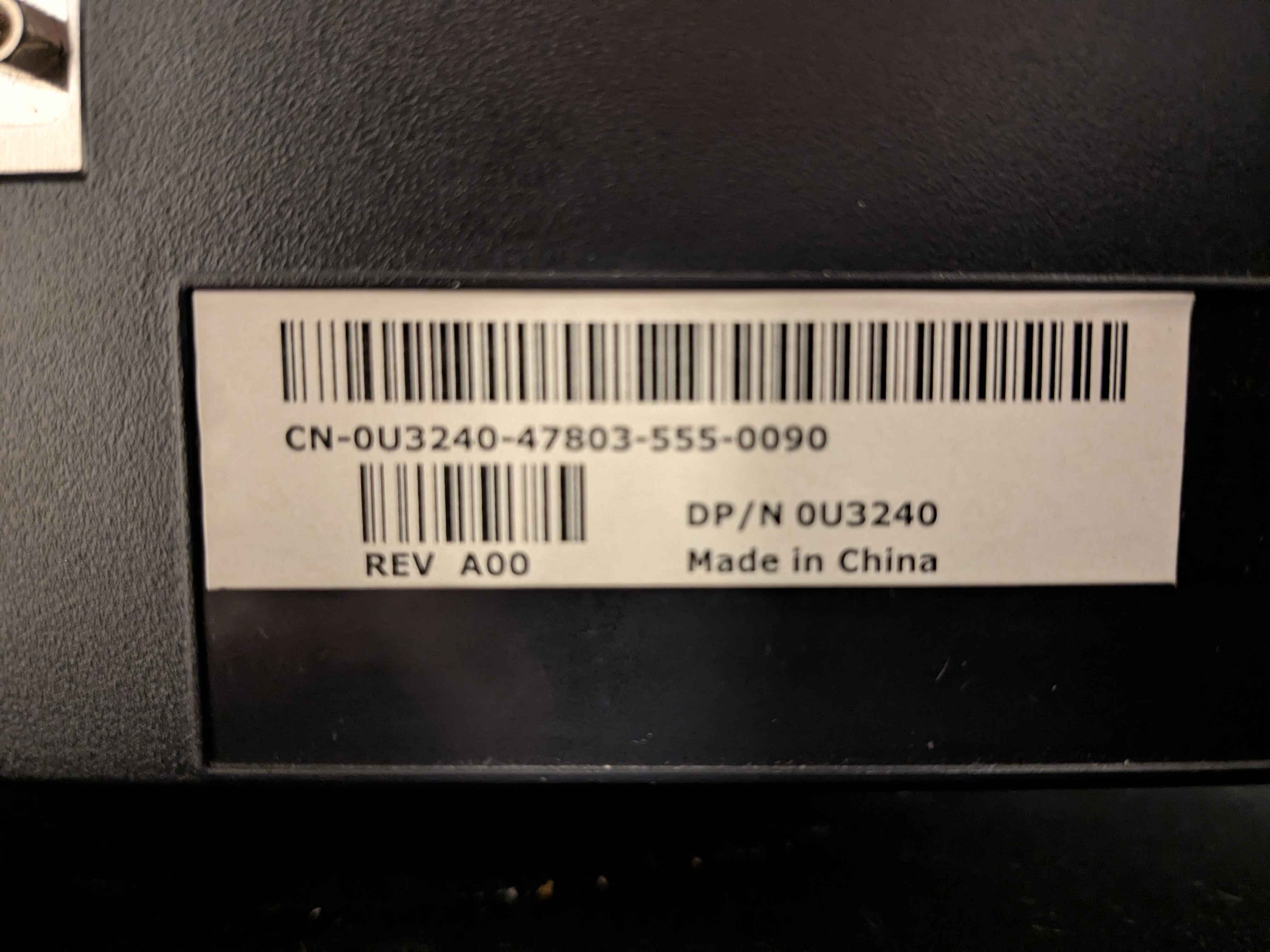

Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | Philips |
| Model: | P1230 |
| Series: | P |
| Viewable Size: | 20" |
| Input Signals: | VGA |
| Sync: | HV Sync, Sync on Green, Sync over Composite |
| Native Resolutions: | VGA, SVGA, SXGA, UXGA, QXGA |
| Horizontal Scan Range: | 31 kHz, 130 kHz |
| Vertical Scan Range: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu, Front Mounted Buttons |
| Mask: |
Aperture Grille
|
| Speakers: | None |
| Chassis: | CM2521 |
| Weight: | 66 lbs (29.9 kg) |
| Dimensions (W/H/D): |
490 x 500 x 450 mm
(19.3 x 19.7 x 17.7") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Yoke Info, Needs Tube Info, Community Submission |
