Summary

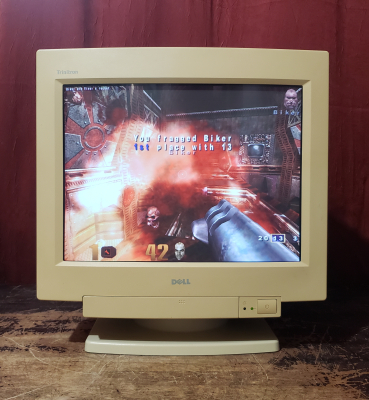

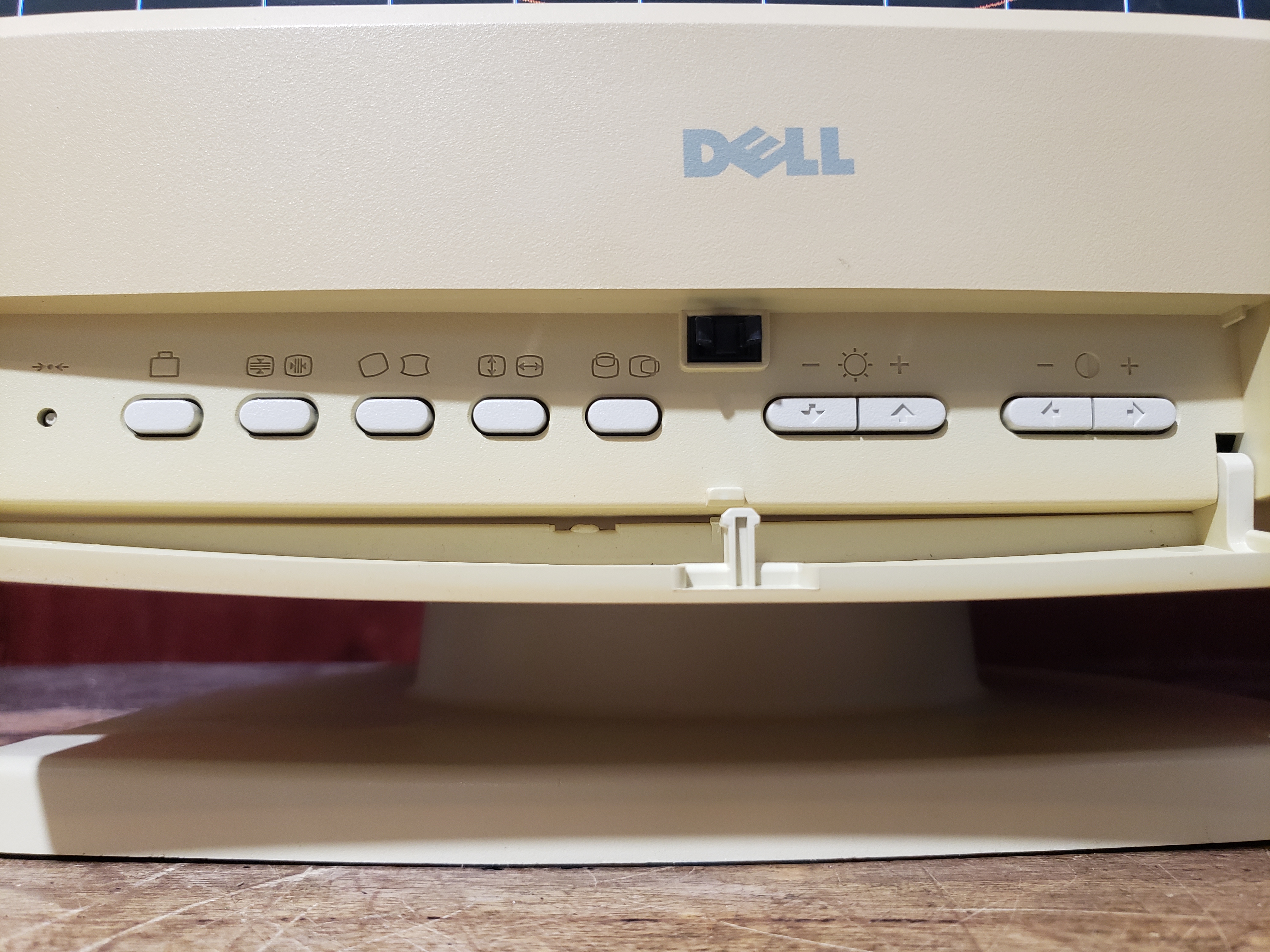

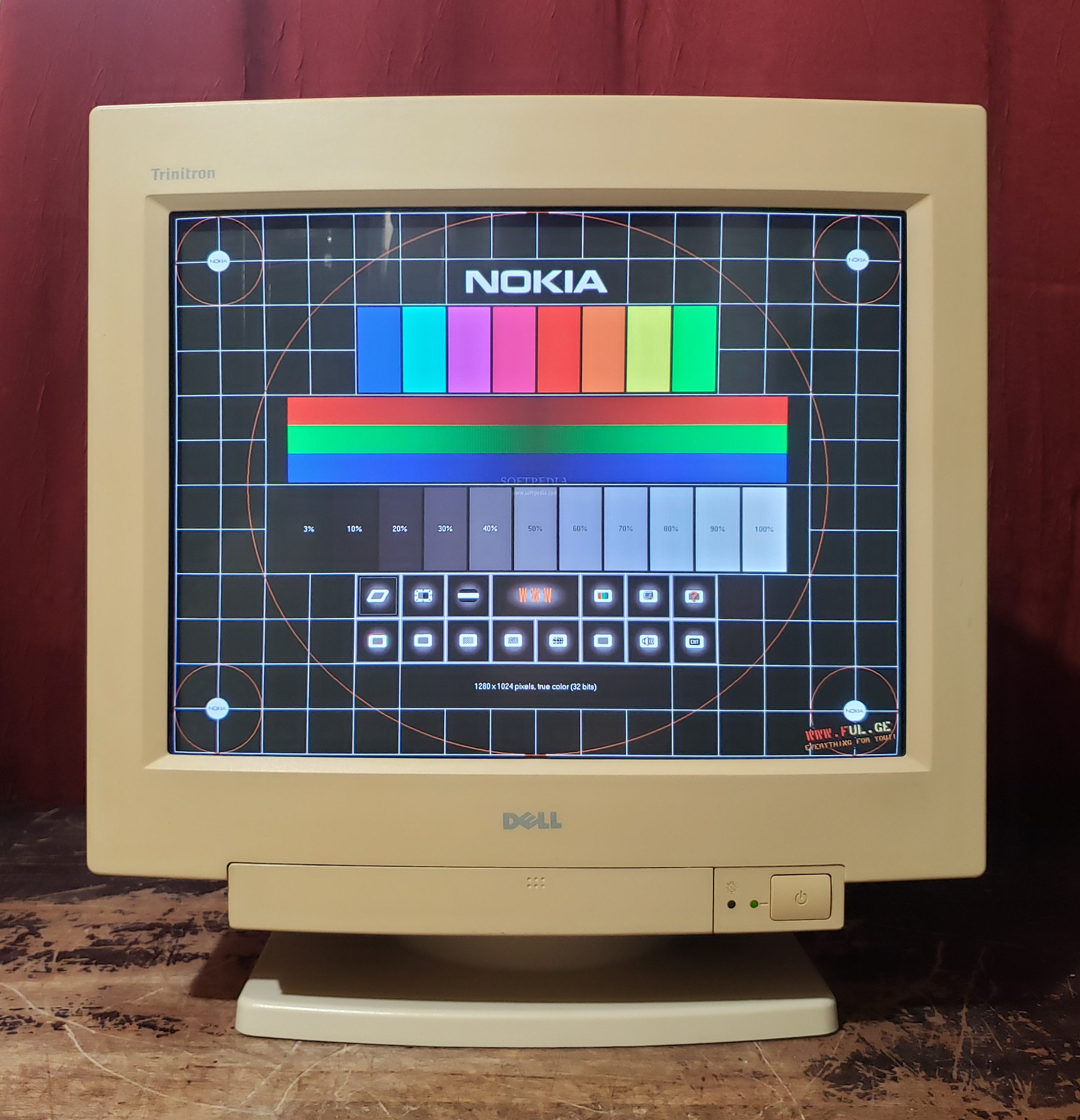

15.7" viewable screen, .25mm Trinitron tube, up to 105-Hz refresh rate at 1024x768. Crisp text and graphics, easy controls. Two faint lines across the screen.
Manuals
- Owner's Manual for the similar Sony GDM-17SE2T
- Service Manual for the similar Sony GDM-17SE2T
Media & Promo Materials
Notes

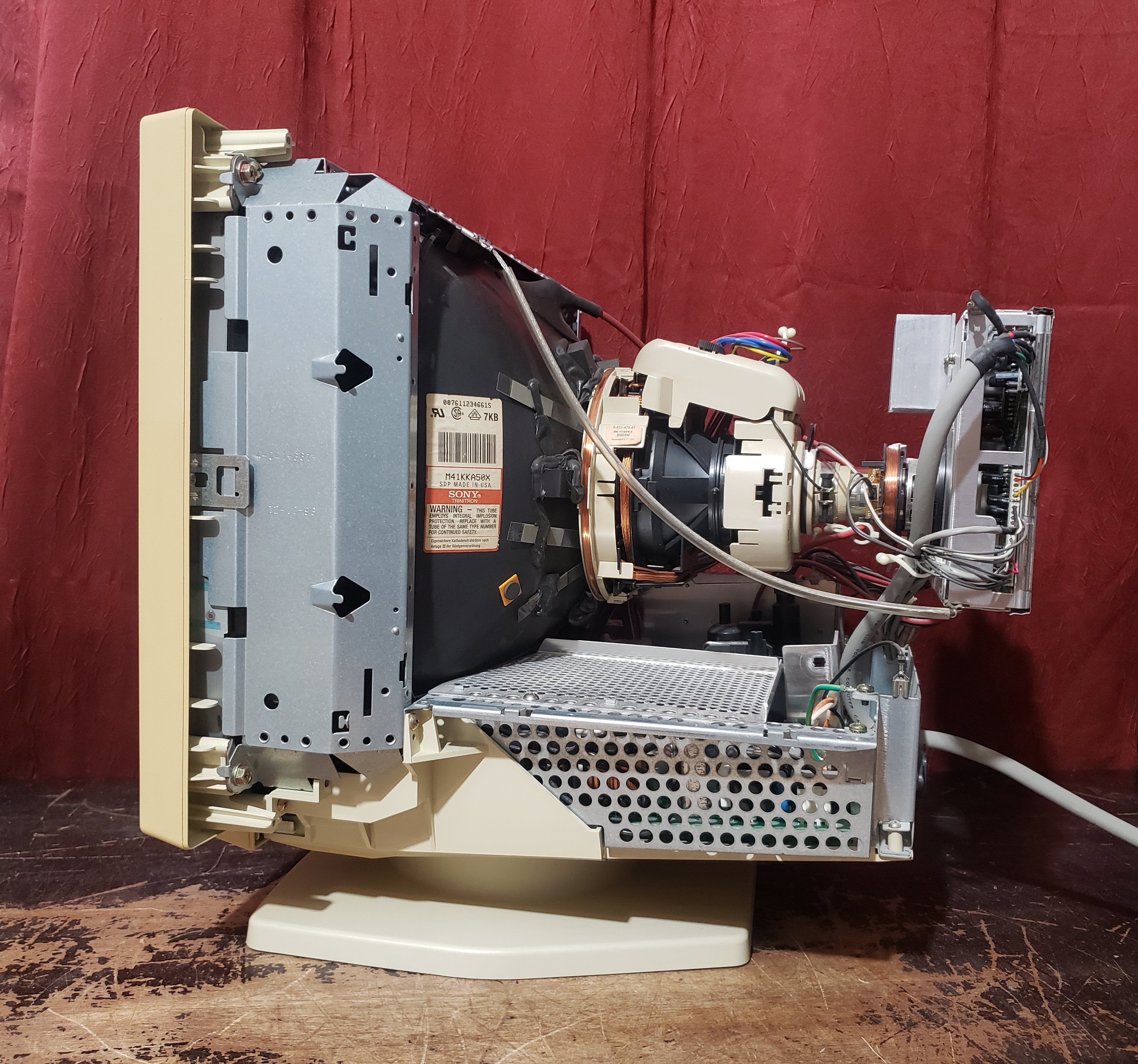

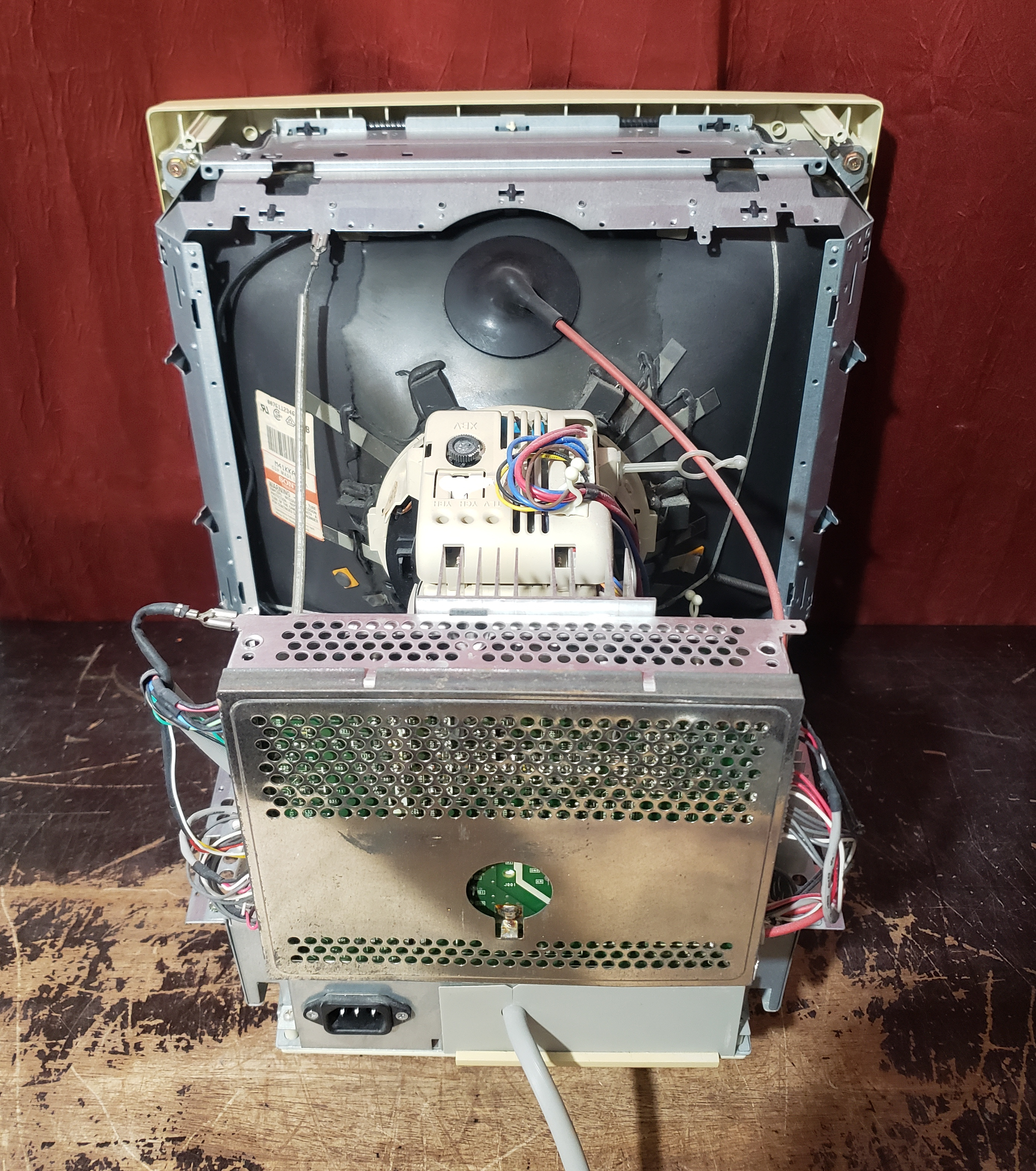

Service adjustments must be done using Sony's Digital Alignment System DAS software, which is a DOS-based predecessor to WinDAS. When looking at the monitor from the rear, the four pin header is on the right edge of the main D board, only accessible with the back cover removed.
The two faint horizontal lines on the screen are aperture grille support wires.
Gallery
| Specifications | |
|---|---|
| Brand: | Dell |
| Manufacturer: | Sony |

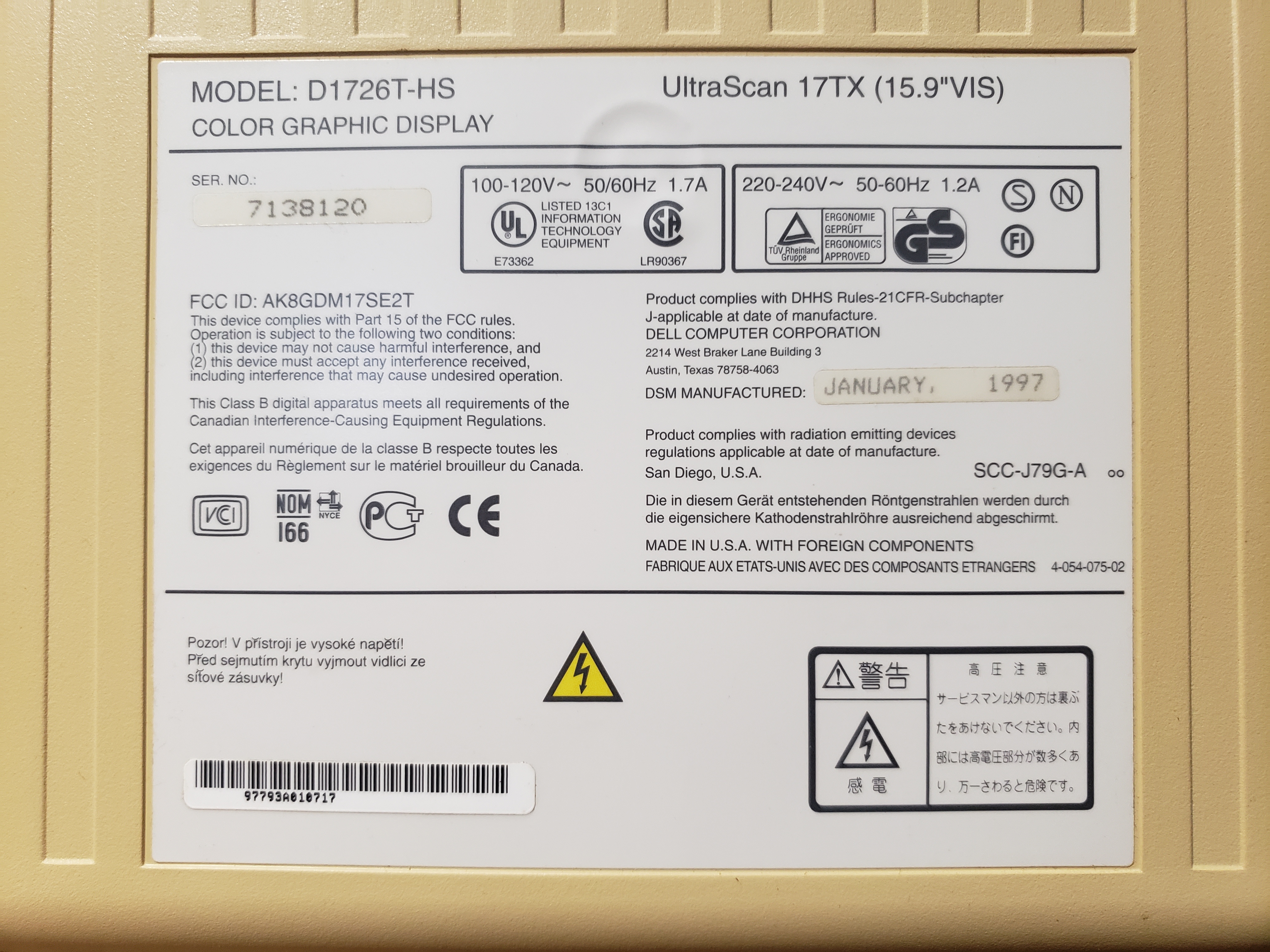

| Model: | D1726T-HS |
| Series: | UltraScan |
| Viewable Size: | 16" |
| Input Signals: | VGA |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 85 kHz |
| Vertical Scan Range: | 48 Hz, 150 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Software Calibration |
| Focus Type: | Dual |

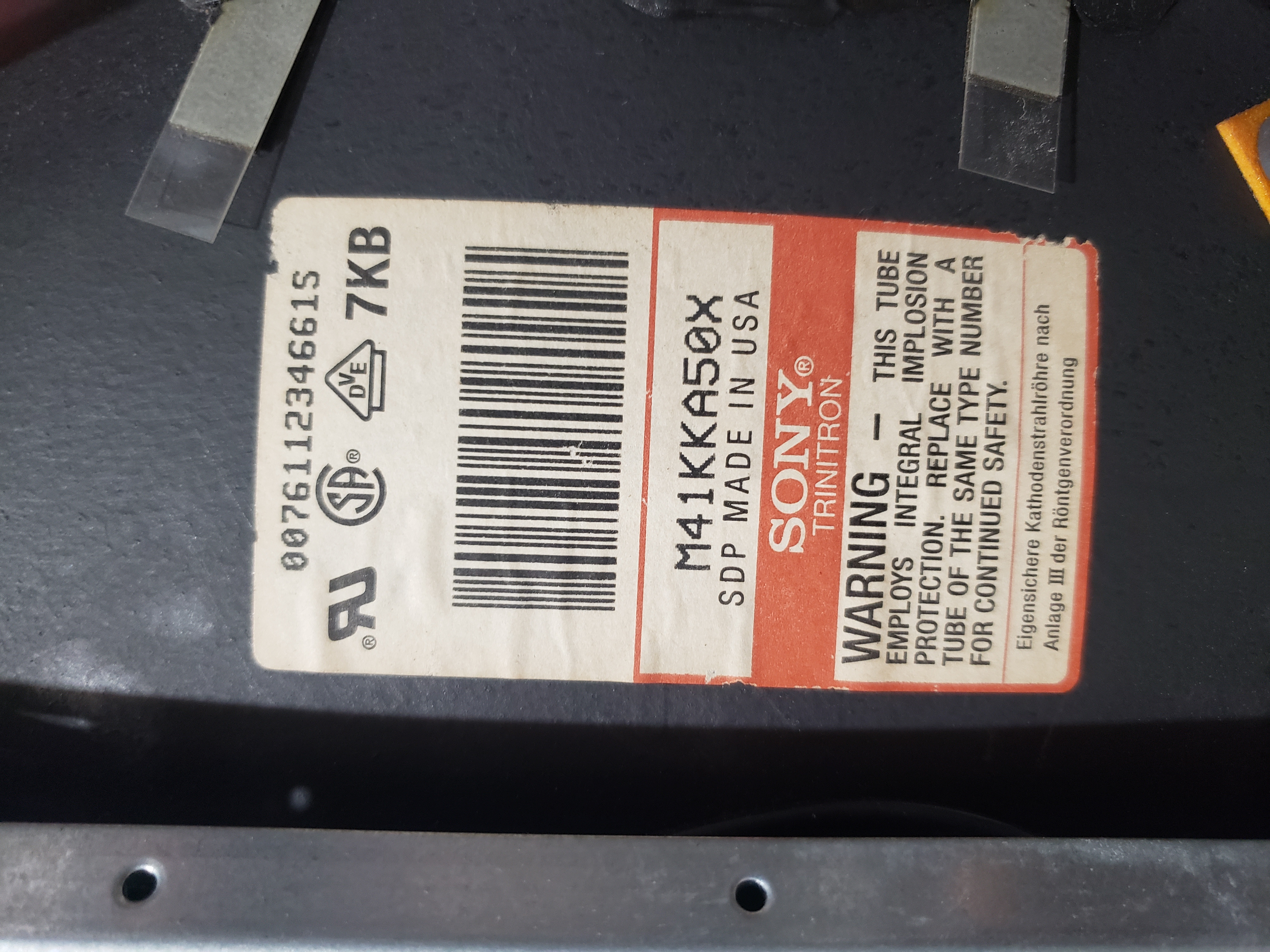

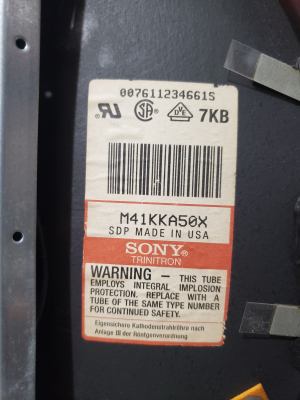

| Tube: | Sony Trinitron , M41KKA50X |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark, Matte Anti-Glare |

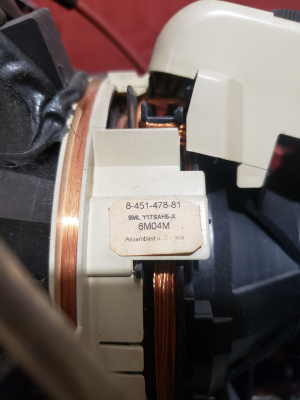

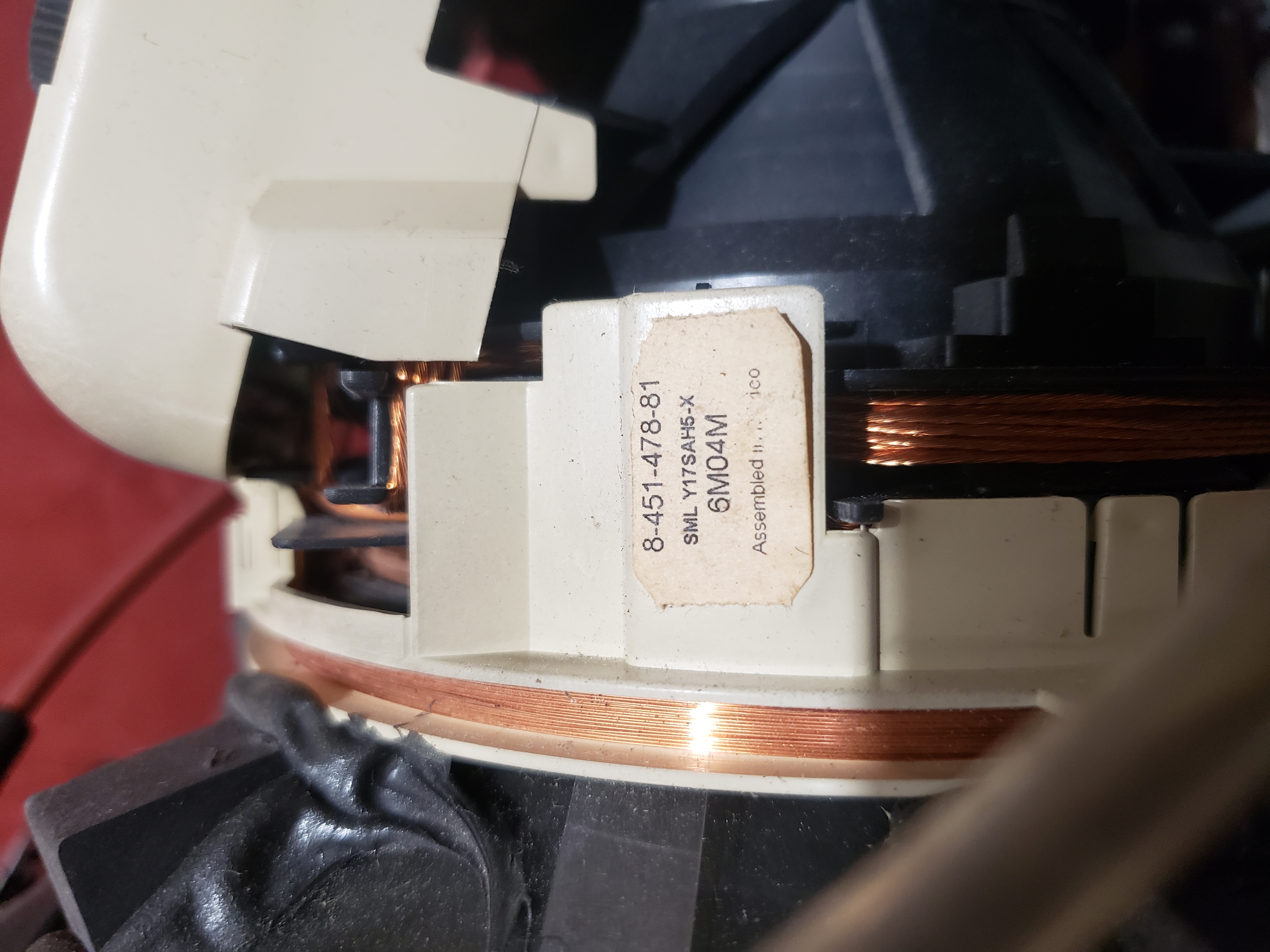

| Yoke: | 8-451-478-81 |
| Yoke Horz. Inductance: | .1049 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 2.322 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | .71 ohm |
| Yoke Vert. Resistance: | 6.57 ohm |
| Speakers: | None |
| Chassis: | N-2 |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 799 USD |
| Country of Manufacture: | USA |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs IC Info |
