Diebold VCM-901
Matt Ross
April 20, 2024, 12:03 am
April 20, 2024, 12:03 am
Summary

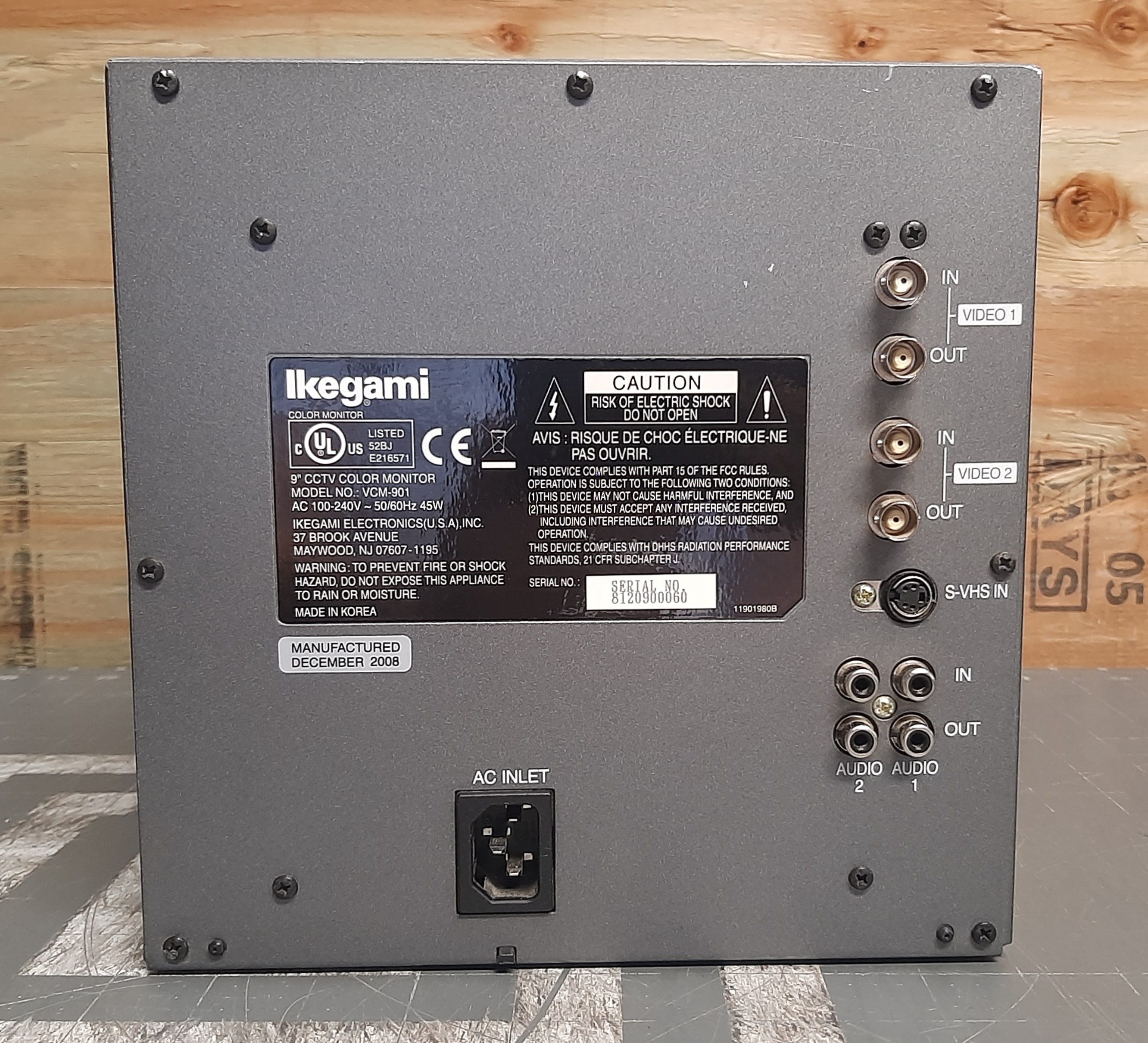

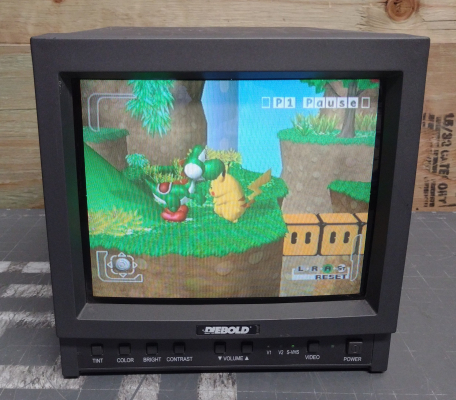

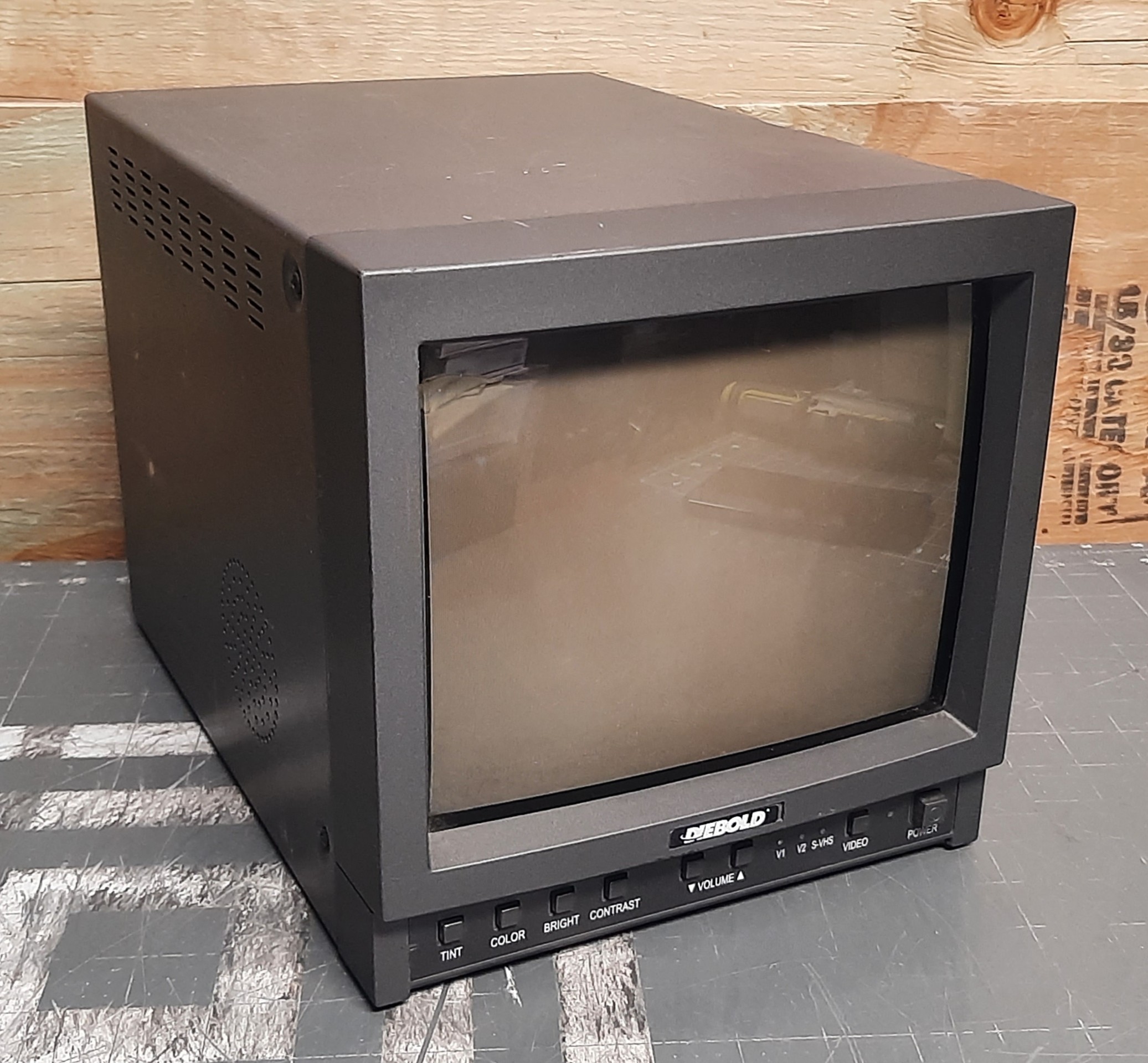

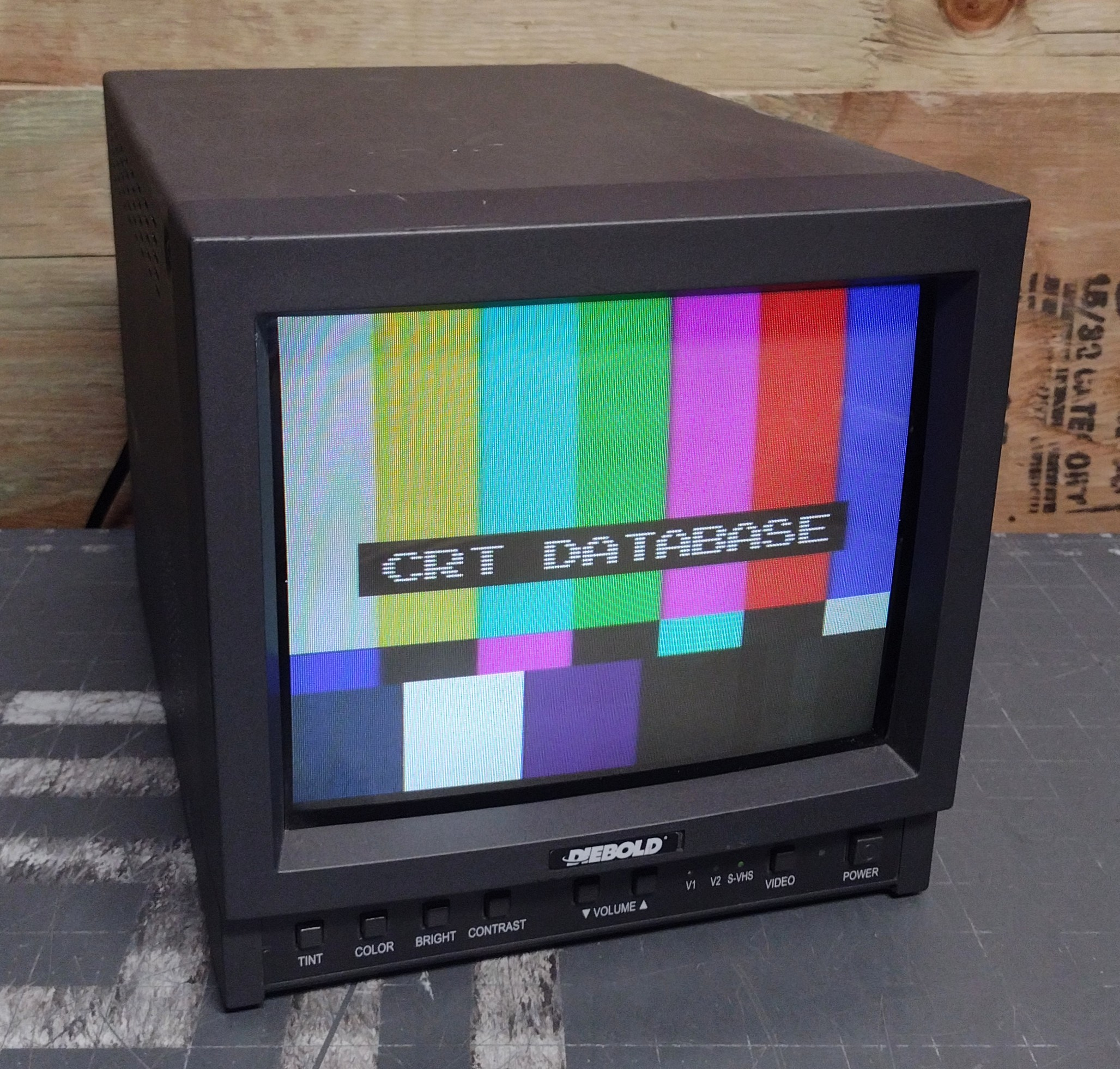

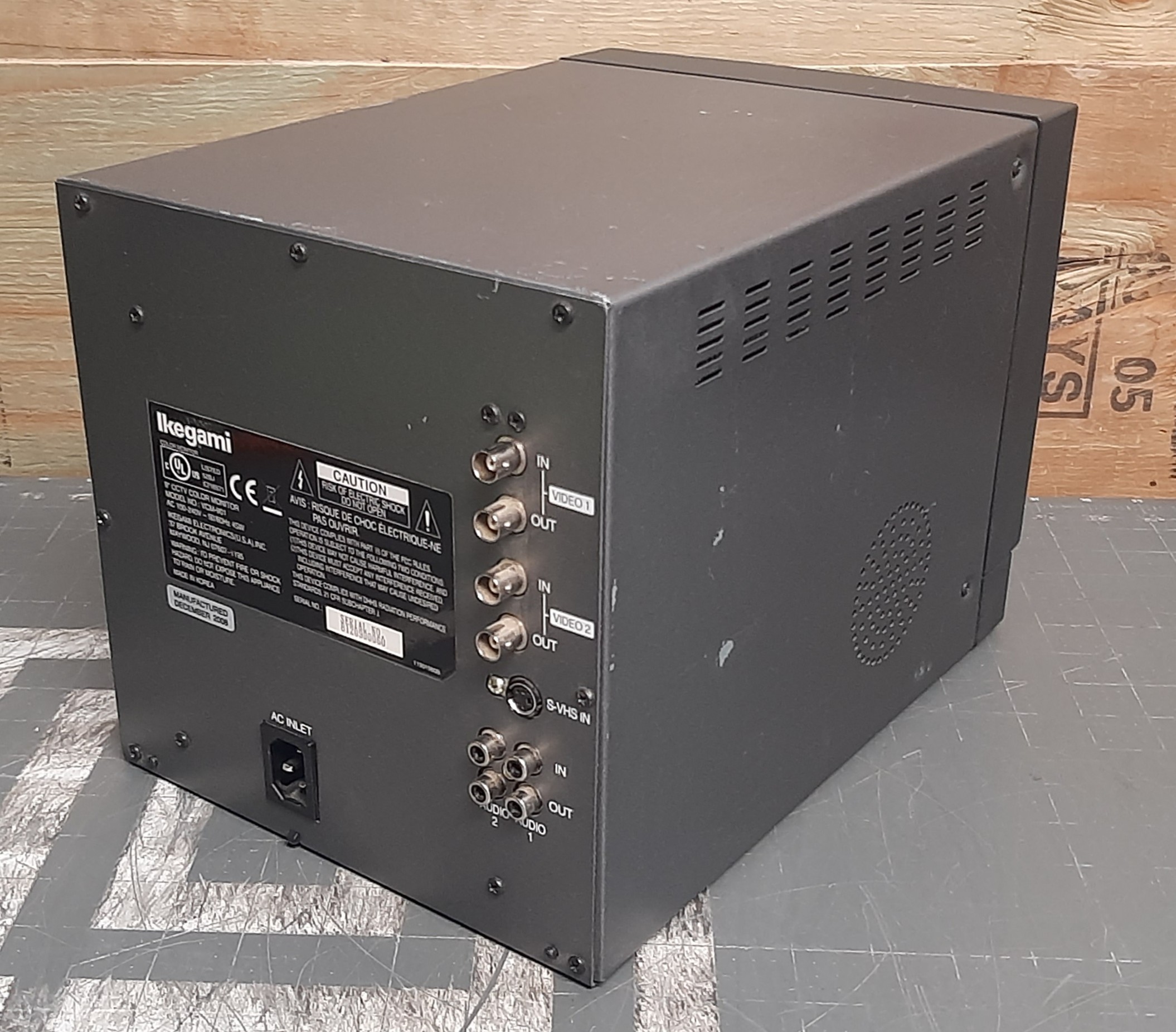

9" CCTV monitor, sold by Diebold Security Systems. It is a rebrand of the Ikegami VCM-901, which in turn was manufactured by a Korean company rather than Ikegami themselves. Includes two composite and one S-Video input, along with mono speaker.
Literature
Notes
The jungle chip used in this monitor has RGB and YPbPr input pins, and can almost certainly be modded for RGB. It would be helpful to find a service manual, however, in order to compensate for horizontal shift.
Gallery
Specifications | |
---|---|
Brand: | Diebold |
Manufacturer: | Ikegami |
Model: | VCM-901 |
Series: | VCM |
Viewable Size: | 9" |
Inputs: | Composite, S-Video |
Resolutions: | 240p, 480i |
Linecount: | 300 |
Horizontal Max: | 15 kHz |
Vertical Max: | 60 Hz, 50 Hz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Adjustments: | Front Mounted Buttons |
Horz. Output Transistor: | D2499 |
Vertical Output IC: | TDA8356 |
Jungle: | TDA8842 |
Flyback: | MCE-09A07 |
Tube: | Panasonic , A22JWG099X11 |
Deflection: | 90 deg. |
Mask: | Slot |
Pitch: | .50mm |
Tint: | Dark |
Yoke: | KDY3CFB32M |
Yoke Horz. Inductance: | 5.298 mH |
Yoke Vert. Inductance: | 25.04 mH |
Yoke Horz. Resistance: | 7.2 ohms |
Yoke Vert. Resistance: | 11.1 ohms |
Speakers: | Mono |
Weight: | 15 lbs (7 kg) |
Application: | Commercial |
Country of Manufacture: | Korea |
Mounting: | Rackable |
Degaussing: | Automatic on Power-on |
