Summary
13" A/V set made by Haier.
Manuals
Repair Notes
- One unit had vertical collapse. Vert electrolytics tested fine for ESR. It appeared that the flyback-derived 25V source for the vertical IC was very low/missing.
Notes
Unfortunately the A/V input cannot be switched to without the remote. Other remotes by Haier have been found to work as well.
Gallery
| Specifications | |
|---|---|
| Brand: | Durabrand |
| Manufacturer: | Haier |
| Model: | BH1304D |
| Series: | BH |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | LA78040 |
| Comb Filtering: | Notch |
| Jungle IC: | M61250 |
| Focus Type: | Single |

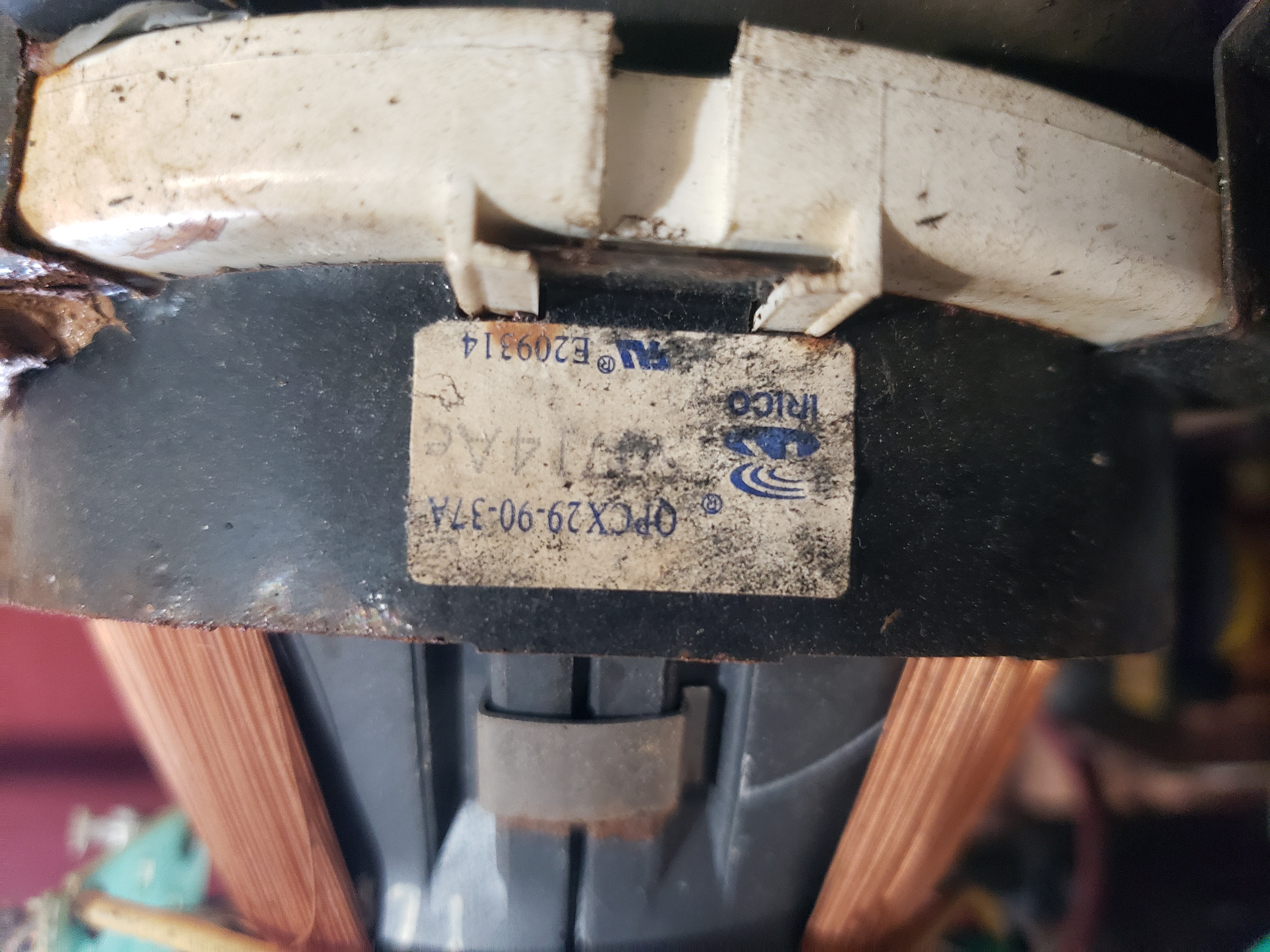

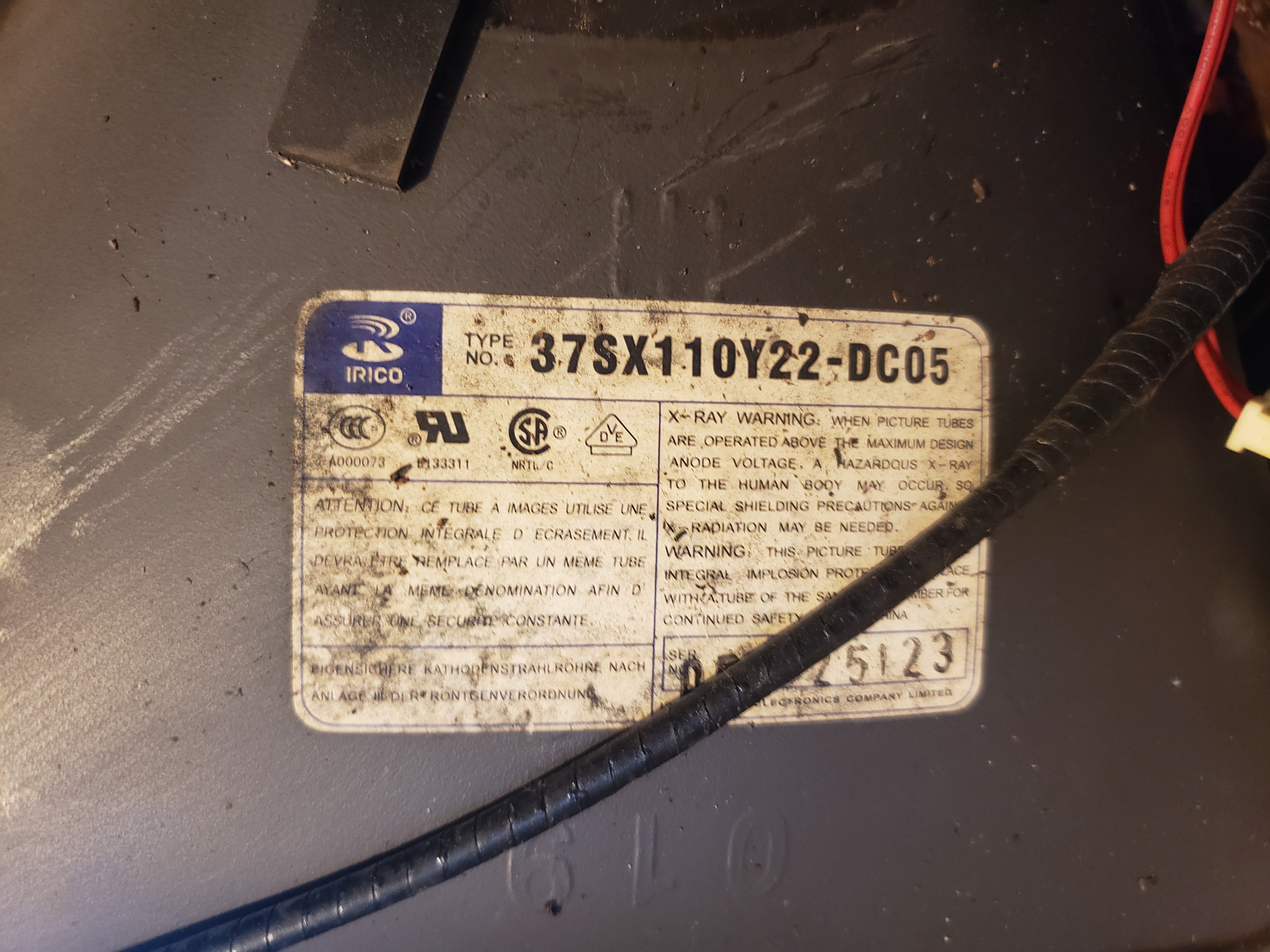

| Tube: | Irico , 37SX110Y22 , 37SX110Y22-DC05 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Speakers: | Mono |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements, Needs Yoke Info, Needs Pictures |
