Summary
20" A/V set made by Haier.
Manuals
- Owner's Manual
- Service Manual
- Blog post on how to access the service menu as the service manual instructions are not quite correct.
Notes

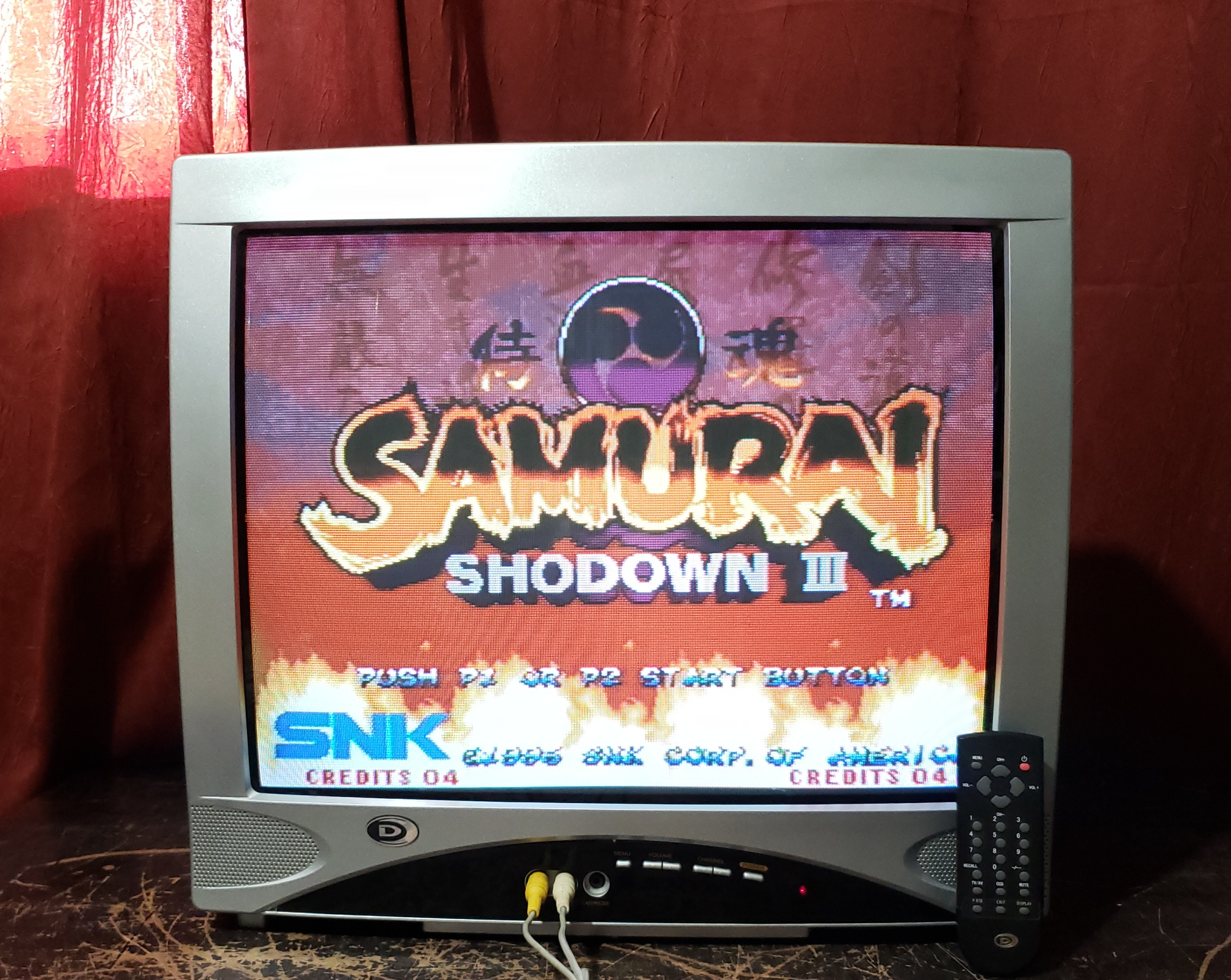

Unfortunately the A/V input cannot be switched to without the remote. An Emerson branded remote in the exact same style was found to work with these Durabrand sets made by Haier as well.
The service manual indicates that the jungle chip has input lines for component YPbPr.

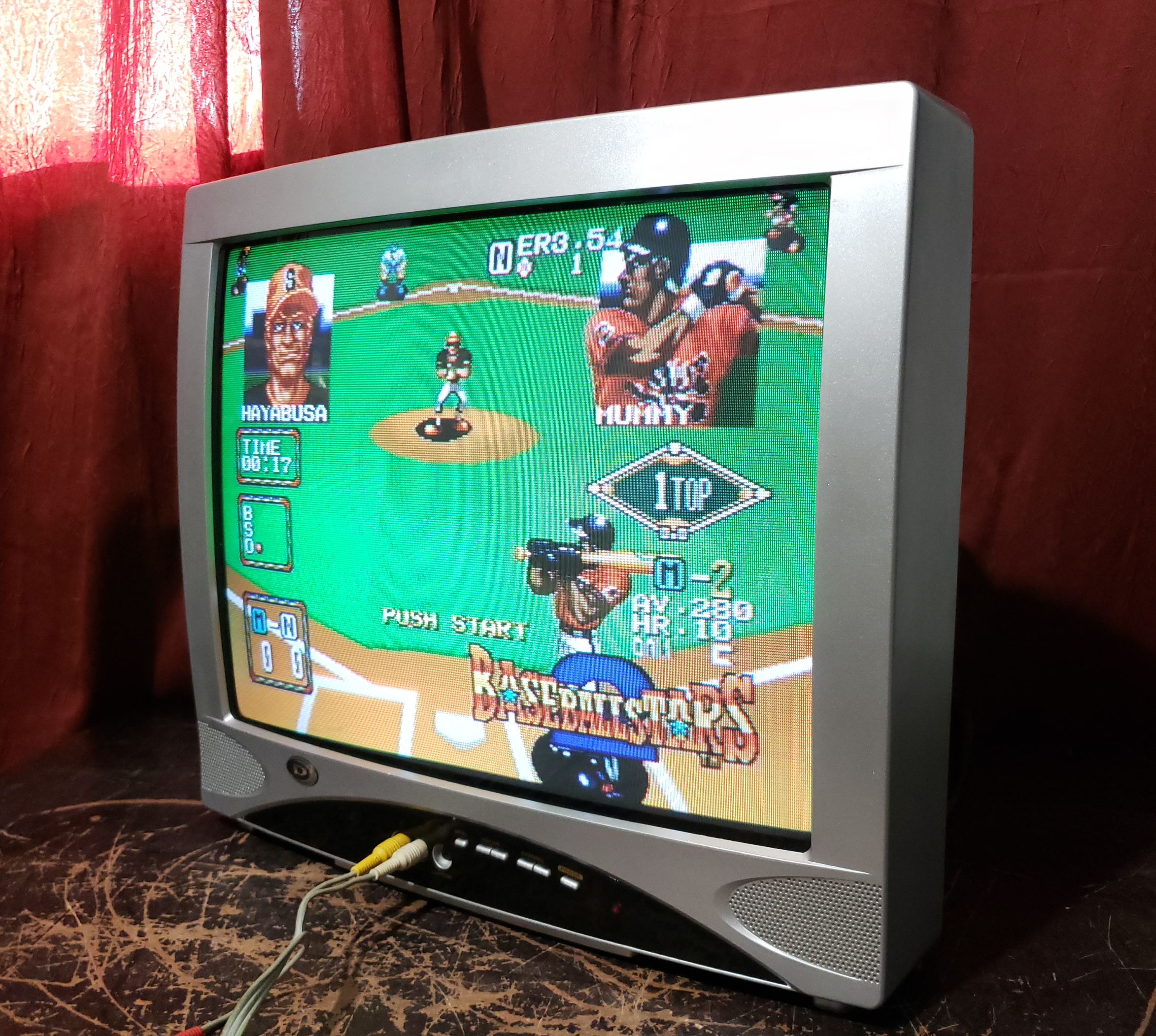

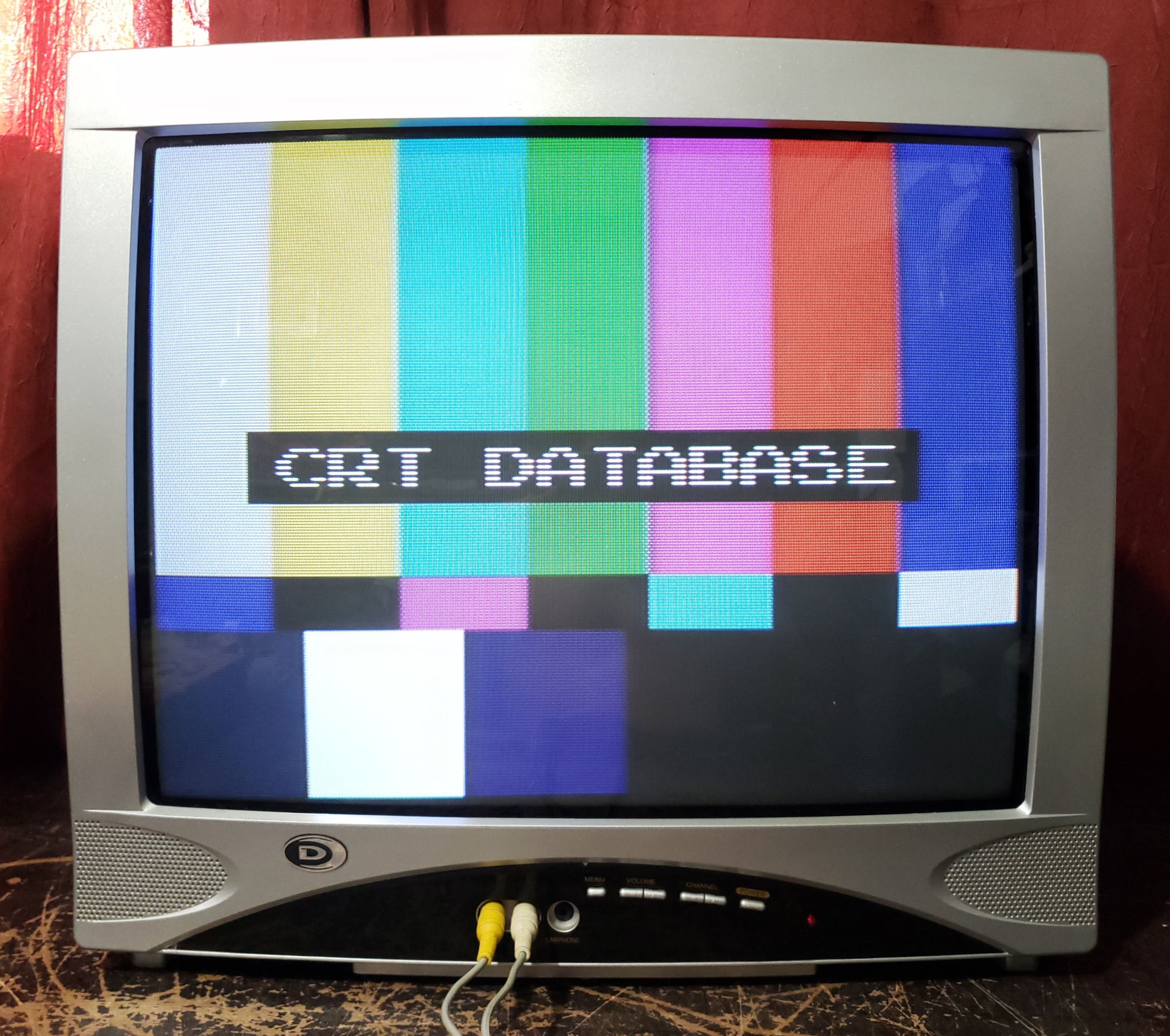

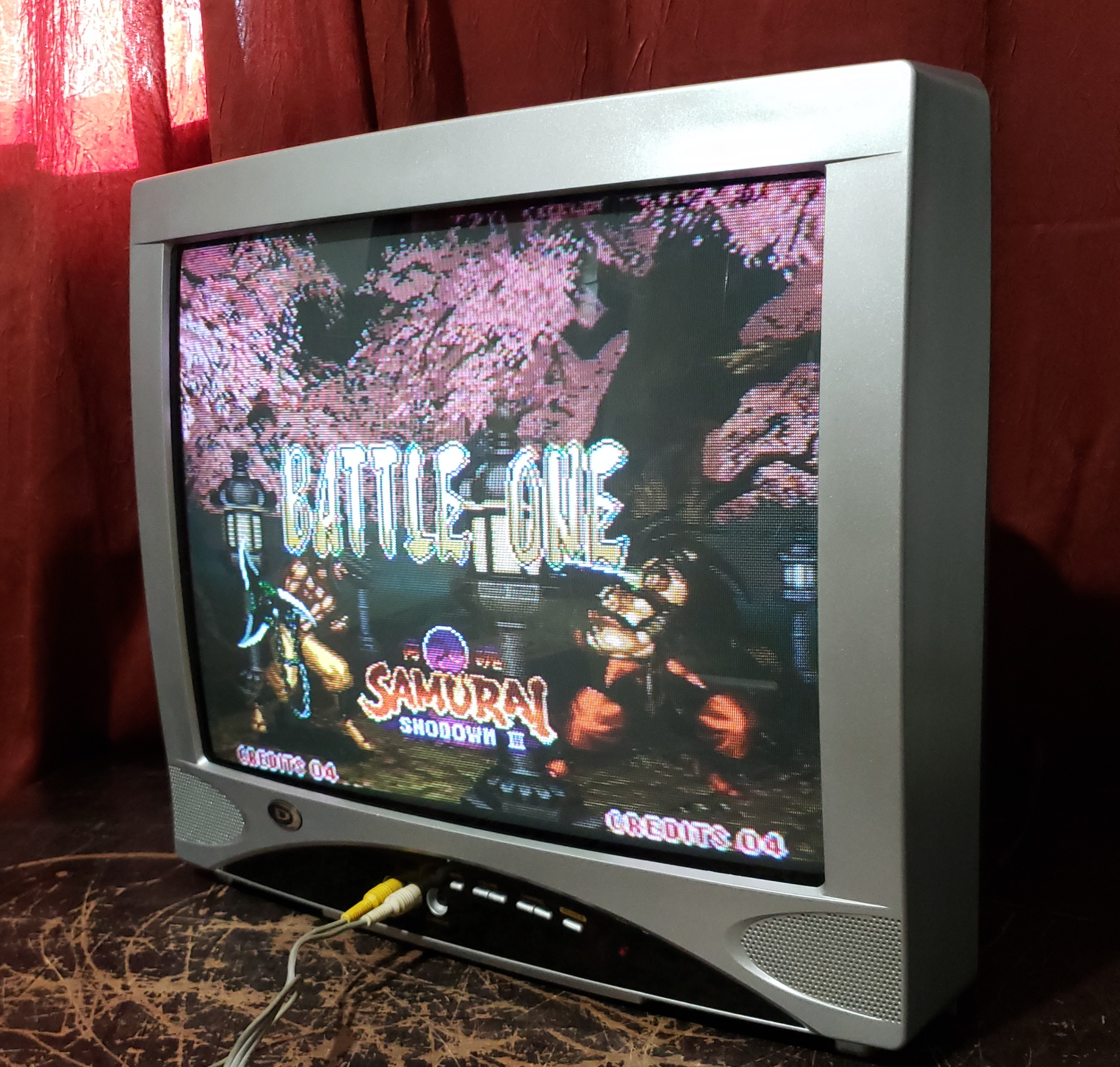

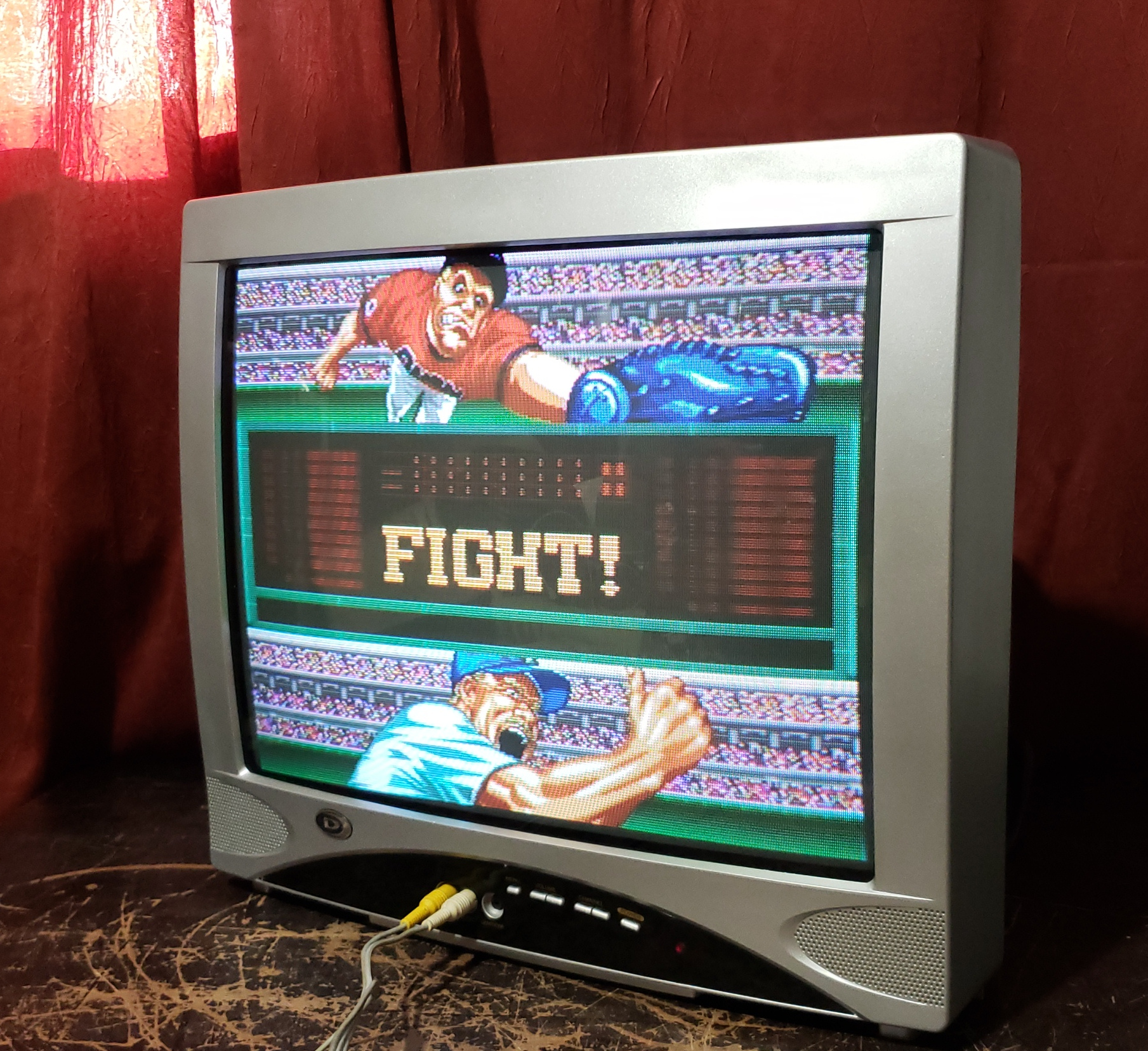

Gallery

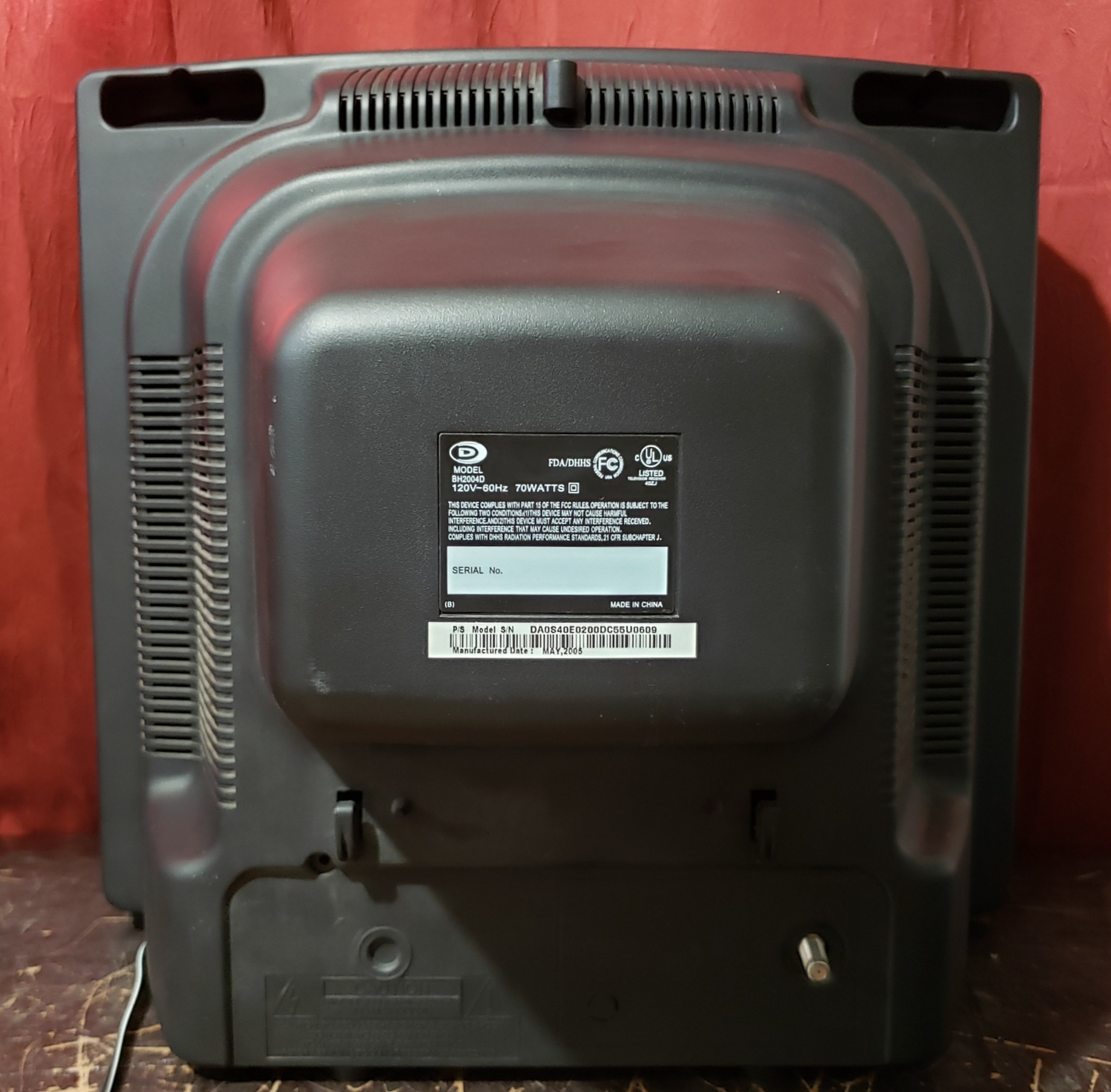

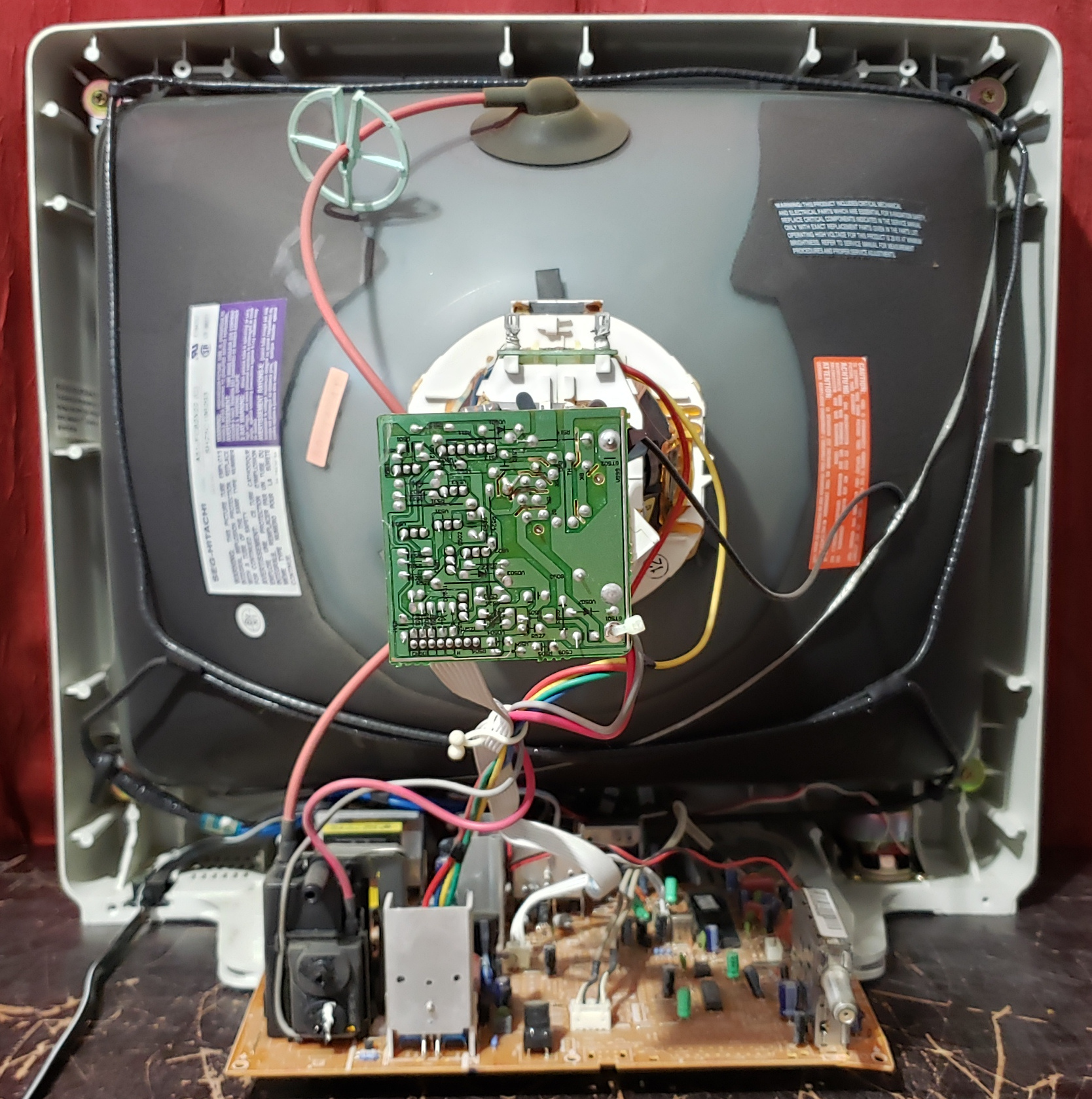

| Specifications | |
|---|---|
| Brand: | Durabrand |
| Manufacturer: | Haier |
| Model: | BH2004D |
| Series: | BH |
| Viewable Size: | 20" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2499 |
| Vertical Output IC: | TDA8357A, TDA8357J |
| Comb Filtering: | None |
| Jungle IC: | TDA8377 |

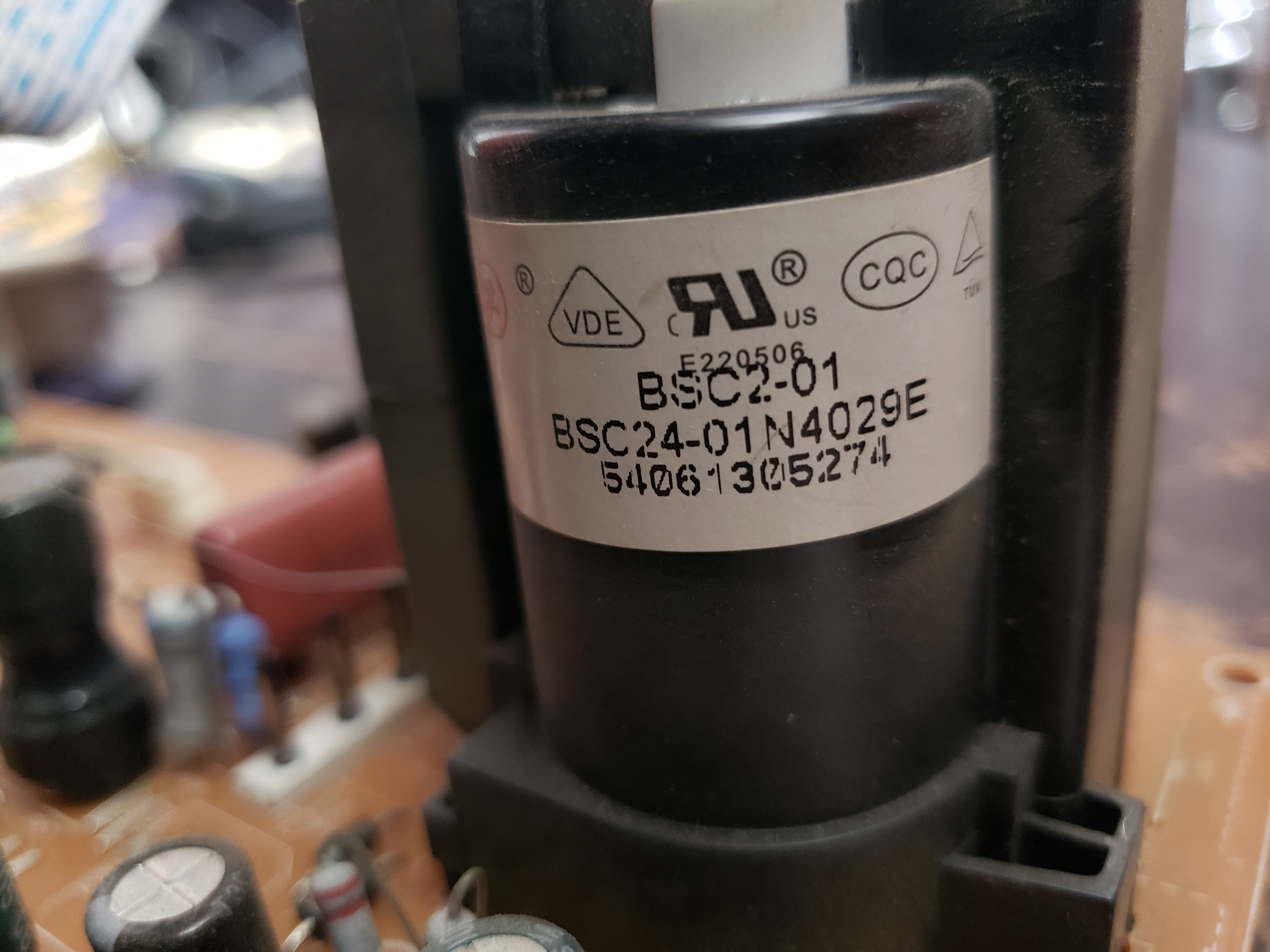

| Flyback: | BSC24-01N4029E |
| Focus Type: | Single |

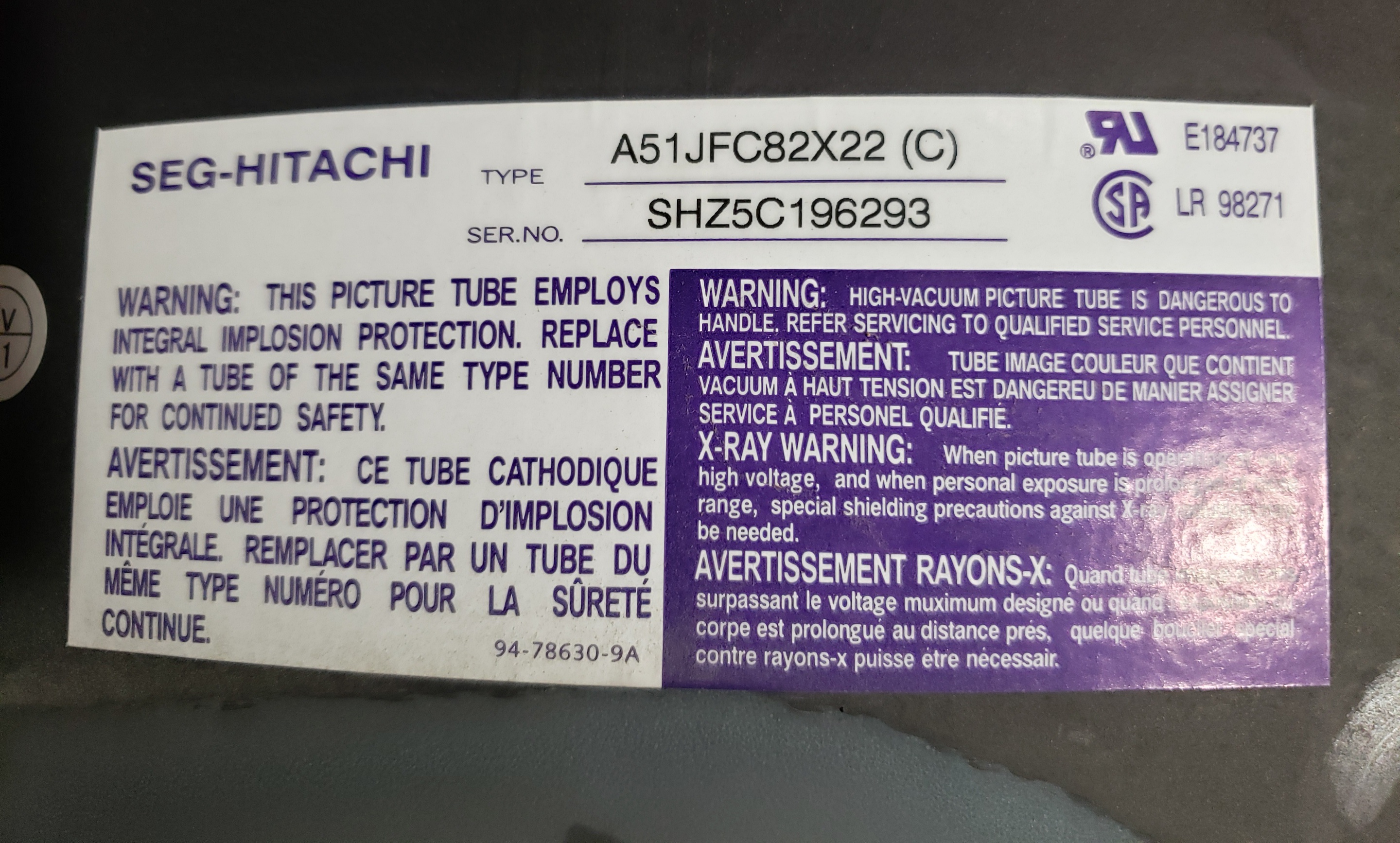

| Tube: | A51JFC82X , A51JFC82X22 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

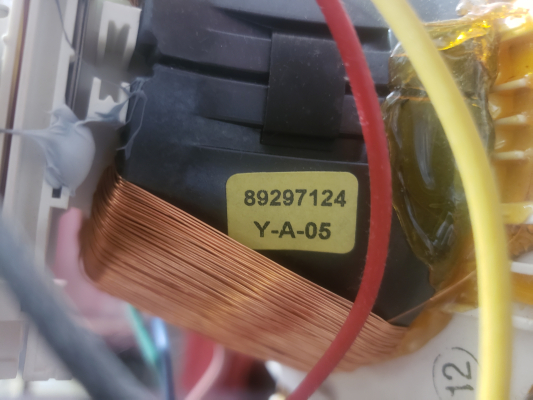

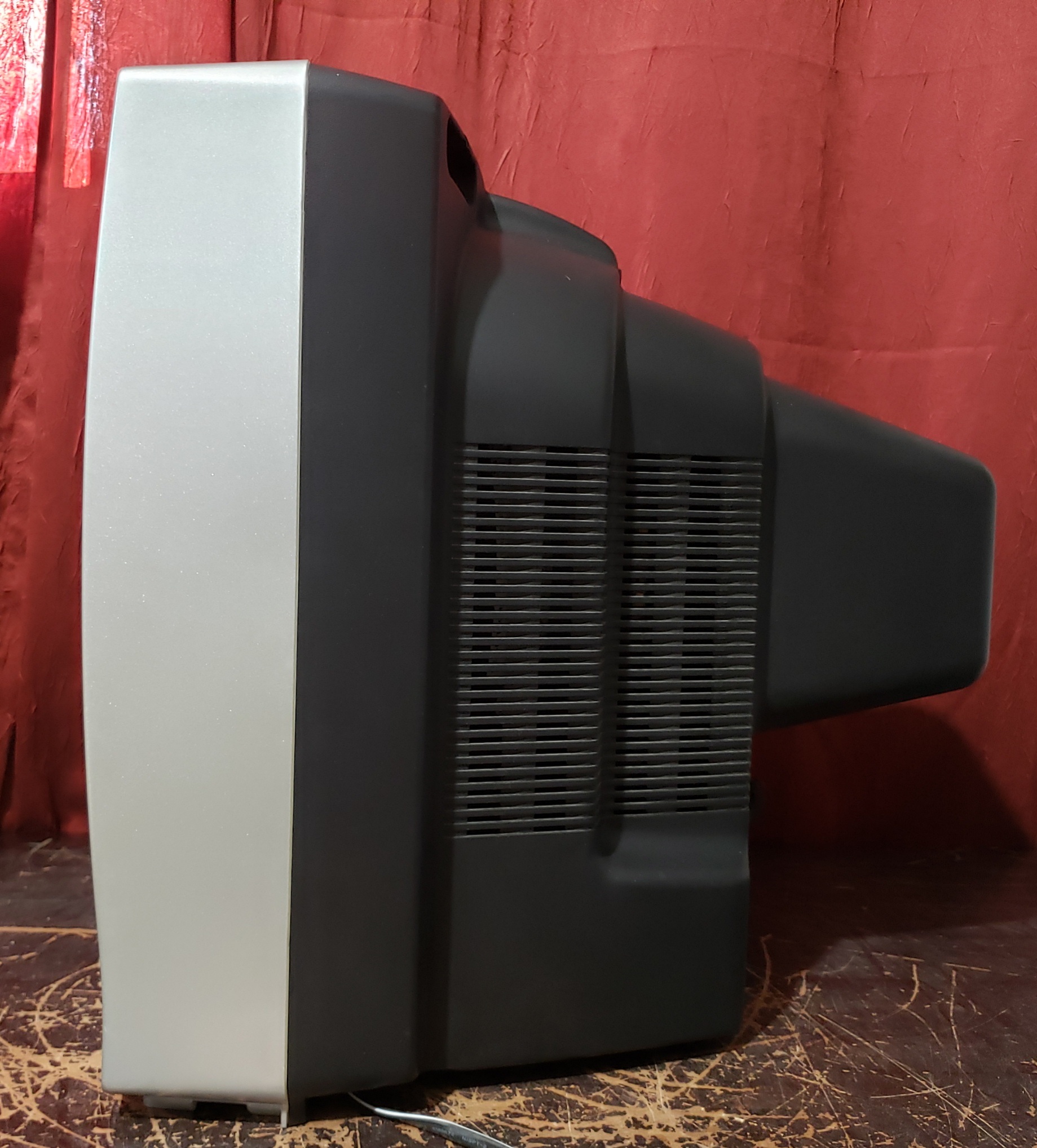

| Yoke: | 89297124 |
| Yoke Horz. Inductance: | 1.83 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 25.2 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.9 ohm |
| Yoke Vert. Resistance: | 10.8 ohm |
| Speakers: | Mono, 2W |
| Weight: | 43 lbs (19.5 kg) |
| Dimensions (W/H/D): |
505 x 452 x 475 mm
(19.8 x 17.8 x 18.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
