Durabrand DTV1907
August 30, 2024, 4:34 am
January 22, 2025, 12:53 am
Summary

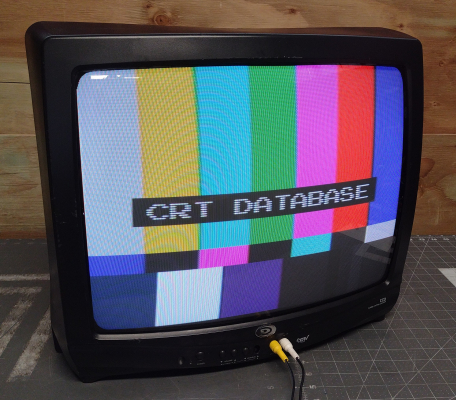

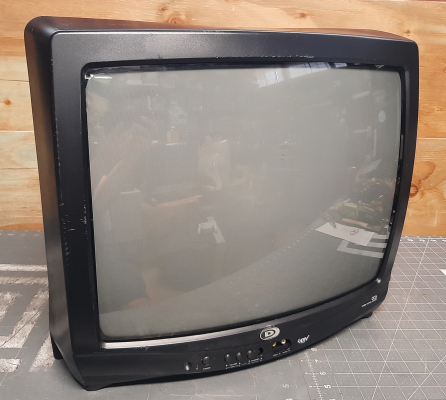

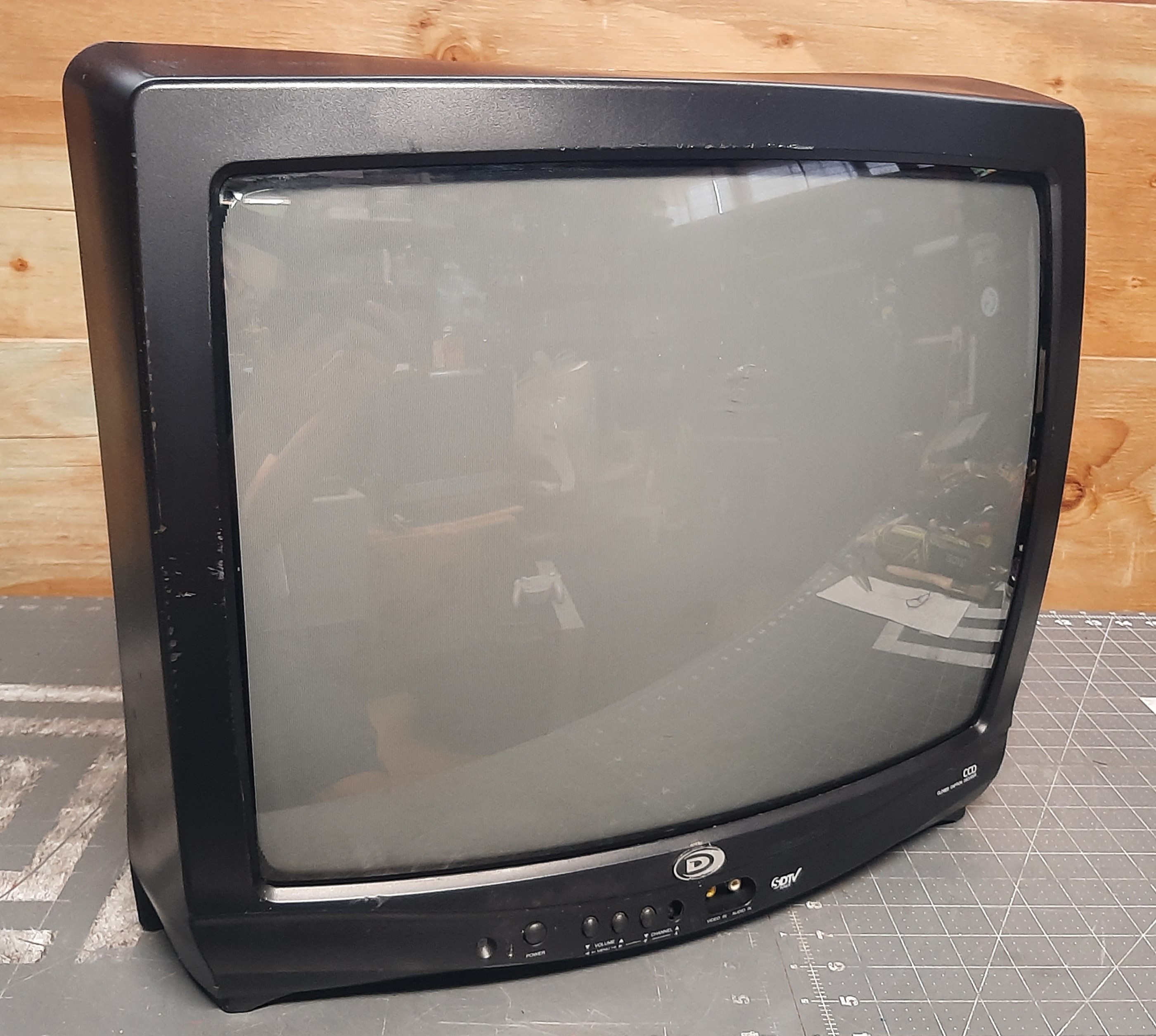

Not to be confused with JVC's line of multiformat professional monitors, the DTV1907 is a budget model 19" TV. Made in 2007 by Orion and sold under Walmart's Durabrand label, it's very similar to Toshiba's A series models of the same size. Like many late production CRTs, it features an ATSC tuner and can still receive broadcast television using an antenna. It features one front composite A/V input and a single bottom mounted speaker.
Manuals
No documentation is available online at this time.
Notes
Unlike some Orion TVs, all of its functions can be accessed without the remote. The A/V inputs can be selected using the channel up/down buttons, and the menu can be opened by pressing volume up & down at the same time.

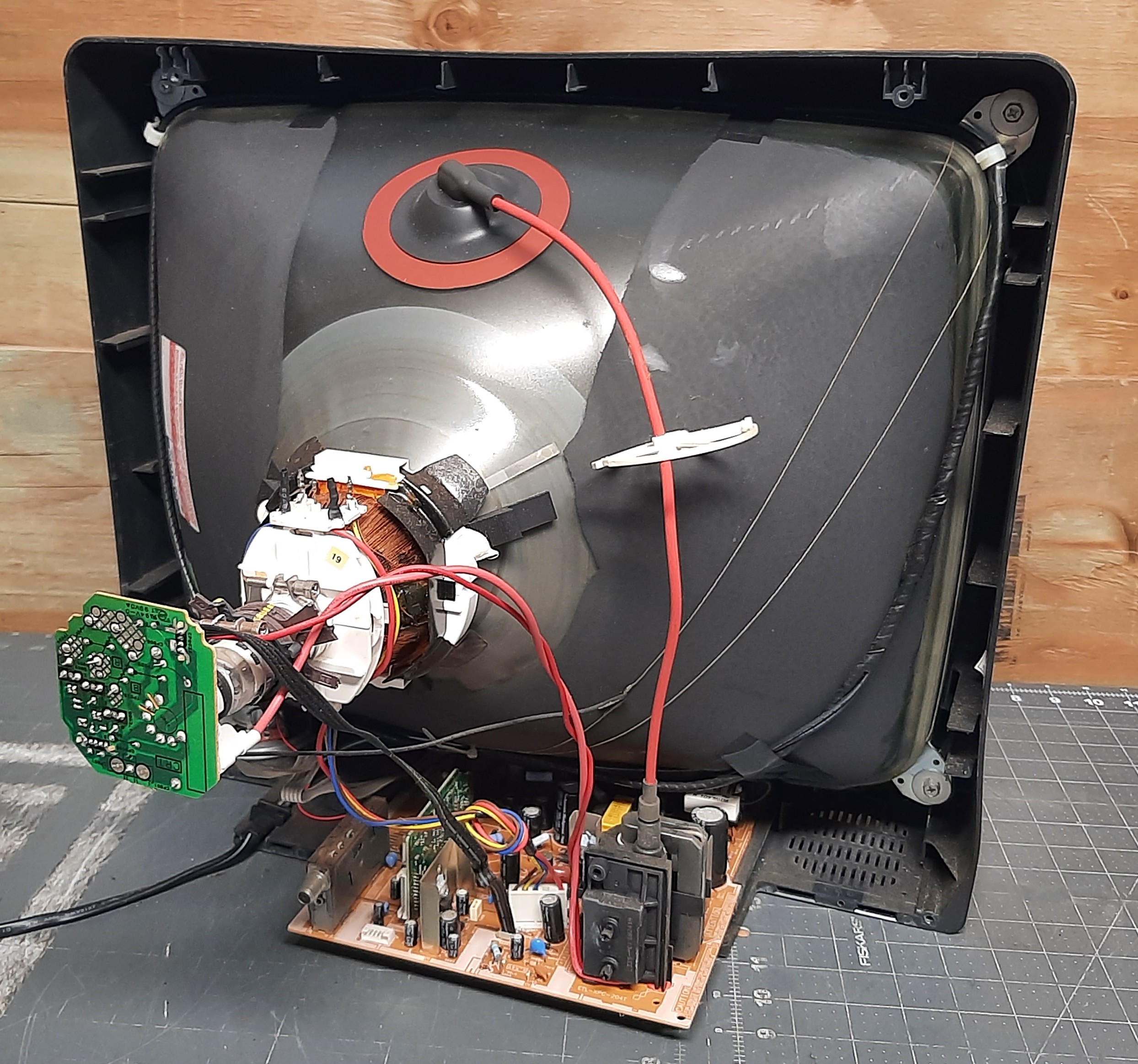

This TV uses a genuine 19" tube, which makes it useful as a potential donor for arcade monitors.

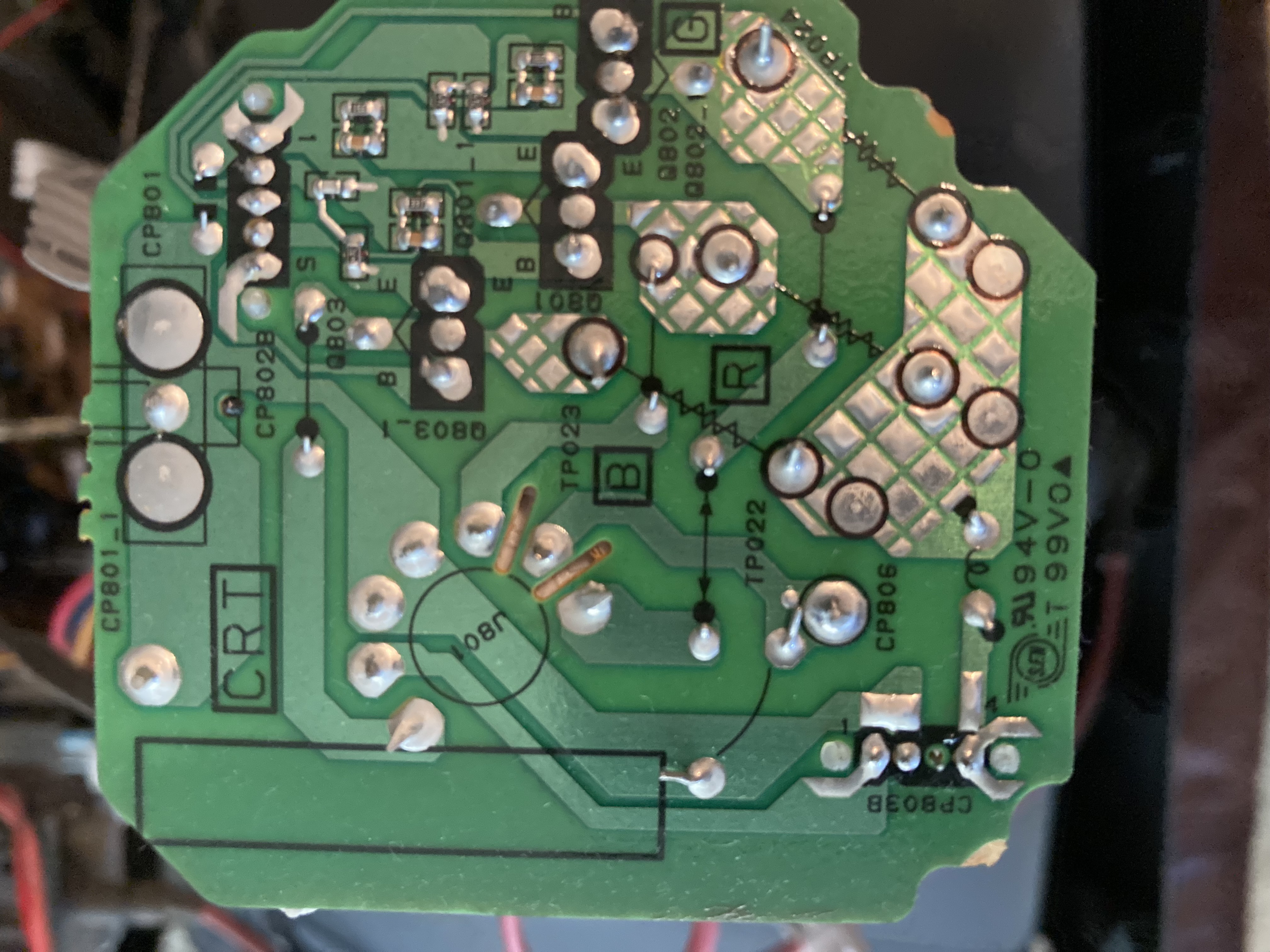

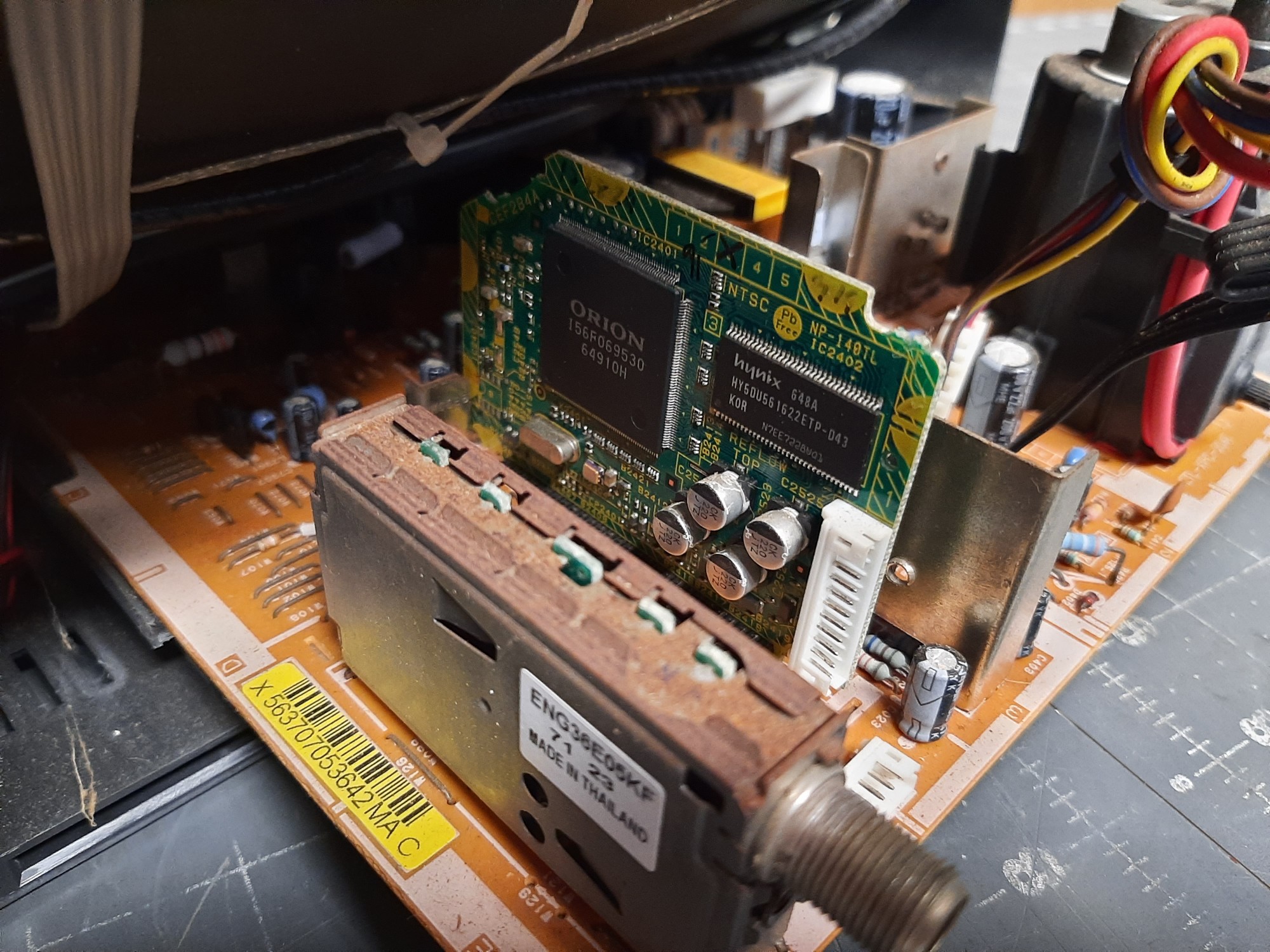

Unlike previous 19" Orion TVs, this model uses a simplified chassis with a 1-chip jungle design. It cannot be modified for RGB.
Gallery
Specifications | |
---|---|
Brand: | Durabrand |
Manufacturer: | Orion |
Model: | DTV1907 |
Series: | Durabrand |
Viewable Size: | 19" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | STV9302B |
Comb Filtering: | None |

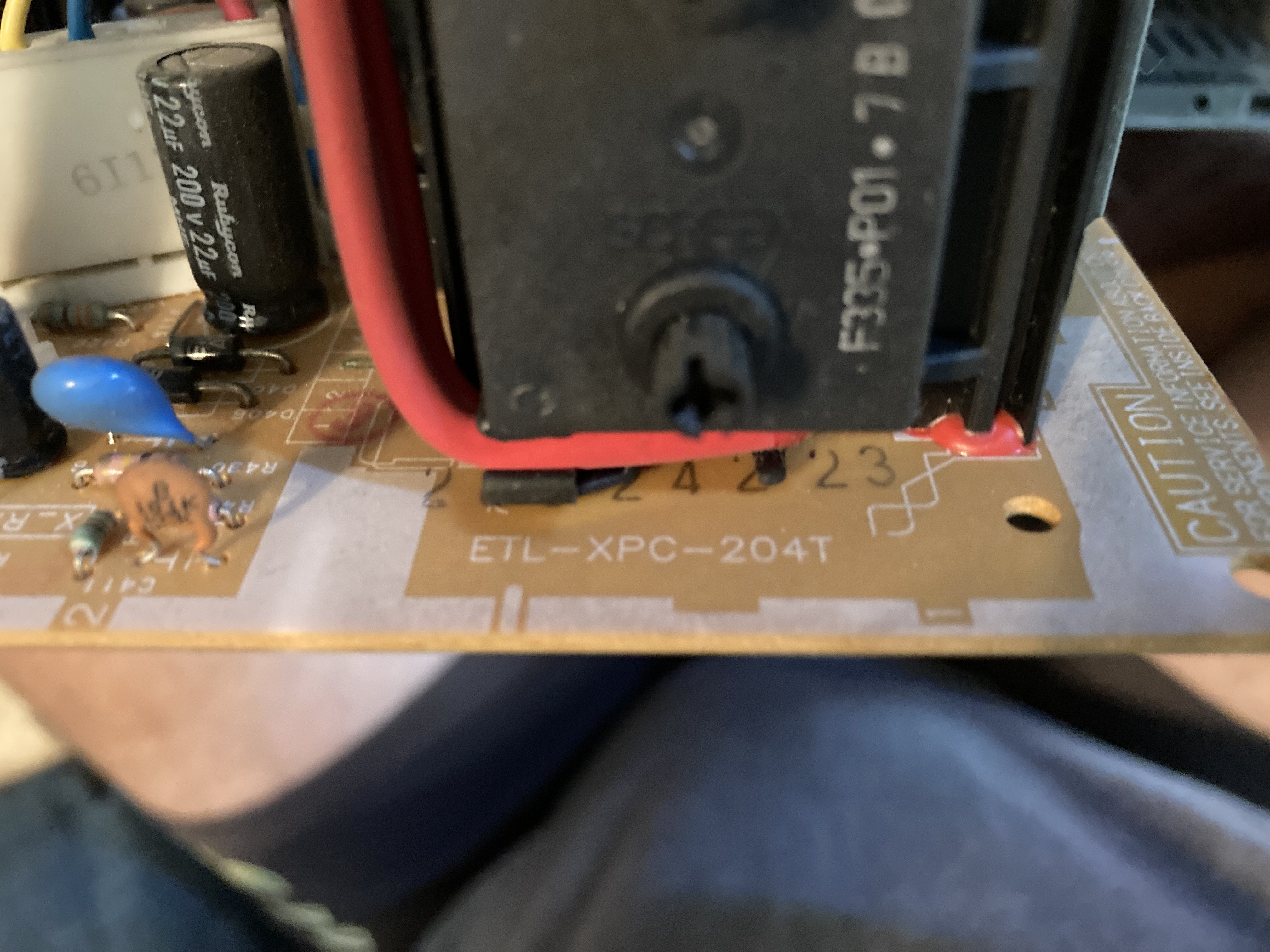

Flyback: | FQI20B103 |
Focus Type: | Single |

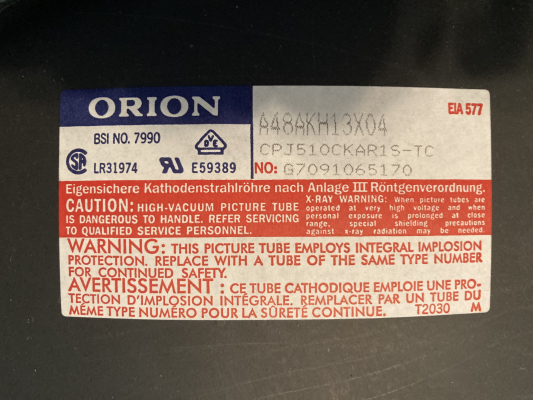

Tube: | Orion |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | MPX-20002H2 |
Yoke Horz. Inductance: | 2.849 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 28.05 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 4.01 ohm |
Yoke Vert. Resistance: | 15.35 ohm |
Speakers: | Mono |
Weight: | 35.8 lbs (16.2 kg) |
Dimensions (W/H/D): |
488 x 465 x 416 mm
(19.2 x 18.3 x 16.3") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2007 |
Country of Manufacture: | Thailand |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
