Summary

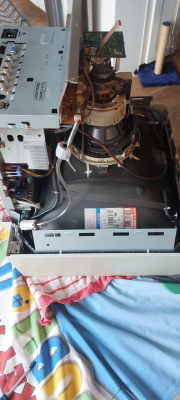

Eizo FlexScan T766 (also appearing as "Model No. MA-19B4" in service documentation) is a monitor from 2002 allowing for high resolutions with similar pitch across the whole screen (0.24-0.25mm). Maximum signal bandwidth is 280MHz.

Manuals & Promo Materials

• Press Release
• User’s Manual
• Service Manual/Software (incomplete)
• Drivers

Notes

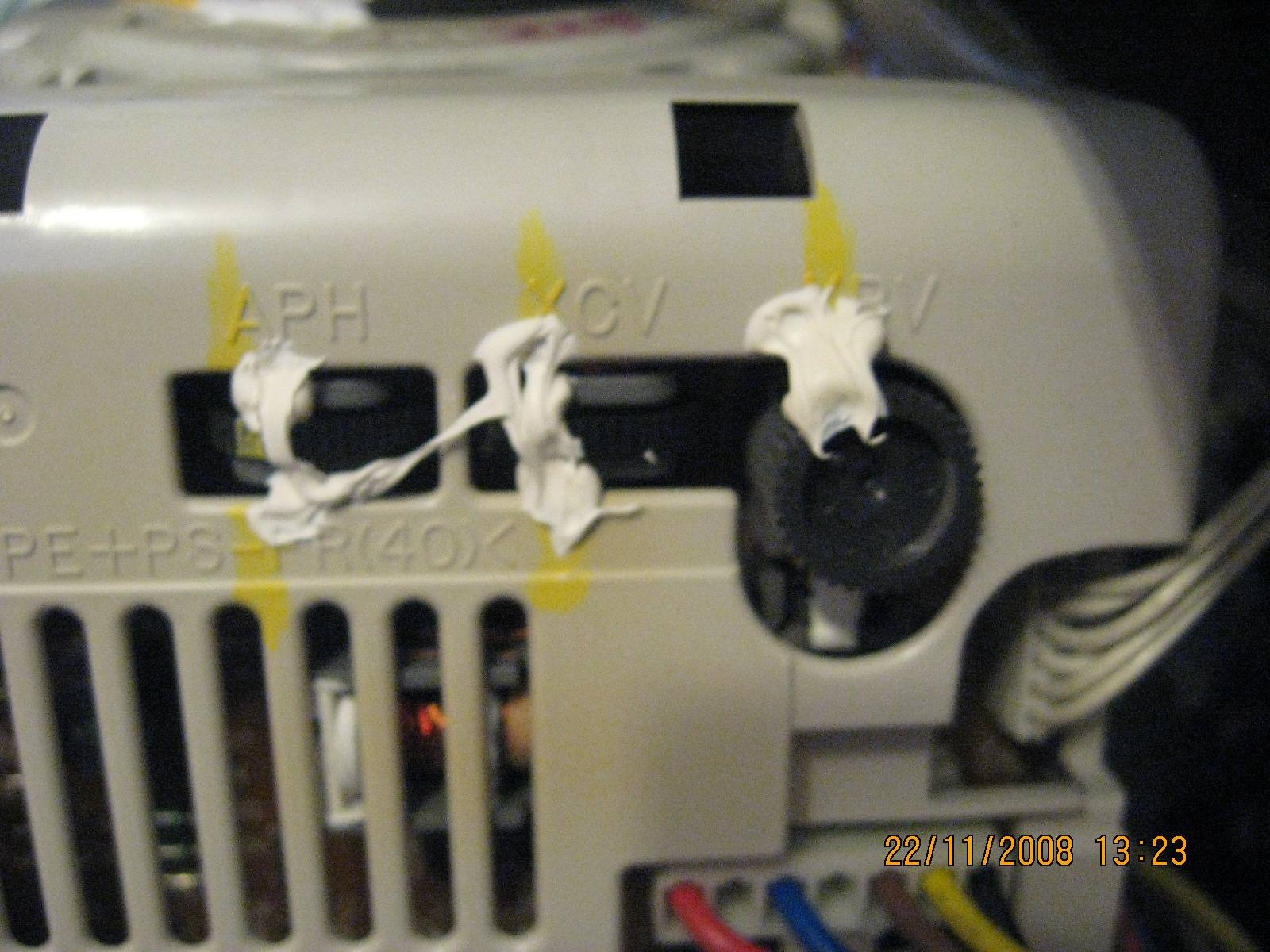

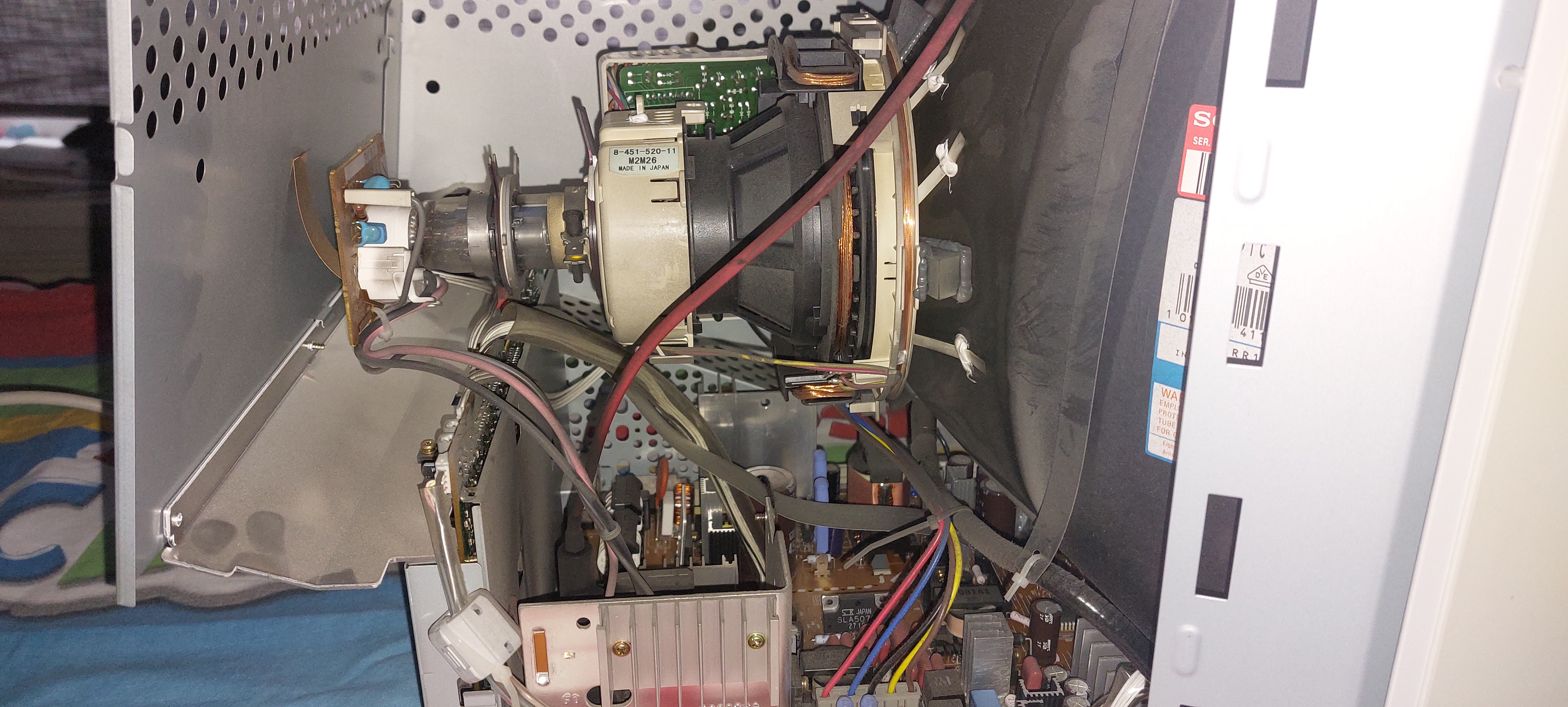

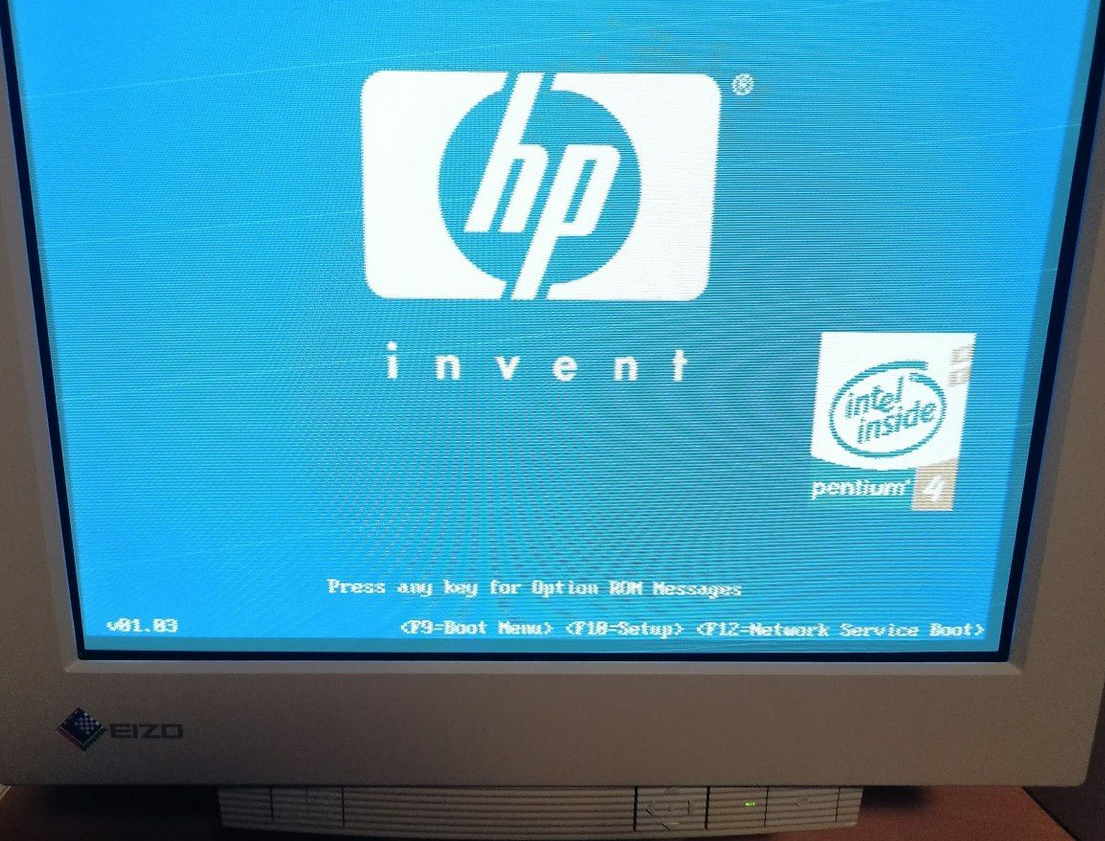

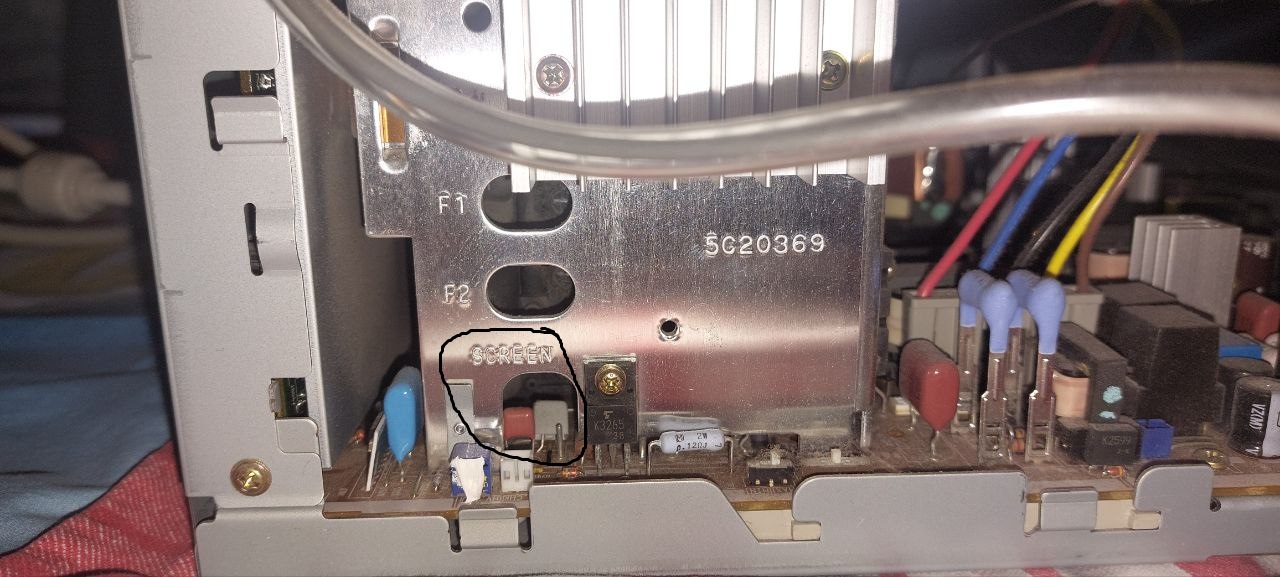

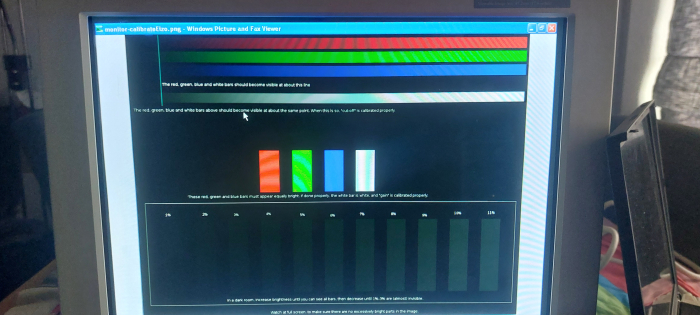

Unit visible on photos was suffering from G2 drift, which caused excessive brightness. It can be fixed by adjusting the “screen” potentiometer located near the flyback transformer. (Please do not attempt yourself, unless you know exactly what you are doing, due to the risk to both you and CRT).
