Eizo FlexScan T566 (also appearing as "Model No.MA-1798" in service documentation) is a monitor from 2002 allowing for high resolutions uniformpitch across the whole screen (0.25mm). Maximum signal bandwidth is 200MHz.
Manuals & Promo Materials
Notes
- It appears that connection controlling G2 levels can be damaged resulting in overexposed image source
Attributions

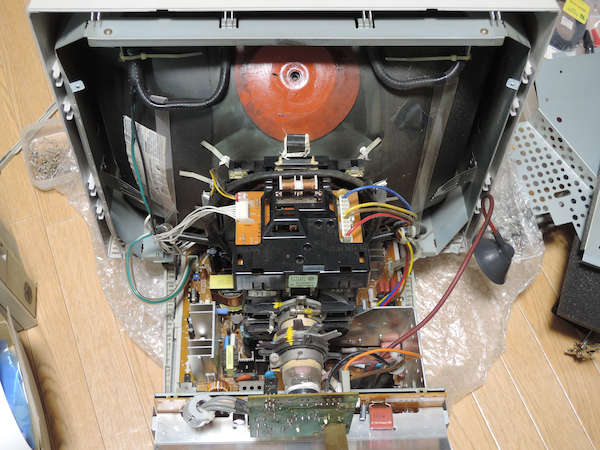

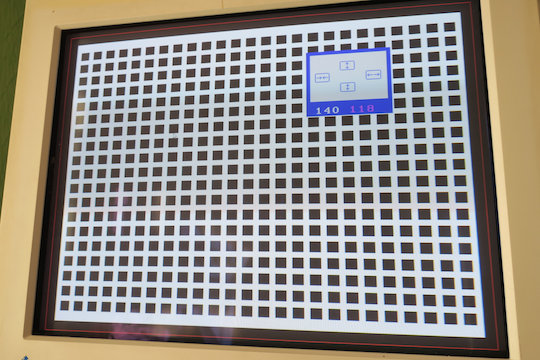

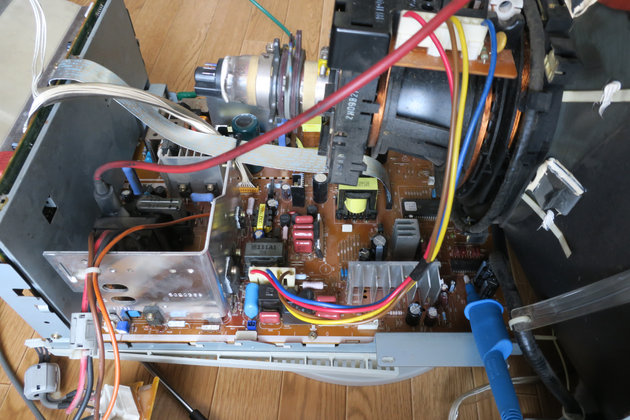

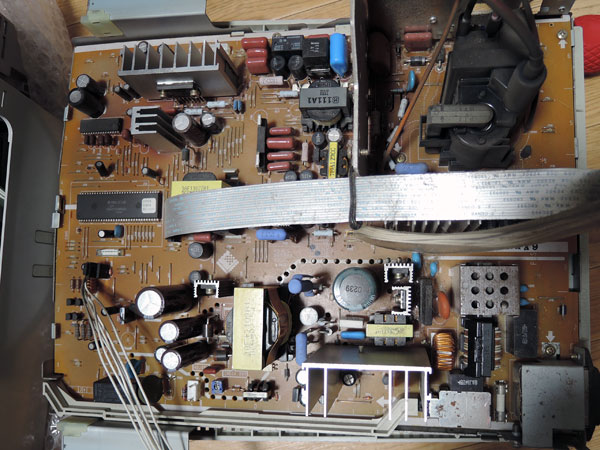

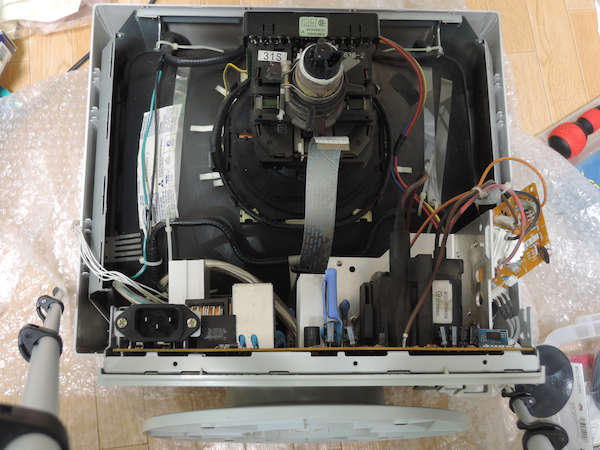

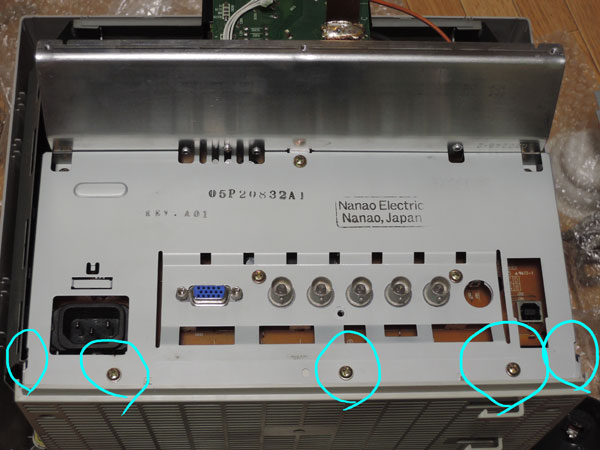

- Credit to Akamaki (akm) from diarywind blog for pictures & detailed articles regarding repair & calibration.
- Credit to Unknown Yahoo user for pictures
- Credit to 電脳遊幻組 3号店 for pictures

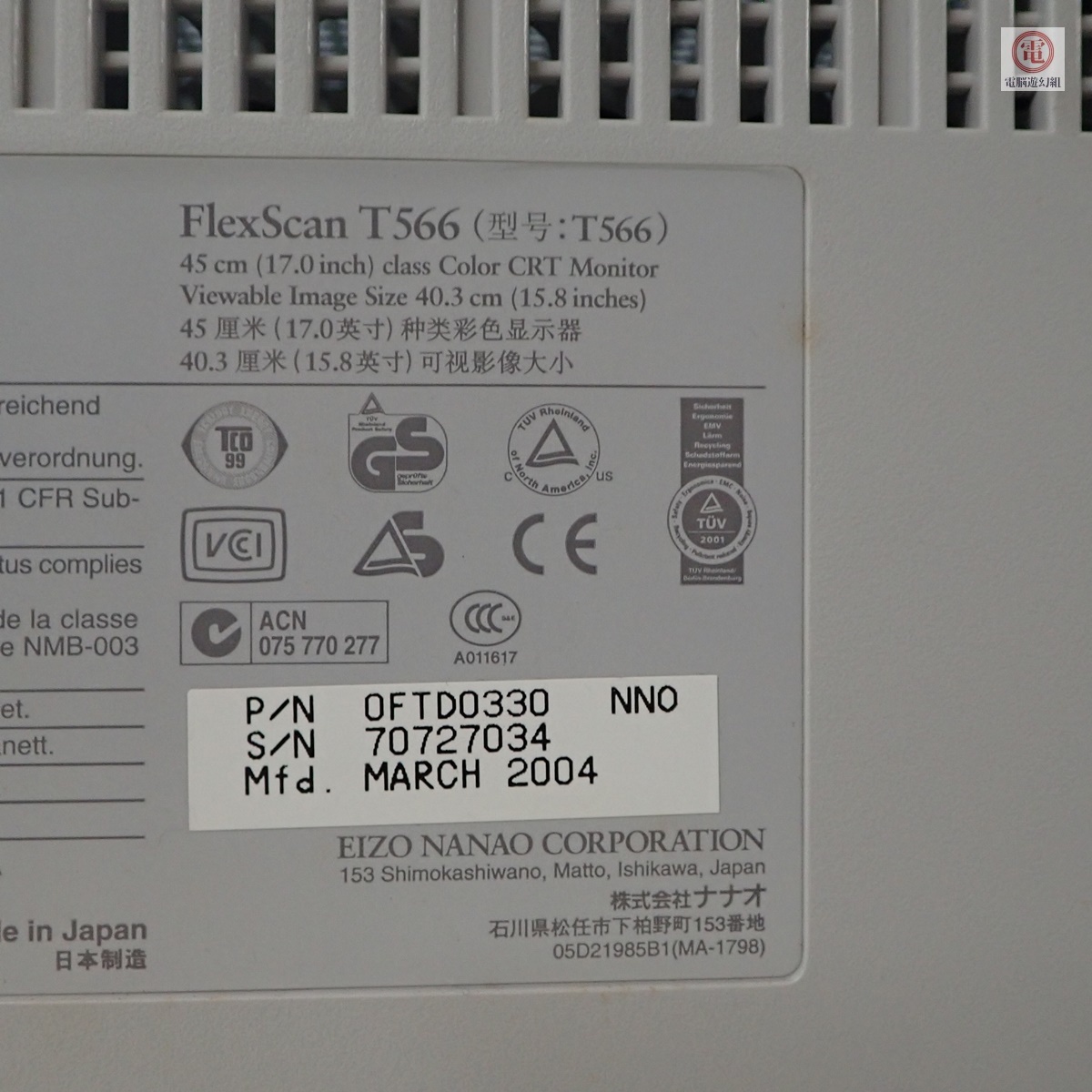

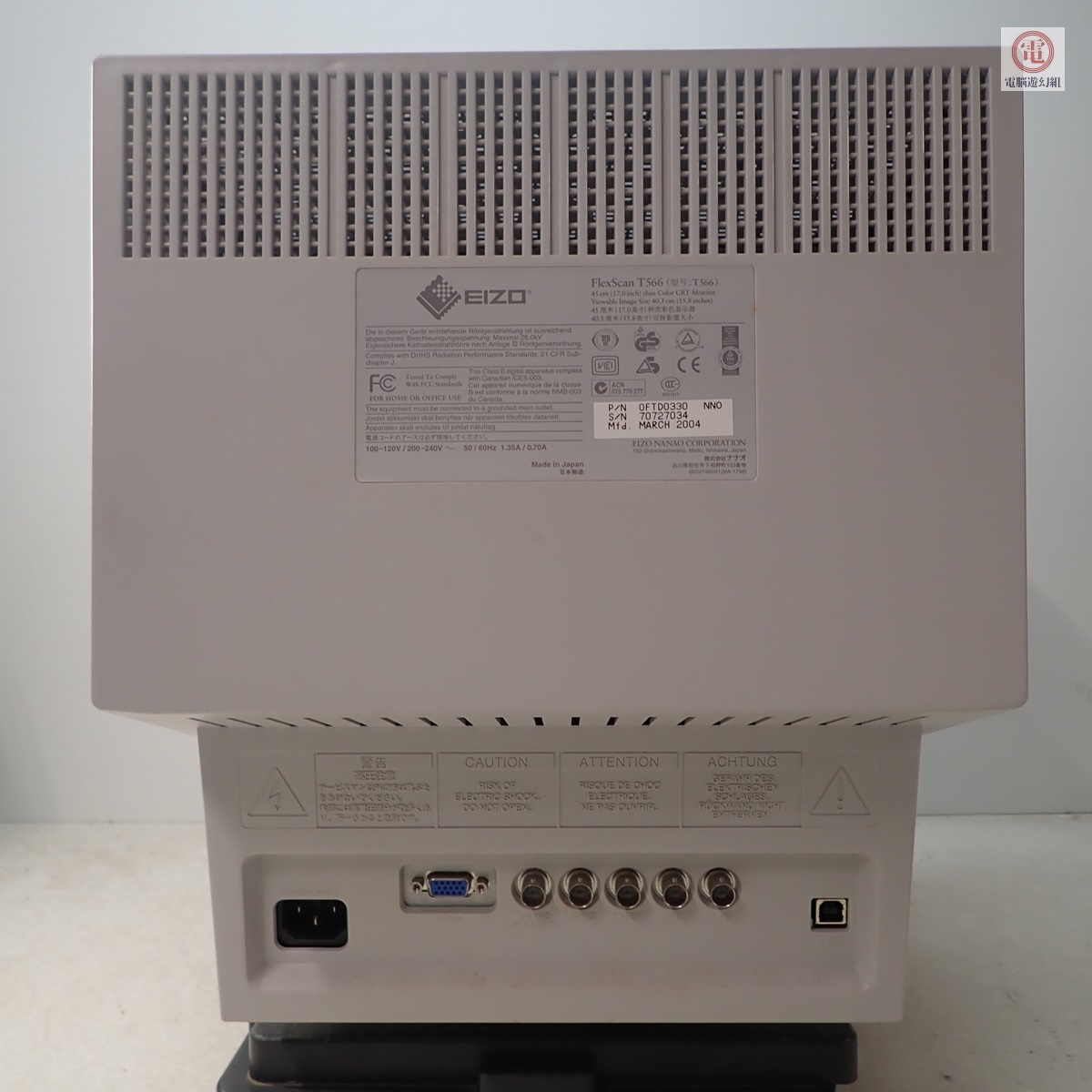

Gallery
| Specifications | |
|---|---|
| Brand: | Eizo |
| Manufacturer: | Eizo |
| Model: | T566, MA-1798 |
| Series: | FlexScan |
| Viewable Size: | 15.8" |
| Input Signals: | VGA, BNC |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Horizontal Scan Range: | 30 kHz, 96 kHz |
| Vertical Scan Range: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Tube: | Sony Trinitron |
| Mask: |
Aperture Grille
|
| Pitch: | 0.25 mm, .25 mm |
| Weight: | 43 lbs (19.5 kg) |
| Dimensions (W/H/D): |
410 x 413 x 439 mm
(16.1 x 16.2 x 17.3") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Japan |
| Market: | Worldwide |
| Power Standard: | 100-120 VAC, 200-240 VAC |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Community Submission |
