Electrohome 20E410
March 25, 2025, 11:11 pm
March 28, 2025, 4:06 am
Summary
20" Electrohome TV with a full set of inputs. The chassis was originally made in China by Prima.
Notes

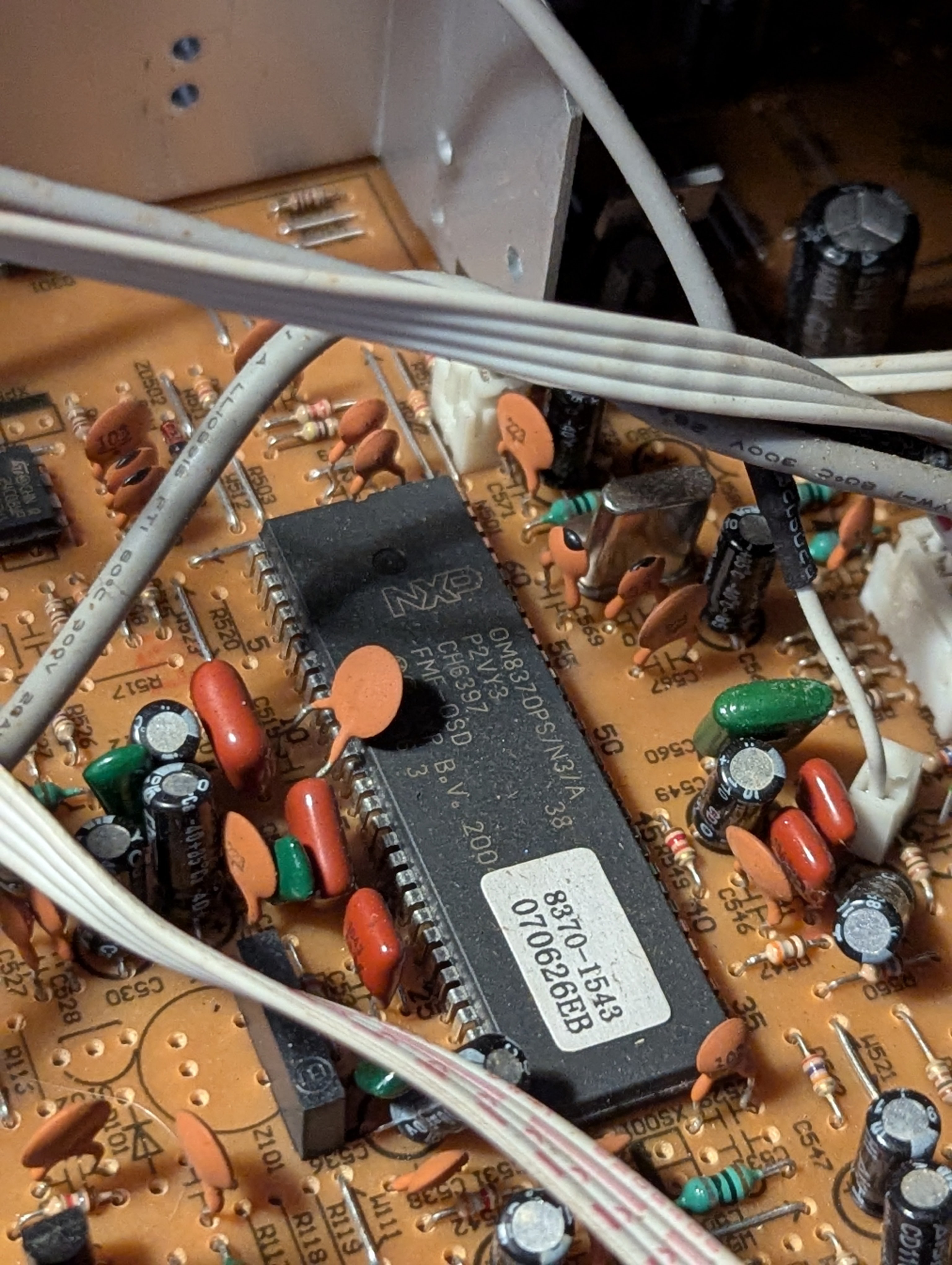

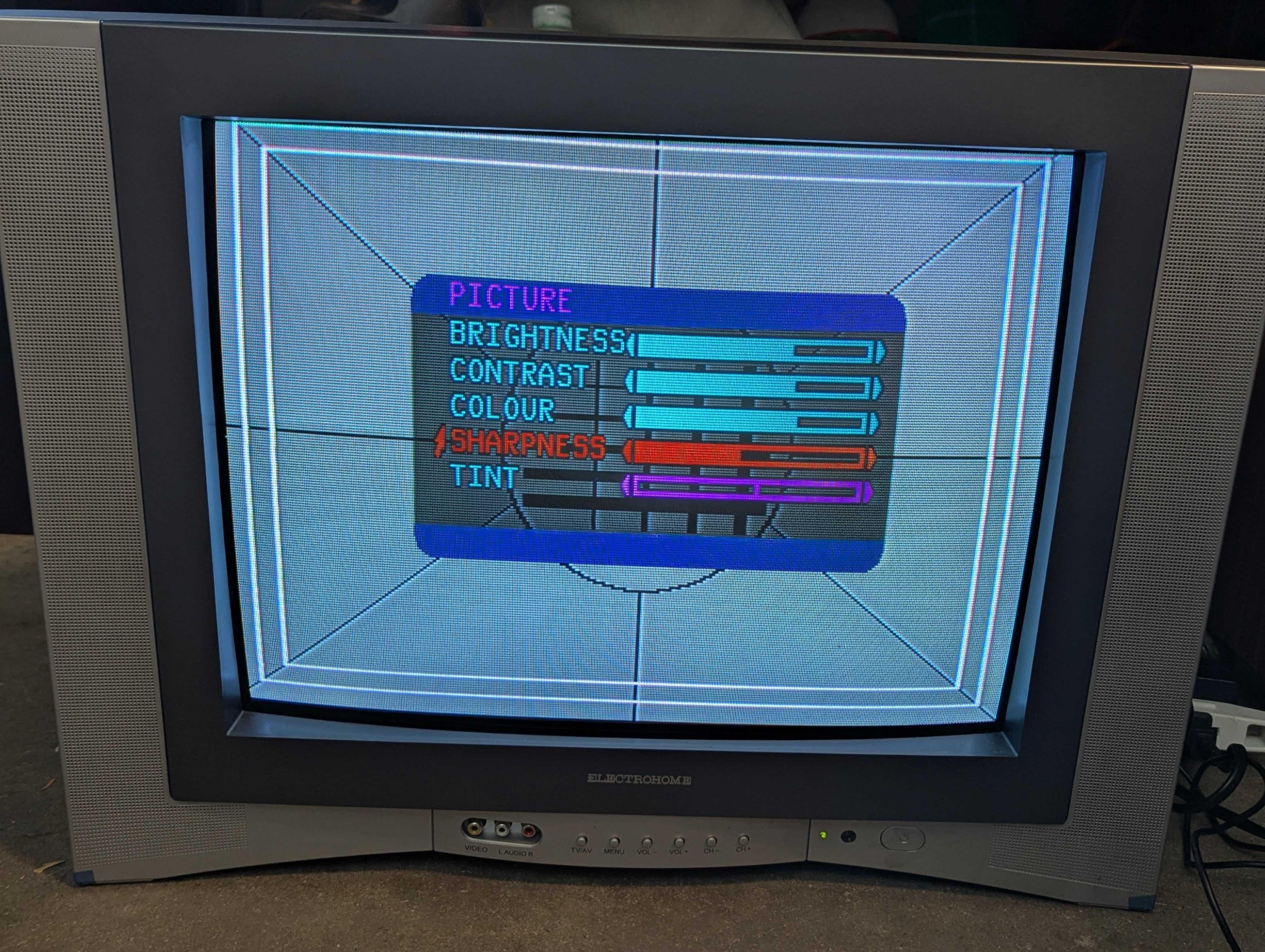

This set uses a Philips jungle IC and it handles component quite well. I recommend turning sharpness all the way down. I also advise to set the color a little below the midpoint, as it looks a bit too saturated by default. The picture processing has a mild "luma shadow" that extends for a pixel to the left of the contours of objects onscreen, but it is very faint and hardly detrimental.
Service Menu

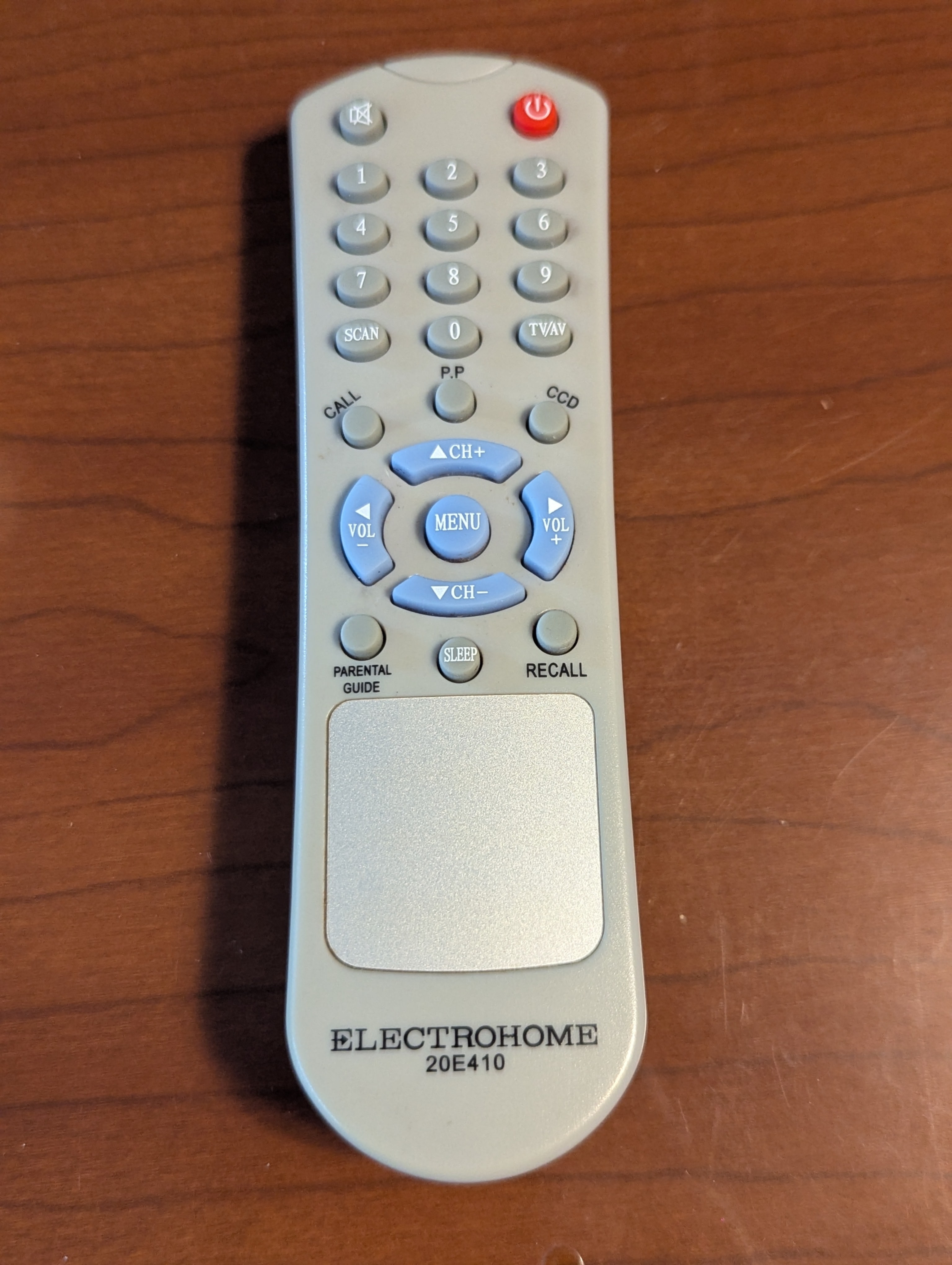

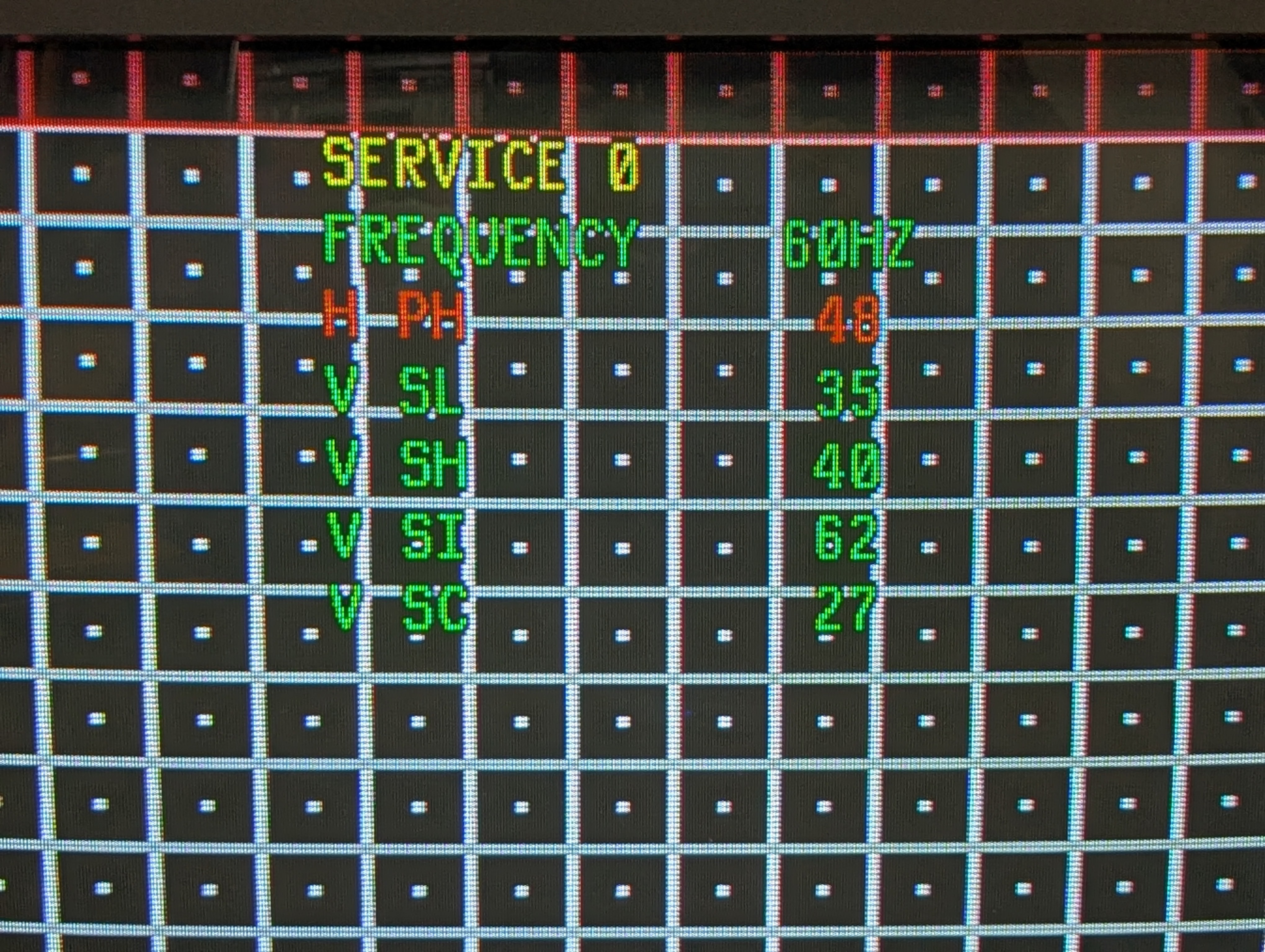

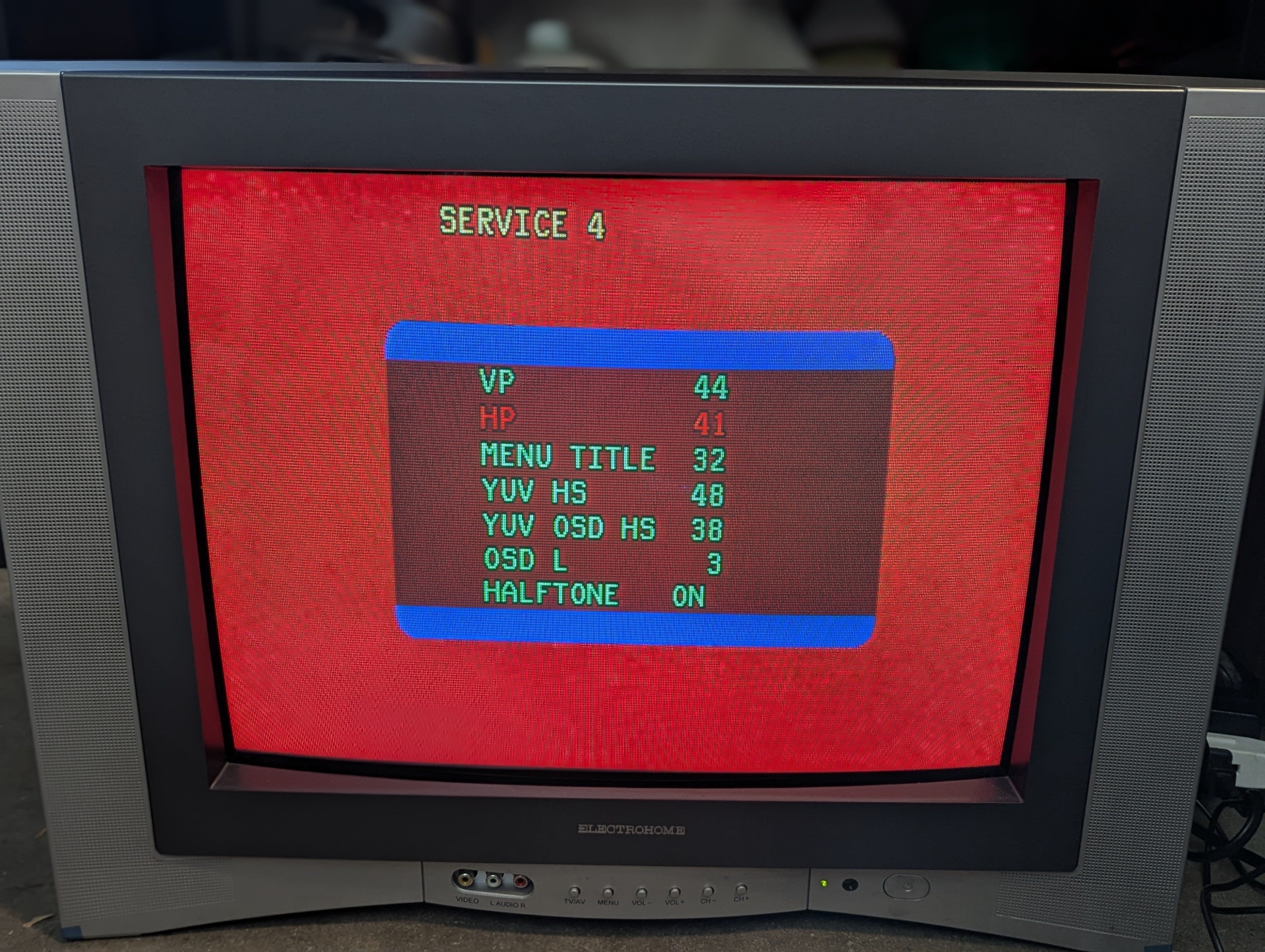

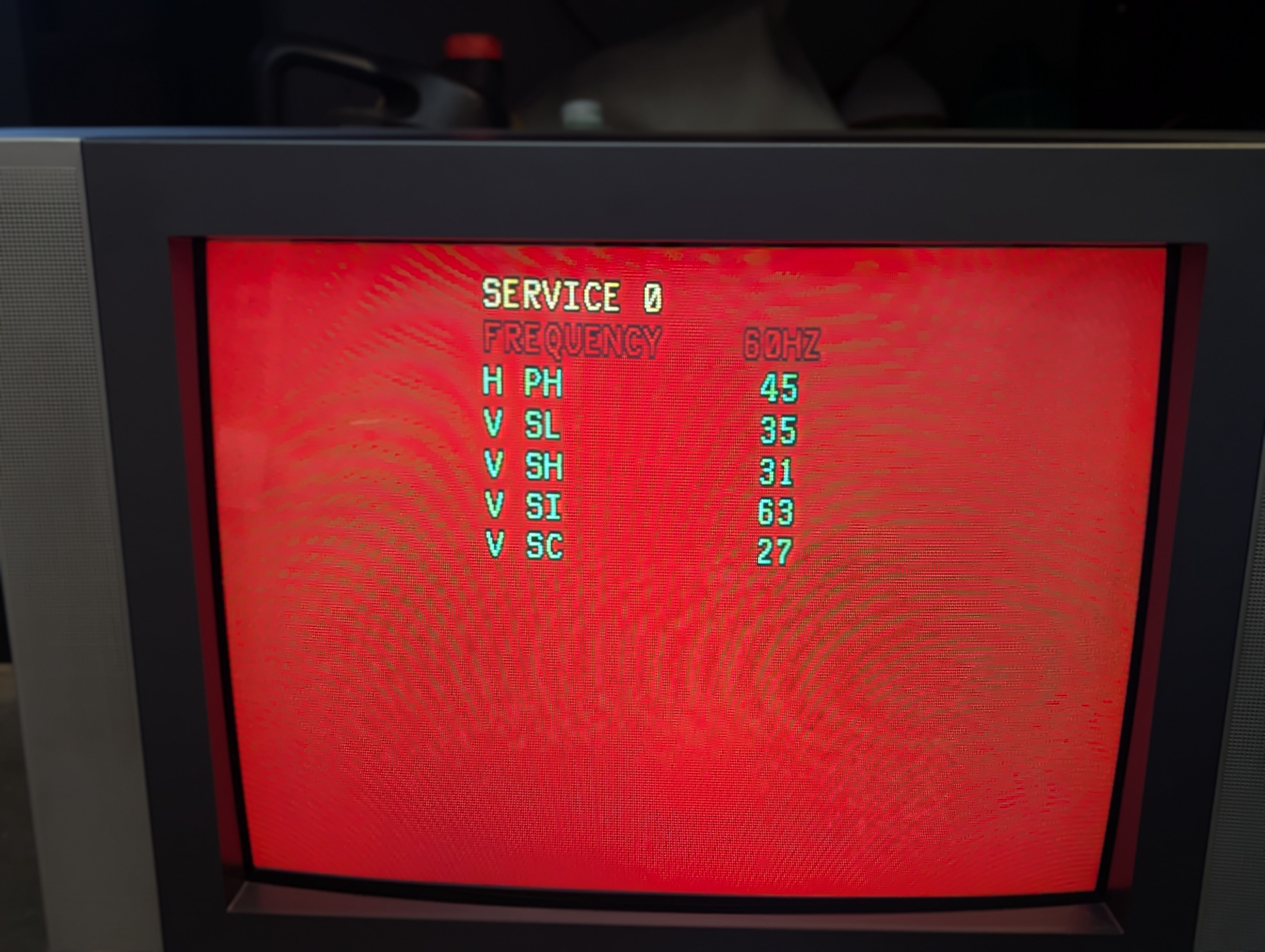

On the remote, press the “MENU” button, followed by 6,4,8, and 3. To show you have entered the service menu, “Test” will appear on screen. The service menu is compartmentalized into separate "menus". There are 8 service pages (1-7, then 0 on the remote). The mute button cycles through them one by one.
Gallery


























Specifications | |
---|---|
Brand: | Electrohome |
Manufacturer: | Prima |
Model: | 20E410 |
Series: | E |
Viewable Size: | 20" |

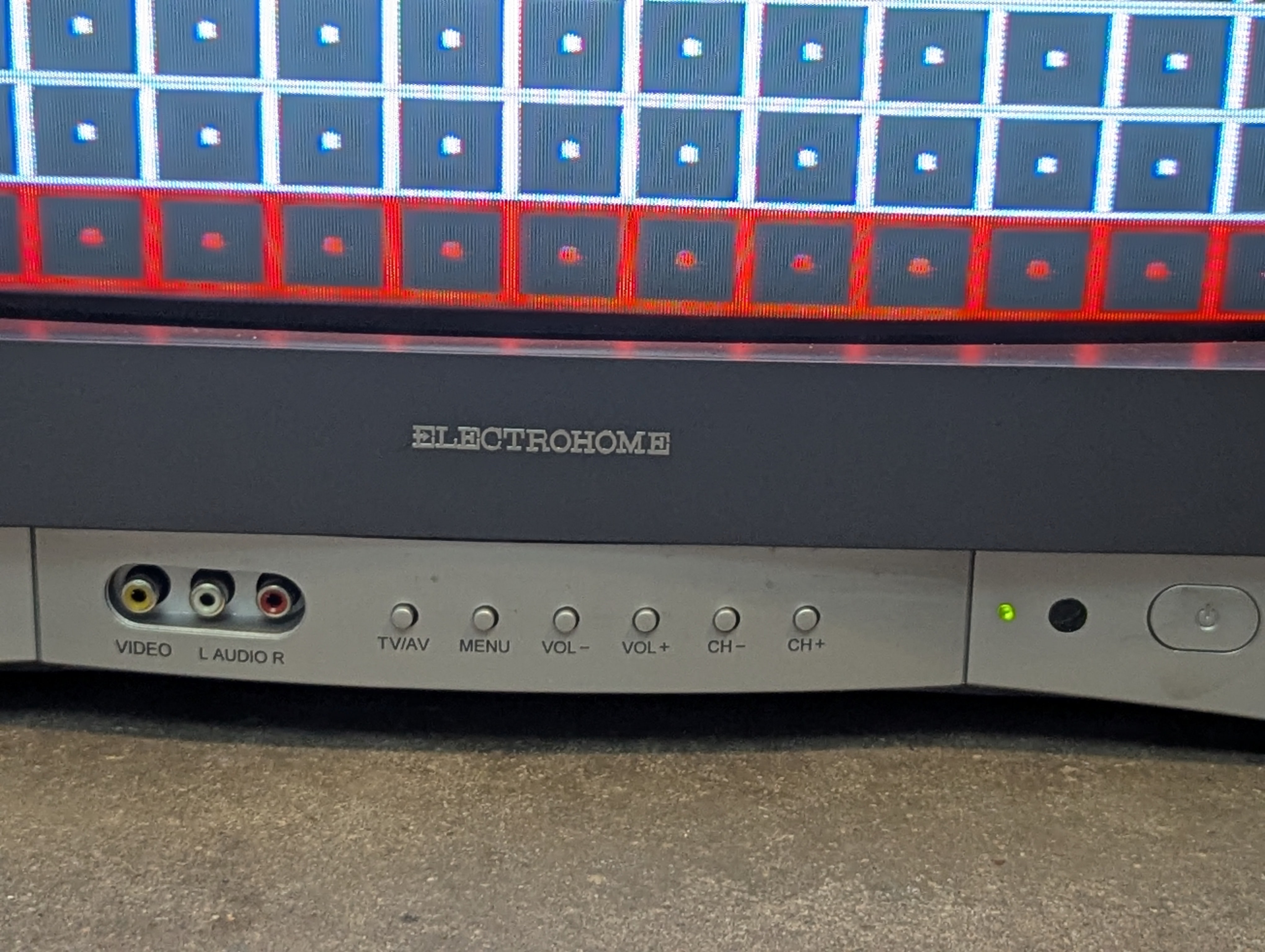

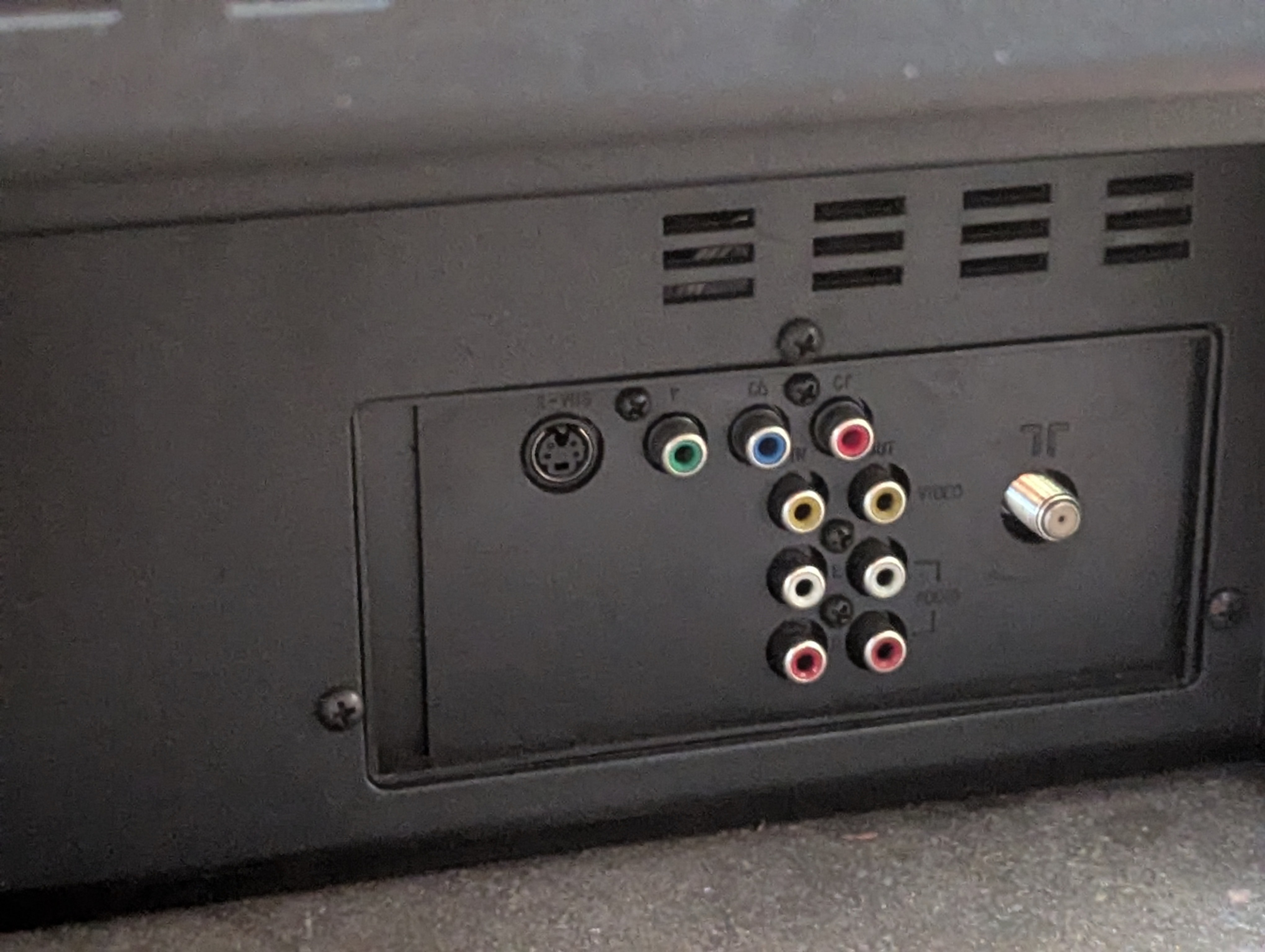

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | STV9302B |

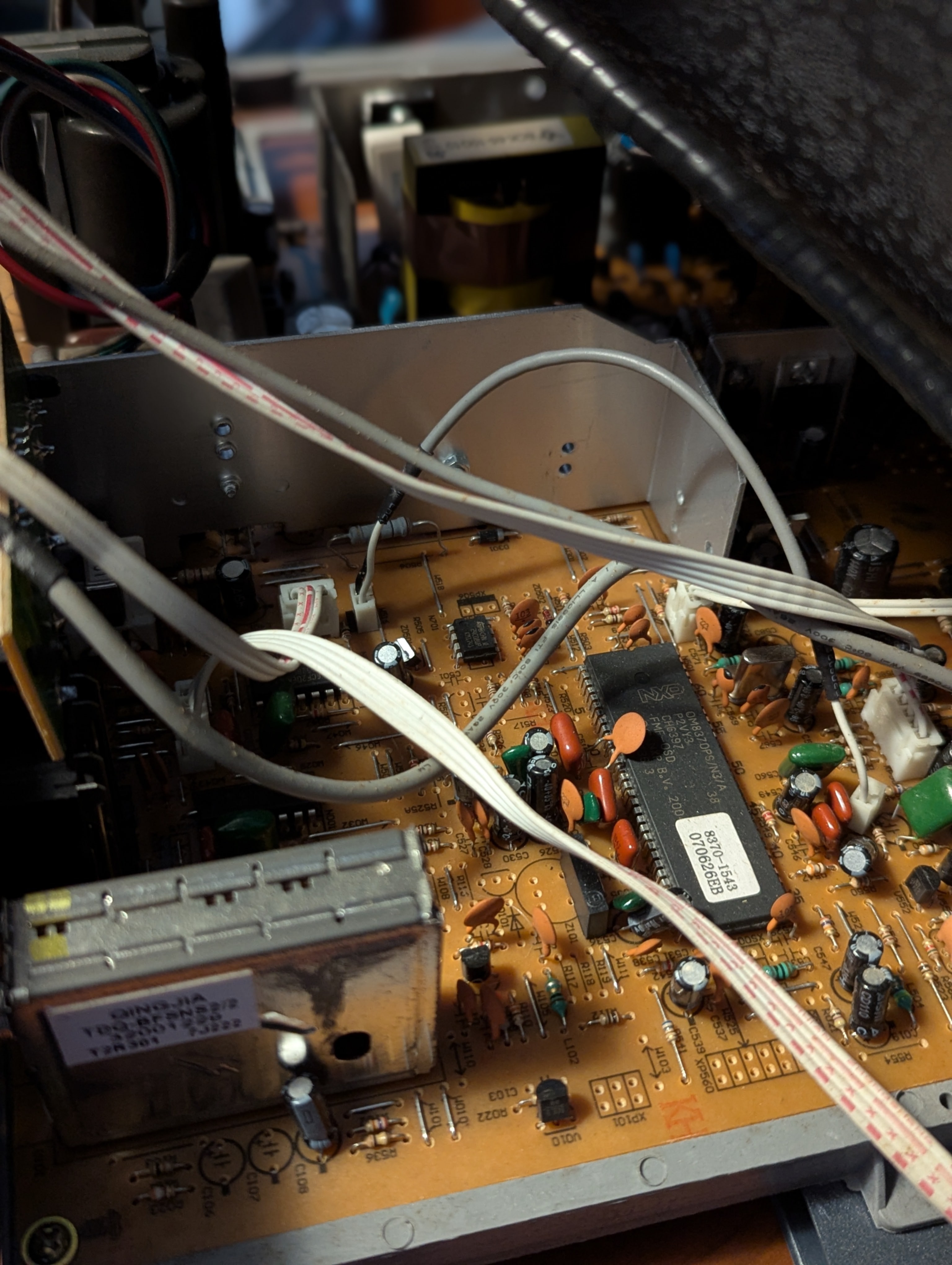

Jungle: | Philips, OM8370PS, TDA9351PS |
Focus Type: | Single |

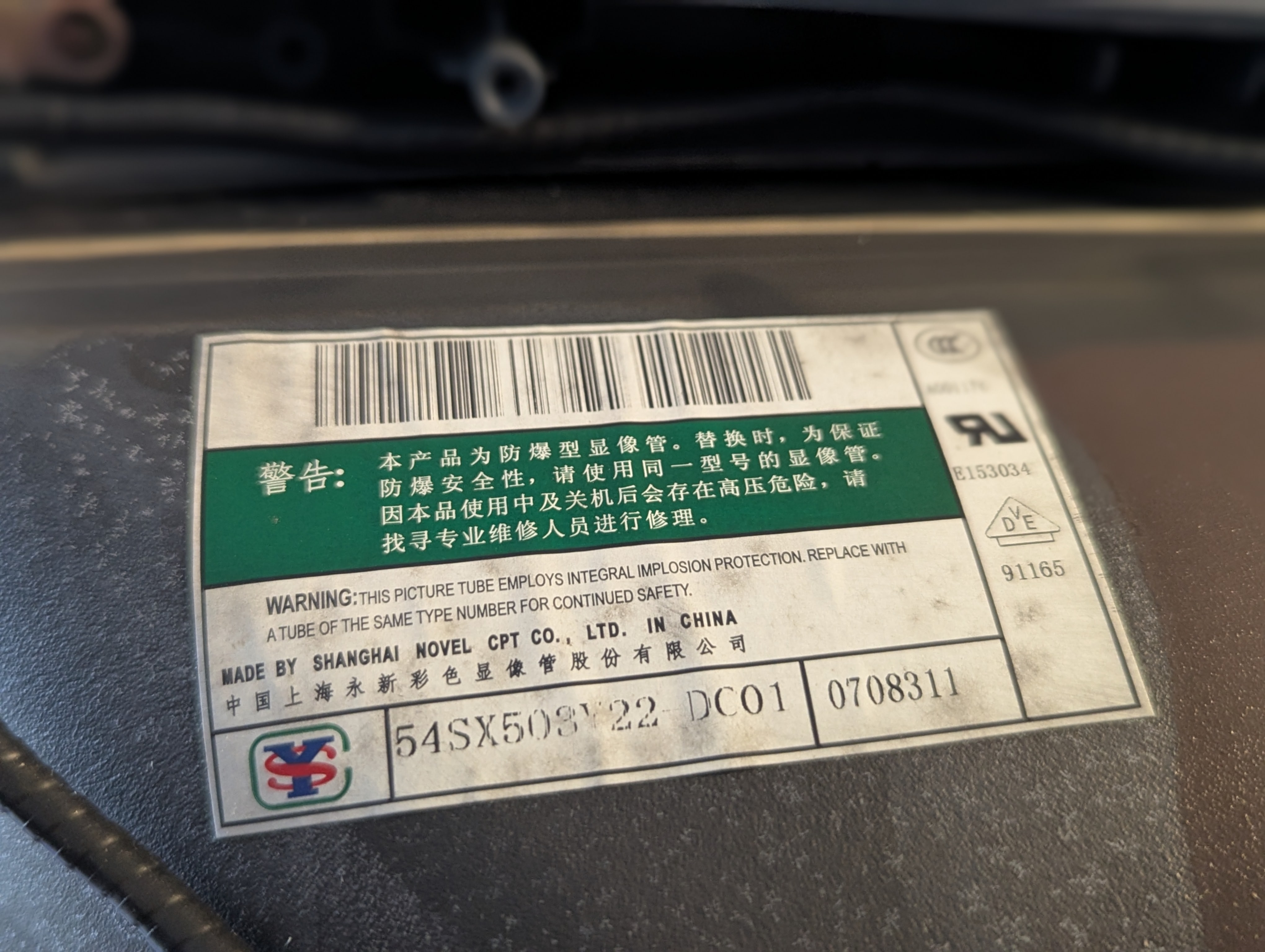

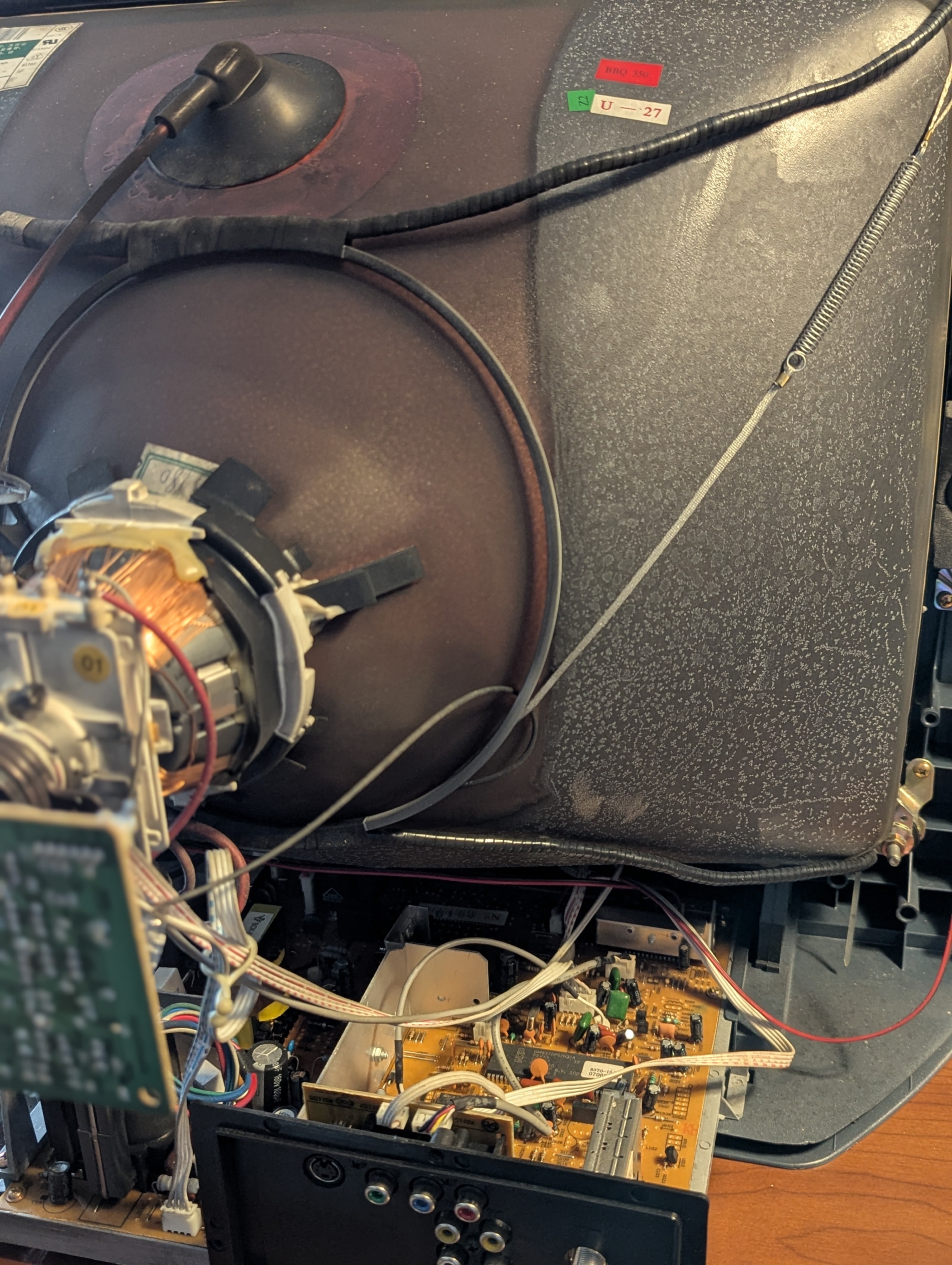

Tube: | 54SX503Y22-DC01 , Shanghai Novel |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

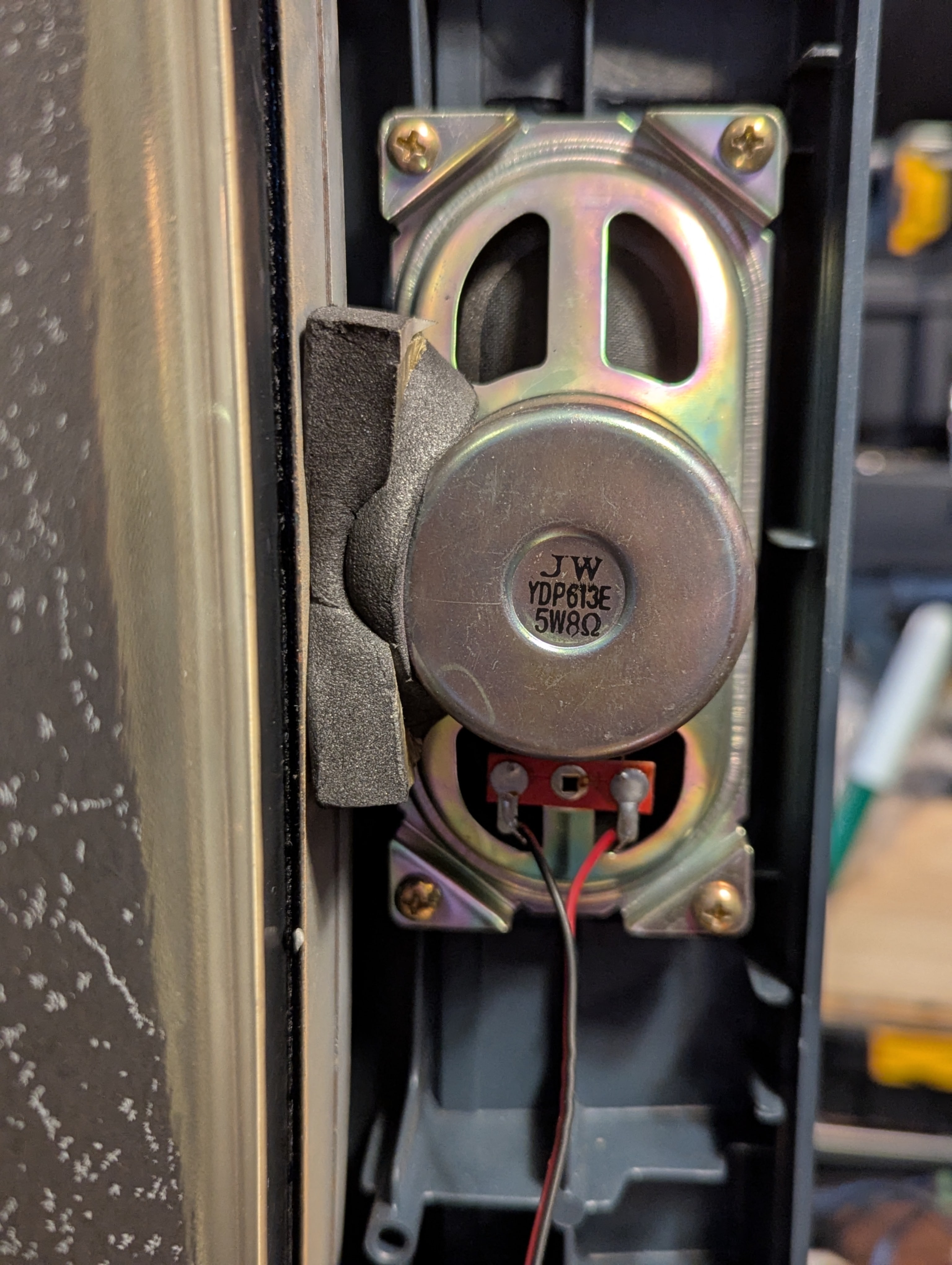

Speakers: | Stereo, 5W x 2 |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2007 |
Country of Manufacture: | China |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
