Summary

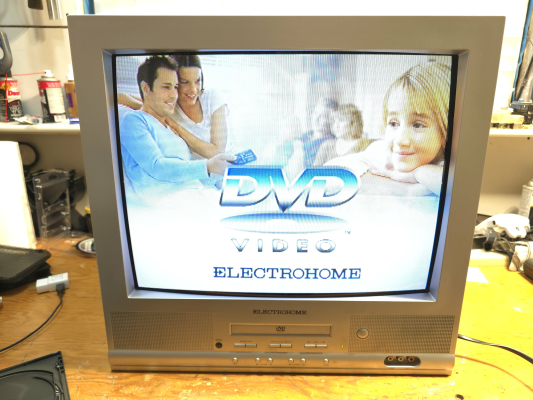

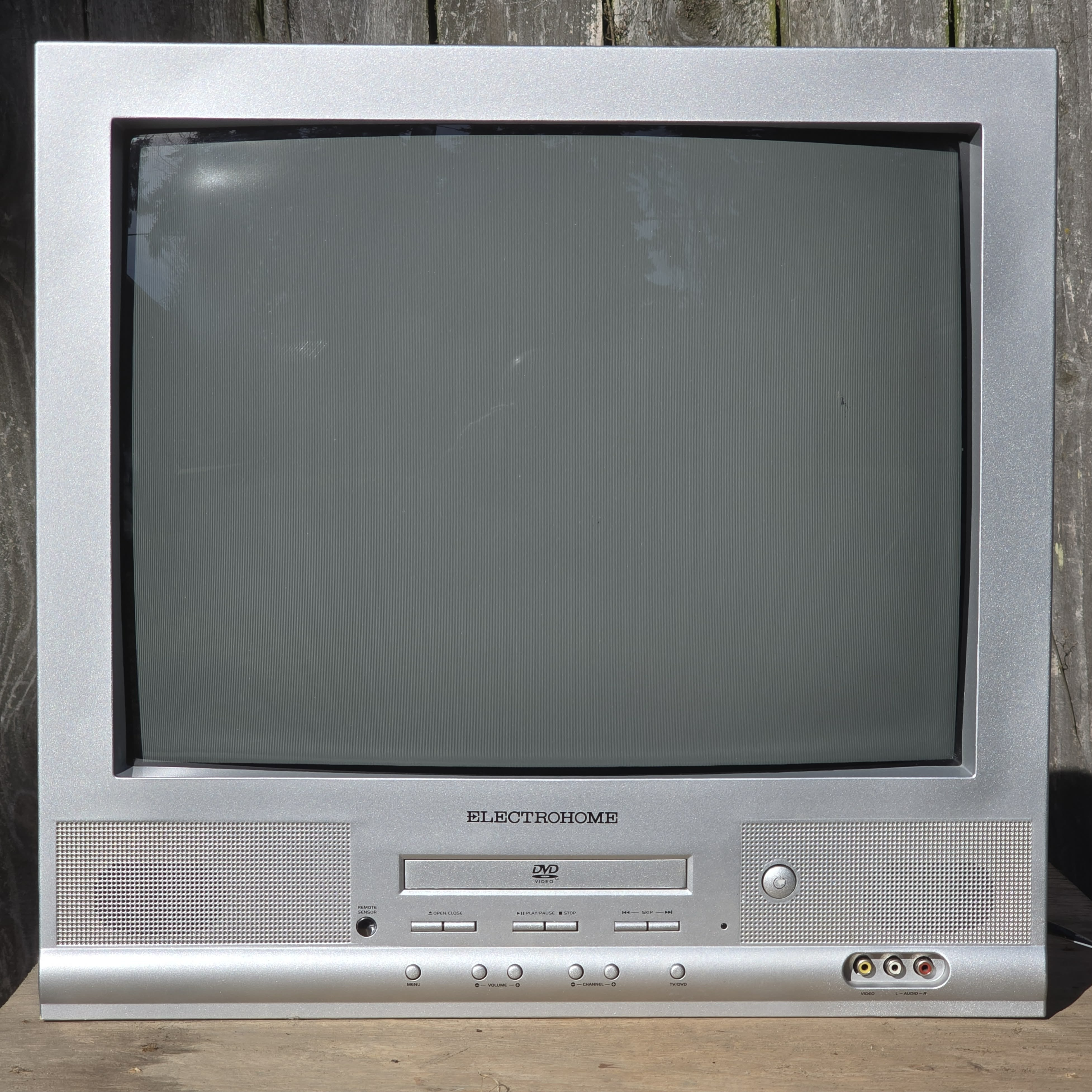

20" TV/DVD combo CRT by Electrohome, sold in Canada in 2005. Originally manufactured by Haier in China. Has RF and composite input with stereo sound. Also has digital audio output.
(Special thanks to Gary Marven for the pics!)
Manuals
Notes
Despite best composite at best, it is possible to mod this set for analog RGB.
Gallery
| Specifications | |
|---|---|
| Brand: | Electrohome |
| Manufacturer: | Haier |
| Model: | 20ED200V |
| Series: | TV/DVD Combo |
| Viewable Size: | 20" |

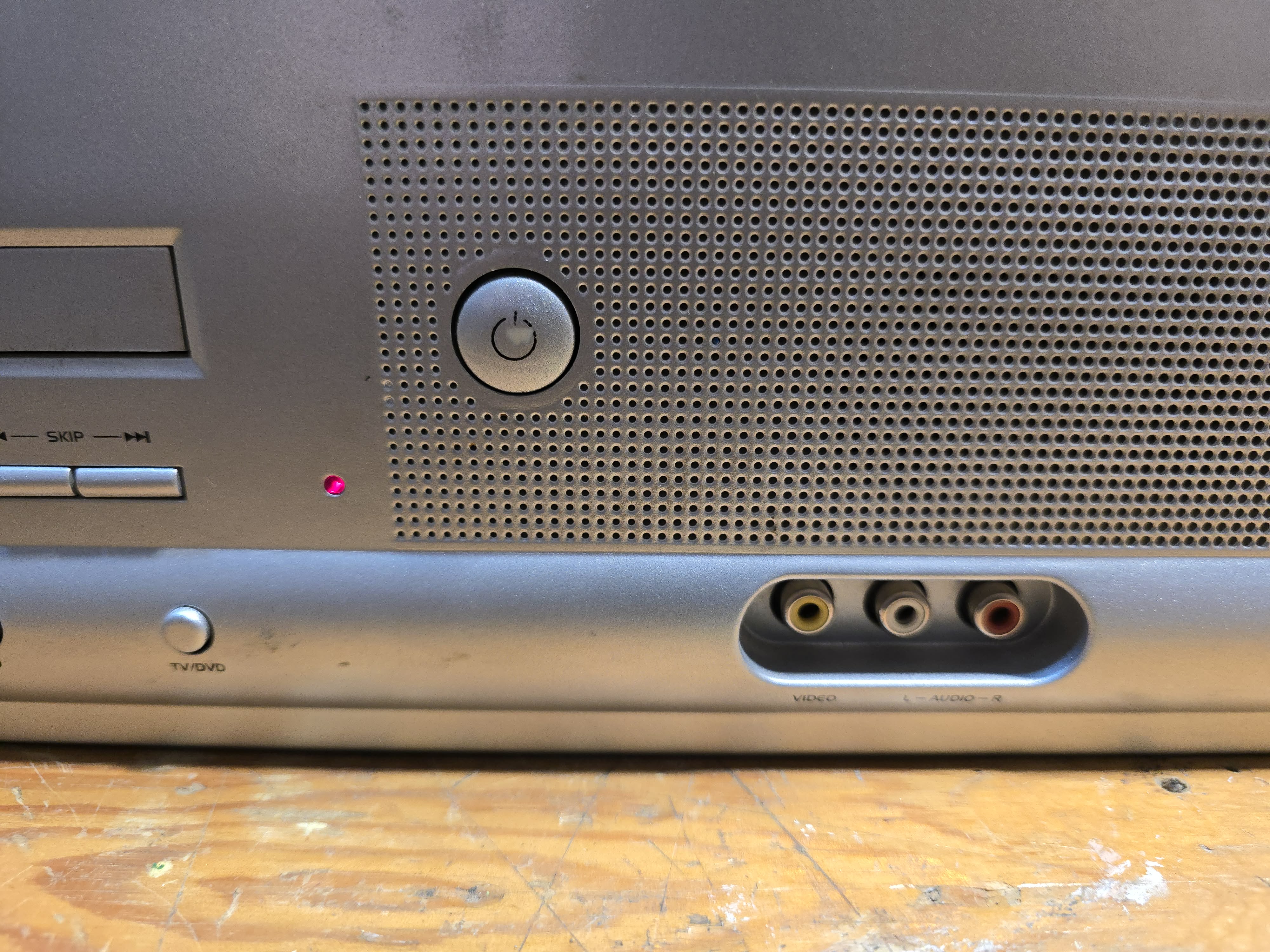

| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Philips, OM8377, TDA8377 |

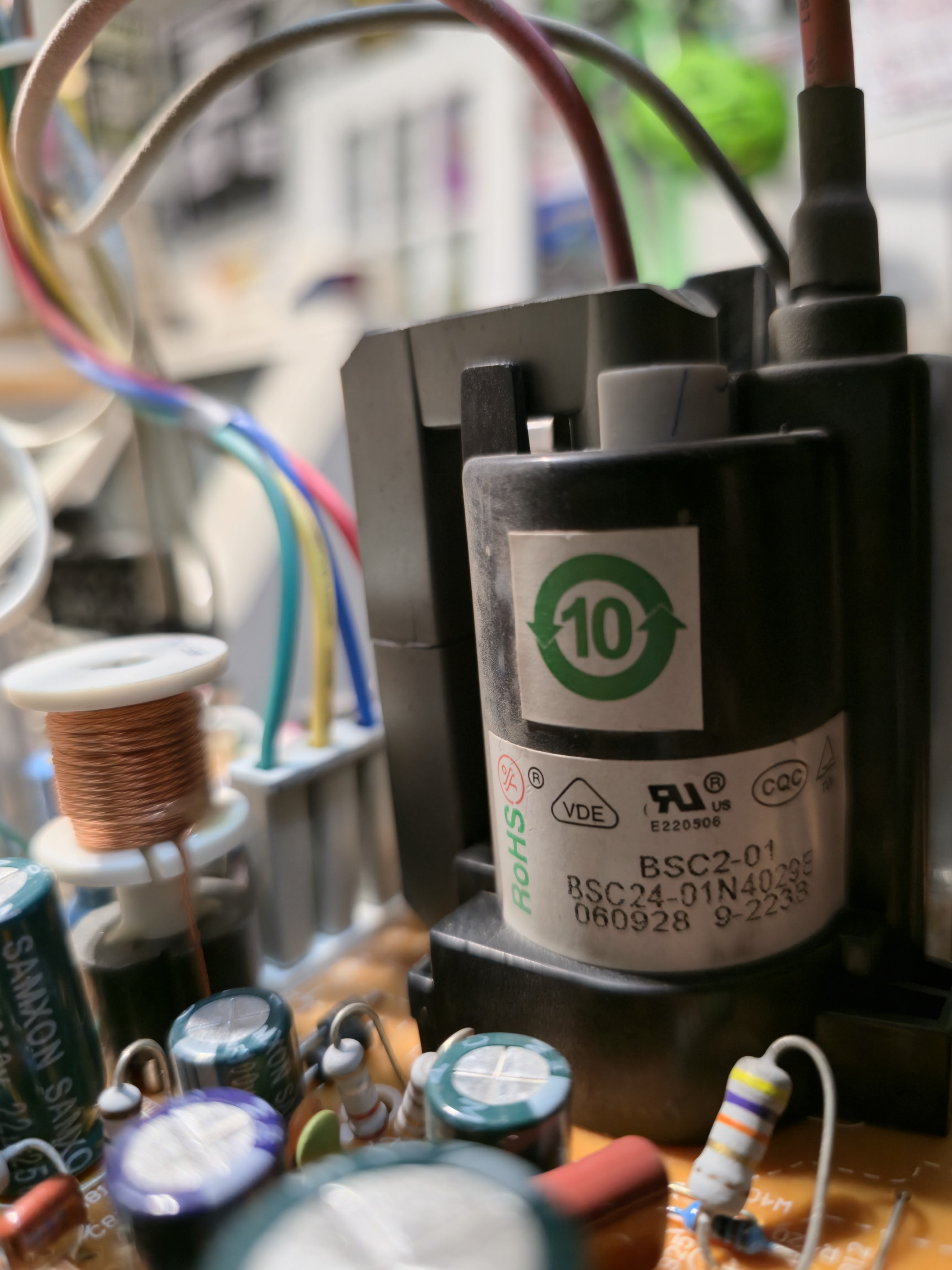

| Flyback: | BSC24-01N4029E, BSC2-01 |
| Focus Type: | Single |

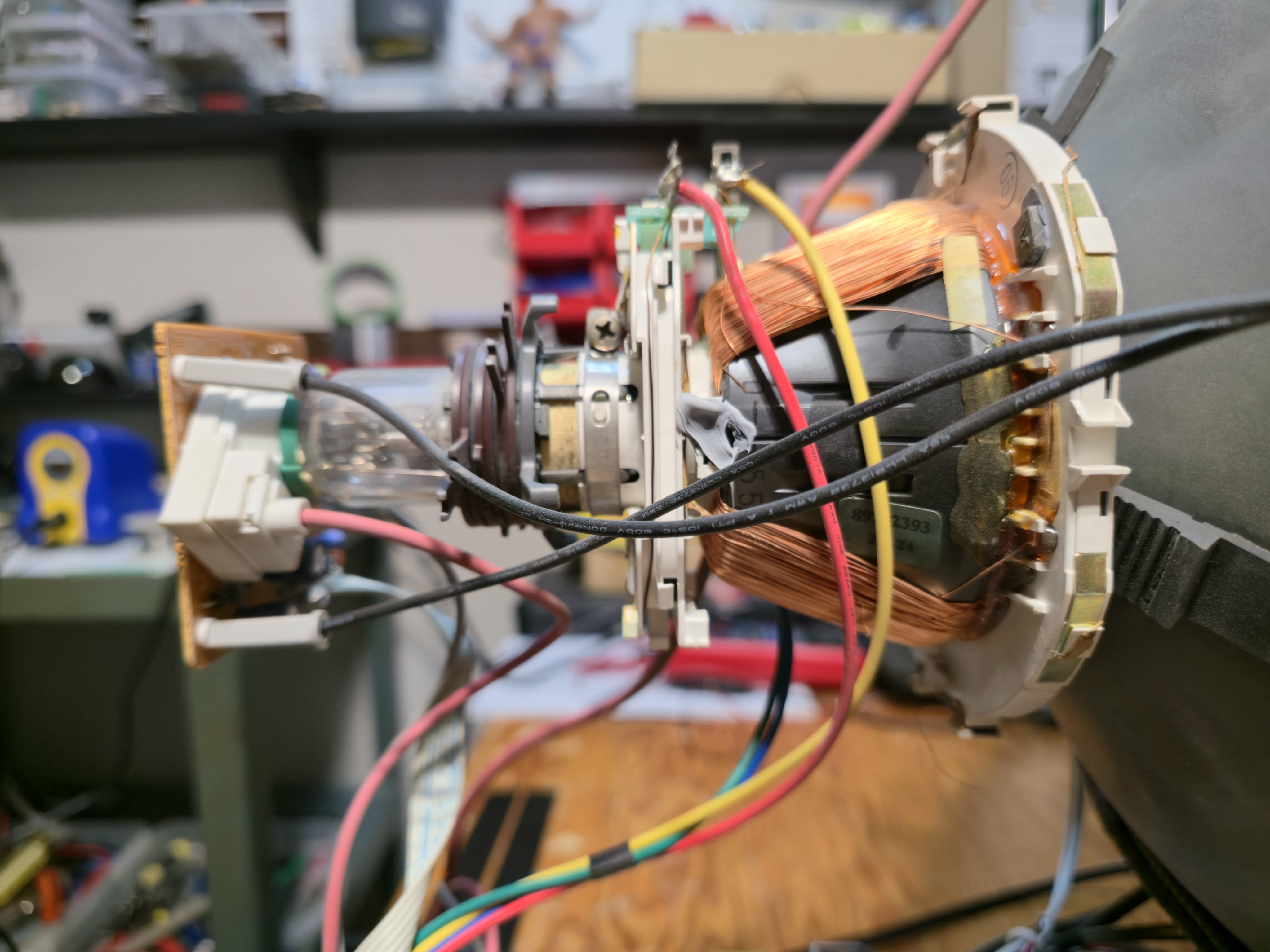

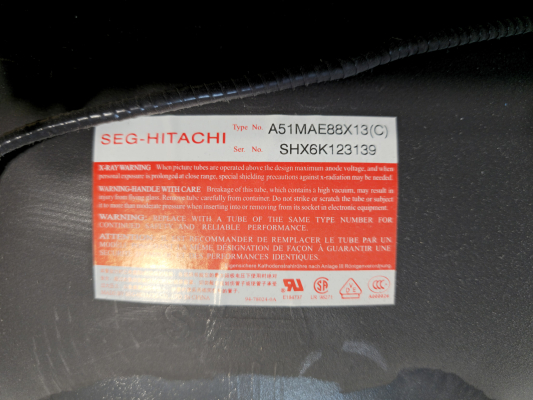

| Tube: | SEG-Hitachi , A51MAE88X , A51MAE88X13 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

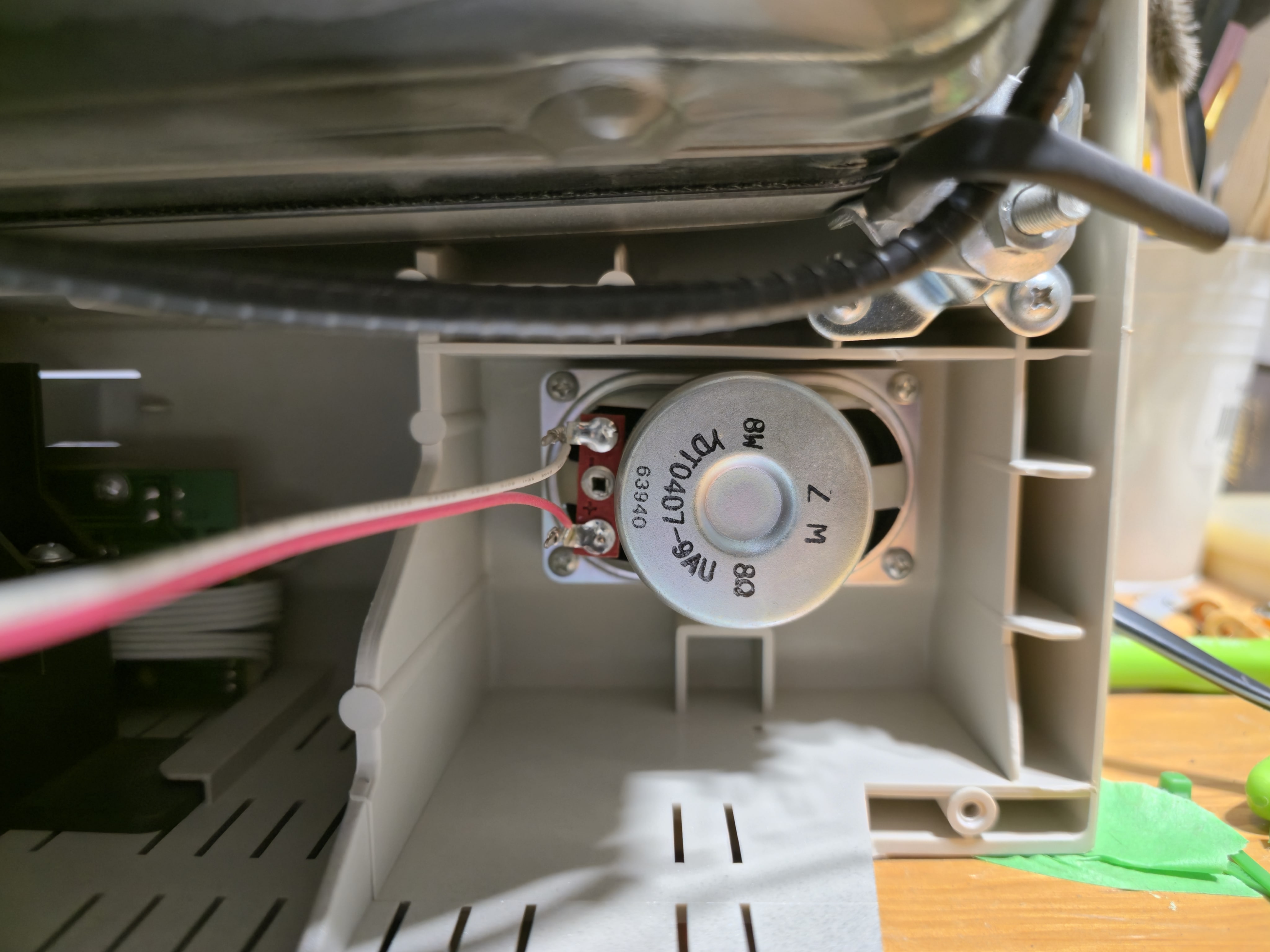

| Speakers: | Stereo, 2W x 2 |

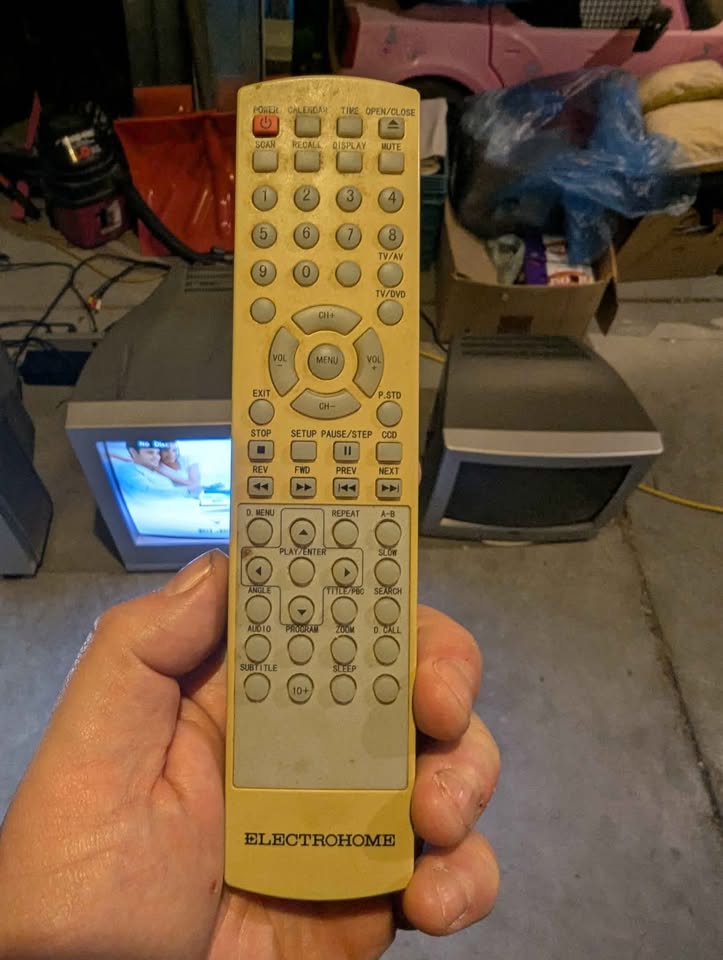

| Remote: | TV-1870-04 |
| Dimensions (W/H/D): |
500 x 485 x 480 mm
(19.7 x 19.1 x 18.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
