Electrohome 20ET201F

SegaSaturn94
February 17, 2026, 11:27 pm
February 18, 2026, 4:46 am

Summary

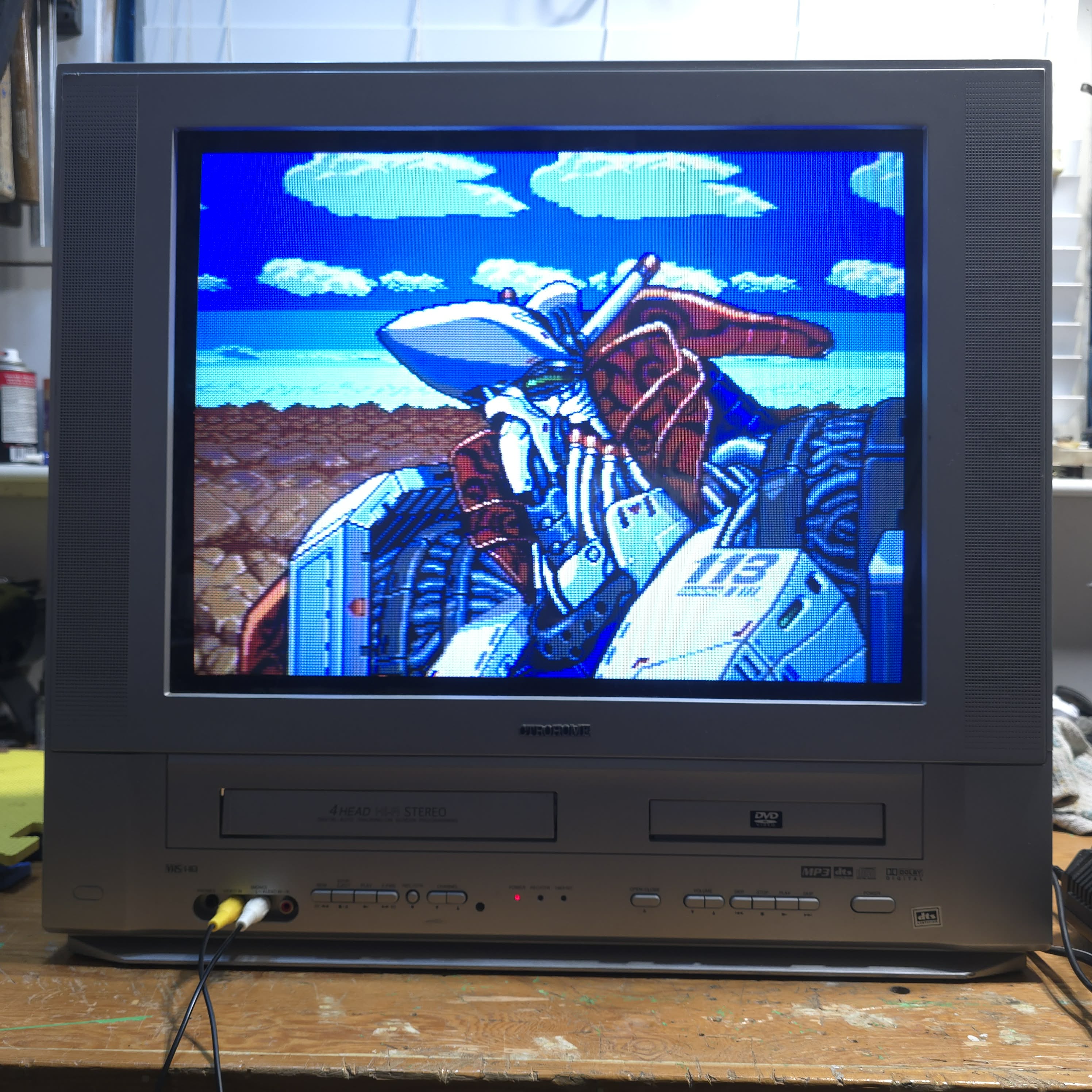

20" flat-tube VHS & DVD combo TV by Electrohome, made by Orion in Thailand in 2005. Has RF and composite inputs with stereo sound. (This set is a rebadge of the Orion FTDV2004B.)

(Special thanks to Gary Marven for the pics!)

Manuals

(None at this time.)

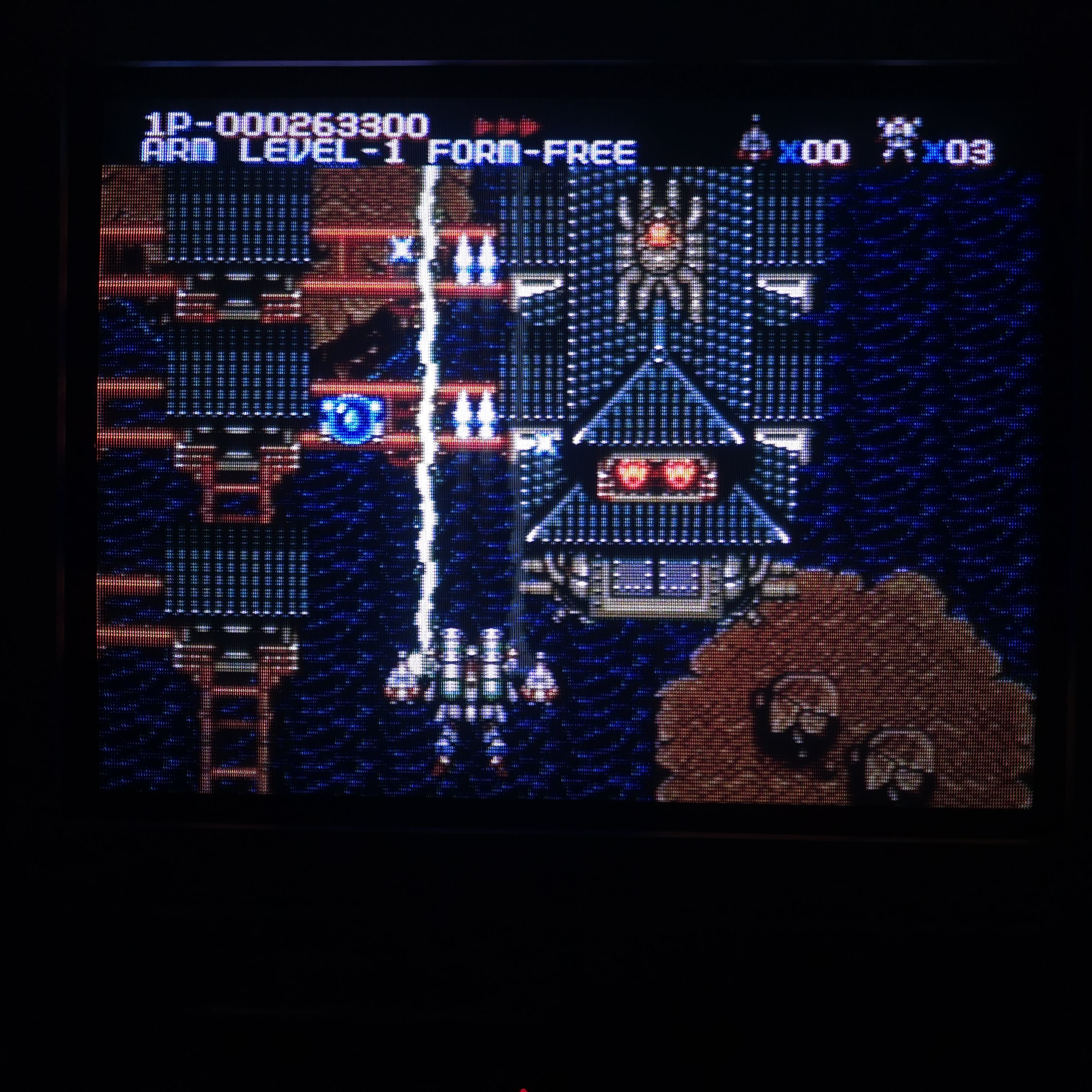

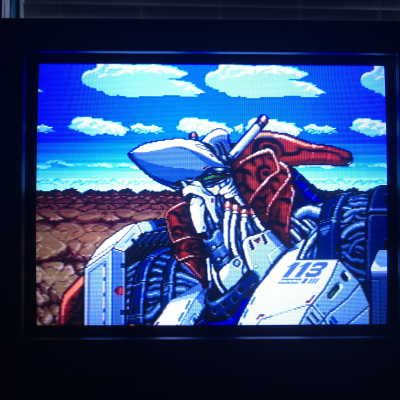

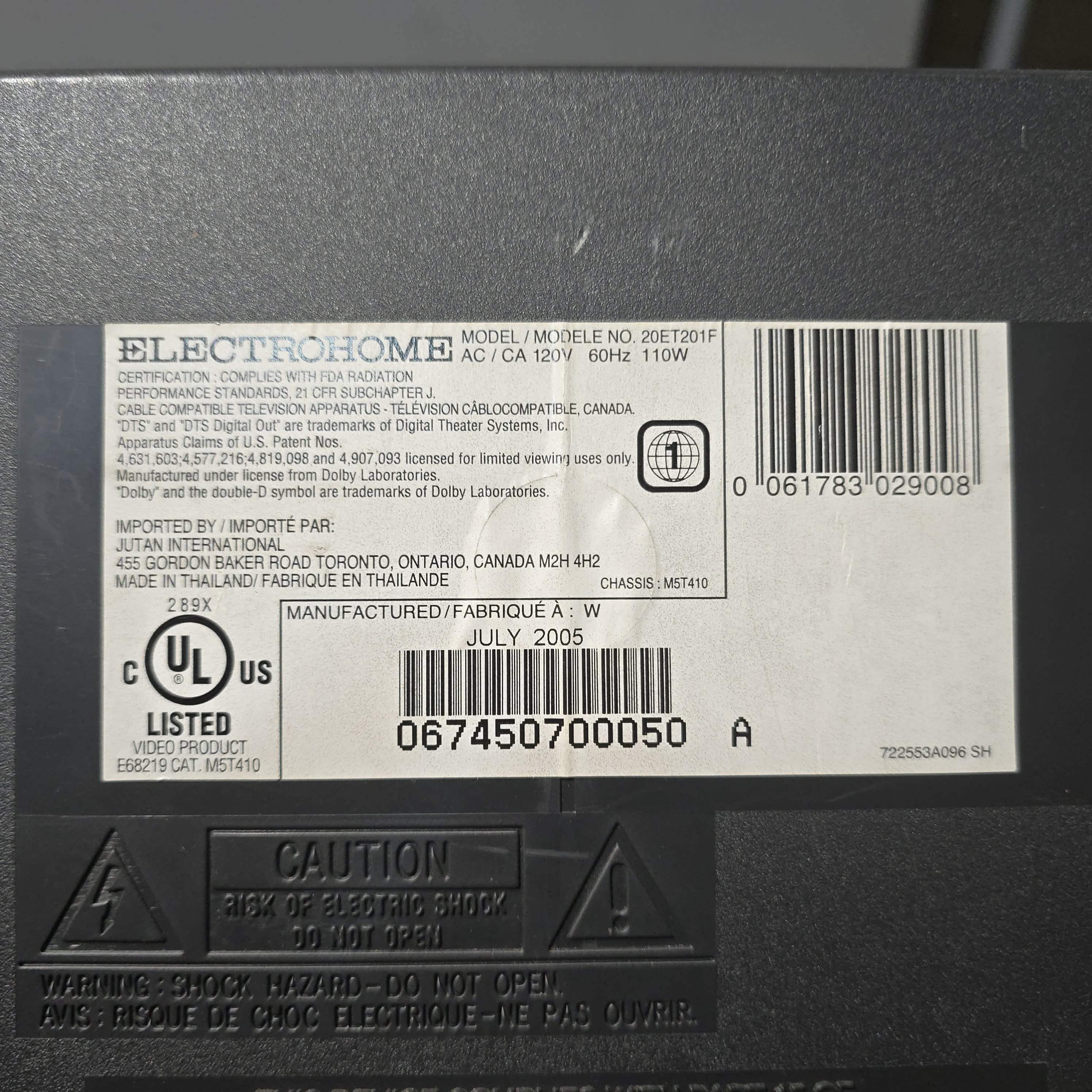

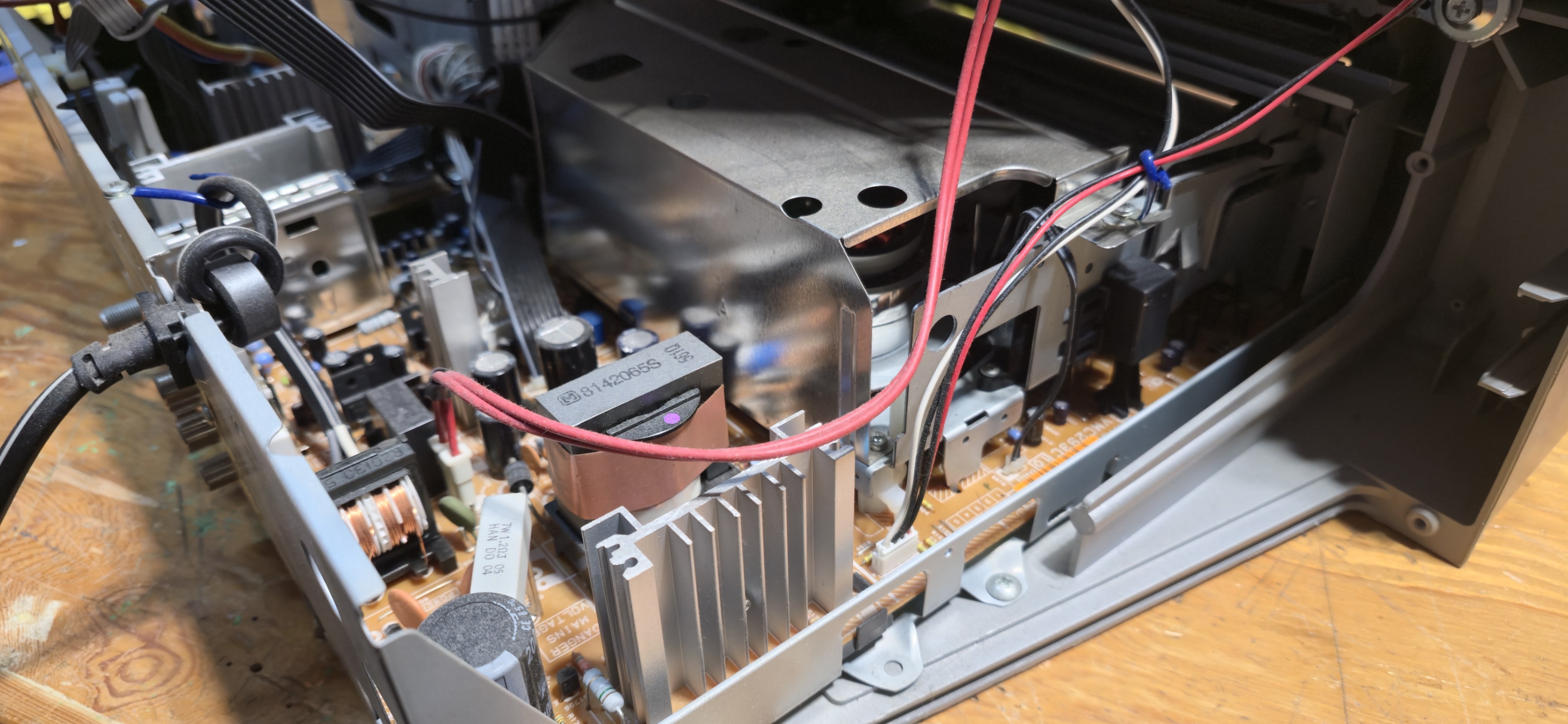

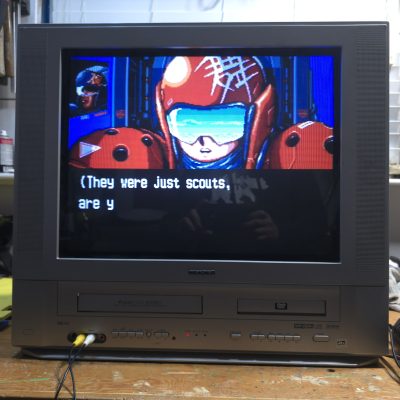

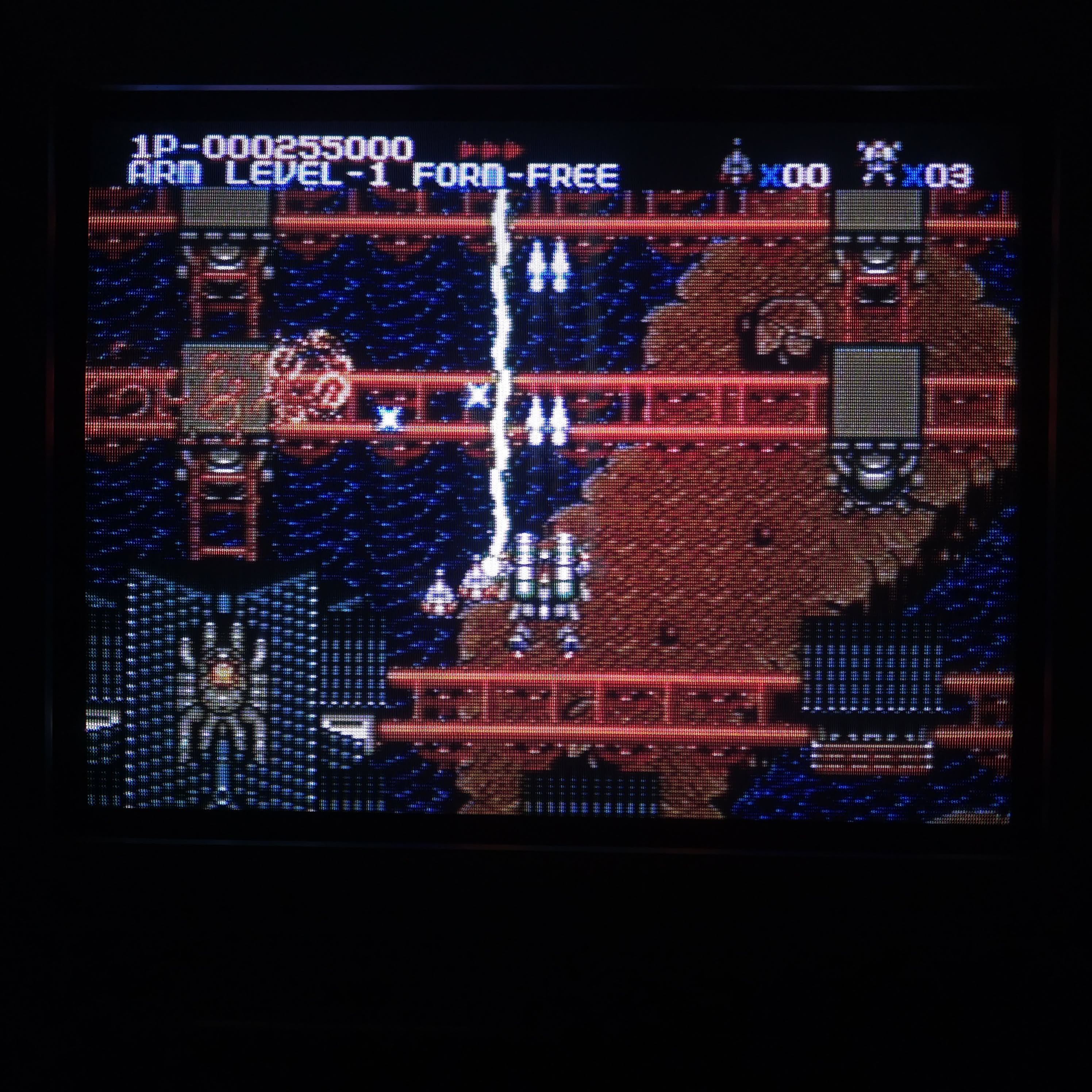

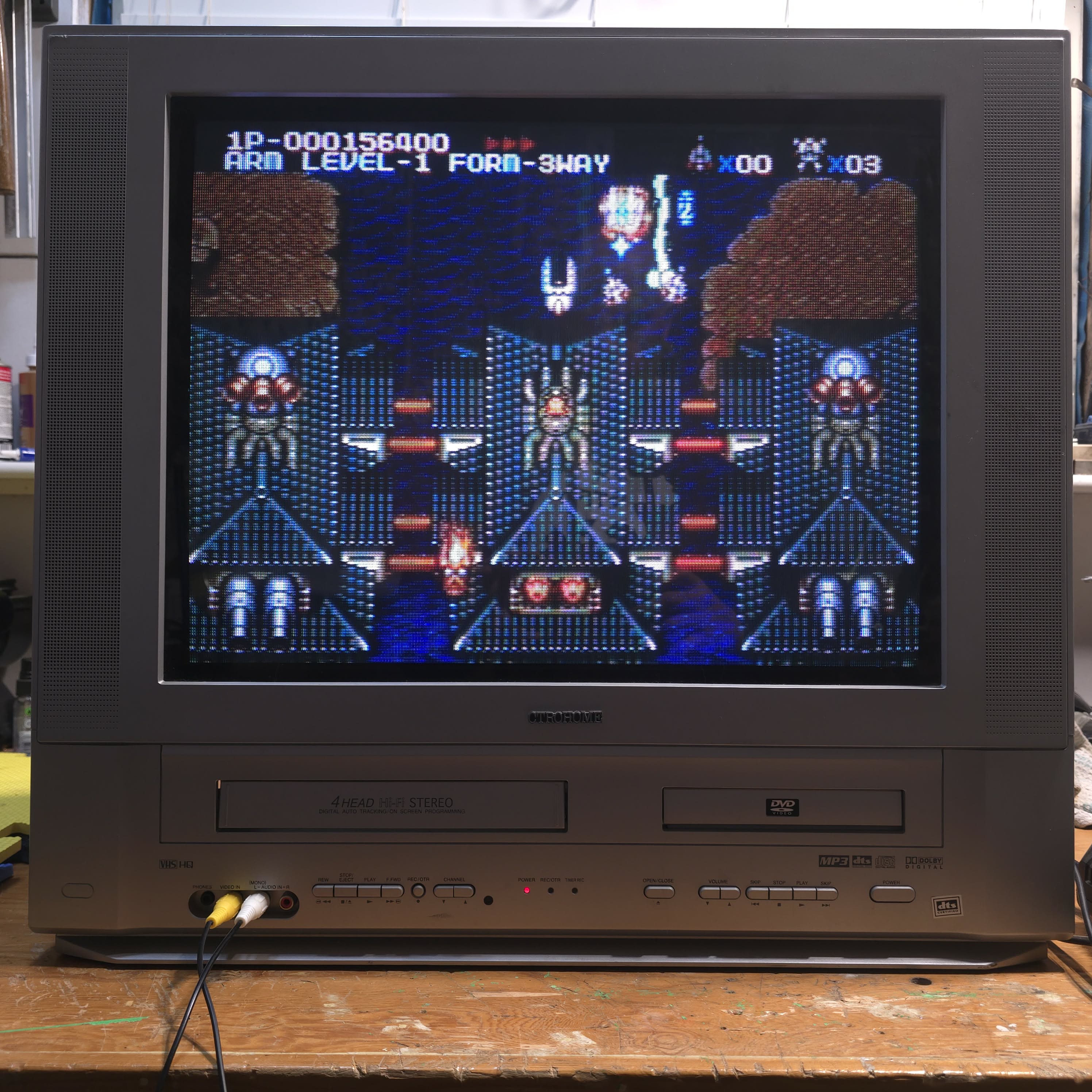

Gallery

Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F Electrohome 20ET201F
Specifications
Brand: Electrohome
Manufacturer: Orion (Japan)
Model: 20ET201F
Series: ET
Viewable Size: 20"
Input Signals: Composite, RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: OSD Customer Controls, OSD Service Menu
Jungle IC: Sanyo, LA76319NM-MPB-E

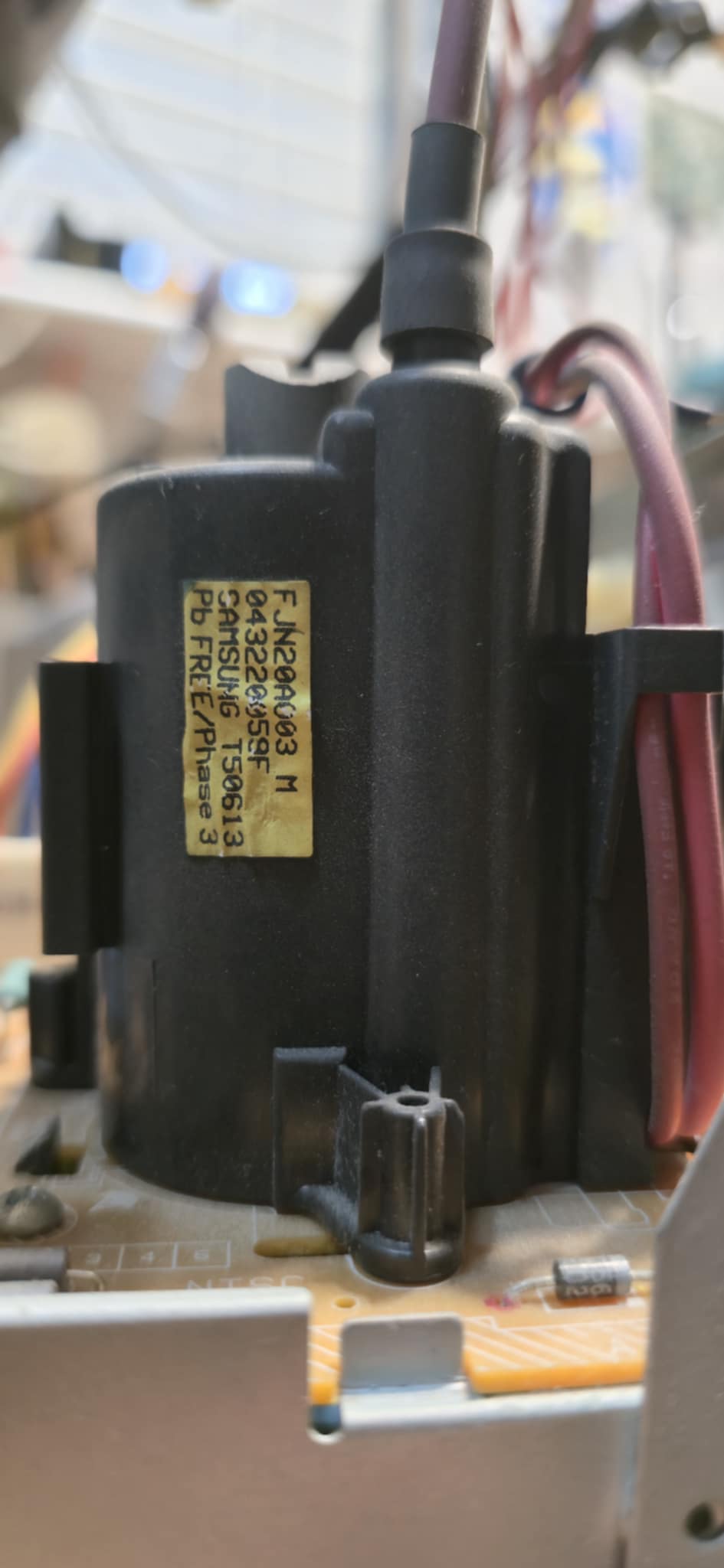

Flyback: FJN20A003_M
Focus Type: Single

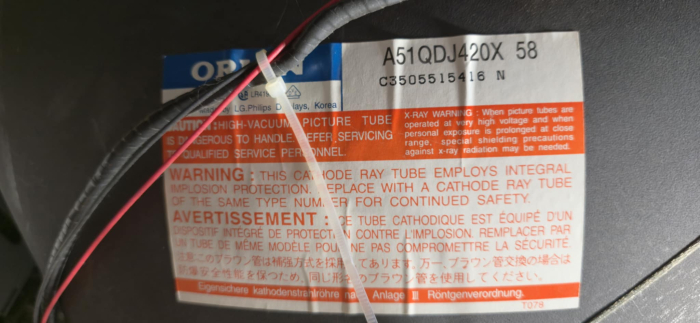

Tube: LG.Philips , A51QDJ420X , A51QDJ420X58
Heater Voltage: 6.3v
Mask: Slot
Tint: Dark

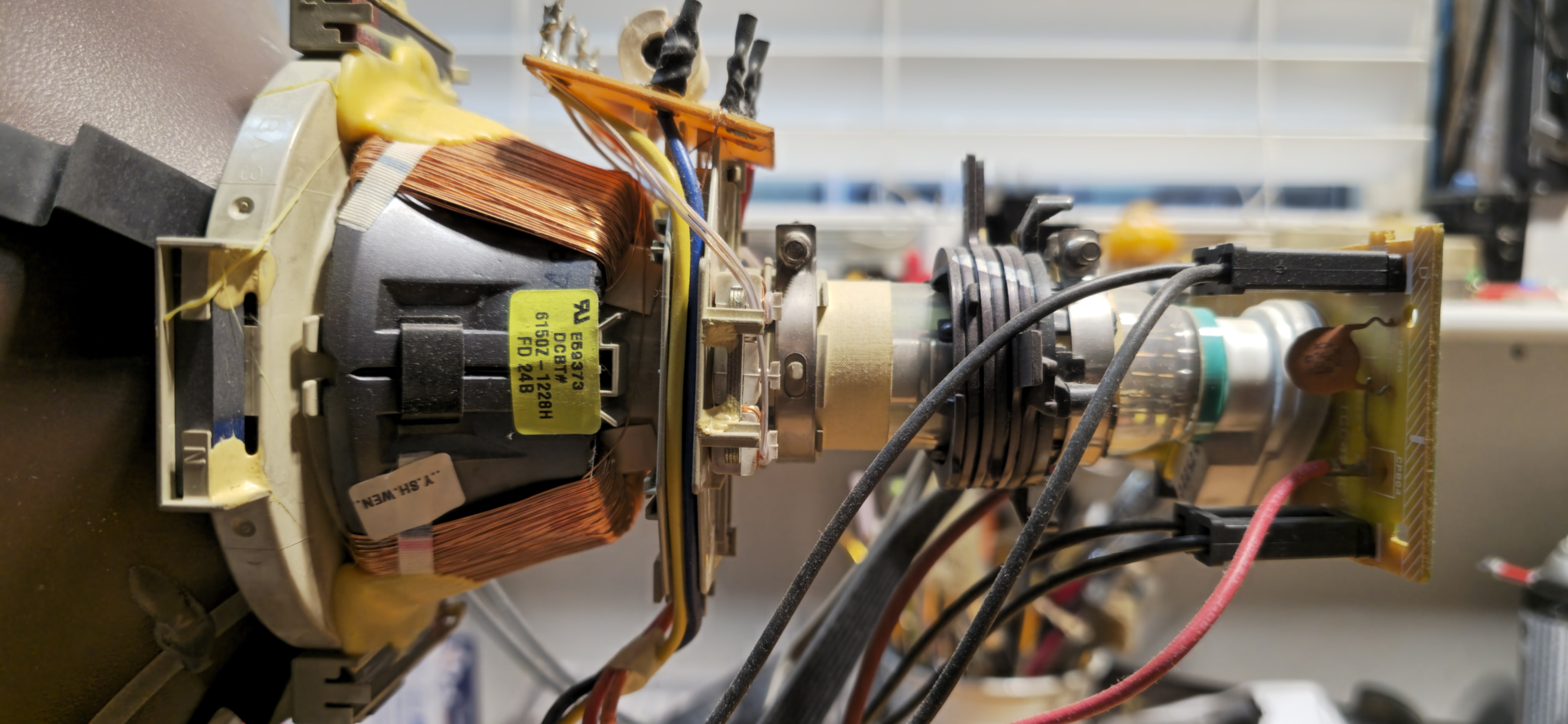

Yoke: 6150Z-1228H

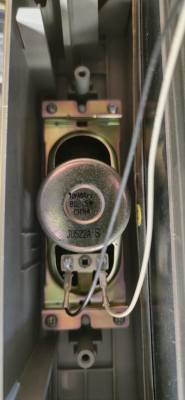

Speakers: Stereo, Headphone Jack, 5W x 2
Chassis: M5T410
Application: Consumer
Cabinet Material: Plastic
Launched: 2005
Country of Manufacture: Thailand
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual, Needs Measurements
